Consi Studio

Consi Studio PCB-mount Stabilizers V3

$15.00 USD
$15.00 USD
Title
Quantity
Title
Title

📦

In stock

Ships out in 1-3 business days

✉️

CAN NOT ship by Lettermail within Canada

The packaging exceeds Lettermail specifications

🙋

Pickup in Scarborough, ON, Canada

Wednesdays & Sundays. Click here for more info

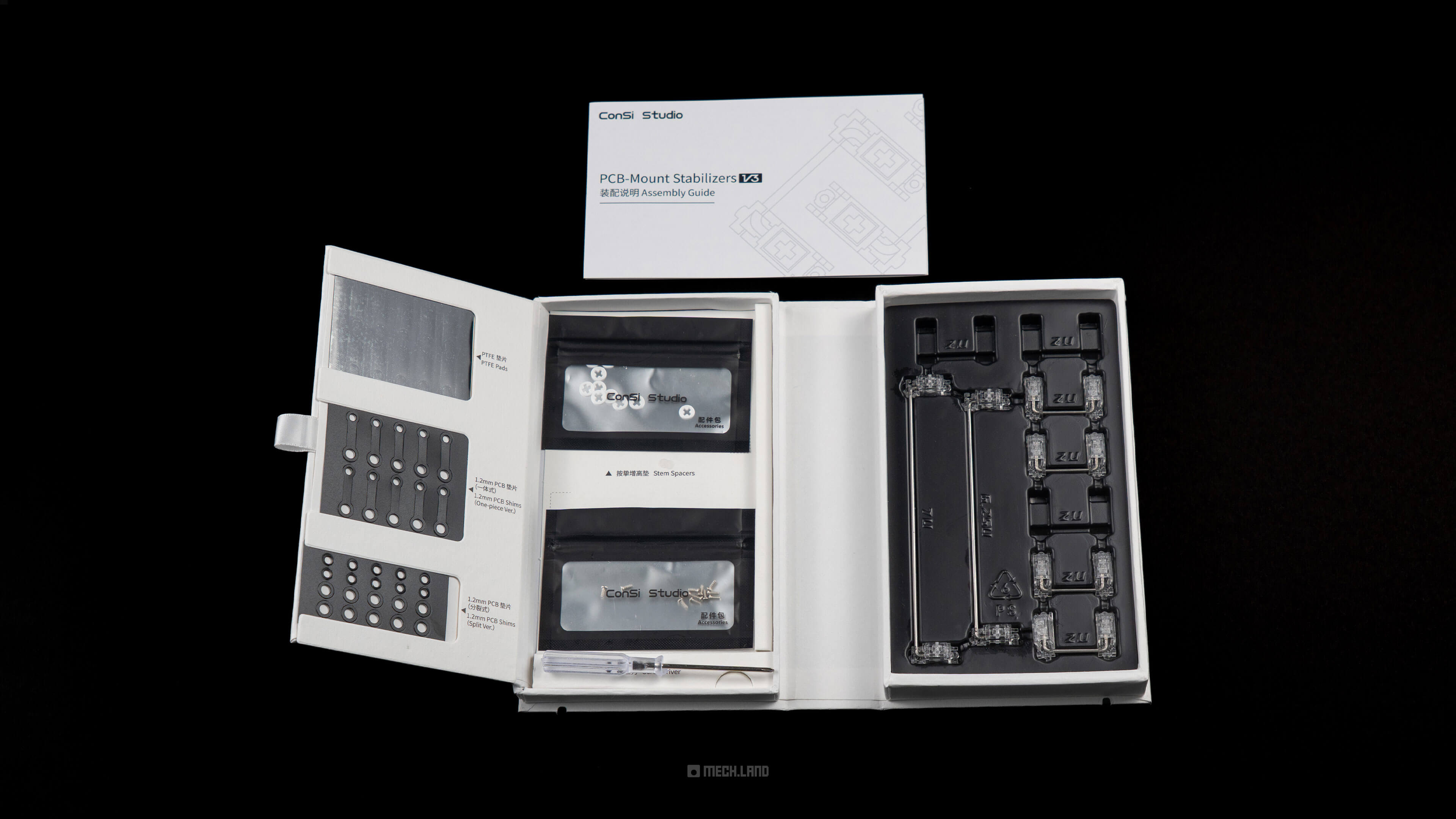

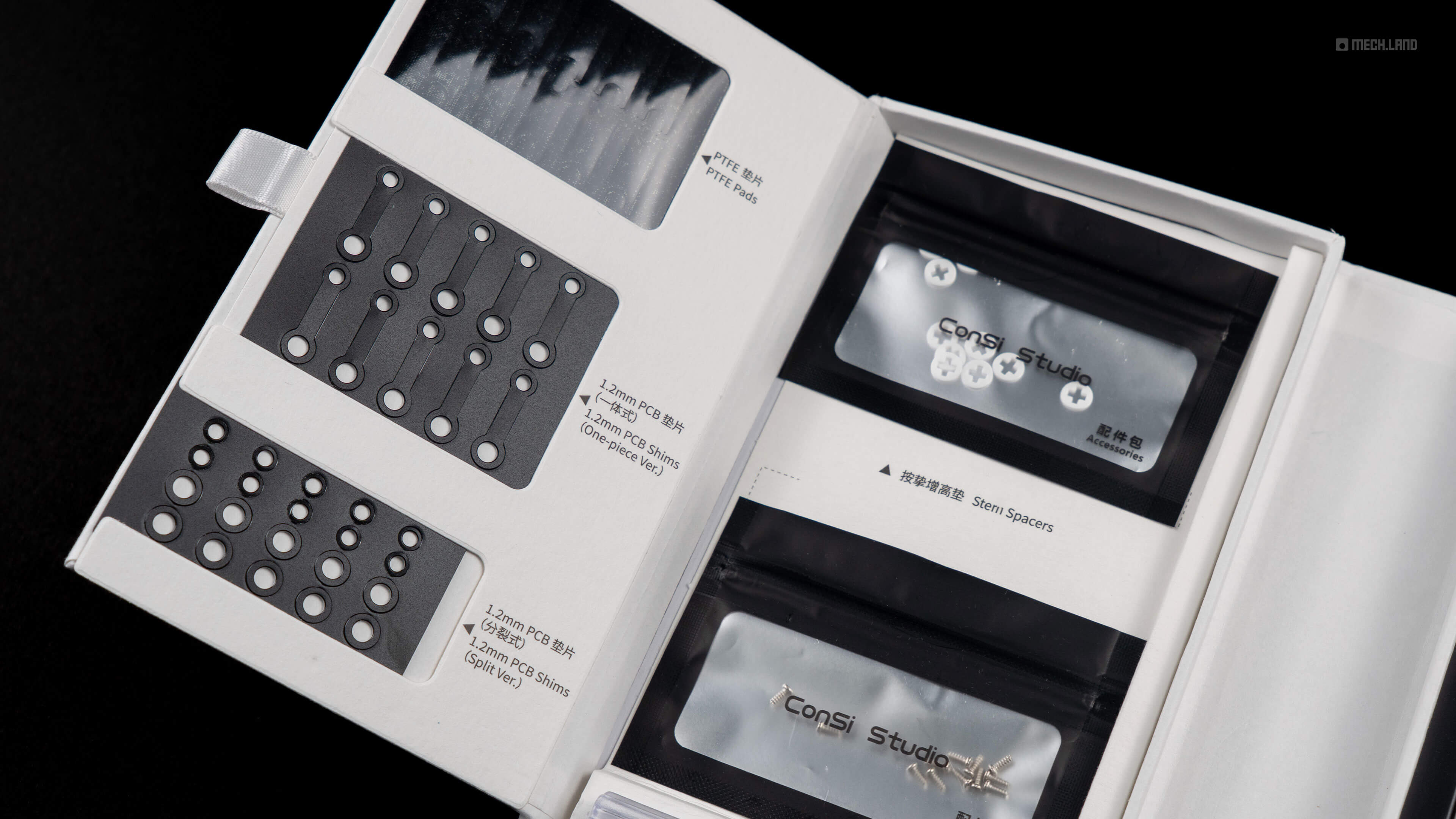

Included Accessories

Title

 A  PTFE Stabilizer Pads: Improves mounting stability.

 B  1.2mm PCB shims: For 1.2mm PCBs with non-split stabilized key layouts

 C  1.2mm PCB shims for split layouts: For 1.2mm PCBs with split stabilized key positions

 D  Stem spacers: For stabilized keys using switches with a total travel of 3.6mm or less

 E  Screws

 F  Installation screwdriver

SPECIFICATIONS

Title

PCB Compatibility: 1.6mm by default, 1.2mm with included shims

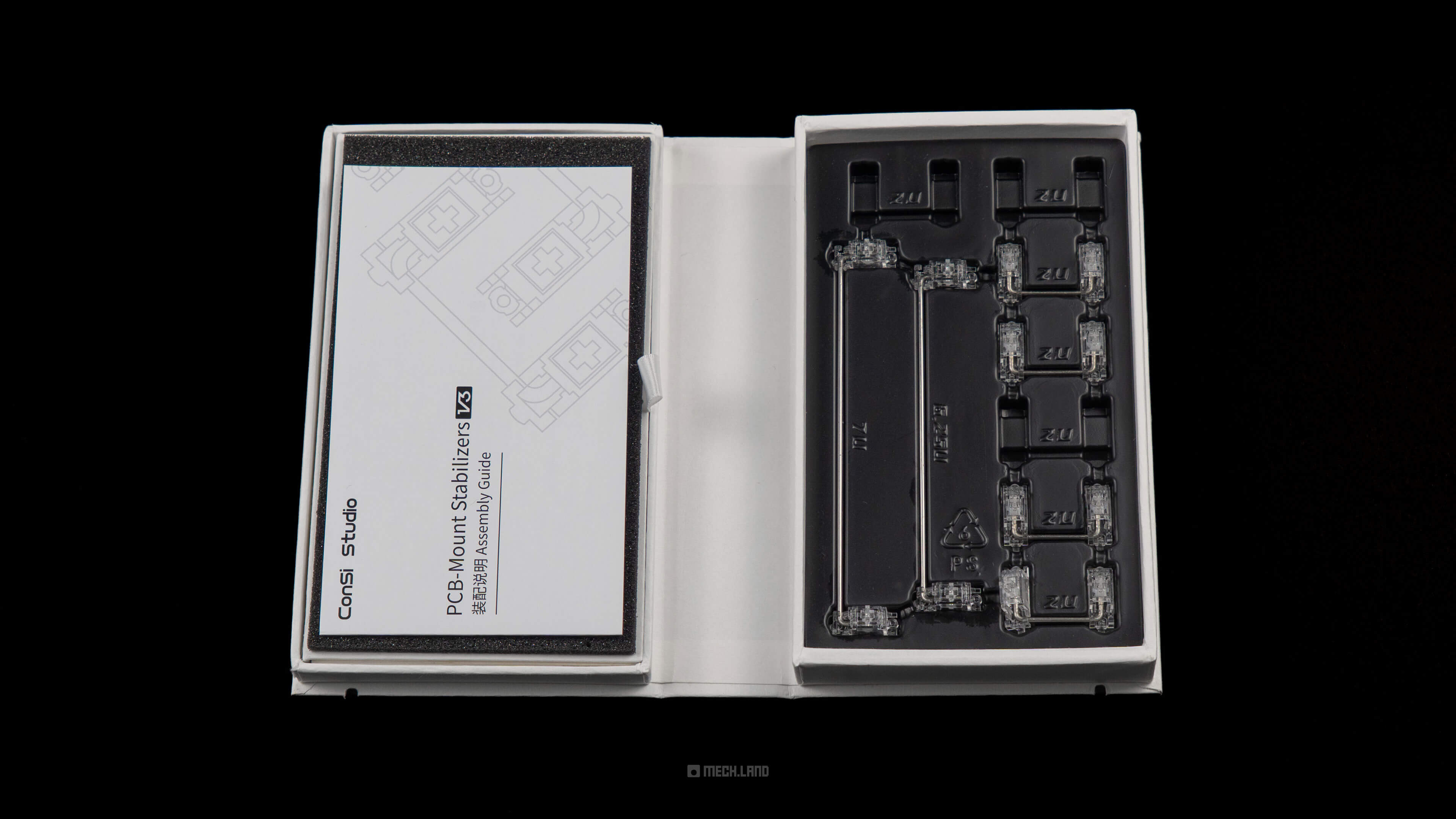

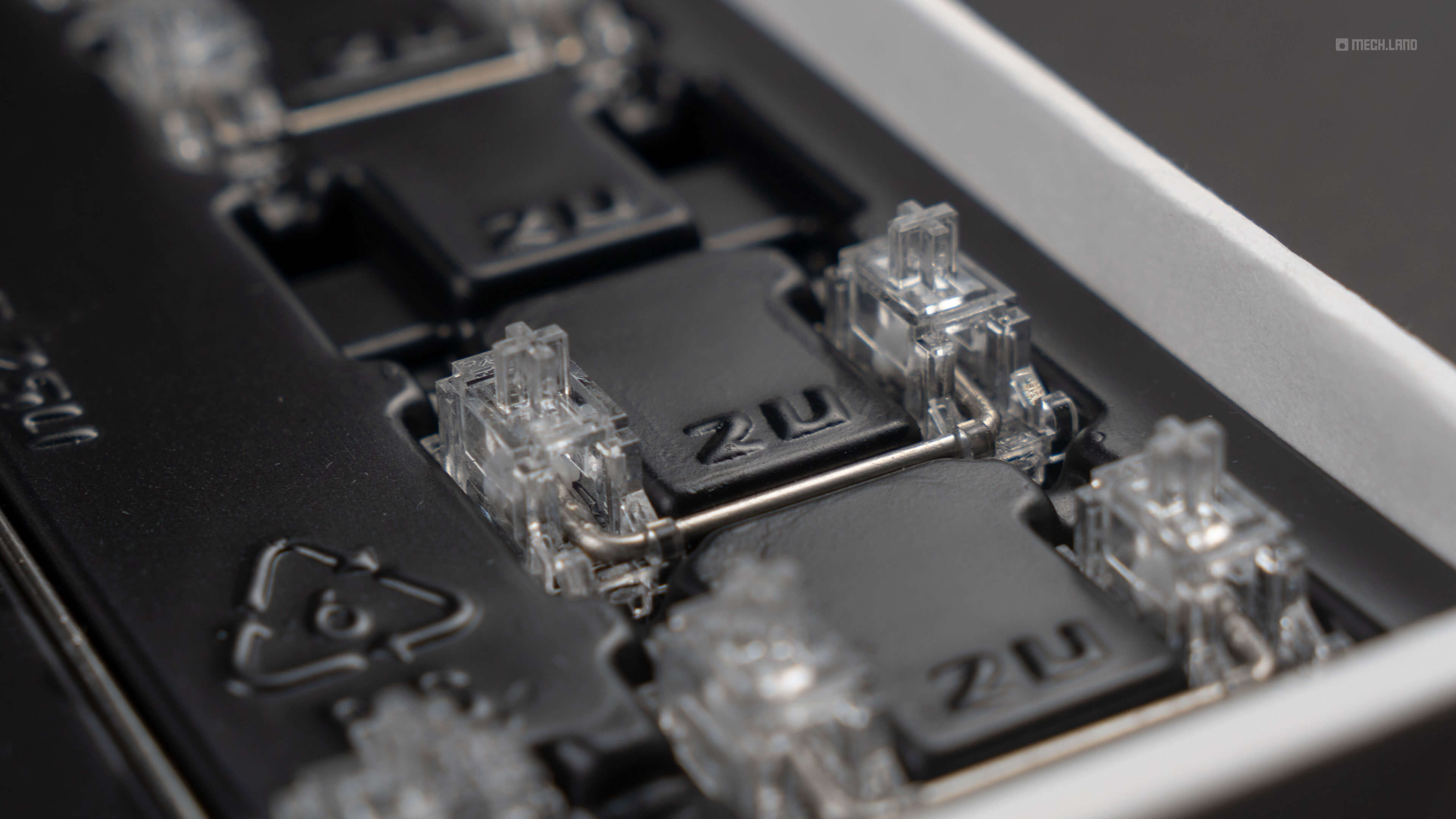

Included stabilizers: 4x 2u, 1x 6.25u, 1x 7u - both wire & housings.

Lubrication: Factory lubricated

Mount: PCB-mount

Style: Blend of clip-in and screw-in, while addressing the limitations of both through the use of top-access, screw-expansion retention clips. Compatible with o-ring mount boards!

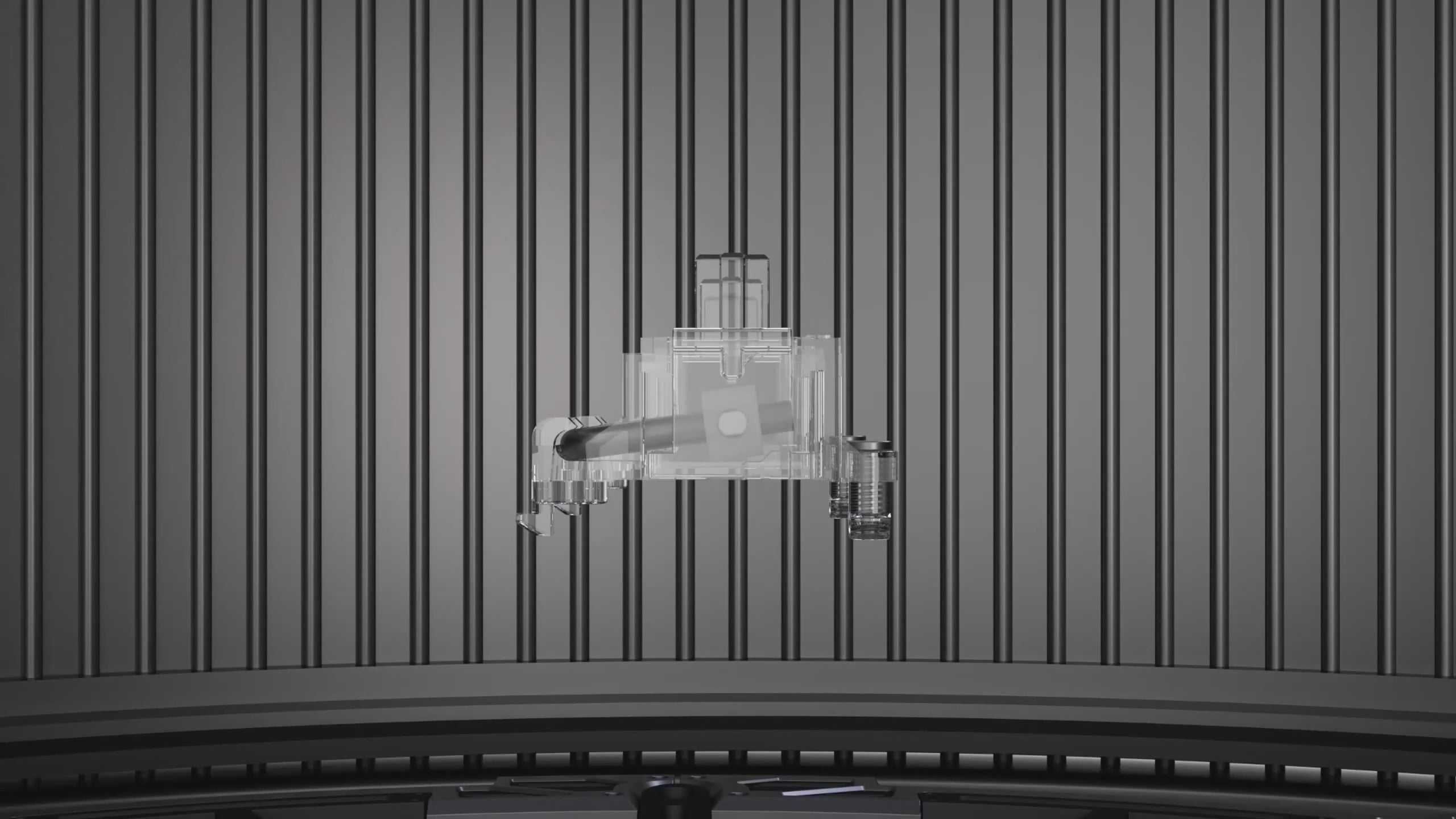

Slider-Crank Mechanism

Consi Studio proprietary patented mechanism

Structural Innovation: A variation of the slider-crank mechanism fundamentally reworks how motion is transferred within a conventional stabilizer.

Mechanism Optimization: The central slider rotates around the fixed pivot hole in the stabilizer stem, preventing direct impact between the plastic components and the stabilizer wire.

Improved Key Stability: Eliminates structural free play at its source, delivering a solid, stable, and consistent keystroke throughout the entire travel.

Title

All components within the mechanism are made from rigid materials, with no silicone or other soft structural components used. This avoids the mushy feel and sluggish travel response often associated with softer materials, delivering a crisp, well-defined bottom-out and a smooth, effortless keystroke experience.

Factory tuned & lubed

Ready to use, no tedious tuning required

Targeted Lubrication: Lubricant is precisely applied to key moving contact points, reducing inconsistencies in key feel caused by broad-area lubrication.

Factory Tuned: Every stabilizer is fully tuned and pre-lubed before packaging. Simply install and use—no additional tuning or lubrication required

Top-Entry Screw Design

Consi Studio proprietary patented mechanism

Clip-In + Top-Entry Screw Retention: A redesigned mounting system that combines ease of installation with secure retention.

Clip-In Pre-Positioning: The clip-in base simplifies initial installation, while the top-entry support screw provides a secondary locking mechanism to prevent the retention clip from disengaging.

Title

Expansion Retention Clip: With precisely controlled dimensions, the retention clip expands during installation to lock the stabilizer securely onto the PCB. No metal hardware comes into direct contact with the PCB, effectively reducing the risk of electrical shorts.

Custom High-Hardness Non-Magnetic Wire

Designed to eliminate the interference that conventional stabilizer wires may cause in high-precision Hall Effect keyboards, preventing issues such as false actuation and repeated keystrokes.

In-House Mold Design & Manufacturing

Designed with proprietary tooling and manufactured using high-precision molds. All genuine products feature the GSZ logo. Products without the GSZ mark or any official brand logo are counterfeit products.

High-Transparency Material

Optical-grade polishing, ultra-clear material

The entire mold cavity undergoes high-precision optical polishing to significantly improve light transmission through the stabilizer housing and stem.

Videos

Alt image

Installation guide

Alt image

Feature Video
