GDK Lab x Wuque Studio

DK1-60% Keyboard Kit

Name: DK1-60% Keyboard Kit
Brand: GDK Lab x Wuque Studio
Price: 249.0 USD
Availability: OutOfStock

$249.00 USD

Title

Top Case

Black

Cyan Glaze

Phantom Blue

Layout

HHKB

Bottom Case

Brass (Black Glitter)

Brass (Light Grey)

All DK1-60% in-stock kits on this page come with a PC plate, a PEI plate & an Aluminum Marlblano weight matching the top case.

Quantity

Pickup available in Scarborough, ON, Canada. Click here for more info

Usually ready in 1-3 days

Highlights

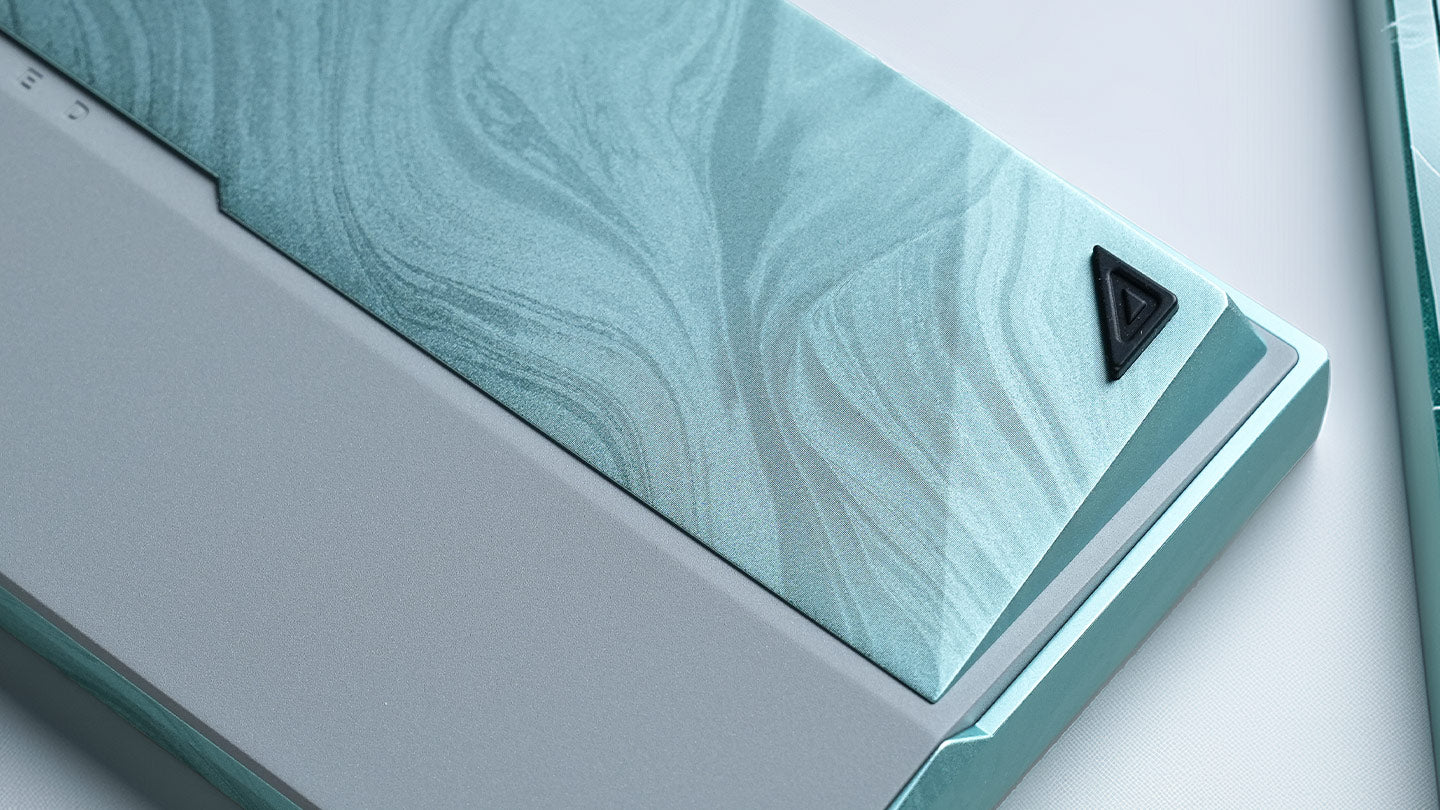

Marblano finish

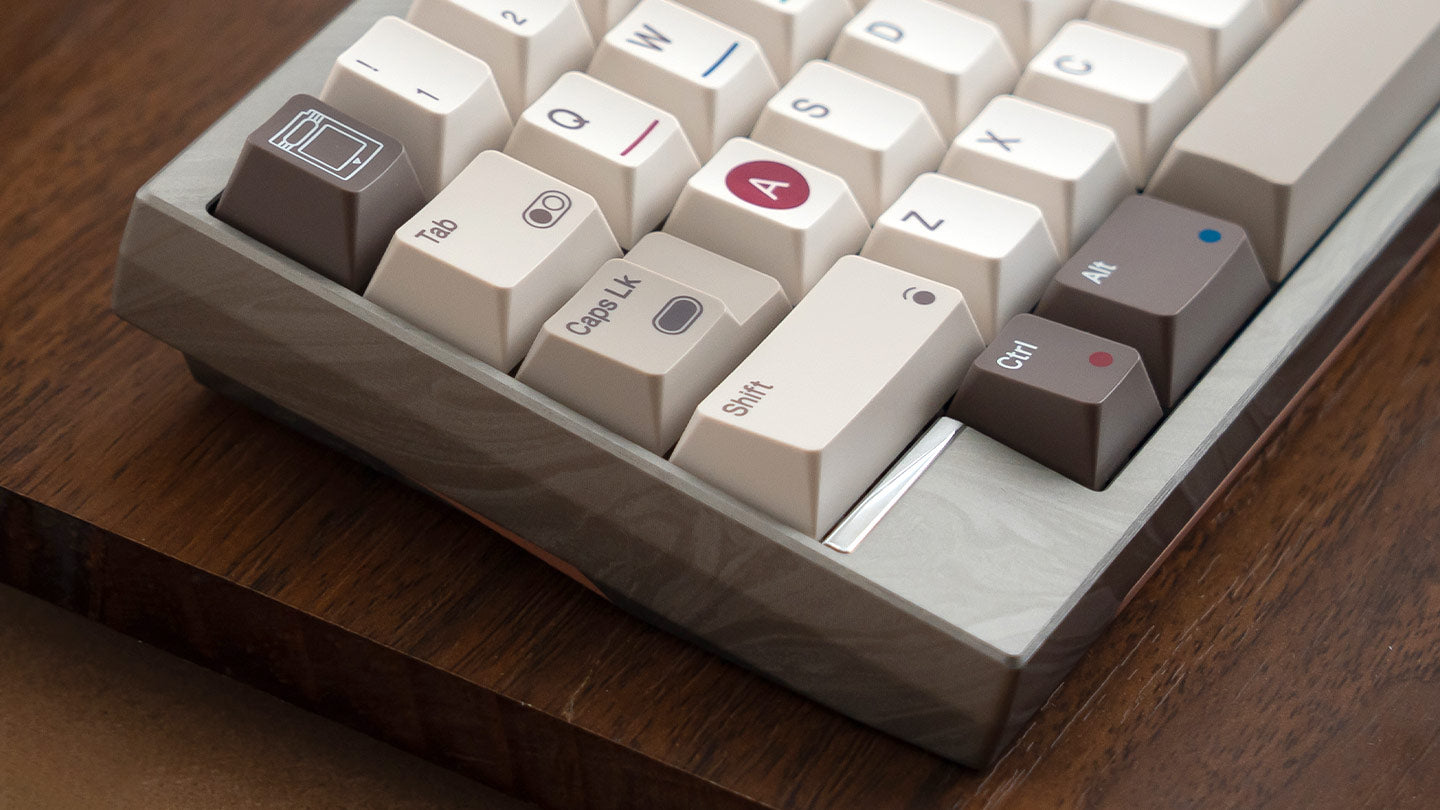

DK1-60% features a mesmerizing Marblano finish, an innovative process that transforms anodized aluminum to look just like genuine marble. Each board is a unique work of art, with natural-looking swirls and veins that give it the timeless elegance of real stone.

Full Copper / Brass bottom case

For the ultimate acoustic experience, the DK1-60% features a full copper or brass bottom case. This substantial bottom case ensures a deep, rich sound profile, regardless of your choice of external weight. You can even choose from three different finishes for the brass option, allowing you to perfectly match your aesthetic.

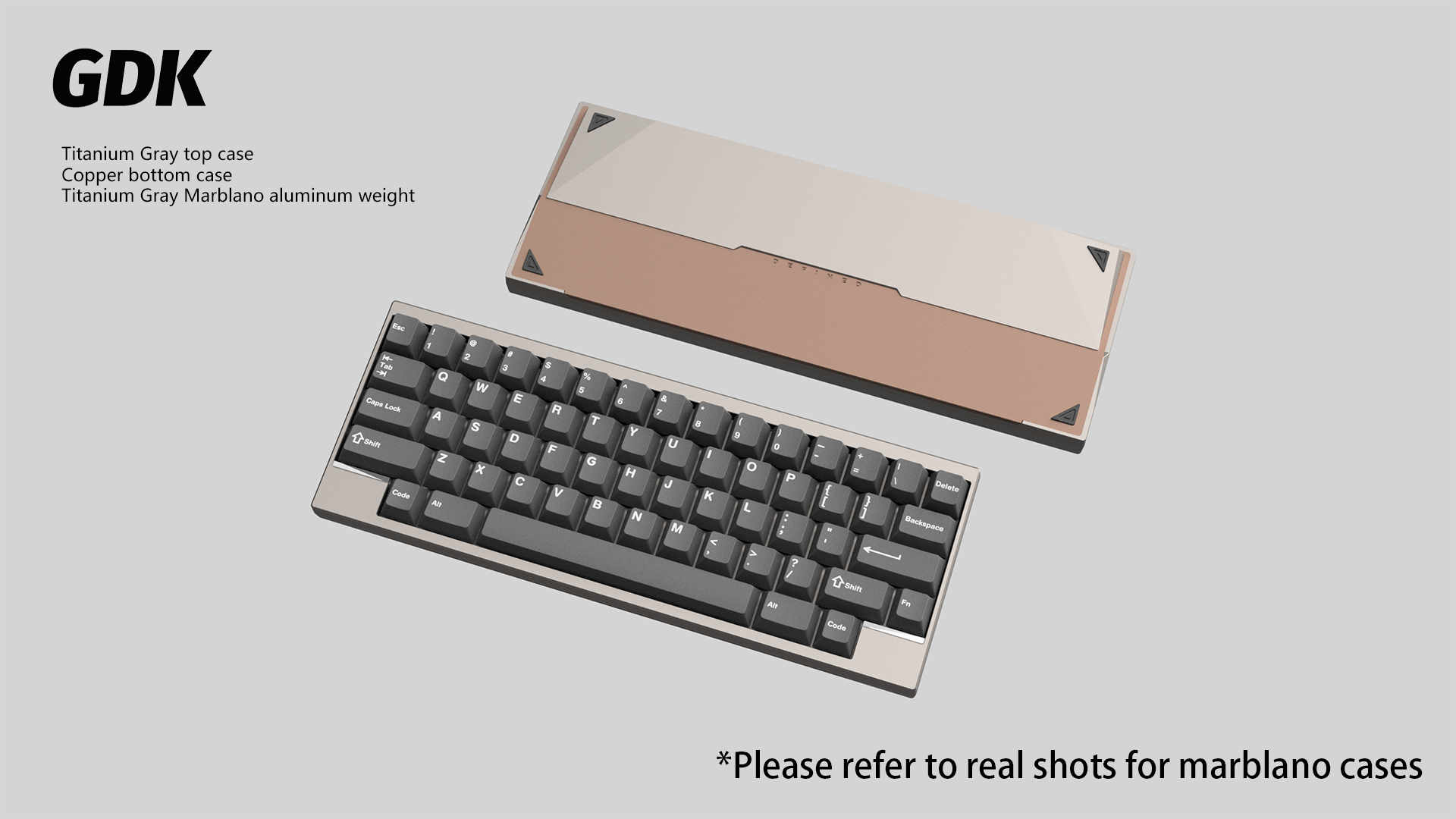

Copper or Marblano Weight

The beautiful Marblano finish is also available on the Aluminum variant of the external weight. Alternately, you can choose to go with a Copper for maximum heft! You can buy additional Marblano, Copper or Brass weights in the add-ons page

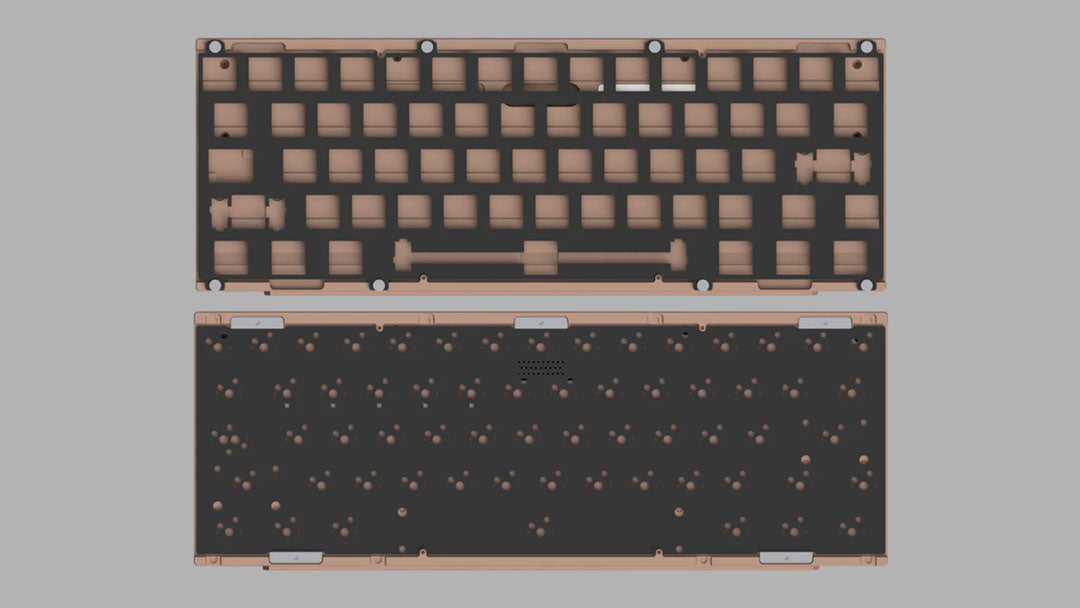

Dual Gasket Mount

The DK60 features a dual Gasket design (plate-mounted + PCB-mounted), with optimized mounting points for enhanced consistency. Each kit comes with 30A (soft) and 70A (firm) gaskets to satisfy every typing preference.

Slim Bezels

The DK60 retains a slim-bezel design, utilizing an internal screw-fastening solution to further narrow the top and bottom edges.

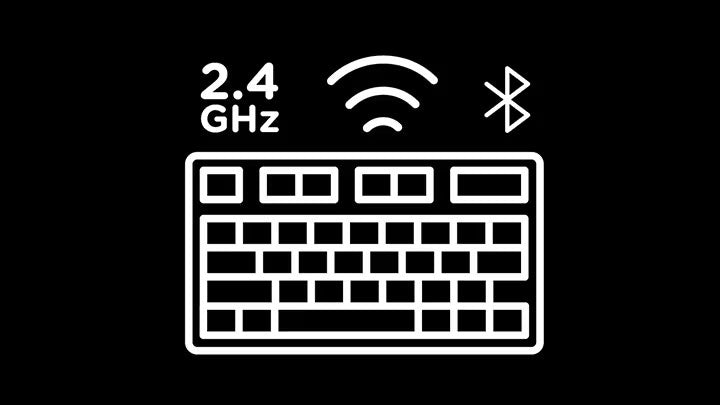

Tri-mode PCB

Each DK1-60% kit comes with a hot-swap, tri-mode PCB that can be used in either wired, 2.4Ghz RF or Bluetooth BLE 5.3 connection

The DEtails

Specifications

Layout

60% (WK / WKL or HHKB)

Case material

Top case
Aluminum

Bottom case
Copper or Brass

External weight
Aluminum or Copper

Included plates

1x PC

1x PEI

Typing angle

8 degrees

Front height

15.5 mm

Dimensions

292.5 x 110 x 30.5 mm

Weight

With Aluminum external weight
1.73 kg

With Copper external weight
2.03 kg

Mounting style

Dual gasket mount (both plate & PCB are mounted)

Stabilizers

1.6mm PCB mount stabilizers included

PCB

- 1.6mm Non-flexcut

- VIA Support

- Win/Mac/Linux/Android compatible

There are 3 PCBs for DK1-60%

1. Solder

2. Hot-swap

Supports wired connection only.

3. Tri-mode (included with every kit)

Supports 2.4Ghz, Bluetooth Low Energy 5.4 and wired connection.

Polling rates

Bluetooth

125 Hz

2.4Ghz & Wired

1000 Hz

Included batteries

2 x 1200 mAh

RGB support

None

Additional Details

- All top cases have a Marblano finish.

- All kits on this page come with a PC plate and a PEI plate

- All kits on this page come with an Aluminum Marblano weight in the same color as the top case

- Glittery Black & Light Gray bottom case / external weight have an e-coat finish on top of Brass.

- Marlblano finish is not available in bottom cases, whether in a kit or sold separately.

Blocker Accents

Kits with WK layout do not have blocker accent.

WKL and HHKB layouts come with blocker accent in the following colors:

PVD SILVER

Cyan Glaze, Lilac, Titanium Gray, Ice Blue, Silver.

PVD BLACK

Black, Wine, Phantom Blue, Dark Gold

Kit Contents

All kits on this page come with a PC plate and a PEI plate

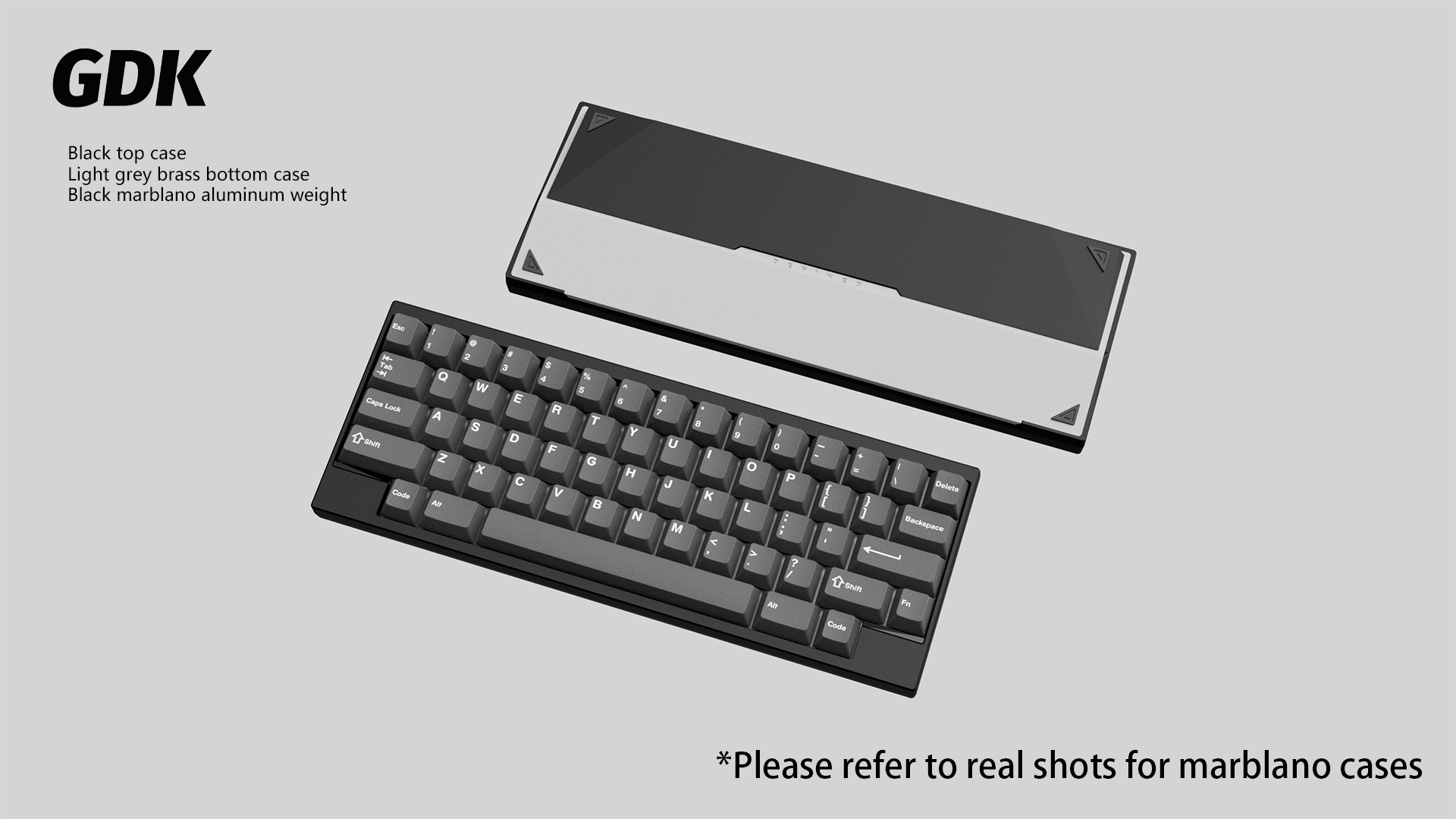

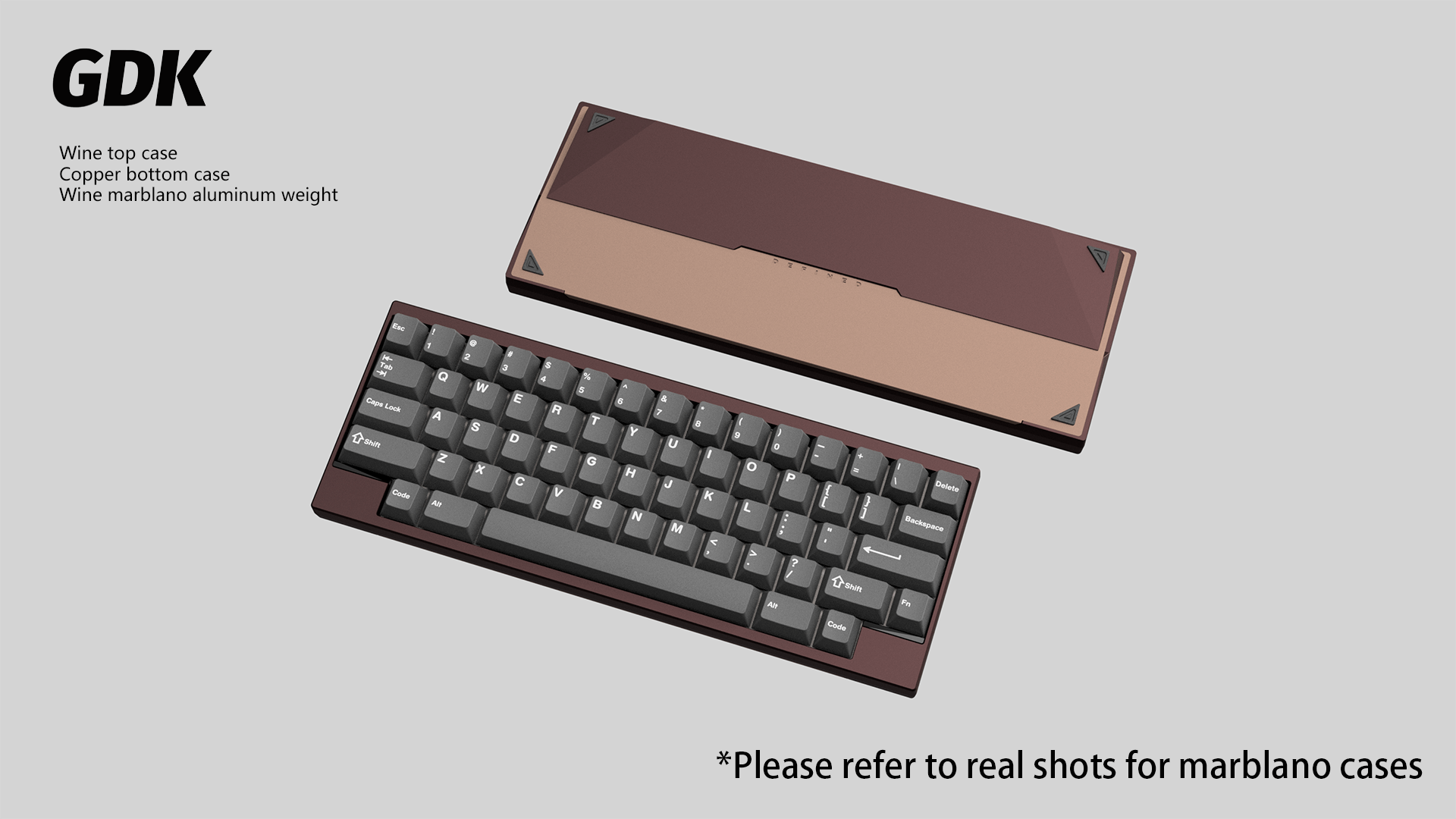

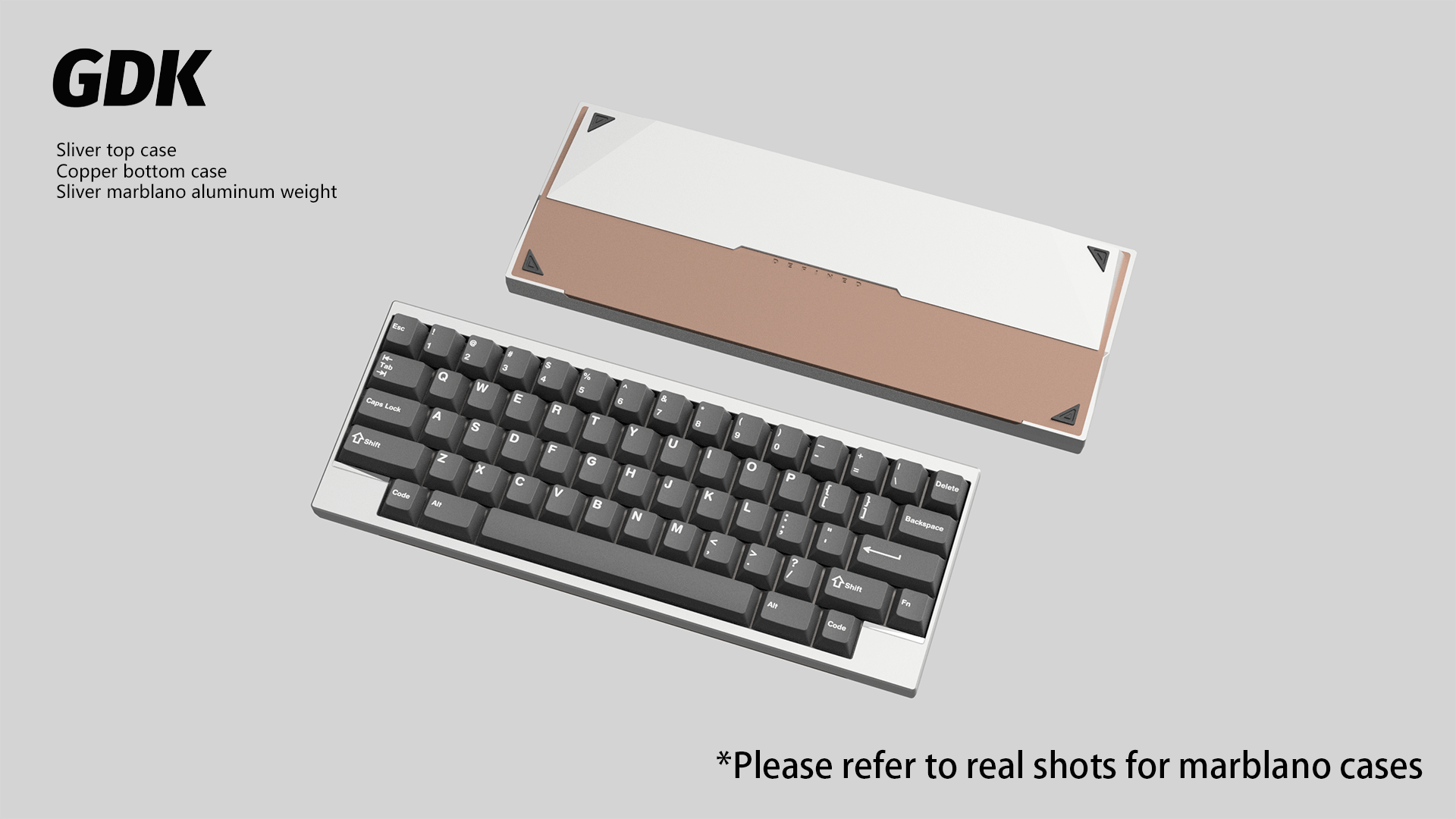

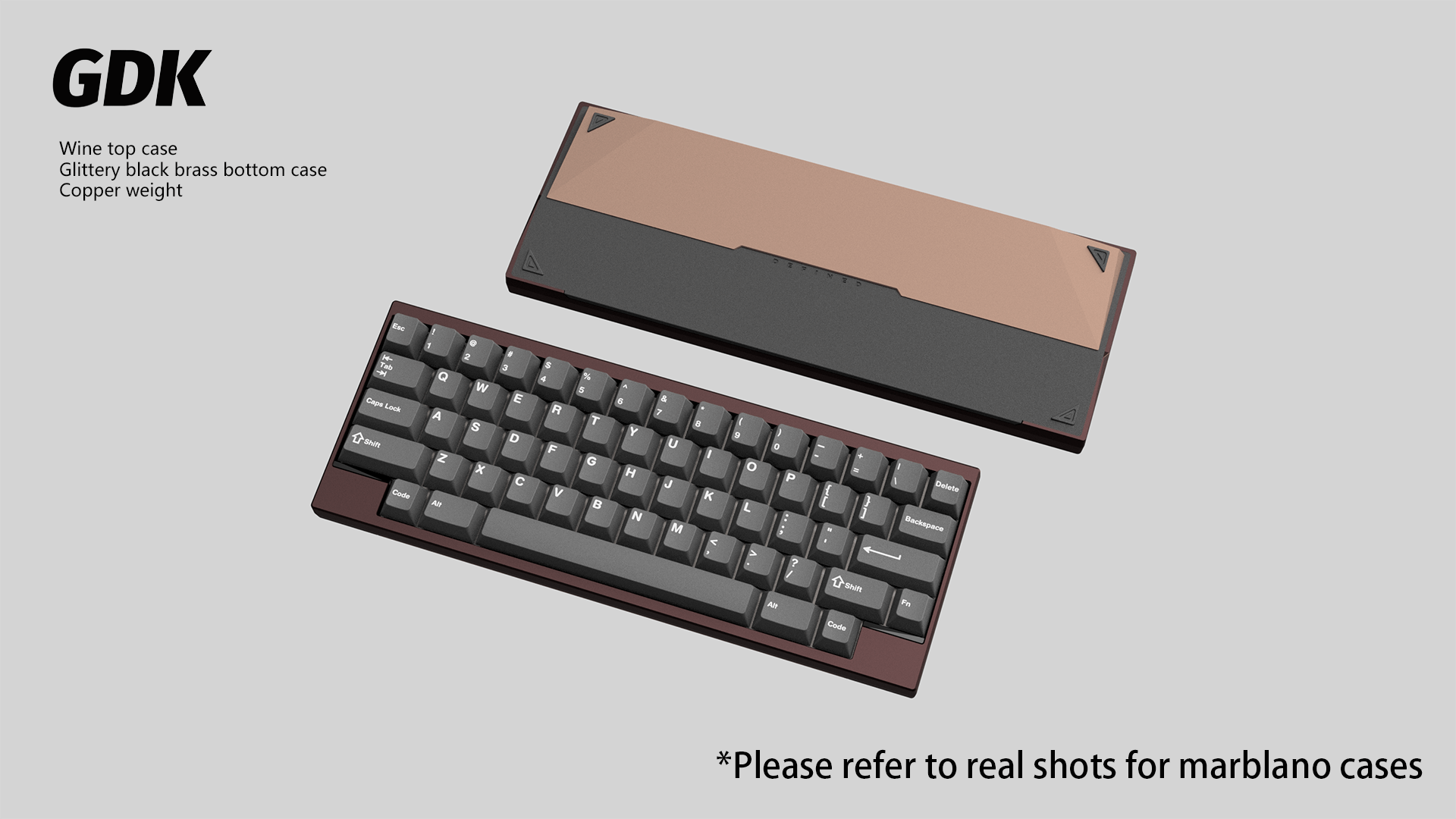

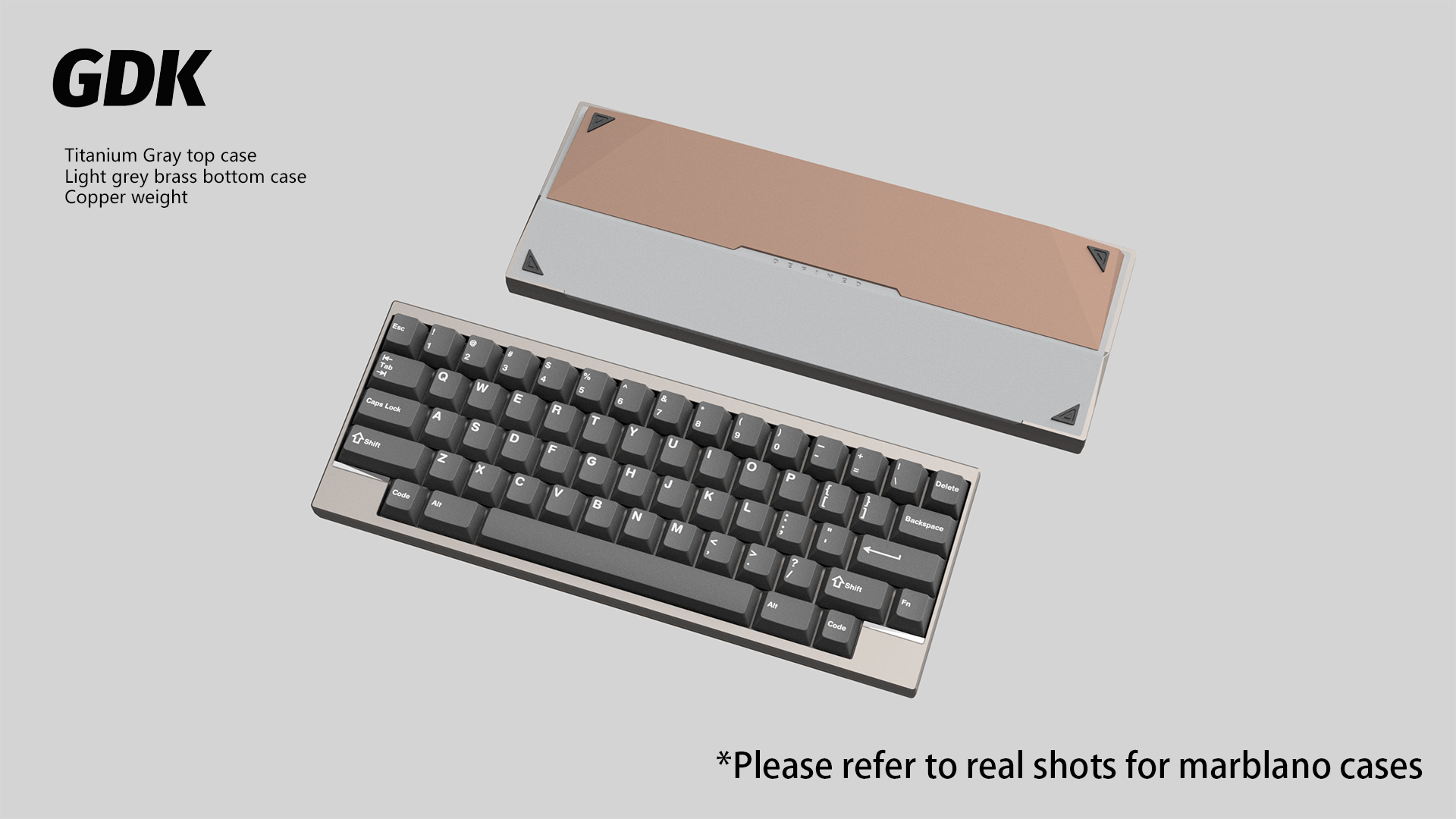

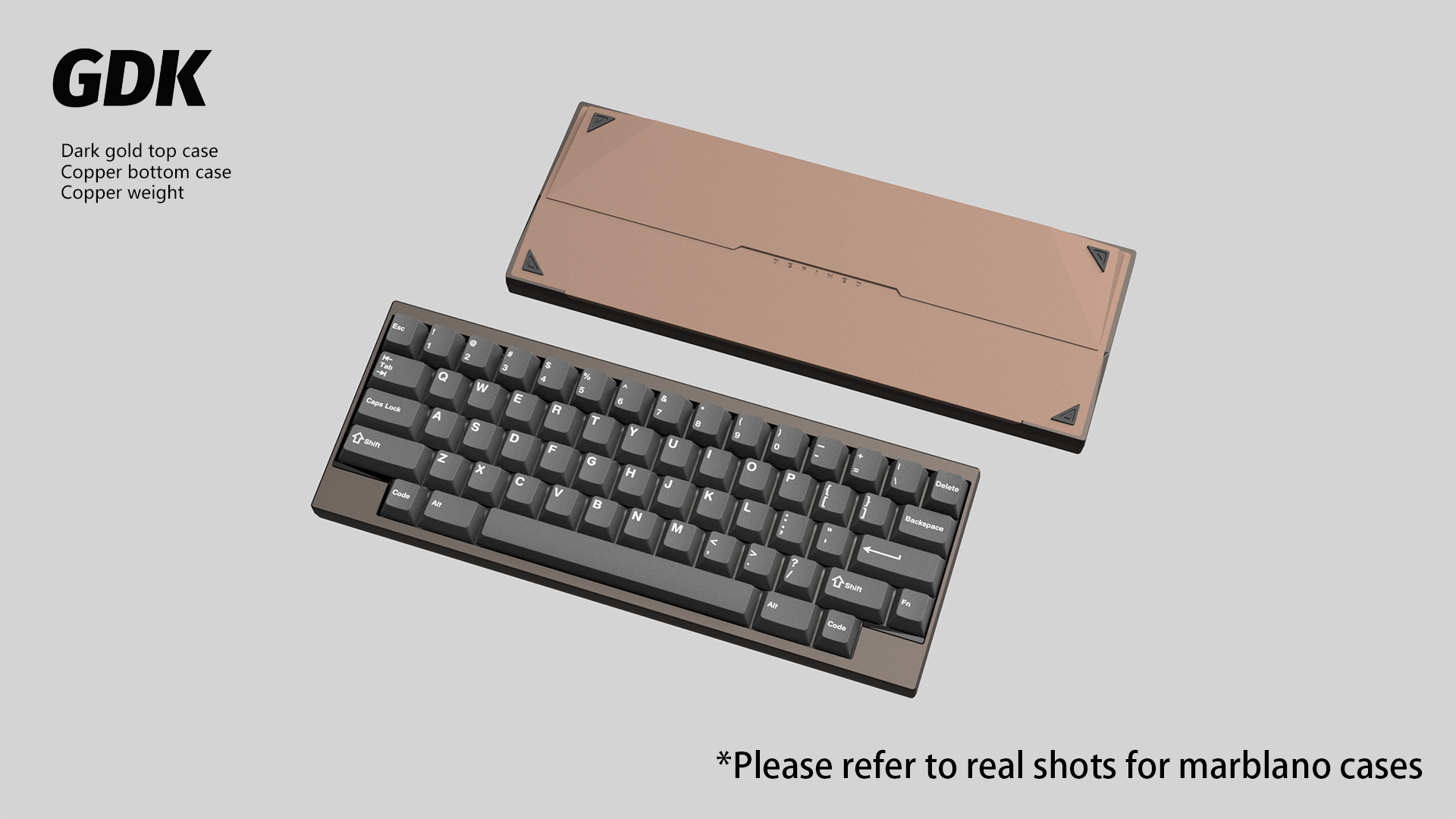

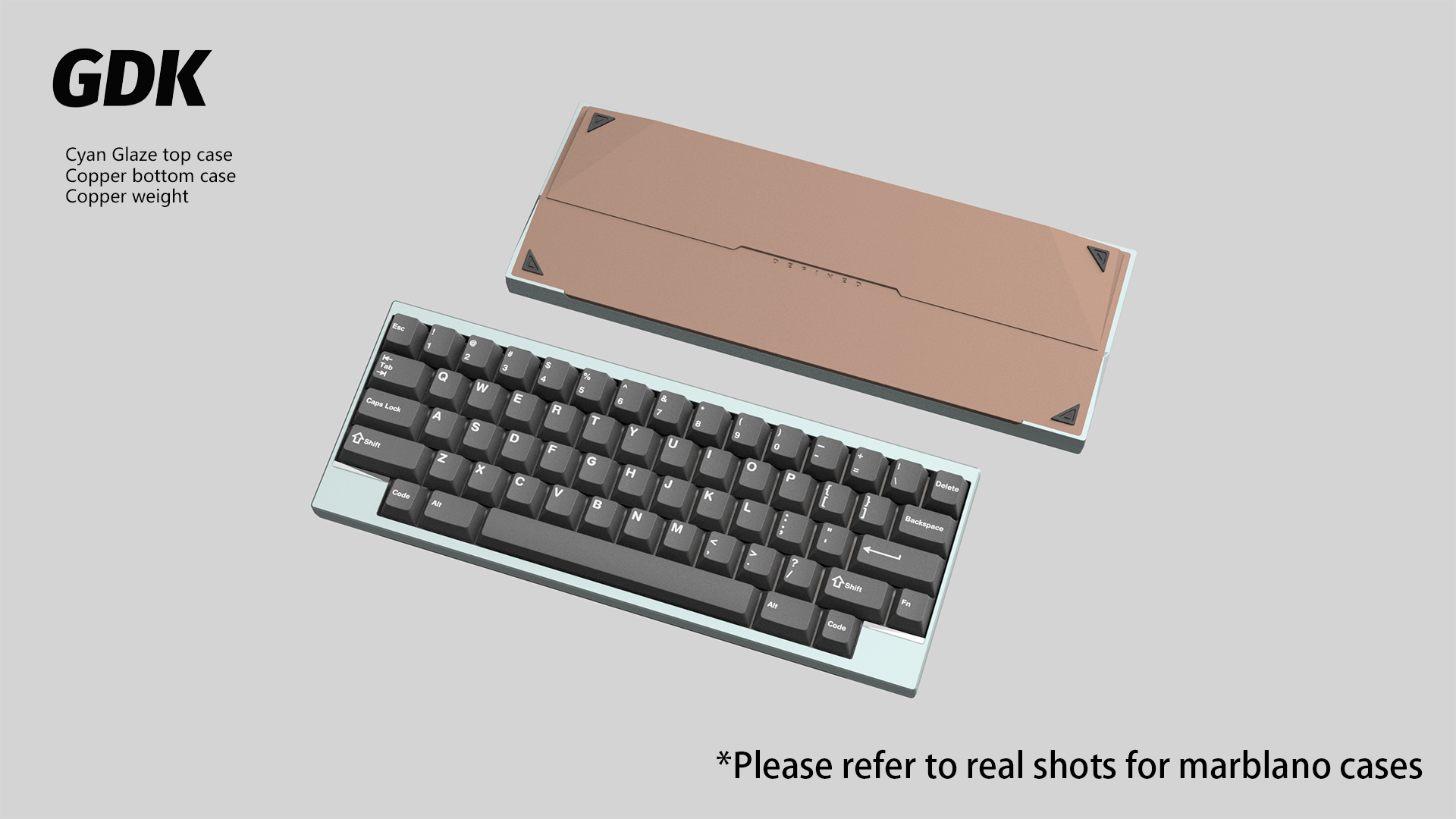

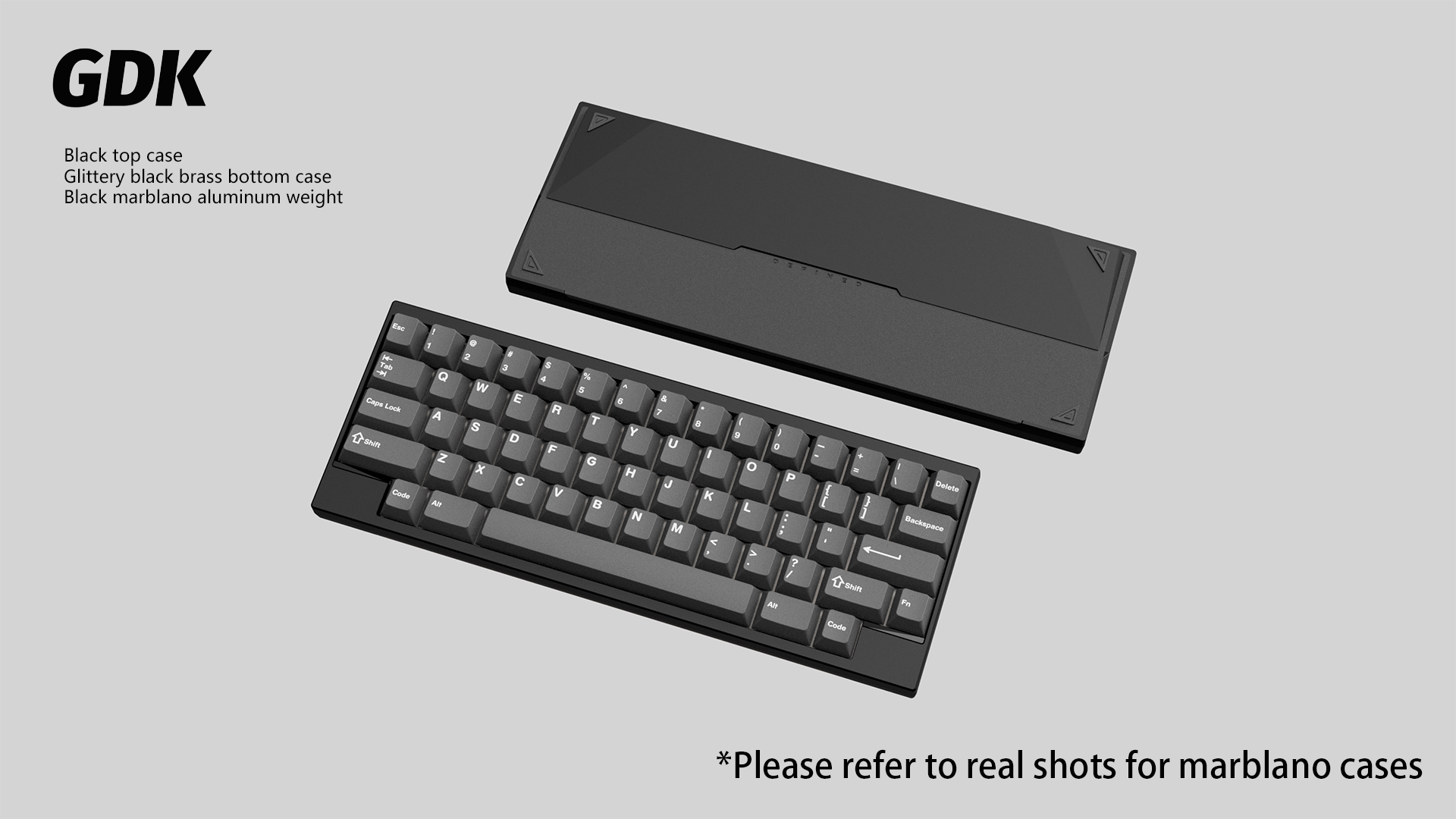

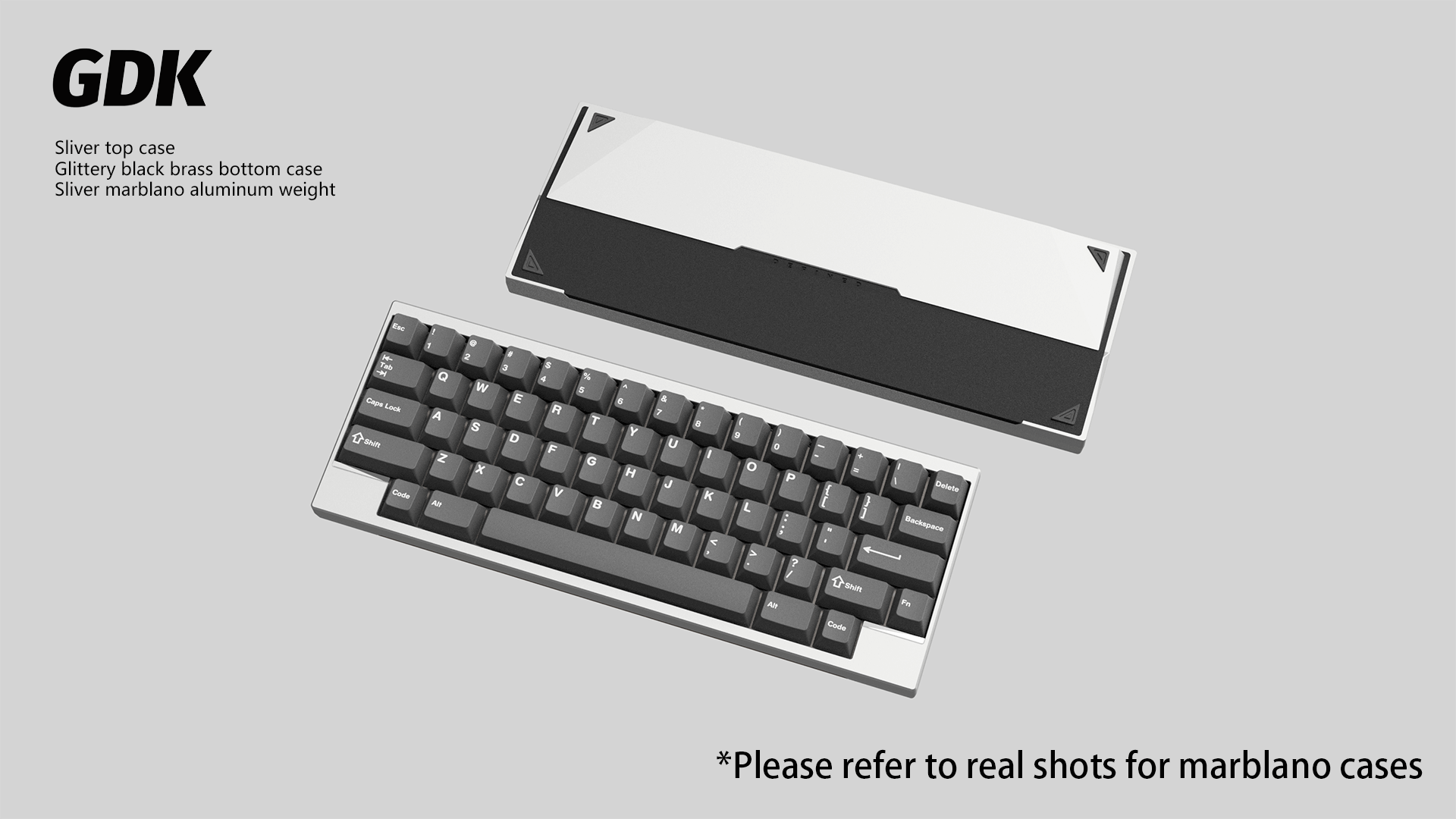

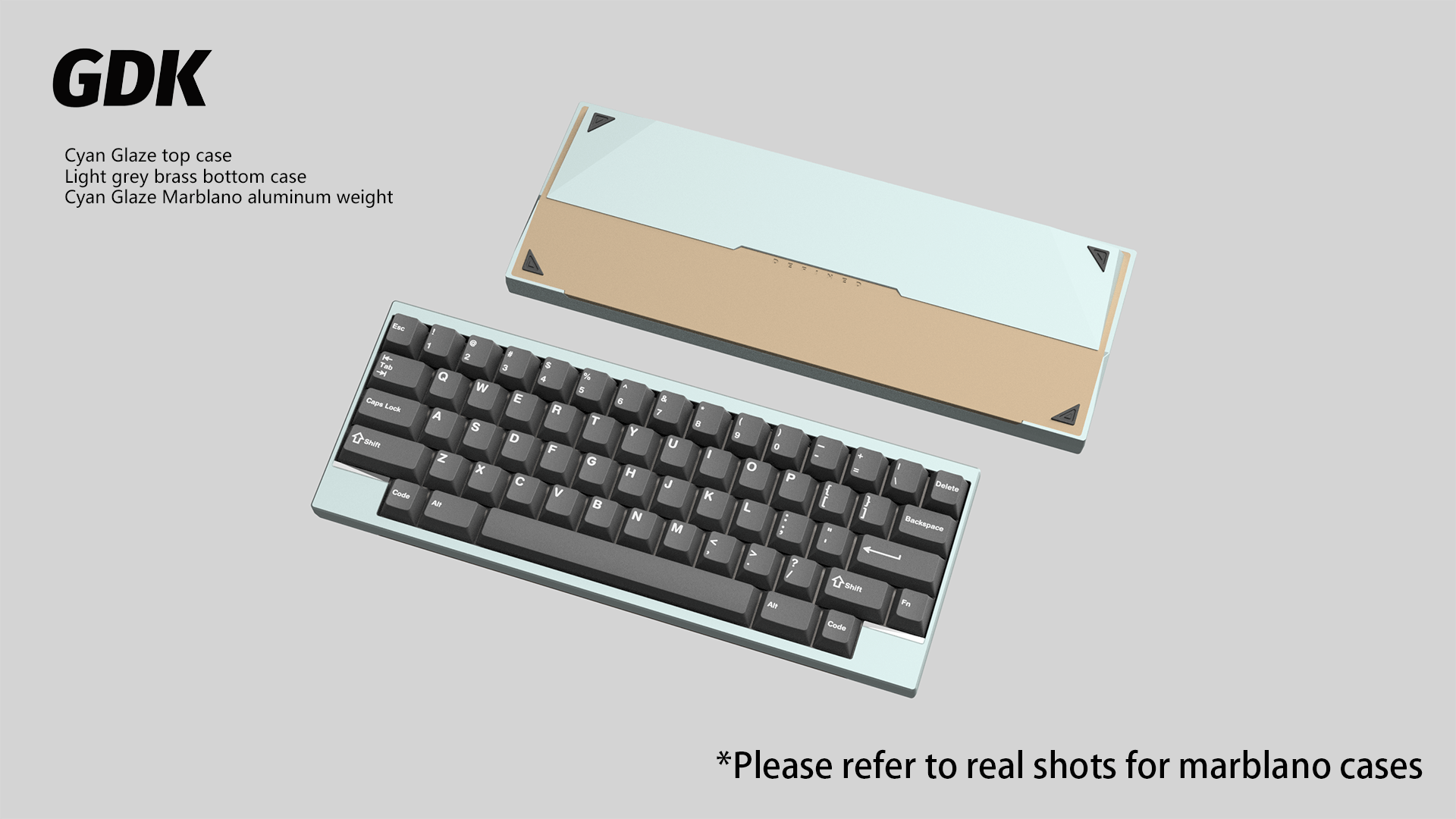

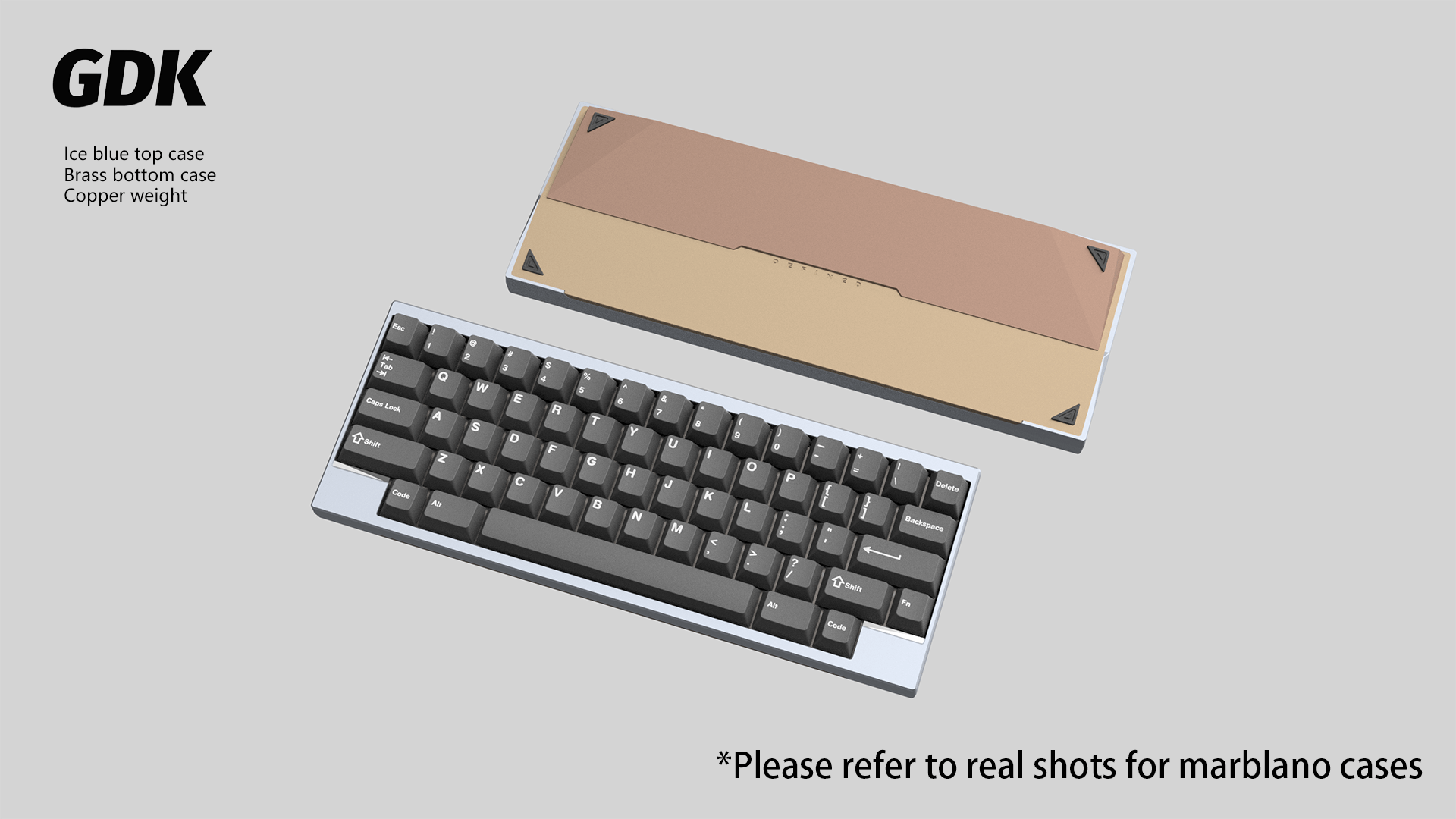

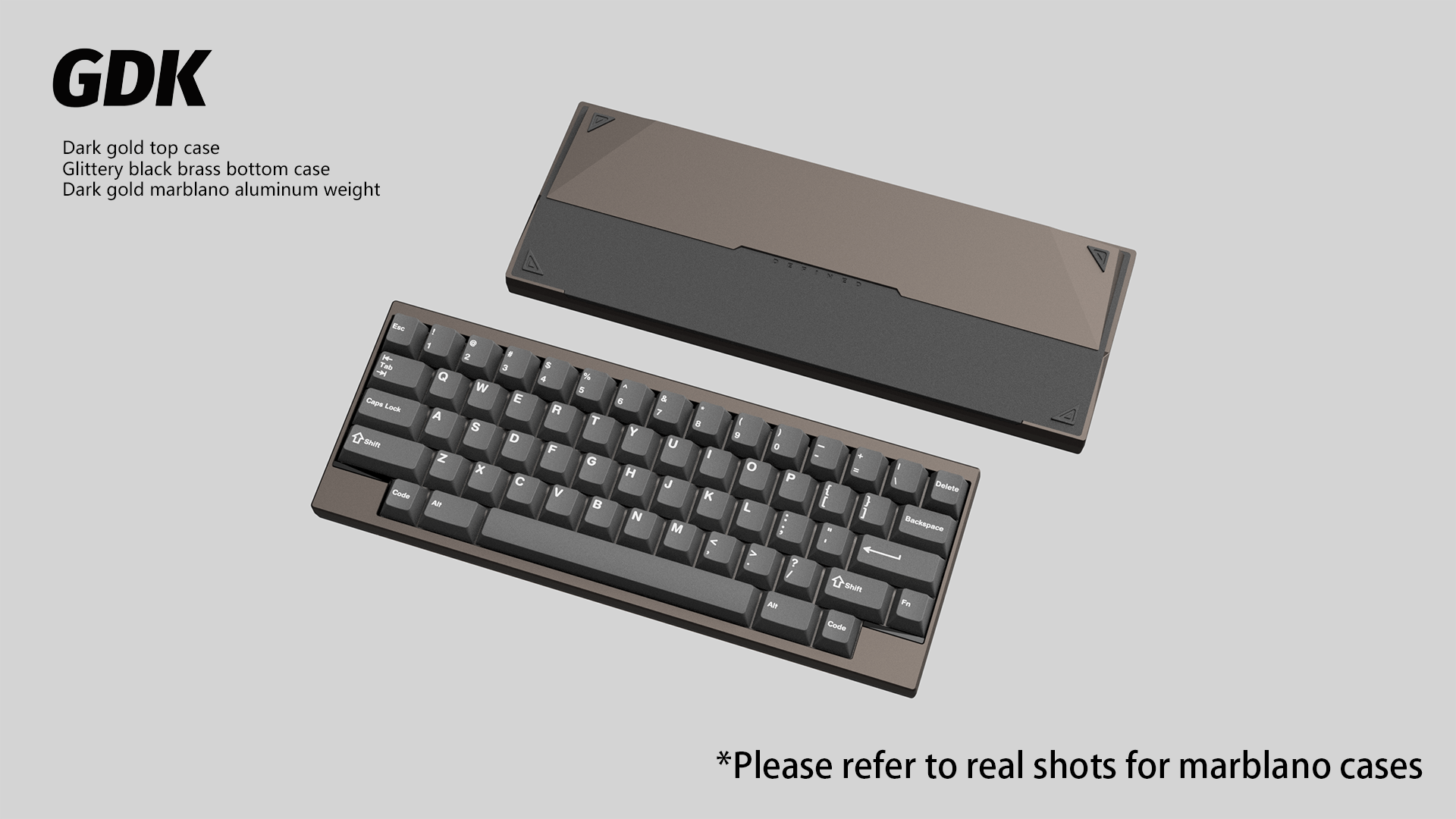

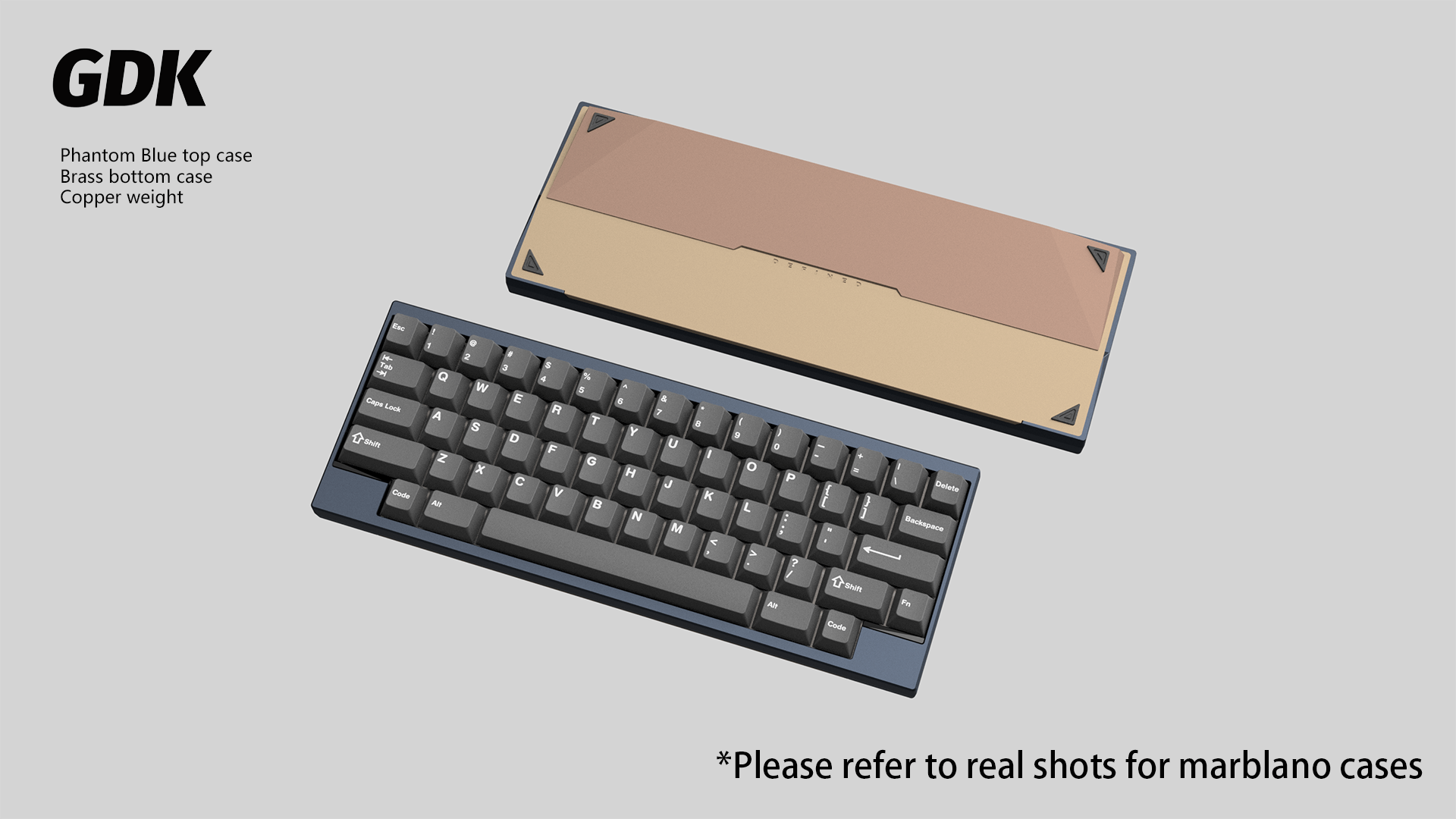

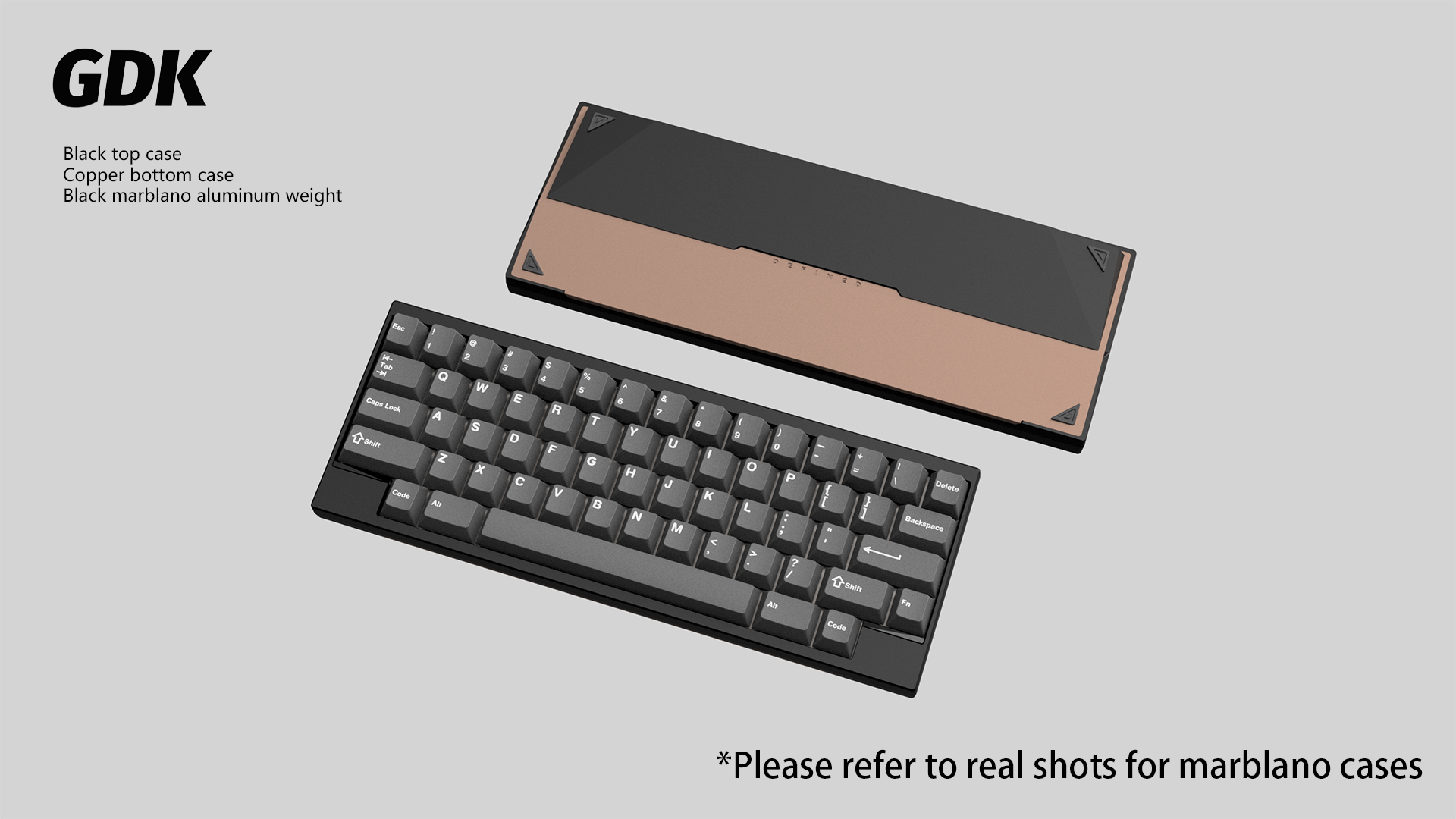

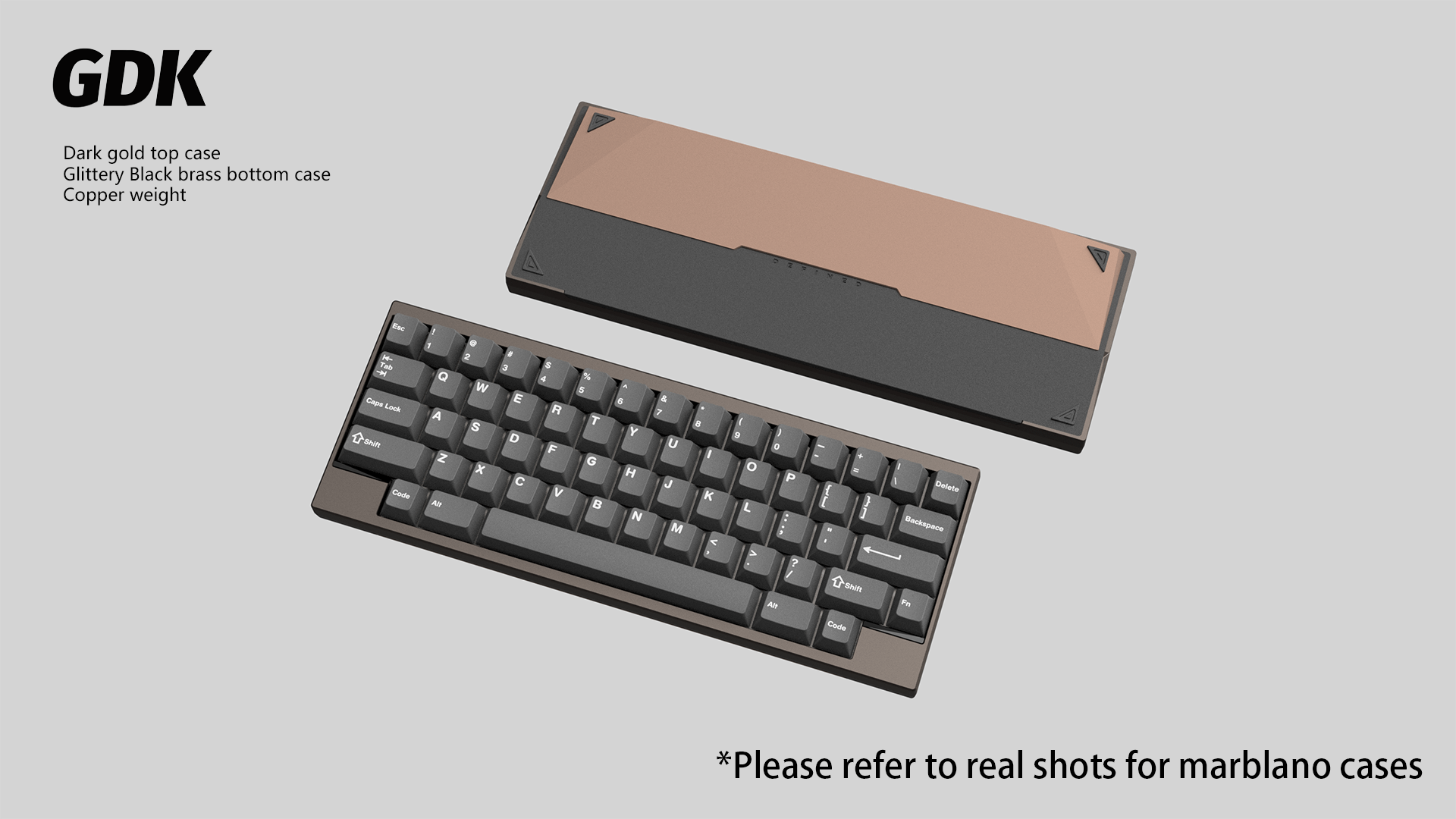

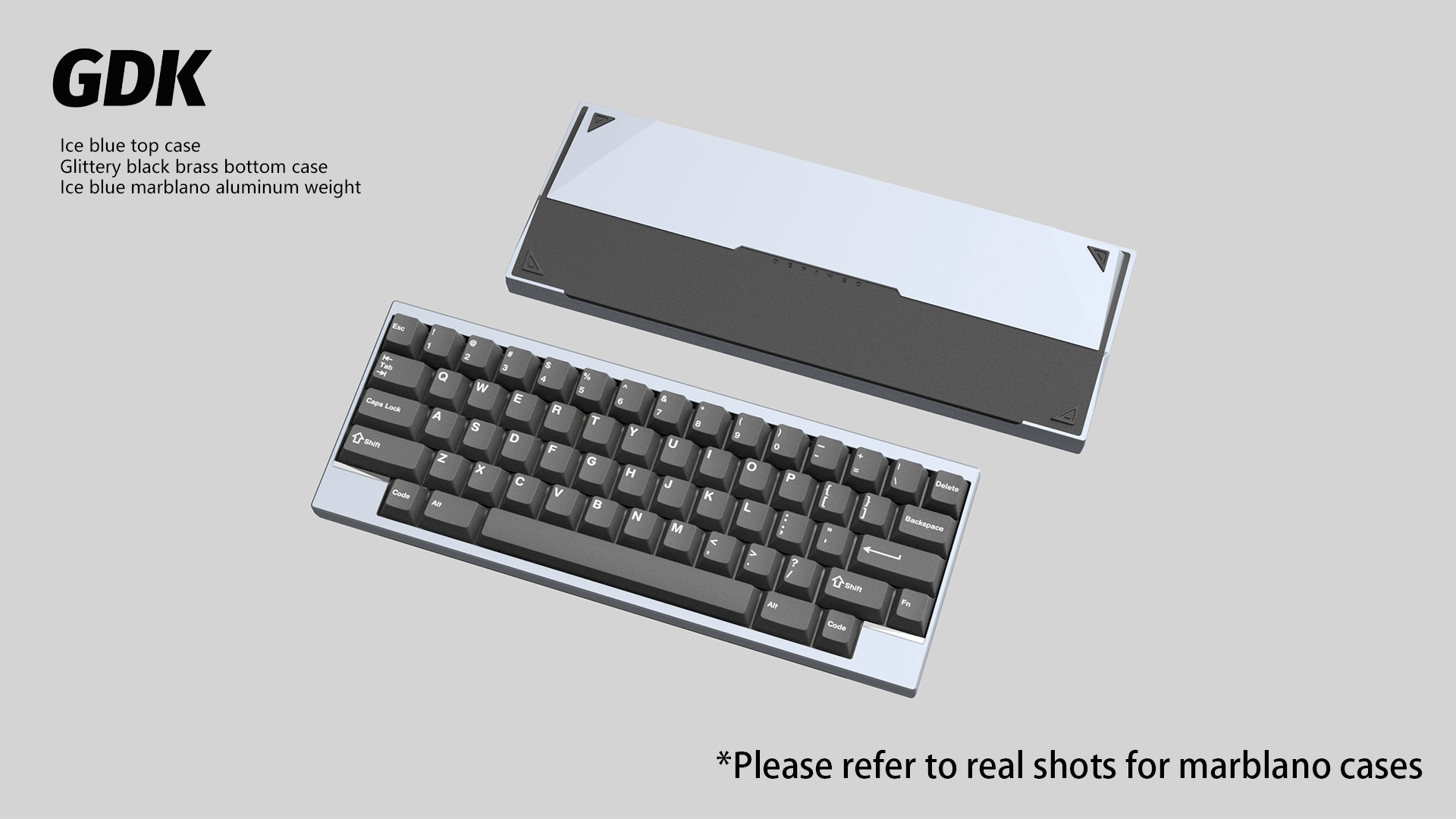

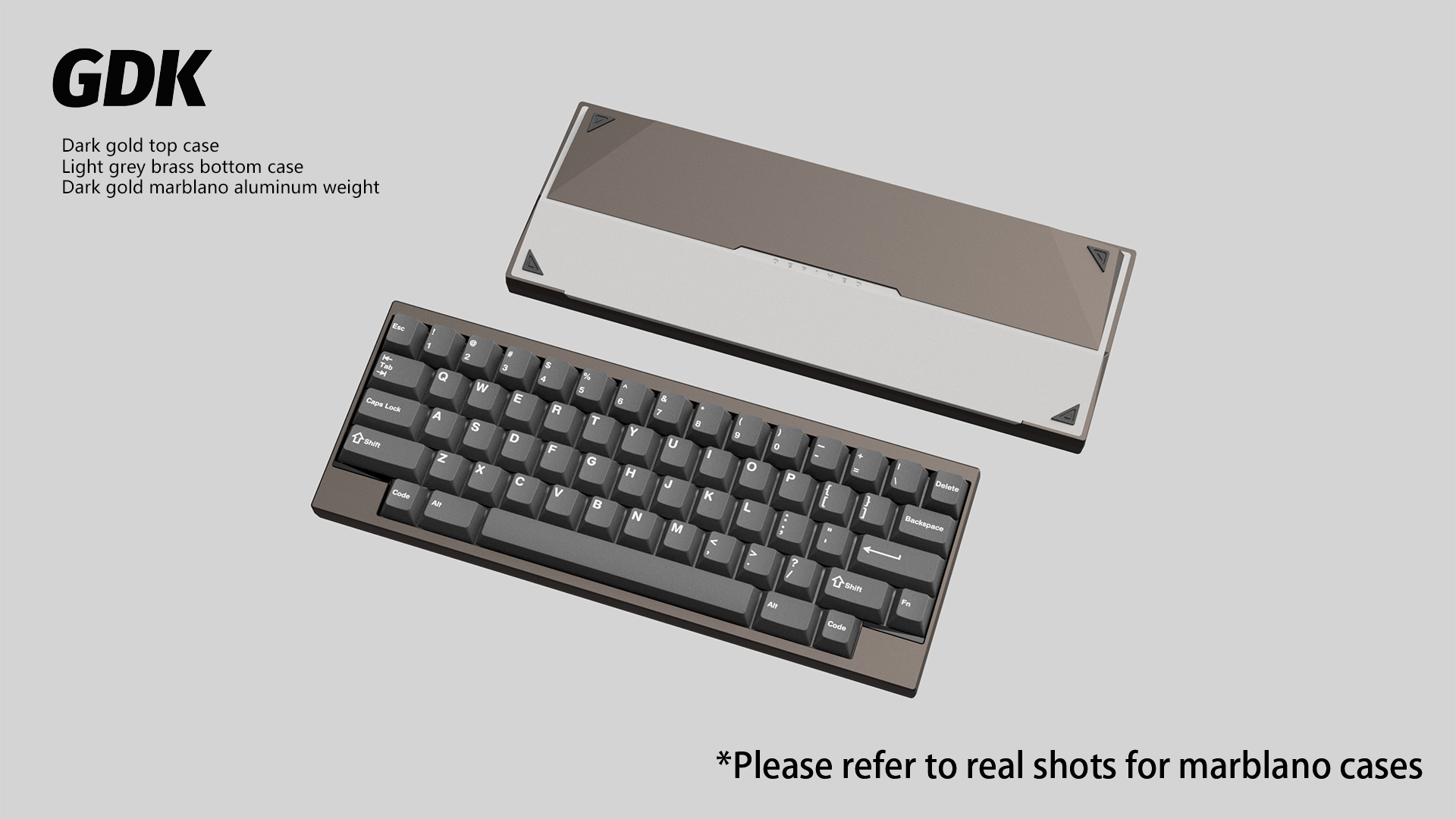

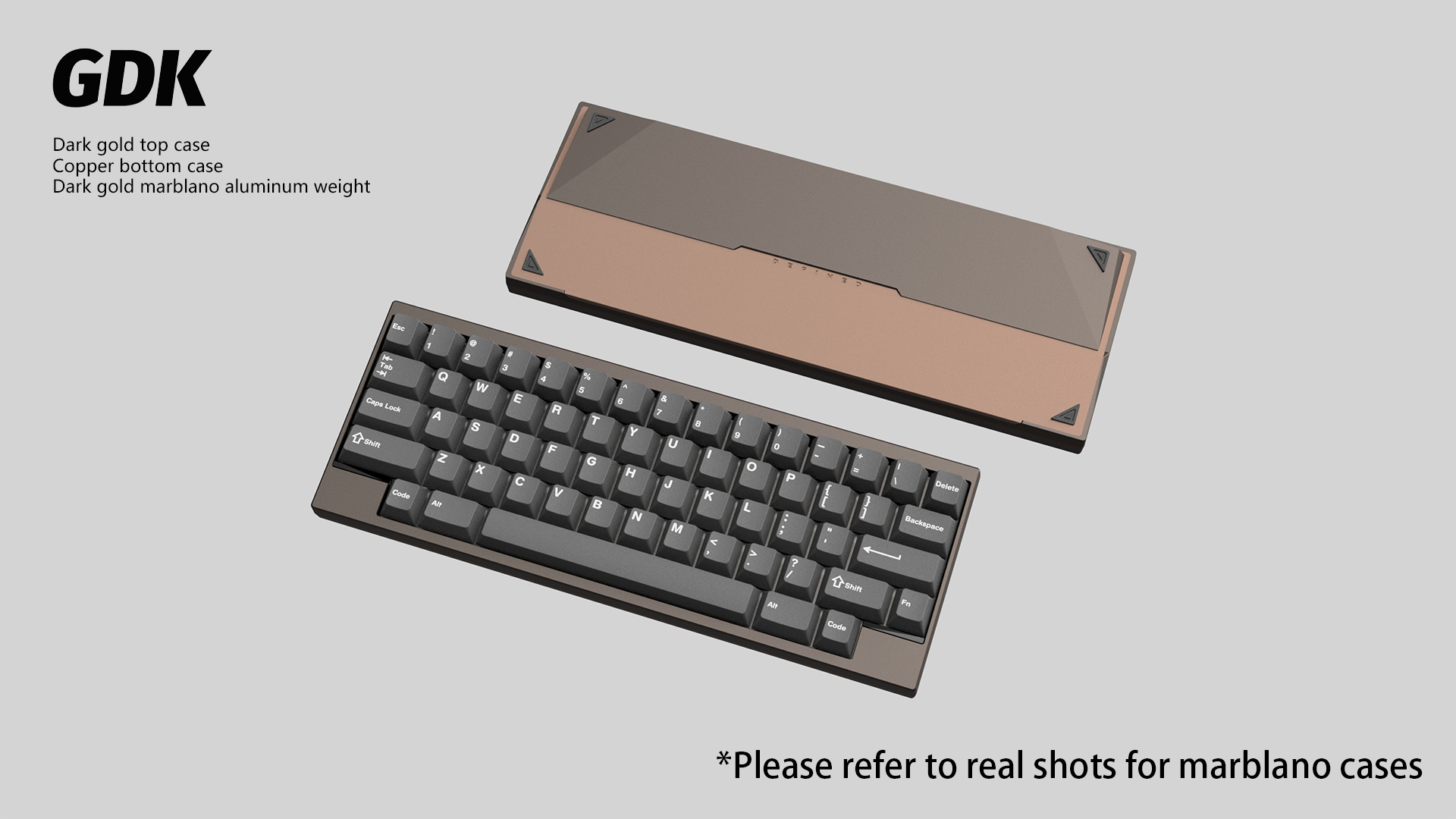

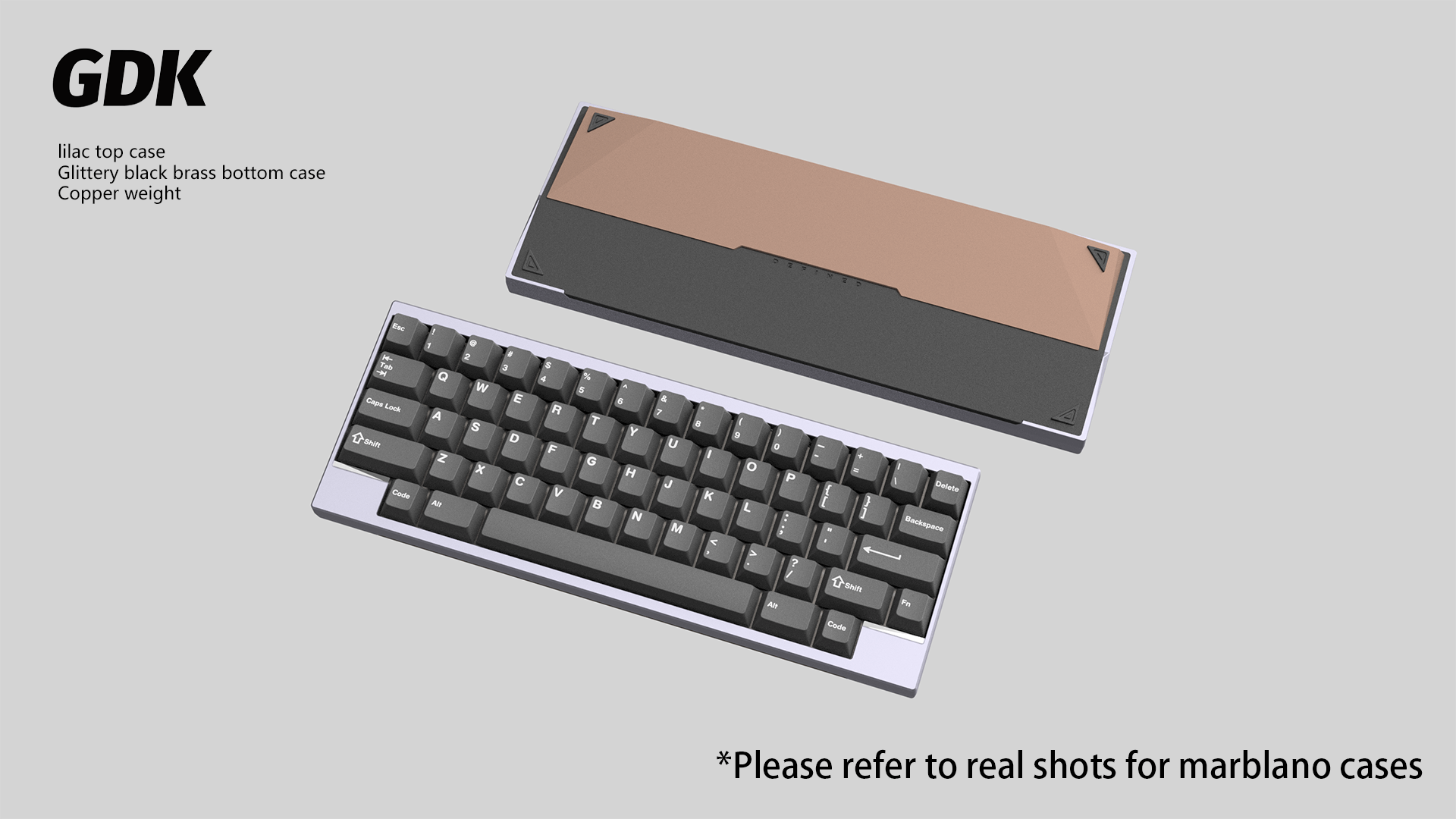

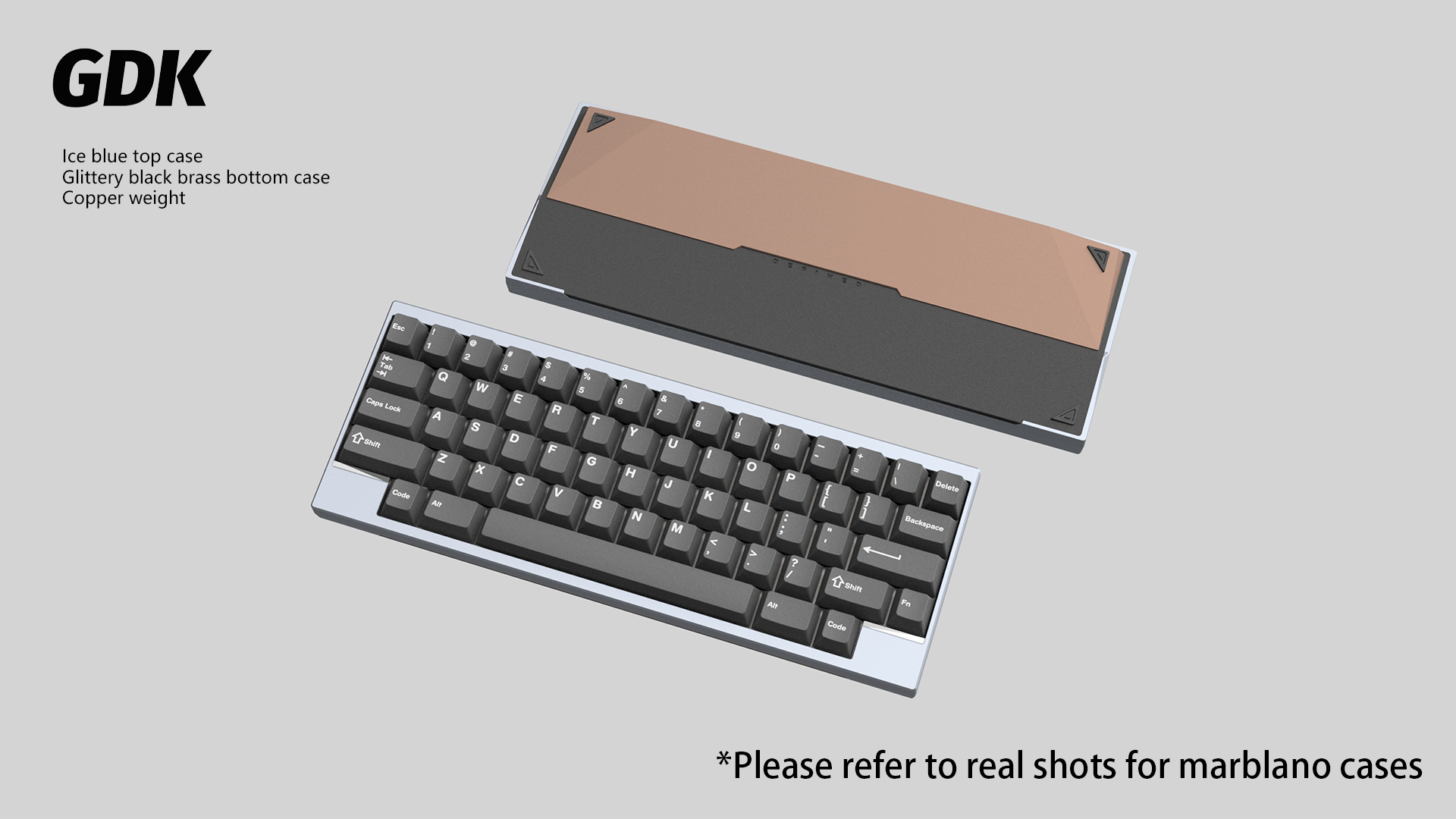

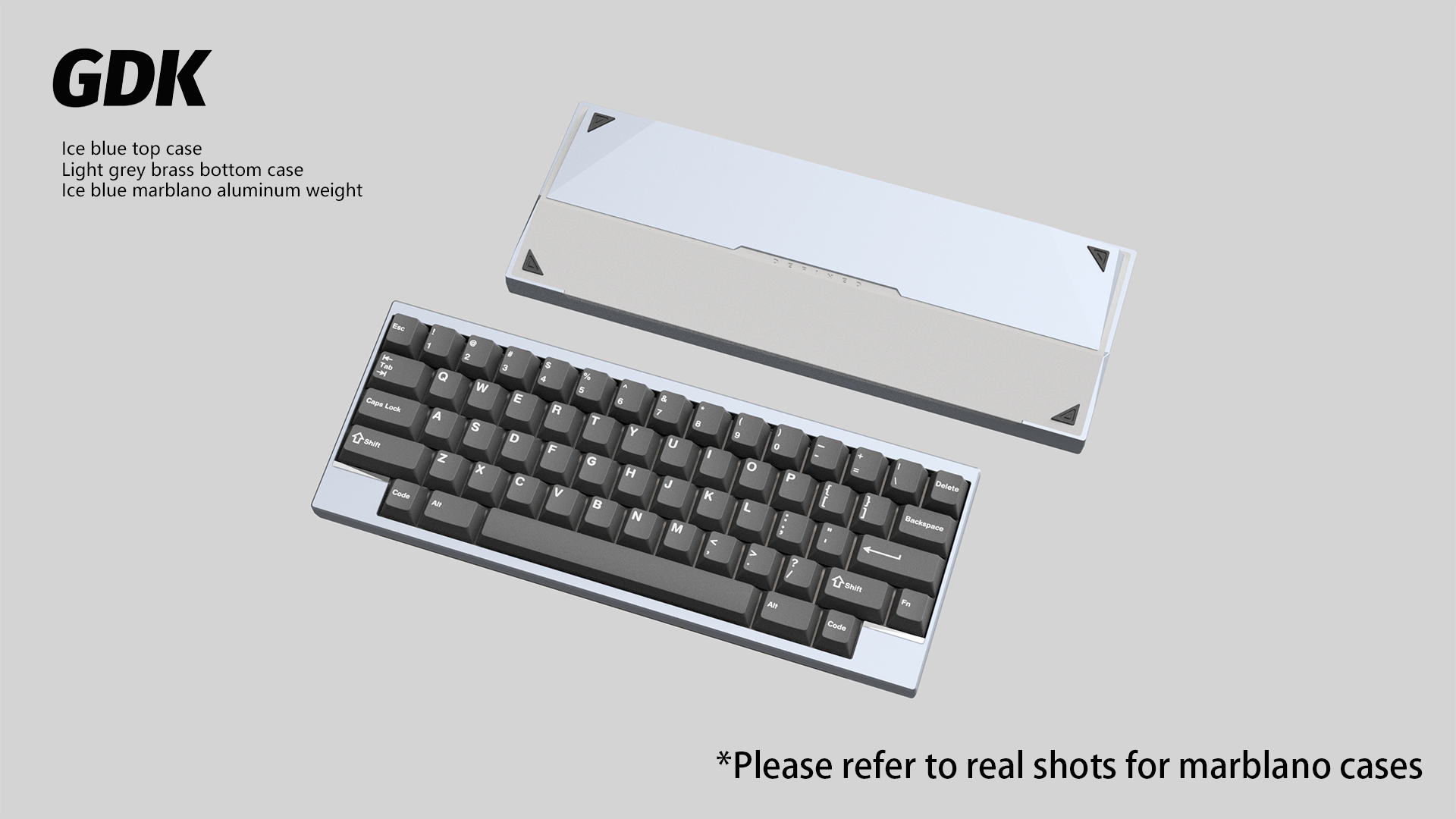

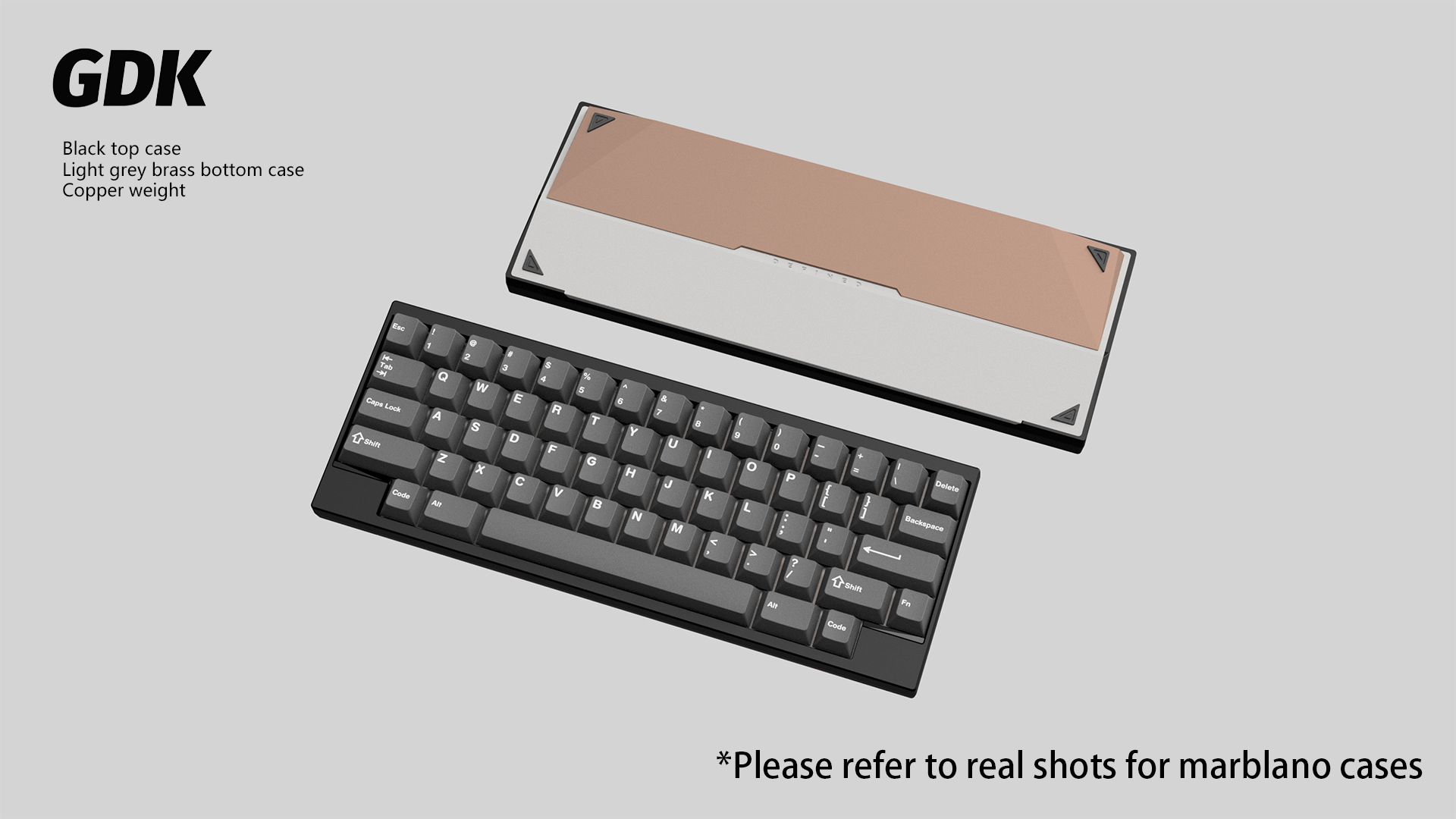

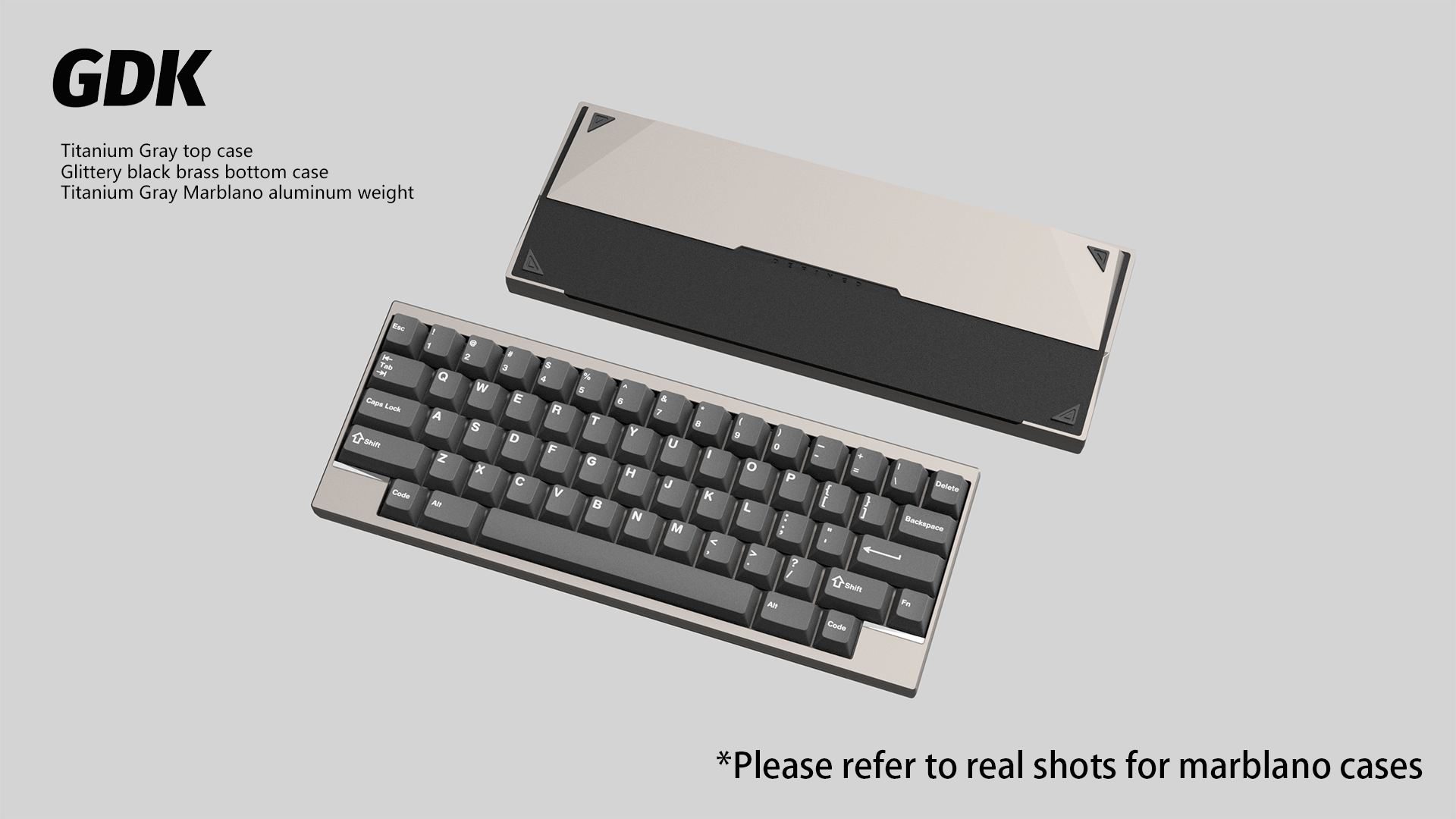

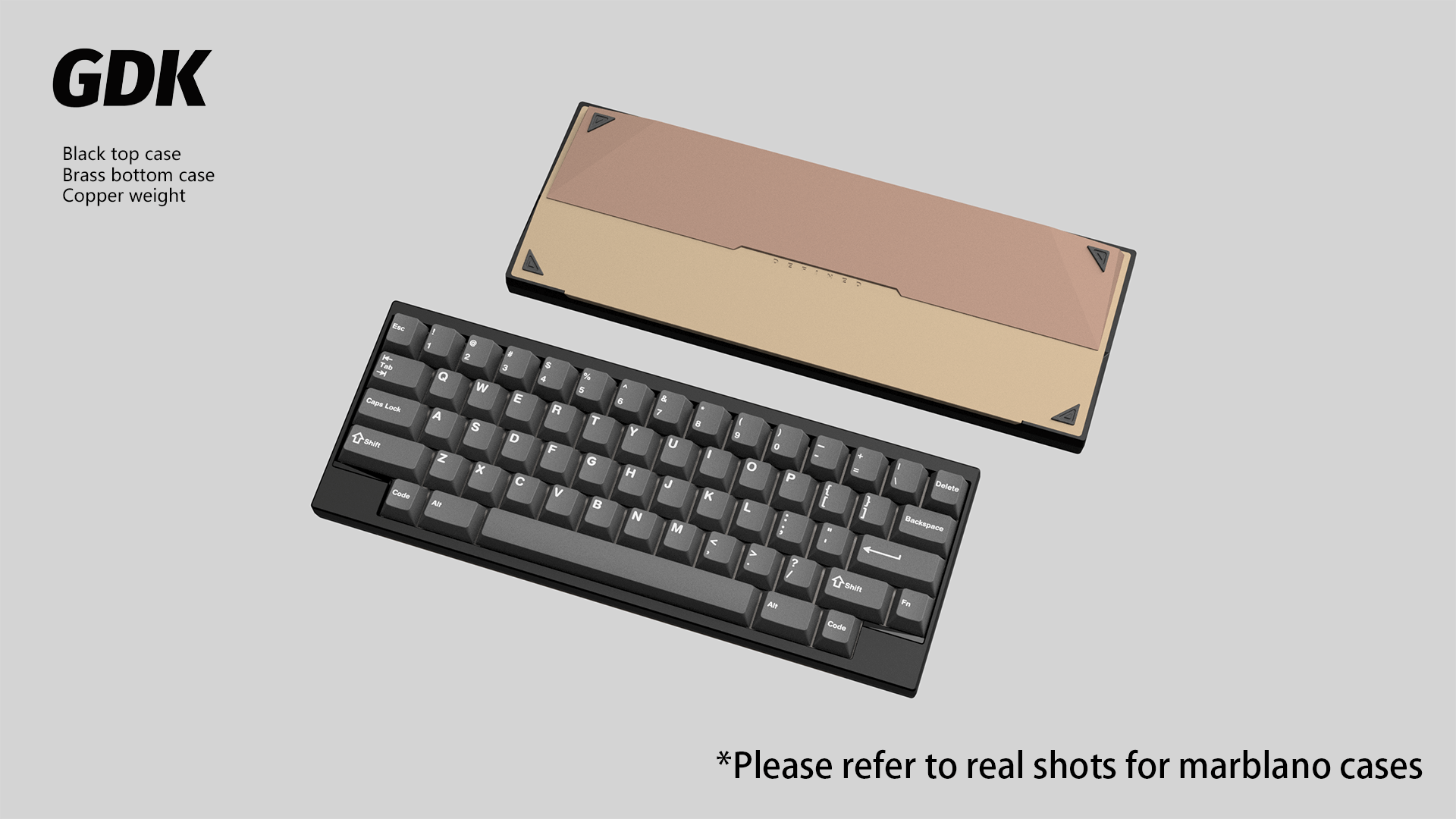

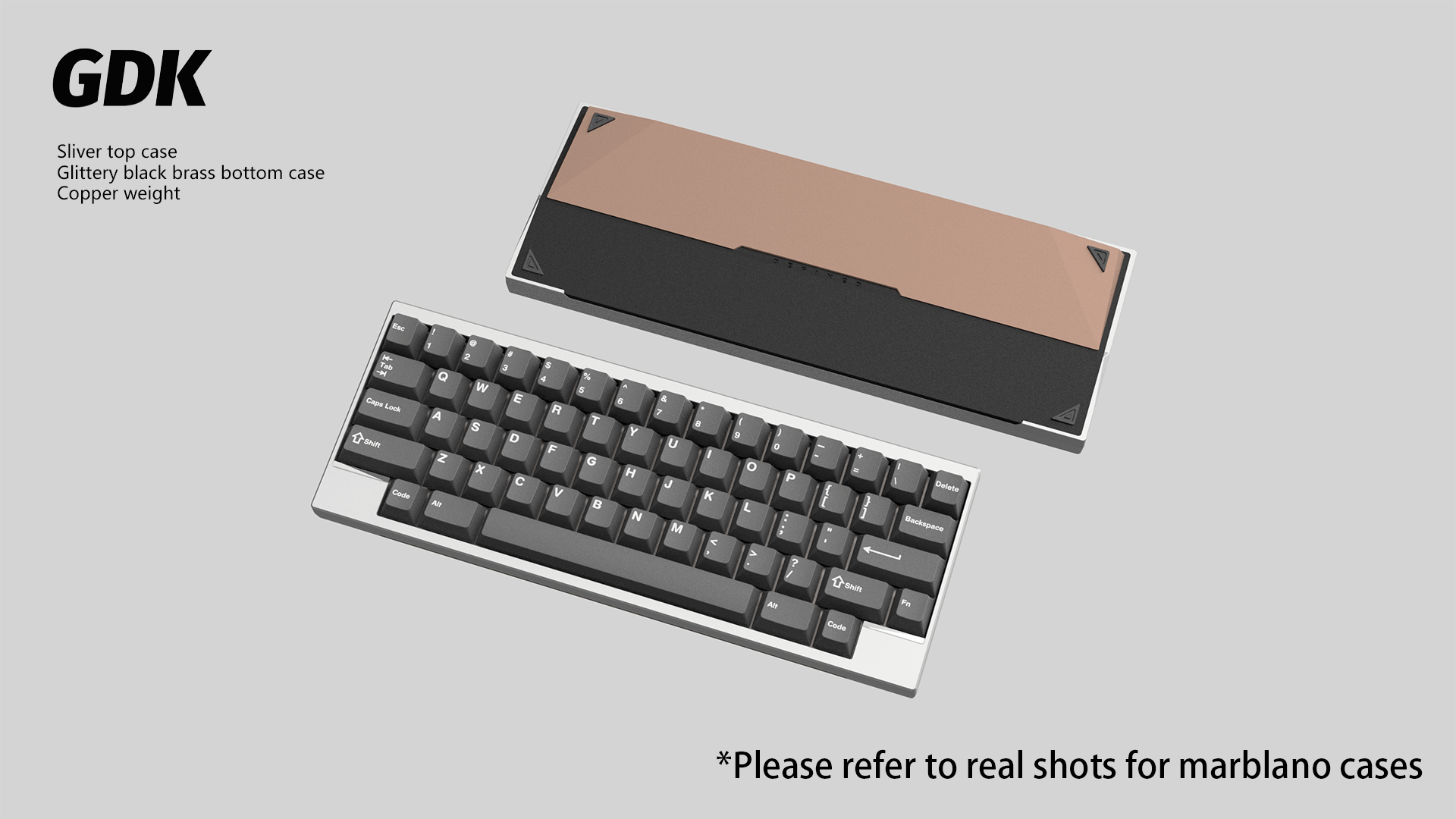

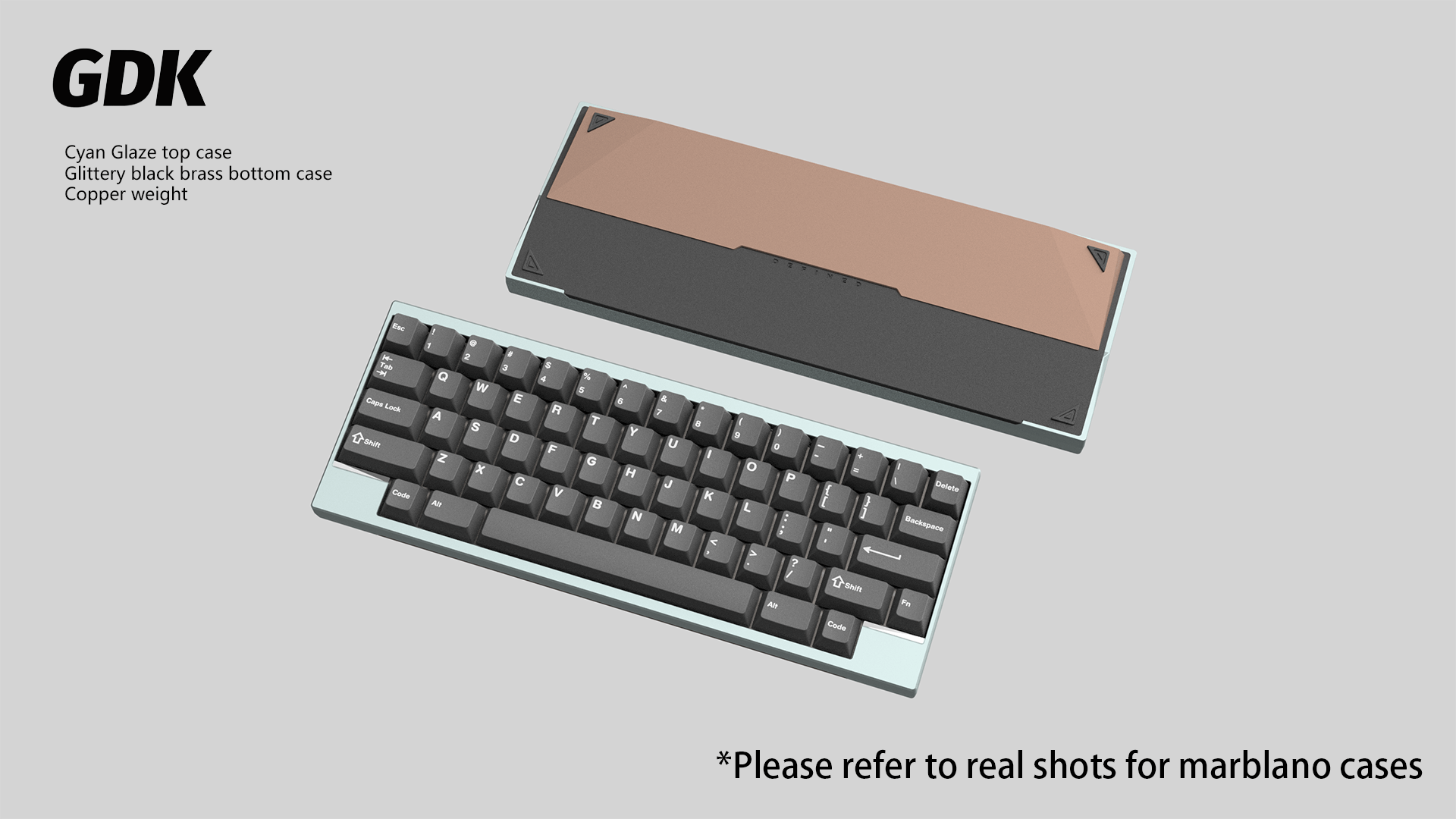

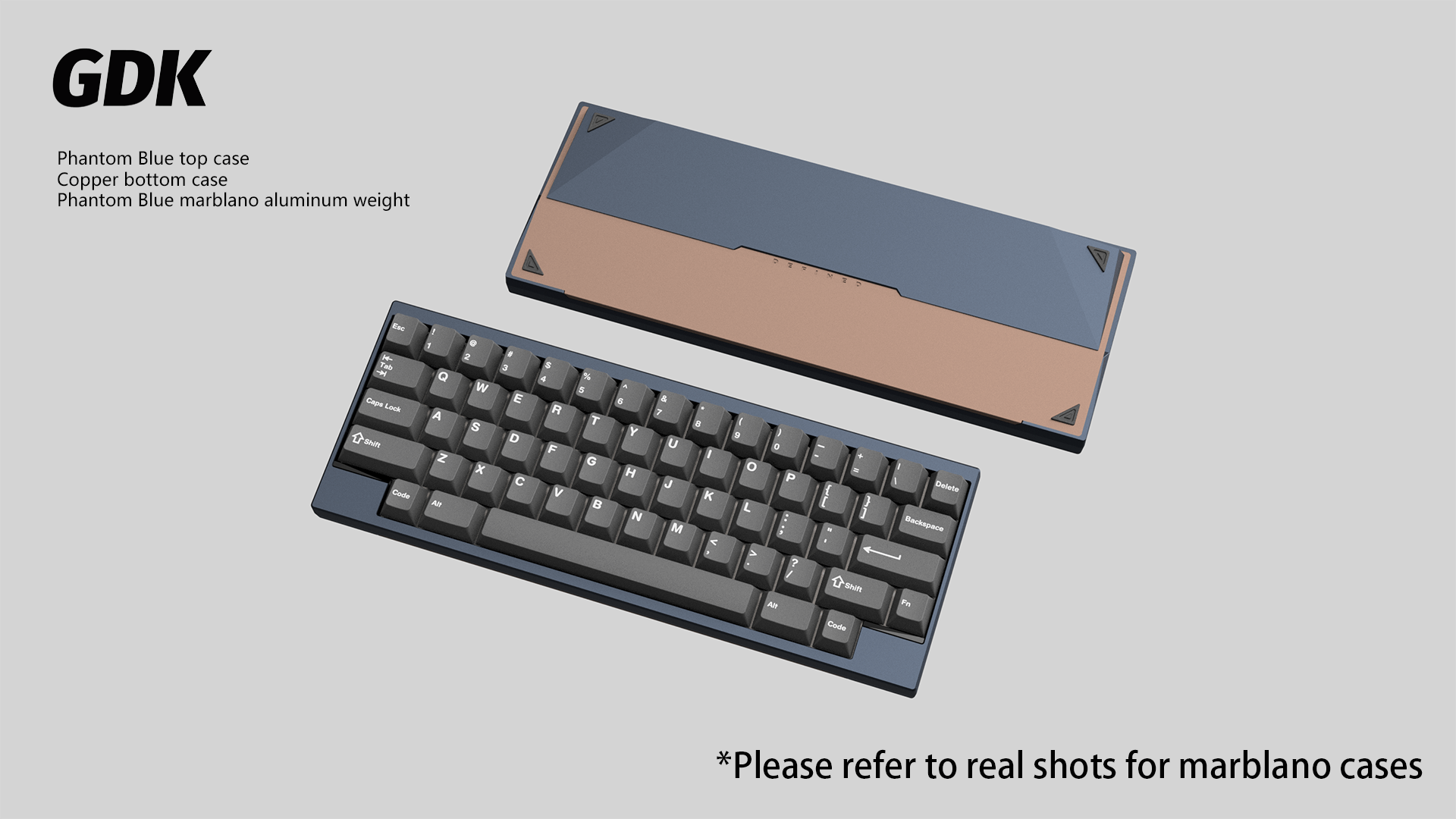

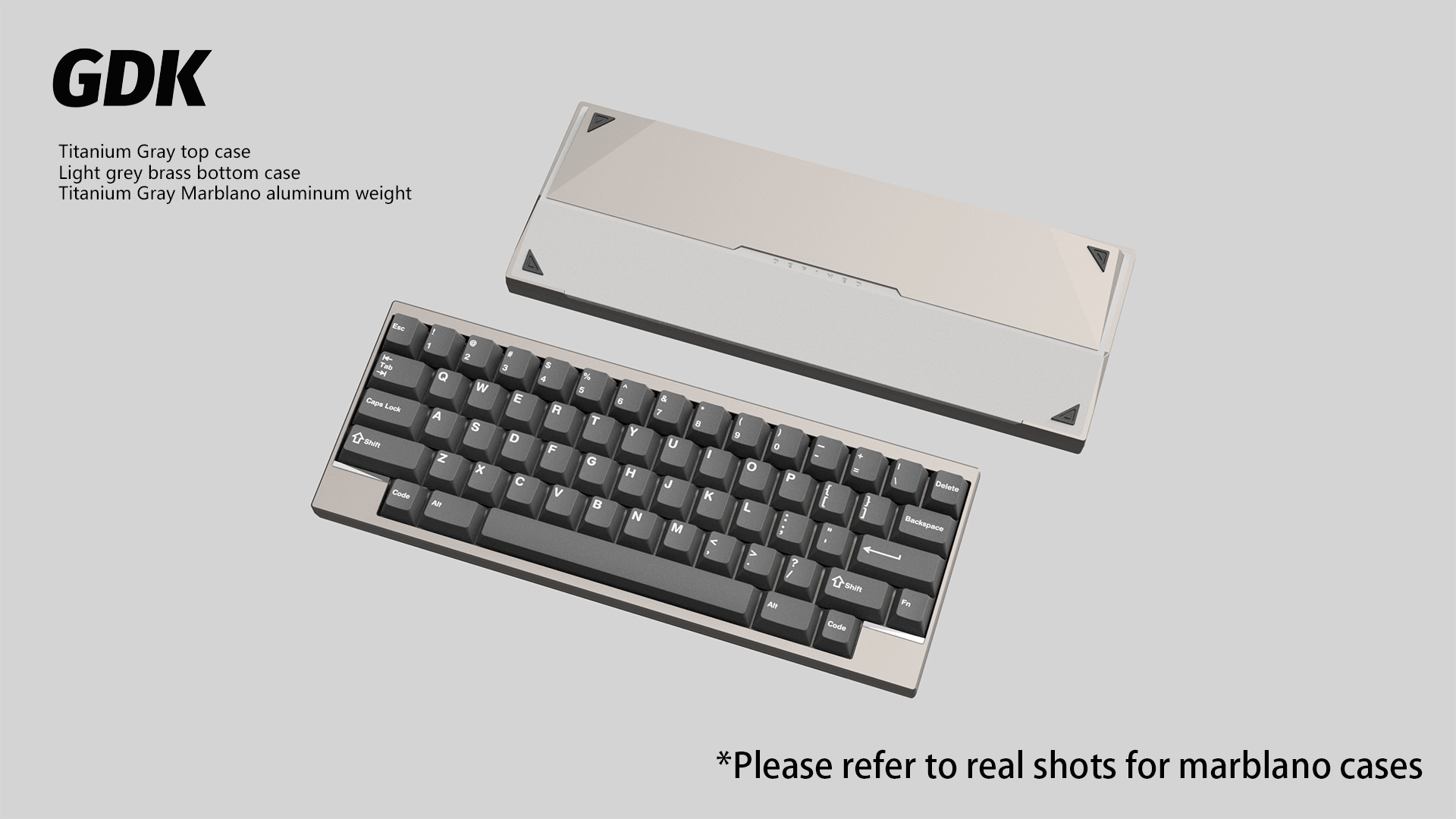

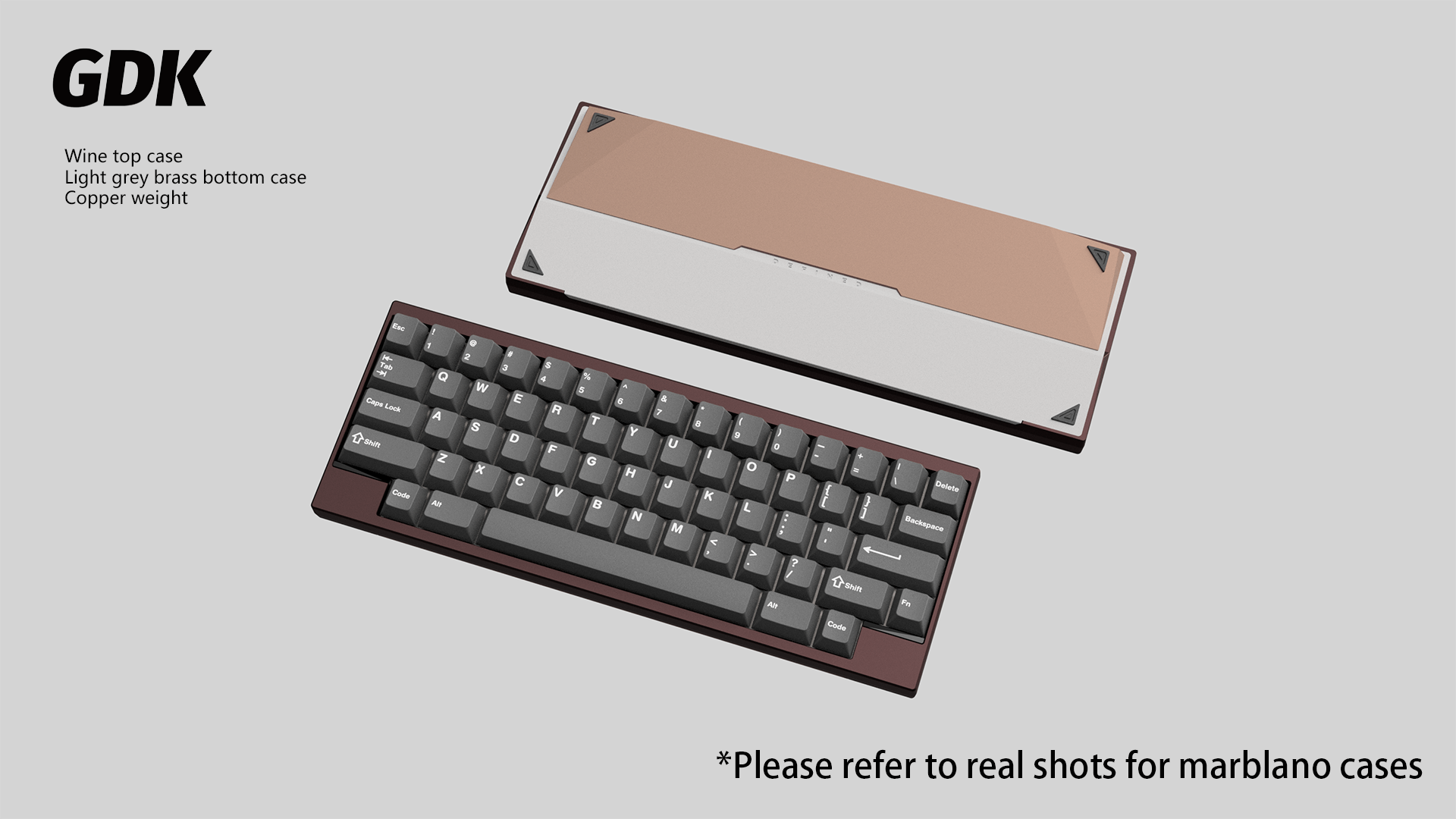

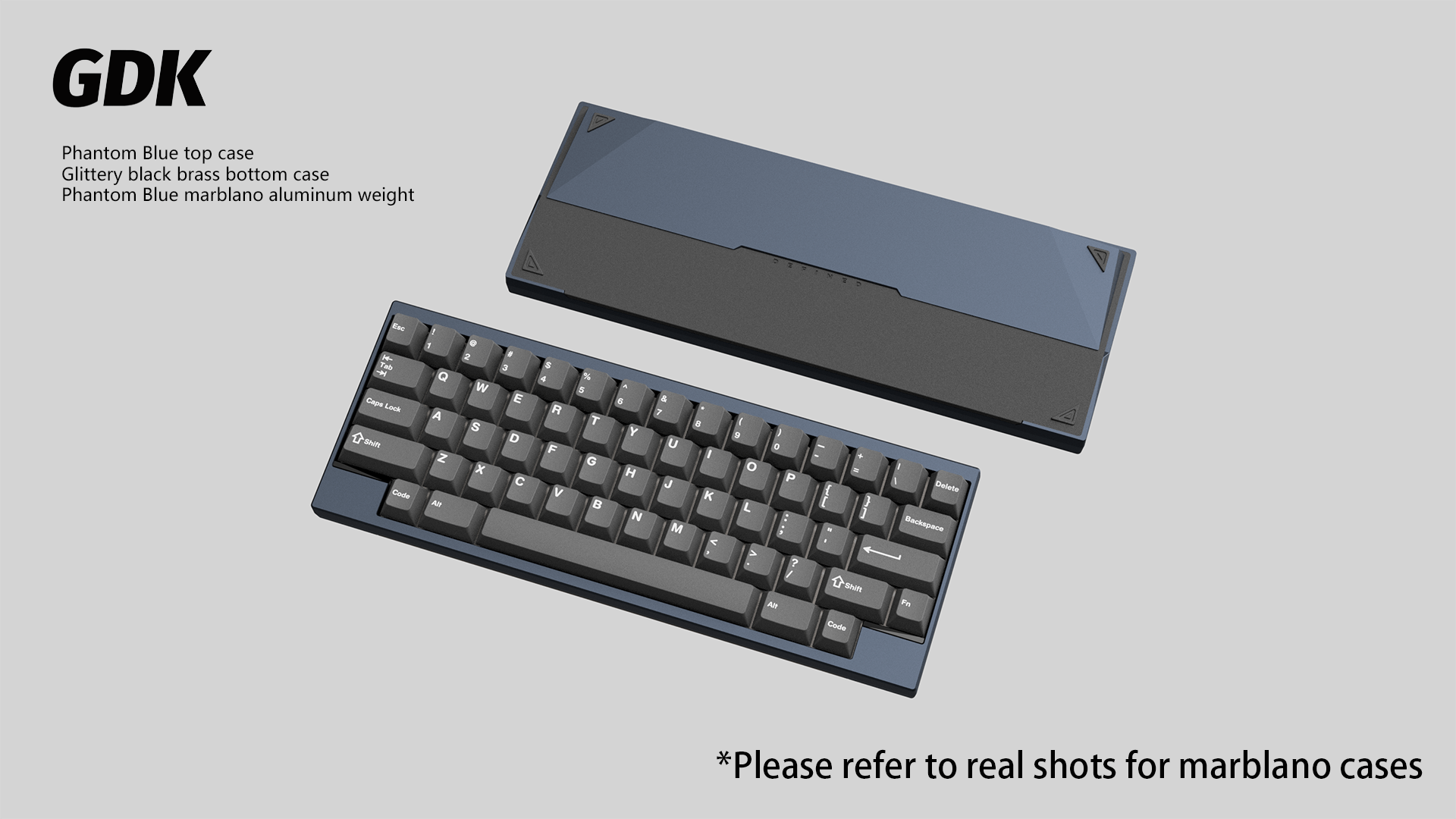

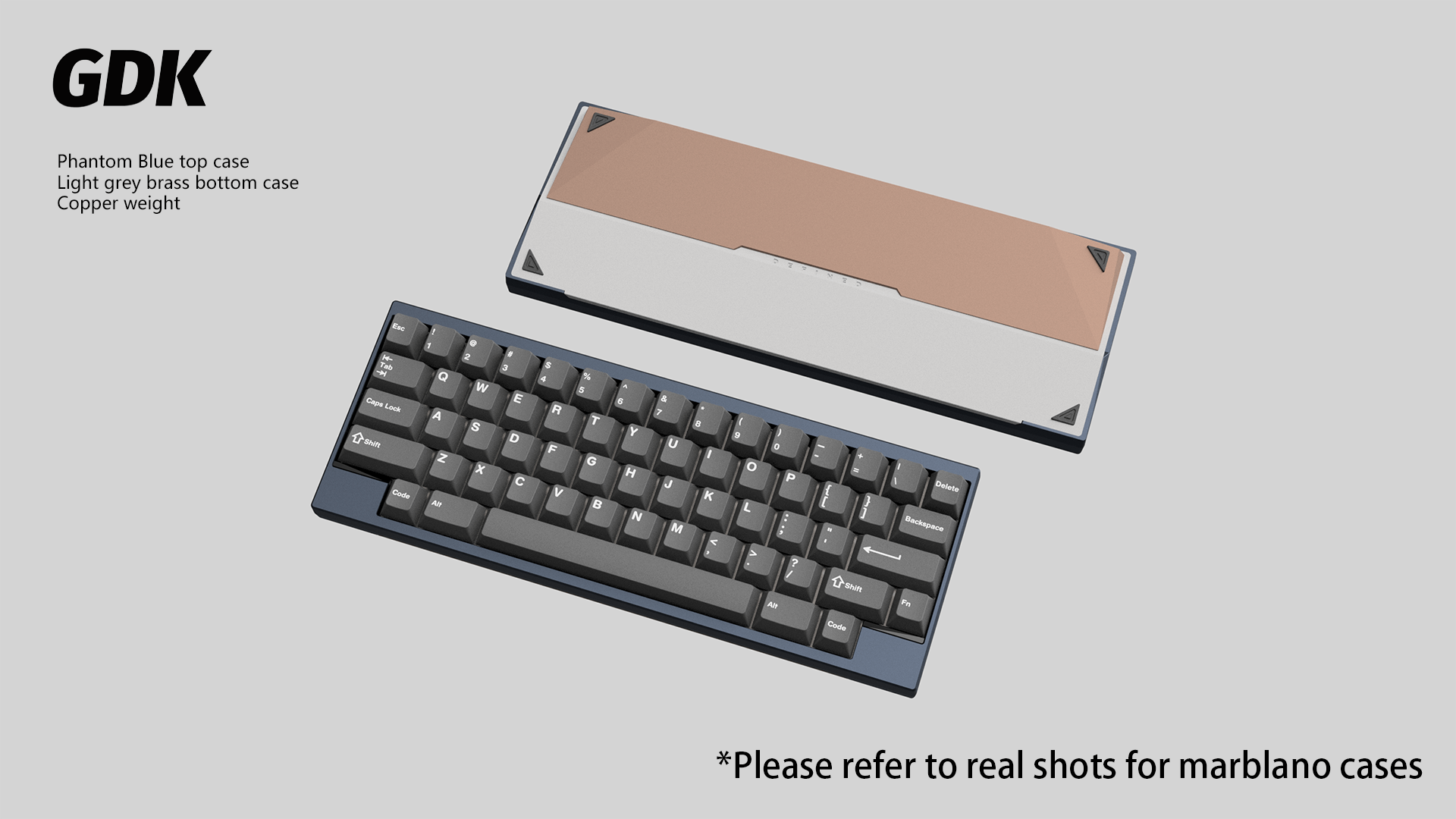

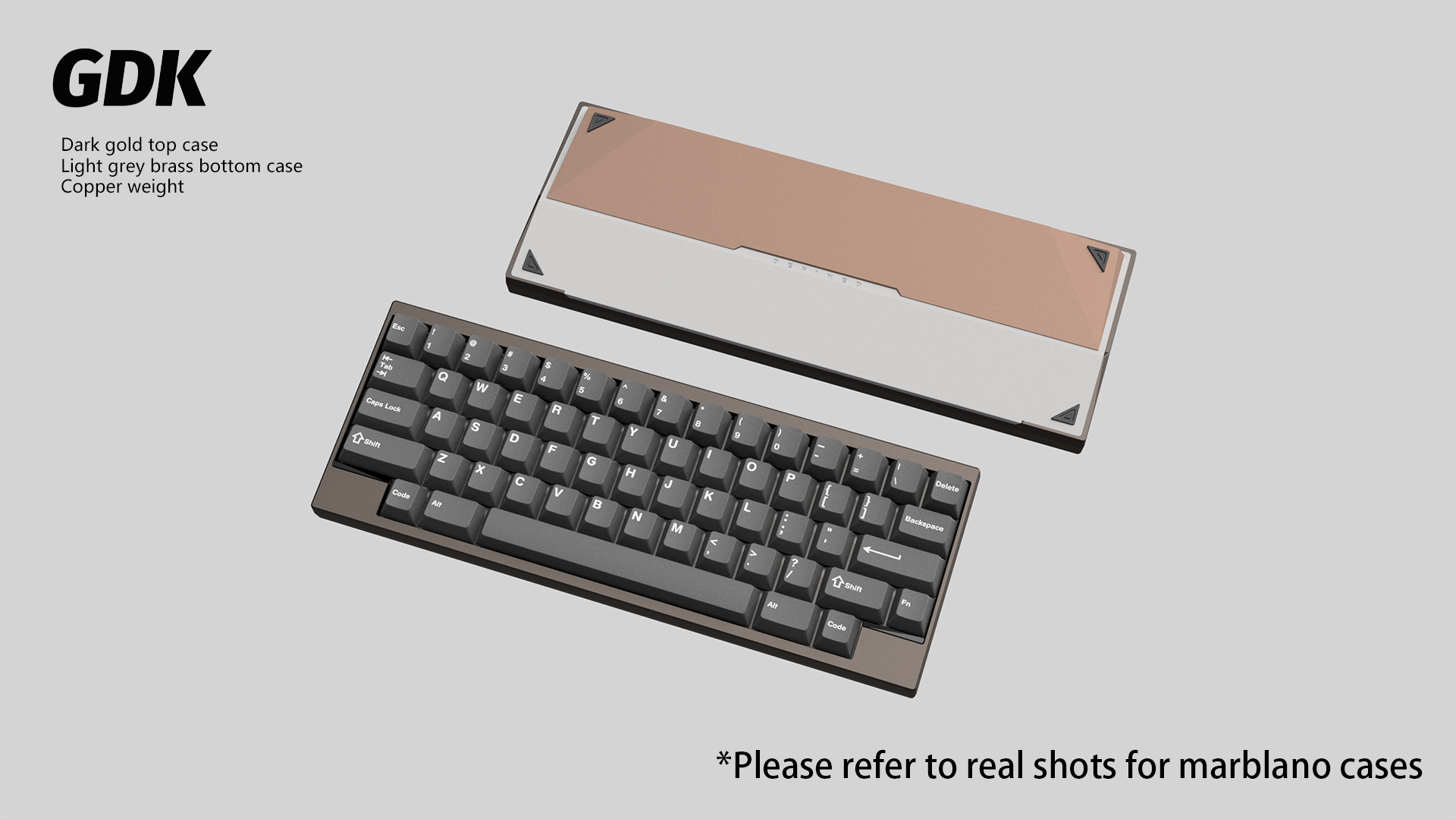

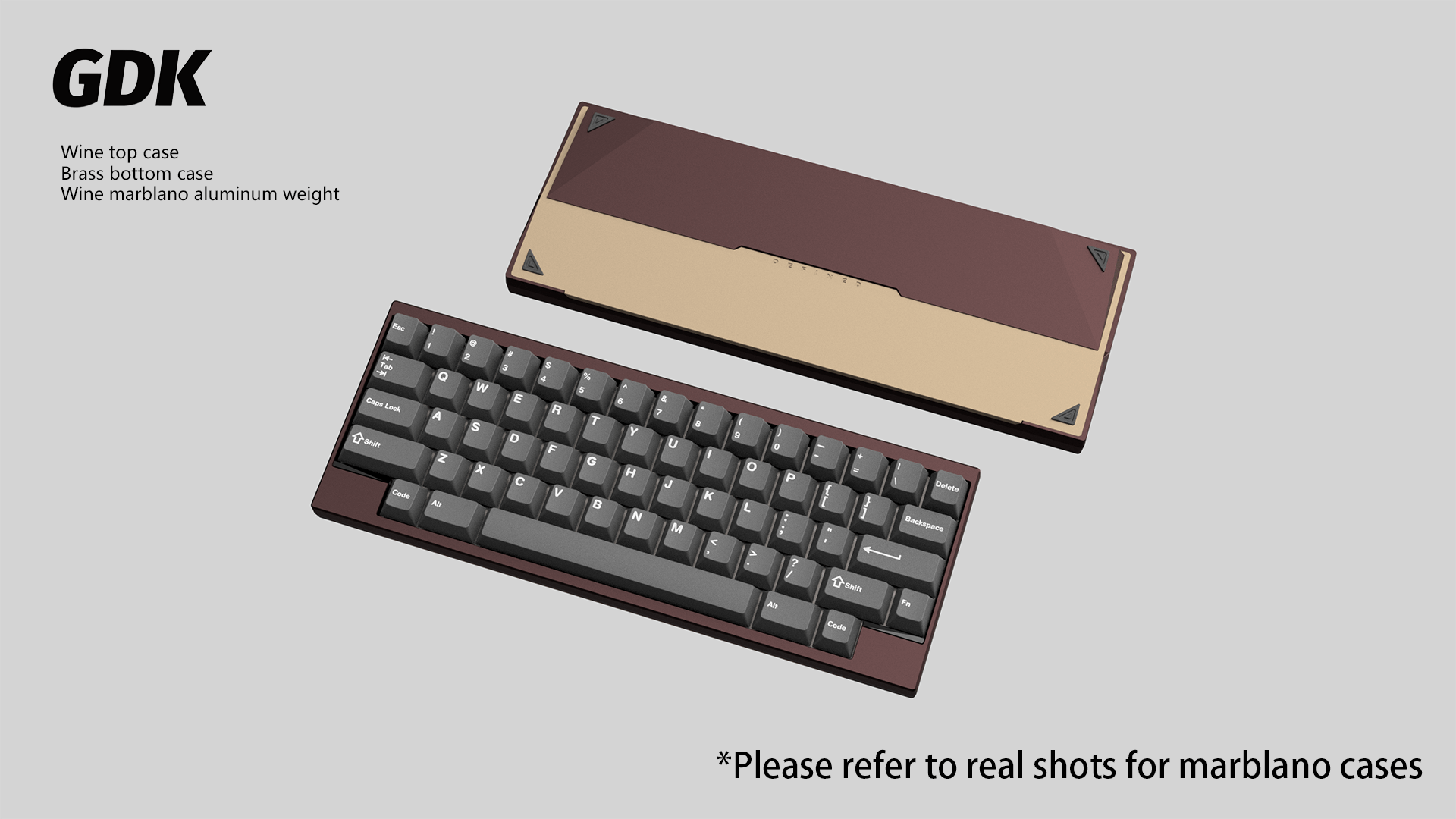

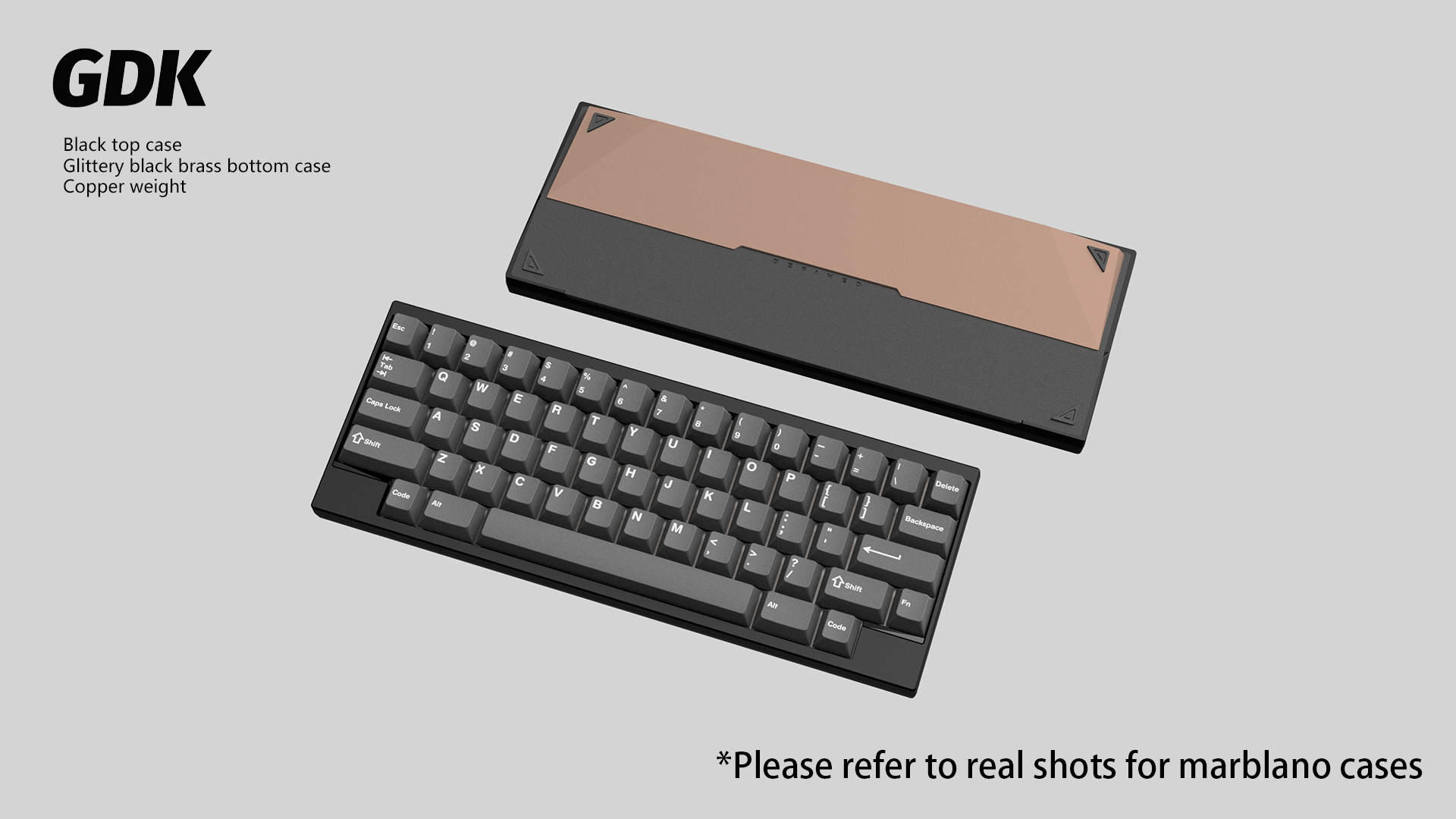

Color Combinations

Structure Diagram

Supported Layouts

Disclaimer

Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.
