Photos of prototypes are available at the bottom of this page.

Chilkey

ND104

$199.00 USD
$199.00 USD
Title
Color
PCB | Switch
Availability

Delivery ETA (more details at the bottom of the page)

In stock

Ships in 1-3 business days

Early May, 2026

- All Gunmetal Gray variants (pre-order)

- Lumen Yellow / 1.6mm / WS Silent (pre-order)

Early May, 2026 (pre-order)

- All other variants (pre-order)
Quantity

Pickup available in Scarborough, ON, Canada. Click here for more info

Usually ready in 1-3 days

Highlights

Alt image

Smart Display

Built-in screen with three modes — calculator, clock, and dynamic backgrounds — for both utility and style.

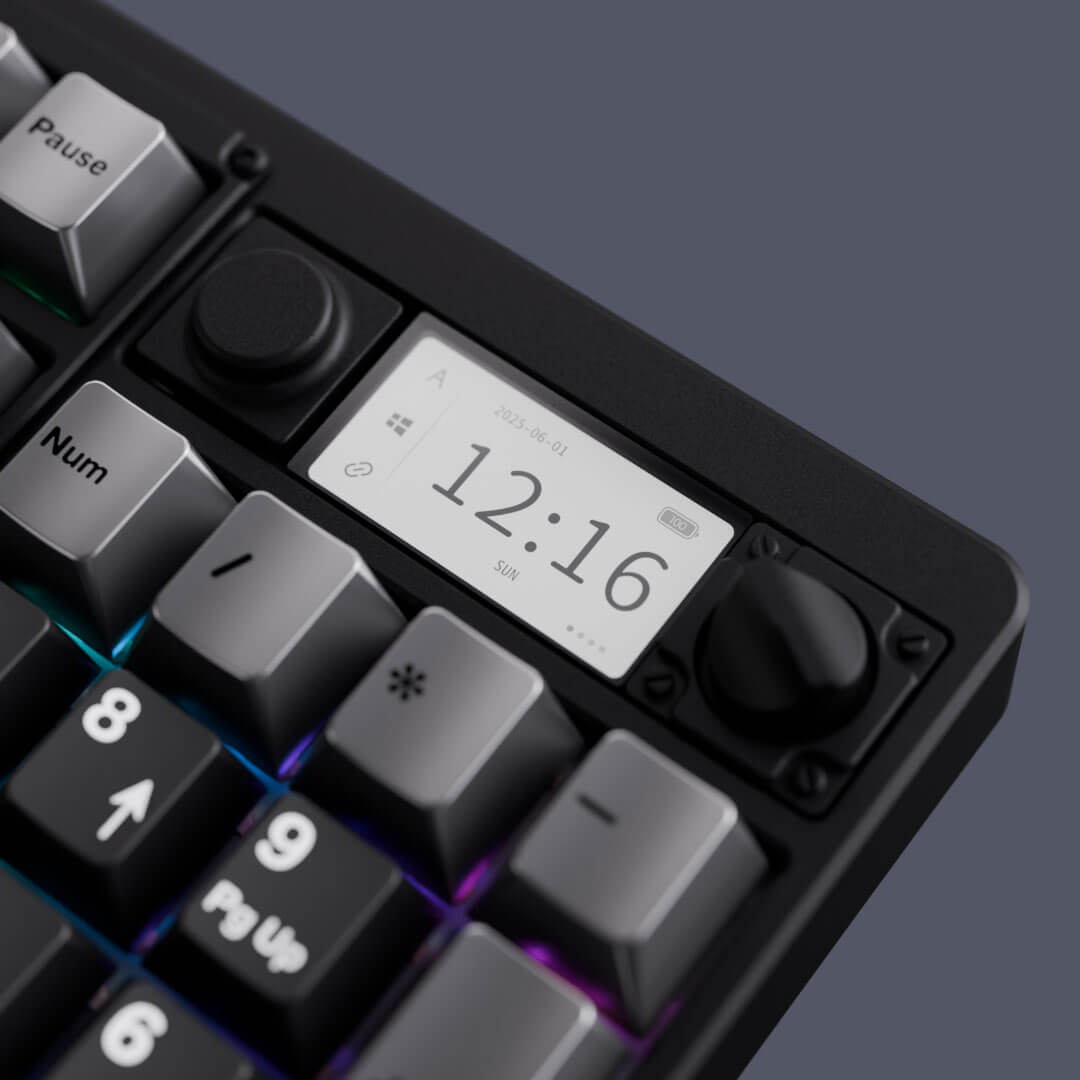

Time & Status

The integrated display provides at-a-glance visibility for the time, date, and essential keyboard metrics, including battery level, connection mode, and Caps Lock status.

IMAGE & GIFS

The display is fully customizable, allowing you to personalize the screen with your own images or GIFs via the Chilkey software.

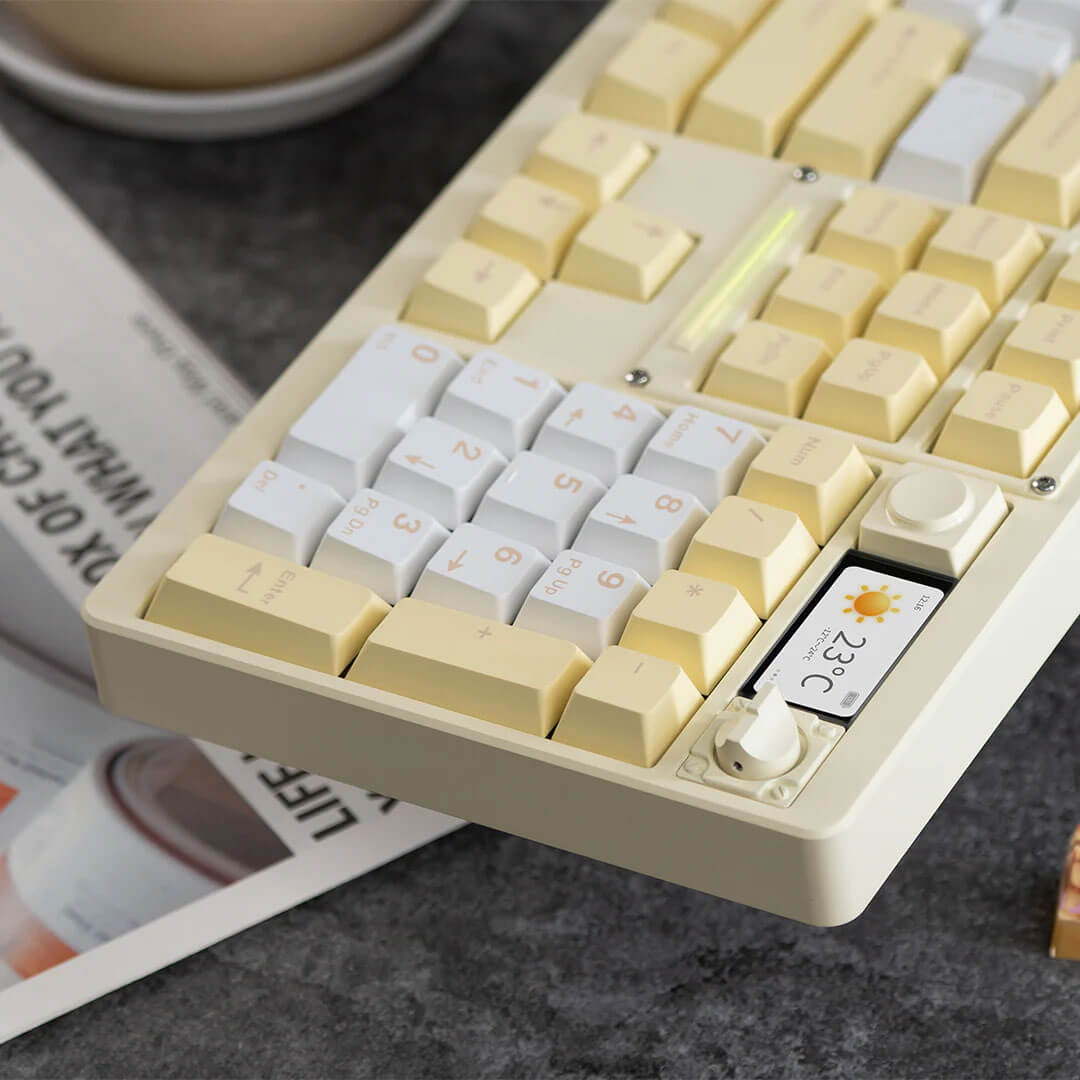

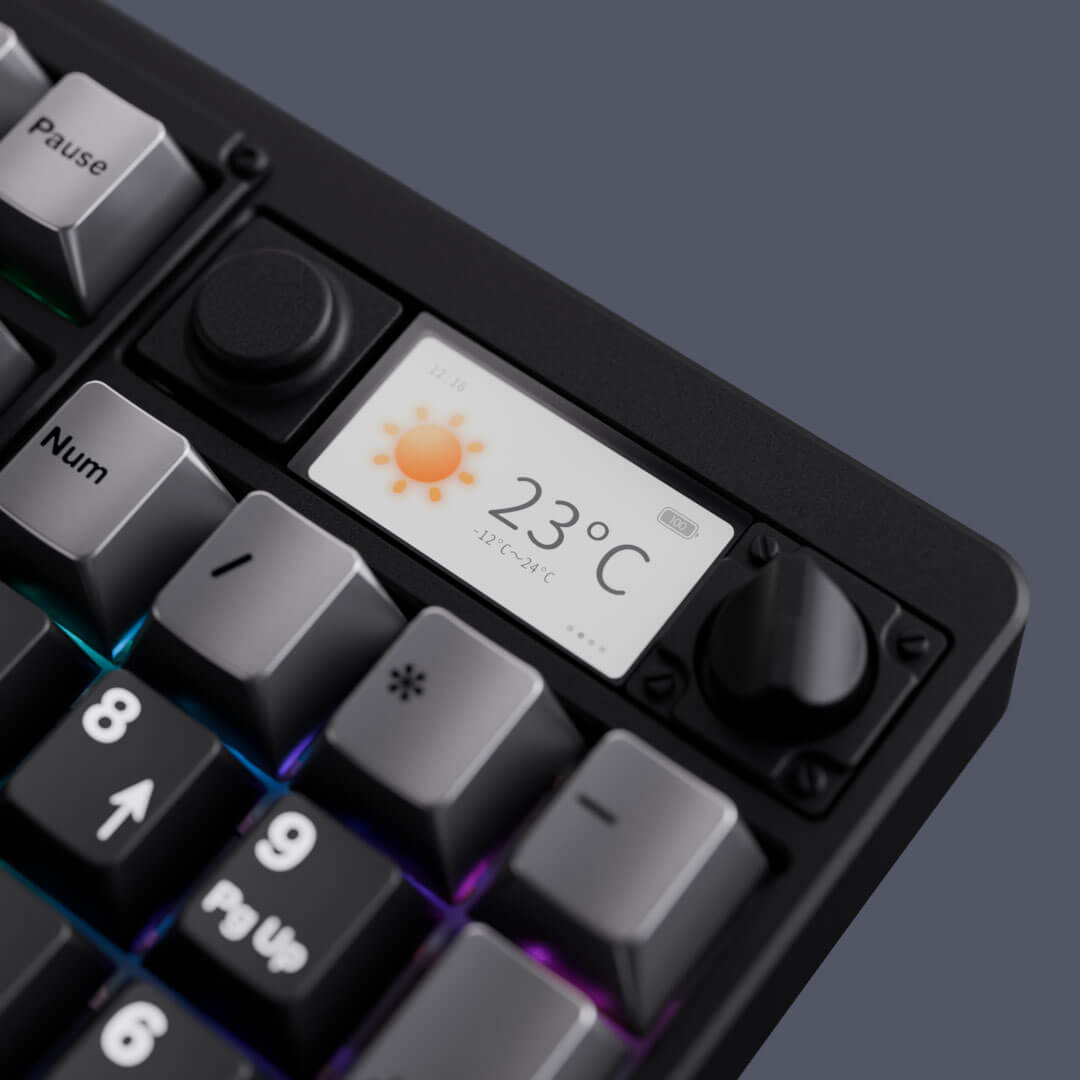

WEATHER

Use Fn + Knob Rotation to access the weather display, providing real-time conditions and temperature at a glance.

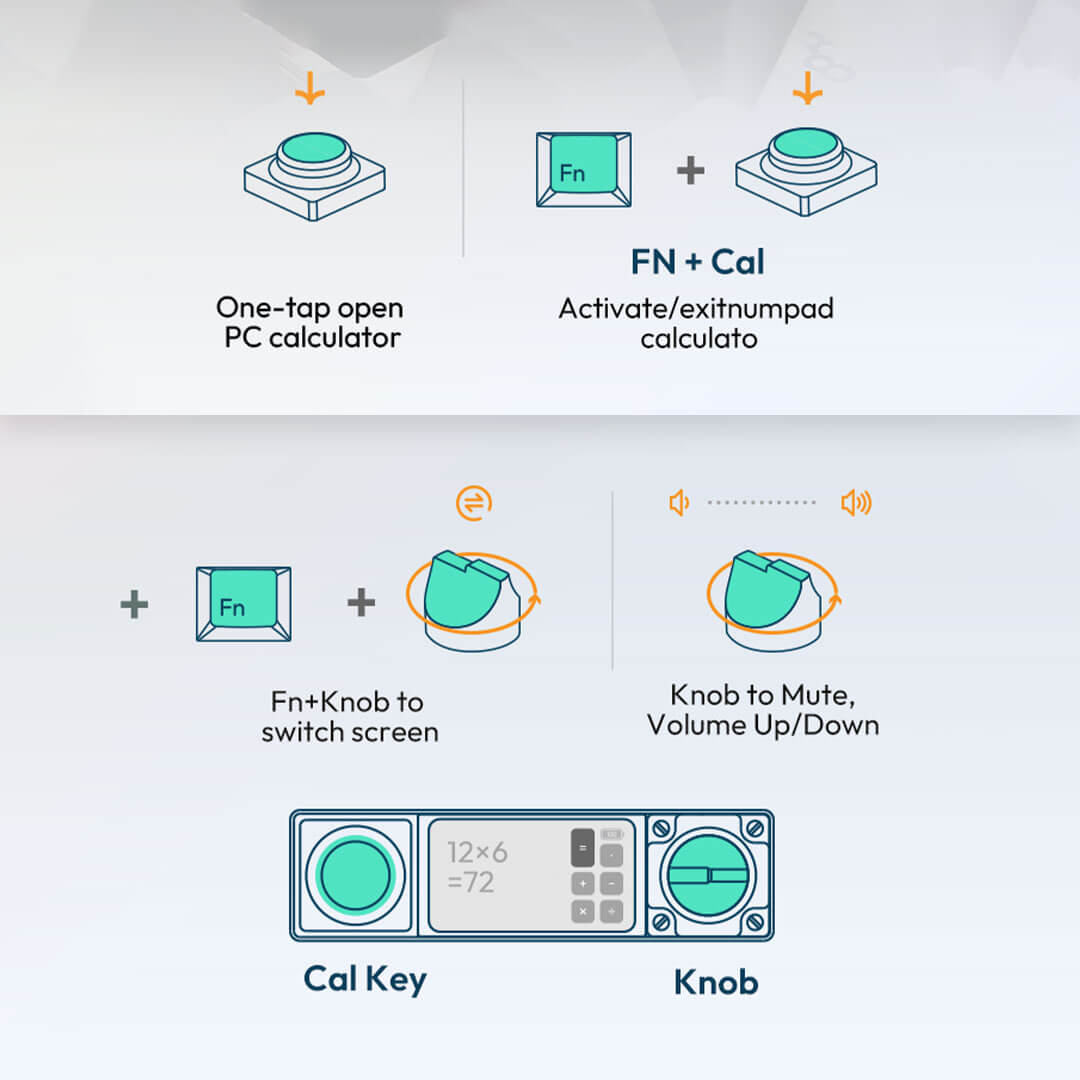

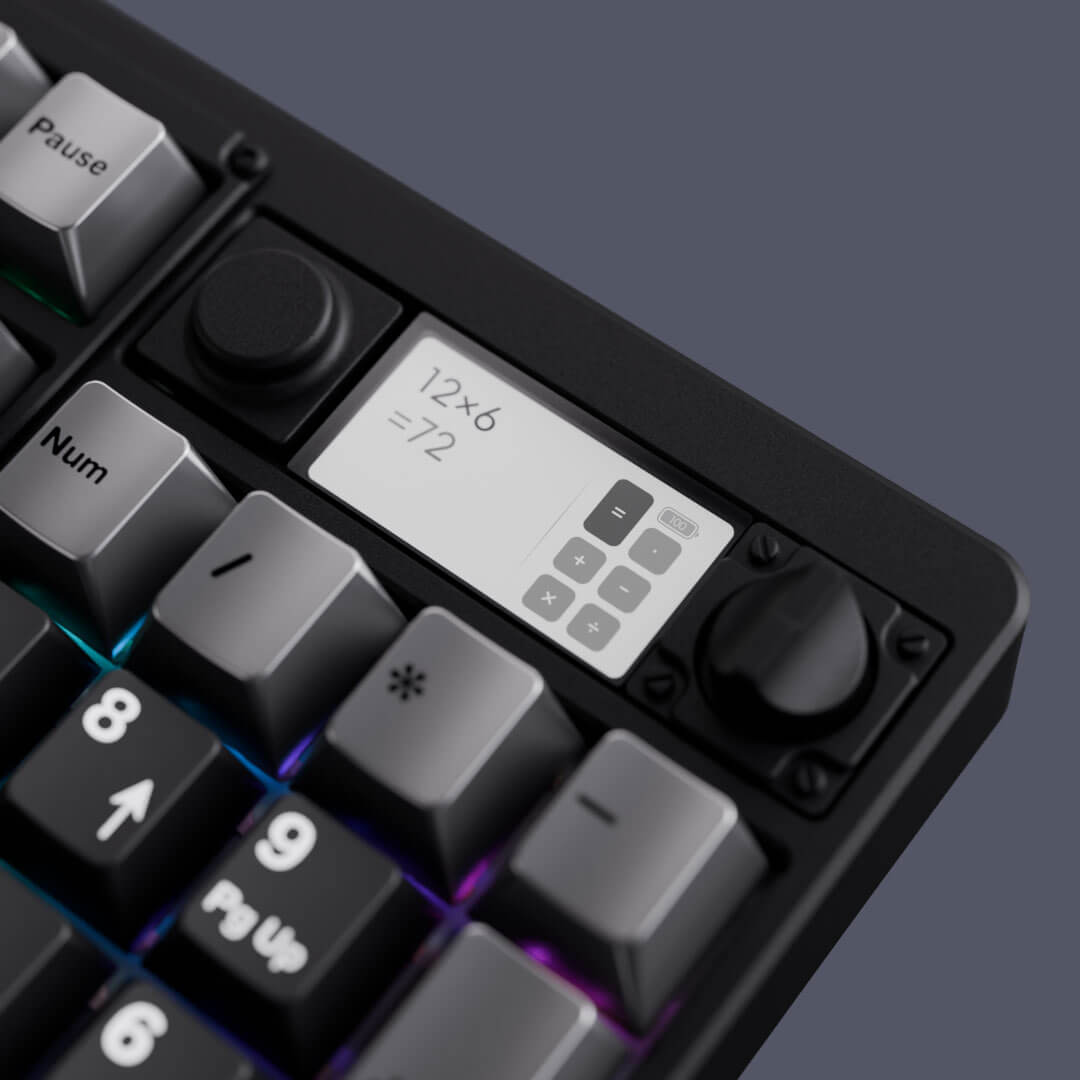

STANDALONE CALCULATOR

Press Fn + Calculator Key to activate a standalone calculator directly on the screen. It operates independently of your system, enabling quick calculations without interrupting you workspace.

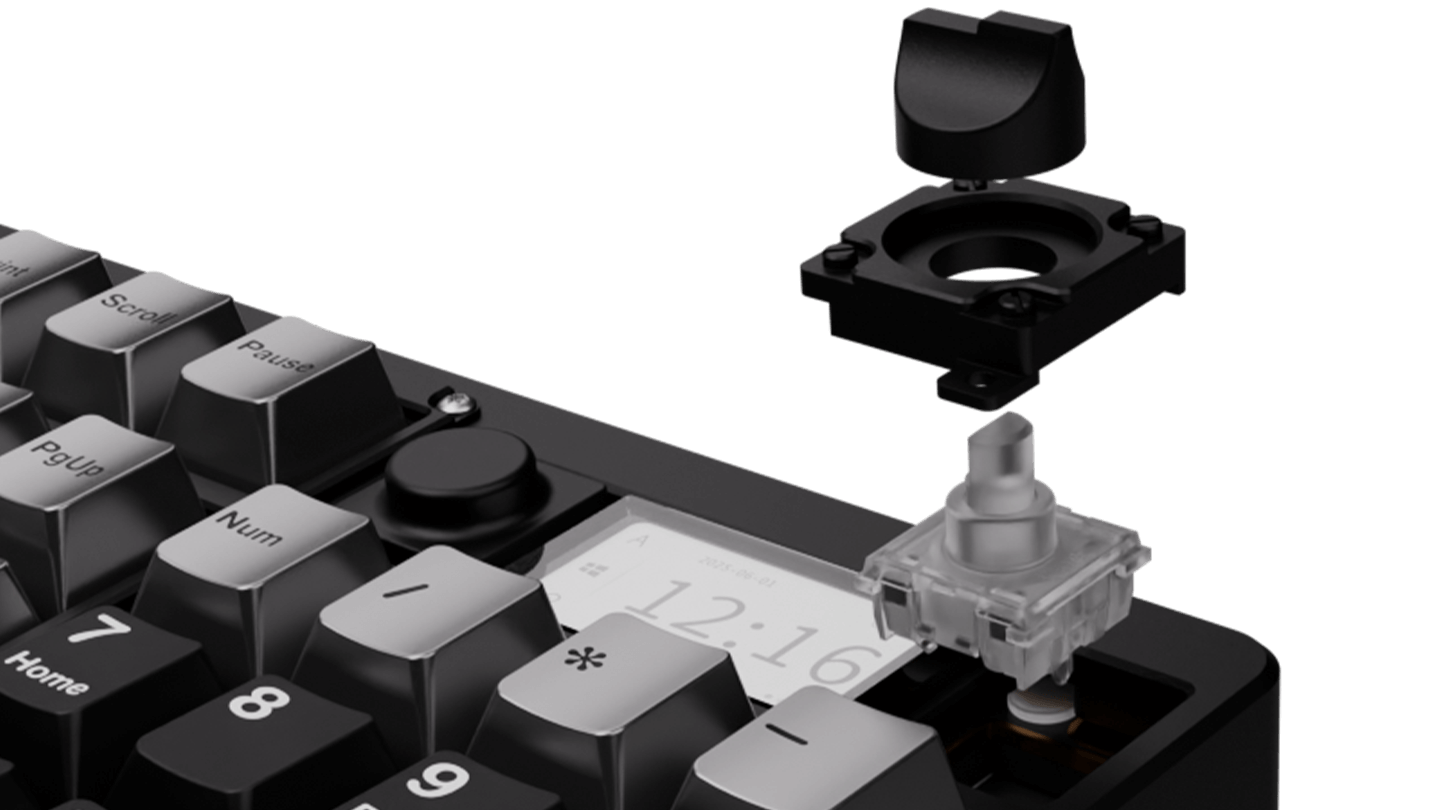

Functional knob

Aesthetically matched to the sleek aluminum case and functionally integrated with the smart display, the ND104’s hot-swappable knob provides precise, intuitive control over volume and media among other functions.

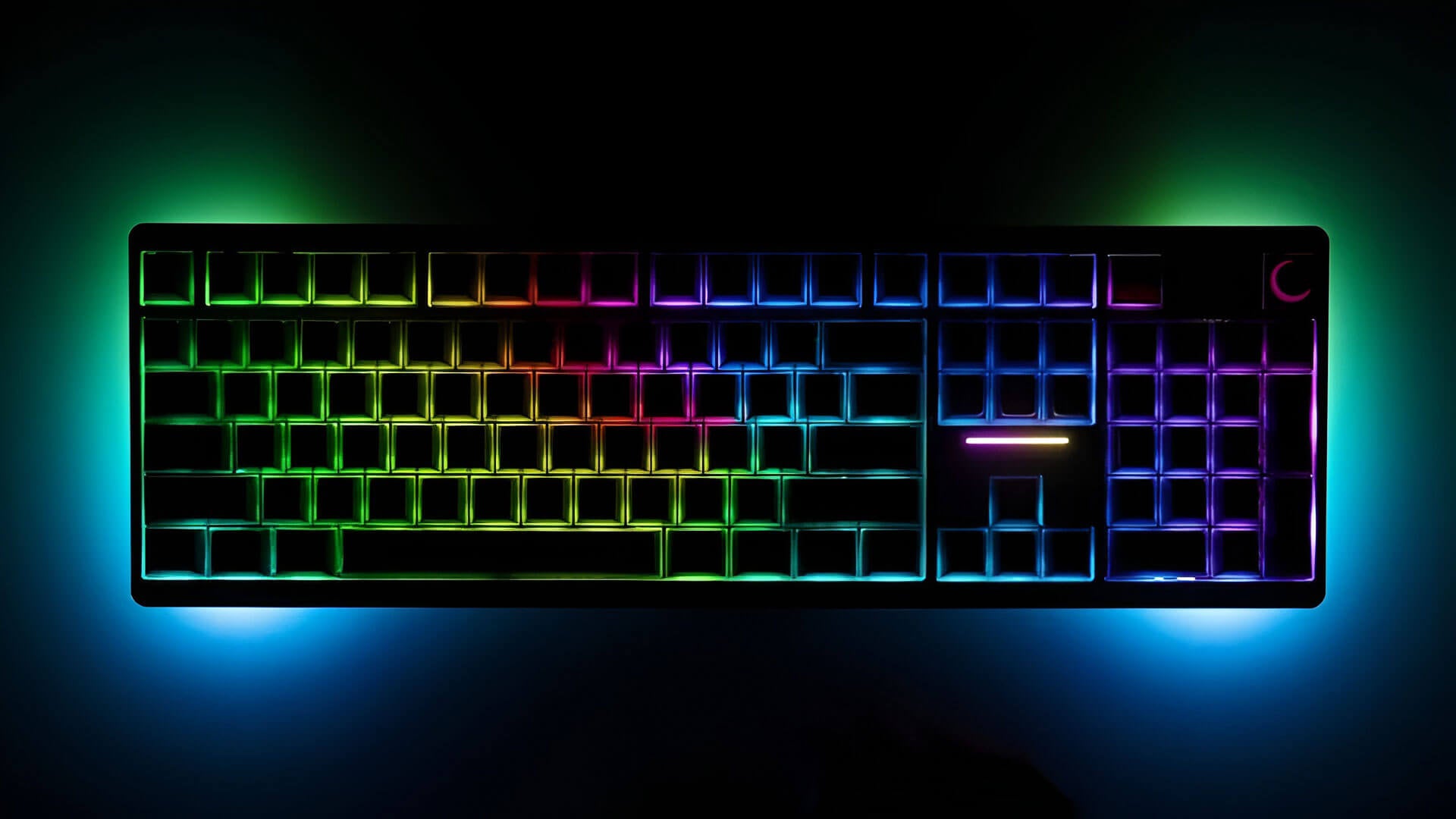

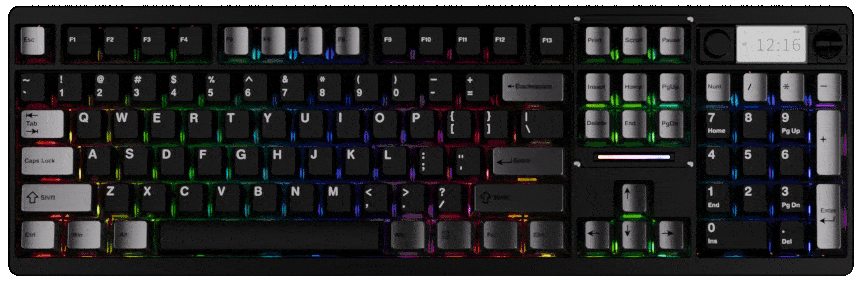

RGB ALL AROUND

The ND104 features fully customizable per-key RGB and underglow strips for a soft, ambient effect. Choose from static modes or dynamic animations, or turn both off for a clean, stealthy aesthetic.

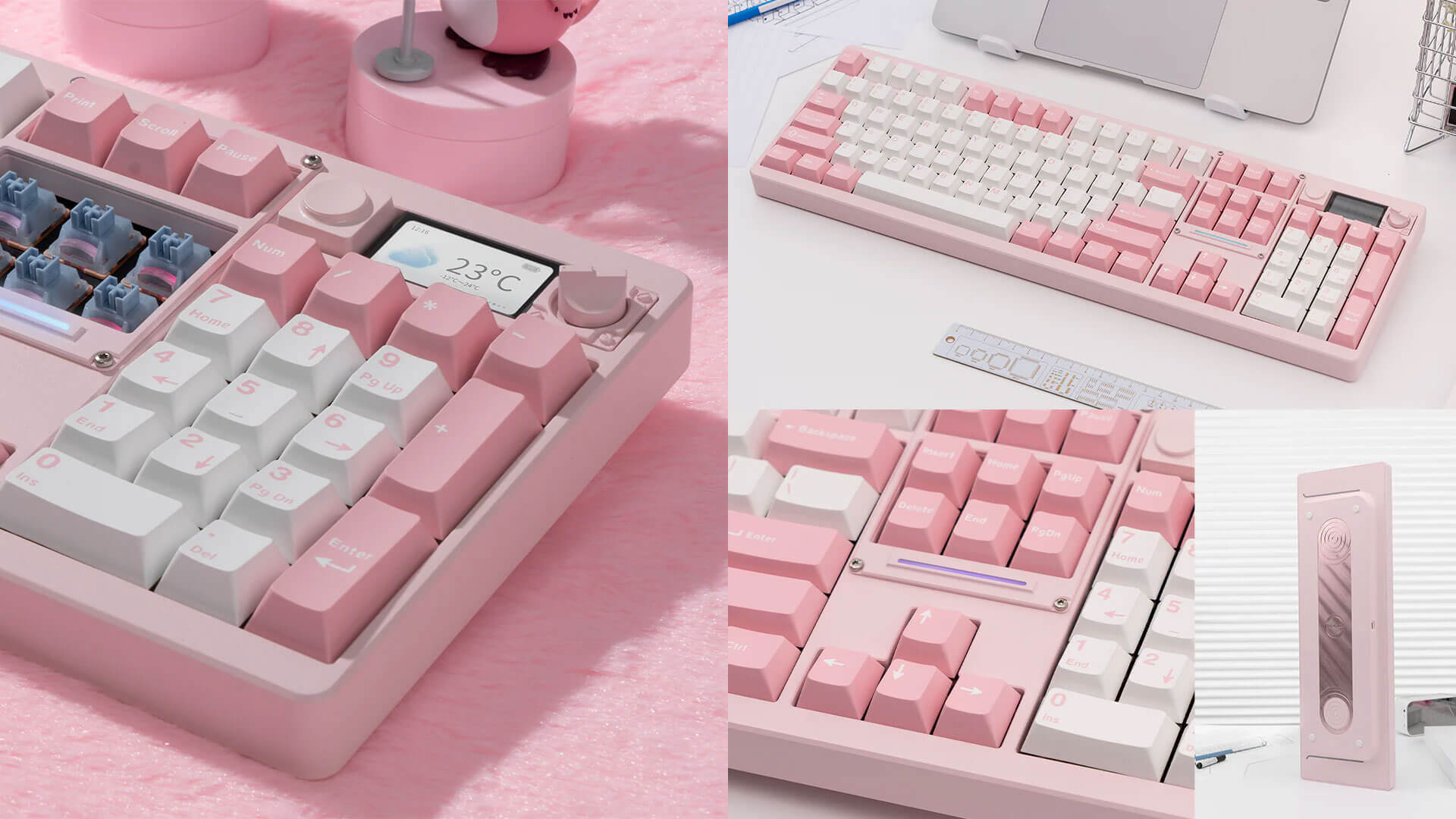

OPTIONAL STORAGE COMPARTMENT

The ND104’s navigation cluster can be swapped for a storage compartment that comes included in box. It's perfect for keeping USB drives, wireless receivers, or spare switches on hand. If you prefer this look, you can easily remap the navigation keys to a separate layer to have your cake and eat it too!

Wireless Freedom

The ND104 supports three connection modes: Bluetooth 5.4, 2.4GHz wireless (dongle included), and USB-C (cable included). Its 8000mAh battery capacity will last an entire day of non-stop use with the RGB on, or about 4.5 days with the RGB off.

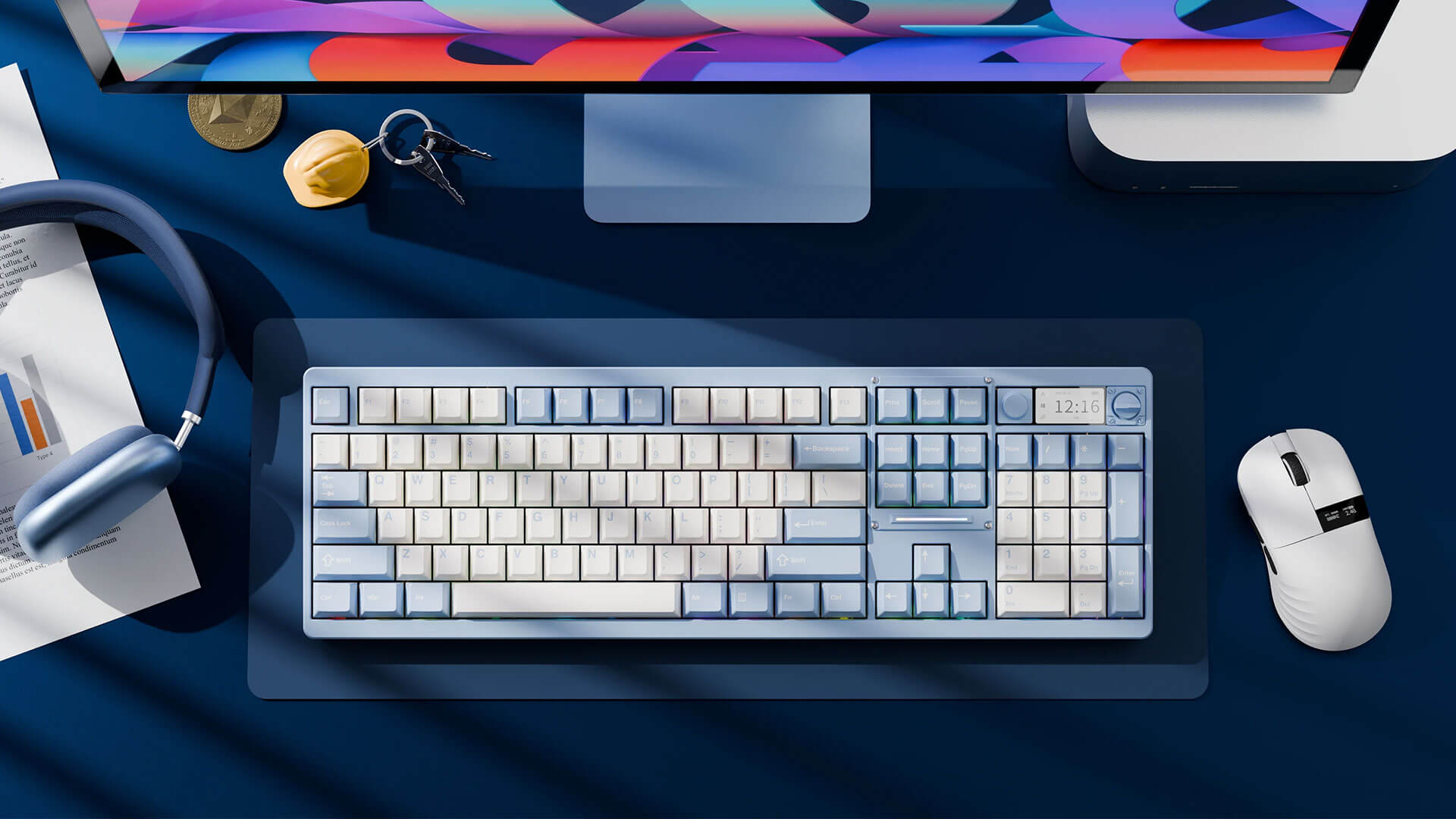

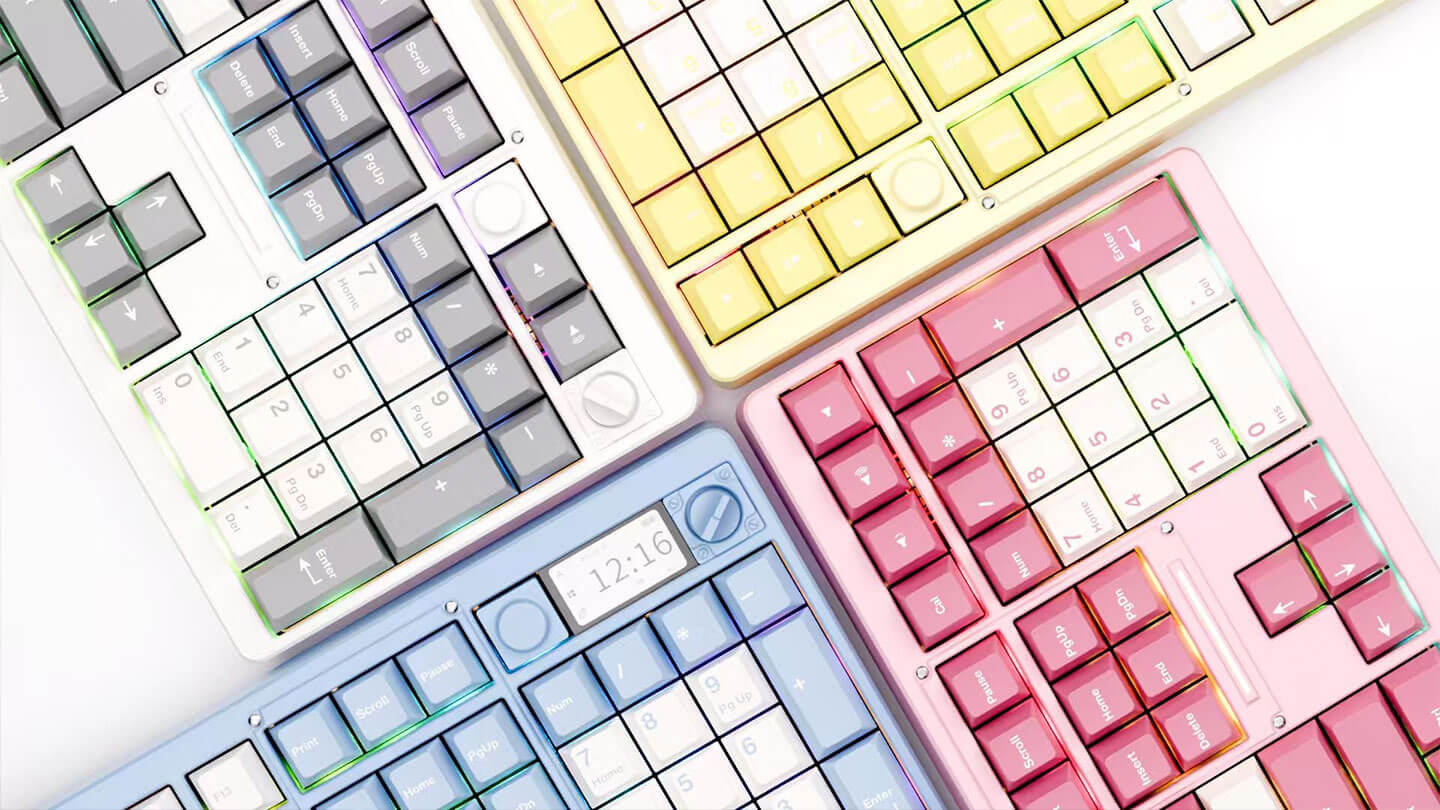

One keyboard, many different looks!

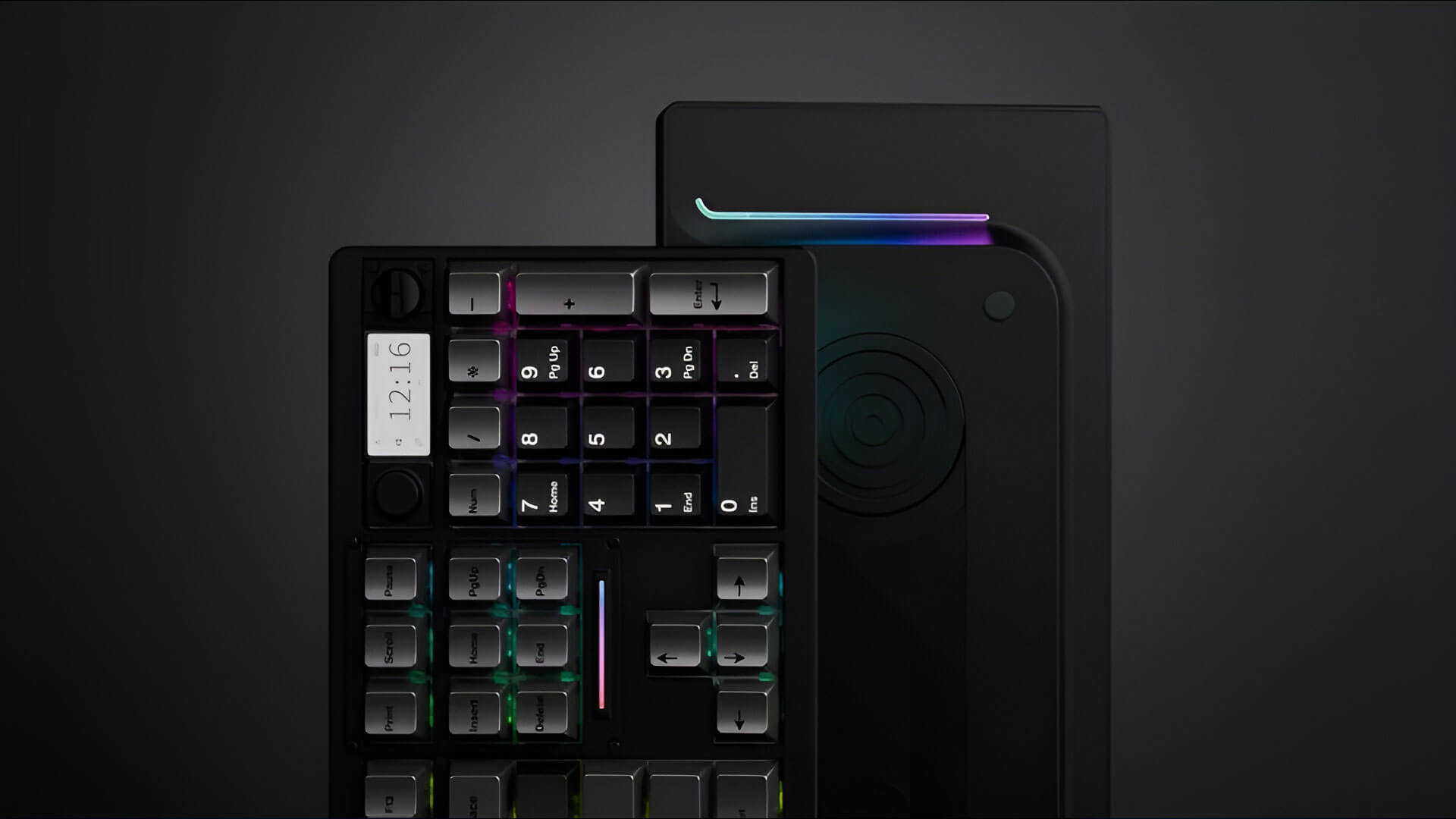

The ND104’s screen and knob cluster are fully modular. You can replace either / both the screen and the knobs if you prefer a more traditional look!

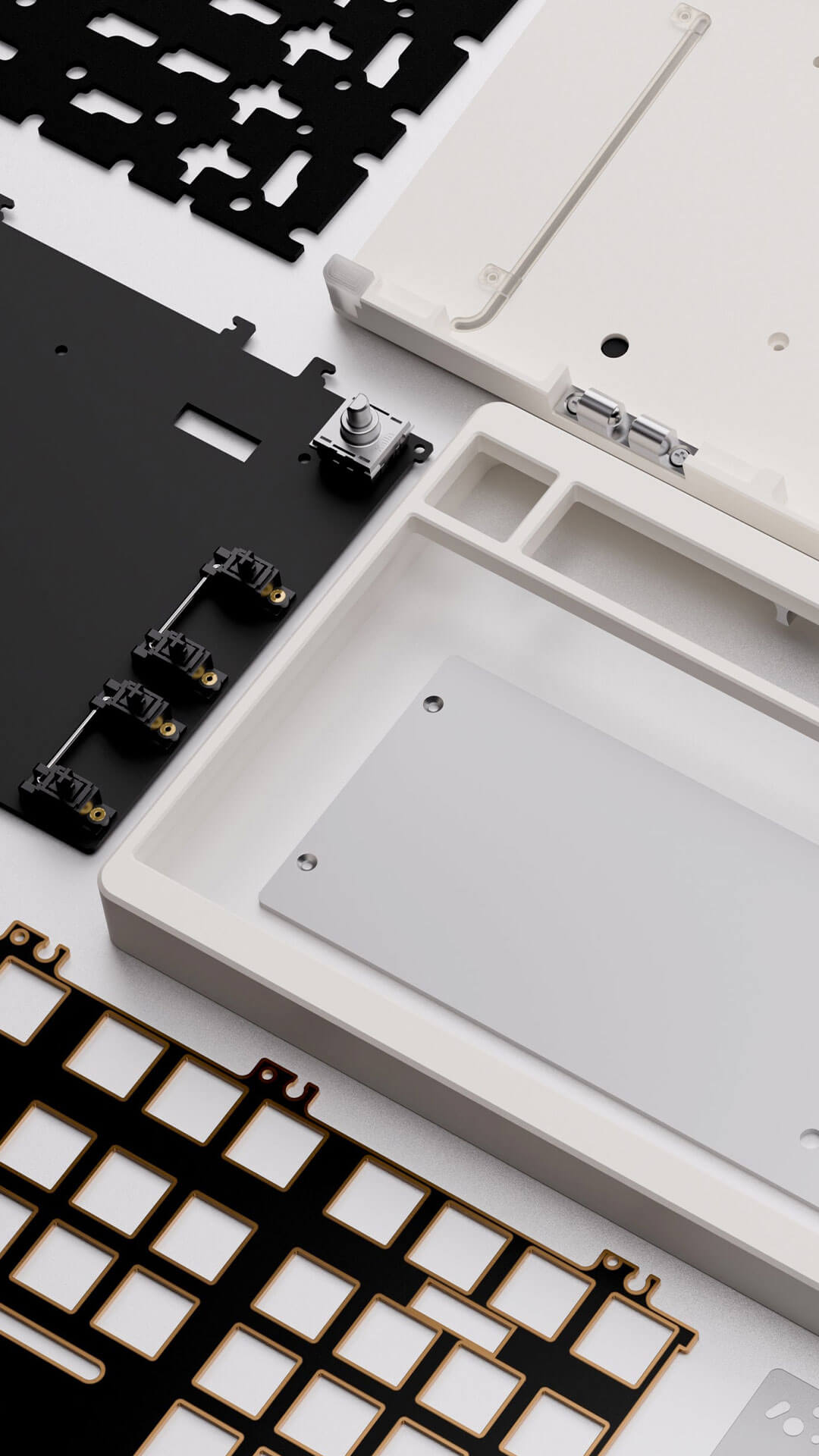

The DEtails

Specifications

Kit type

Fully assembled, ready to use

Layout

100% (106 keys)
ANSI

Case material

6063 Aluminum

Case finish

Anodized

Shadow Black, Gunmetal Gray

Acustatic
Lunar White, Sky Blue, Soft Pink & Lumen Yellow

Weight

Material
Aluminum

Finish
Anodized / Acustatic

Dimensions

437.6mm x 140.1mm x 34.4mm

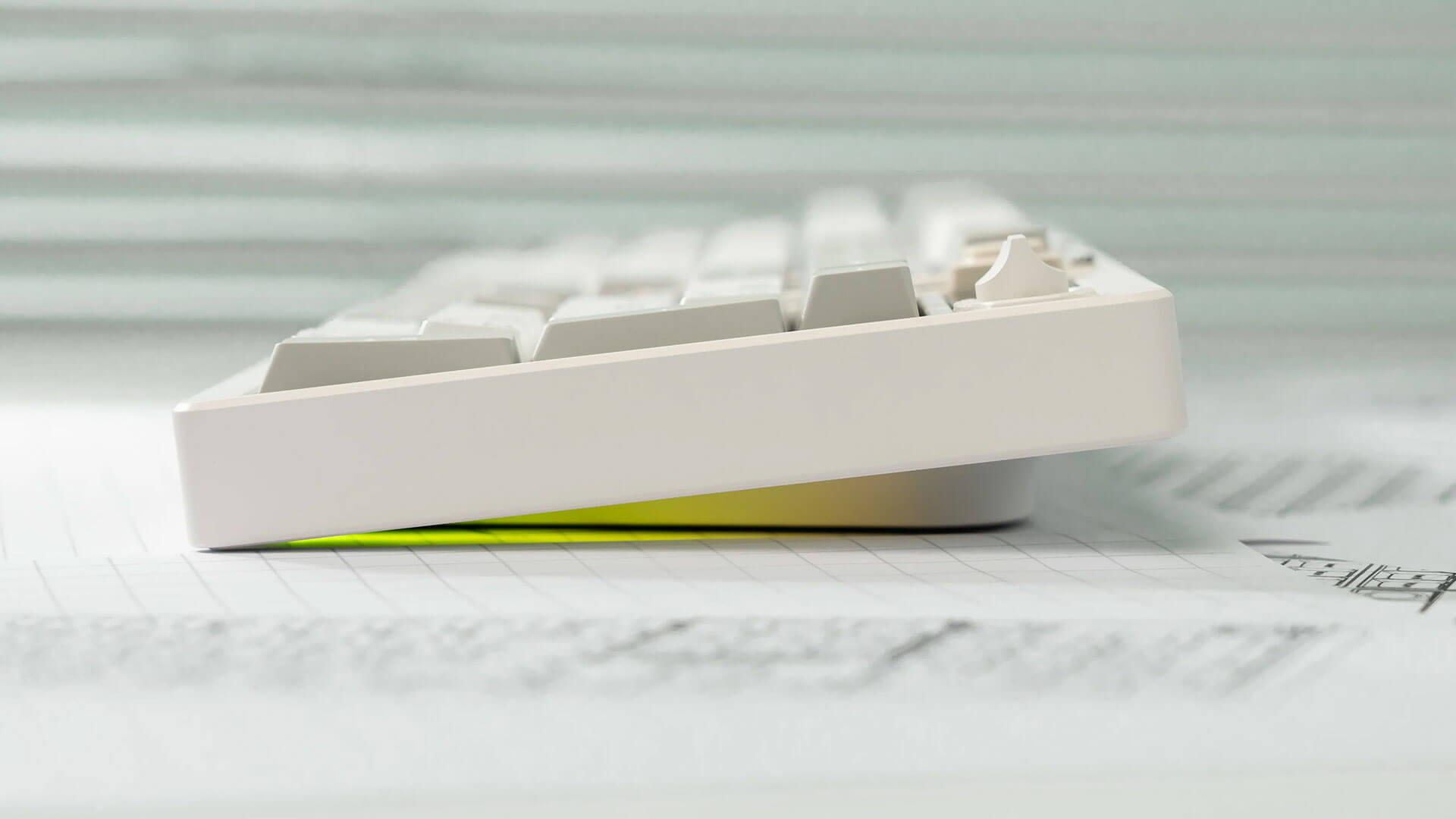

Typing angle

7 degrees

Plate

FR4

RGB support

Per-key and Underglow

PCB

Material

FR4

Hot-swap Support

Yes. Change up the switches anytime without the need to solder anything.

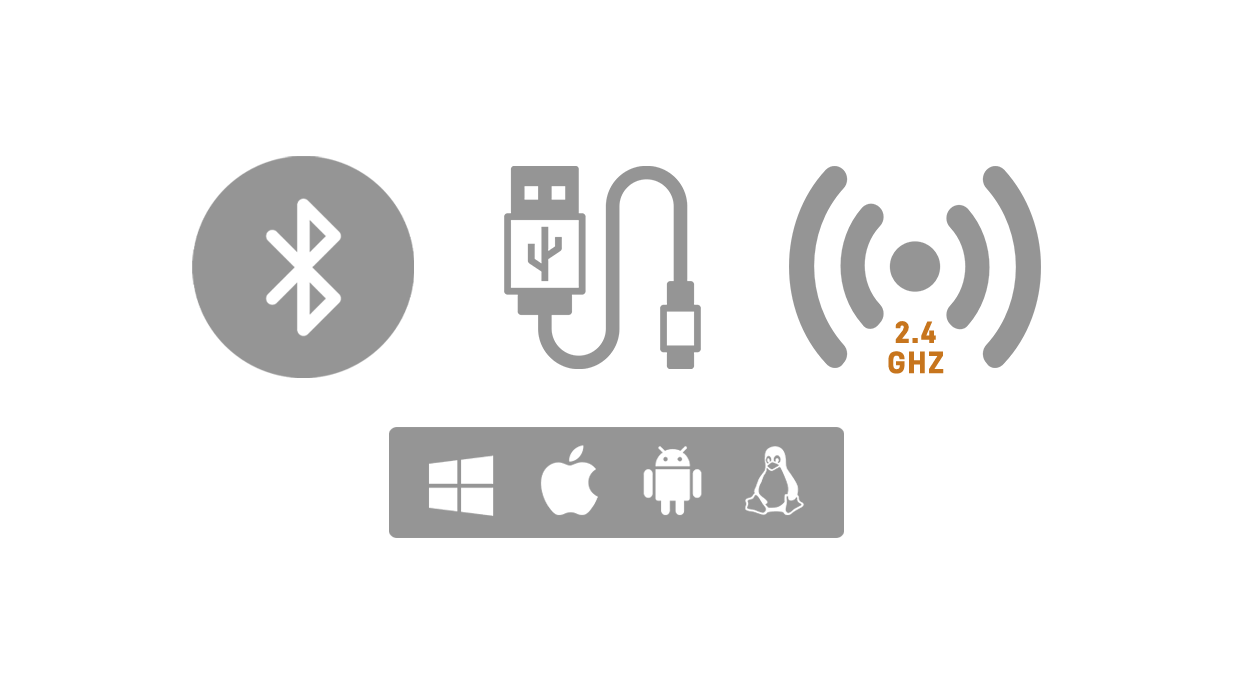

Connectivity

Tri-mode PCB, can use any of the following connection methods

- Wired

- Bluetooth Low Energy 5.4

- 2.4Ghz Wireless with included dongle

Max simultaneous device connections

3 devices

OS Support

Windows, macOS, Linux, Android

VIA customization

Yes, by sideloading JSON.

MISC

- Full n-key rollover (NKRO)

Polling rates

Bluetooth

133 Hz

2.4Ghz & Wired

1000 Hz

Latency

Wired

5.88 ms

Bluetooth

12 ms

2.4Ghz

8.37 ms

Battery

Capacity

8000 mAh (2x 4000mAh)

Battery Life (RGB ON)

BLE: 28h

2.4 Ghz: 29h

Battery Life (RGB OFF)

BLE: 118h

2.4 Ghz: 109h

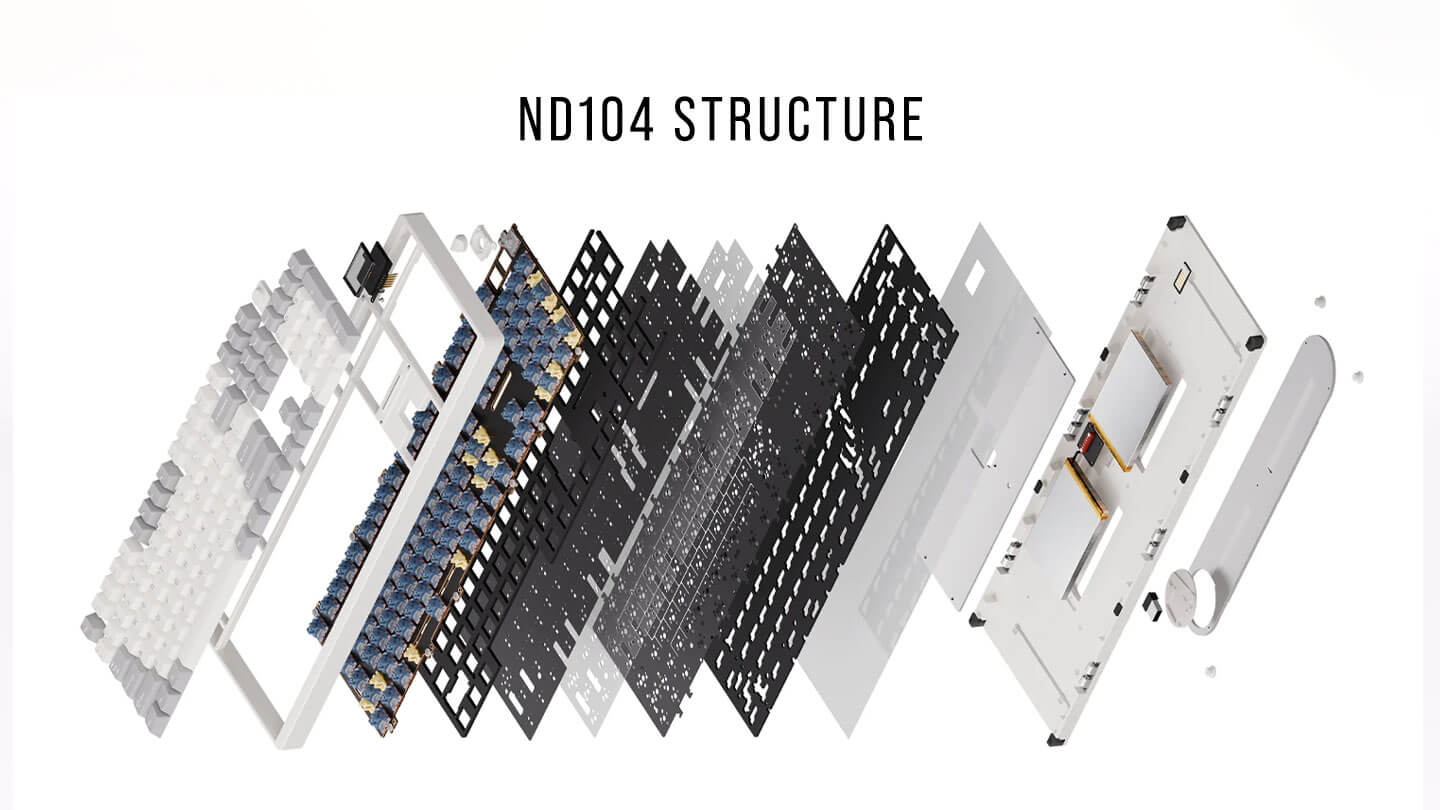

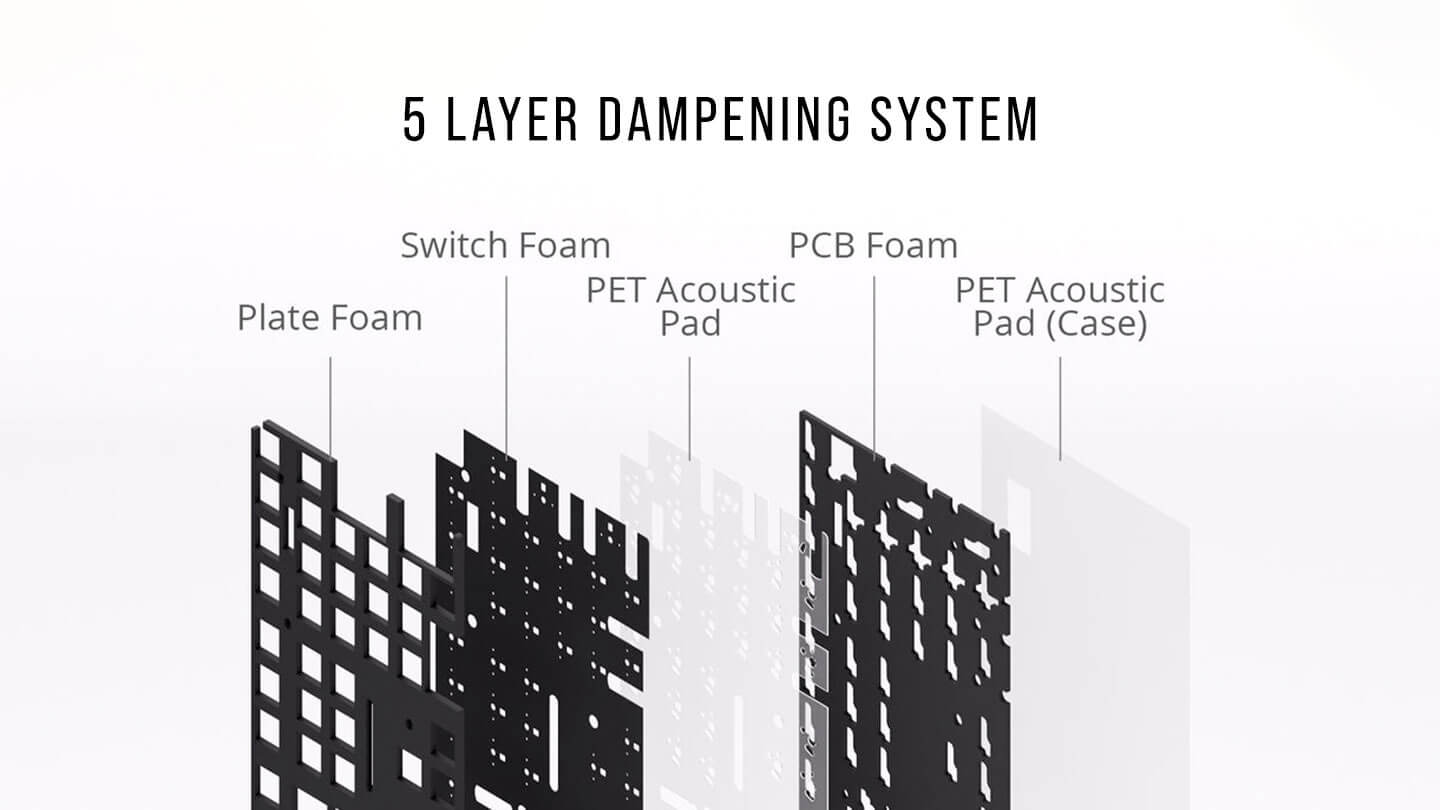

Sound dampening

5 layers

Mounting style

Installed

Silica Gel Mount

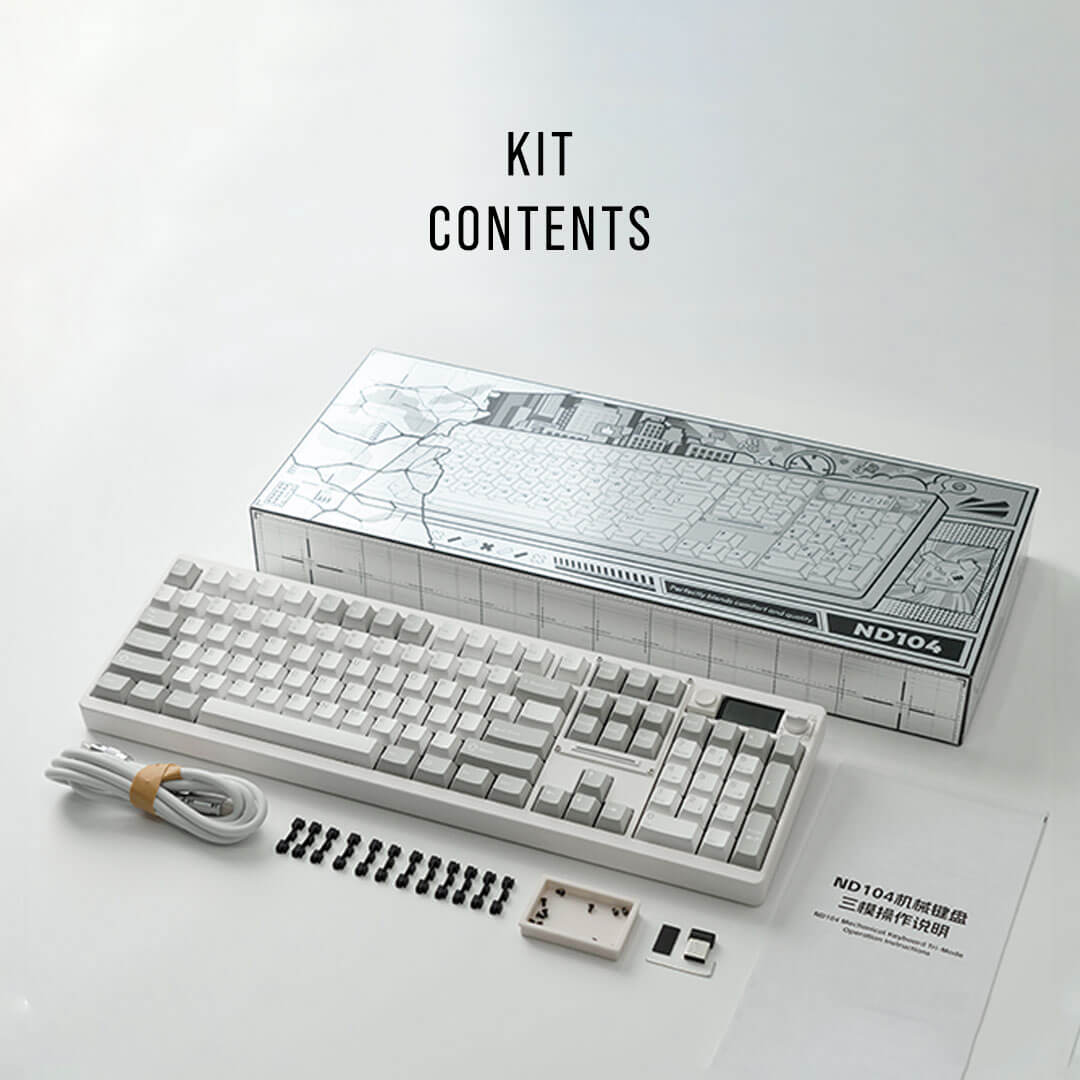

Also included

Elastic Bar Mount

Top Mount

Stabilizers

Lubed plate-mount stabilizers

Cable

Type-C braided cable, included.

Nav cluster storage component

Included

Switch & keycap puller

Included

Case mechanism

Ball-catch. No screwdrivers required to take apart the case.

Two Switch Options

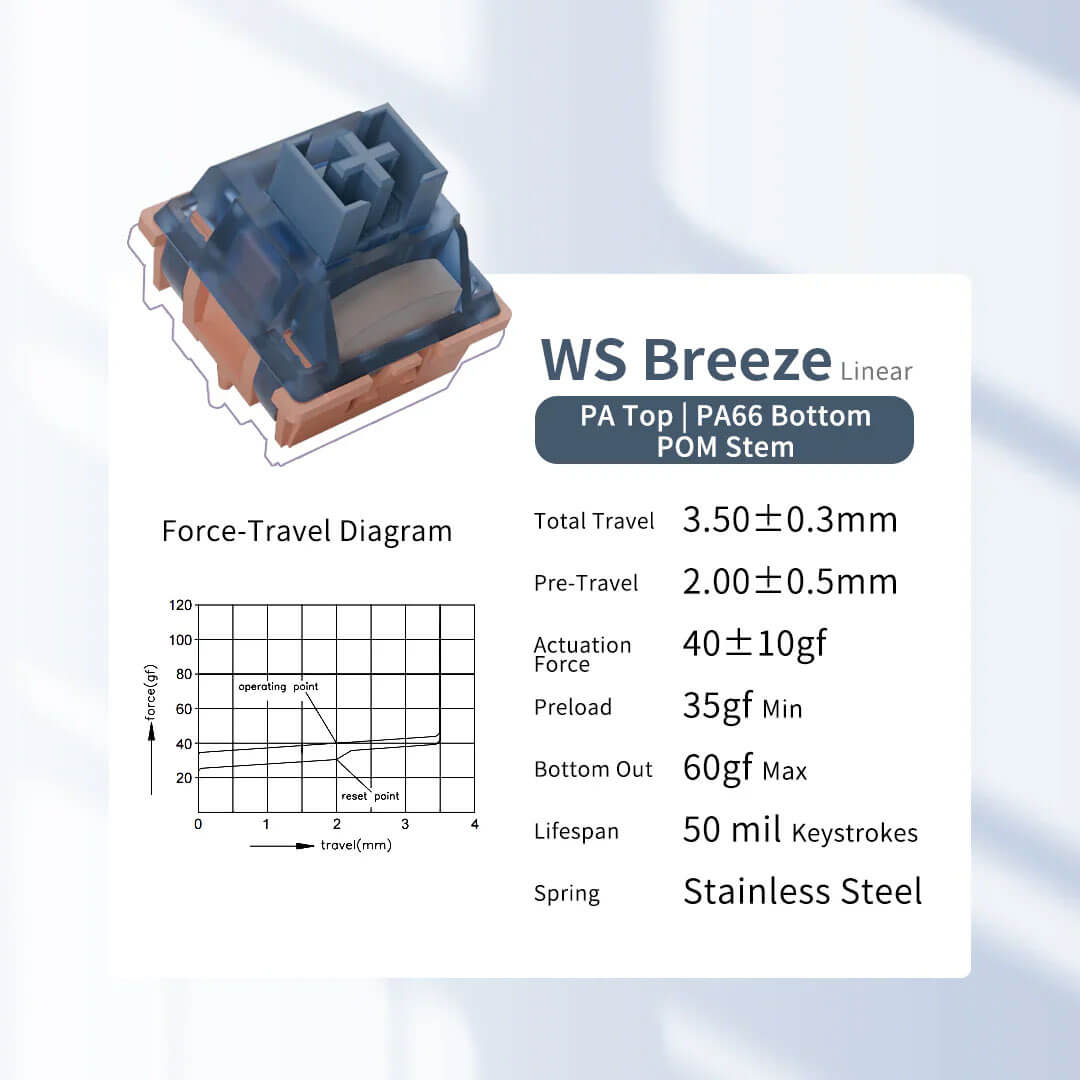

WS Breeze

A balanced linear for a daily driver. Medium spring weight, factory-lubed for an ultra smooth bottom-out. Designed for those who want a deep, creamy sounding setup that is present and satisfying, but never loud.

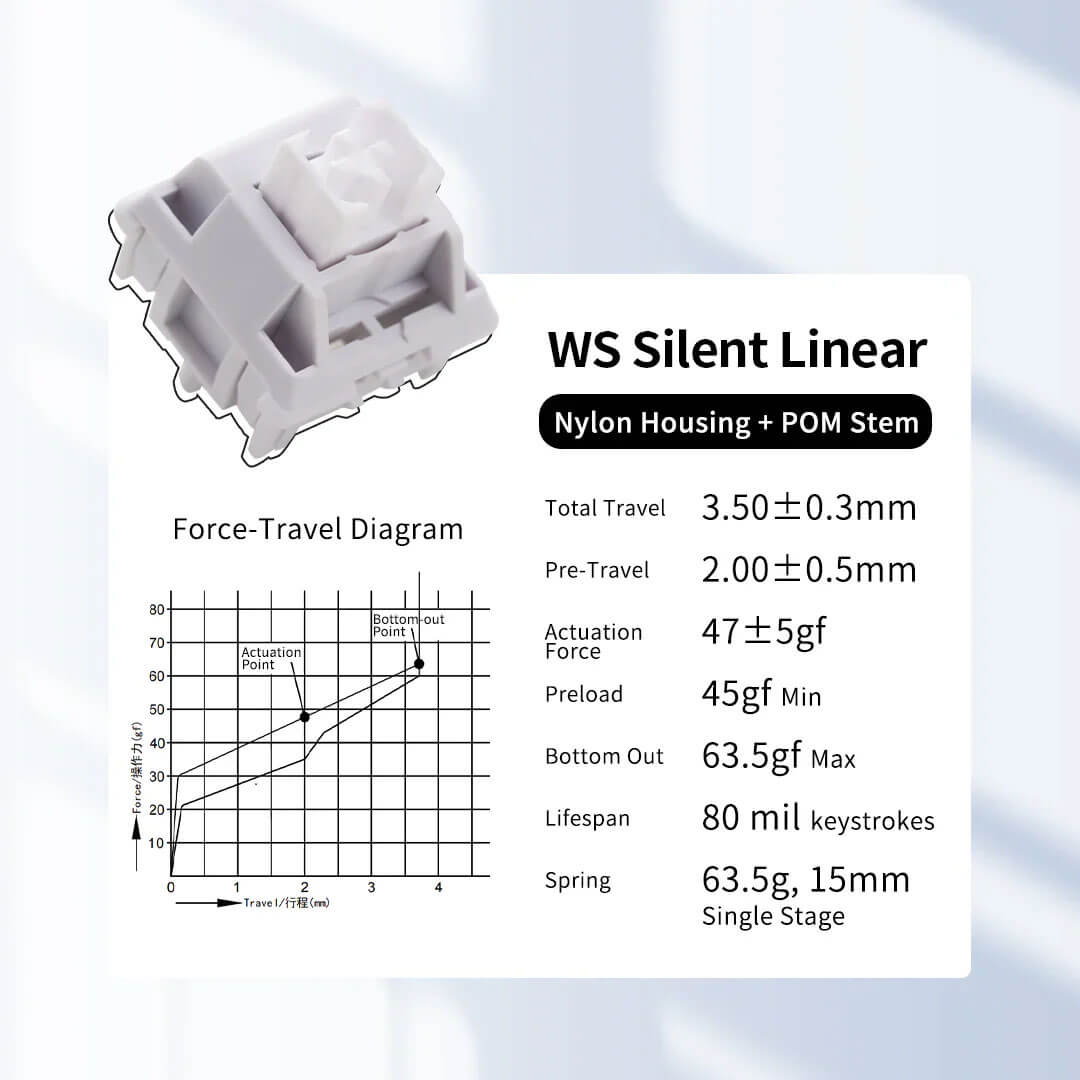

WS Silent Linear

A near-silent alternative to the WS Breeze. Also factory-lubed for a frictionless bottom-out. Optimized for low-stimulus environments and deep-work sanctuaries where you sacrifice a bit of the type-feel to minimize the sound.

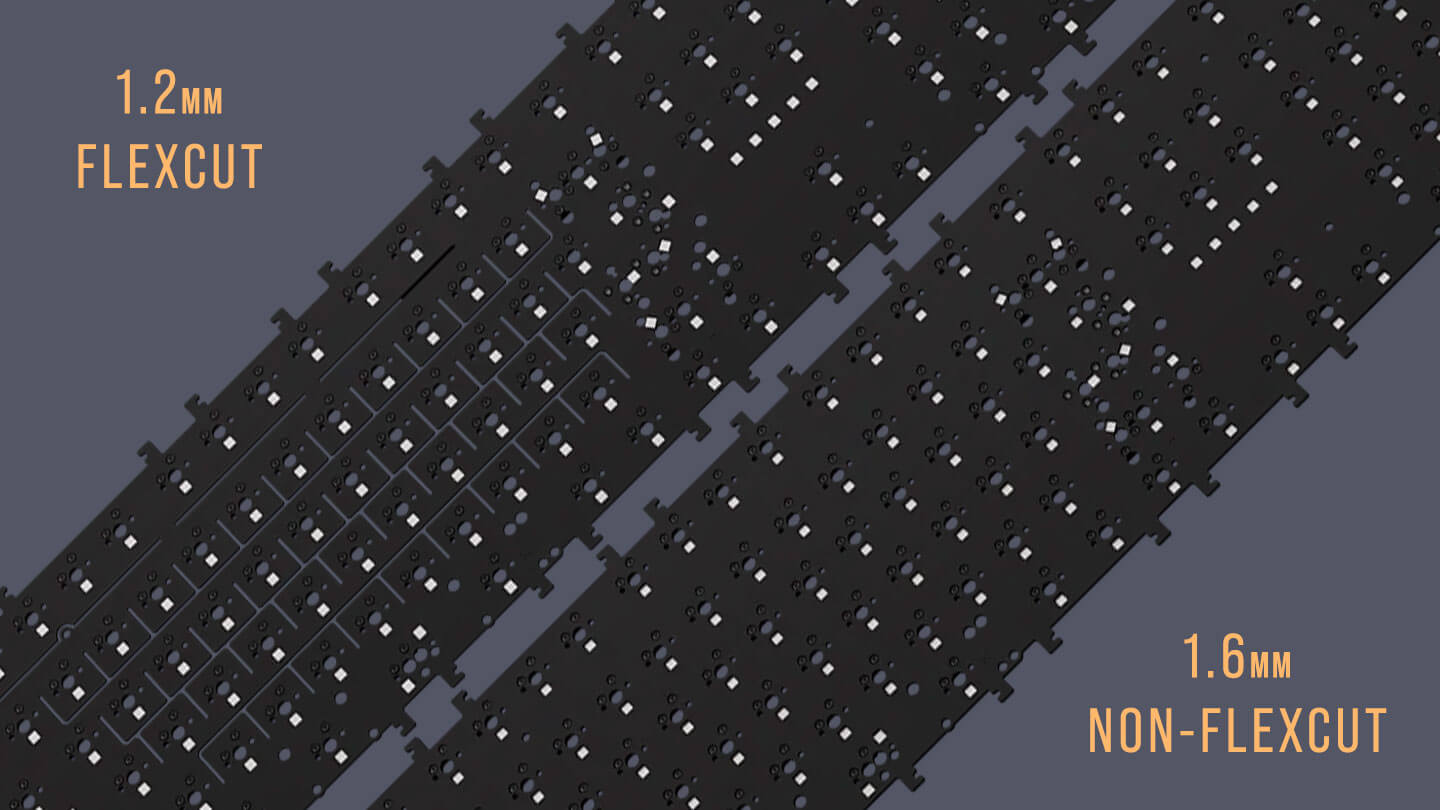

Two PCB Options

1.2mm Flexcut

This option is perfect if you like a softer, bouncier typing experience. Use the Elastic Bar mounting system if you want to accentuate the bouncy feel even further.

1.6mm Non-Flexcut

This is the option you want if you prefer a firmer, more traditional typing experience. If you want an even firmer typing experience, try using Top Mount system using the included screws!

Both PCBs can achieve a bouncier or stiffer experience depending on the mounting method used.

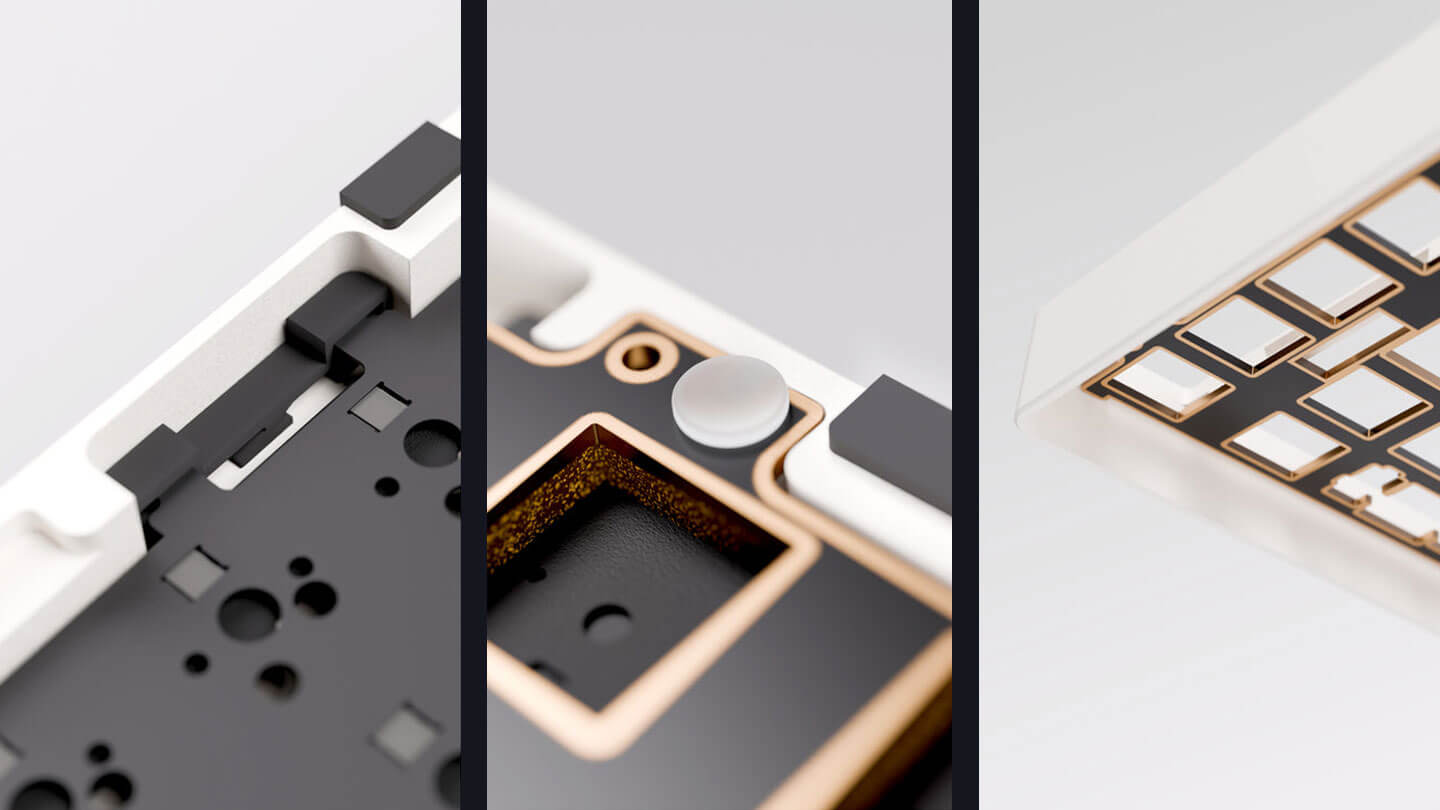

3 Mounting Systems

Elastic Bar

The bounciest of the three mounting system. Offers a more familiar gasket mount experience

Silica Gel (INSTALLED)

The mid-point of the three available mounting systems. The keyboard will come assembled in this mounting style

Top Mount

Classic mounting style that offers a rigid typing experience

Disclaimer

Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.

Acceptable Quality Standards

Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to ND104

Web Driver

nd104.chilkey.com 🔗

Videos

Alt image
Alt image
Alt image
Alt image

Pre-order Information

In-stock variants ship out within 1-3 business days. Pre-order runs until the pre-order variants arrive.

Gunmetal Gray (all variants) and Lumen Yellow / 1.6 / WS Silent are on the way to us. ETA early early May, 2026

All other pre-order variants are estimated to finish production mid May, 2026, and scheduled to arrive to Canada via Ocean Freight sometime around late June, 2026

Delivery Estimates

Title

Ocean Freight

Arrives to Canada via a ship. Takes 45-60 days in transit. This is the standard import method used in most keyboard / deskmat group buys. It's much cheaper than Air Express but takes longer to arrive.

Please keep in mind the ETA is just our best guess according to the information currently available to us. Unexpected issues and delays can happen at every stage of the process.

GB / Pre-order Policies

Title

Combinations

You cannot add any in-stock items to your order as we cannot guarantee its availability when the group buy is ready to ship.

If you're subscribed to our email list, you'll get an email before your group buy is ready to ship. In that email there will be instructions on how to add in-stock items to your group buy order and have them all ship together to save on shipping fees.

Modifications

You may modify your order until the keyboards arrive

Please send an email to help@mech.land from the email address associated with your order and list the changes you'd like to see made.

Cancellations

You may cancel your order and get a refund until the keyboards arrive

Please keep in mind we may keep 4% of the total from the refund as we do not get the transaction fees back from our payment processor. We may apply an additional penalty of up to 15% of the total if you choose to cancel after group buy is over.

Updates

Any status updates pertaining to this group buy will be posted in the status updates page.

Please follow the instructions on the contact us page if you need to change your address before the group buy ships.
