ND65 CS HE Keyboard [In stock]

$129.00 USD
$129.00 USD
SAVE $0.00 USD
Title
Variant
Quantity

Pickup available in Scarborough, ON, Canada. Click here for more info

Usually ready in 1-3 days

ND65 CS HE

Magnetic HE switches, full Aluminum body, double-shot keycaps & fully assembled, ready to use!

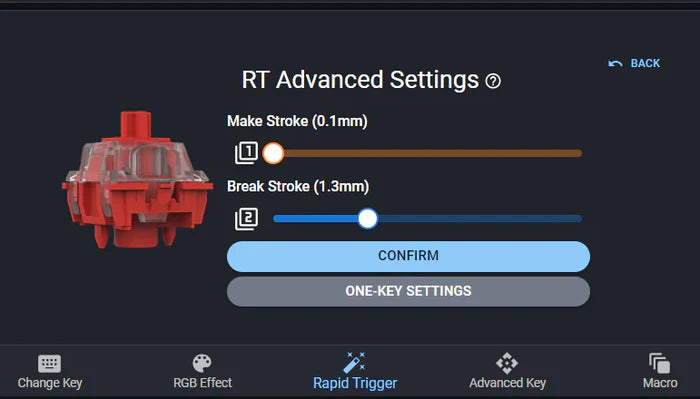

Adjustable Actuation Point

Unlike traditional MX switches that come with a fixed actuation point, you can define your own preferred actuation point with Magnetic HE switches. Choose any point between 0.1mm to 4.0mm that suits your needs the best!

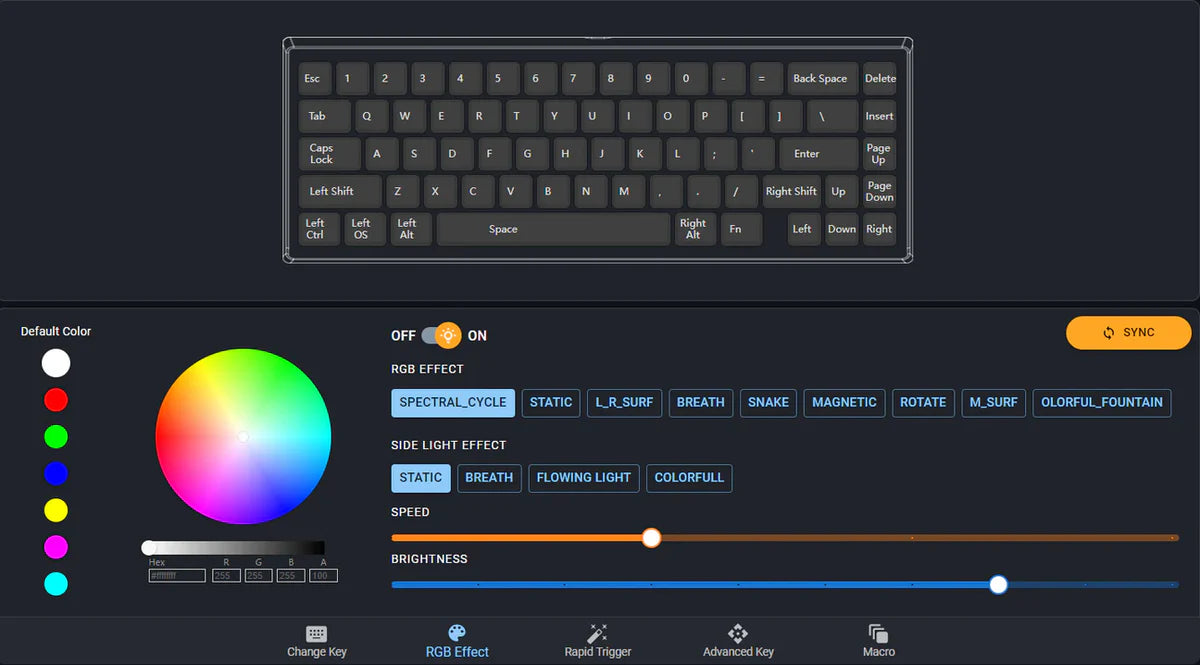

Per-key RGB

ND65 CS HE comes with a multi-color LED under every key! Choose from any solid color, gradients or even animated effects!

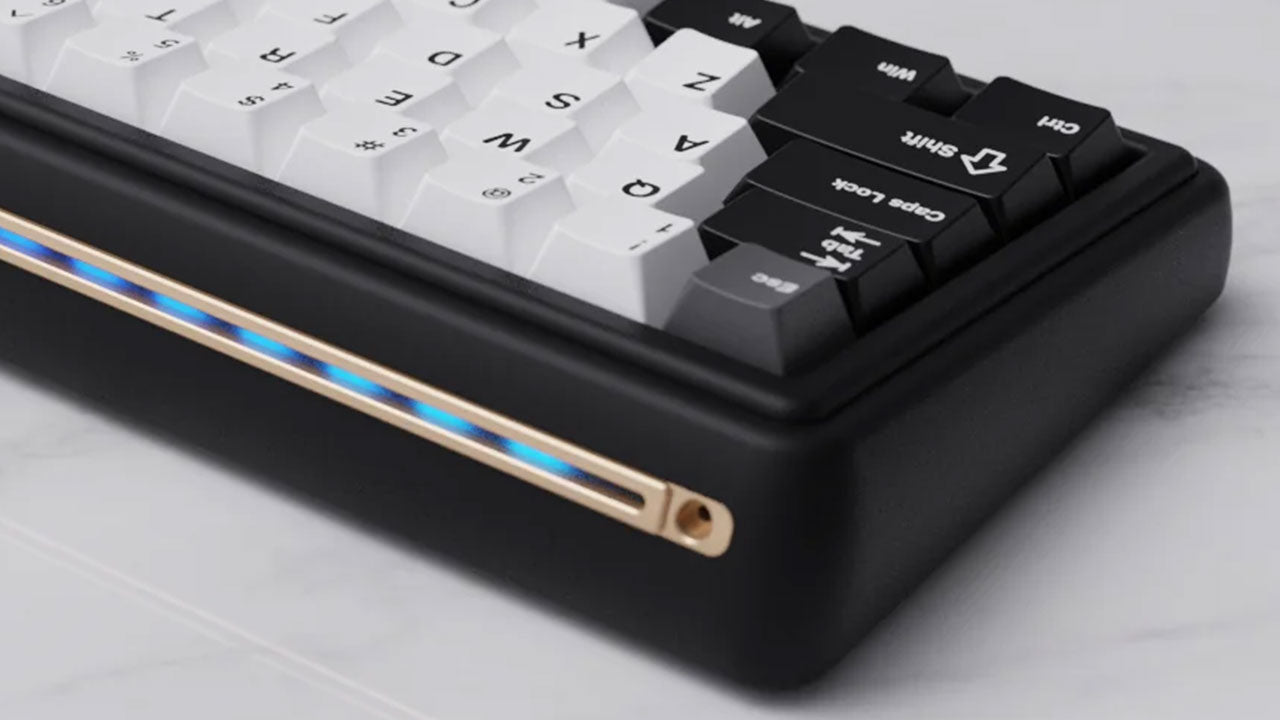

Additionally, there is a RGB strip at the back of the board that can be fully customized as well.

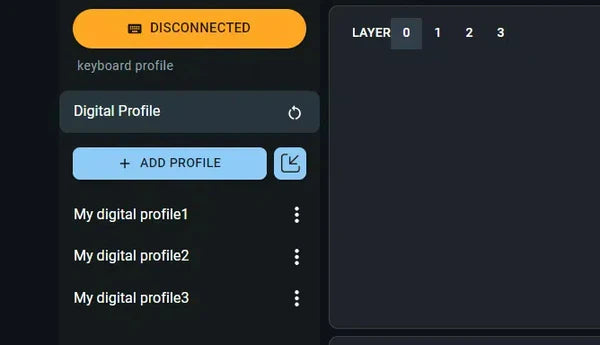

Custom Profiles

Set up to 3 different profiles to quickly jump between different applications and games.

Video Thumbnail

Credits: Migss

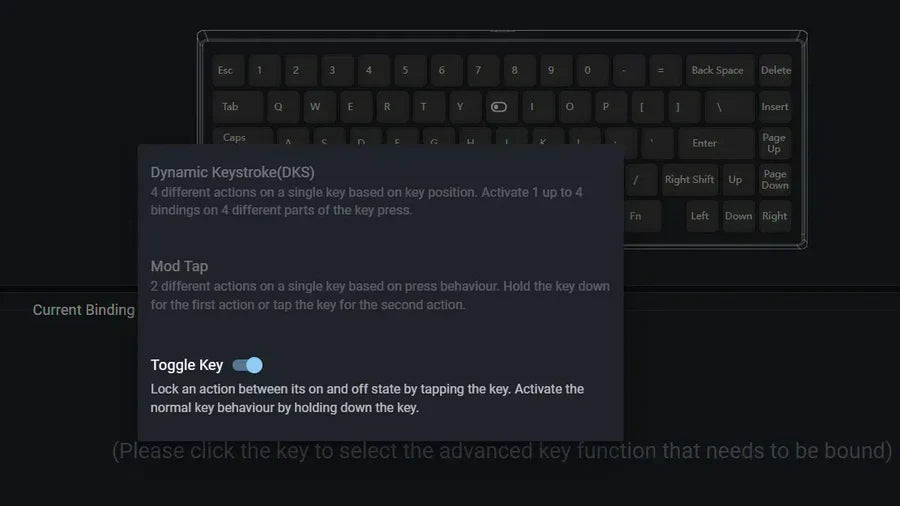

Advanced Key Settings

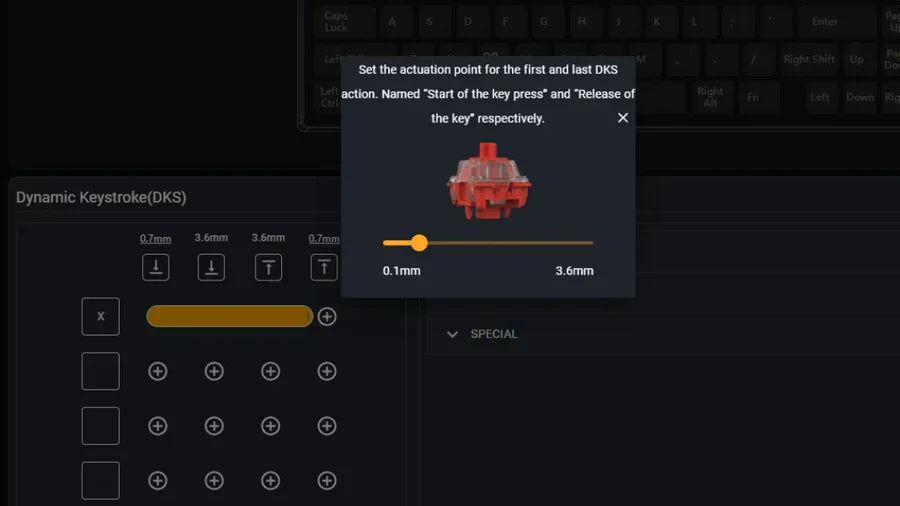

DKS

The key response distance can be adjusted as needed to provide greater flexibility and customization.

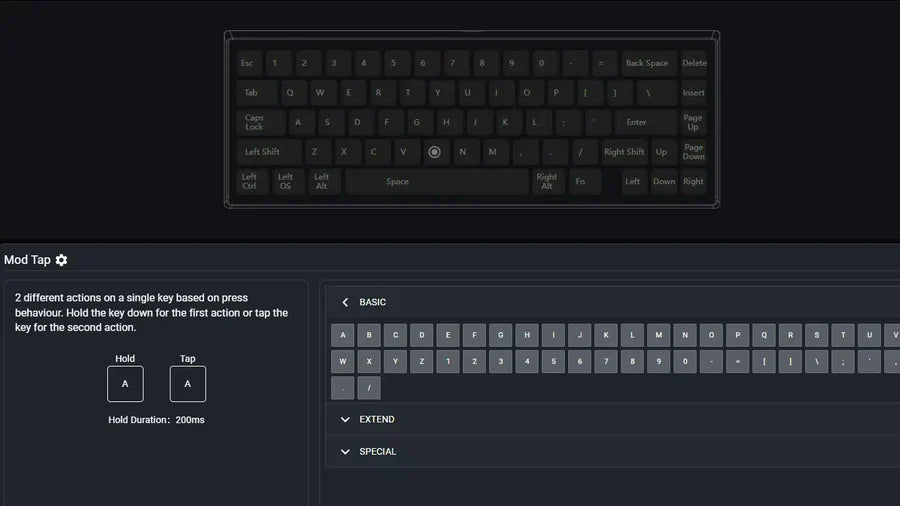

Mod Tap

Mod tap (MT) function improves operational and input efficiency by providing additional shortcuts.

Toggle-Key

By enabling quick adaptation to different usage needs or work environments through simple operations, it enhances flexibility.

Premium features at a budget!

Double-shot Keycaps

Each ND65 CS HE comes with a set of color match, premium PBT double-shot keycaps. The legends are not printed on, but are actually injected into the mould. They will never fade, smudge or rub off!

Full Aluminum Body

ND65 HE features a full aluminum top and bottom case, giving the keyboard a hefty, premium feel. Each keyboard comes with an accented custom aluminum weight on the bottom case.

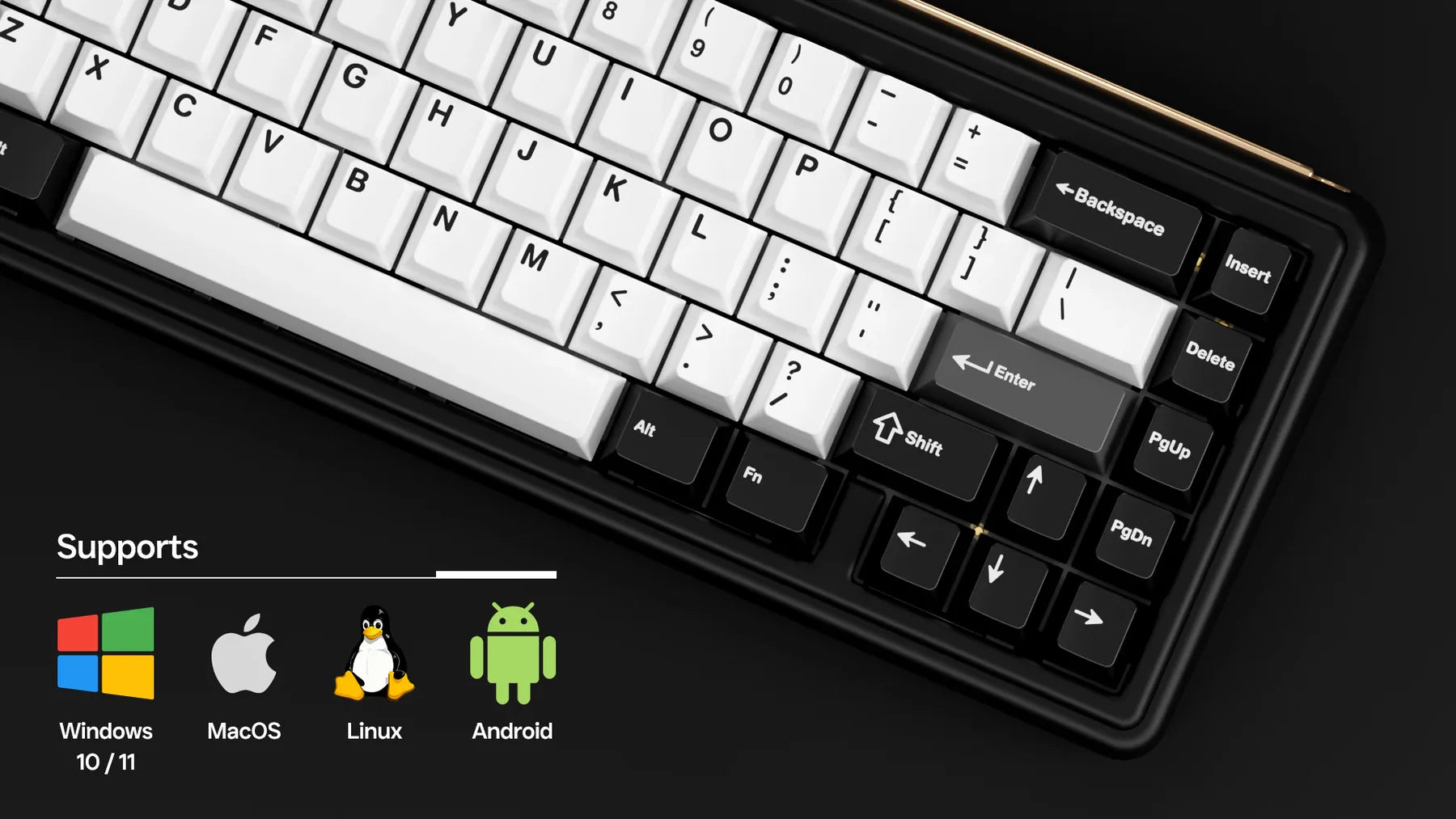

Multi-system Compatibility

ND65 CS HE is compatible with Windows, MacOS, Linux and Android OS

The DEtails

Keyboard Specs

Layout

65%

Case Material

Aluminum

Case Finish

Electrostatic Coating

Typing Angle

6.5 Degrees

Front Height

18.45mm

PCB

Wired, without flexcuts

PCB Thickness

1.2mm

QMK/VIA Support

No

Mounting Style

Gasket Mount

Switch Type

South Facing LED Switch

Stabilizer Type

Plate Mount

Plate

Aluminum

Hot-swap switch sockets

Yes

Supported Layouts

ANSI only

Polling Rate

1000Hz

Dimensions

335.6 x 125.8 x 34.3mm

Switch Specs

Manufacturer

Gateron

Switch Tech

Magnetic HE

Switch Type

Linear

Housing

Polycarbonate

Stem

Polycarbonate

Total Travel

4.0 ± 0.2mm

Pre-travel

User customizable

Actuation Force

User customizable

Pre-load

30 ± 10gf

Bottom-out Force

50 ± 10gf

Spring

Stainless Steel

Lifespan

150 million keystrokes

Lubrication

Factory Lubed

Return Rate

1000Hz

Keycaps Specs

Material

PBT

Legend Process

Double-shot

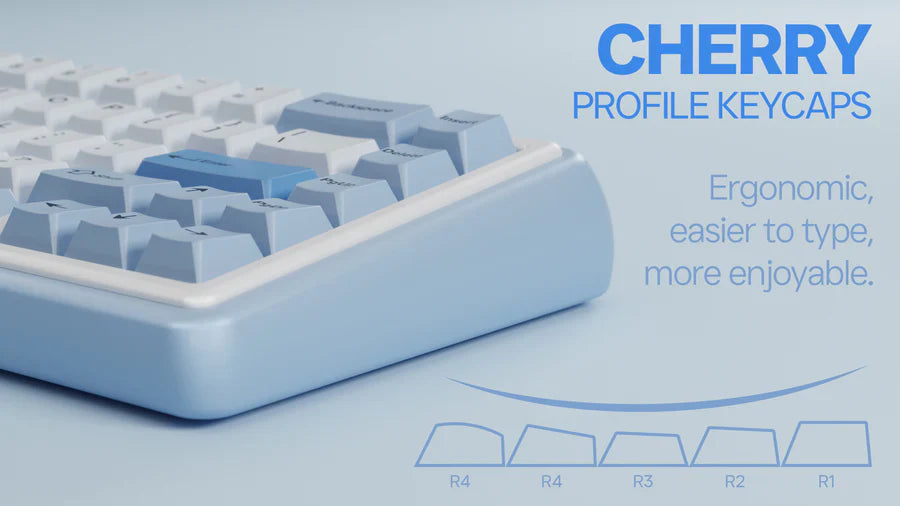

Profile

Cherry

Keys included

67

Other features

  • Dual-rail structure for stability.
  • Square magnet design, with freely adjustable magnetic pole orientation. Supports multi-directional Hall effect sensing.
  • Extended stem for better switch stability.
  • Integrated spotlight lens design, enhancing light guidance.
  • Every switch features a very tight housing and a very good coat of factory lube. No need to spend hours and hours lubing switches, they're great from the get go!

Disclaimer

Many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have slight differences. Please also refer to the prototype's photos as reference before purchasing.

Acceptable Quality Standards

Despite the factory's best attempt at lubing the stabilizers, they may still require further tuning depending on the user's preference and expectations
