RM.8 Keyboard Kit

Name: RM.8 Keyboard Kit
Brand: Sam's Studio
Price: 219.0 USD
Availability: InStock

$219.00 USD

$229.00 USD

Title

Quantity

Title

📦

In stock

Ships out in 1-3 business days

🙋

Pickup in Scarborough, ON, Canada

Wednesdays & Sundays. Click here for more info

The DEtails

Specifications

Form factor

60% + Numpad

Mounting style

Gasket-mount, Top-mount

Case material

Aluminum

Top case finish

Napery
Anodized

Cream

E-coat with a slight sparkling finish

PCB

Features

- 1.2mm

- Hot-swap

- QMK & VIA compatible

- Type-C USB port w/ fly daughterboard

Note

The numlock LED indicator is non-functional, it'll not turn on.

Plate

Aluminum

Typing angle

8 degrees

Front height

13mm

Keyboard dimensions

412 x 140mm

Keyboard weight

Fully built

2400g

Stabilizers

1.2 mm PCB mount (SOLD SEPARATELY)

Highlights

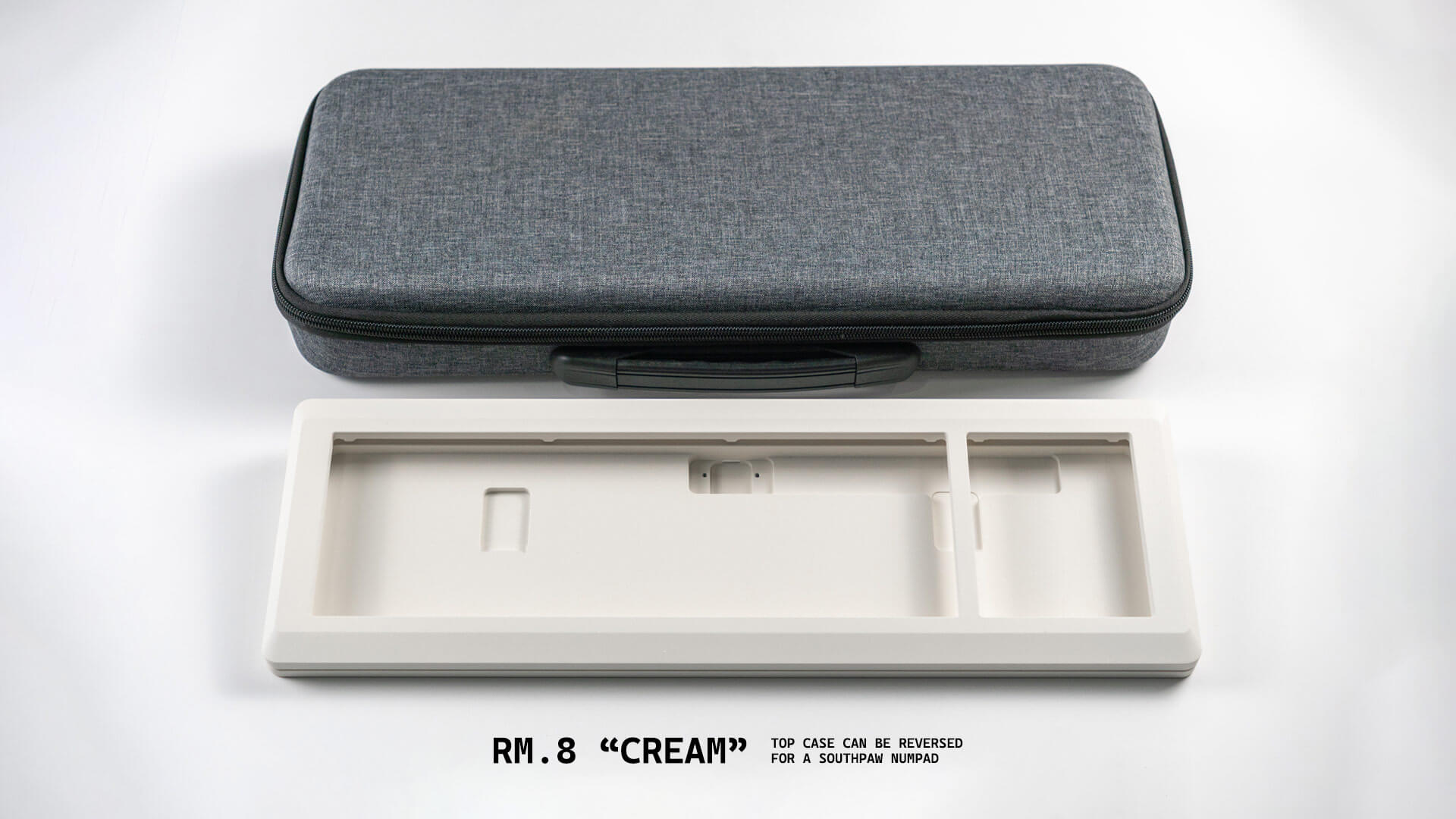

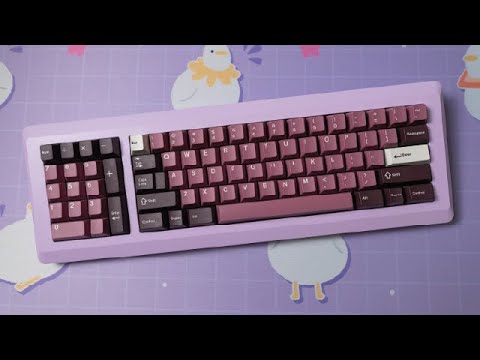

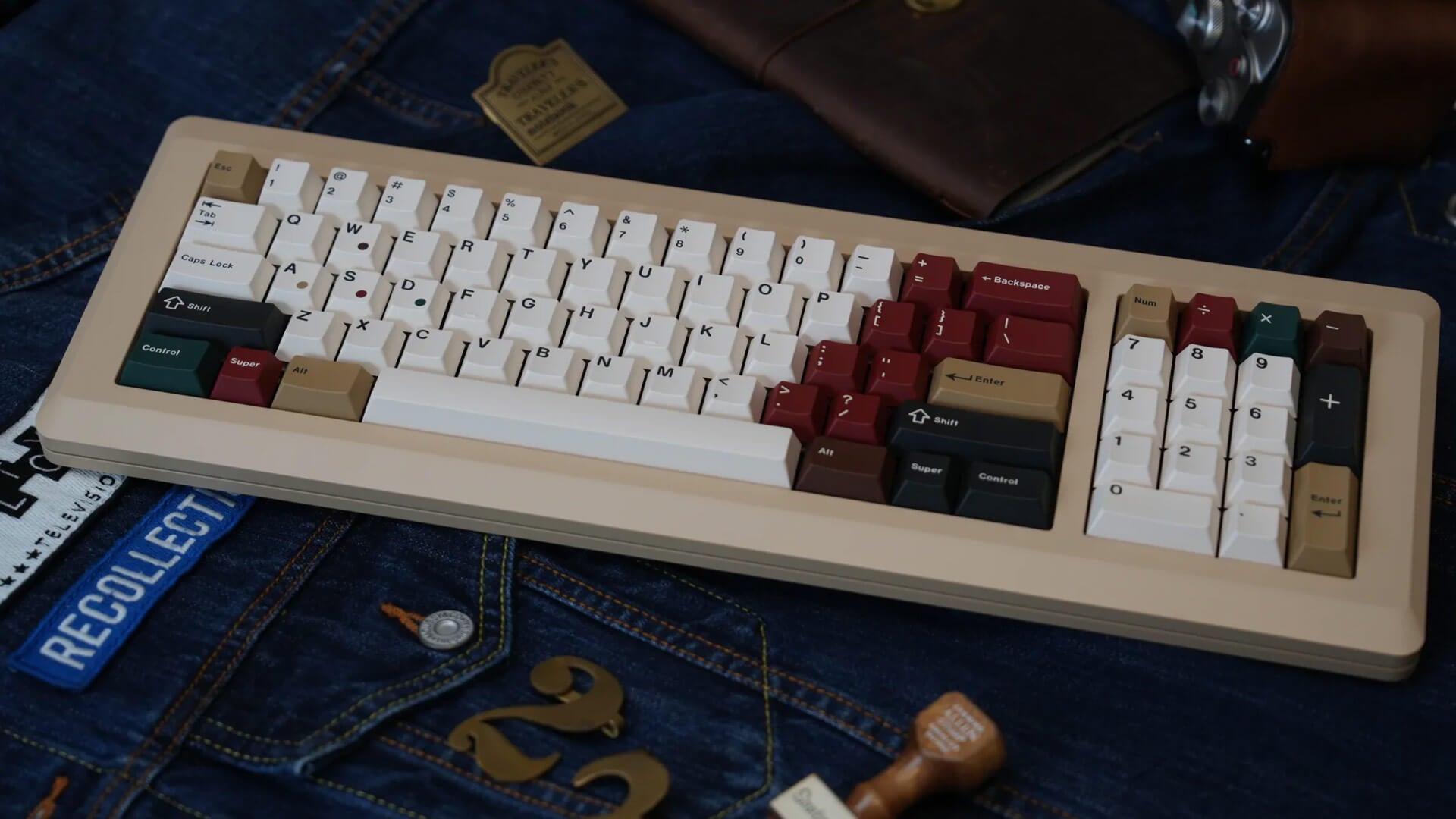

Numpad on the left or the right!

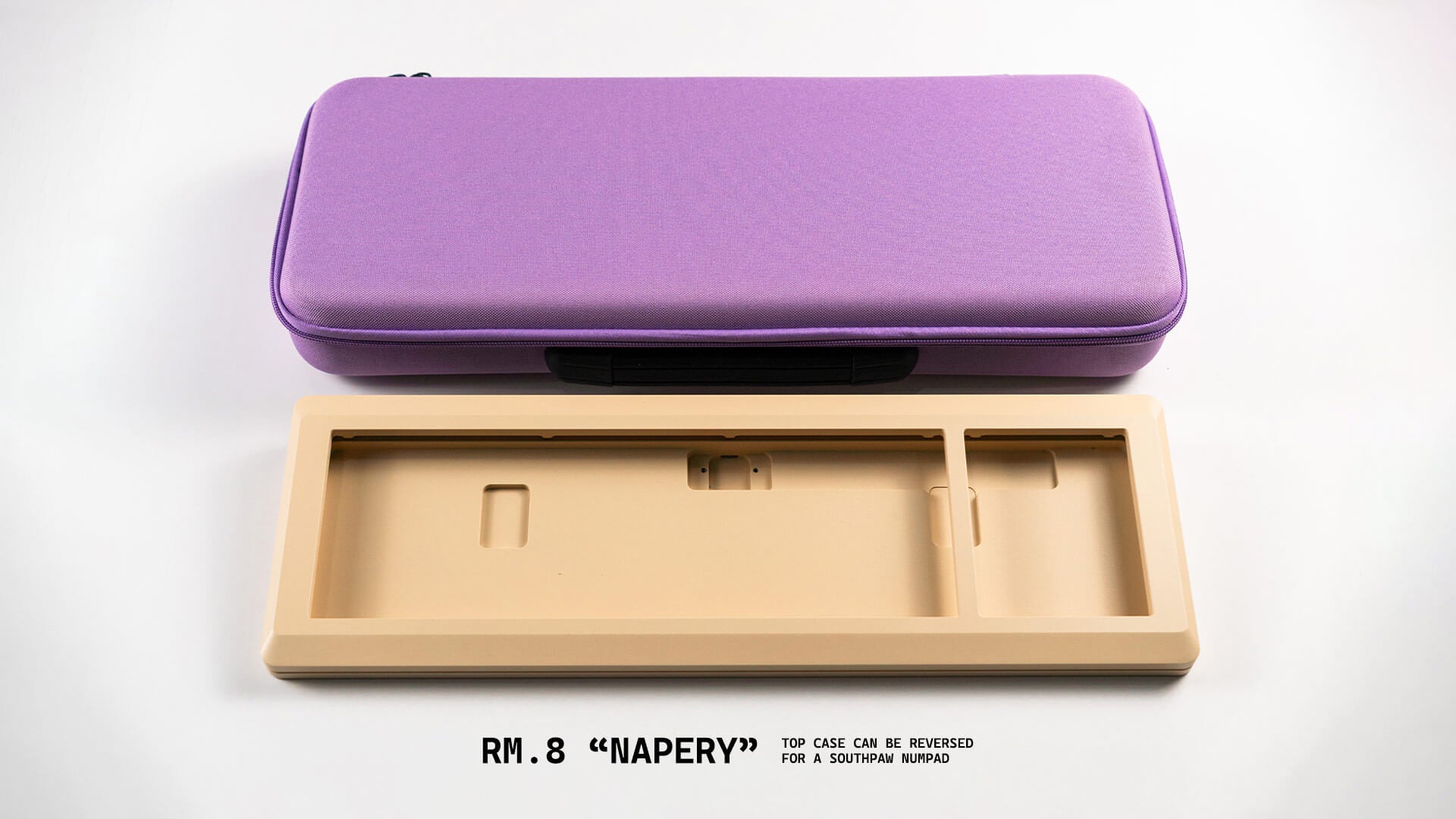

The RM.8 features a reversible top case that accommodates both standard right-hand and 180-degree southpaw placement for the numpad!

Full VIA customization means you can re-map every key, including remapping the numpad into a macropad!

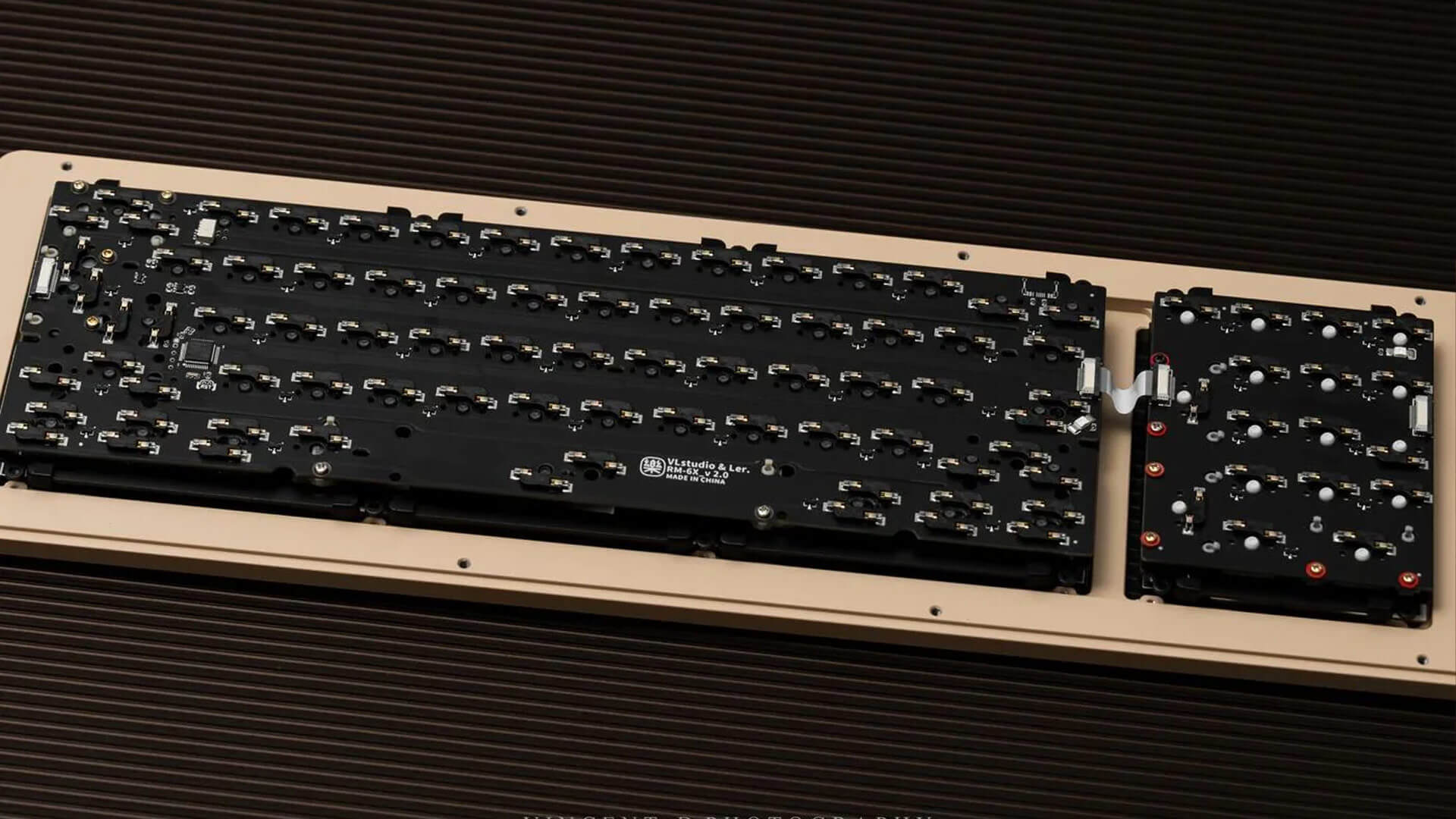

Split PCB & Plate

The 60% core and the numpad feature independent plates and PCB, connected via an FPC cable. This separation produces a better type-feel and a more uniform sound, and allows the numpad to be docked on either side.

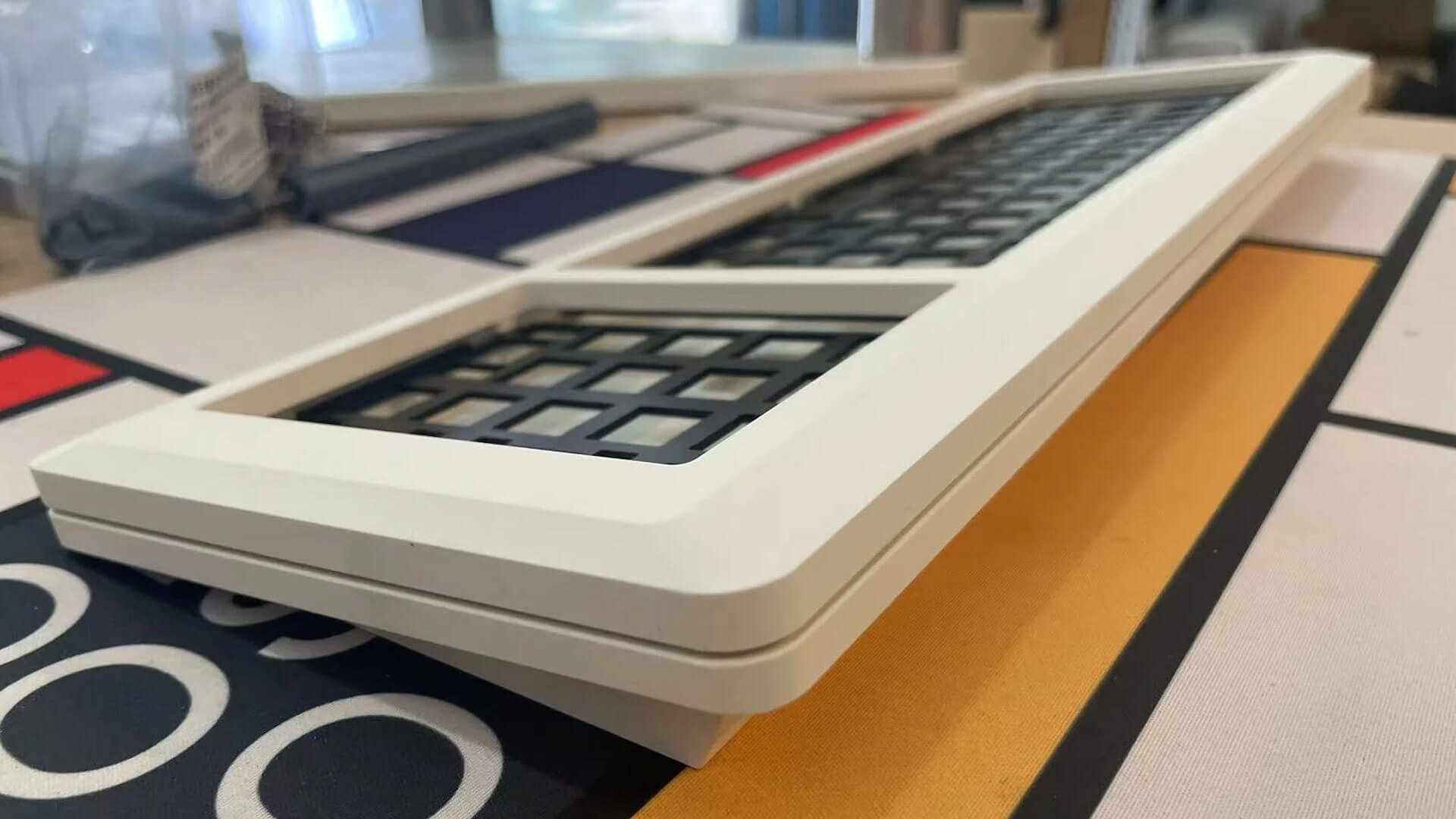

Mounting Options

RM.8 supports top-mount for the purists, or gasket-mount through silicone tabs for those who prefer a bit more flex

Multi-layout

Alongside multiple splits, ANSI/ISO support, the default PCB supports both 6.25u and 7u space bottom-row layouts!

Kit Contents

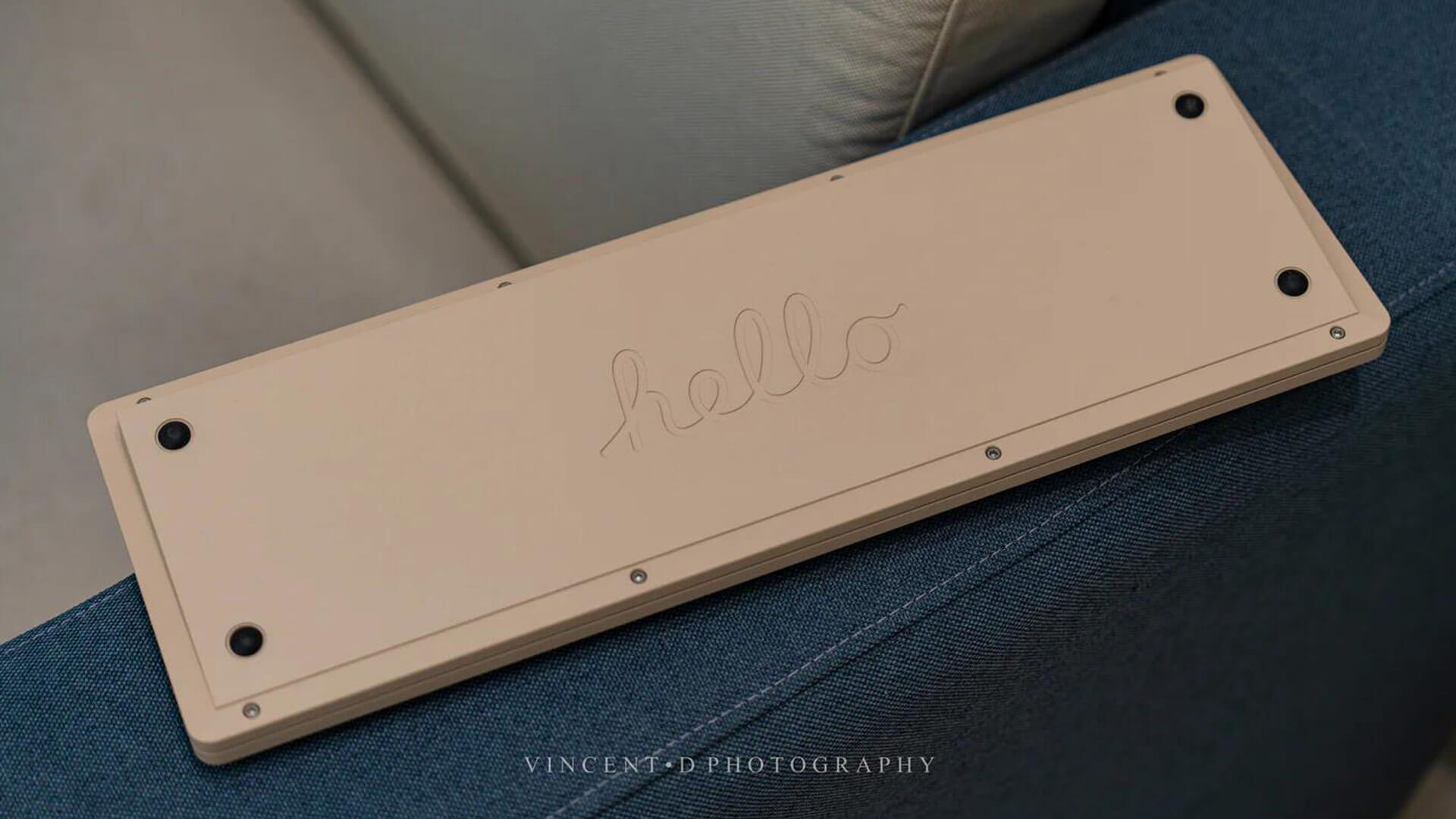

- Aluminum top & bottom case

- Split hot-swap PCB

- Split aluminam plate

- FPC cable to connect PCBs

- Type-C fly daughterboard

- JST cable

- Silicone gaskets

- Screws & keyboard feet

- Storage case

Supported Layouts

Disclaimer

The photos on this page are photographs of sample units taken in various environments. The actual unit you receive may appear slightly different due to differences in finishing process, the nature of the material, variances in screen color calibration and varying lighting conditions among other environmental factors.

Acceptable Quality Standards

A kit is considered A-Stock if it has no damage, scratches, dents and free from any other defects that prevent it from functioning as it intended.

Any blemish / discoloration smaller than 0.5mm that's not visible from 12" away from the keyboard will not be considered.

There might be slight imperfections to the internal surface (not visible after assembly) of the keyboards, such as marks close to all screw holes, hook mark in the internal surface of the keyboard case etc.
