Sam's Studio

Trigon Keyboard Kit & Accessories [In stock]

$254.00 USD
$254.00 USD
Title
Item | Case | Weight | Layout
Quantity

Pickup available in Scarborough, ON, Canada. Click here for more info

Usually ready in 1-3 days

At a glance

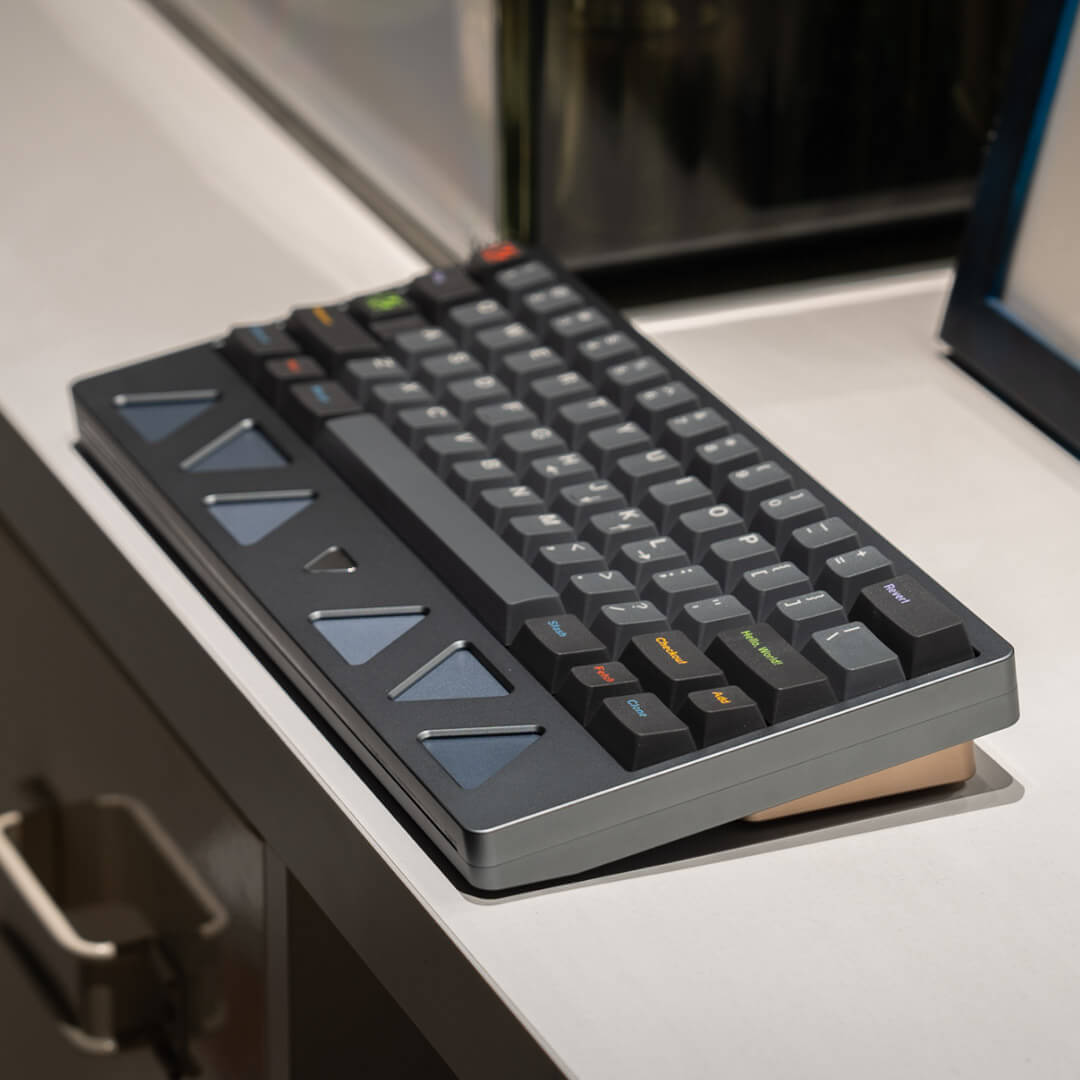

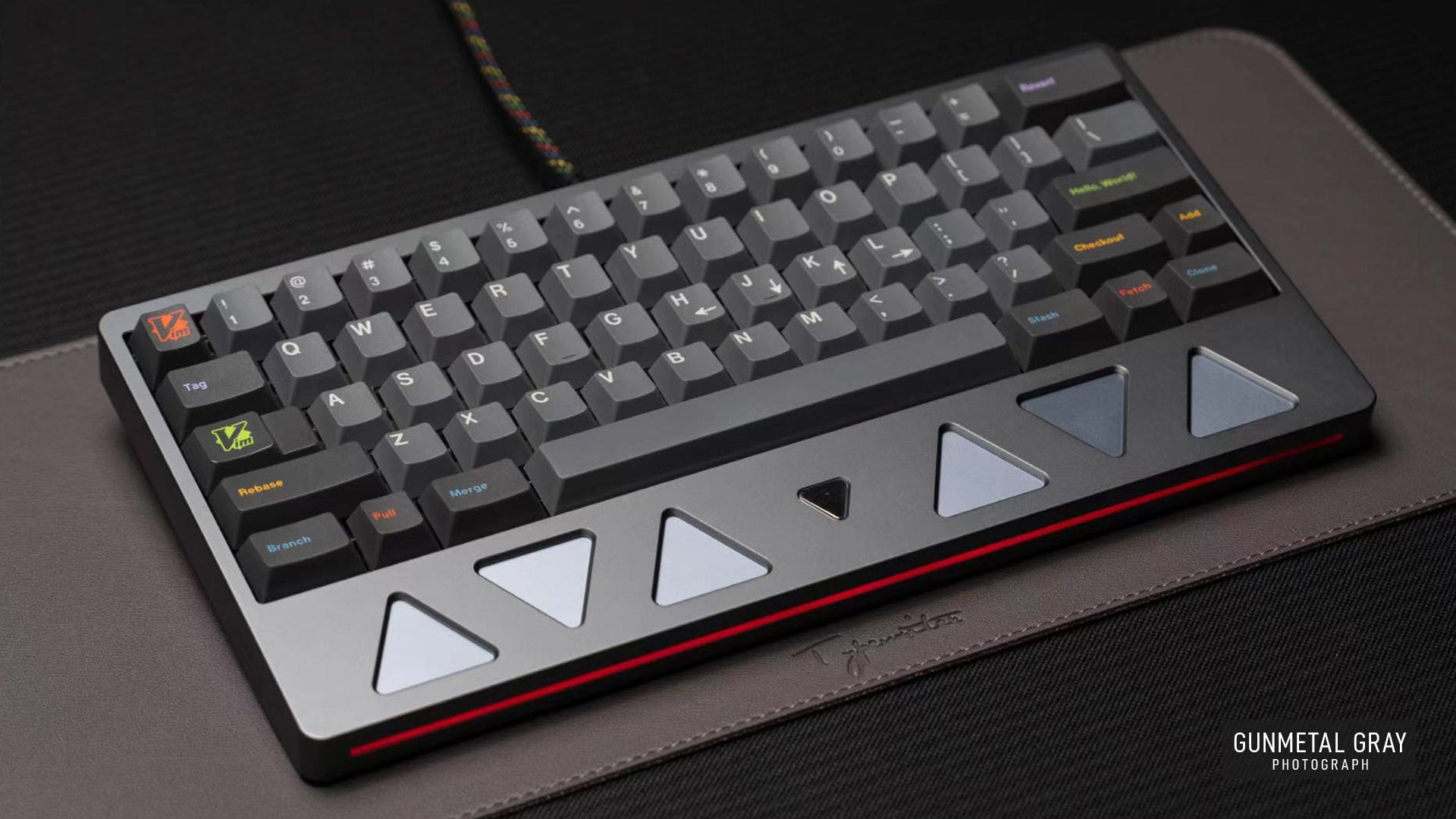

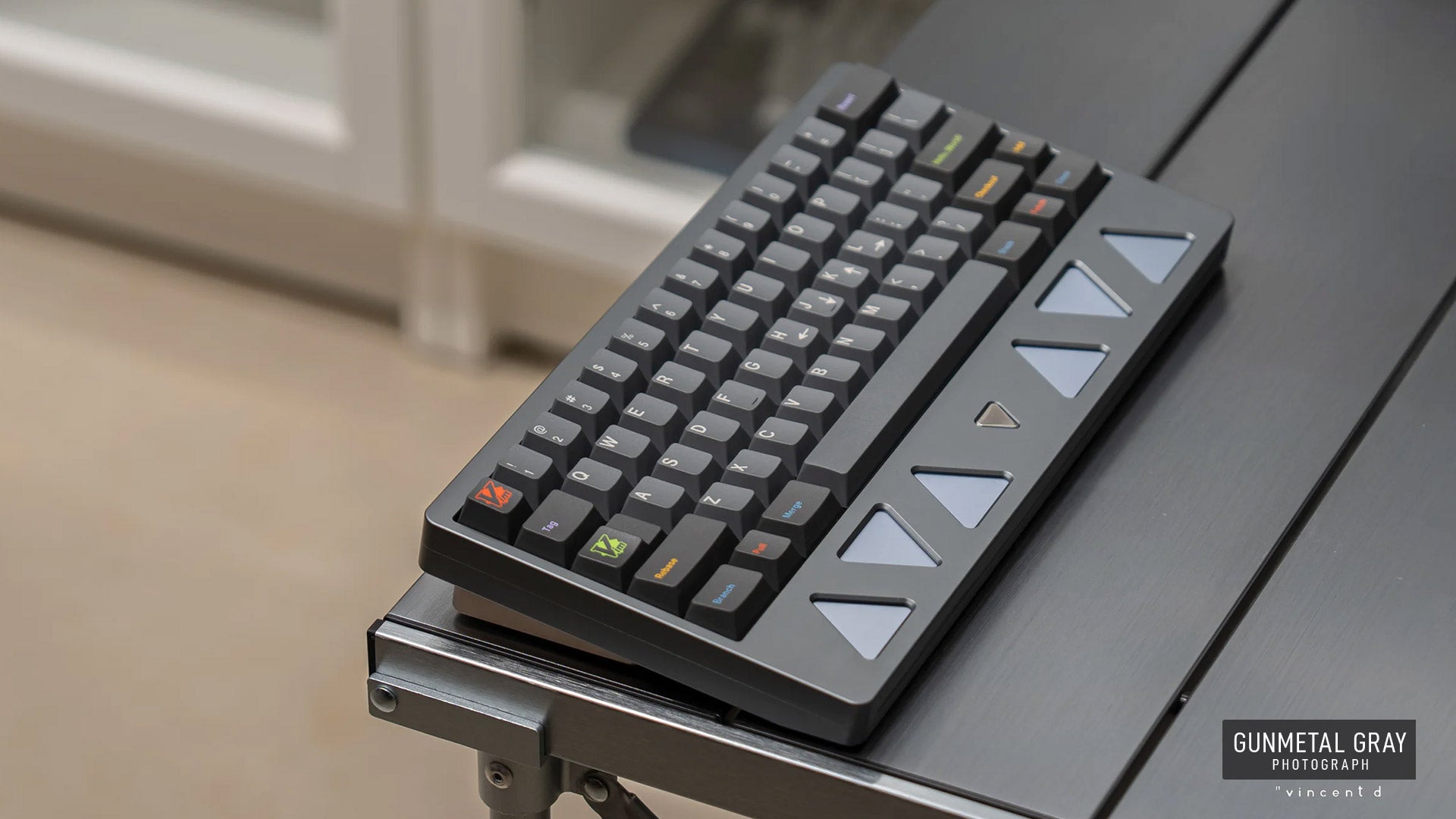

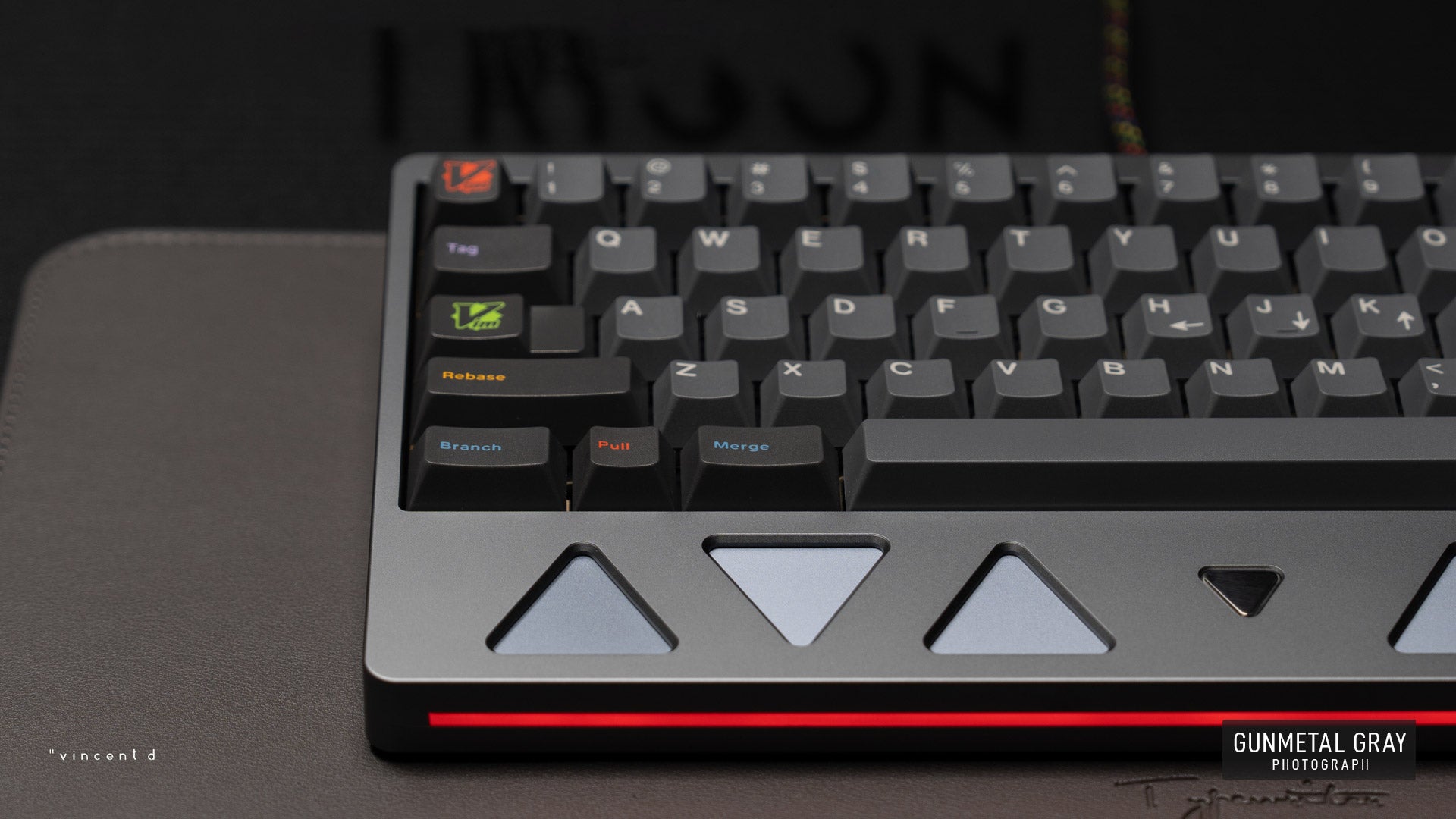

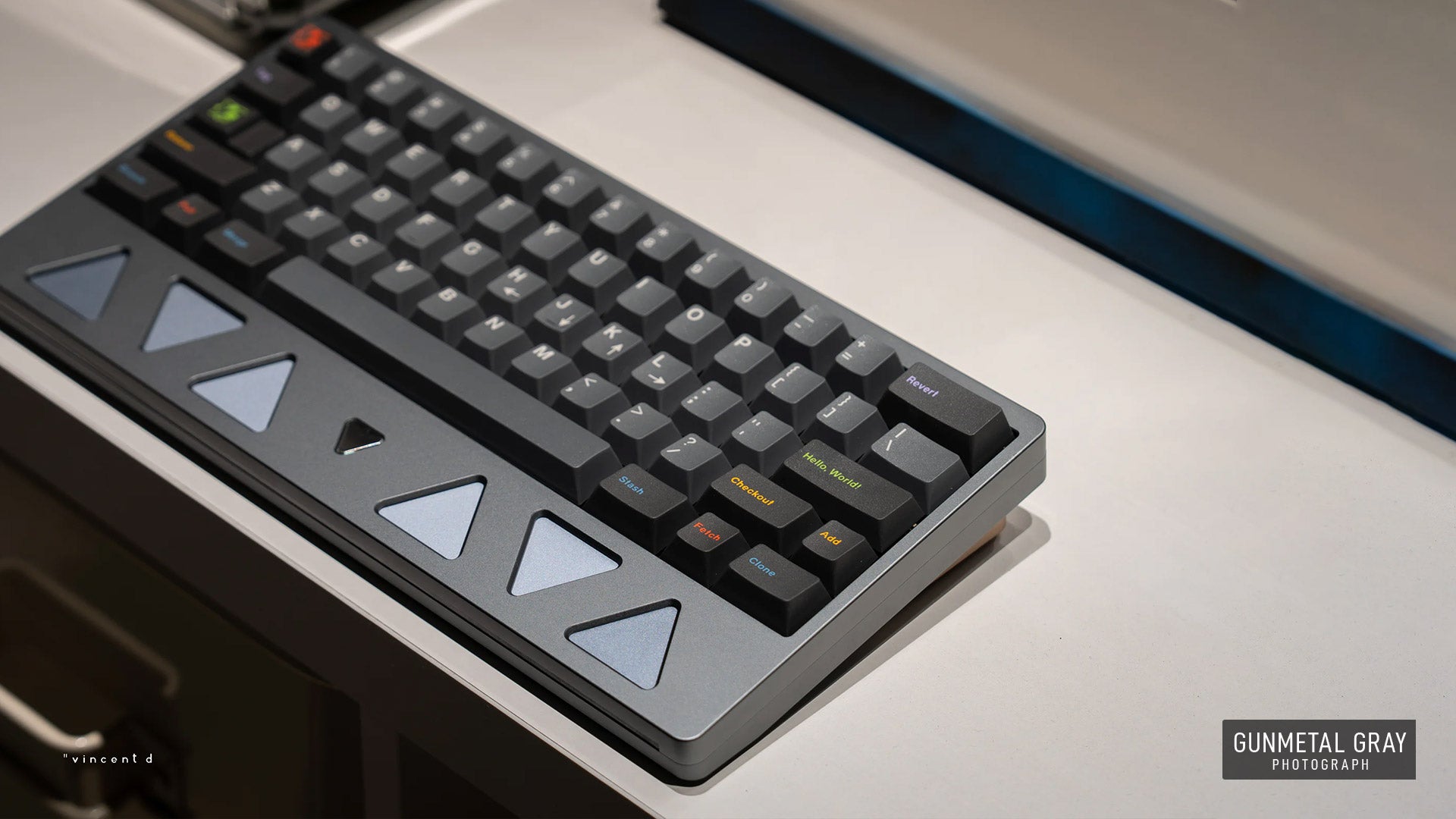

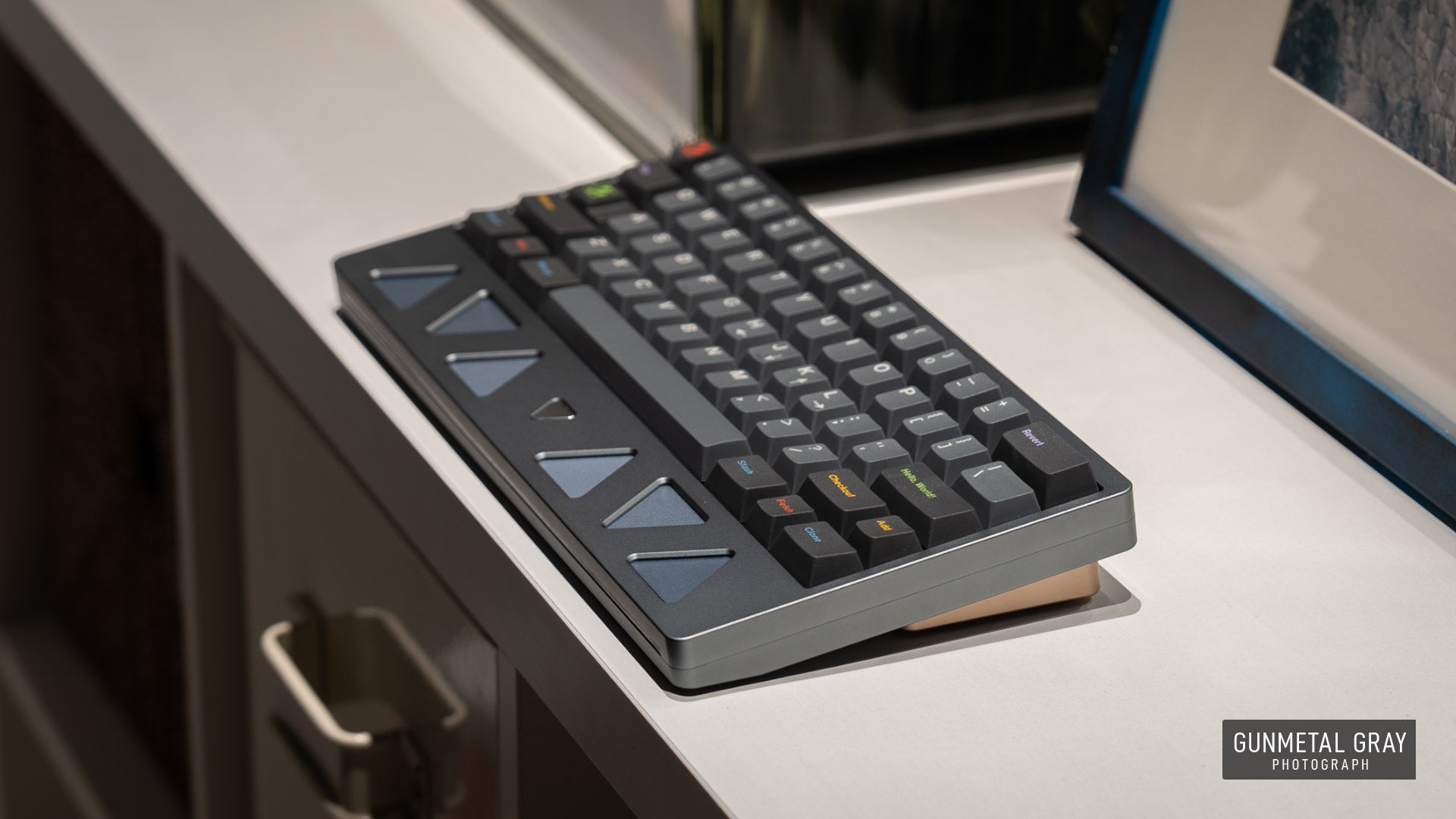

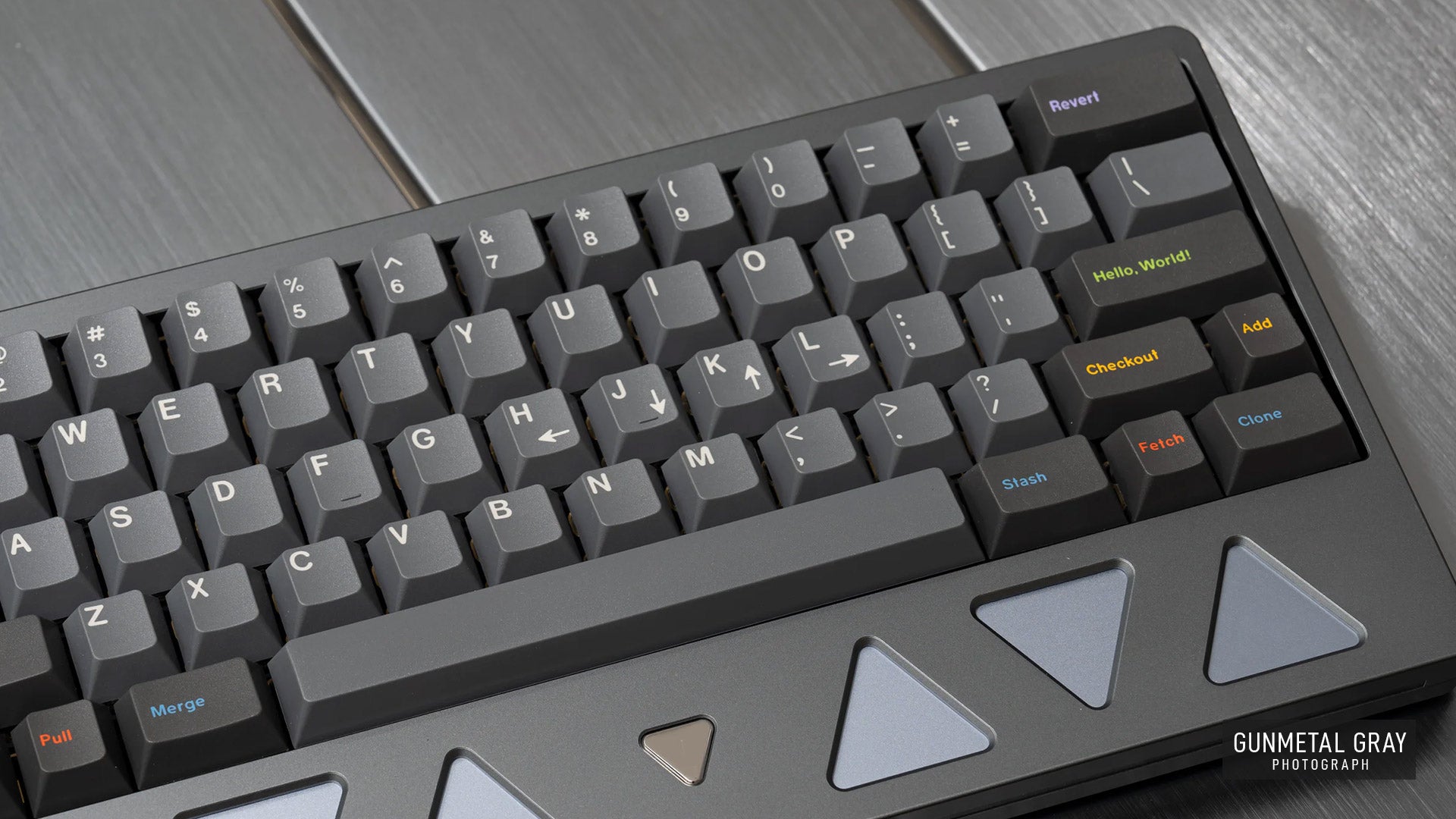

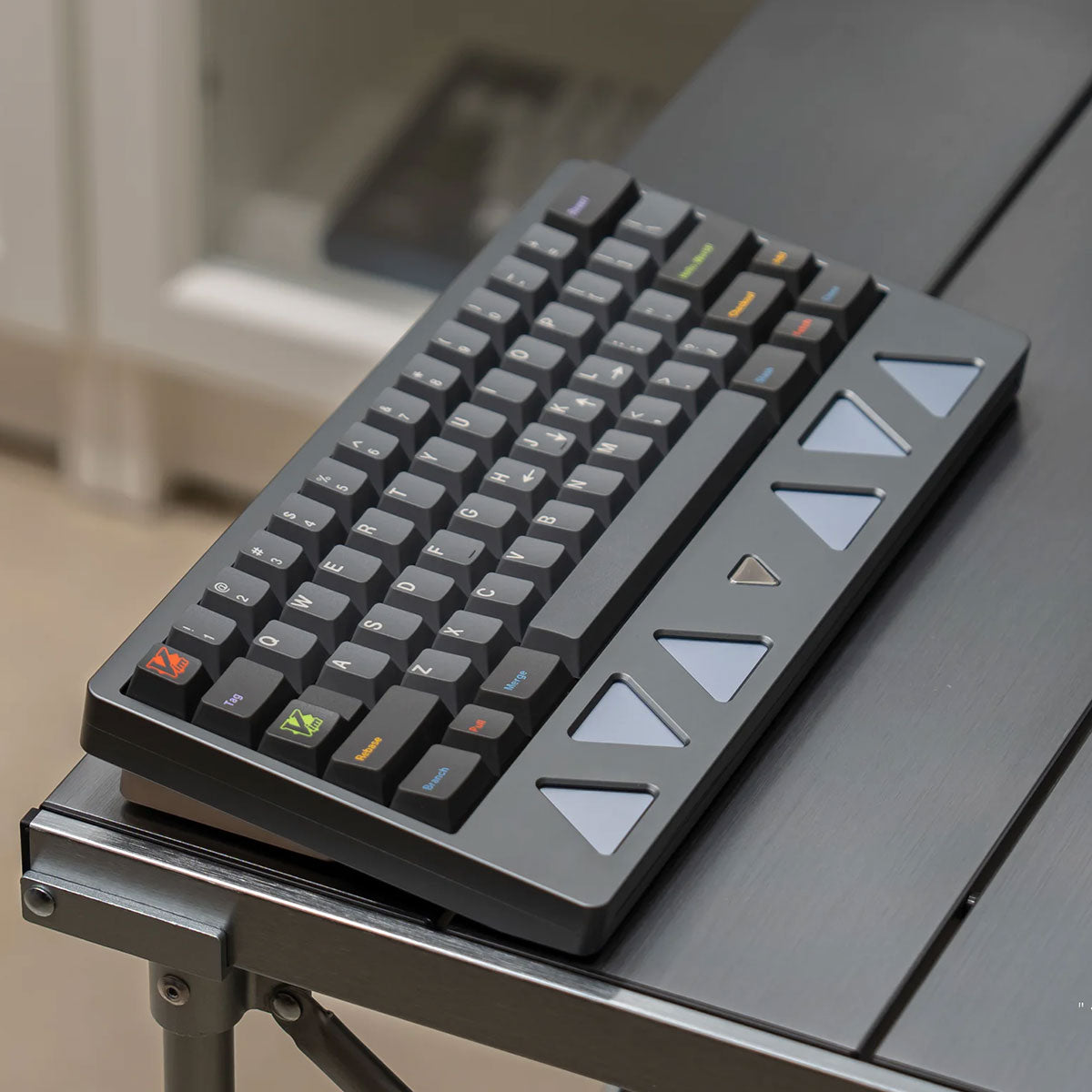

Trigon, a unique 60% was designed by Sam's Studio - the makers of S65 and S80. It's a 60% HHKB/WK gasket mount keyboard with a built-in wrist rest.

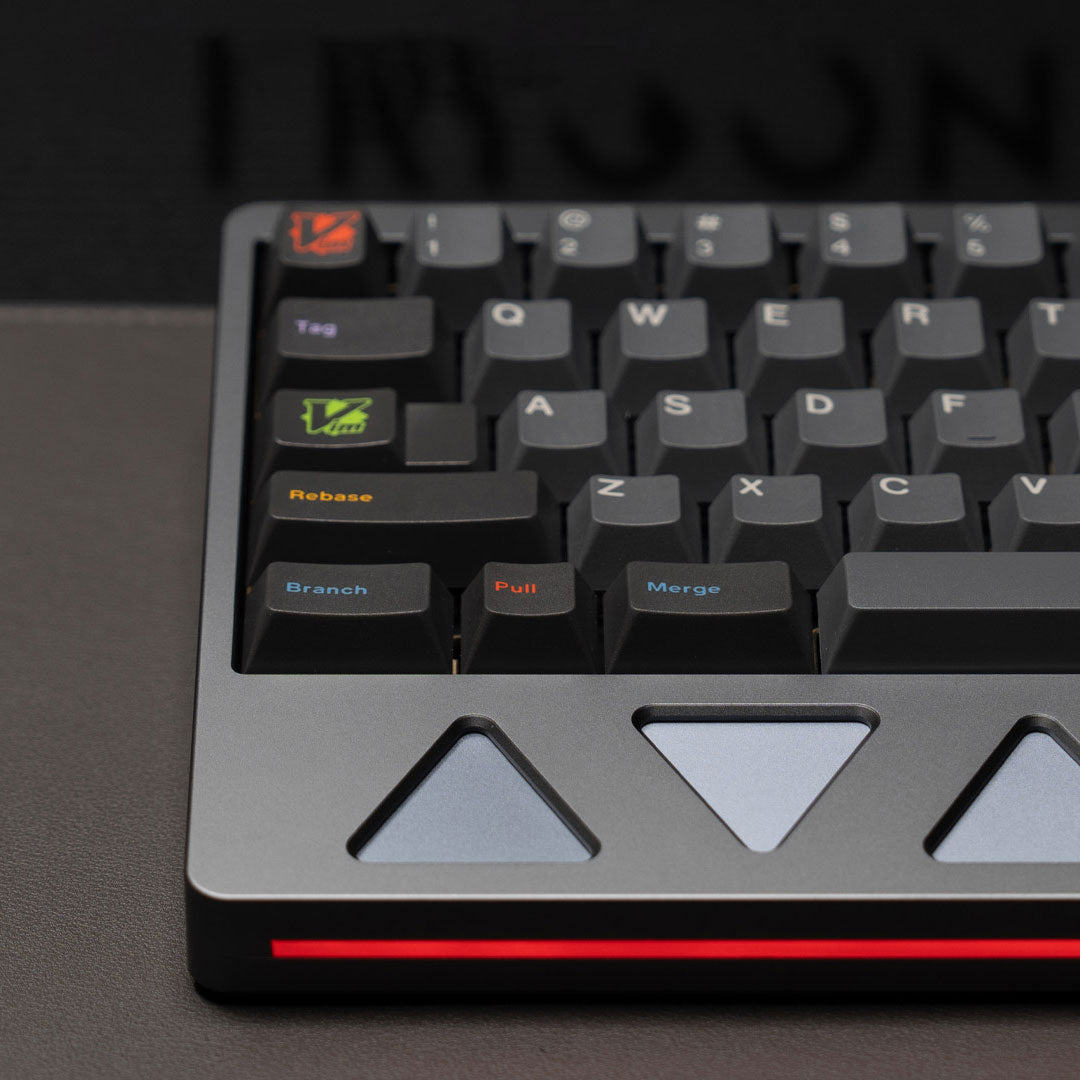

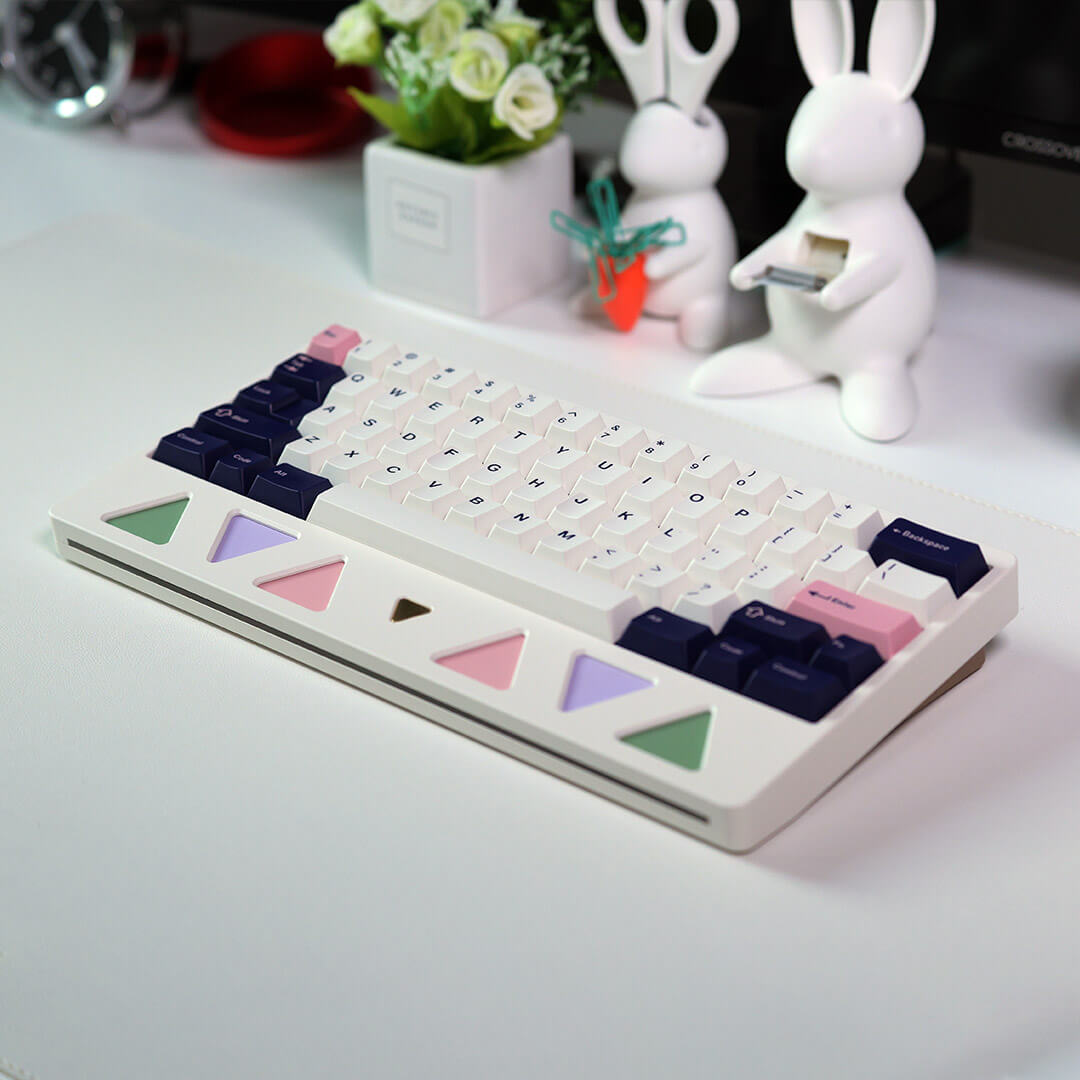

You can customize the wrist rest with colored triangles. Additional triangles are sold separately. There is an LED diffuser in the front of the board.

There's a triangle badge on the wrist rest that lights up when using the PC badge, but you can also cover it up by using the Brass badge. Both of them come included with the kit.
Poster

GET 10% OFF IN-STOCK KEYSETS WHEN ORDERED WITH AN IN-STOCK KEYBOARD

Discount will be applied in cart automatically. Base kits only. Some keysets may not be eligible.

Shop Keycaps

The DEtails

Kit Contents

- Aluminum top & bottom case

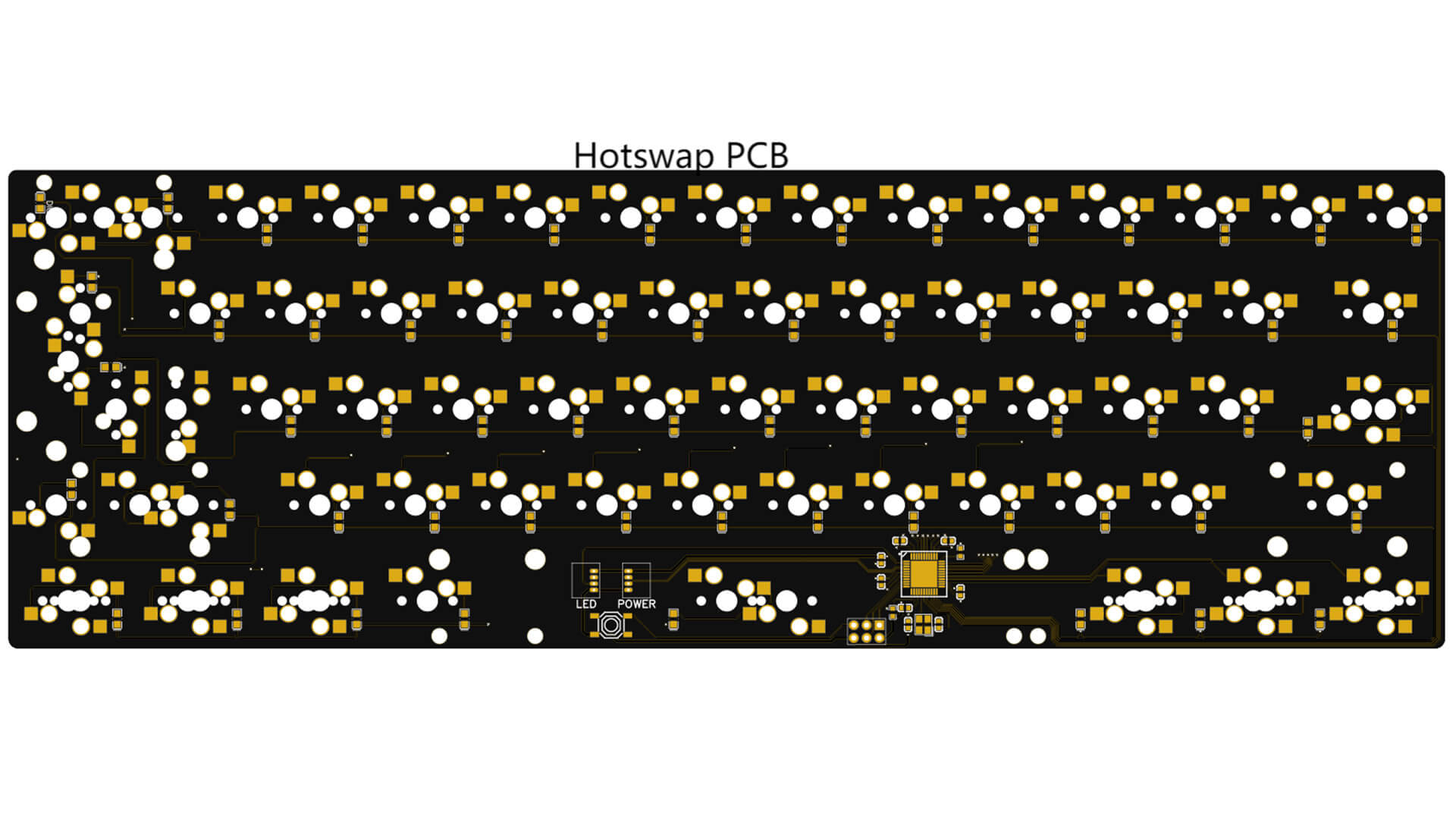

- Hot-swap PCB

- Type-C daughterboard

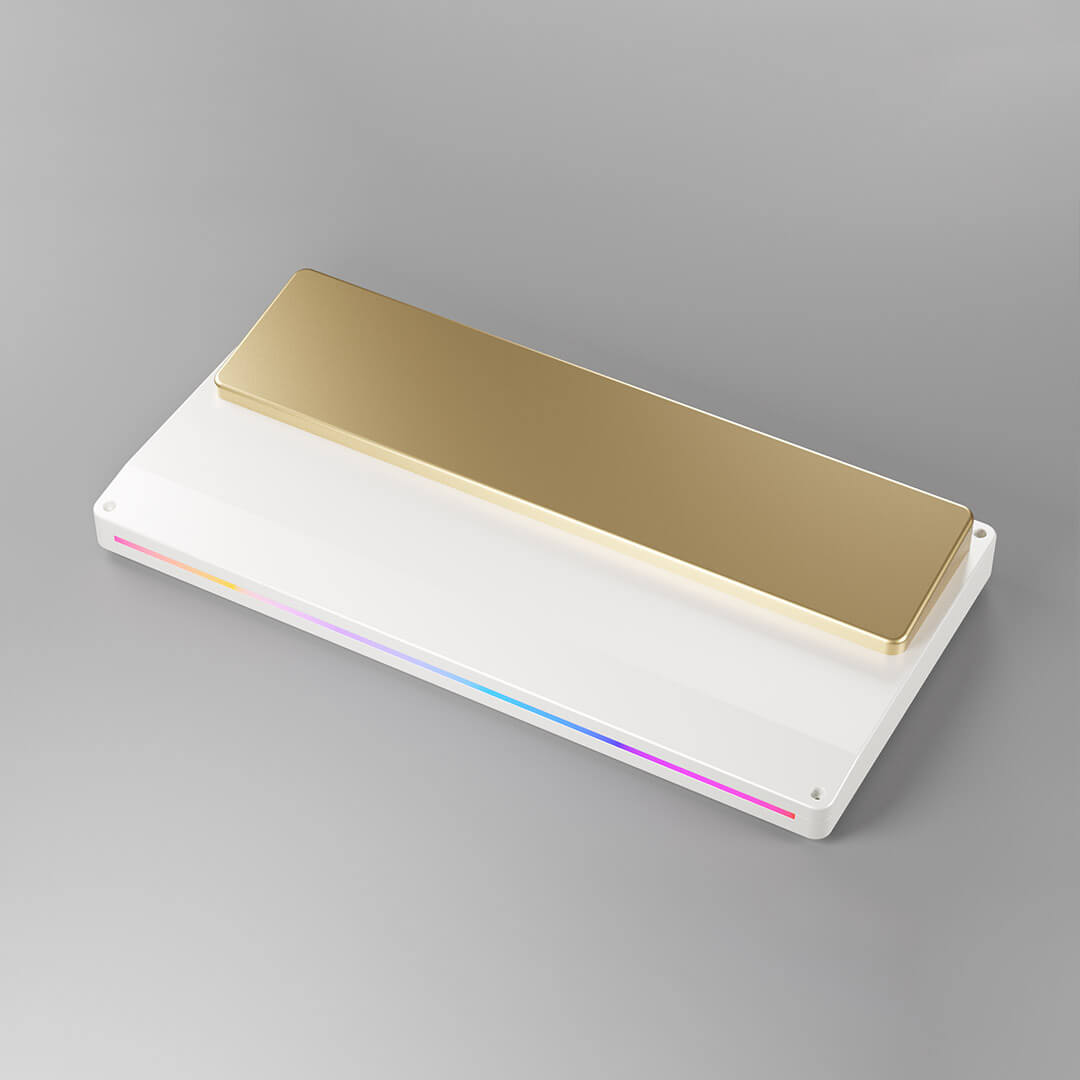

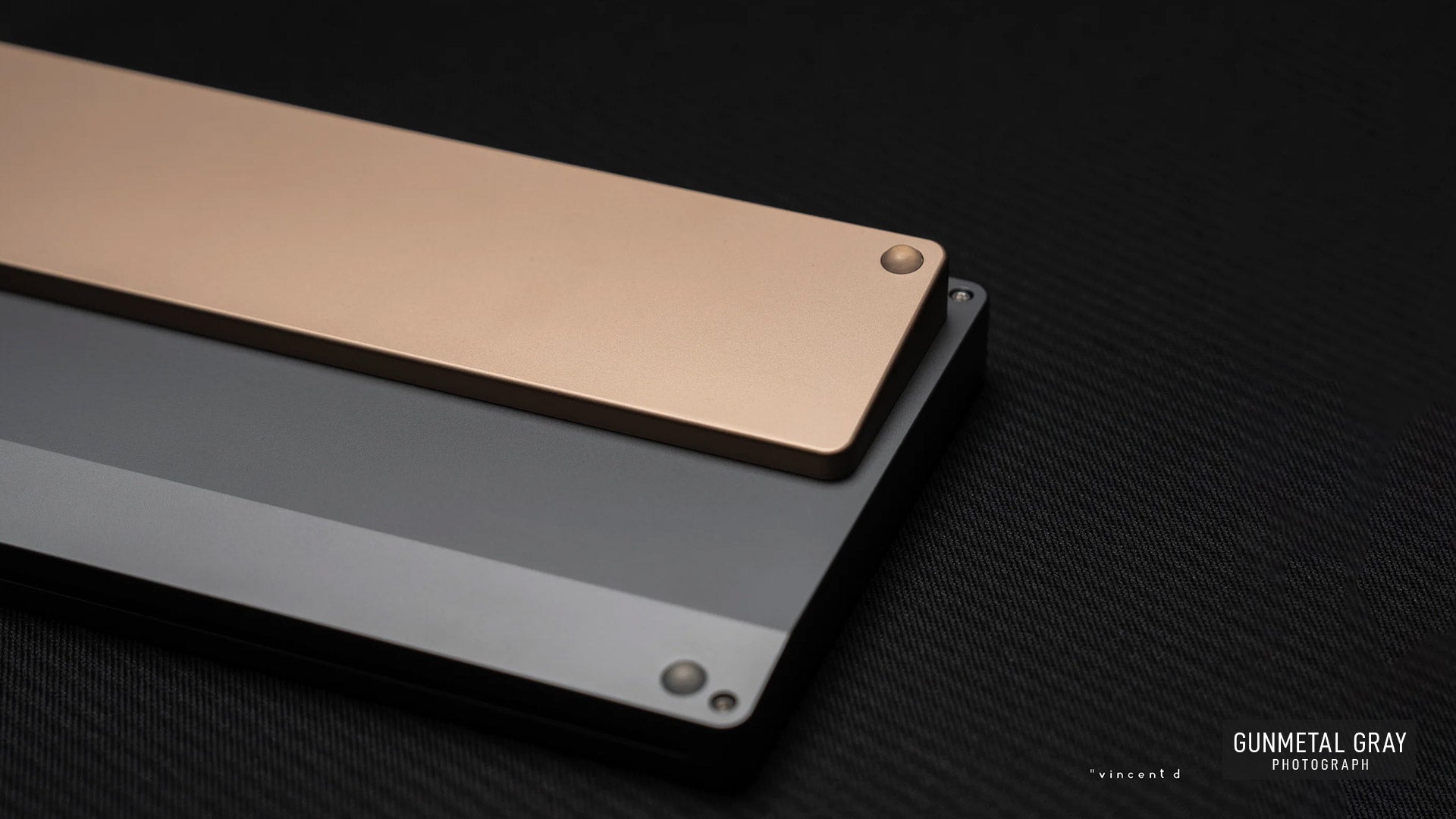

- Aluminum weight*

- PC plate

- 6x color chips

- PORON foam kit

- 2x badge (Brass & PC)

- RGB LED strip

- Acrylic diffuser plate

- Screws & feet

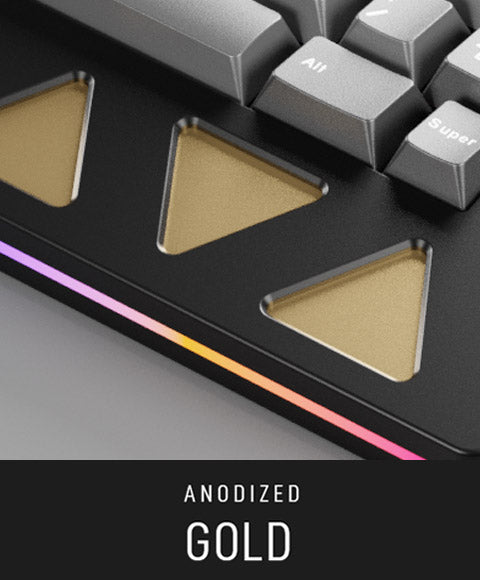

* All Anodized Edition come with Ano Gold weight

Specifications

- Typing angle: 8 degrees

- 16mm front height

- Aluminum external weight

- Gasket mount

- Dimensions: 296mm x 150mm. Front height is 16mm and back height is 36mm

- Backplate and external weight are anodized and infilled

- Weight when fully built: 2KG

- Triangle chips material: Aluminum

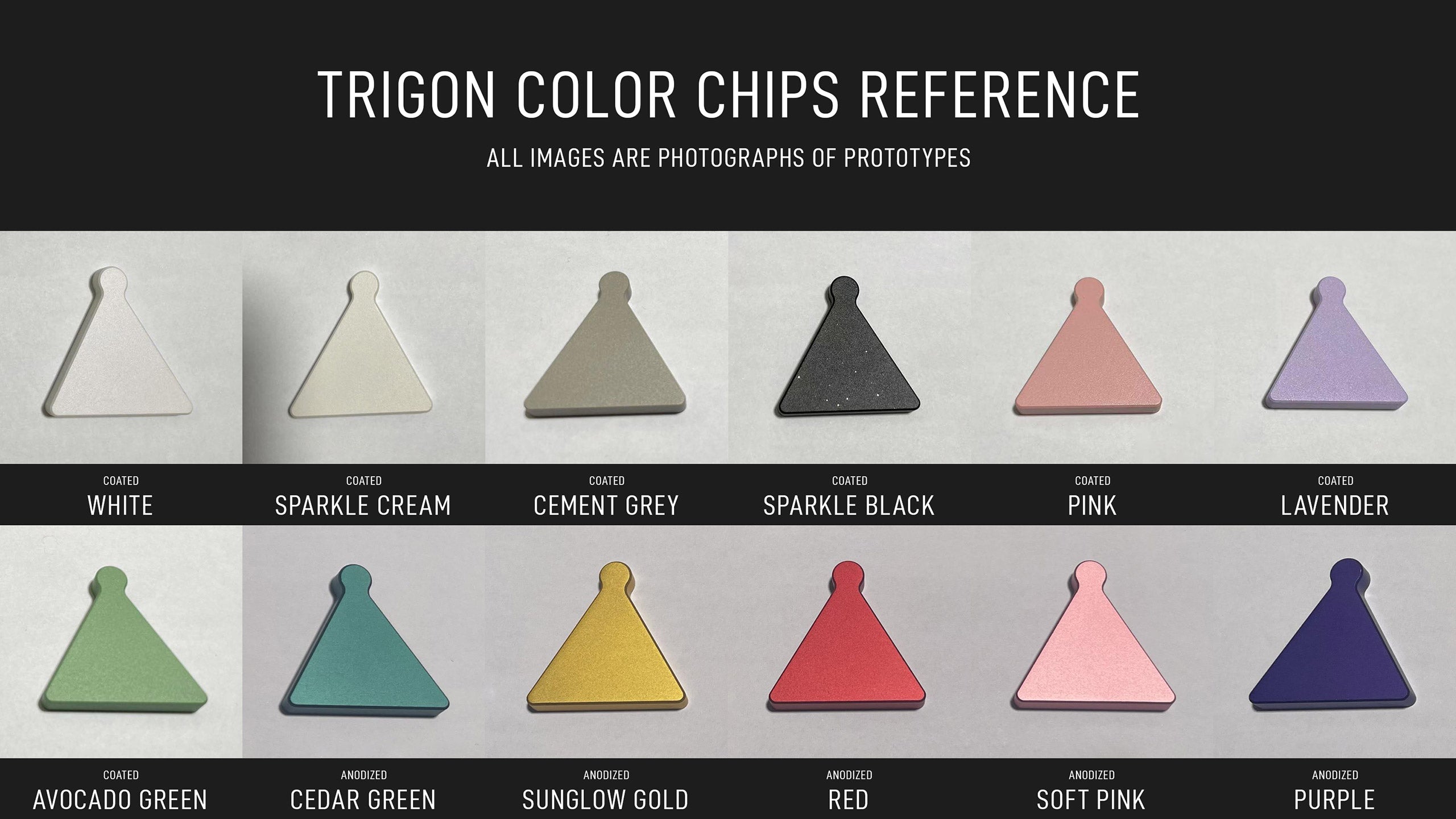

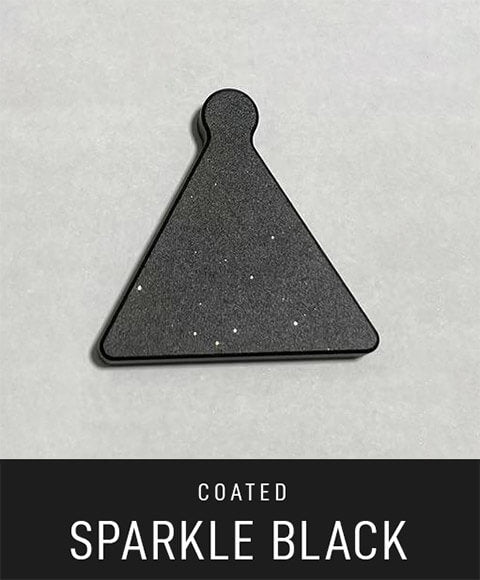

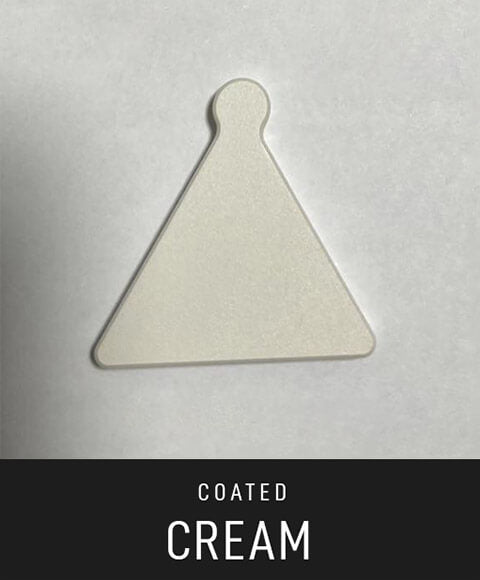

Default Chip Colors

Every Trigon kit comes with 6x chips of the same color. The color of the chip depends on the case color as listed below

Black, Burgundy, Cedar Green

Cream, White, Silver, Rhino Grey

Gunmetal Grey

Lavender, Pink

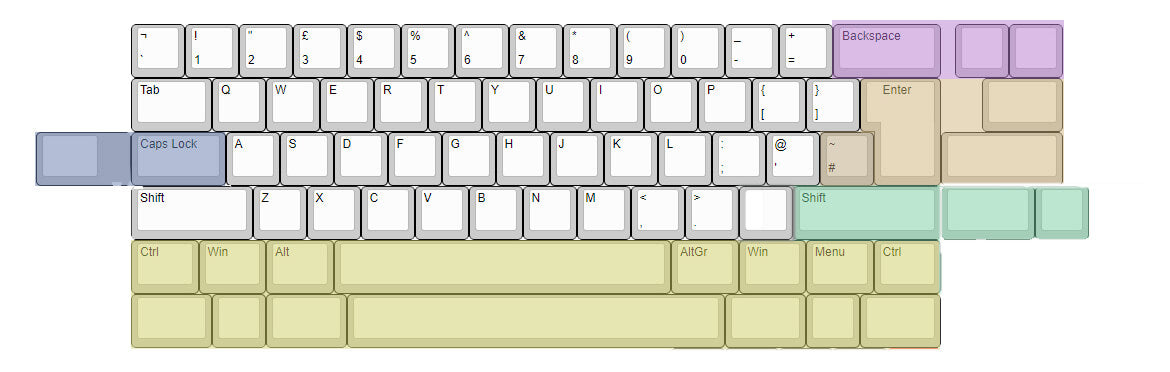

Hot-swap PCB supported layouts

Disclaimer

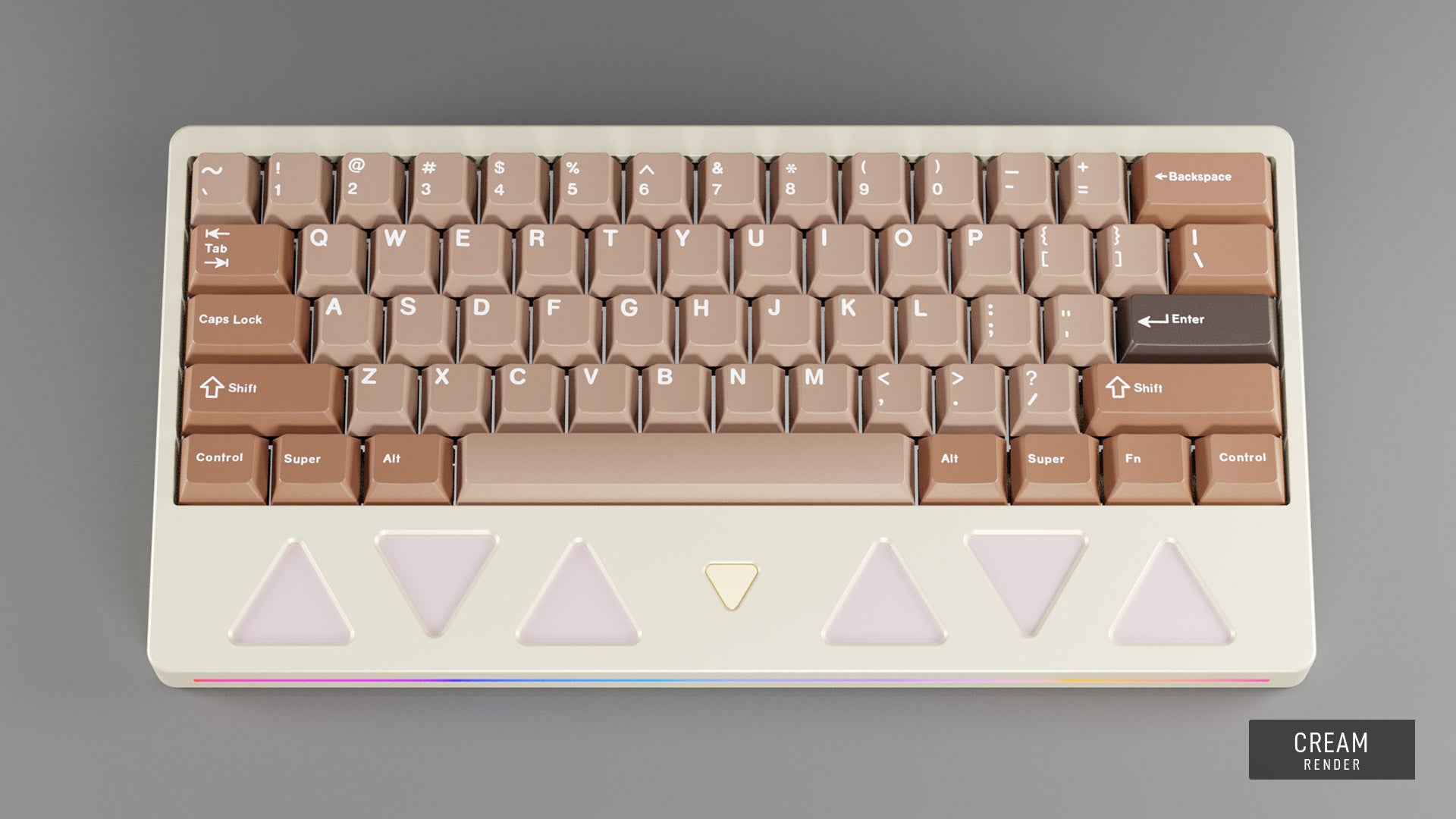

The rendered pictures are for reference only, please refer to the prototype photos for the closest reference to what will be released. Please also notice Sam's Studio doesn't anodize in house, which makes it hard to maintain 100% accuracy between prototypes and final production units. The colors will be nearly identical to naked eye but can be a smidge off, which some of you with excellent eyes might notice so it must be disclosed. They will try to be as accurate as possible.

Downloads

QMK Firmware 🔗

VIA Definition JSON 🔗

Please load the JSON file linked above in VIA to customize the keyboard

Build Guide

Please refer to the video at the end of this page

Build Video & Sound Test
