Name: Zoom64 - Barebones Kit
Brand: Meletrix
Price: 184.0 USD
Availability: OutOfStock

Related Products

Zoom64 - Barebones Kit

$184.00 USD

DIY kit that comes with almost everything you need. Simply add your own switches and keycaps!

Zoom64 - Fully Assembled [Group Buy]

$239.00 USD

Fully assembled with double-shot keycaps, lubed switches & stabilizers. Just plug n' play!

Zoom64 - Case Only Kit [Group Buy]

$129.00 USD

Just the case & plate. Add your own Flux60 or GH60 HE PCB kits!

Zoom64 - MCap Die-cast Aluminum Keycaps [Group Buy]

Zoom64 - MCap Die-cast Aluminum Keycaps [Group Buy]

$79.00 USD

Full aluminum keycaps at an incredible price that fit the Zoom64 layout

Highlights

Functional layout

Many people often overlook 60% keyboards because of a lack of dedicated arrow keys. Zoom64's 64-key layout features dedicated arrow keys by making the shift keys smaller. Please keep in mind the left shift is 2u only.

Recessed Metal Knurled Knob

Cleverly located just above the backspace key, the sleek horizontal knob offers superb tactile feedback and precise control. Programmable via VIA, it transforms into a volume dial, scroll wheel, or any macro tool you define.

Aurora Arc Side Profile

The side concave side profile not only balances visual focus and depth, but it also gives the Zoom64 a very unique look and makes it very easy to lift up!

Functional Weight

The “racetrack” curved weight with a wave texture provides a secure grip when moving the keyboard. Twin-eared feet arch the side, visually merging with the grand curve.

Underglow lighting

An RGB strip surrounds the racetrack curved weight. When lit, the light appears to emanate organically from within, lighting up the surrounding. The MX PCBs also feature per-key RGB.

Flux60 HE PCB

Add the Flux60 HE module to your order to switch between a traditional MX or a high performance HE setup anytime! The PCB is made of Aluminum for maximum heat dissipation, and comes with a water-resistant coat for the occasional accidental spill! Click on the image to find out more!

Diverse Finish Treatments

See the chart in the details

Laser engraved

Physical engraving with a depth you can feel.

Marbleano Finish

Special anodization process that gives Aluminum a marble-like appearance

220-mesh Anodization

Traditional, high quality anodized finish that gives Aluminum a shiny look.

Spray anodization

A coated finish that gives the case a rather matte look.

The DEtails

Specifications

CASE

Layout

60% (64 keys)

Case material

6063 Aluminum

Color & Finish

Anodized / Acustatic. See below for more details

Typing Angle

6.5°

Front Height

17.8 mm

Rear Height

32.2 mm

Dimensions

297.1 x 122.1 x 36 mm

Mounting Structure

O-ring or Silica Gel Particles

Package Weight

2.4 kg

MX PCB

Hot-swap

Yes

N-key Rollover

Yes

Software

VIA compatible by sideloading JSON

RGB

Underglow + south-facing per-key LEDs

Connectivity

Wired, BLE 5.4 & 2.4 Ghz

Polling rate

Wired
1000 Hz

2.4 Ghz RF
1000 Hz

Bluetooth
133 Hz

Latency

Wired
0.6 ms

2.4 Ghz RF
1.1 ms

Bluetooth
8 ms

System Support

Compatibility

Windows, MacOS, Linux & Android

Simultaneous Connections

Up to 5 devices

Driver

Web configurator

NOTE

- Additional plates in the add-on page titled "MX" can only be used with the MX PCBs.

- Both MX PCBs and Flux60 HE PCB use a non-standard, but popular 2u left shift. Please make sure your keycap set has this key.

- Only the MX PCBs can use o-ring mount method. Case only kits do not come with accessories for this mounting method, they only come with Silica Gel Particle mounting method.

Additional Information

Disclaimer

Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.

Acceptable Quality Standards

Alu case - Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to Zoom64

Drivers, Docs & Downloads

MX PCB VIA JSON definition 🔗

MX PCB firmware 🔗

MX PCB reference guide 🔗

Web configurator 🔗

Video assembly guide 🔗

Customize YOUR EXPERIENCE

HYBRID DAMPENING SYSTEM

Each Barebones kit will come with accessories to mount your build in two different ways.

Both mounting options support "foamless" tuning, effectively eliminating case ping without using the dampening kit.

For magnetic switches, please use Silica Gel Particle Mount only

Split o-ring mount

Adds bounce and flexibility for a softer typing experience.

Silica Gel Particle Mount

Helps achieve a muted, cushioned typing feel.

Title

Premium Acoustic Experience

Each Barebones Kit comes with a Dampening Kit of your choice.

Crisp - Cork FOAM

First introduced in Zoom Tiga, the Cork Foam set perfect for those who want something different than what traditional foams offer! This cork layer produces a crisper sound for a unique typing experience.

Soft - PORON Foam

Poron foam offers excellent durability and fatigue resistance, ensuring consistent sound performance over time. With a muted sound profile it makes it the perfect option for office use.

Classic - Standard Foam

Standard Foam tends to change the sound profile over time while offering a higher-pitched profile. It starts with a bright tone that gradually mellows with use.

Go foam-less!

Many prefer their build without any foam at all, and you can do that with Zoom64! You can also use any combination of the foam listed here for a truly unique sound.

Title

Plate Variety

You can choose either an Aluminum, FR4, POM or PC plate with each Barebones Kit. Additional plates, including plates made of other materials can be purchased separately.

Title

PCB Options

Each Barebones Kit comes with an MX PCB of your choice. Choose the 1.2mm Flex Cut PCB for a bouncier typefeel, or choose the 1.6mm Non-flex cut option for a more rigid typing experience!

Photo Gallery

Drag across to browse through the gallery.
Click / tap to enlarge.

Coral Bloom
Drift Gray
Forged Flow
Glacier Startrail
Ink Teal
Lilac Veil
Liquid Silver
Midnight Ink Glow
Moonstone White
Neon Violet

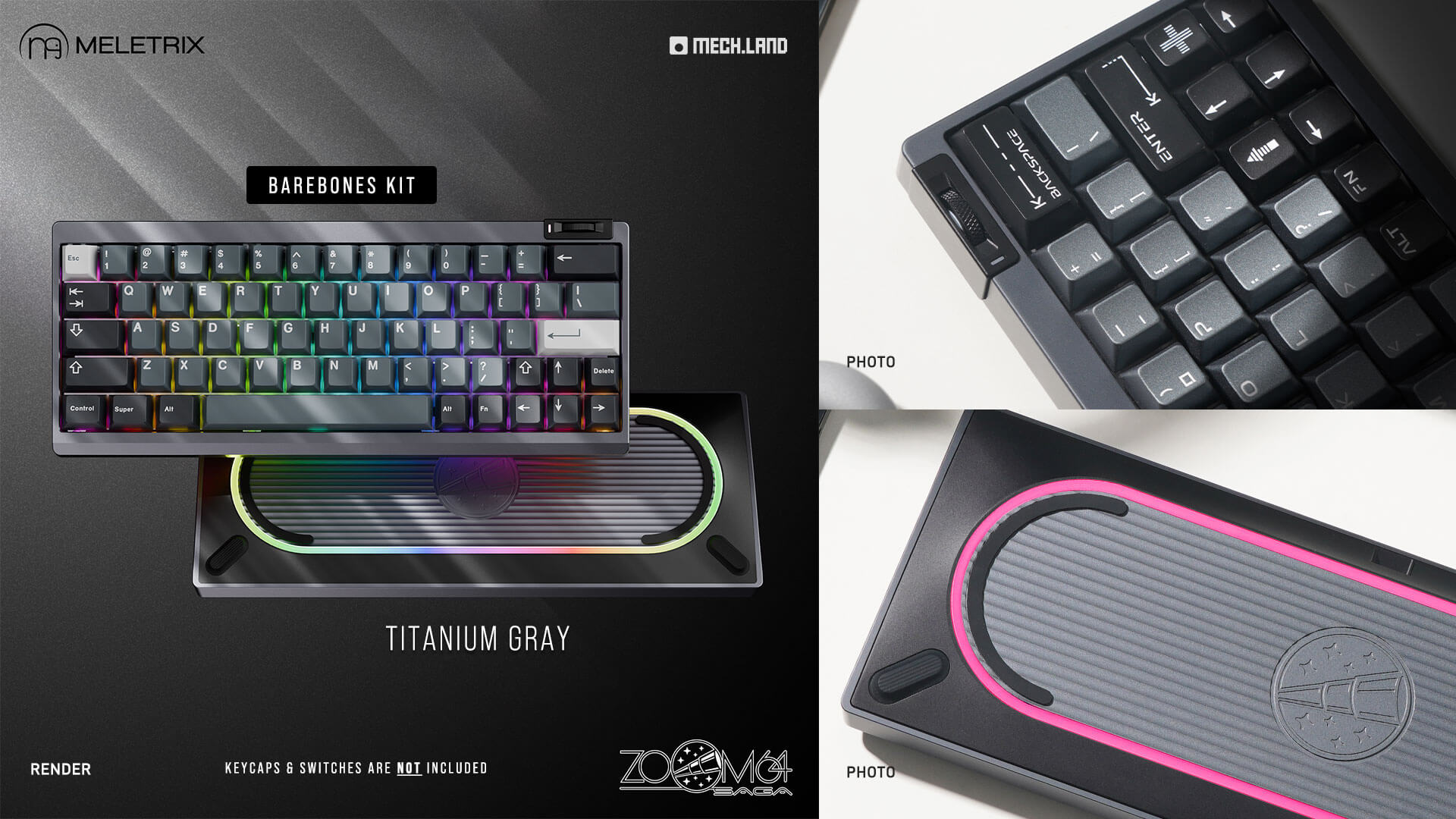

Titanium Gray
Velvet Gold
