Zoom64 - Case Only Kits

Name: Zoom64 - Case Only Kits
Brand: Meletrix
Price: 164.0 USD
Availability: InStock

$164.00 USD

Title

Case

Midnight Ink Glow

Variant

GH60 HE

Quantity

Title

📦

In stock

Ships out in 1-3 business days

🆓

Free / discounted shipping

Qualifies for free economy shipping within Canada. Also qualifies for discounted shipping rates to USA, delivered duties paid!

🙋

Pickup in Scarborough, ON, Canada

Wednesdays & Sundays. Click here for more info

Related Products

Zoom64 - Barebones Kit

$184.00 USD

DIY kit that comes with almost everything you need. Just add your own switches and keycaps!

Zoom64 - Fully Assembled

$259.00 USD

Ready to use, assembled with double-shot keycaps, hand-lubed stabilizers and switches

Zoom64 - Case Only Kits

$164.00 USD

Just the case & plate. Add your own Flux60 or GH60 HE PCB kits!

MCap Die-cast Aluminum Keycaps

$89.00 USD

Full aluminum keycaps at an incredible price that fit the Zoom64 layout

Highlights

Just add your own PCB!

Case only kits come with just the case and a plate. No dampeners or PCB, and you can only use the silica gel mounting style. Please refer to the specs section below for more details.

BYOP - Bring your own pcb!

With case kits, you are not limited to just the default MX PCBs! Bring your own GH60 compatible MX or HE PCBs like the Wooting 60HE PCB, or use a Flux60 / Babao60 HE PCB to enjoy the beautiful design and the knob of Zoom64!

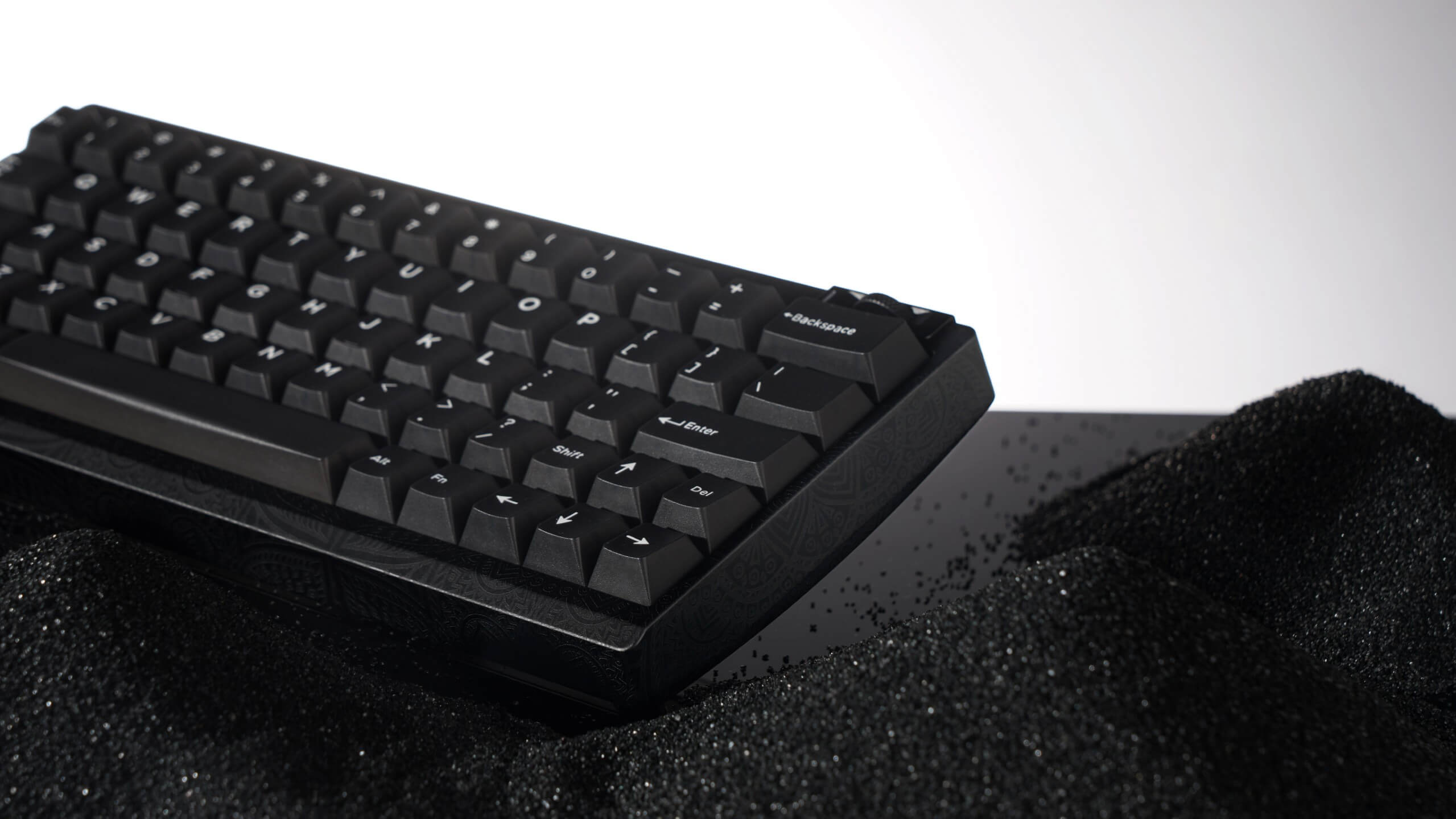

Recessed Metal Knurled Knob

Cleverly located just above the backspace key, the sleek horizontal knob offers superb tactile feedback and precise control. Programmable via VIA, it transforms into a volume dial, scroll wheel, or any macro tool you define.

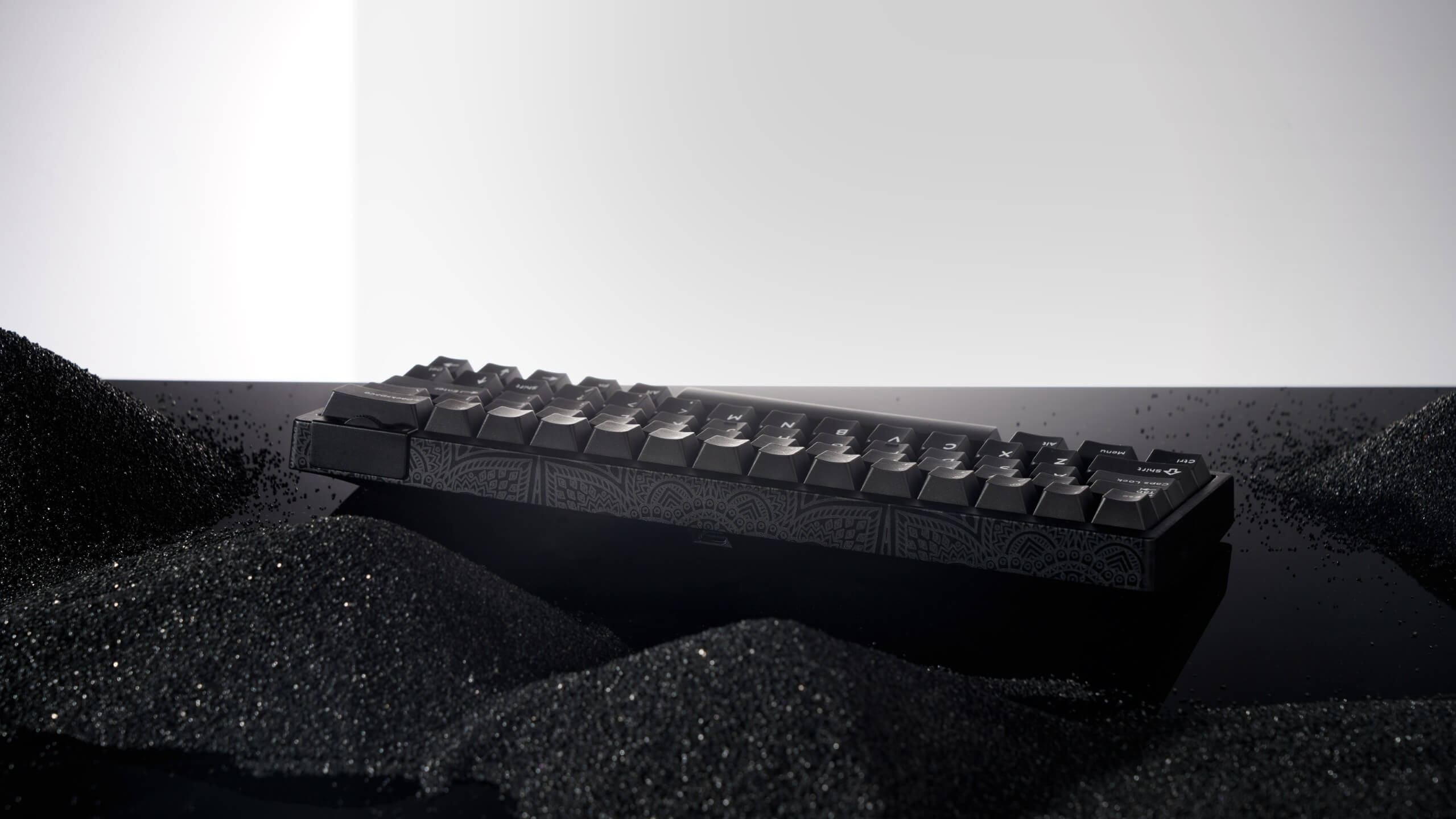

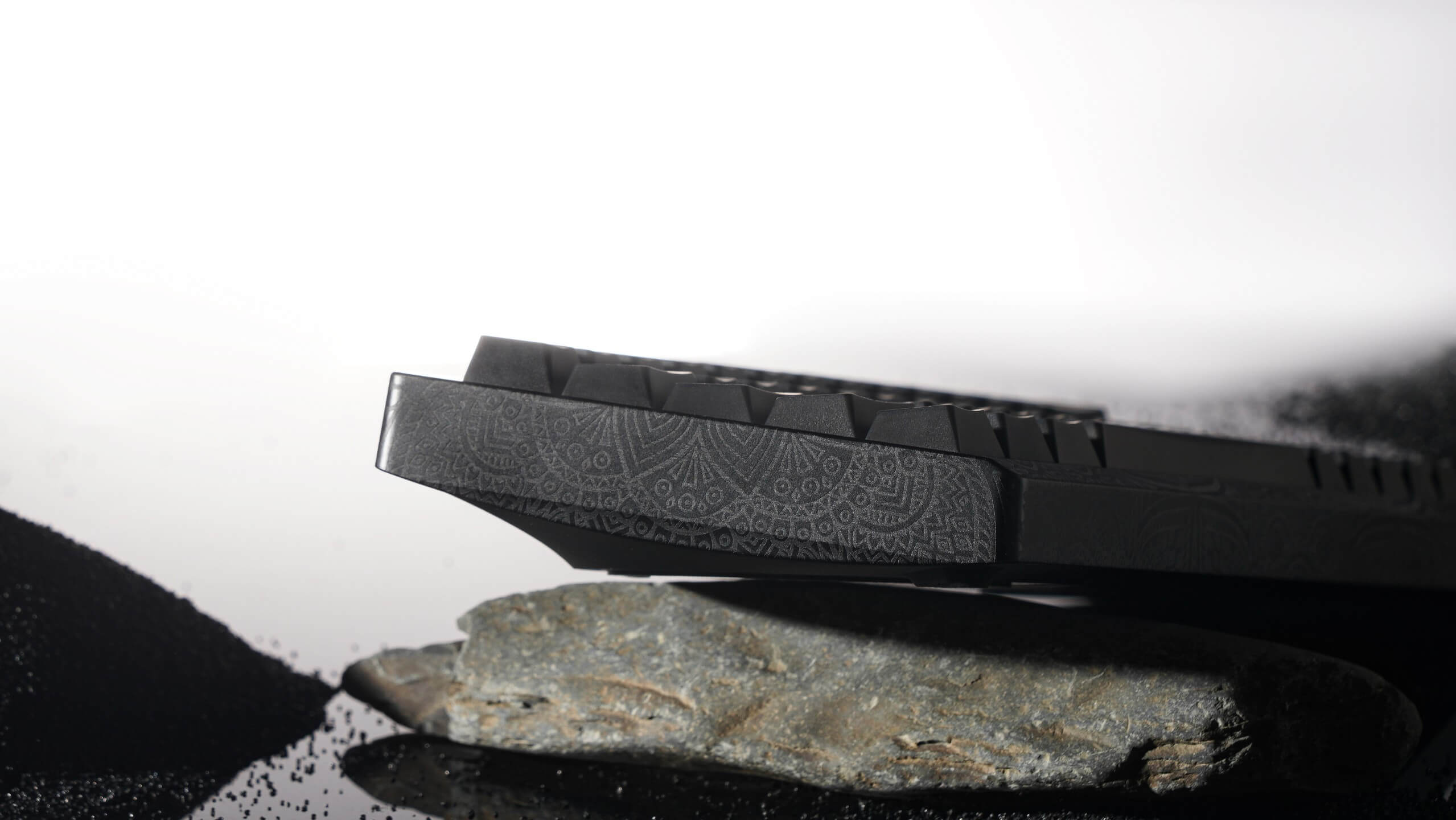

Aurora Arc Side Profile

The side concave side profile not only balances visual focus and depth, but it also gives the Zoom64 a very unique look and makes it very easy to lift up!

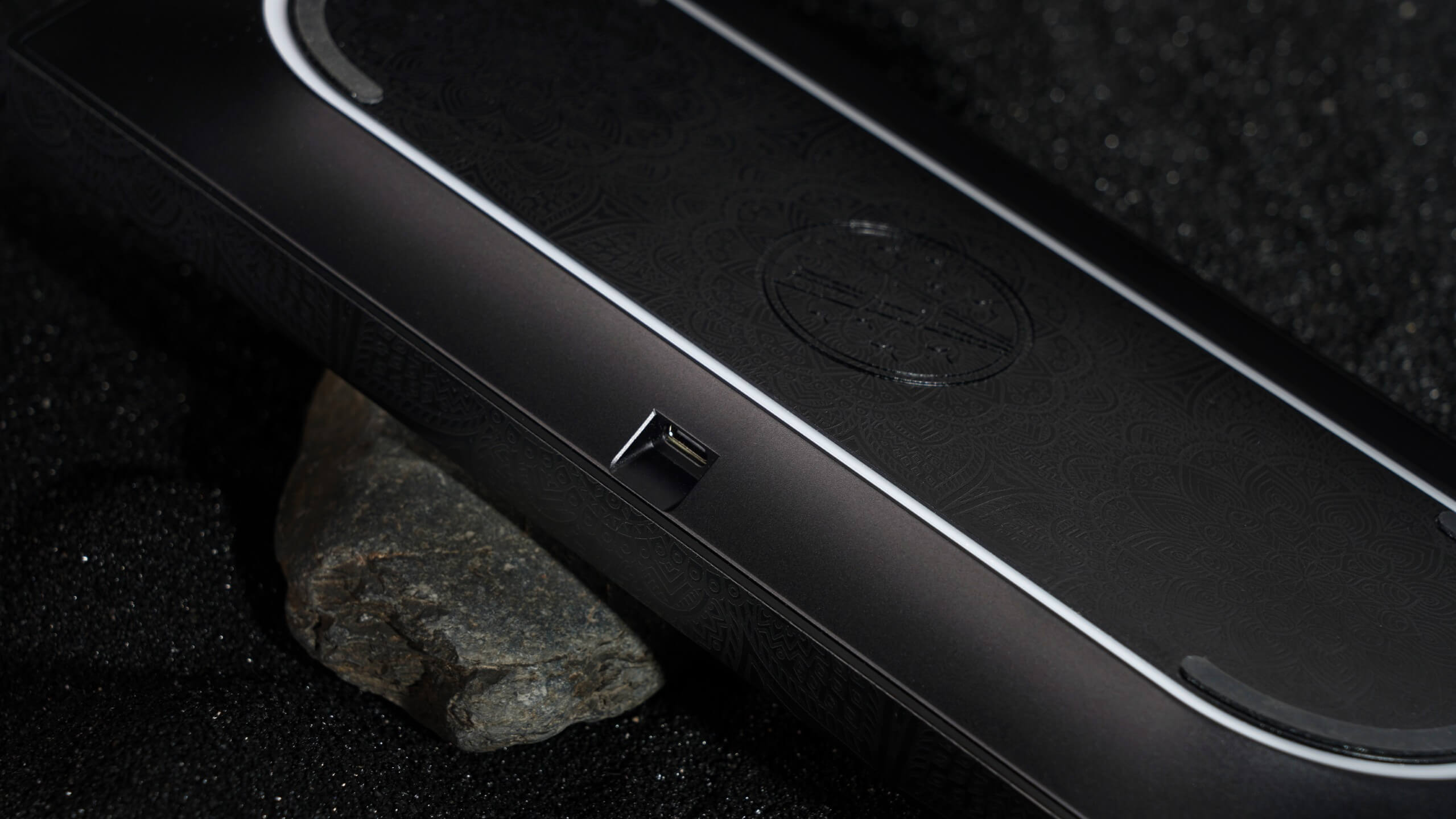

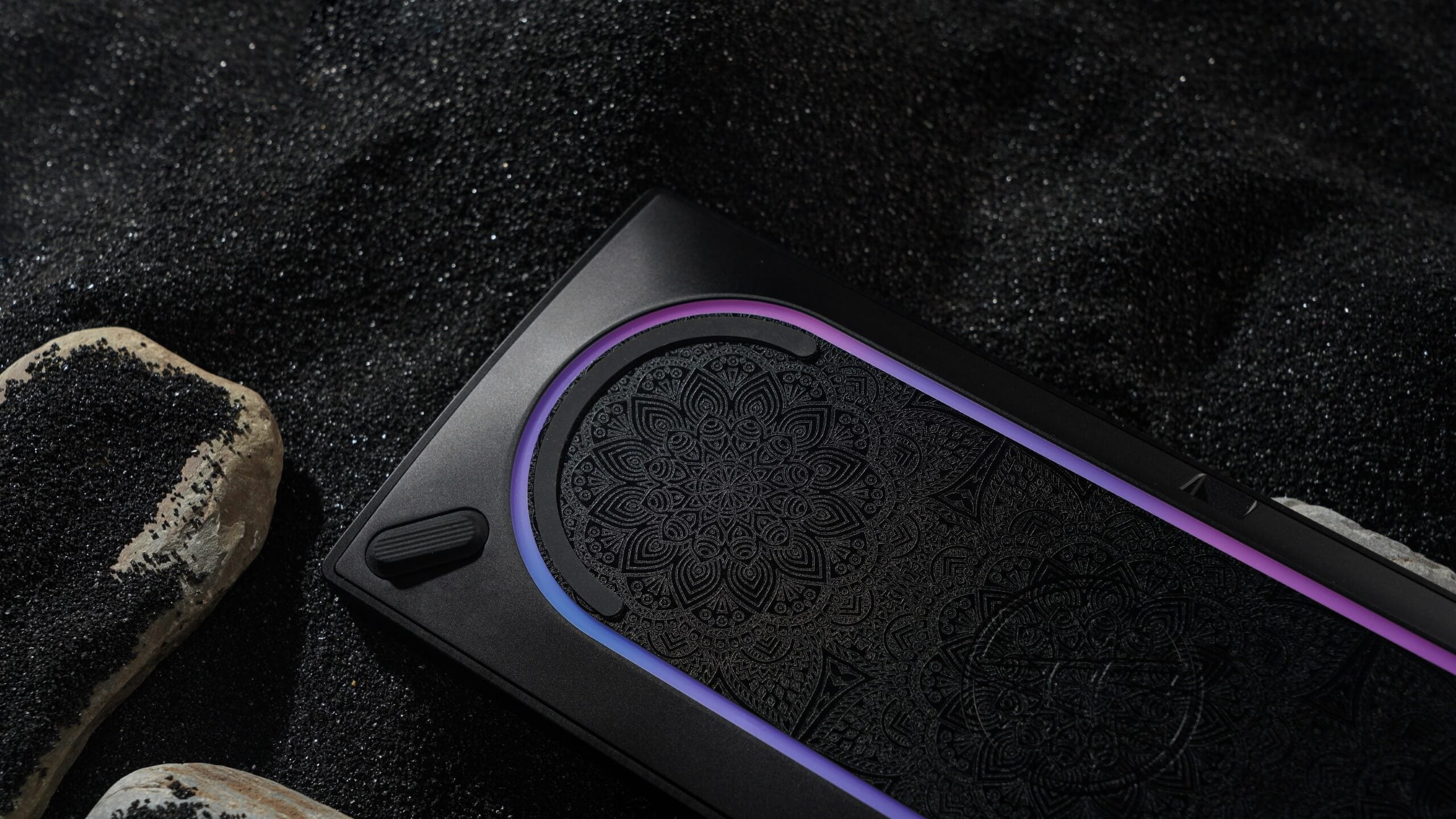

Functional Weight

The “racetrack” curved weight with a wave texture provides a secure grip when moving the keyboard. Twin-eared feet arch the side, visually merging with the grand curve.

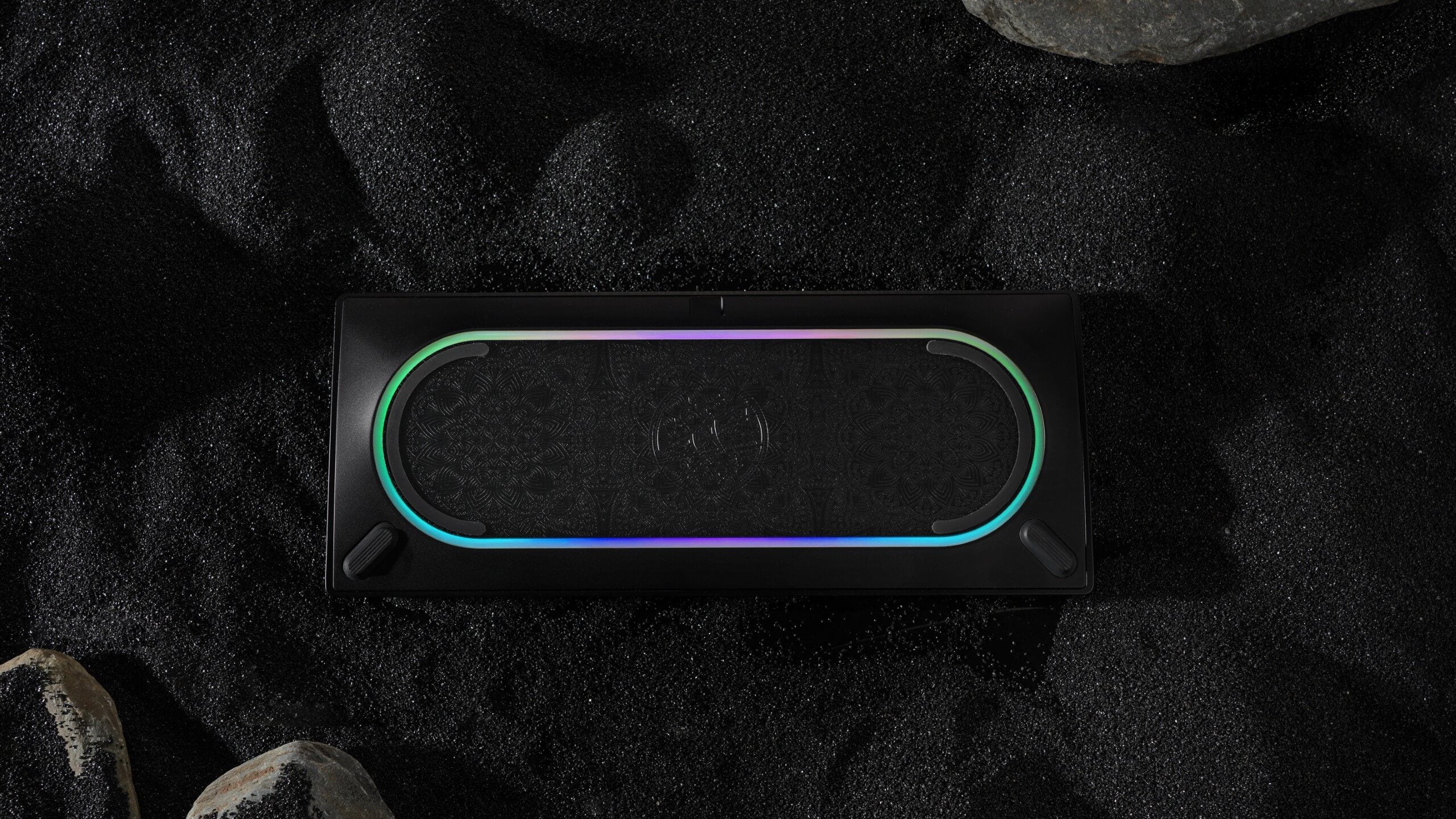

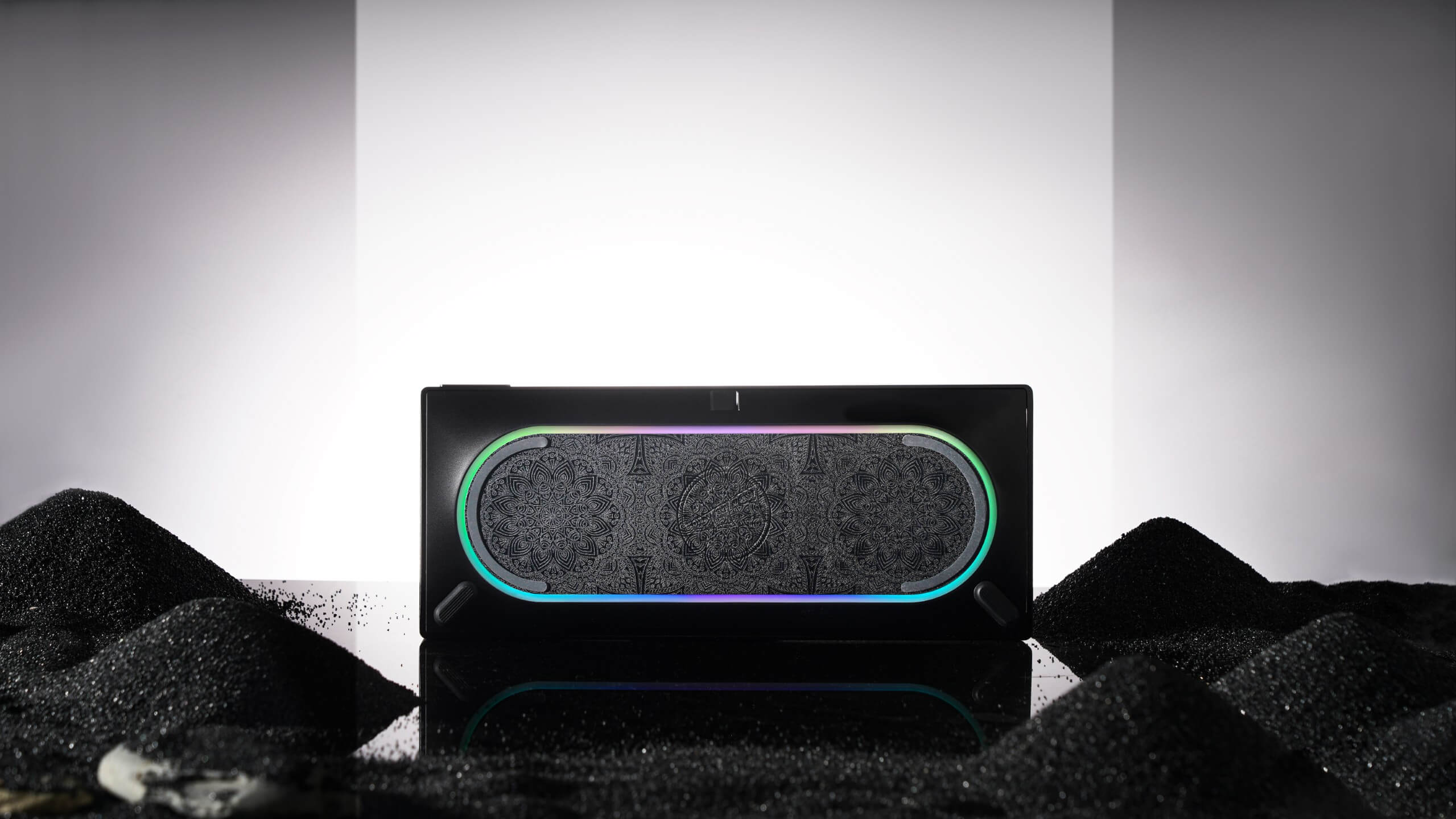

Underglow lighting

An RGB strip surrounds the racetrack curved weight. When lit, the light appears to emanate organically from within, lighting up the surrounding. The MX PCBs also feature per-key RGB.

Flux60 HE PCB

Buy a case kit and the Flux60 HE module for a top of the line HE setup at a very good price! The PCB is made of Aluminum for maximum heat dissipation, and comes with a water-resistant coat for the occasional accidental spill!

Diverse Finish Treatments

See the chart in the details

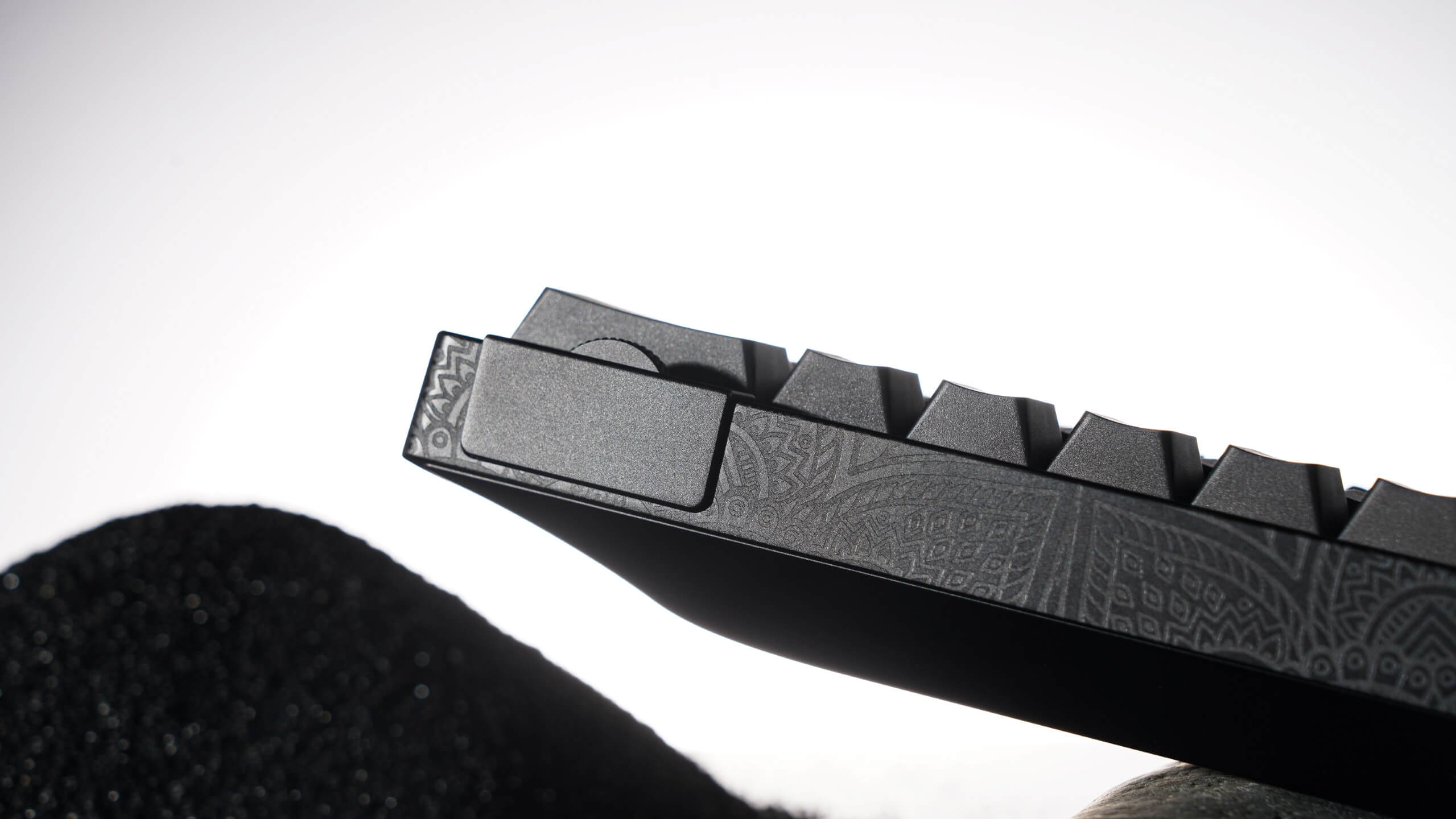

Laser engraved

Physical engraving with a depth you can feel.

Marbleano Finish

Special anodization process that gives Aluminum a marble-like appearance

220-mesh Anodization

Traditional, high quality anodized finish that gives Aluminum a shiny look.

Spray anodization

A coated finish that gives the case a rather matte look.

The DEtails

Specifications

CASE

Case material

6063 Aluminum

Color & Finish

Anodized / Acustatic. See below for more details

Typing Angle

6.5°

Front Height

17.8 mm

Rear Height

32.2 mm

Dimensions

297.1 x 122.1 x 36 mm

Mounting Structure

Silica Gel Particles only

Package Weight

2.2 kg

GH60 Variant

Layout

Standard 61 Keys

PCB Compat.

Designed for GH60-format magnetic switch PCBs, including Wooting 60HE modules and other compatible boards.

Flux60 HE VARIANT

Layout

Left-shifted 64 keys (with dedicated arrow keys).

PCB Compat.

Optimized for the Meletrix Flux60 HE (Babao60 HE) magnetic PCB.

Kit Contents

- Zoom64 Case

- Aluminum Plate (GH60 HE / Flux60 HE)

- Silica Gel Particle mounting accessories

- Screwdriver

- Extra internal cables

Does not include many items found in the Barebones Kits, including but not limited to the dampening kit & PCB

NoteS

- The knob is VIA compatible. Can also be controlled through this independent software

- Additional plates in the add-on page titled "MX" can only be used with the MX PCBs.

- Both MX PCBs and Flux60 HE PCB use a non-standard, but popular 2u left shift. Please make sure your keycap set has this key.

- Only the MX PCBs can use o-ring mount method. Case only kits do not come with accessories for this mounting method, they only come with Silica Gel Particle mounting method.

WS Flux HE Switch Specifications

Highlights

Octagon Stem - Moving away from your typical rectangle design - the Eight-Sided Stem brings the minimum level of tolerance on every touch, from every position. Here, we've been able to create the most stable switch available

T-Style Rail System - Implementing the new rail system works hand in hand with the new Stem. Together, the Stem and the Rail System work harmoniously in creating not only an extremely smooth experience, again, it also helps in creating the most stable switch.

Four Point Rebound System - While not so obvious, the Four Point Rebound System continues the trend of creating stability and smoothness.

Precision Lubing - Using top of the line machinery, we've been able to create a lube process that is extremely consistent across four points including the two rail systems, center core, and spring.

Tech Specs

Initial force

35 士 5 gf

Total travel

3.50 士 0.10 mm

Bottom-out force

50 士 7 gf

Actuation force

Can be freely defined

Initial magnetic flux

115 + 15 Gs (1.6mm PCB)

Bottom-out magnetic flux

635 + 50 Gs (1.6mm PCB)

Lubrication

Factory lubed

Package Weight

2.2 kg

Additional Information

Disclaimer

Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.

Acceptable Quality Standards

Alu case - Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to Zoom64

Drivers, docs & Downloads

MX PCB VIA JSON definition 🔗

MX PCB firmware 🔗

MX PCB reference guide 🔗

Web configurator 🔗

Video assembly guide 🔗

Plate Files

Gasket Plate (Wooting V1/V2, non-split, ISO) 🔗

Gasket Plate (Wooting V2, split spacebar, ISO) 🔗

Gasket Plate (Wooting V2, split spacebar, ANSI) 🔗

HYBRID DAMPENING SYSTEM

Each case kit will come with just the Silica Gel Particle Mount kit. It supports "foamless" tuning, effectively eliminating case ping without using any foam
