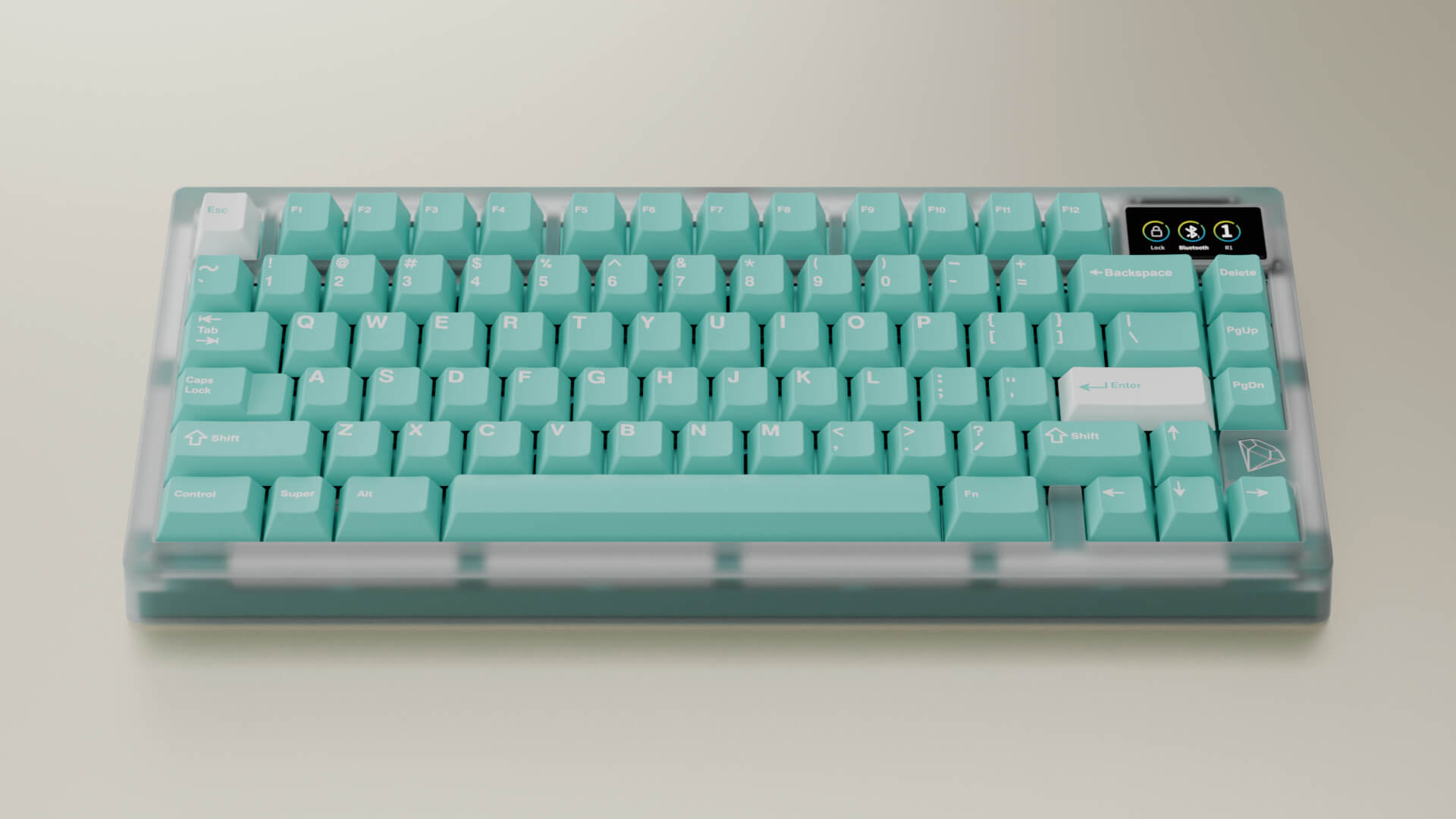

Zoom75 x Akuamarin

Name: Zoom75 x Akuamarin
Brand: Meletrix
Price: 229.0 USD
Availability: InStock

$229.00 USD

$254.00 USD

Title

Kit

Keyboard only

Complete Bundle

PCB

Flexcut

Non-flexcut

Quantity

In stock. Ships in 1-3 business days.

Pickup available in Scarborough, ON, Canada. Click here for more info

Usually ready in 1-3 days

Related ITEMS

WS Akuamarin

$85.00 USD

Product Page

Akuamarin Mini Deskmat

$14.00 USD

Product Page

WS Akuamarin Switches

$4.00 USD

Product Page

The DEtails

Keyboard Specs

Layout

75%

Case material

Top case

Polycarbonate

Bottom case

Aluminum (CNC)

Case finish

Top case

Sandblasted

Bottom case

Anodized

Mounting style

Gasket mount

Typing angle

5 degrees

Front height

22mm

Dimensions

324 x 146 x 35mm

Weight

1.74kg (unbuilt)

Modules

Included

Screen Module

Compatible with

Zoom75 V1 modules, such as Knob Module, Badge Module and Two-key Module

Stabilizers

Supports

1.2mm screw-in or clip-in

Included

Set of WS Stabs v3.1

PCB (Tri-mode)

Options

1.2mm Flexcut

1.2mm Non-flexcut

Connection Modes

BLE 5.4

2.4Ghz RF

Wired

Daughterboard

C3 Universal DB

Features

Hot-swap

Multi-layout

Per-key RGB

VIA Support

Yes, through side-loaded JSON linked below.

QMK Support

OS Support

Win / Mac / Linux / Android

Polling Rate

Wired
1000 Hz

2.4 Ghz RF
1000 Hz

Bluetooth
125 Hz

ESD Protection

Yes

Batteries

2 x 2250 mAh, included.

MISC

Threaded metal inserts in the PC case for case screws

Note

- Zoom75 x Akuamarin does not illuminate Nightlight knobs.

- Zoom75 x Akuamarin only supports modules designed for the original Zoom75.

Keyboard Kit Contents

- Polycarbonate (PC) top case

- CNC aluminum bottom case

- E-white aluminum external weight

- Color matched gradient glass backplate

- Color matched aluminum plate

- 1.2mm Tri-mode PCB (flexcut or non-flexcut)

- Screen Module & cable

- Daughterboard with JST cable

- Set of WS Stabilizers v3.1

- 2x 2250 mAh li-ion batteries

- Gasket sleeves (white)

- White coiled USB-C cable

- PORON dampener kit

- Silicone keyboard feet

- 2.4Ghz USB receiver

- Storage case

- Screws and other installation tools.

Extra modules, keycaps, deskmat, SS internal weight are sold separately, unless specified as part of a bundle.

Bundle Contents

- Zoom75 x Akuamarin keyboard Kit

- WS Akuamarin keycap set

- Akuamarin mini deskmat

- 80x WS Akuamarin switches

Switch Specs

- Linear switch

- Full translucent Nylon housing & stem

- 63.5g bottom-out, 22mm double-stage spring

- 3.8mm Travel

- Factory lubed

More details here 🔗

Mini Deskmat Specs

- Size: 394mm x 160mm x 4mm

- Anti-fray black stitched edges

- High quality cloth top

More details here 🔗

Keycaps Specs

Base kit

Material: ABS

Legends: Double-shot

Thickness: 1.6mm

Profile: Cherry

Total keys: 177

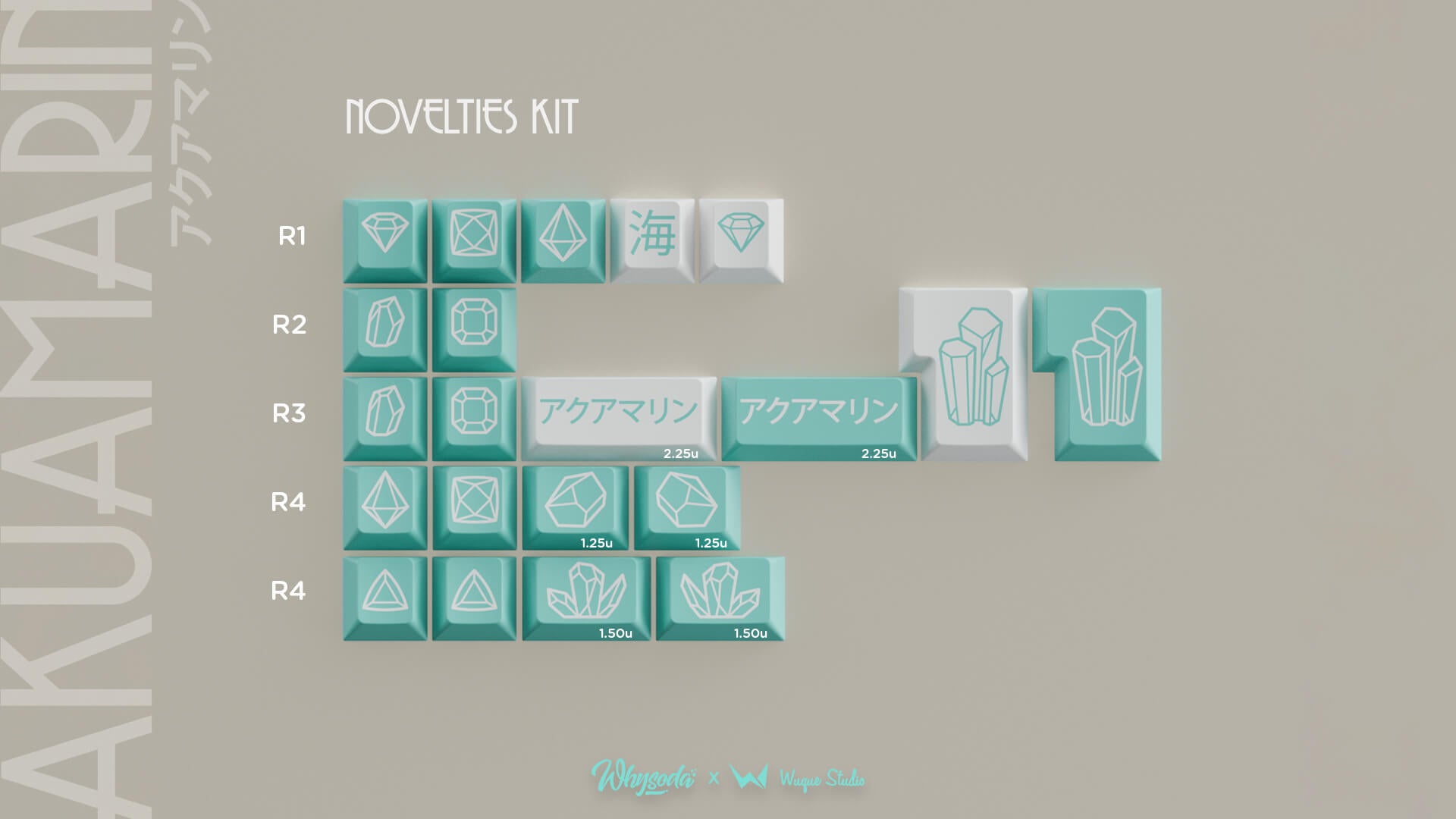

Novelties kit

Material: ABS

Legends: UV Printing

Thickness: 1.6mm

Profile: Cherry

Total keys: 21

More details here 🔗

Supported Layouts

Disclaimer

All of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product looks like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.

Acceptable Quality Standards

Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to Zoom75 x Akuamarin

Files & Downloads

Build guide 🔗

Build guide (video) 🔗

VIA configurator 🔗

Zoom75 VIA JSON definition 🔗

Wuque Notion site 🔗

Please refer to the Wuque ID app and Pocket Wuque App section on the Wuque Notion site to find out how to customize the LCD screen

Modules

Screen Module ^(Included)

A nifty LCD screen that can display a whole host of useful information including notes, alerts, typing speed, internet speed or a static image.

The video demonstrates some of the features of the LCD Module

Badge Module ^{(Sold Separately)}

The Badge Module lets you display a badge in the 2u cluster. There are a variety of different badges available from various Zoom75 runs. Badges are sold separately from Badge Modules.

Two-Key Module ^{(Sold Separately)}

For those who likes things simple and orthodox, there's a Two-key Module that adds two extra keys that are fully customizable by VIA.

Zoom75 Features

Gasket Mount

Zoom75 uses a gasket isolation mount structure for a soft, bouncy and pleasant type feel that won't fatigue your fingers even after hours of typing. Gasket mount keyboards sound better and feel more even throughout the board than the typical off-the-rack tray mount keyboards.

Foam included

In order to reduce resonance, many tests were done on the foaming material of the Zoom75. Meletrix made the new PORON lighter and denser, as a result they make the keyboard sound more concentrated and deeper than stock settings.

Per-key RGB

Both the Tri-Mode PCB and Wired PCB support per-key RGB lighting. You can choose from provides a wide range of colors and effects for a different visual experience. Can be used in both wired and wireless mode.

Hot-swap Switches

Both wired and Tri-Mode Zoom75 PCBs feature Kailh Hot Swap sockets that allow you to just push the switches on, no soldering required! Changing switches is a breeze, you can go from linear to tactile in a matter of minutes, all on the same keyboard!

Gasket Sleeves

The gasket sleeves are made of supercritical foam, it can stabilize the plate as the same time giving appropriate space allowing it to flex in a balanced way. Just the right softness, not too stiff, not too much flex.

Plate variety

Plates in other materials, such as brass, aluminum and FR4, can be sold as add-on accessories, and they dramatically change the feel and sound of the keyboard

WS Stabilizers V3.1

An updated version of the V3 stabilizers. The V3 new stabilizers were under development for almost one year, and will be included with the Zoom75 x Akuamarin

Optional Internal Weight

Take your keyboard to the next level with an internal SS weight, sold separately. It weighs about 358 grams.

PCB Features

Bluetooth, RF & Wired!

Tri-mode PCB supports three modes of connection. You can connect to your devices via Bluetooth 5.0, 2.4Ghz RF (USB receiver included) and in plain old wired mode. You can charge the battery with any USB-C cable, or simply use it in wired mode for a while!

Multi-layout

Unlike traditional keyboards, you are not stuck with just one layout on Zoo75! Change things up every now and then with split backspace, left shift and spacebar! You can also switch between normal and stepped caps lock or ANSI.

VIA Customization

The Tri-Mode PCB is fully compatible with VIA, the powerful GUI widely renowned for it's customizability and ease of use. Remap any key on the keyboard on 4 different layers, including the knob. Use built in powerful shortcuts and macros, or define your own!

Long Battery Life

Every Zoom75 comes with two 2250 mAh Li-ion battery included in the kit. The battery should last 6-8 weeks between charges under normal use. Once it's out of charges simply connect your keyboard to your PC / laptop using the included USB-C cable.
