Pre-order runs from Oct 10 to Oct 30, 2023
Please refer to the "Delivery Estimates" tab for the difference between Ocean Freight and Air Express
Canadian customers - please do not choose Xpresspost or Priority as the shipping method. Each Zoom98 kit comes with a battery packed inside which is not allowed in Xpresspost or Priority.
Pre-order ends in
You cannot add any in-stock items to your order as we cannot guarantee its availability when the pre-order is ready to ship.
You cannot combine Z98 Air Express order with any other group buy / pre-order. Z98 Ocean Freight, Z75 & ZPad Oct 2023 batches can be ordered together.
You may modify your order until the group buy ends on Oct 30, 2023
Please send an email to help@mech.land from the email address associated with your order and list the changes you'd like to see made.
You may cancel your order and get a refund until the group buy ends on Oct 30, 2023
Please keep in mind we will deduct 4% of the total from the refund as we do not get the transaction fees back from our payment processor.
Any status updates pertaining to this pre-order will be posted in the status updates page.
Please follow the instructions on the contact us page if you need to change your address before the group buy ships.
Zoom98 will be imported from China into Canada via two separate shipping methods:
Arrives to Canada via a ship. Takes 45-60 days in transit. This is the standard import method used in most keyboard / deskmat group buys. It's much cheaper than Air Express but takes much longer to arrive.
All units ordered via Ocean Freight are scheduled to ship out of Meletrix around January, 2023 and should arrive at Mech.land around March, 2024
Arrives to Canada via a cargo airplane, takes 7-15 days in transit. This import method is very expensive, as such some of the items brought over via Air Express have a markup added to cover the extra expenses
All units ordered via Air Express are scheduled to ship out of Meletrix around late December, 2023 and should arrive at Mech.land around late January / early February, 2024
You cannot combine Ocean Freight and Air Express items in the same order. Each individual order has to contain either all Ocean Freight or all Air Express items. This is because they arrive at different times
Please keep in mind the ETA is just our best guess according to the information currently available to us. Unexpected issues and delays can happen at every stage of the process.
Essential Edition has 14 beautiful case colors with an Electrostatic coating. You can choose between the Tri-mode and wired PCB.

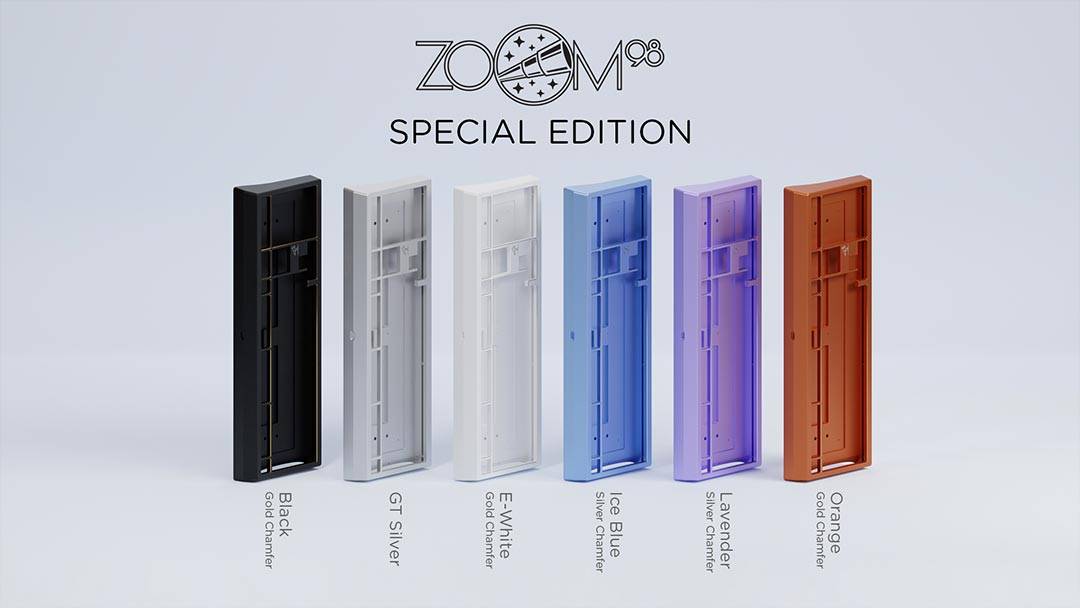

Special Edition colors have have an anodized or Electrophoresis finish. They feature an accent chamfer like Z75 SE, Zoom65 SE or Zoompad SE.

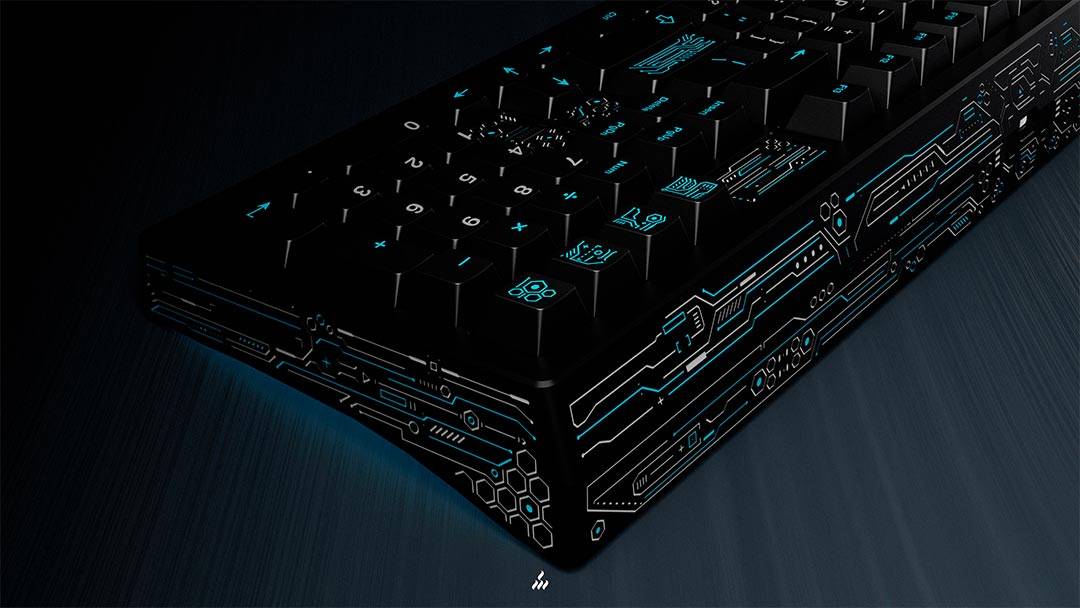

A Zoom98 collaboration with SXM Design. The keyboard features unique design patterns throughout the case. A matching keycap set is sold separately.
Grab a Badge Module and choose from 19 beautiful badge options to further accessorize your Zoom98! Badges are compatible with Zoom75 badge module.
Choose from a huge variety of knobs in many different design and colors! The Knob Module is sold separately and is required to be able to use knobs.
Choose from any of the 9 color options for external weight. You can purchase additional weights separately to change up the look whenever you like!
All Zoom98 with the Tri-mode PCB comes with the screen module by default. It does not include a knob or the knob module.
All Zoom98 with the wired PCB come with the 2-keys module. The wired PCB does not support the screen module.
Every Zoom98 keyboard kit ordered during this group buy phase will come with a free FR4 plate. This is automatic, you don't need to do anything.
All orders placed within the first 3 days will come with a customized bear resin artisan cap (promotion expired)
Get a 10-15% discount when you add a Zoomcaps PBT keyset or WS Switches to your Zoom98 order!
Zoomcaps PBT keyset & WS Switch listings are listed below
The switch packs are already discounted
The keyset will be discounted in cart
Before you purchase
Zoom98 units with a tri-mode PCB come with the screen module by default. They do not come with any knob or the knob module
Zoom98 Units with a wired PCB come with the 2-keys module by default. The screen module is not compatible with the wired pcb
The wired PCB does not have any flex-cuts or per-key rgb leds. it does have side ambient lights.
All zoom65/75/98 and Zoompad knobs are compatible with each other.
EE BLACK, WHITE AND STRAWBERRY ICE CREAM WILL HAVE A SLIGHT SPARKLE TO THE FINISH.
Nightlight knobs fit on Zoom98 but they do not illuminate.
Zoom98 modules are not compatible with Zoom75 and vice versa.
Zoom75 and zoom98 badges are compatible with each other.
PLEASE DO NOT COMBINE ZOOM75, ZOOMPAD OR ZOOM98 OCEAN FREIGHT ITEMS WITH ZOOM98 AIR EXPRESS ITEMS OR ANY IN-STOCK ITEMS.
Blocker Design
You might see renders and photograph with a LED DOT blocker. THIS DESIGN HAS BEEN CHANGED TO THE ZOOM LOGO BLOCKER DUE TO PUBLIC FEEDBACK.
All four Zoom65 V2.5 Special Edition have a full aluminum bottom case. The Essential Edition (EE) colorways still come with a glass or PVD SS backplate.
Every Zoom65 V2.5 kit comes with a nightlight knob by default. This knob has a frosted window in the center to let the LED in the encoder stalk shine through
The Tri-Mode PCB support per-key RGB lighting. You can choose from provides a wide range of colors and effects for a different visual experience
Order with a keyboard kit and save!
Included with each Zoom98 with the Tri-mode PCB, the screen module can display a whole host of useful information including typing speed animation, GPU & CPU temperature, time & date, memos, battery power display, internet speed, messaging sync (Discord, WeChat & QQ), static images and more! Dynamic GIF images will be supported at a later date.
For those who likes things simple and orthodox, there's a two-key module that adds two extra keys that are fully customizable by VIA.
The badge module let's you display a badge in the 2u cluster. Badges are sold separately. Default module included with Zoom98 x Cosmic Odyssey.
The knob module holds a single 1u key and the knob right next to it. This module is not included with any kit by default. Knobs are sold separately. Compatible with all previous Zoom series knobs, however nightlight knobs are not illuminated in Zoom98
Get it with or without flexcuts!
An all-in-one PCB! You can connect to your devices via Bluetooth 5.0, 2.4Ghz RF (USB receiver included) and in plain old wired mode. You can charge the battery with any USB-C cable (not included), or simply use it in wired mode for a while!
Tri-Mode PCB is fully compatible with VIA, the powerful GUI widely renowned for it's customizability and ease of use. Remap any key on the keyboard on many different layers, including the knob. Use built in powerful shortcuts and macros, or define your own!
Every Zoom98 comes with two 2250 mAh Li-ion battery included in the kit. Once it's out of charges simply connect your keyboard to your PC / laptop using the included USB-C cable.
- Aluminum top and bottom case of buyer's choice
- Aluminum / SS external weight of buyer's choice
- Buyer's choice of:
- Tri-mode PCB with hot-swap sockets, multi-layout, VIA & per-key RGB support, with or without flexcuts
- 2.4Ghz receiver
- 2x 2250 mAh Li-ion battery
- Screen module
OR
- Wired PCB with hot-swap sockets, multi-layout, QMK/VIA support, without per-key RGB, without flexcuts
- 2-key Module
- Daughterboard / JST Cable
- Polycarbonate plate
- Flexible flat cable (2pcs)
- Set of WS V3.1 Stabilizers (9+1 kit)
- Coiled USB-C cable
- PORON Dampener Kit (Plate foam, switch foam, weight foam & gasket sleeves)
- Silicone removable feet
- Screws & Allen keys
- Storage box (No storage case)
Same as EE / SE, with the following changes:
- Tri-mode PCB with hot-swap sockets, multi-layout, VIA & per-key RGB support, with or without flexcuts
- 2.4Ghz receiver
- Badge module & x Cosmic Odyssey Badge
Please read this document to see what type of quality control standards will apply to the Zoom65 v2.5
Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.
The delivery estimates and production timeline provided on this page are Mech.land and Meletrix's best estimates at the moment. A delay can happen at any stage of the process due to a multitude of reasons beyond our control.
- Gasket mount design
- Keyboard layout: 98%. 112 keys in the default layout with screen module.
- 1.2mm PCB with Ai03 Universal DB
- 7.7° Typing angle
- 22mm front height
- EE case finish: Electrostatic sprayed
- SE case finish: E-white has an electrophoresis coating, the rest are anodized.
- Tri-mode PCB BT polling rate: 125hz
- Tri-mode PCB 2.4GHz polling rate: 1000hz
- Tri-mode PCB wired mode & wired PCB polling rate: 1000hz
- Tri-Mode PCB can be used in wired, Bluetooth or 2.4 Ghz wireless mode.
- Tri-mode PCB supports VIA and not QMK. The wired PCB supports both QMK and VIA.
- Systems supported: Windows, Mac, iOS, Android
- Bluetooth version: 5.2
- Can be paired with up to 3 devices on Bluetooth.
- Supported layouts: split spacebars, split backspace, stepped and normal caps lock, split left shift, split right shift, ISO & ANSII enter.
- EE/SE with screen module & Alu weight: 2.9 kg
- EE/SE with screen module & PVD SS weight: 3.3 kg
- Internal SS weight (sold separately): 0.471kg
Special Edition Zoom98 will have an accent chamfer on the inside edges similar to Zoom75 SE and Zoompad SE. Chamfers are polished too like in Zoom75.
Whether you pick the Tri-mode or the wired PCB, you can turn on the underglow LEDs for a nice smooth glow under the keyboard. You're able to change the color in software.
The Tri-Mode PCB support per-key RGB lighting. You can choose from provides a wide range of colors and effects for a different visual experience.
Unlike traditional keyboards, you are not stuck with just one layout on Zoom98. Change things up every now and then with split backspace, left shift and spacebar! You can also switch between normal and stepped caps lock or ANSI.
All three of Zoom98 PCBs features Kailh Hot Swap sockets that allow you to just push the switches on, no soldering required! Changing switches is a breeze, you can go from linear to tactile in a matter of minutes, all on the same keyboard!
A slight revision of the new stabilizers were under development for almost one year, and will be included with every edition of the Zoom98/
Zoom98 uses a gasket isolation mount structure for a soft, bouncy and pleasant typefeel that won't fatigue your fingers even after hours of typing. Gasket mount keyboards sound better and feel more even throughout the board than the typical off-the-rack tray mount keyboards.
The gasket sleeves are made of supercritical foam, it can stabilize the plate as the same time giving appropriate space allowing it to flex in a balanced way. Just the right softness, not too stiff, not too much flex.
In order to reduce resonance, many tests were done on the foaming material of the Zoom98. Meletrix made the new PORON lighter and denser, as a result they make the keyboard sound more concentrated and deeper than stock settings.
Plates in other materials, such as brass, aluminum and FR4, can be sold as add-on accessories, and they dramatically change the feel and sound of the keyboard
Take your keyboard to the next level with an internal SS weight, sold separately. It weighs about 471 grams.
Zoom98 comes with almost everything you need to put together your first keyboard, including an USB-C cable, premium WS stabilizer v3.1 and a storage box. All you need to get are switches and keycaps of your choice and you're all set!
