Pre-order runs from Nov 14 to Dec 1, 2023
Please refer to the "Delivery Estimates" tab for the difference between Ocean Freight and Air Express
Canadian customers - please do not choose Xpresspost or Priority as the shipping method. Each Zoom75 kit comes with batteries packed inside which is not allowed in Xpresspost or Priority.
Pre-order Ends IN
You cannot add any in-stock items to your order as we cannot guarantee its availability when the pre-order is ready to ship.
You cannot combine Z98 Air Express order with any other group buy / pre-order. Z98 Ocean Freight, Z75 & ZPad Oct 2023 batches can be ordered together.
You may modify your order until the group buy ends on Dec 1, 2023
Please send an email to help@mech.land from the email address associated with your order and list the changes you'd like to see made.
You may cancel your order and get a refund until the group buy ends on Dec 1, 2023
Please keep in mind we will deduct 4% of the total from the refund as we do not get the transaction fees back from our payment processor.
Any status updates pertaining to this pre-order will be posted in the status updates page.
Please follow the instructions on the contact us page if you need to change your address before the group buy ships.
Zoompad Nov 23 batch will be imported from China into Canada via Ocean Freight only
Arrives to Canada via a ship. Takes 45-60 days in transit. This is the standard import method used in most keyboard / deskmat group buys. It's much cheaper than Air Express but takes much longer to arrive.
All units ordered via Ocean Freight are scheduled to ship out of Meletrix around March, 2023 and should arrive at Mech.land around Q2, 2024
Air Express is not being offered in this batch
You cannot combine Ocean Freight and Air Express items in the same order. Each individual order has to contain either all Ocean Freight or all Air Express items. This is because they arrive at different times
Please keep in mind the ETA is just our best guess according to the information currently available to us. Unexpected issues and delays can happen at every stage of the process.

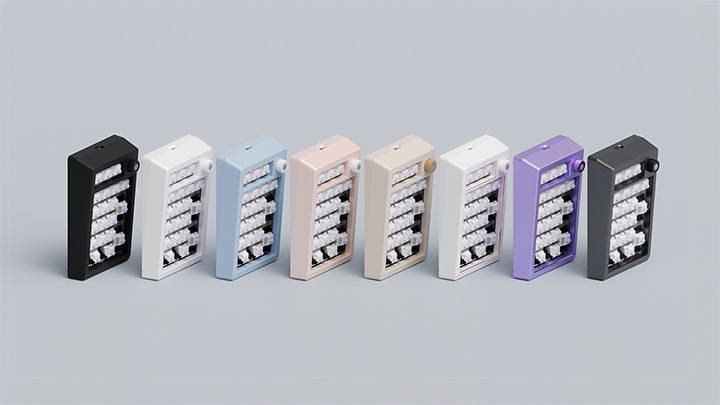

In this round we're only offering 7 out of the 20+ colorways offered in the last round. All add-ons and accessories are available as well. It's an unlimited pre-order so nothing will sell out before the end date.
Get a free bonus if your order total meets specific threshold!
Terms:
Included with each EE and SE Zoompads, these knobs function just like any other Zoom series knobs, but they have a frosted window to let the LED in the encoder stalk shine through the knob!
Everyone loved the Rabbit knob for Zoom65, so Meletrix invited all its friends too to the Zoompad group buy! They are engraved this time around and are sold separately!
Included with each EE and SE Zoompads, these knobs function just like any other Zoom series knobs, but they have a frosted window to let the LED in the encoder stalk shine through the knob!
By popular demand, the Catpaw, Rabbit and Bear knobs from Zoom65 and Zoom75 are back for the Zoompad group buy! They're compatible with any Zoom keyboards sold to date.
Meletrix didn't just stop at a beautiful numpad, they've made sure it'll arrive to you in a beautiful presentation as well! The storage case shown on the right is sold separately.

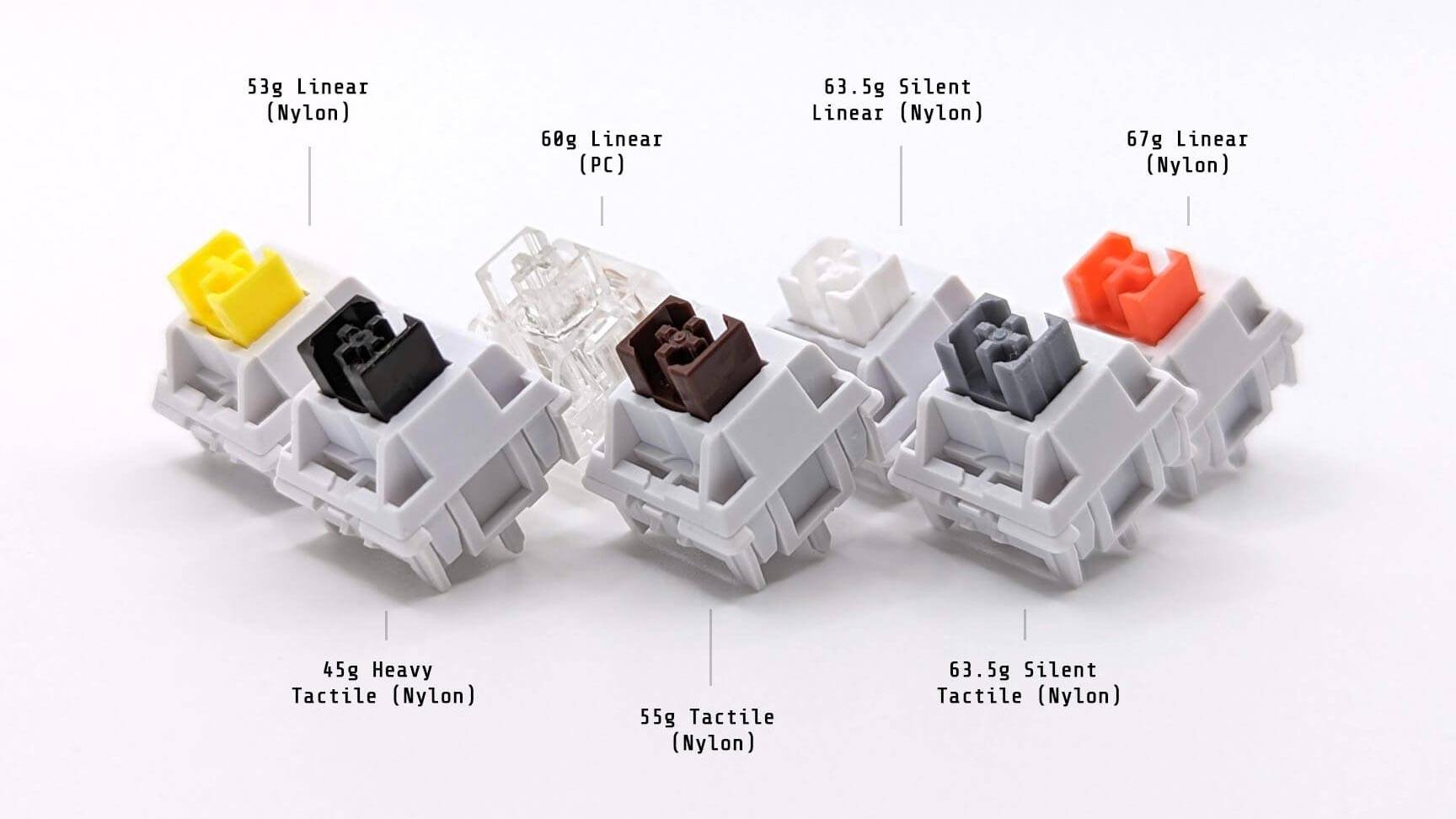

Get a 10% discount on WS Switches when you order them with a Zoompad
WS Switch listings are listed below. The price shown is already discounted.
Before you purchase
All Zoom75/98/PAD in the Nov 23 Batch will be imported into canada via Ocean freight. Air Express is not being offered this round.
EE BLACK, WHITE AND STRAWBERRY ICE CREAM WILL HAVE A SLIGHT SPARKLE TO THE FINISH.
All zoom65/75/98 and Zoompad knobs are compatible with each other.
Nightlight knobs work on the Zoompad wired PCB but they do not illuminate.
Unassembled, barebone, DIY kits that includes WS Stabilizers V3 but no switches or keycaps
Essential Editions come with an Electrostatic coated case finish
Perfect for those wanting to experience all the benefits of a custom DIY mechanical keyboard without spending the time or learning how to!

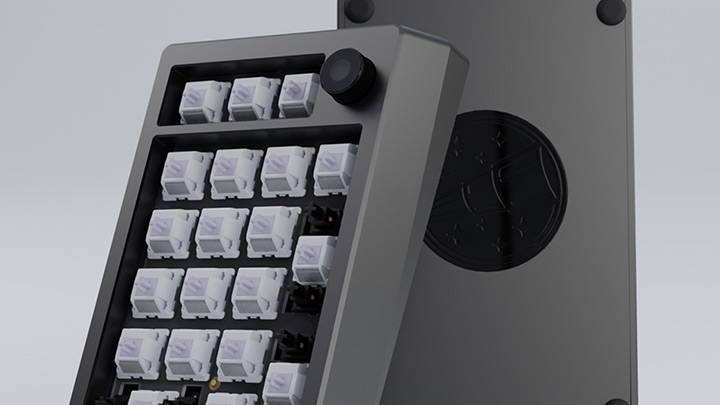

Comes fully assembled, without keycaps. Purchase any keycap set separately and just push them on, it's that easy!
We have seven different keycap sets on sale in this pre-order! All seven sets include enough keycaps for all the supported Zoom layouts and many more for other keyboards!
New default PCB for Essential Edition, Standard Edition and Zoompad x Kitsune
An all-in-one PCB! You can connect to your devices via Bluetooth 5.0, 2.4Ghz RF (USB receiver included) and in plain old wired mode. You can charge the battery with any USB-C cable (not included), or simply use it in wired mode for a while!
The new Tri-Mode PCB is fully compatible with VIA, the powerful GUI widely renowned for it's customizability and ease of use. Remap any key on the keyboard on many different layers, including the knob. Use built in powerful shortcuts and macros, or define your own!
Every Zoompad comes with a 600 mAh Li-ion battery included in the kit. Once it's out of charges simply connect your keyboard to your PC / laptop using the included USB-C cable.
- Aluminum top and bottom case*
- Aluminum / SS external weight*
- Aluminum / PVD coated brass rotary Nightlight knob matching the external weight
- Backplate matching the case unless otherwise specified
- Hot-swap, Tri-mode / VIA PCB with per-key RGB without flex cuts*
- Daughterboard + JST cable
- 2.4 GHz Receiver
- Polycarbonate plate
- 600mAh Li-ion battery
- PORON Dampener Kit (Plate foam, switch foam, PCB foam & gaskets)
- 1 set of WS Stabs v3.1 stabilizers
- Silicone Feet
- Screws & Allen keys
No USB cable or storage bag included.
* User customizable option in terms of functionality, color, material and/or finish.
Same as EE / SE kit, with the following changes:
Same as EE / SE kit, with the following changes:
- Pre-set backplate and Aluminum / SS external weight
- PCB is Tri-mode Non Flex-cut only.
- Fully assembled keyboard kit with lubed WS Stabilizers V3 and WS Morandi switches. An extra switch or two may be included in the kit.
- White variant: White top & bottom case, E-white Normal knob & weight, SS PVD Silver backplate.
- Black variant: Black top & bottom case, Anodized Black Normal knob & weight, Glass Black backplate
- Wired PCB without flexcuts that supports QMK and VIA. Does not have per-key or knob RGB.
- Daughterboard + JST cable
- Polycarbonate plate
- PORON Dampener Kit (Plate foam, switch foam, PCB foam & gaskets)
- 1 set of WS Stabs v3.1 stabilizers
- Silicone Feet
- Screws & Allen keys
No USB cable or storage bag included.
Please read this document to see what type of quality control standards will apply to the Zoompad
Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.
The delivery estimates and production timeline provided on this page are Mech.land and Meletrix's best estimates at the moment. A delay can happen at any stage of the process due to a multitude of reasons beyond our control.
- Gasket mount design
- Keyboard layout: 20 keys
- 1.2mm PCB with Ai03 Universal DB
- Default plate: Polycarbonate
- 5° Typing angle
- 20mm front height
- Case dimension is 94.8 x 145.7 x 34.7mm or 3.73 x 5.74 x 1.37 inches.
- Finish treatment: Electrostatic coated, anodized and electrophoresis depending on edition and color.
- Default Tri-mode PCB in EE, SE & Kitsune can be used in wired, Bluetooth or RF mode with the USB receiver.
- Tri-mode PCB supports VIA and not QMK, wired PCB supports both QMK and VIA.
- Tri-mode PCB BT polling rate: 125hz
- Tri-mode PCB 2.4GHz polling rate: 1000hz
- Tri-mode PCB wired mode & wired PCB polling rate: 1000hz
- Essential kit with Alu knob / weight / Glass Mirror Back Plate: 0.67 kg
- Essential kit with brass knob / PVD SS weight / Glass Mirror Back Plate: 0.72kg
- Essential kit with Alu knob / weight /PVD Back Plate: 0.72 kg
- Essential kit with brass knob / PVD SS weight / PVD Back Plate: 0.77 kg
- Nightlight knobs only illuminate when used on a Tri-mode PCB. They still fit the wired PCB but there won't be any lights.
Special Edition Zoompads (with the exception of GT Silver) will have an accent chamfer on the inside edges. Chamfers are polished too like in Zoom75.
These new default knobs function just like any other Zoom series knobs, but they have a frosted window to let the LED in the encoder shine through the knob!

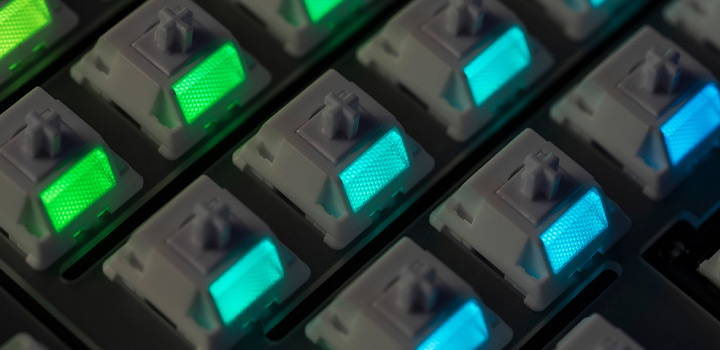

The Tri-Mode PCB support per-key RGB lighting. You can choose from provides a wide range of colors and effects for a different visual experience. The wired only PCB doesn't support this feature.

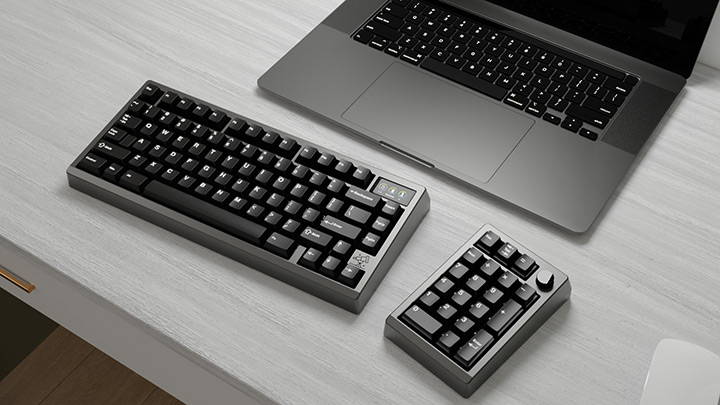

Zoompads are the perfect companion to Zoom75! Zoompads come in the exact same colors as Zoom75. When placed side by side, they have the same typing angle and front to back length. Leave a screen on your Zoom75 and use the knob on your Zoompad, or have a setup with dual knobs - your choice!
Both wired and Tri-Mode Zoompad PCBs feature Kailh Hot Swap sockets that allow you to just push the switches on, no soldering required! Changing switches is a breeze, you can go from linear to tactile in a matter of minutes, all on the same keyboard!
A slight revision of the new stabilizers were under development for almost one year, and will be included with every edition of the Zoompad.
Zoompad uses a gasket isolation mount structure for a soft, bouncy and pleasant typefeel that won't fatigue your fingers even after hours of typing. Gasket mount keyboards sound better and feel more even throughout the board than the typical off-the-rack tray mount keyboards.
The gasket sleeves are made of supercritical foam, it can stabilize the plate as the same time giving appropriate space allowing it to flex in a balanced way. Just the right softness, not too stiff, not too much flex.
In order to reduce resonance, many tests were done on the foaming material of the Zoompad. Meletrix made the new PORON lighter and denser, as a result they make the keyboard sound more concentrated and deeper than stock settings.
