Please see the Gallery section towards the bottom of the page for photos of prototypes

Nuxros

Kraze - Extra PCBs

$30.00 USD
$30.00 USD
Title
Item
Import Method
Quantity

Pickup available in Scarborough, ON, Canada. Click here for more info

Usually ready in 1-3 days

GB Live!

This is an unlimited Group Buy (GB) that runs from June 8 to June 30, 2026.

All items are scheduled to finish production around Q4, 2026. Delivery time depends on import method of your choice. Please see the section titled "Delivery Estimates" below for more information.

Products in this GB

Kraze Keyboard Kit

Kraze Keyboard Kit

$80.00 USD
Product Page
Kraze - Add-ons & Accessories

Kraze - Add-ons & Accessories

$35.00 USD
Product Page
Kraze - Extra Plates

Kraze - Extra Plates

$20.00 USD
Product Page
Kraze - Extra PCBs

Kraze - Extra PCBs

$30.00 USD
Product Page
Kraze - EC Components

Kraze - EC Components

$127.00 USD
Product Page

The DEtails

Specifications

Form Factor

65%

Case Material

Aluminum

Weight Material

Included with every kit
Aluminum

Sold separately
Copper

Battery Weight Material

Sold separately
Stainless Steel

Used to fill the battery cavities in the case for a better sound.

Mounting Style

PCBsnap only

Typing Angle

7 degrees

Front Height

18.5mm

Dimensions

313 x 109mm

12.3" x 4.3"

Weight

Unbuilt kit (Alu weight)
~850g

Built kit (Alu weight)
~1100g

Copper weight
~560g

SS Battery weight
~350g

Plate & PCB

See the different PCB sections for more details

Stabilizers

MX & HE
1.6mm, PCB-mount

Sold Separately

EC
Included

Note

- Carry case isn't included with kits, it's sold separately

Find kit contents, more specs and details in the PCB sections below

PCBSnap Mounting Positions

Nuxros recommends putting a PCBsnap in each of the locations circled in green for the best balance.

However, you're welcome to experiment and find your own balance, as long as you don't put any close to the spacebar circled in red.

Please only use one type of PCBsnaps at once, do not mix and match

A set of 60a (FKM) PCBsnaps are included with every kit. Silicone 60a and 70a sets are sold separately in the add-ons page

COpper Weight

Sold separately

Perfect for those who prefer a heavier keyboard with a premium metal on the exterior

Battery Weights

Sold separately

Stainless steel battery weights fill the battery cavity in the bottom case, leading to a thicker, fuller and more solid sound profile.

Please note you will not be able to use the wireless modes the MX hot-swap tri-mode PCB (sold separately) as these weights replace the batteries in the case.

Disclaimer

Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.

The keycap sets shown in various renders and photographs are for demonstration only. None of the kits come with any keycaps or stabilizers.

Due to the complexity of project, there maybe slightly incorrect / out of date information on this page despite our best efforts. Please reach out to us if you have any questions.

Acceptable Quality Standards

Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to Kraze keyboard kits and accessories.

Files & Downloads

Plate files will be released for people to make their own, multi-layout EC plates

Additional firmware & files will be linked here when available

PCB KITS

No PCB Kit

CASE & PLATE

Just the bare minimum, nothing more!

Everything but the PCB

This kit includes everything but the PCB. You can pick up any PCB from our add-ons page, or source one yourself!

Or you can pick up a no PCB case kit to change up your primary Kraze's case / weight every now and then.

Universal Plate

Supported layouts: Split backspace, split left shift, ISO enter, ANSI enter, 6.25u space, 7u space

KRAZE WITH NO PCB Kit Contents

- Aluminum case

- Aluminum weight

- PC plate (Universal)

- 6x PCBsnap (FKM 60a)

- Packaging box

- Screws & accessories

MX PCB KIts

MX PCBS

These PCBs utilize classic mechanical switches from the likes of Cherry, Gateron, HMX, Bsun etc. These are the kits to get if you don't need the milliseconds advantage in competitive gaming, want the widest selection of switches and if cost, sound and type-feel are the most important factors for you.

Available PCBs

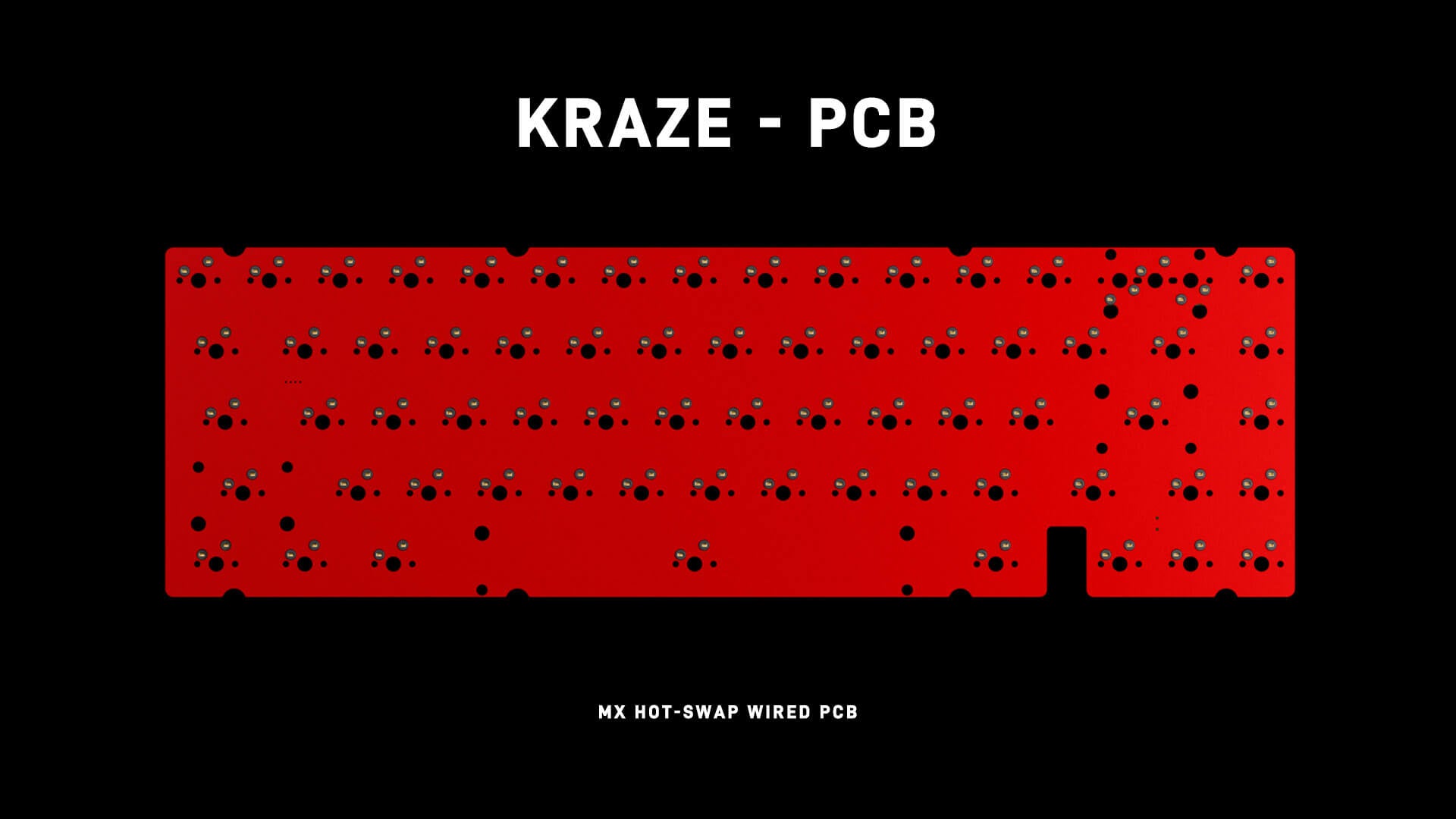

- There are three MX PCB available - solder, hot-swap wired & hot-swap tri-mode.

- The solder and the hot-swap wired PCB can be chosen as part of the keyboard kit, and they are sold separately as well.

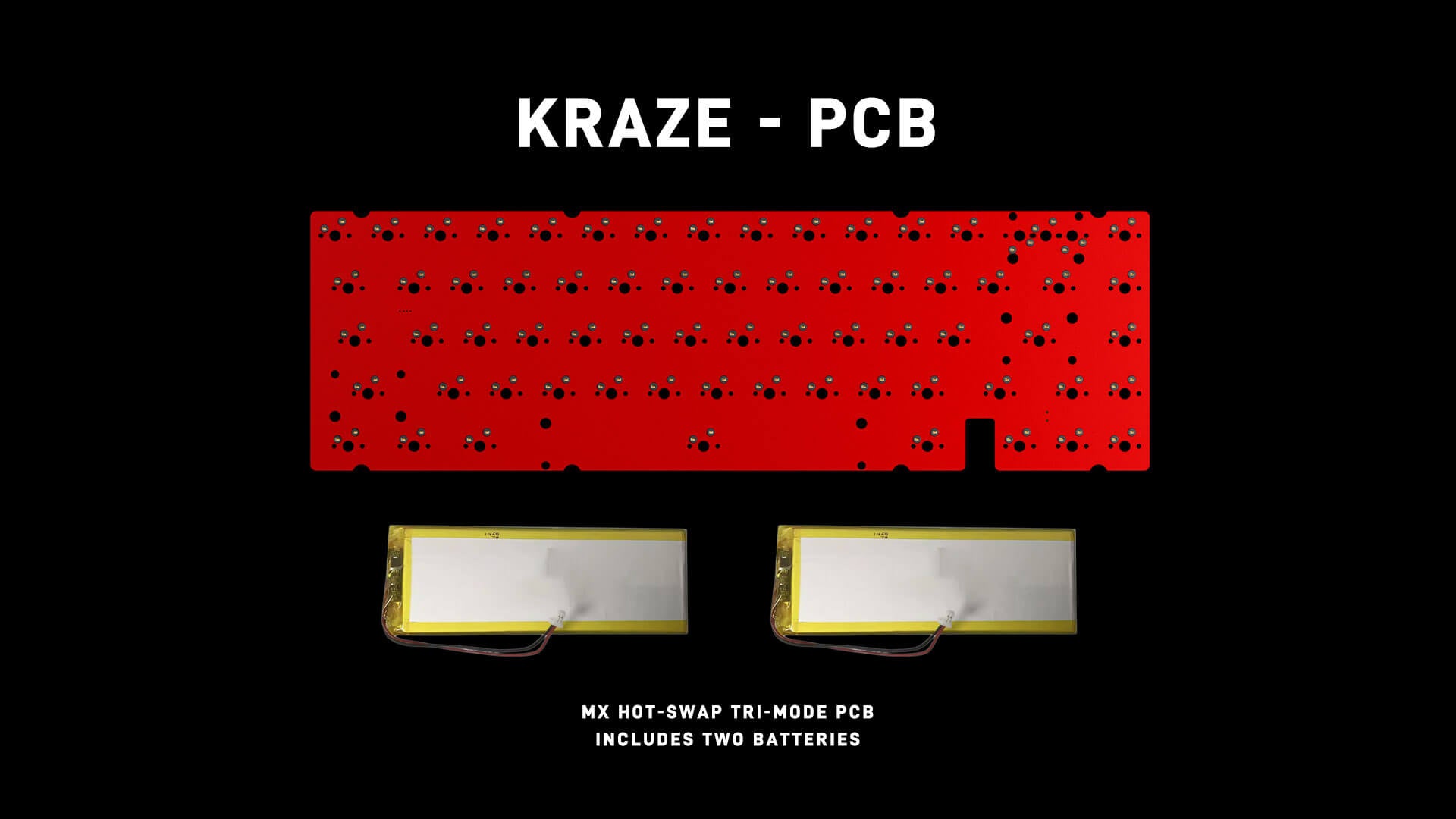

- The hot-swap tri-mode PCB is sold separately and each one comes with a pair of batteries.

- Both of the hot-swap PCBs support the same layouts.

- All MX PCBs support only the 7u spacebar.

Layout - Solder PCB

Layout - hot-swap wired & tri-mode PCBs

Title

Plate Support

- The difference between the two types of plates is that the universal plate supports both 6.25u and 7u space, while the MX plate only supports 7u space. Nuxros recommends the MX plate and a 7u spacebar for the best sound.

- None of the MX PCBs offered in this GB support 6.25u space. If you want to have an MX setup with a 6.25u space you can get the universal plate and source the PCB elsewhere yourself.

- The EC plate isn't compatible with MX PCBs.

- You can order additional plates in Aluminum (Alu), ABS, FR4, Polypropylene (PP), Carbon Fiber (CF), PEI and Polycarbonate (PC) in both MX and Universal layout.

Universal Plate

Supported layouts: Split backspace, split left shift, ISO enter, ANSI enter, 6.25u space, 7u space

MX Plate

Supported layouts: Split backspace, split left shift, ISO enter, ANSI enter, 6.25u space, 7u space
Title

Kit Contents

There are two MX PCB kit options to choose from when ordering a Kraze keyboard kit.

No switches or stabilizers are included.

KRAZE WITH Solder (Plate-less) PCB KIT

- Aluminum case

- Aluminum weight

- MX solder PCB

- 6x PCBsnap (FKM 60a)

- Packaging box

- Screws & accessories

KRAZE WITH Hot-swap MX PCB KIT

- Aluminum case

- Aluminum weight

- PC plate (MX)

- MX hot-swap wired PCB

- 6x PCBsnap (FKM 60a)

- Packaging box

- Screws & accessories

HE PCB KIT

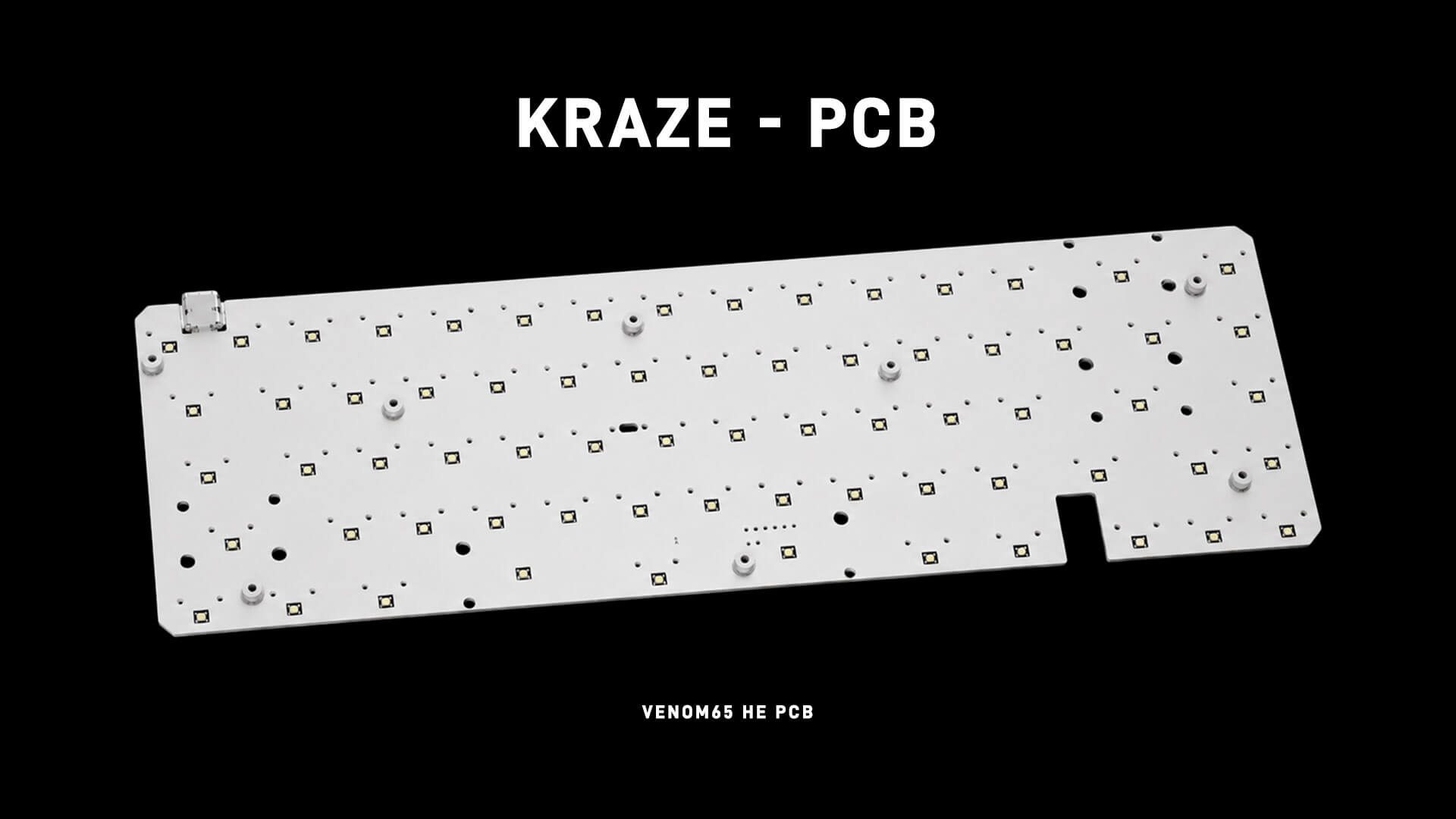

VENOM65 PCB

Look no further if you're serious about getting the competitive edge in online gaming. The Venom65 Magnetic Hall Effect PCB boasts blazing fast polling rate and latency and supports switches that are highly customizable through software!

Note

- Venom65 PCB supports no other layouts / splits other than the one pictured here.

- Venom65 PCB supports only a 6.25u spacebar, so the MX plates will not work with this PCB. It is only compatible with the universal plates which supports both 6.25u and 7u spacebars.

- Venom65 HE only supports rigid plate materials - CF, FR4 and Aluminum. No other plate materials are supported.

- No switches or stabilizers are included

- While not technically hot-swap, no soldering is required to assemble an HE PCB.

Layout - Venom65 HE PCB

Supported layouts: 6.25u space

Universal Plate

Venom65 HE PCB Specs

- Web-based firmware (https://venom.how/)

- RISC-V32 architecture applied

- Supports 8KHz polling rate / 12KHz scan rate per key

- 0.15ms latency

- PCB-mount stabilizers

Compatible Switches

- RAPTOR HE

- RAW HE

- Lucifer HE

- GATERON KS-20 / KS-20T, etc.

- N-pole switch, 1600gs or less at bottom magnetic force

KRAZE WITH HE PCB Kit Contents

- Aluminum case

- Aluminum weight

- FR4 plate (Universal)

- Venom65 HE PCB

- 6x PCBsnap (FKM 60a)

- Packaging box

- Screws & accessories

EC PCB KIT

EC PCB

Whether you're a fan of Topre or just want to dip your toes in the world of EC (Electro Capacitive), Kraze has a build for you! Each EC PCB kit comes with everything you need to build the keyboard.

EC PCB & Plate

- While the EC PCB supports multiple layouts, the EC plates do not. So your plate of choice will dictate the layout you'll be able to use. The plate file will be released later for customers to commission their own plate in the layout of their choice.

- Stainless steel is the only plate material available.

- You can buy additional EC PCB kits, SS plate and PCB separately in the add-ons page.

- The EC PCB only supports 7u spacebar

- The EC plate isn't compatible with MX/HE PCBs and vice versa.

Layout - EC PCB

Layout - EC ANSI PLATE

Layout - EC ISO Plate

Title

Metapulse EC

- The EC PCB kit comes with everything you need to complete your build, including domes, springs, sliders, stabilizers etc.

- All EC parts are from the Metapulse series by Metakeebs.

- All sliders are MX keycap compatible. They are not compatible with OEM keycaps

Two types of domes

All Metapulse domes are made from high-durability silicone for longevity and resistance to aging. Pre-sorted into various unit sizes that do not require any cutting.

RS-35g: Red-Series domes with 35g pressure weight. Medium, rounded tactile feedback—similar to OEM Hybrid Snow domes.



Equivalent to MX botto-out force of ~45-50g.

BS-50g: Blue-series domes with 50g pressure weight. Modeled after OG-BKE, featuring a heavy, pronounced tactile bump.



Equivalent to MX botto-out force of ~45-50g.
Title

Kit Contents

Kraze WITH EC PCB KIT

- Aluminum case

- Aluminum weight

- Stainless steel (SS) plate (ANSI or ISO)

- EC PCB

- EC components to complete the setup, such as domes, springs, sliders etc

- 6x PCBsnap (FKM 60a)

- Packaging box

- Screws & accessories

EC PCB KIT ADD-ON (Sold Separately)

- Stainless steel (SS) plate (ANSI or ISO)

- EC PCB

- EC components to complete the setup, such as domes, springs, sliders etc

Photo Gallery

Drag across to browse through the gallery.
Click / tap to enlarge.

  • Red - Mao Nali Sa

  • Copper Weight - Owen

  • Vintage - Divinikey

  • Purple - Wang Boring

  • Vintage - MOKB

  • Red - Chacha

  • Black - TheRealDold

  • Vintage

  • Raw - Geon

Videos

Alt image
Alt image
Alt image
Alt image
Alt image

GB Information

Group buy runs from June 8 to June 30, 2026

Estimated to finish production in Q4, 2026

Delivery Estimates

Title

Ocean Freight

Arrives to Canada via a ship. Takes 5-7 weeks in transit. This is the standard import method used in most keyboard group buys. It's much cheaper than Air Express but takes longer to arrive.

All units ordered via Ocean Freight are scheduled to ship out of Kezewa anytime around Oct-Dec, 2026 and should arrive to us 5 to 7 weeks later.

Air Express

Arrives to Canada via a cargo airplane, takes 7-10 days in transit. This import method is very expensive, as such some of the items brought over via Air Express have a markup added to cover the extra expenses

All units ordered via Air Express are scheduled to ship out of Kezewa around Oct-Dec, 2026 and should arrive to us 7 to 10 days later.

IMPORTANT

You cannot combine Ocean Freight and Air Express items in the same order. Each individual order has to contain either all Ocean Freight or all Air Express items. This is because they arrive at different times

Please keep in mind the ETA is just our best guess according to the information currently available to us. Unexpected issues and delays can happen at every stage of the process.

GB / Pre-order Policies

Title

Combinations

You cannot add any in-stock items to your order as we cannot guarantee its availability when the group buy is ready to ship.

If you're subscribed to our email list, you'll get an email before your group buy is ready to ship. In that email there will be instructions on how to add in-stock items to your group buy order and have them all ship together to save on shipping fees.

Modifications

You may modify your order until June 30, 2026

Please send an email to help@mech.land from the email address associated with your order and list the changes you'd like to see made.

Cancellations

You may cancel your order and get a refund until June 30, 2026

Please keep in mind we may keep up to 5% of the total from the refund as we do not get the transaction fees back from our payment processor. We may apply an additional penalty of up to 15% of the total if you choose to cancel after group buy is over.

Updates

Any status updates pertaining to this group buy will be posted in the status updates page.

Please follow the instructions on the contact us page if you need to change your address before the group buy ships.
