Name: Niuniu HX-40 [Group buy]
Brand: Niuniu
Price: 215.0 USD
Availability: InStock

GB Live!

GROUP BUY ENDS IN

DAYS

HRS

MINS

SECS

This is a Group Buy (GB) that runs until November 15, 2025. This is an unlimited group buy, the quantities are not limited.

All items are scheduled to finish production around March, 2026. Delivery time depends on import method of your choice. Please see the section titled "Delivery Estimates" below for more information.

Products in this GB

Niuniu HX-40 [Group buy]

$215.00 USD

Product Page

HX-40 - Extra PCBs [Group buy]

$50.00 USD

Product Page

HX-40 - Extra Plates [Group buy]

$20.00 USD

Product Page

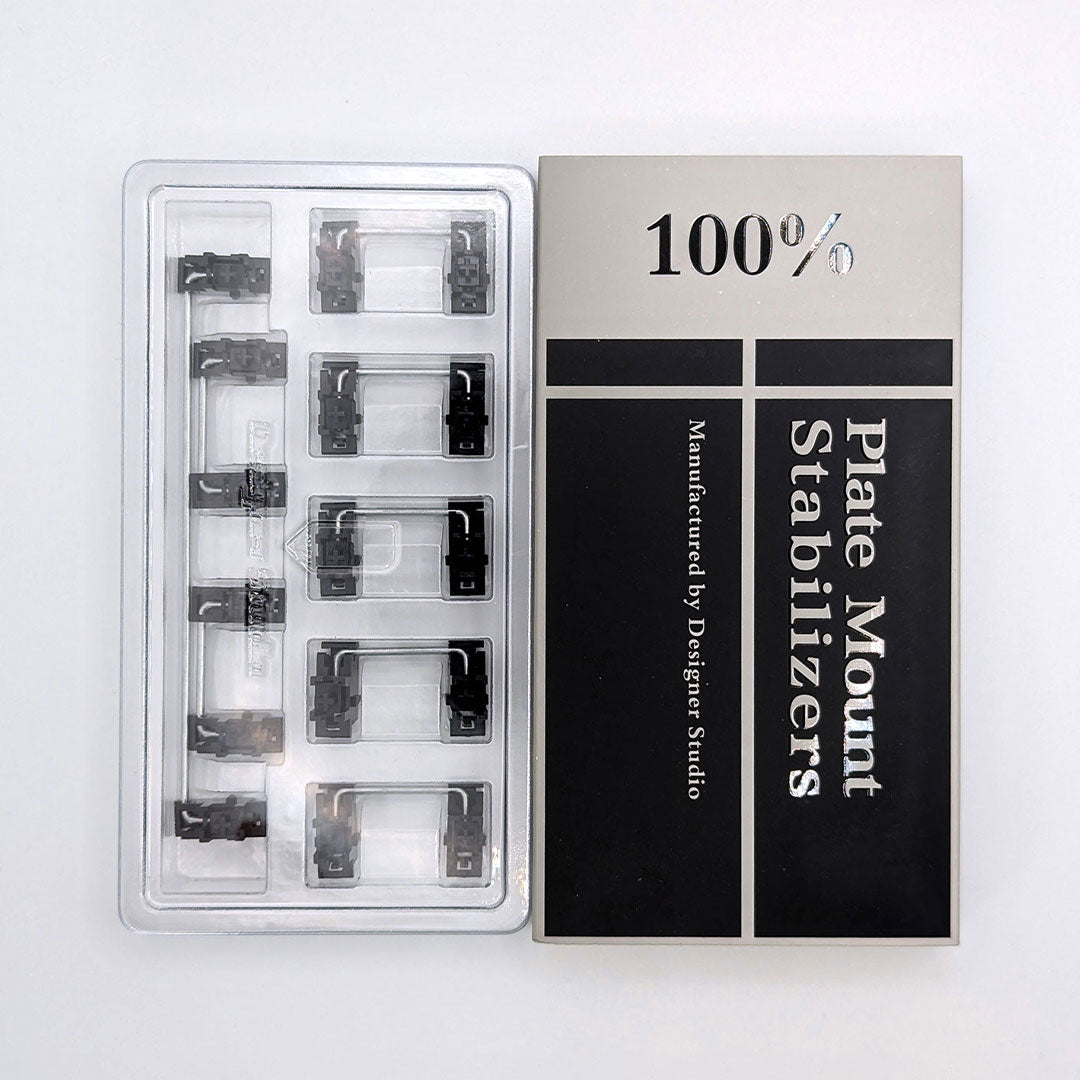

HX-40 - Add-ons [Group buy]

$6.00 USD

Product Page

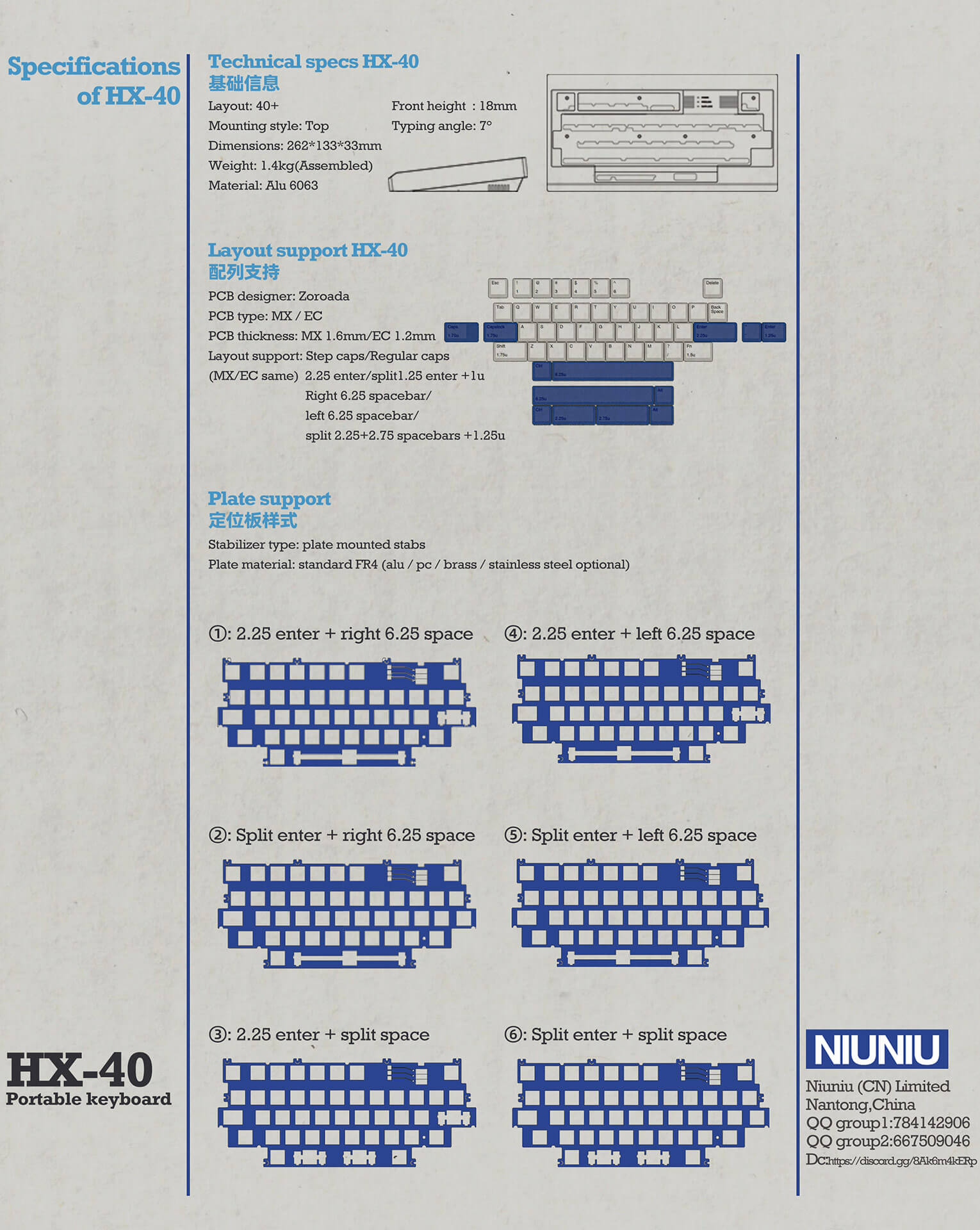

Highlights

Specifications

Layout

40+

Case material

Aluminum 6063

Typing angle

7 degrees

Front height

18 mm

Dimensions

262 x 133 x 33mm

Weight

Assembled
1.4kg

Mounting style

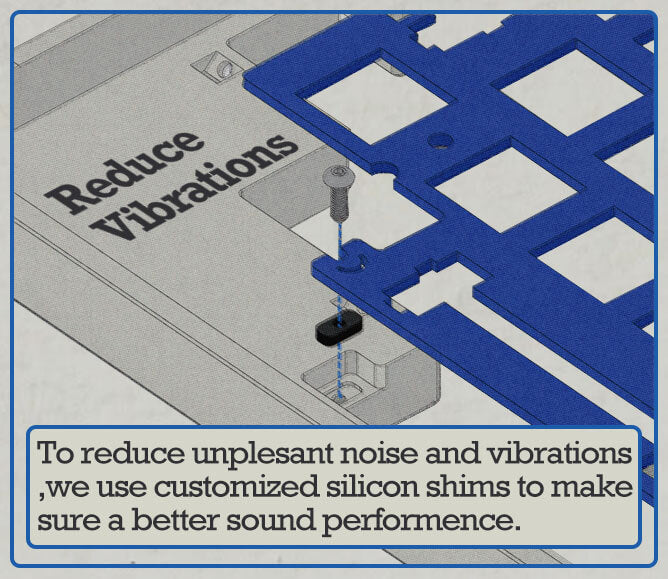

Top mount with gaskets to reduce vibrations.

(not compatible with PCBSnap)

Stabilizers

Plate-mount

PCB

See section titled "PCB"

Default plate

MX PCB

FR4

EC PCB

Stainless Steel.

EC PCBs are only compatible with the SS plate. MX PCBs cannot use the SS plate.

Note

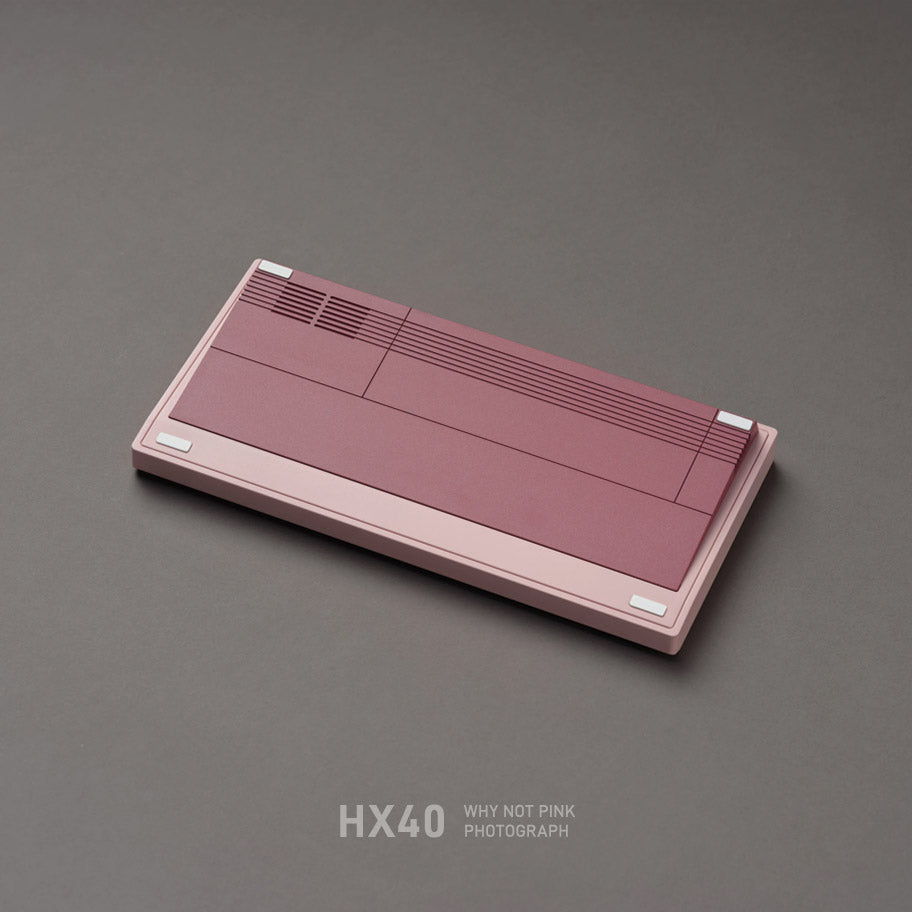

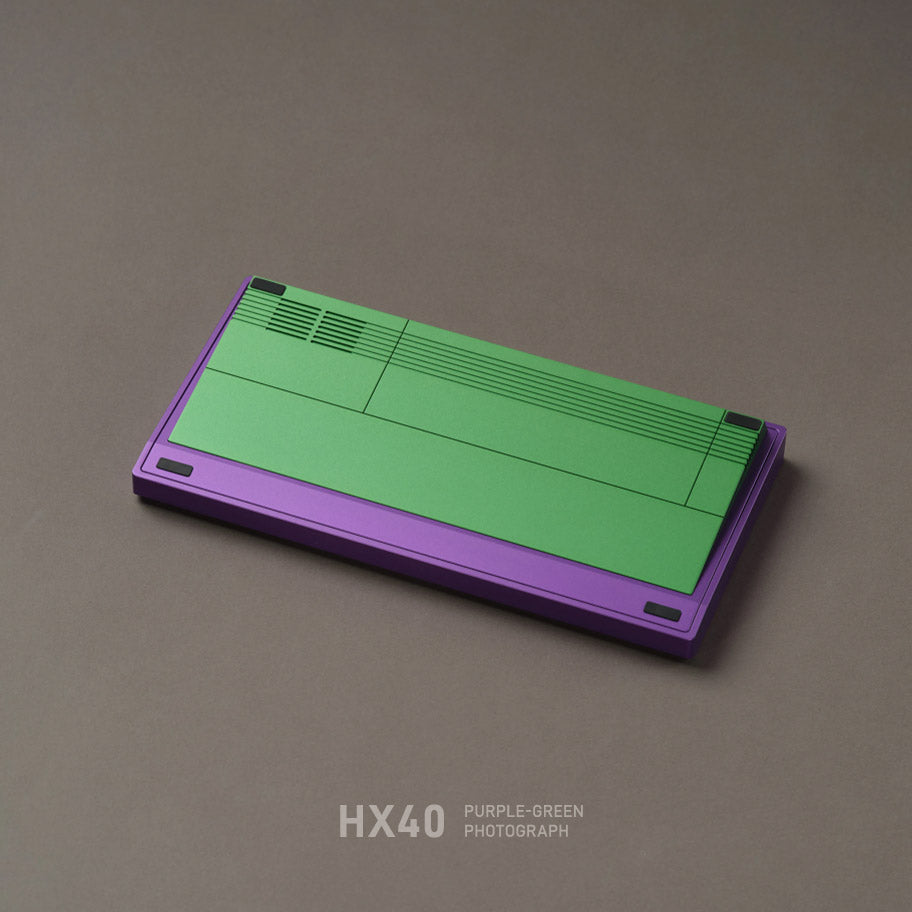

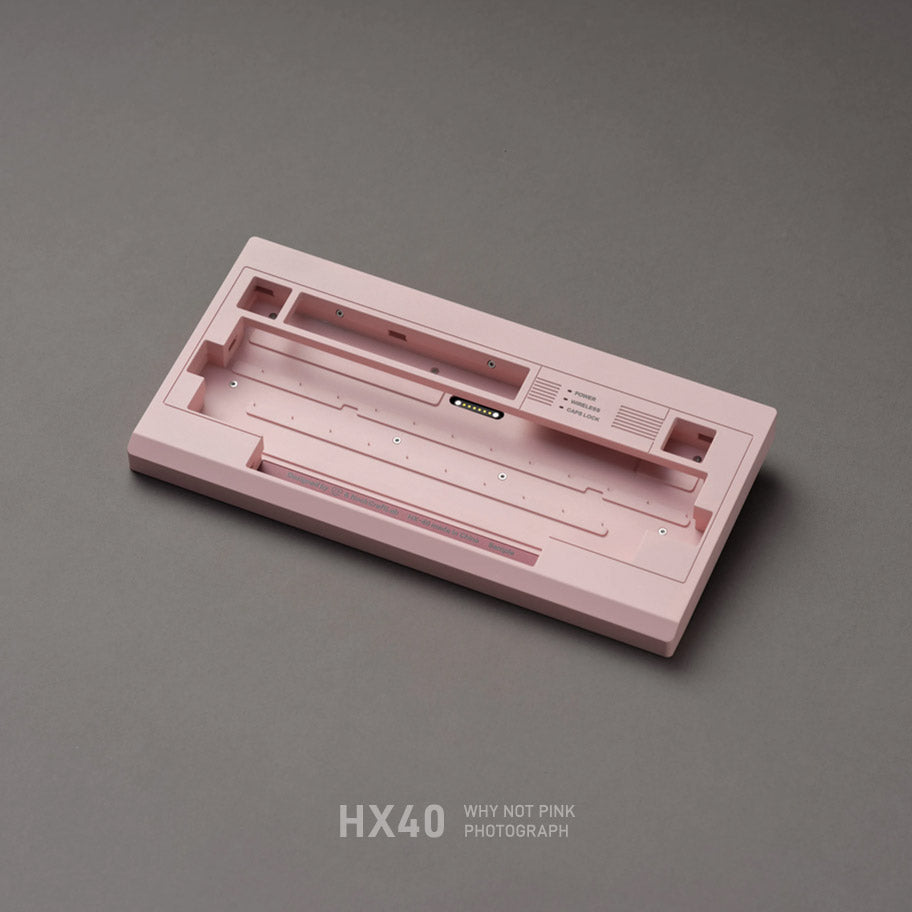

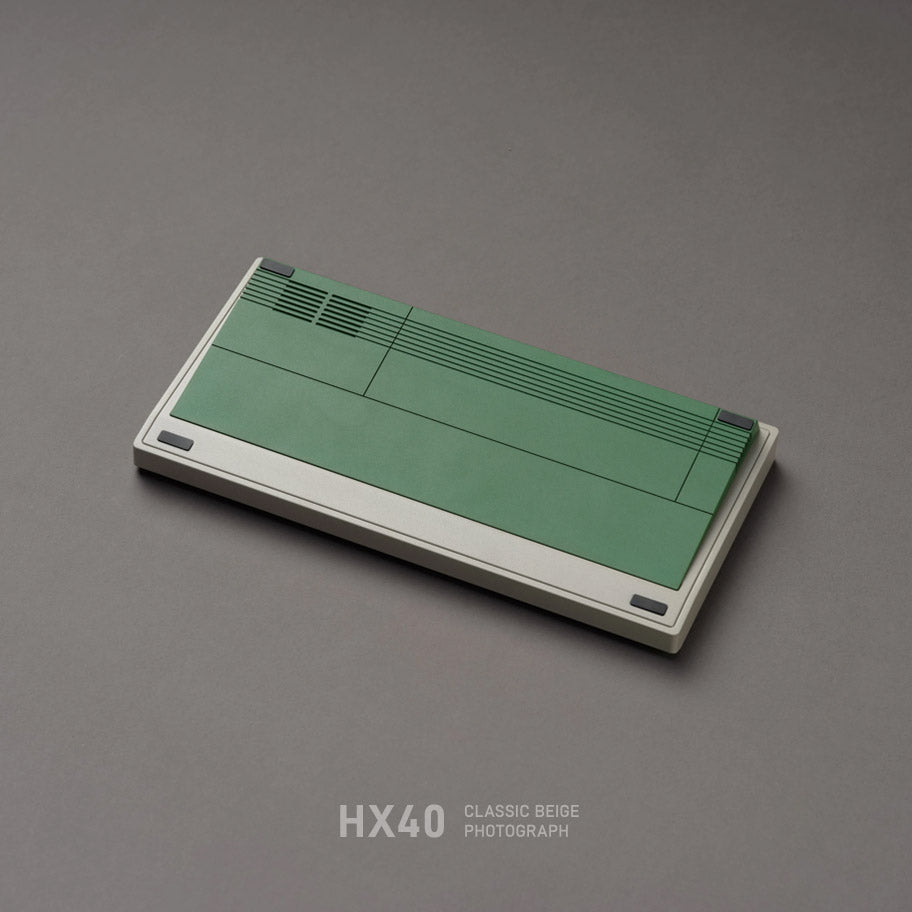

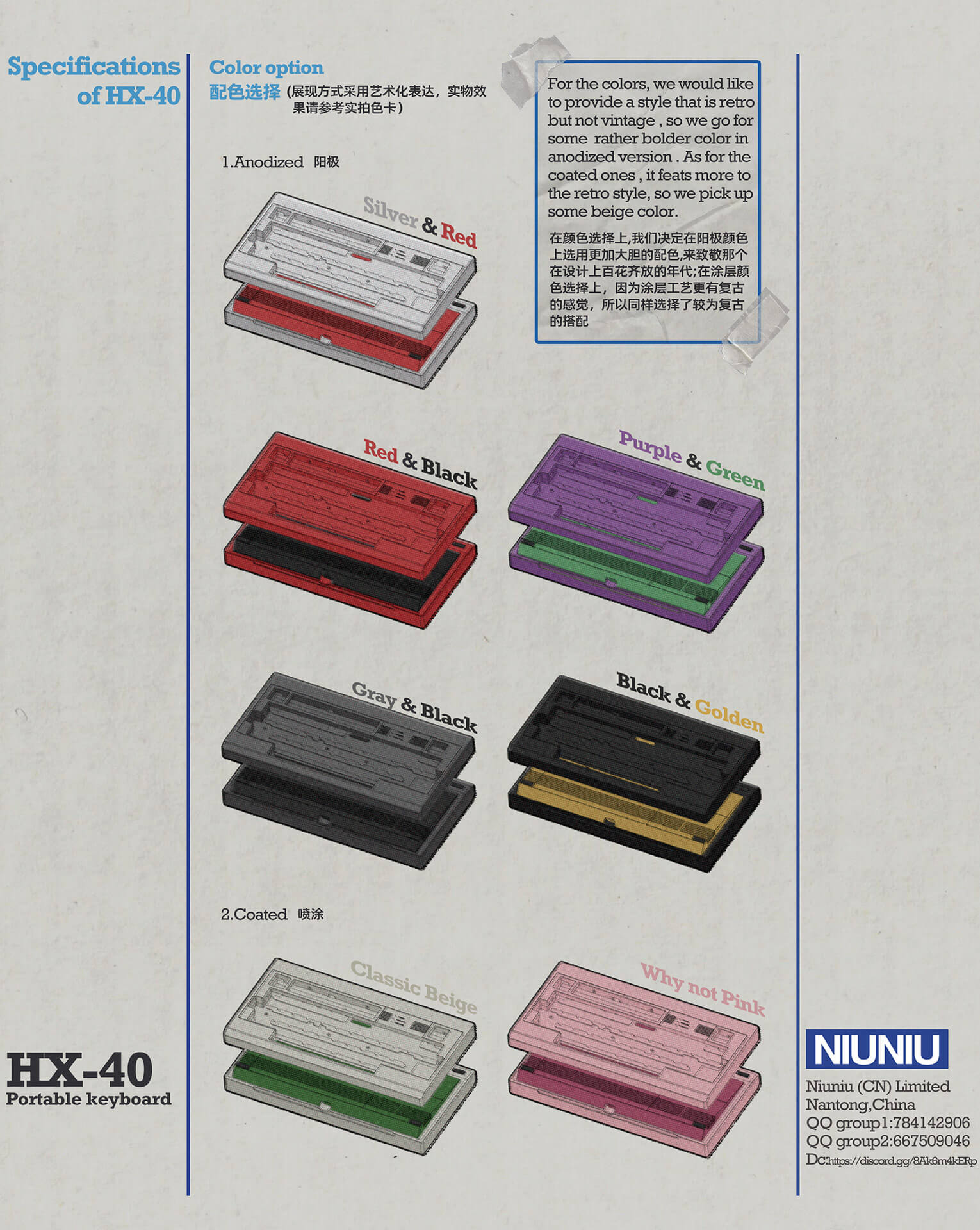

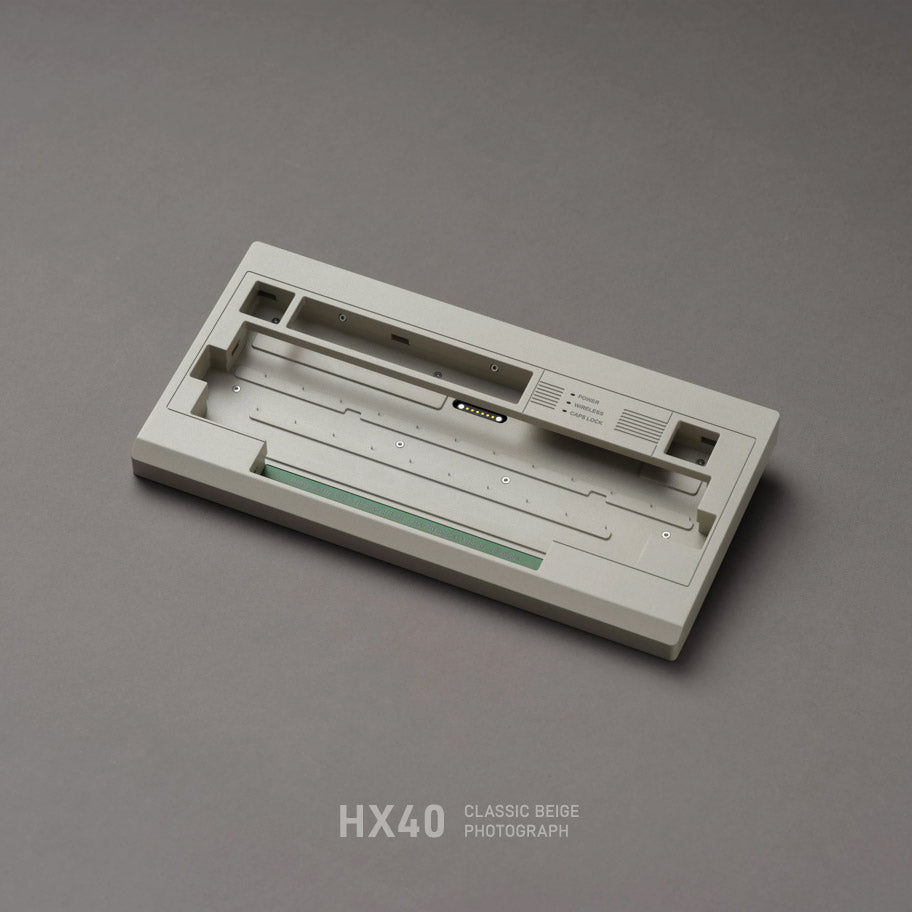

Classic Beige & Why not Pink cases have a coated finish, while the rest of the colors have an Anodized finish

Daughterboard connection

POGO pins

The DEtails

PCB

There are six total PCBs available for HX40. You can choose any one of them with each keyboard kit, and you can also order additional ones separately.

All PCBs support all layouts. The plate of your choice dictates the layout.

PCBs are split into two categories

- Takes traditional mechanical switches

- 1.6mm thick PCB

- Hot-swap sockets

- VIAL compatible.

- Takes EC (Electro-Capacitive) switches only. Please note it's not the same as HE

- 1.2mm thick PCB

- VIAL compatible.

Both MX and EC PCBs come in three connectivity variants

1. Single Mode

Supports wired connection only.

2. Dual Mode

Supports wired and Bluetooth connection.

3. Tri-mode

Supports wired, Bluetooth and 2.4Ghz connection.

When chosen as part of the kit, both Dual Mode and Tri-Mode PCBs come with batteries included. When purchased separately, batteries are NOT included.

If you're buying multiple PCBs, please make sure to choose the Dual / Triple-mode PCB for the keyboard kit so you get the batteries with it.

Plates

By default, each HX40 with an MX PCB comes with an FR4 plate, and each HX40 with an EC PCB comes with an Stainless Steel plate.

The EC PCBs are only compatible with the Stainless Steel plate. MX PCBs are compatible with every other plate except for Stainless Steel.

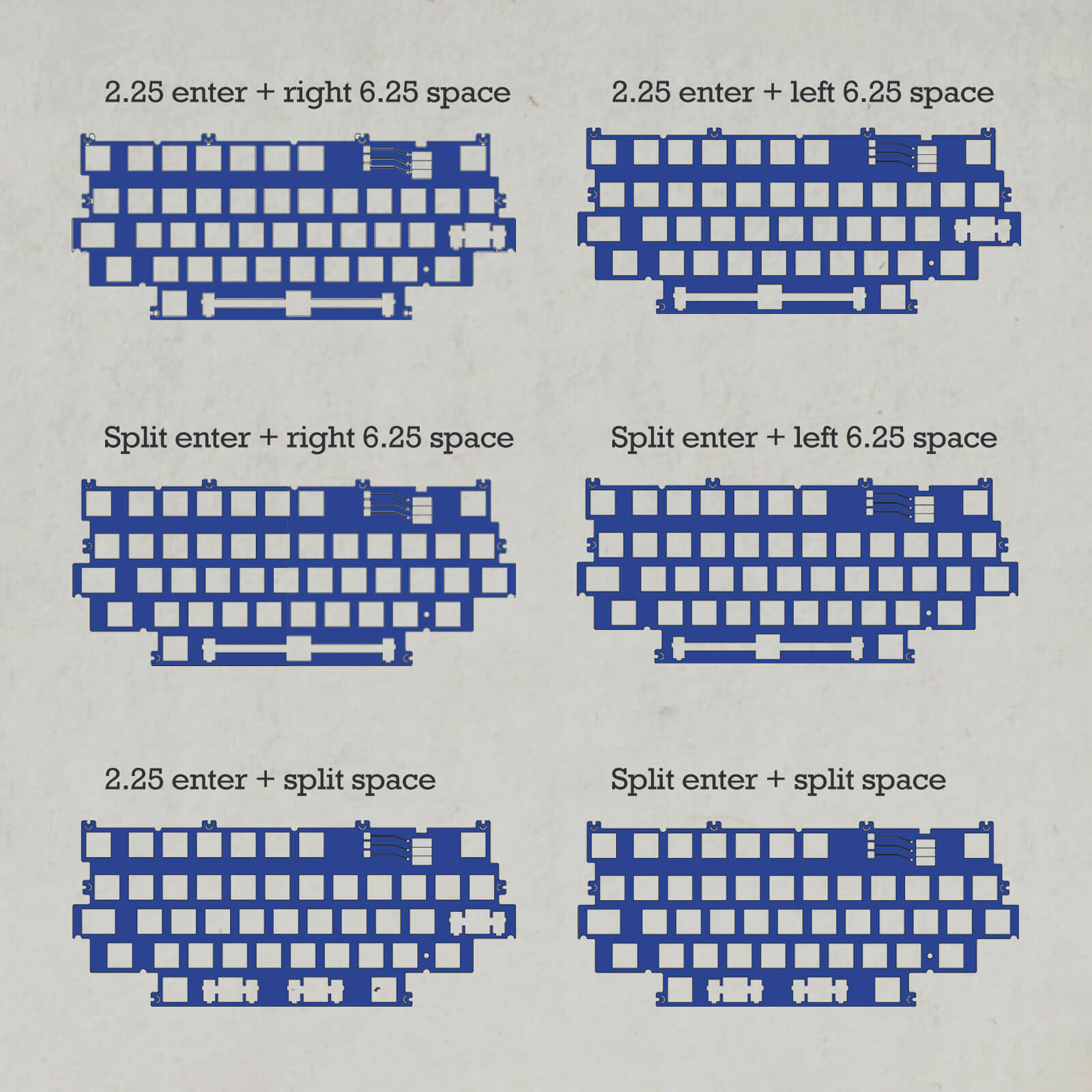

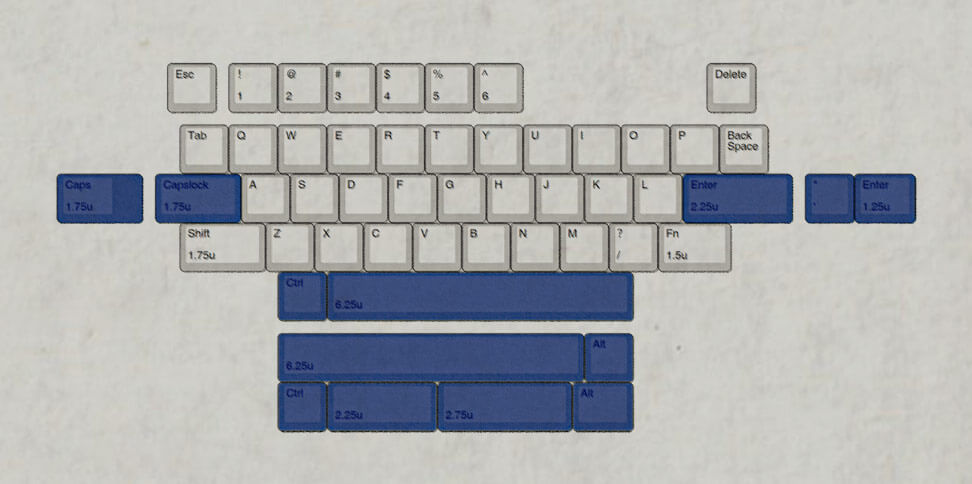

The HX40 plates are only offered in fixed layouts for the best sound / typefeel. Please choose the plate carefully for the layout and PCB intended, or buy multiple plates in different layout to change things up every now and then!

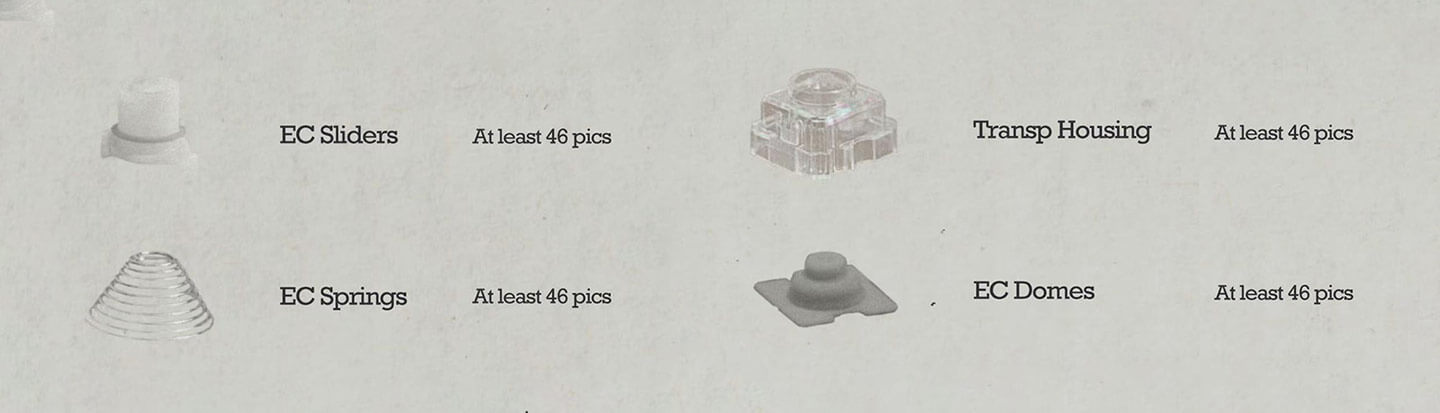

EC Accessories Kit

Comes with enough components to assemble at least 46 EC switches.

This kit comes free with all HX40 kits with an EC PCB. Additional, identical kits can be purchased separately.

Specs

- Spring weight: 30g

- Housing material: Plastic

- Stem material: POM

If you intend to have both MX and EC PCBs for your HX40, you should choose an EC PCB with the keyboard kit and purchase an MX PCB separately so you get the EC Accessories Kit for free.

Don't forget to purchase extra plates for each additional PCB!

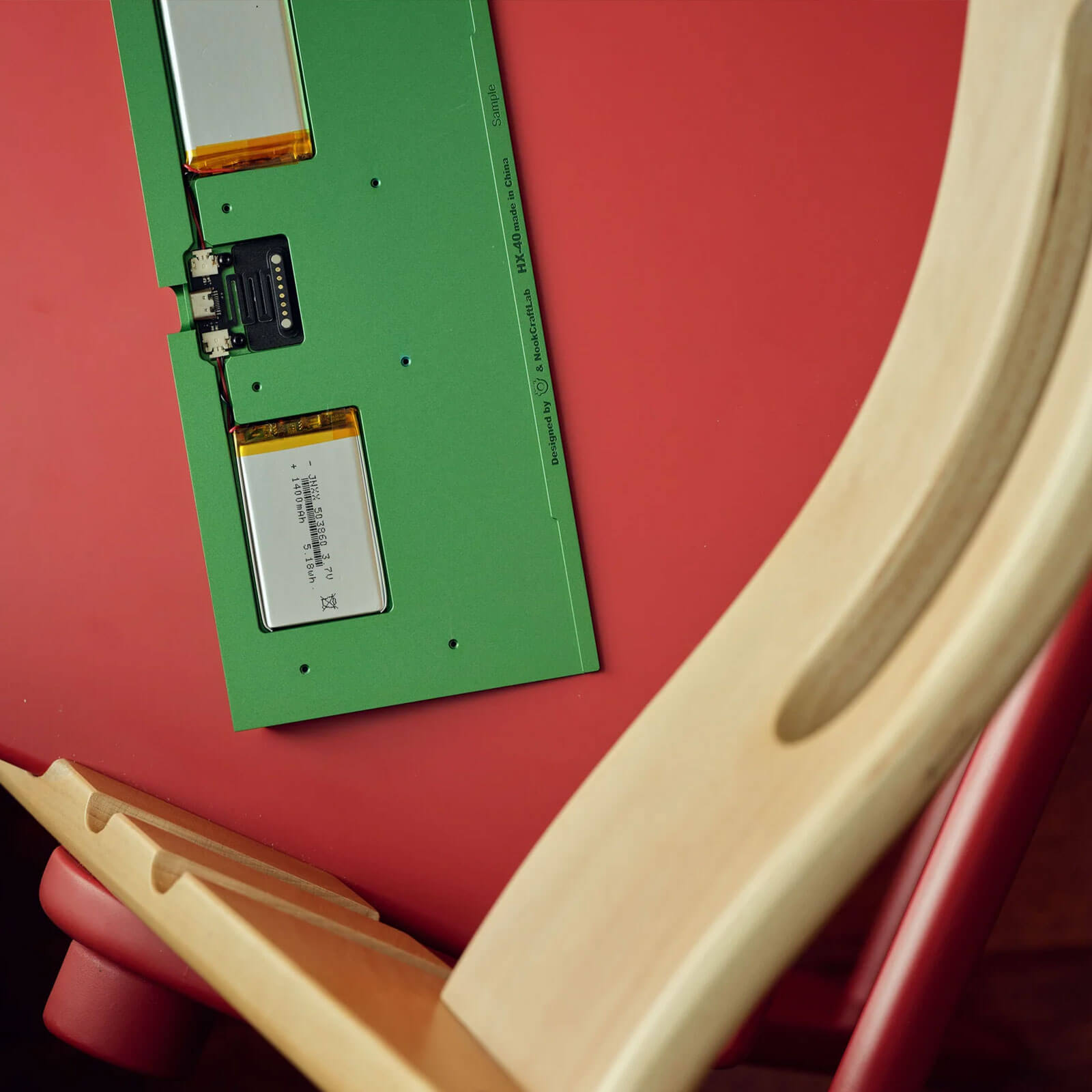

Battery Specs

Batteries are included with each keyboard kit with an EC PCB. Batteries are not sold separately, and they're not included with add-on PCBs.

Specs

- Quantity included: 2

- Capacity: 1400 mAh each

- Dimensions: 60 x 38 x 8mm

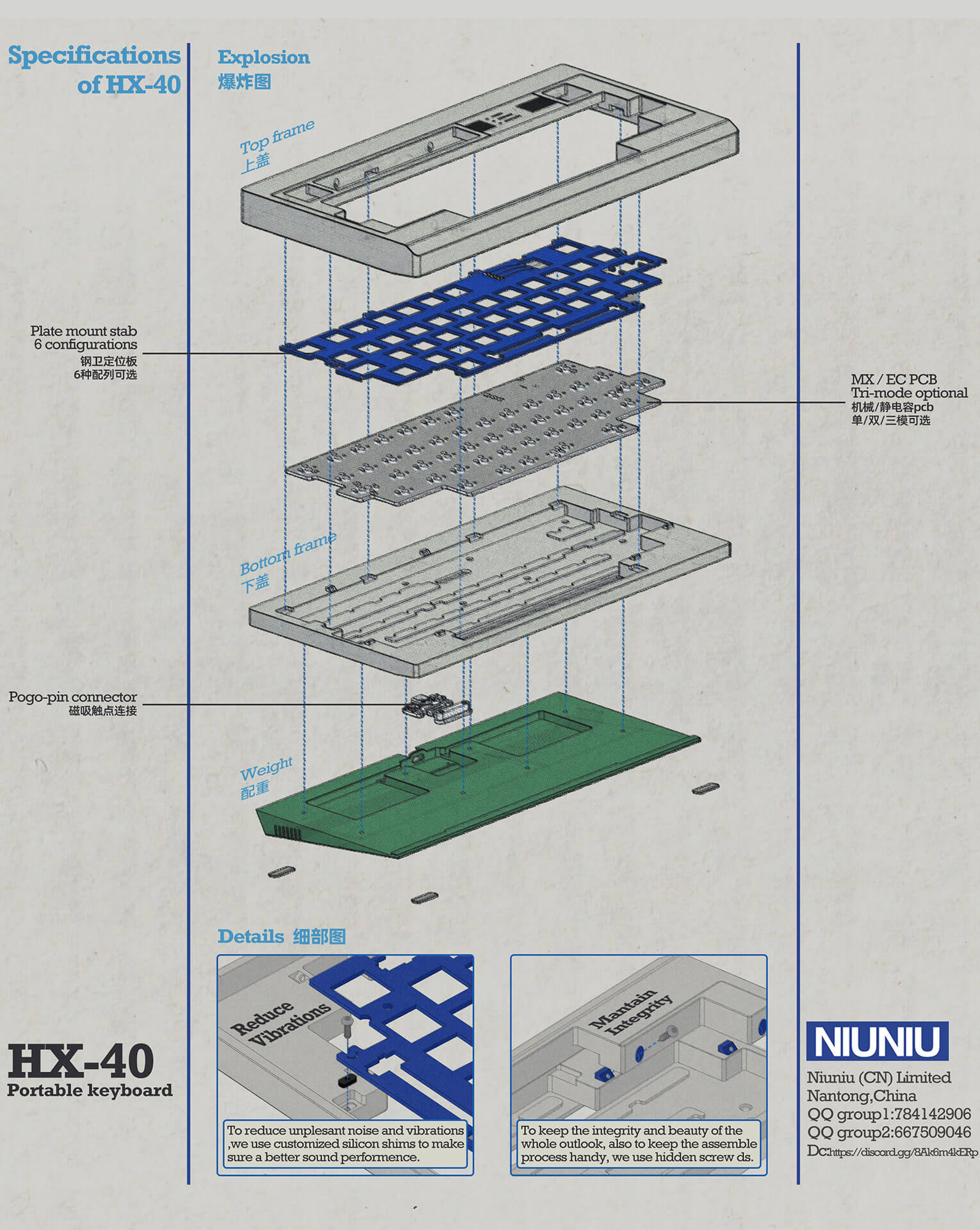

Kit Contents

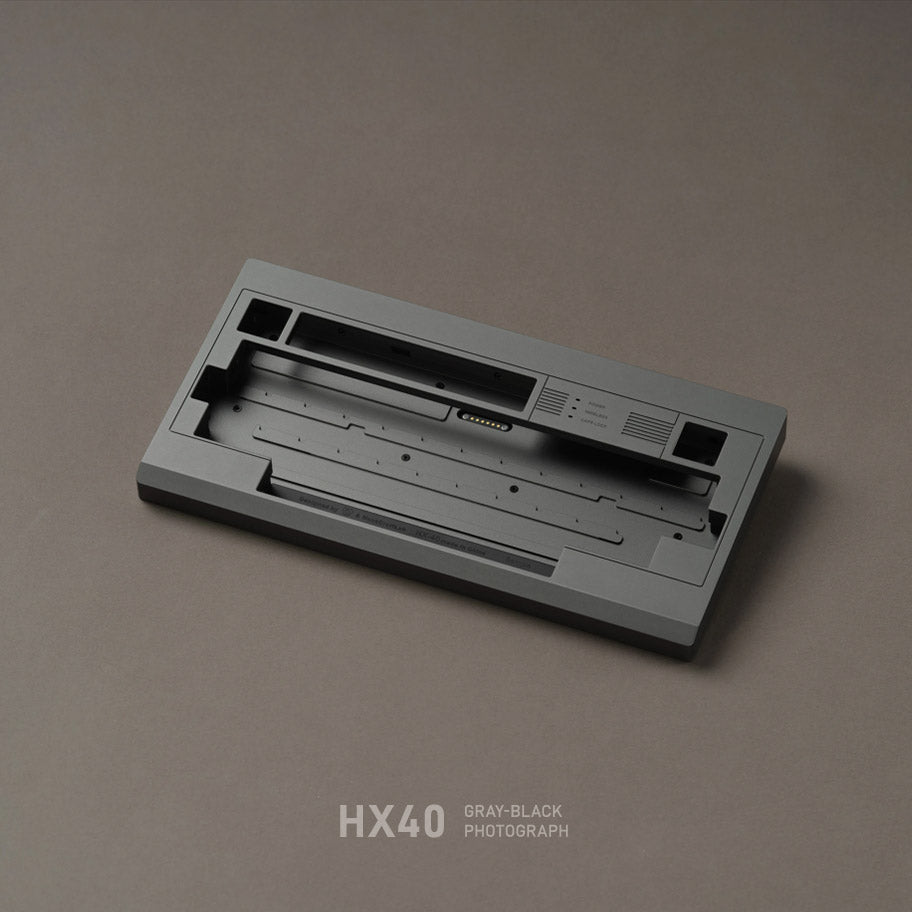

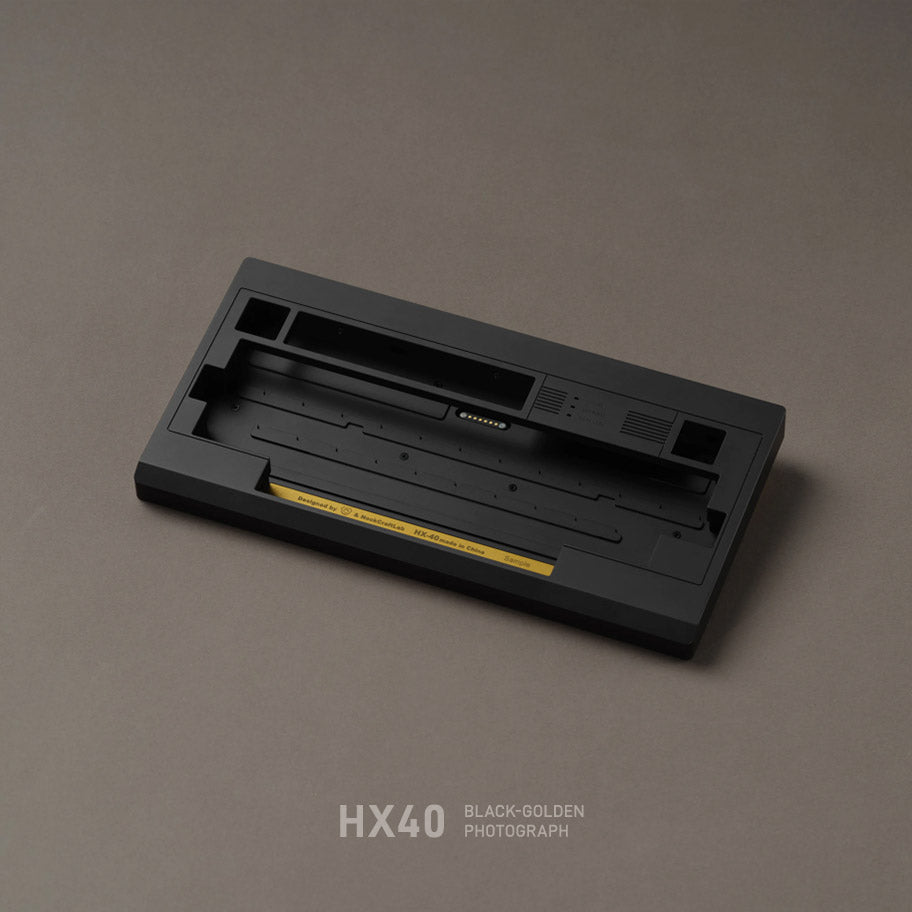

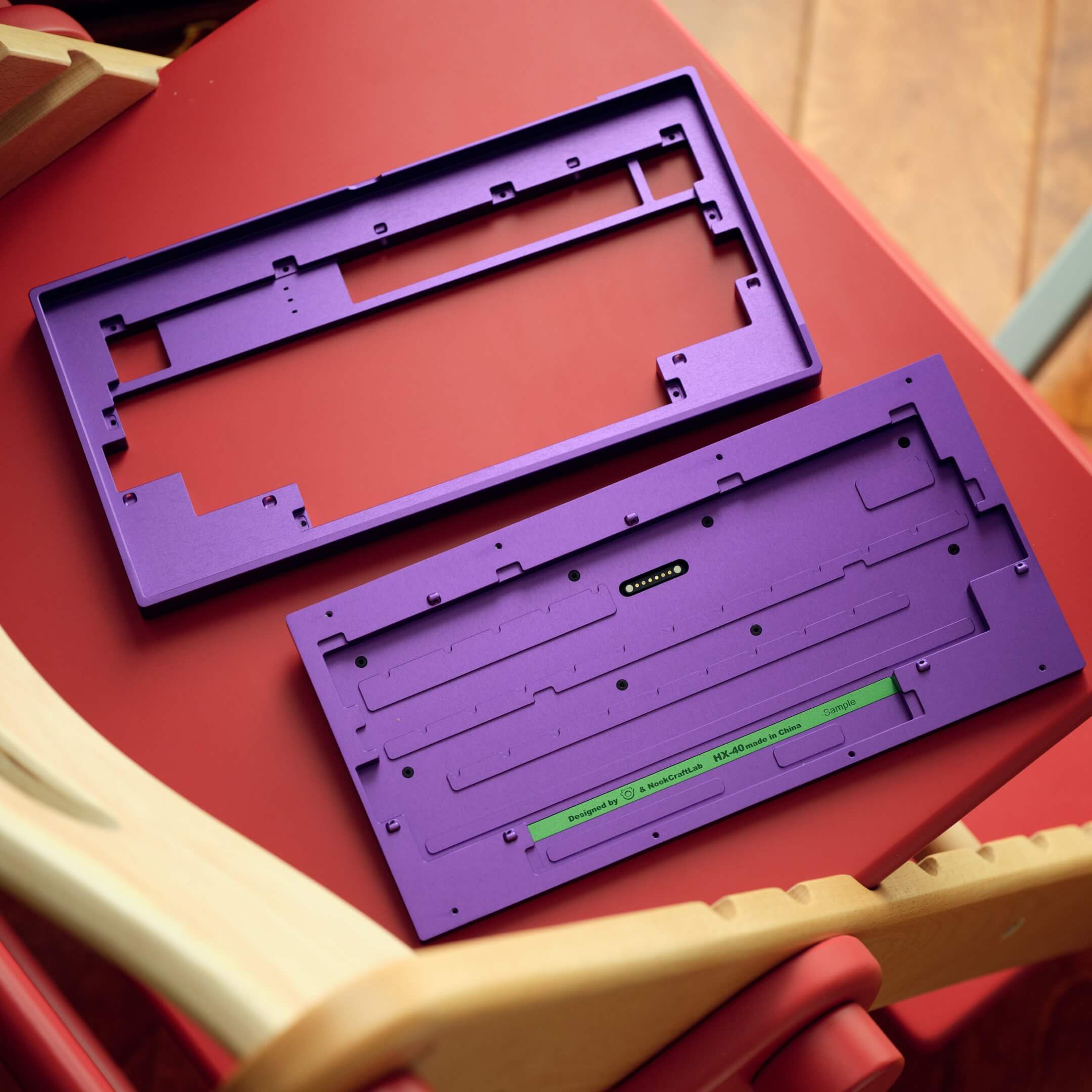

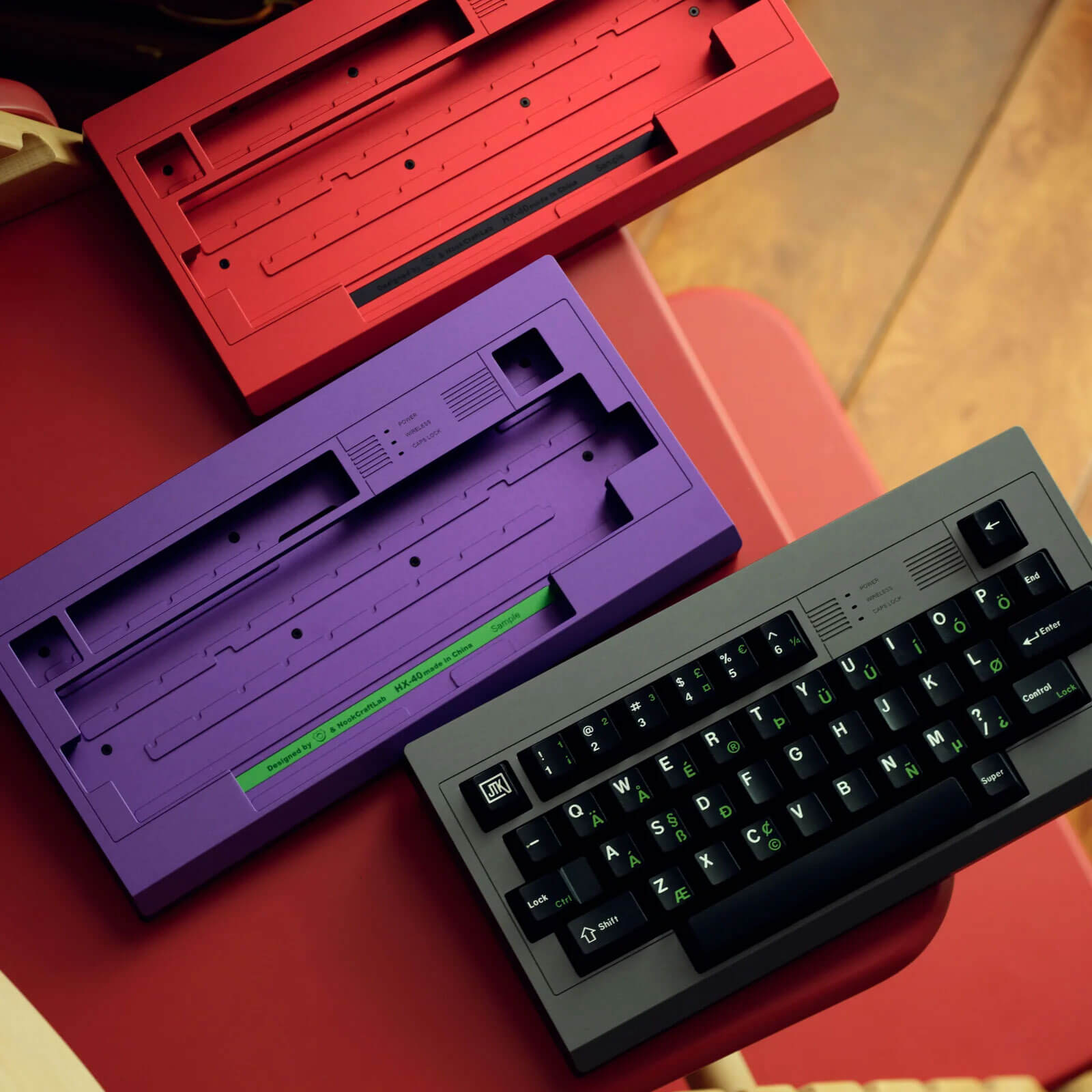

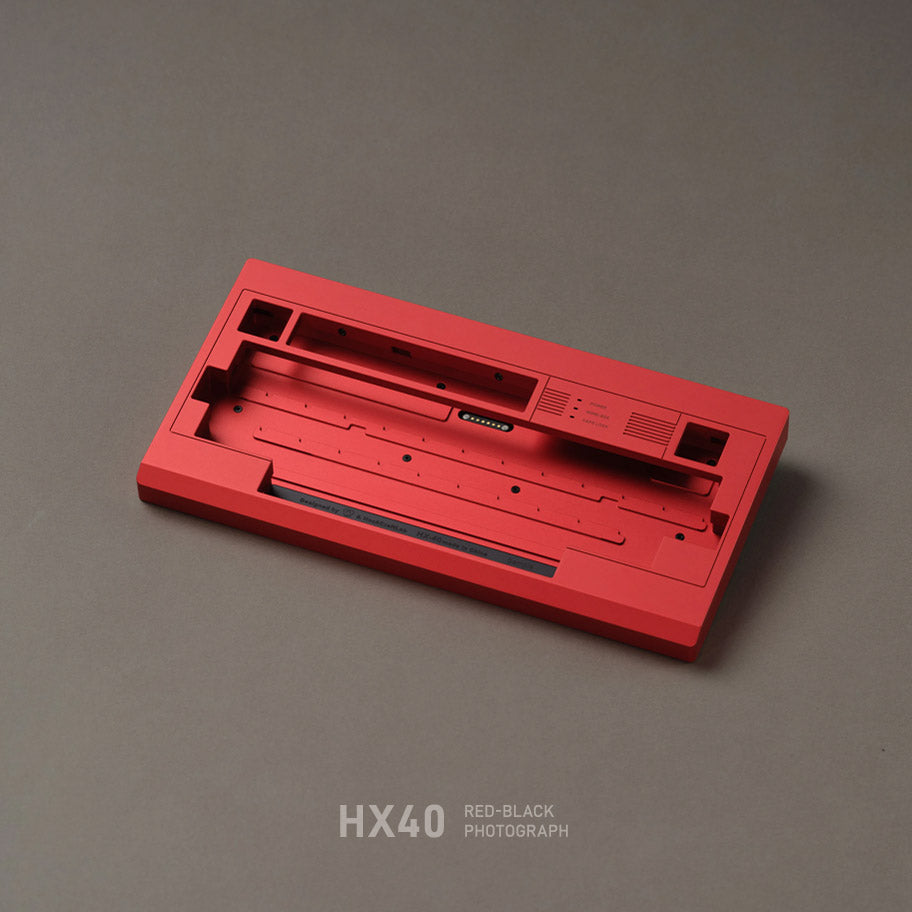

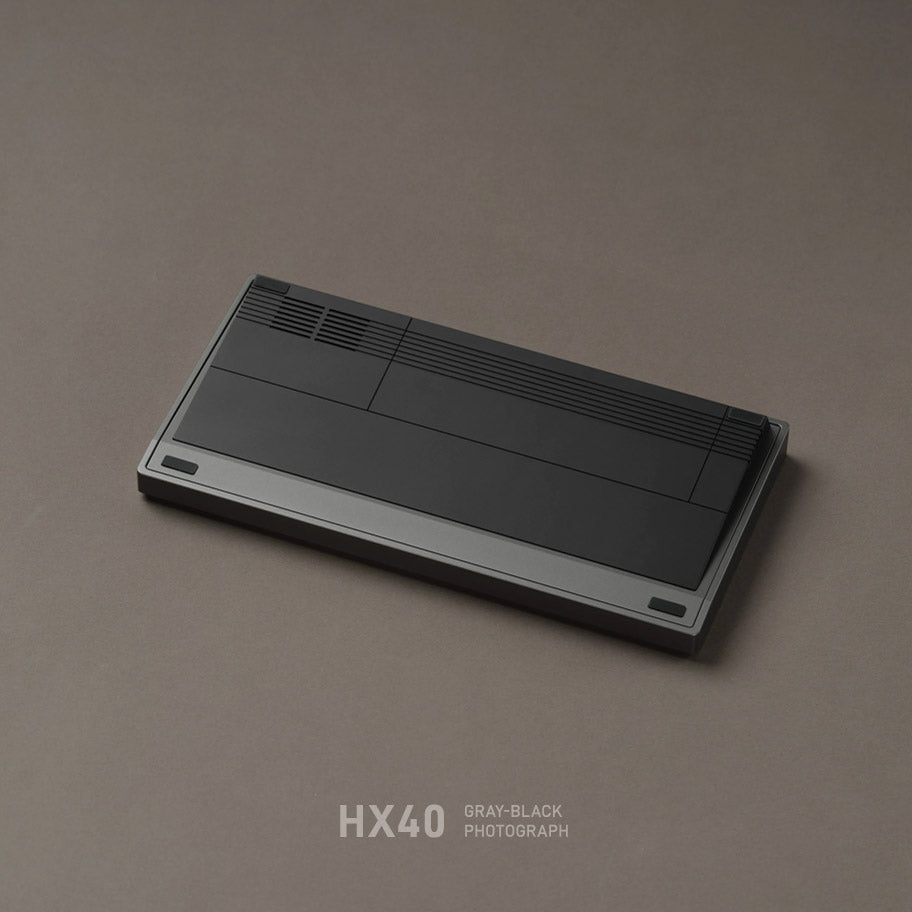

- Alunimum top & bottom case

- Aluminum weight (also serves as the battery compartment)

- PCB (of buyer's choice)

- Plate (FR4 for MX, SS for EC. In the layout of buyer's choice)

- 2x 1400mAh batteries (IF Dual or Triple-mode PCB)

- USB dongle (IF Triple-mode PCB)

- EC Accessories Kit (IF EC PCB)

- Diffuser foam for status LEDs

- Silicone gasket pieces for top mount

- Rubber feet

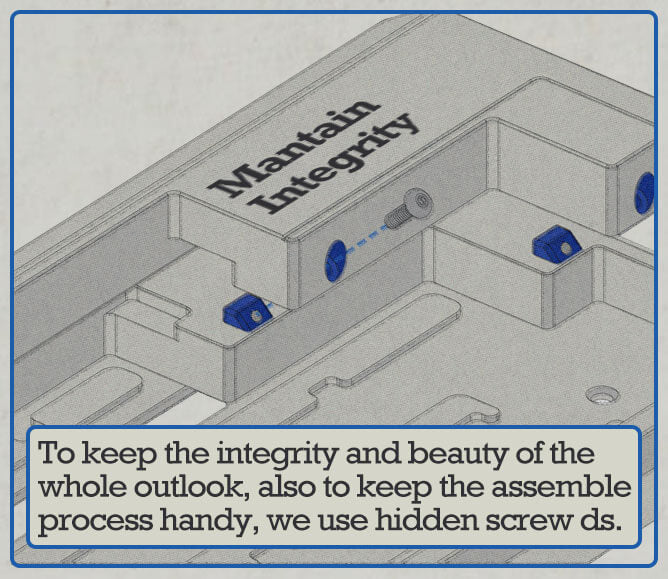

Design Highlights

Disclaimer

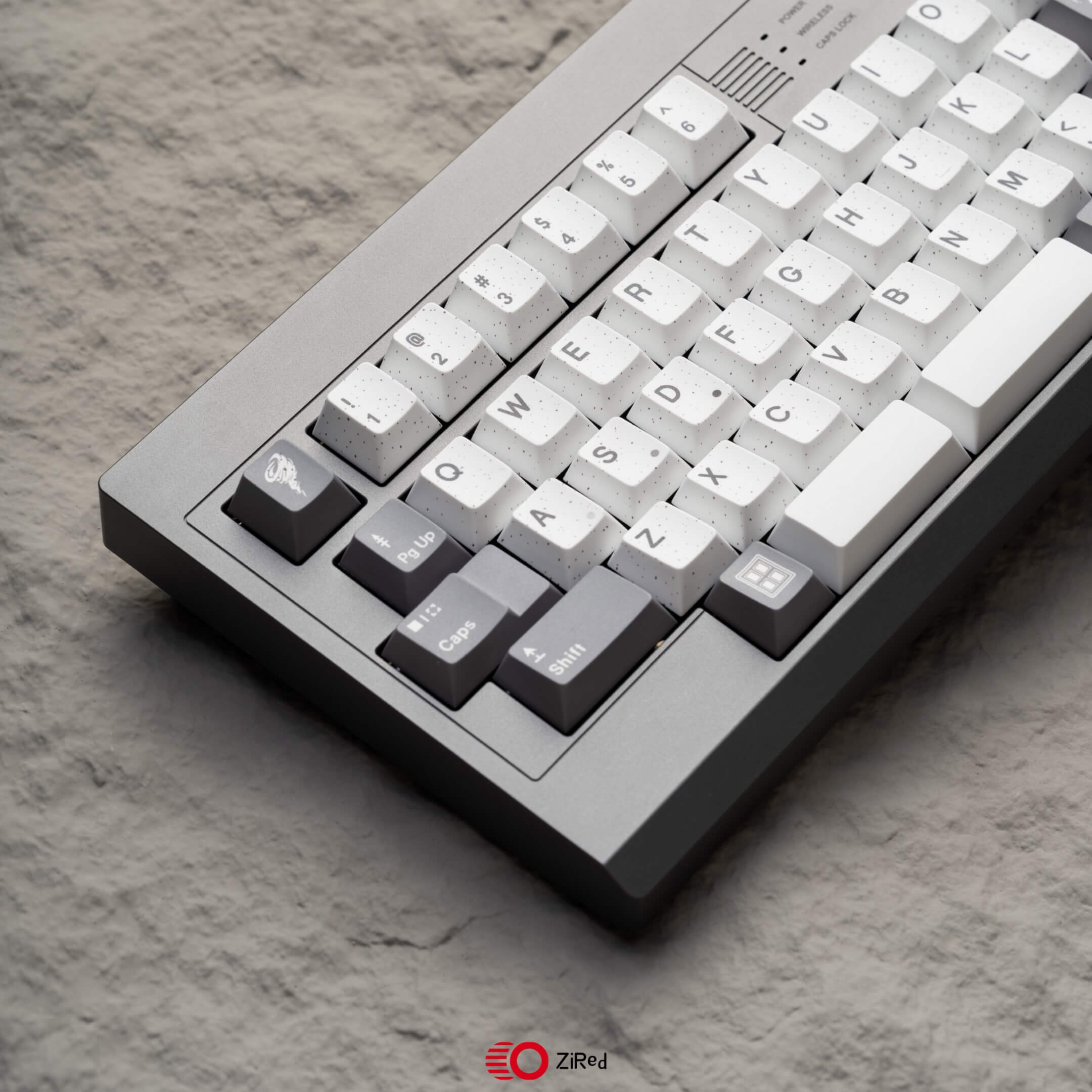

This page shows the keyboard in both photographs and renders. The photographs are labeled as such to avoid confusion. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the photographs as reference before purchasing.

Vendors

- US: Divinikey

- CA: Mech.land

- EU: Monacho Keys

- UK: Thocc Exchange

- SG: Ktechs

- JP: Yushakobo

- Asia: KBDFans

- Asia: ZFrontier

- Asia: Kezewa

Acceptable Quality Standards

Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to HX-40

Videos

GB Information

Group buy runs until November 15, 2025

Estimated to finish production in March, 2026

Delivery Estimates

Title

Ocean Freight

Arrives to Canada via a ship. Takes 45-60 days in transit. This is the standard import method used in most keyboard / deskmat group buys. It's much cheaper than Air Express but takes longer to arrive.

All units ordered via Ocean Freight are scheduled to ship out of Kezewa around March, 2026 and should arrive to us 45 to 60 days later.

Air Express

Arrives to Canada via a cargo airplane, takes 7-18 days in transit. This import method is very expensive, as such some of the items brought over via Air Express have a markup added to cover the extra expenses

All units ordered via Air Express are scheduled to ship out of Wuque Studio around March, 2026 and should arrive to us 5 to 10 days later.

IMPORTANT

You cannot combine Ocean Freight and Air Express items in the same order. Each individual order has to contain either all Ocean Freight or all Air Express items. This is because they arrive at different times

Please keep in mind the ETA is just our best guess according to the information currently available to us. Unexpected issues and delays can happen at every stage of the process.

GB / Pre-order Policies

Title

Combinations

Barring stabilizers, you cannot add any in-stock items to your order as we cannot guarantee its availability when the group buy is ready to ship.

If you're subscribed to our email list, you'll get an email before your group buy is ready to ship. In that email there will be instructions on how to add in-stock items to your group buy order and have them all ship together to save on shipping fees.

Modifications

You may modify your order until November 15, 2025

Please send an email to help@mech.land from the email address associated with your order and list the changes you'd like to see made.

Cancellations

You may cancel your order and get a refund until November 15, 2025

Please keep in mind we may keep 4.5% of the total from the refund as we do not get the transaction fees back from our payment processor. We may apply an additional penalty of up to 15% of the total if you choose to cancel after group buy is over.

Updates

Any status updates pertaining to this group buy will be posted in the status updates page.

Please follow the instructions on the contact us page if you need to change your address before the group buy ships.
