Paper80 Keyboard Kit

Name: Paper80 Keyboard Kit
Brand: Wuque Studio
Price: 344.0 USD
Availability: OutOfStock

$344.00 USD

Title

Quantity

Pickup available in Scarborough, ON, Canada. Click here for more info

Usually ready in 1-3 days

Paper80

All items on this page are in stock, ships in 1-3 business days

All kits come with a hot-swap PCB

All Paper80 keyboard kits qualify for free / reduced shipping promo.

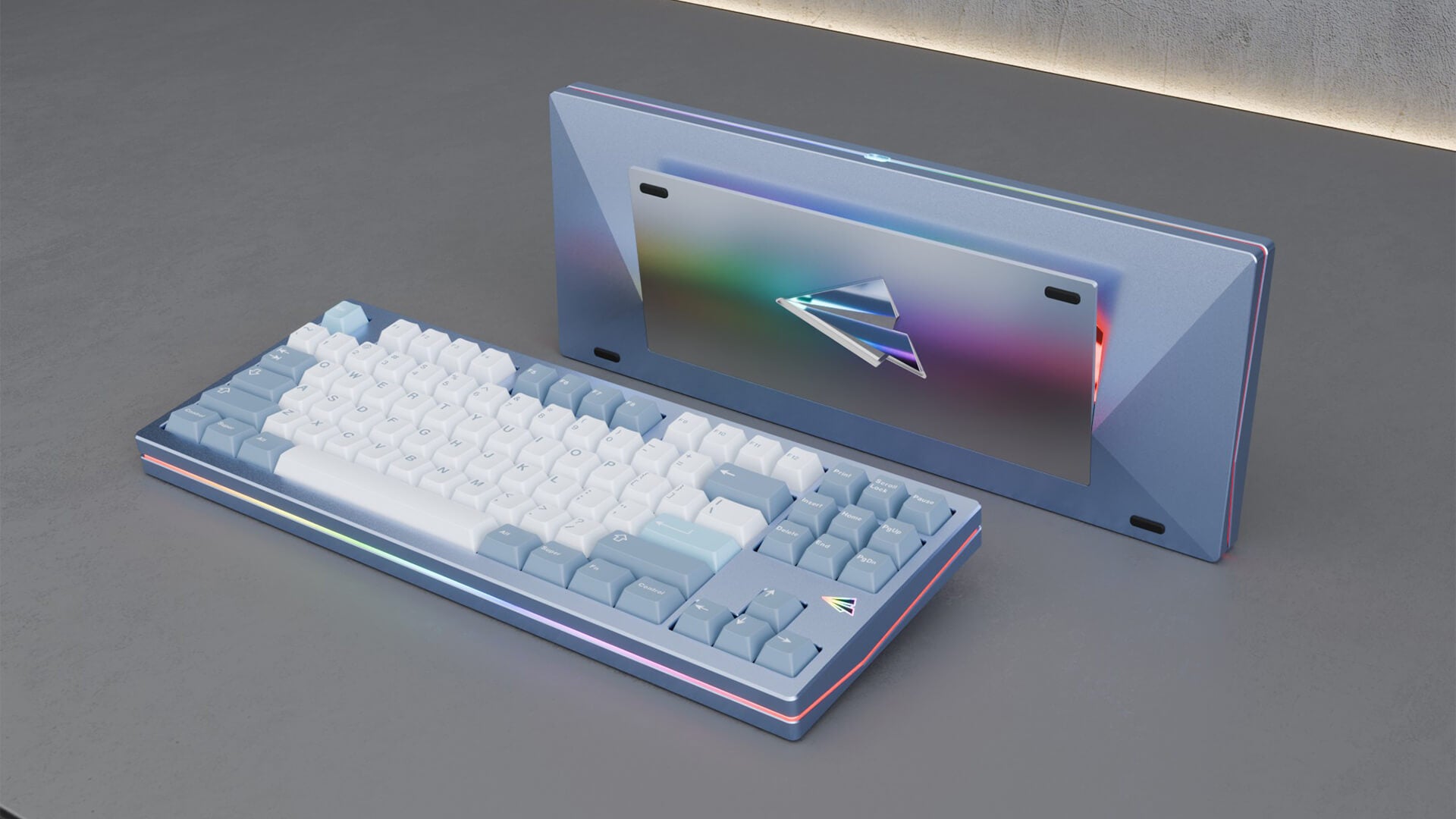

Paper80 Keyboard Kit

$344.00 USD

Product Page

Paper80 Wrist Rest

$45.00 USD

Product Page

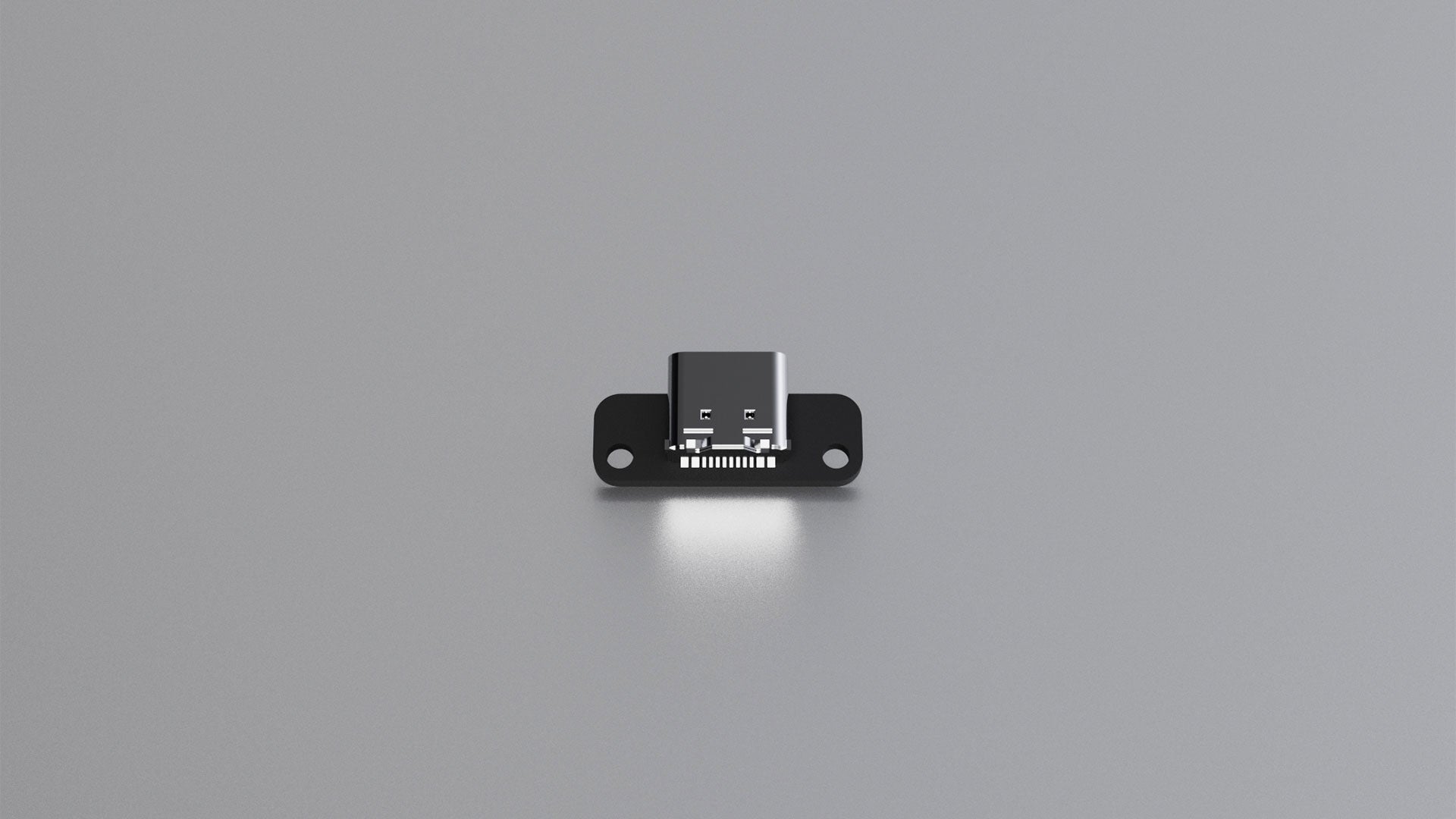

Paper80 Daughterboard [In stock]

$9.00 USD

Product Page

Highlights

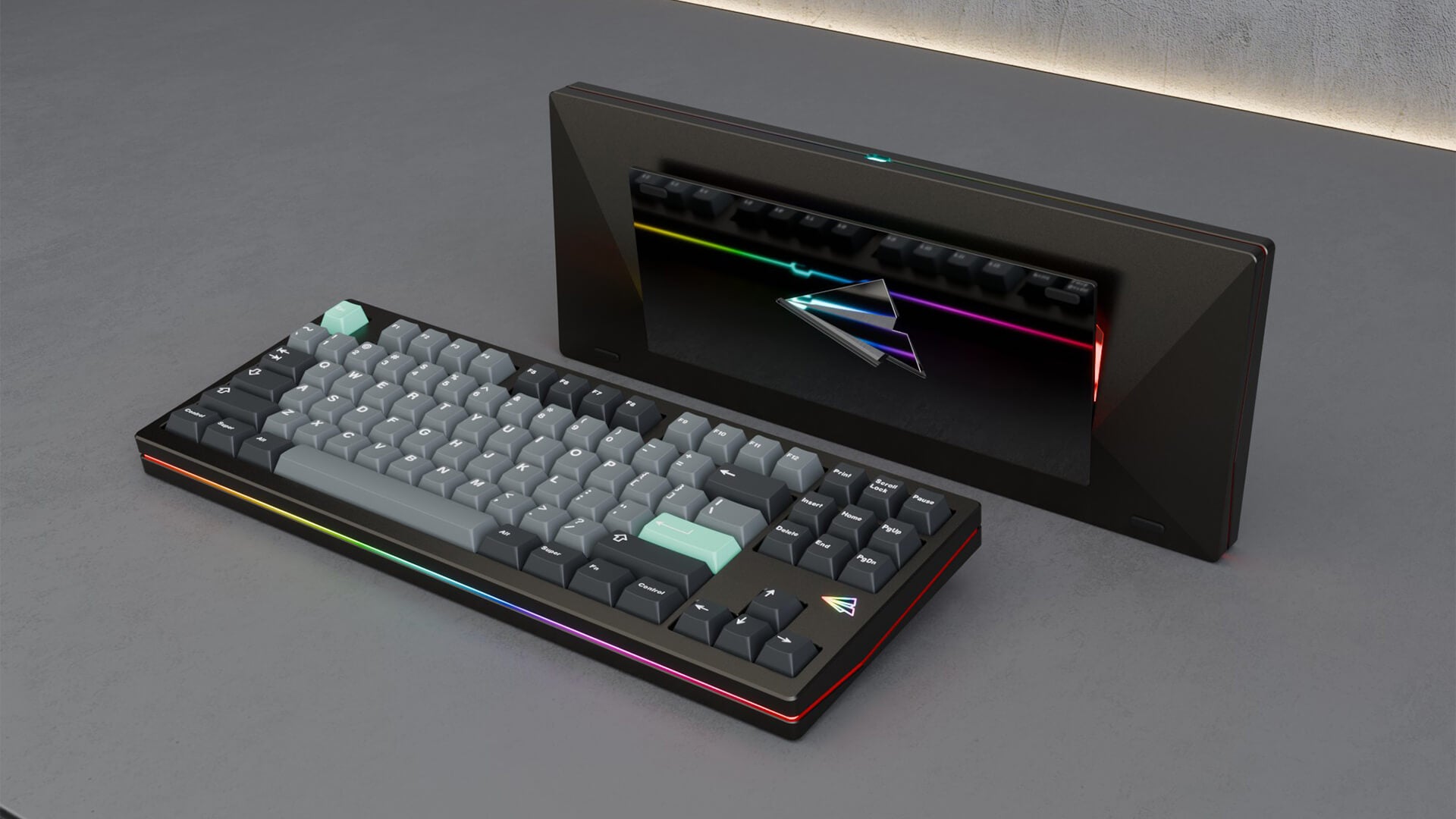

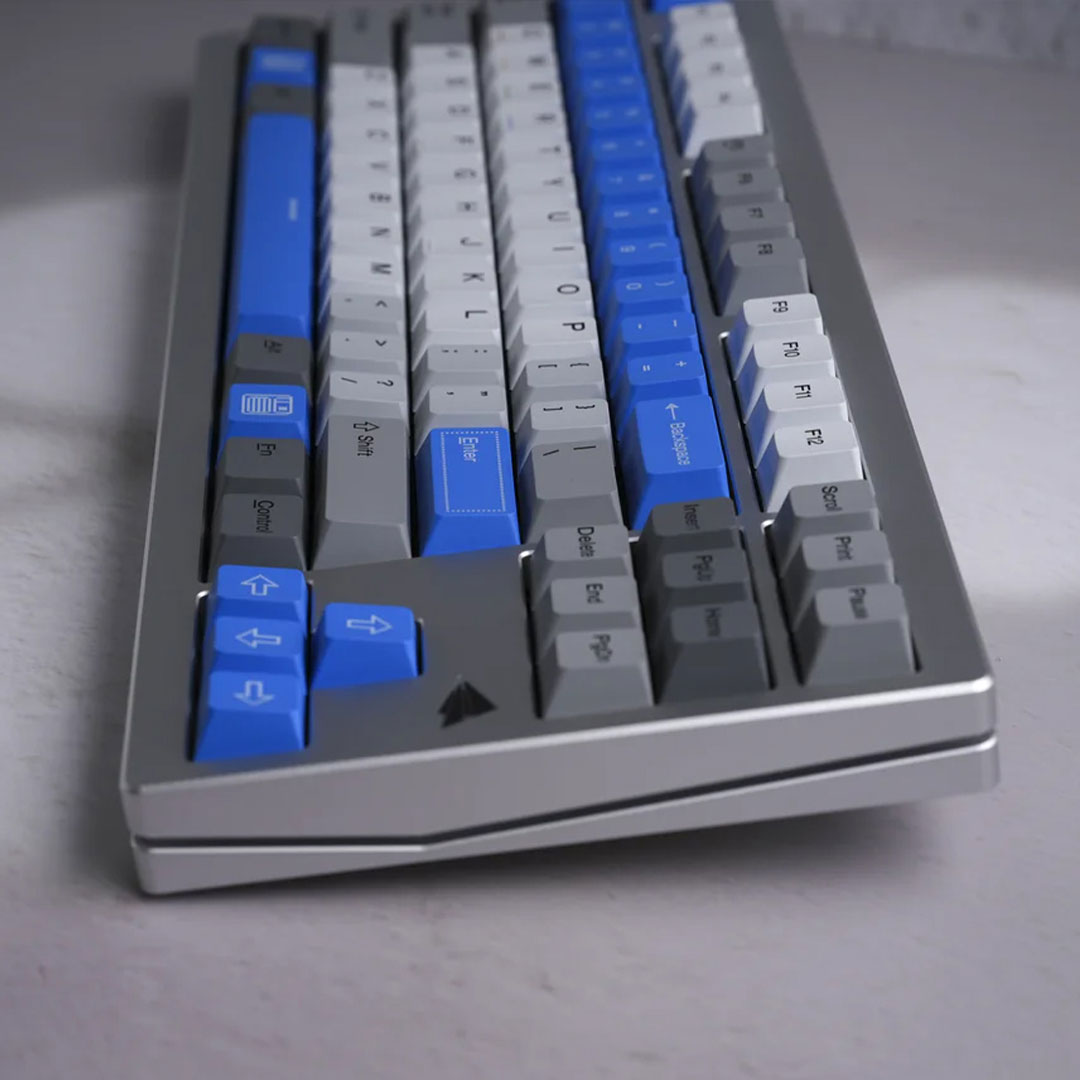

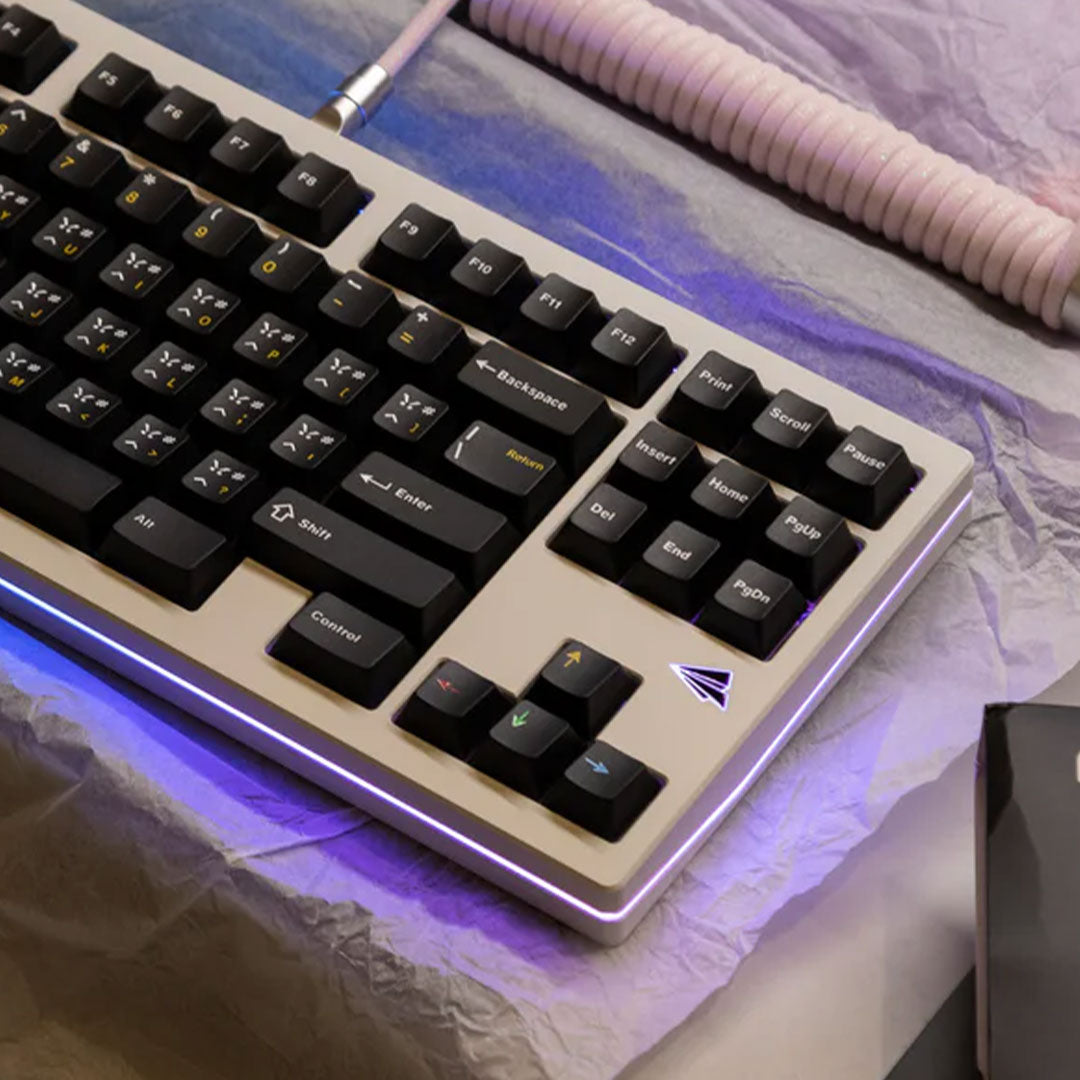

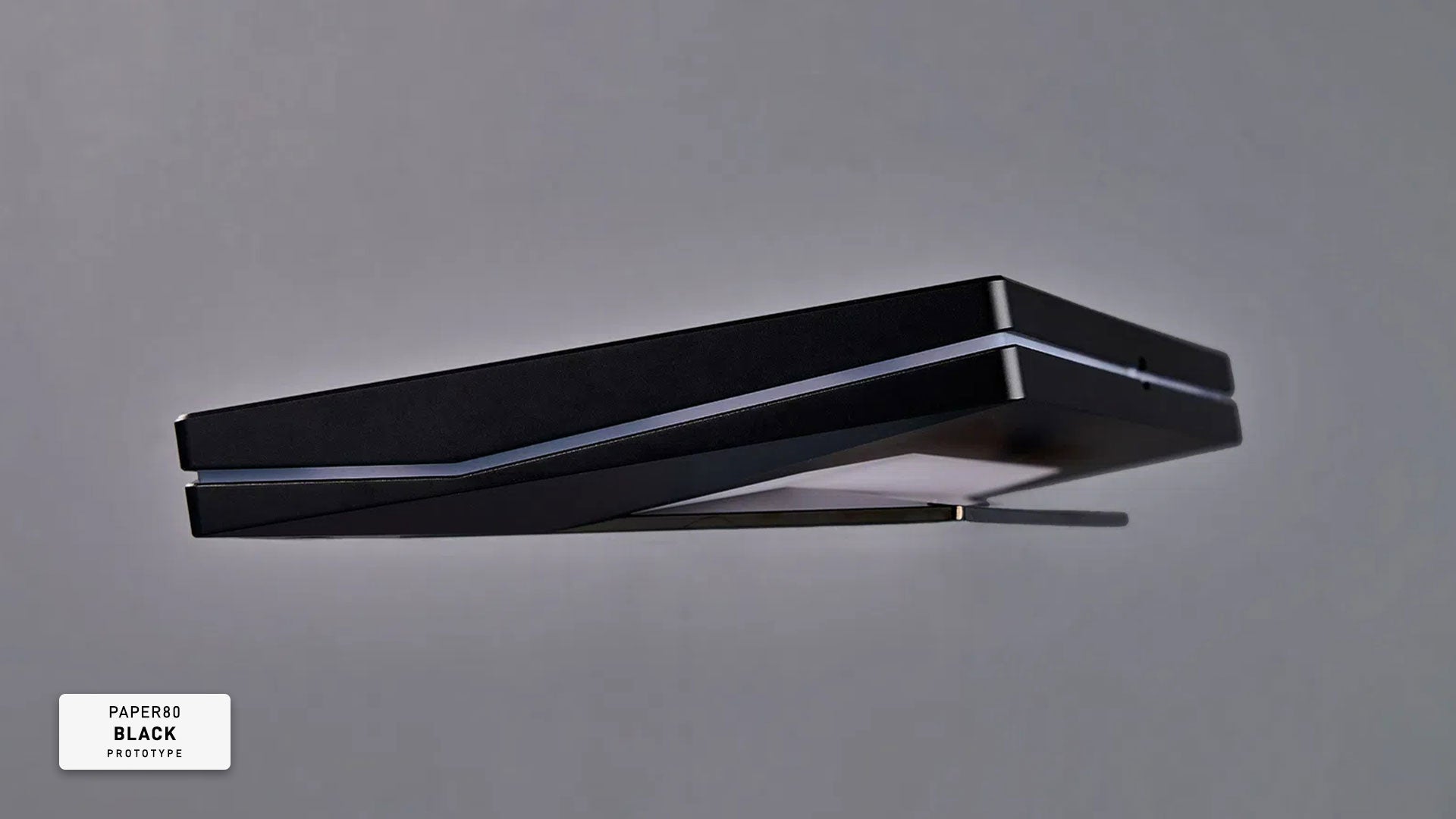

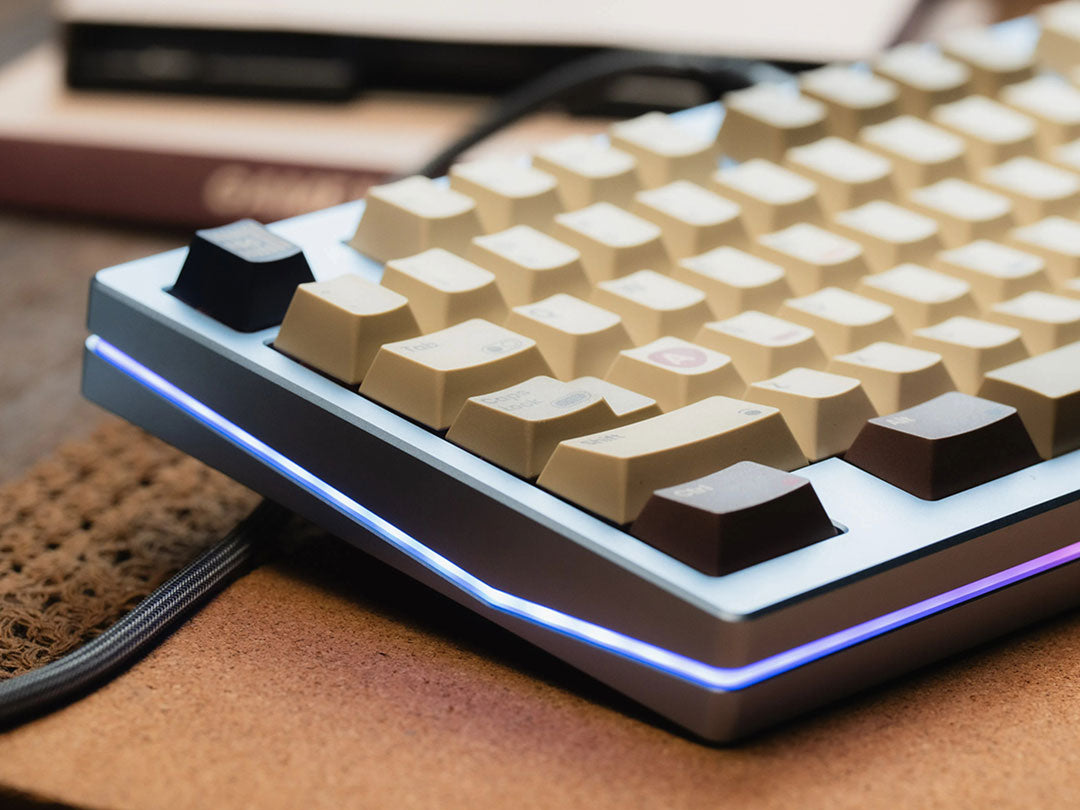

Mid-case Fold Light Design

One of the key features of the PAPER 80 is the Mid-case Fold Light, with folding lines on the sides and back inspired by Paper Airplane. When lit, it projects a calming glow around the entire keyboard.

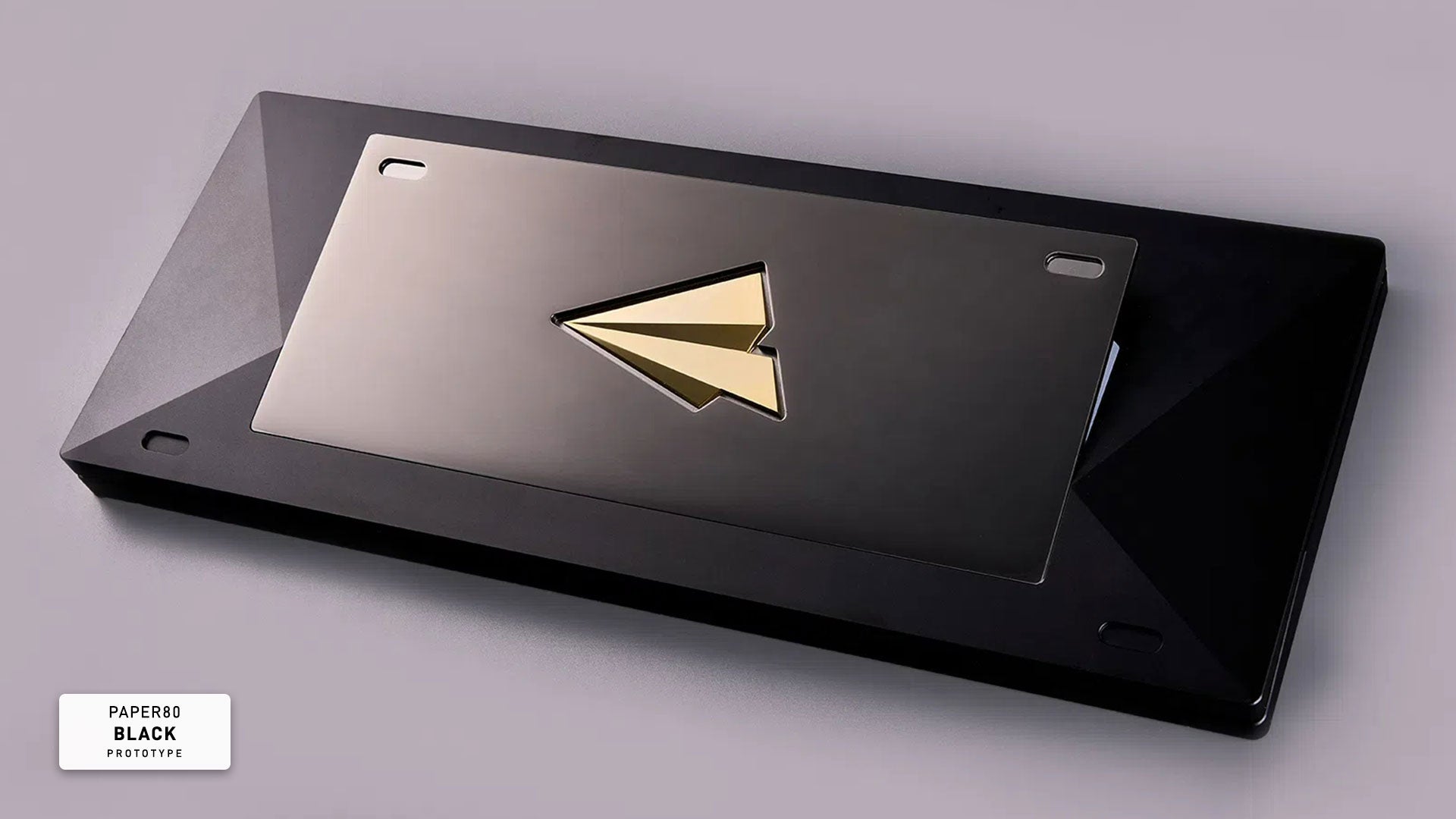

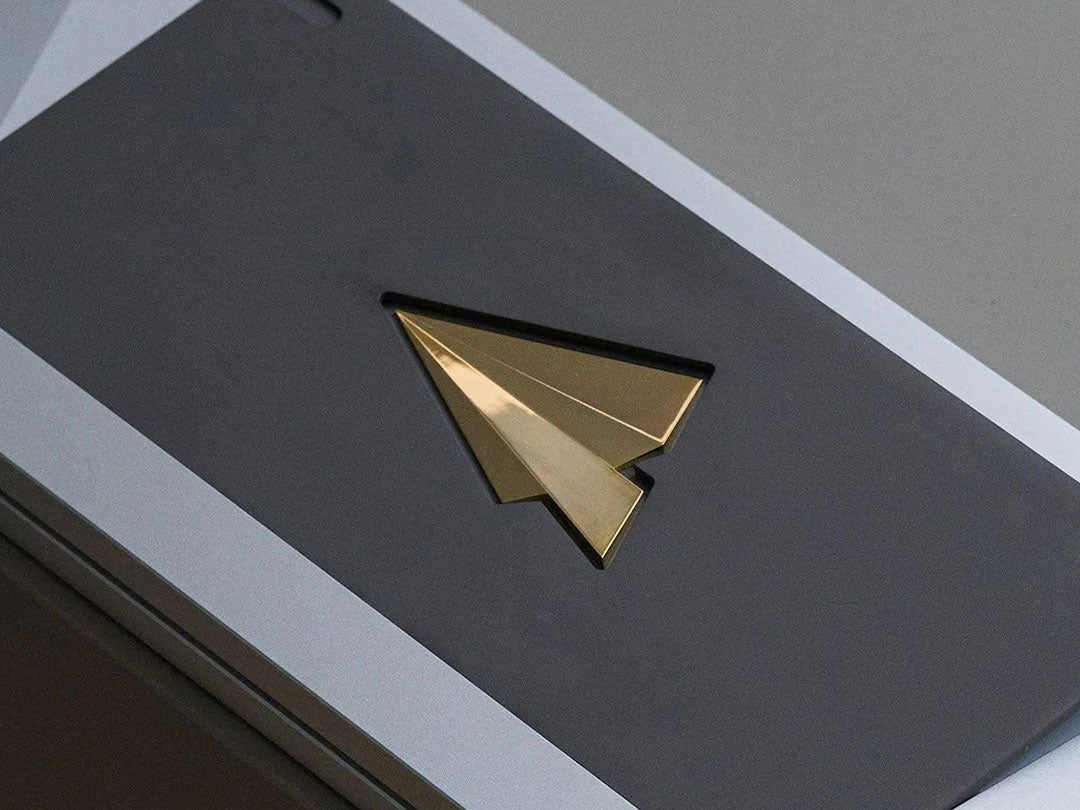

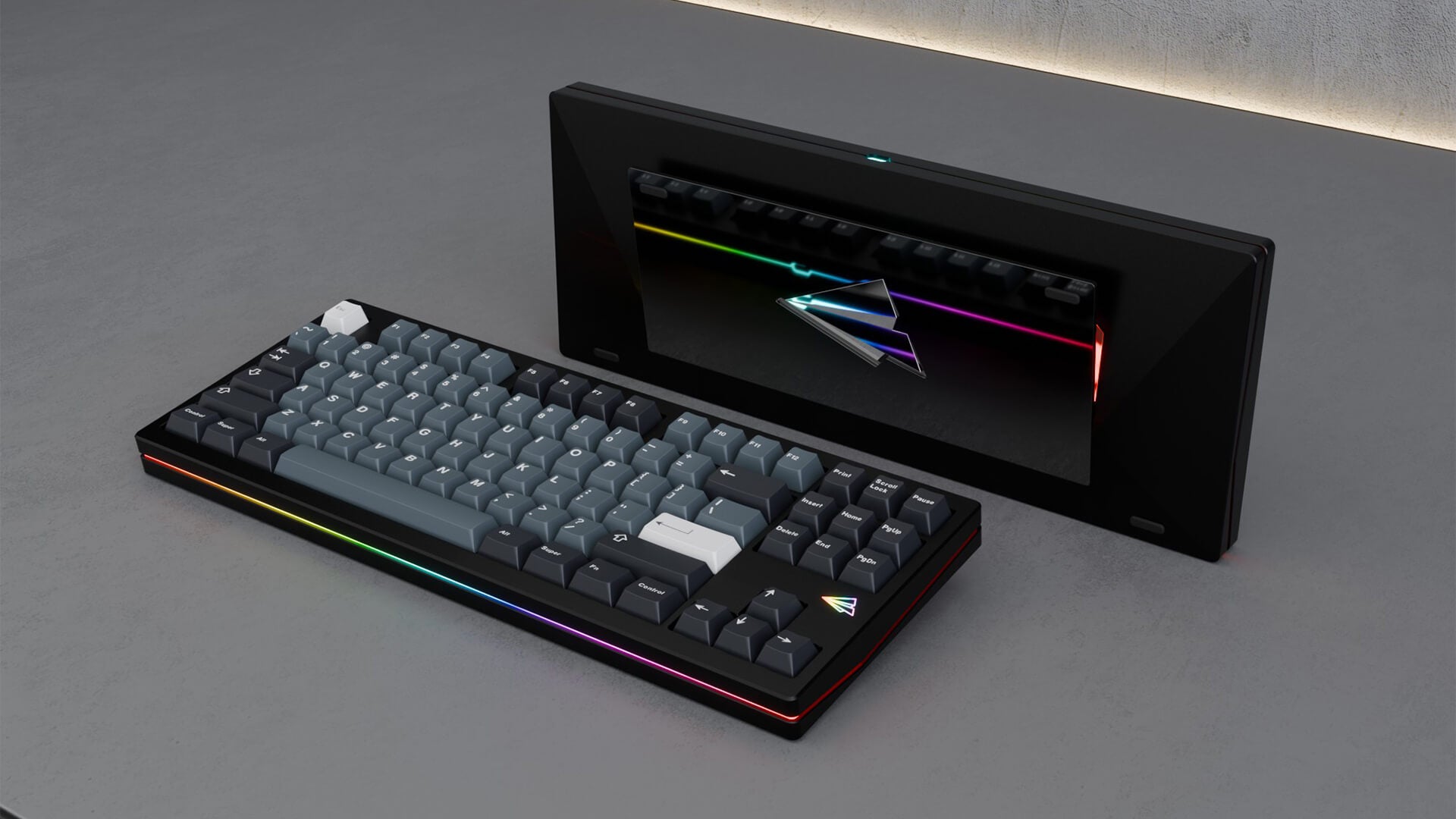

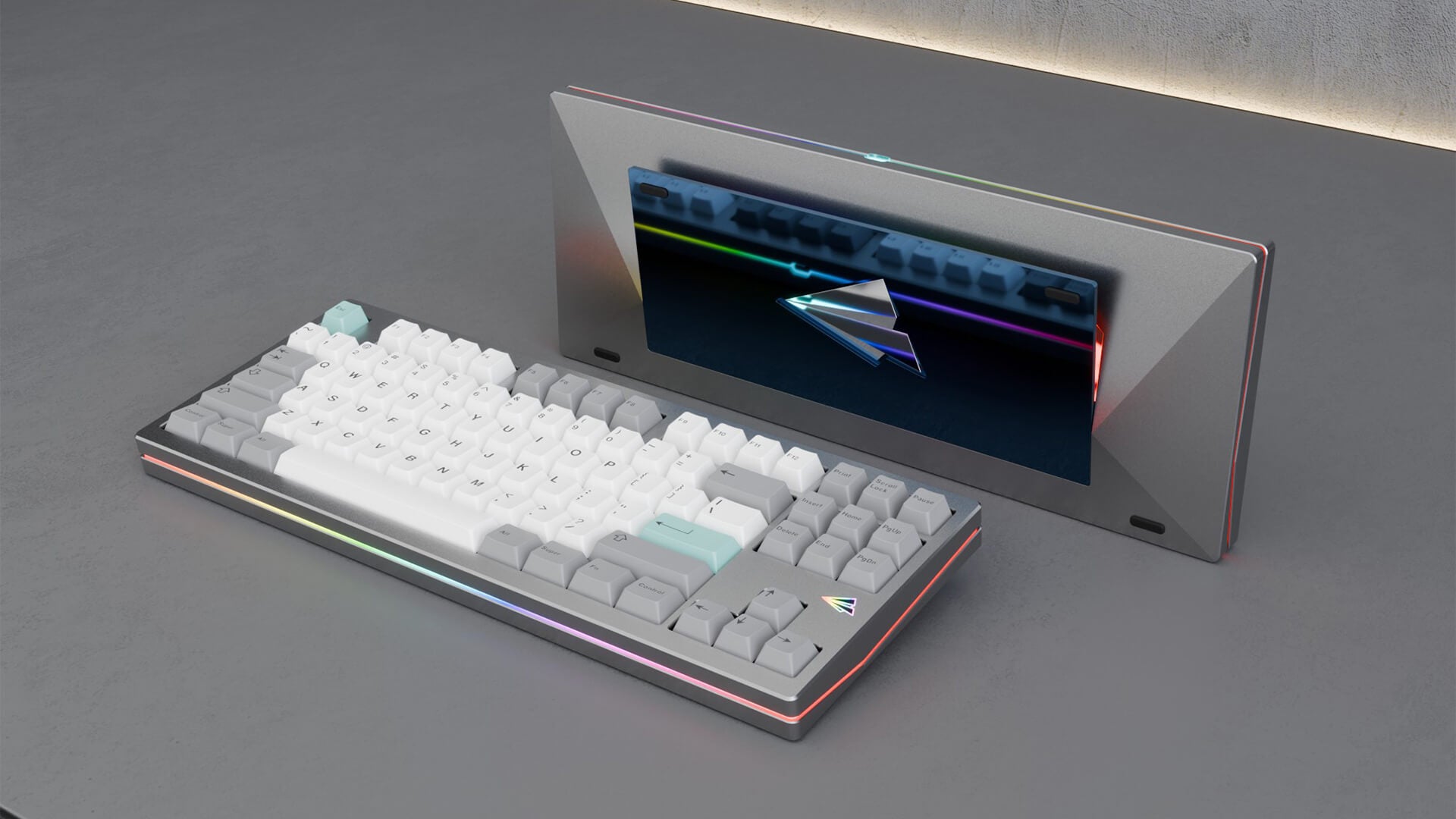

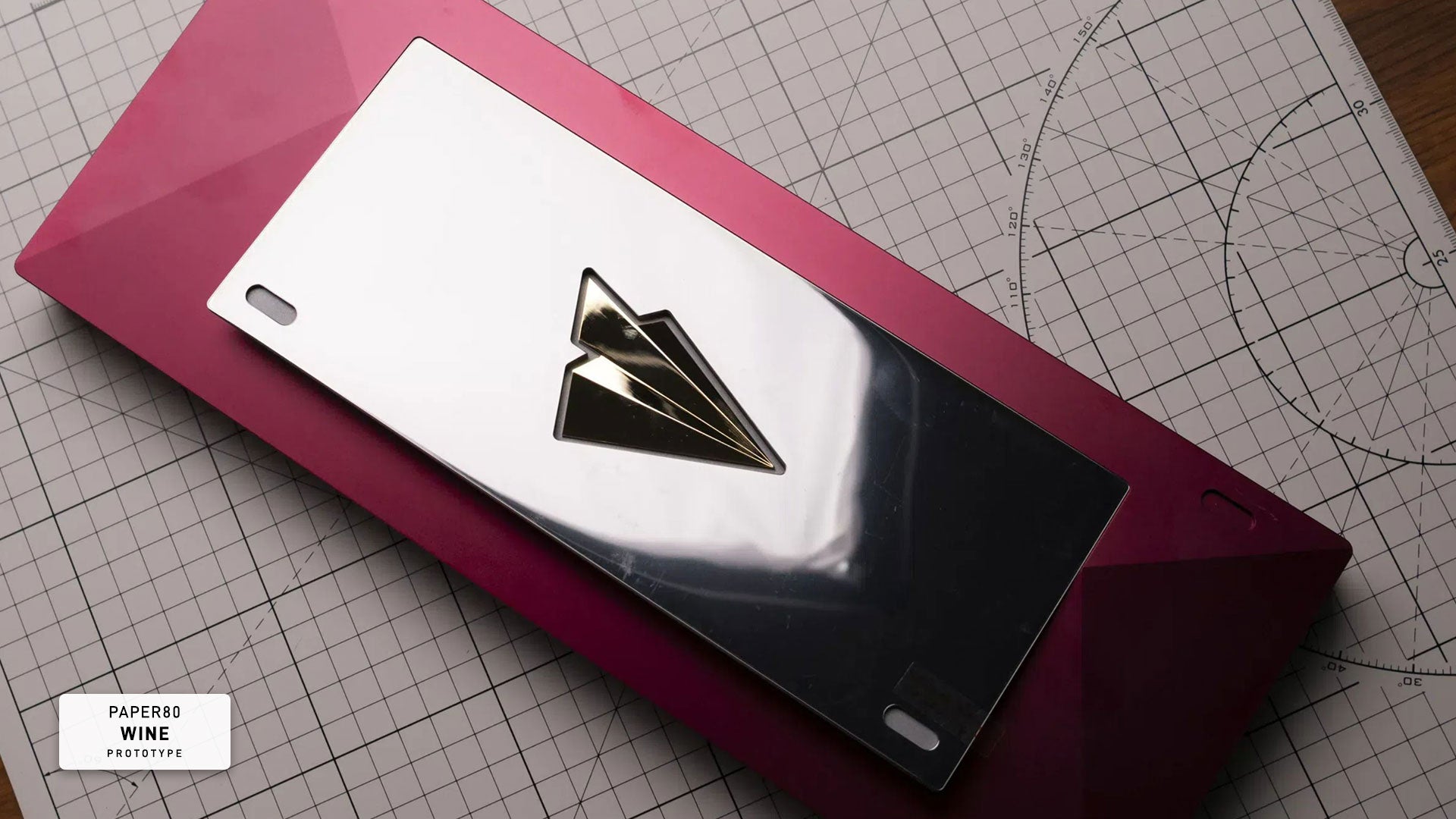

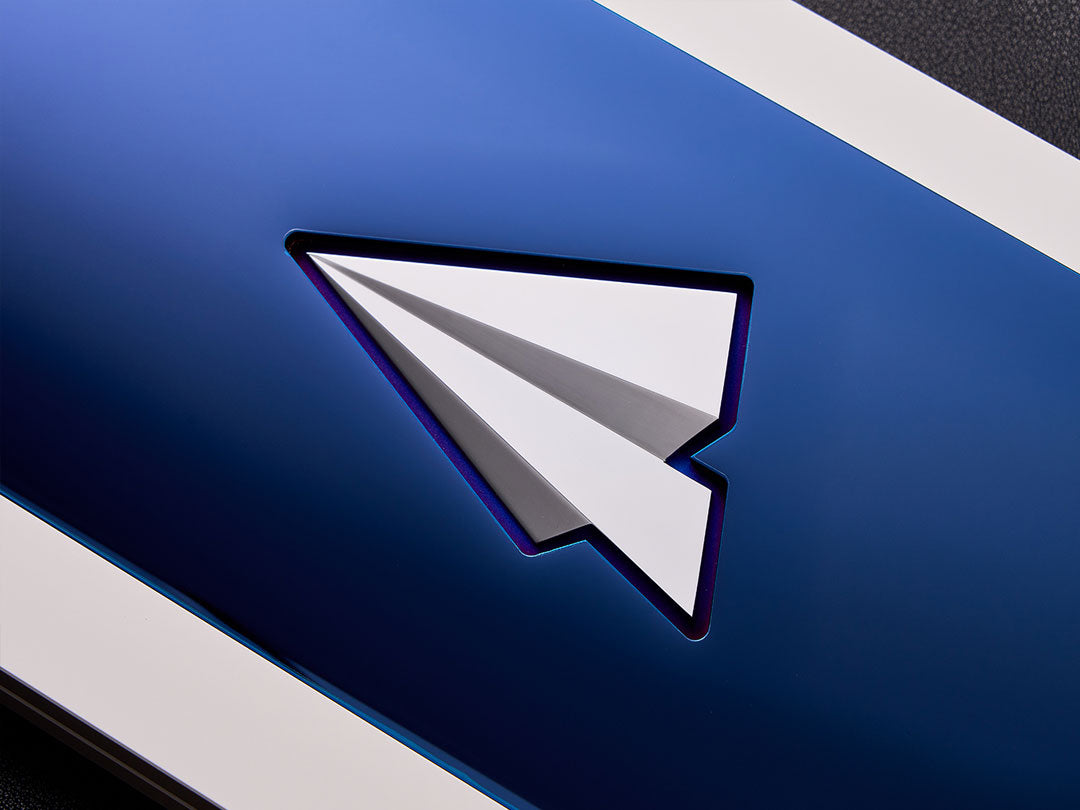

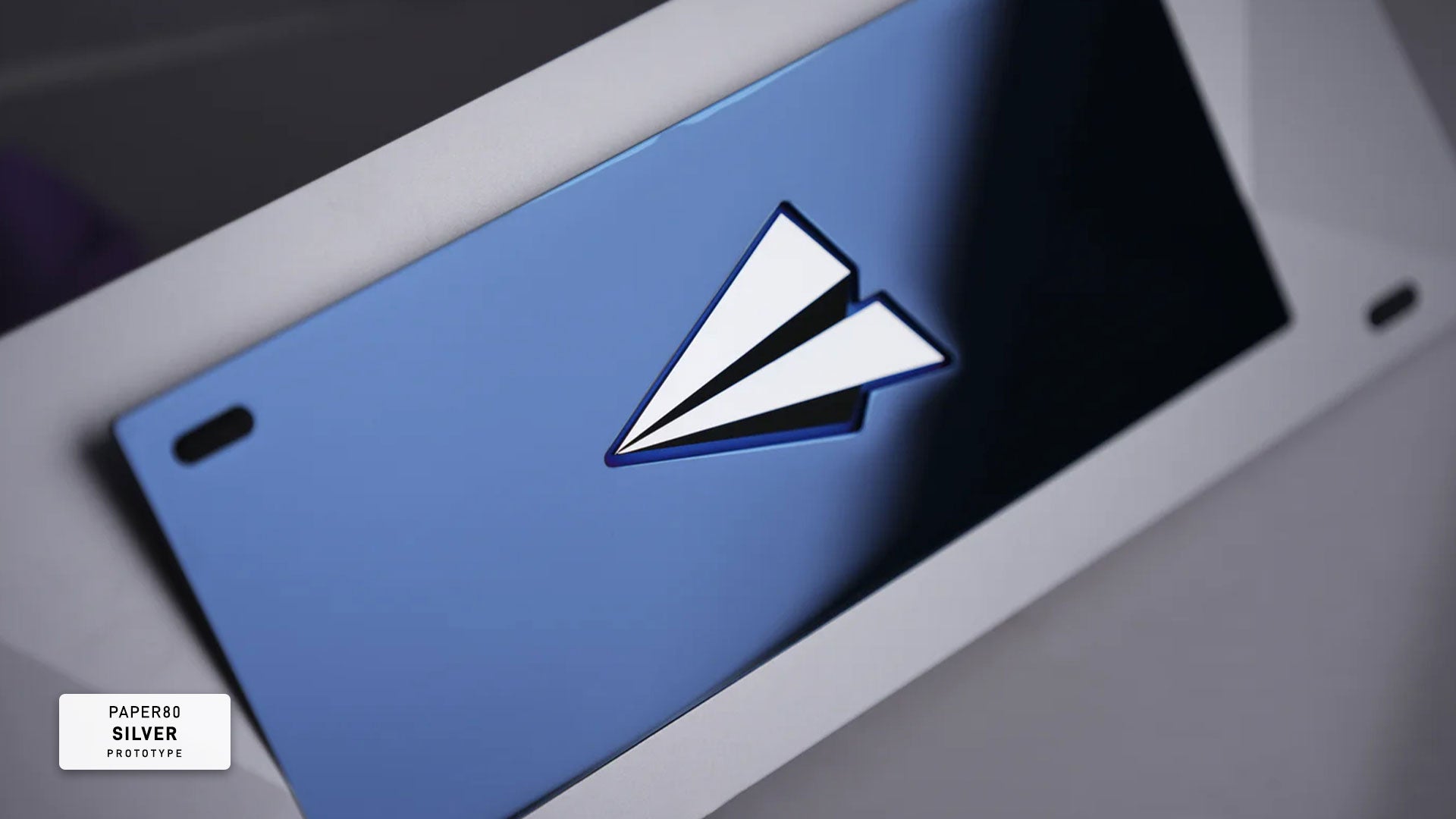

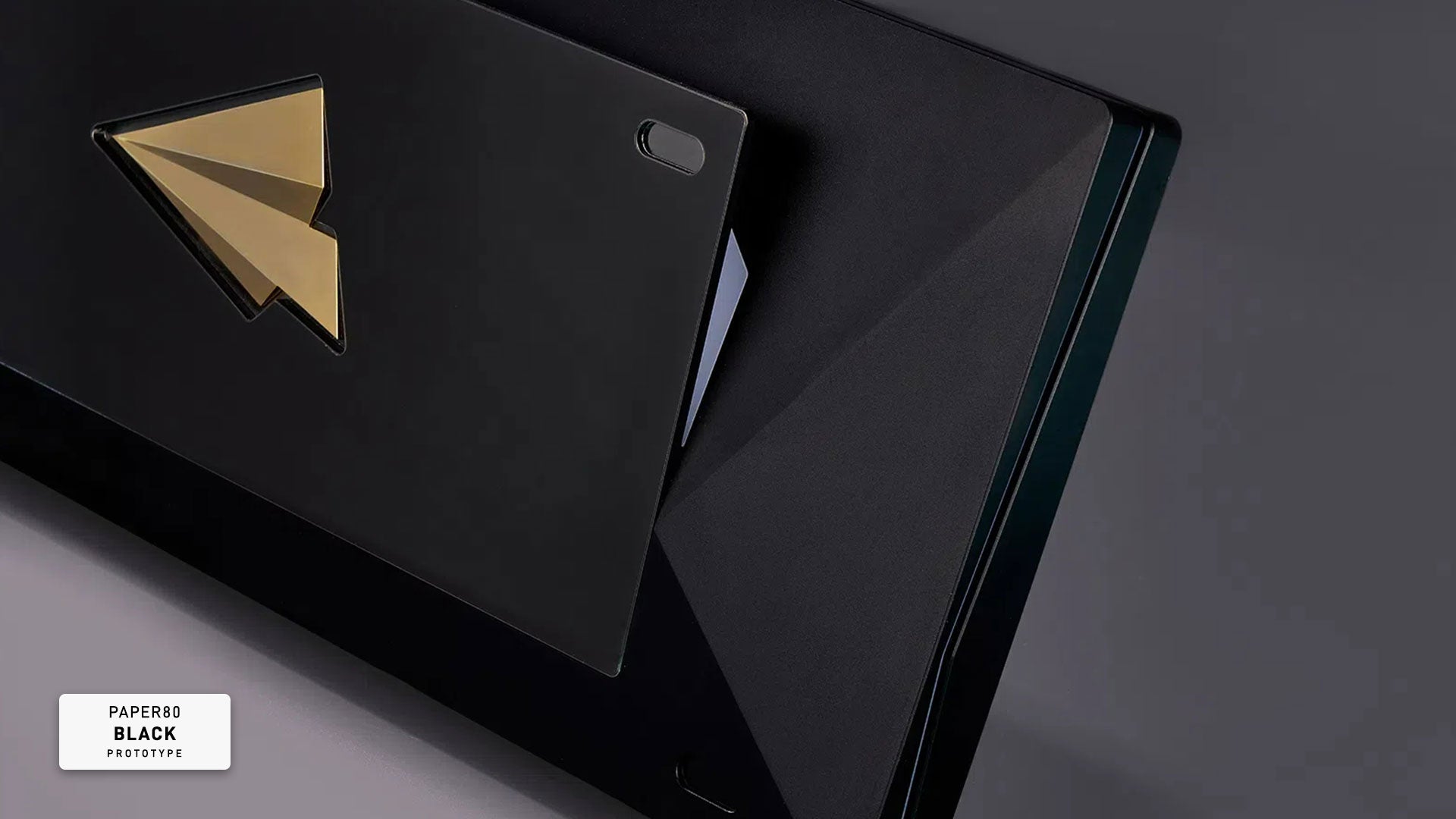

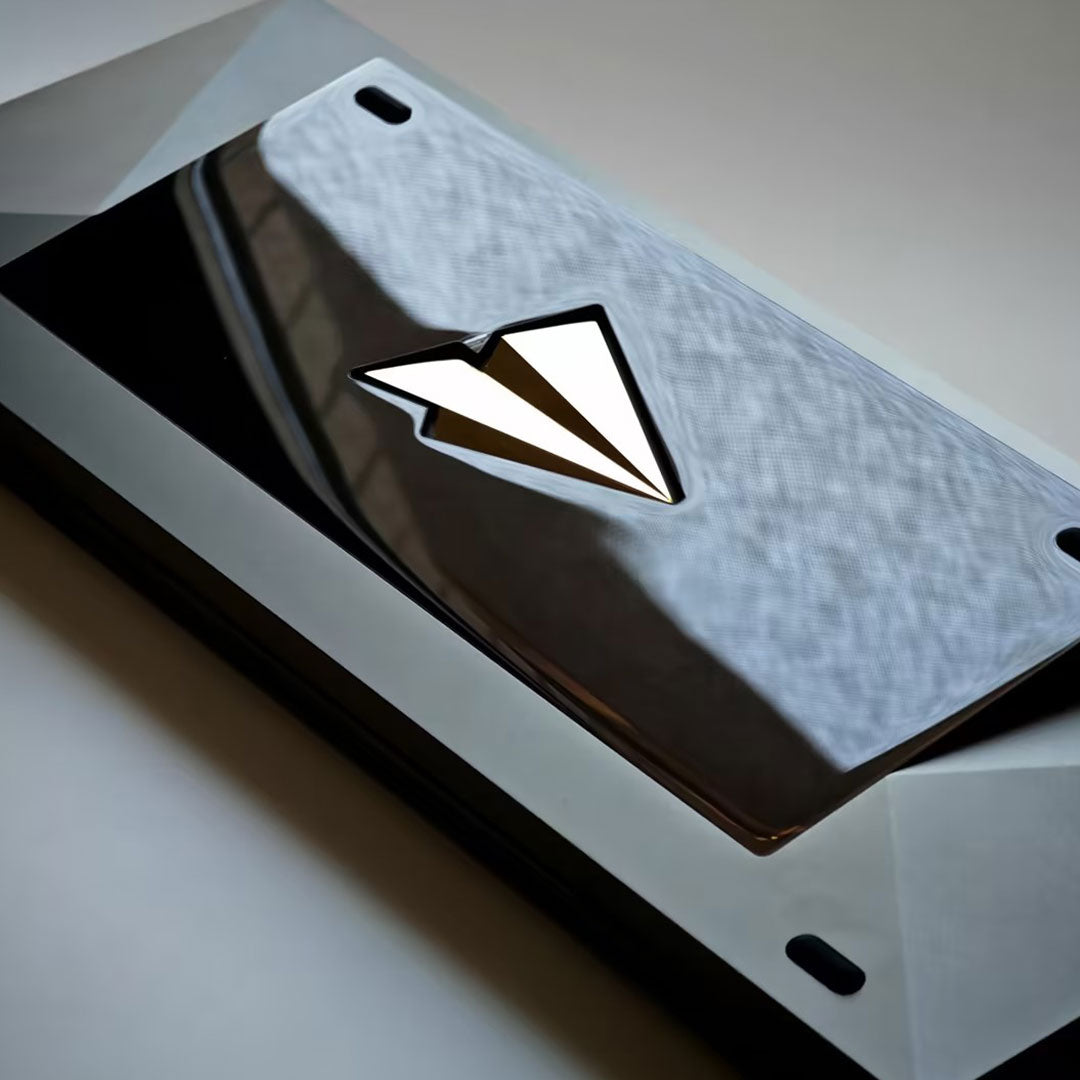

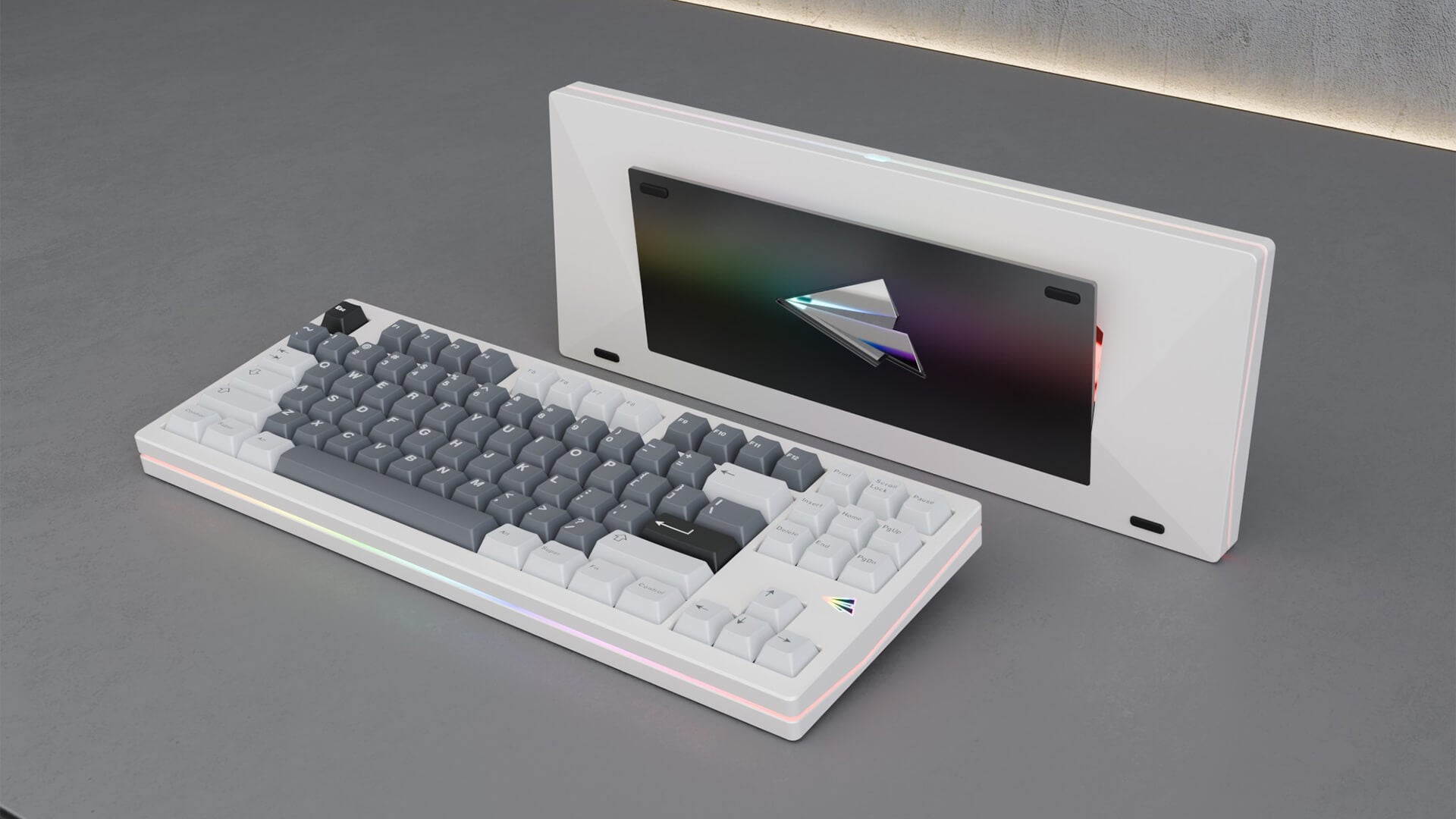

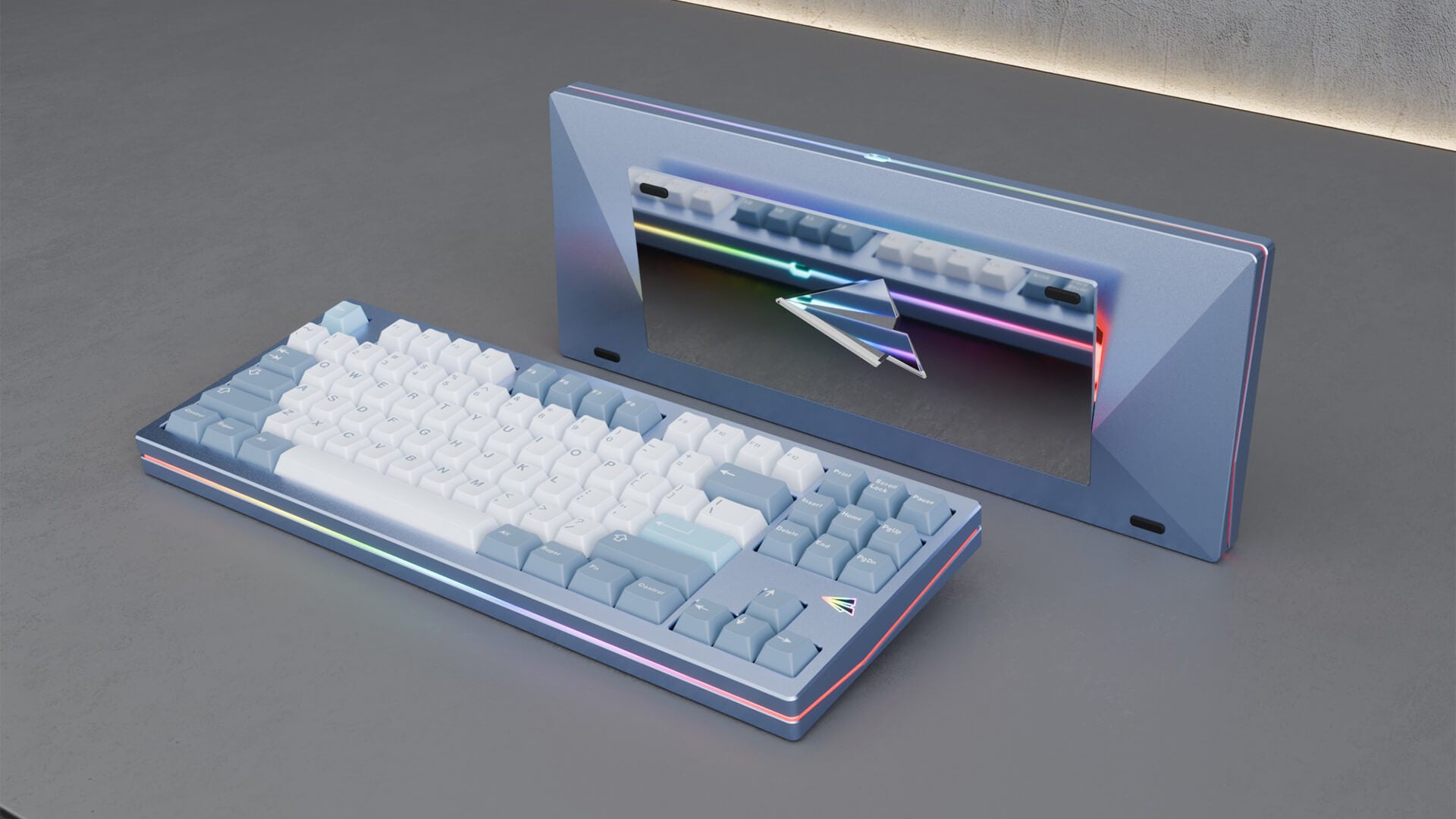

Paper Plane External Weight Logo

A secondary stainless steel weight in the shape of a paper plane sits on the base stainless steel external weight. The design of both weights give an illusion of a 3D effect.

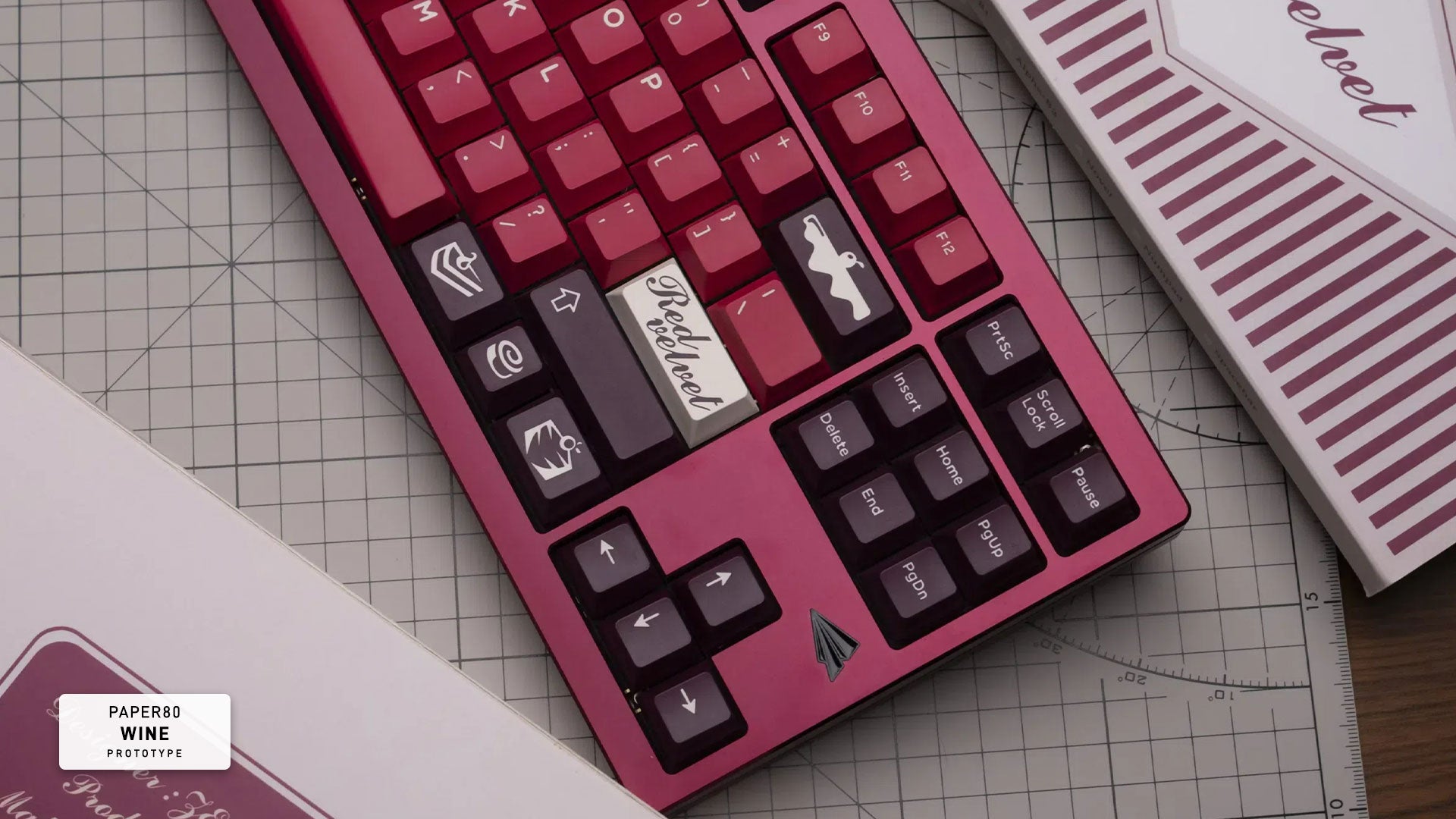

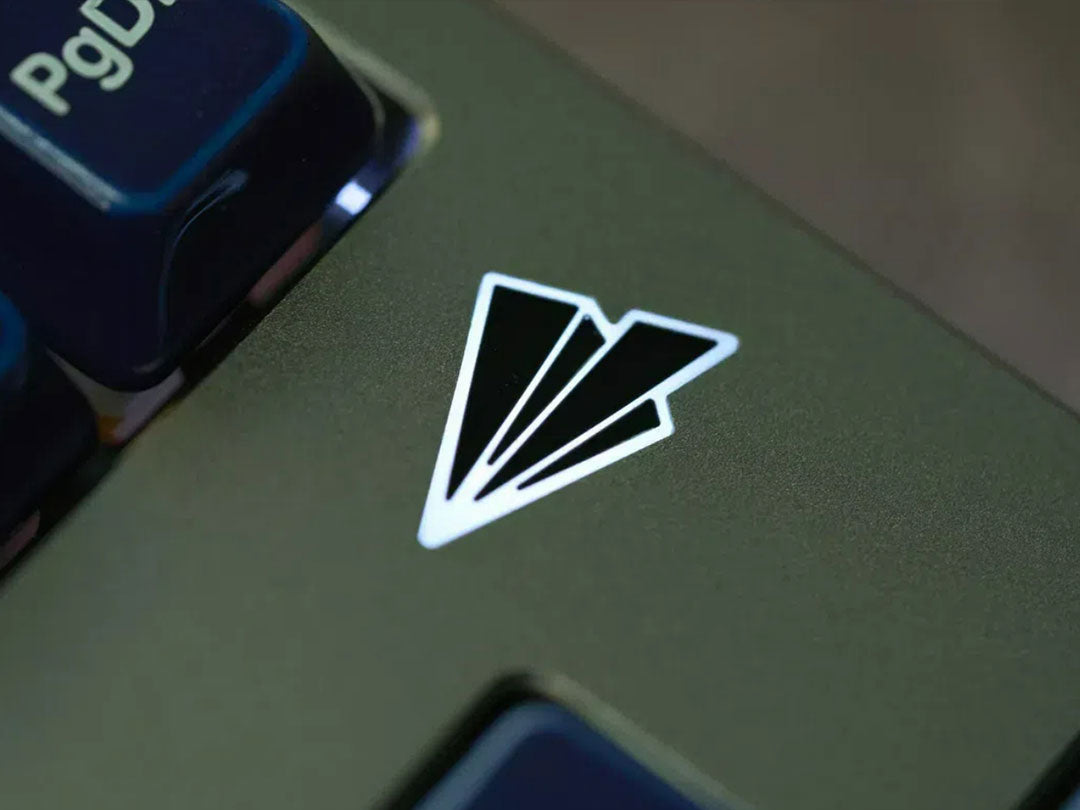

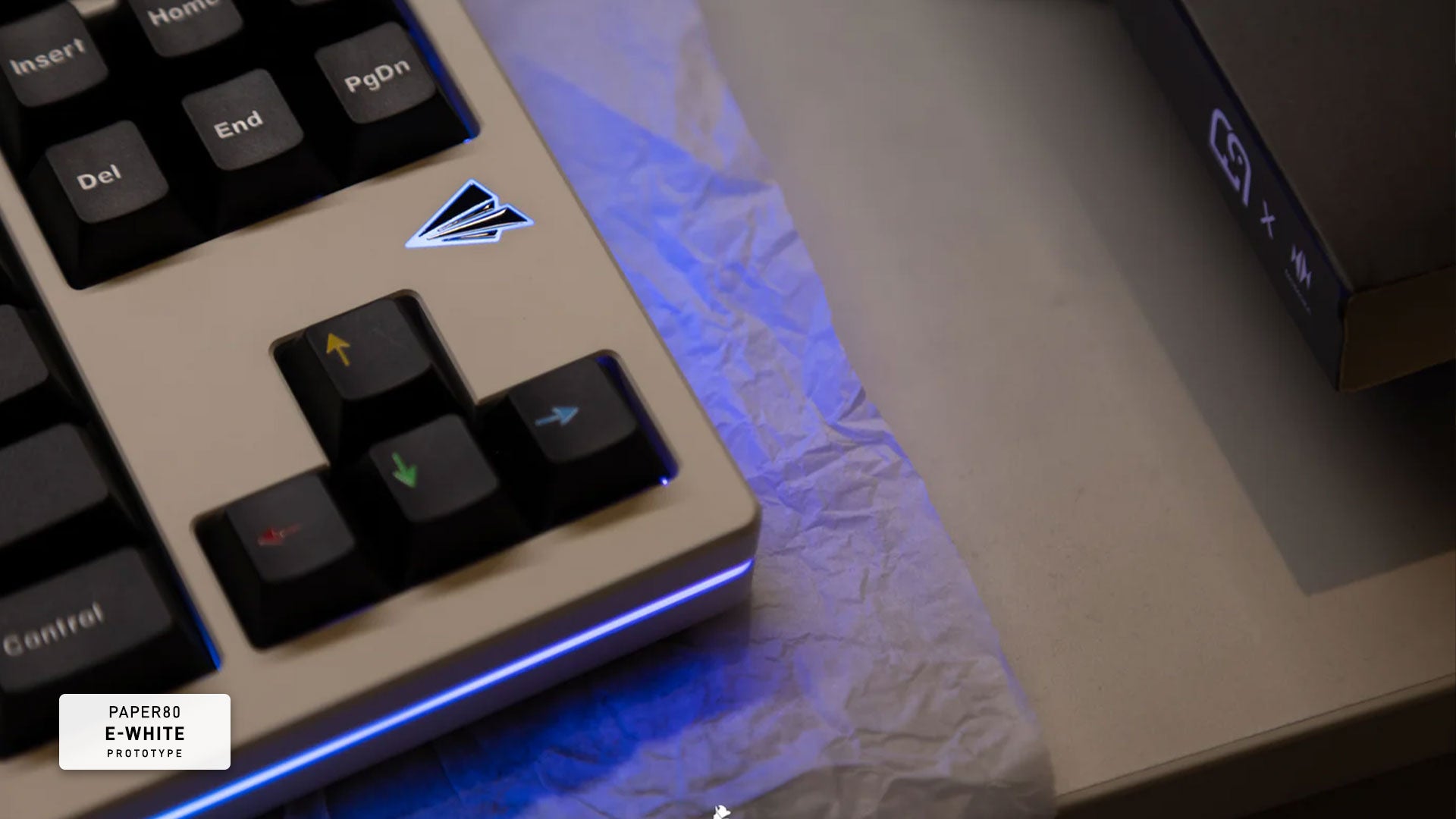

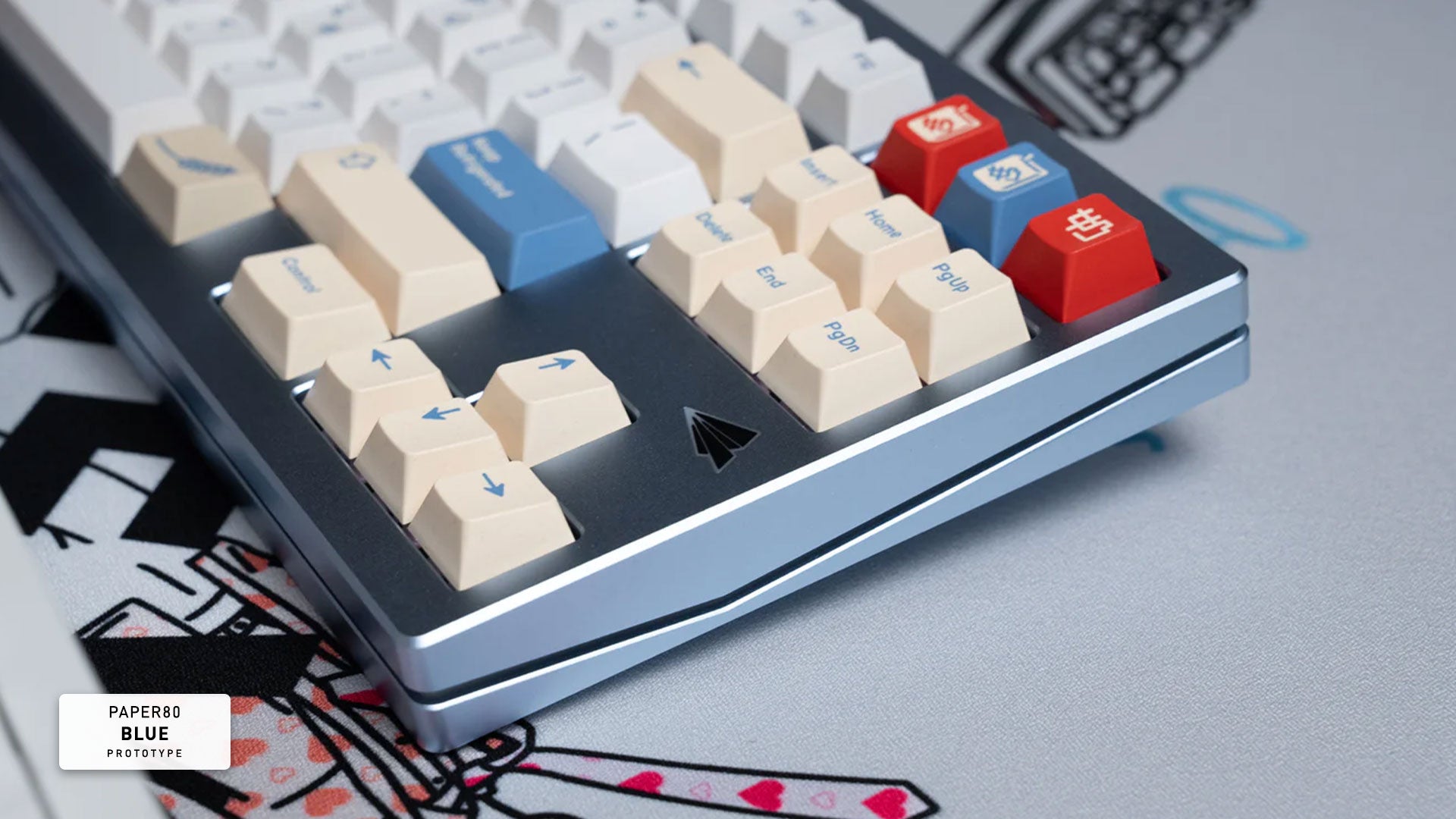

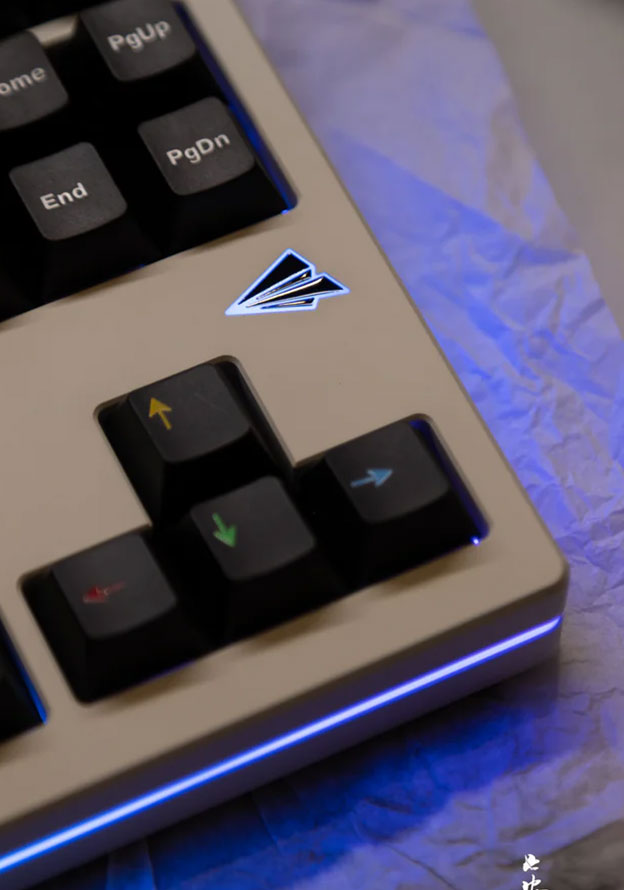

Paper Plane LED Diffuser

An LED diffuser in the shape of a paper airplane sits above the arrow cluster. Created from just four triangles, the LED colors illuminating this paper plane can be customized in VIA

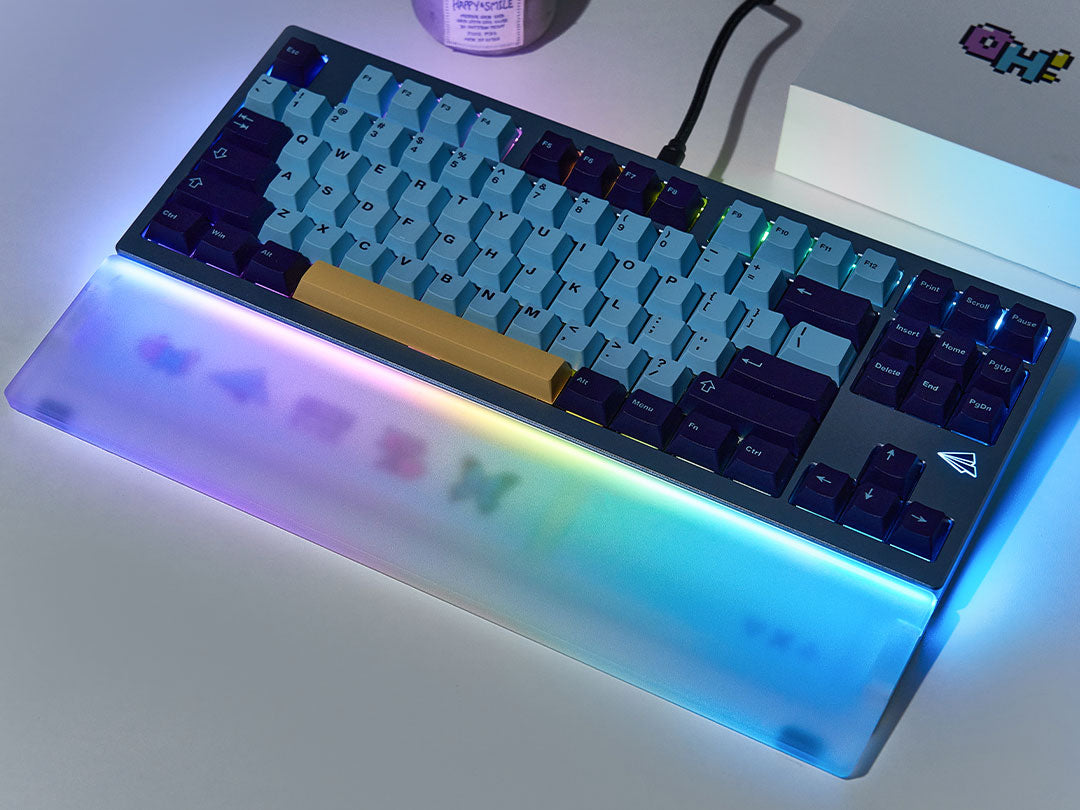

Matching Wrist Rest

A gorgeous wrist rest, made of frosted Polycarbonate and Aluminum is sold separately alongside the keyboard kit. When lined up, the mid-case fold light of the keyboard lights up the wrist rest too with a soft, beautiful glow!

Lock-hole Gasket Mount

Instead of a traditional gasket mounting system, Paper80 uses a new system that strikes a balance between maximizing internal space and offering a consistent typefeel by reducing vibrations as much as possible. The designers created a typing experience that provides adequate feedback and bounce without being overly soft.

AFP (Anti-fingerprint) finish

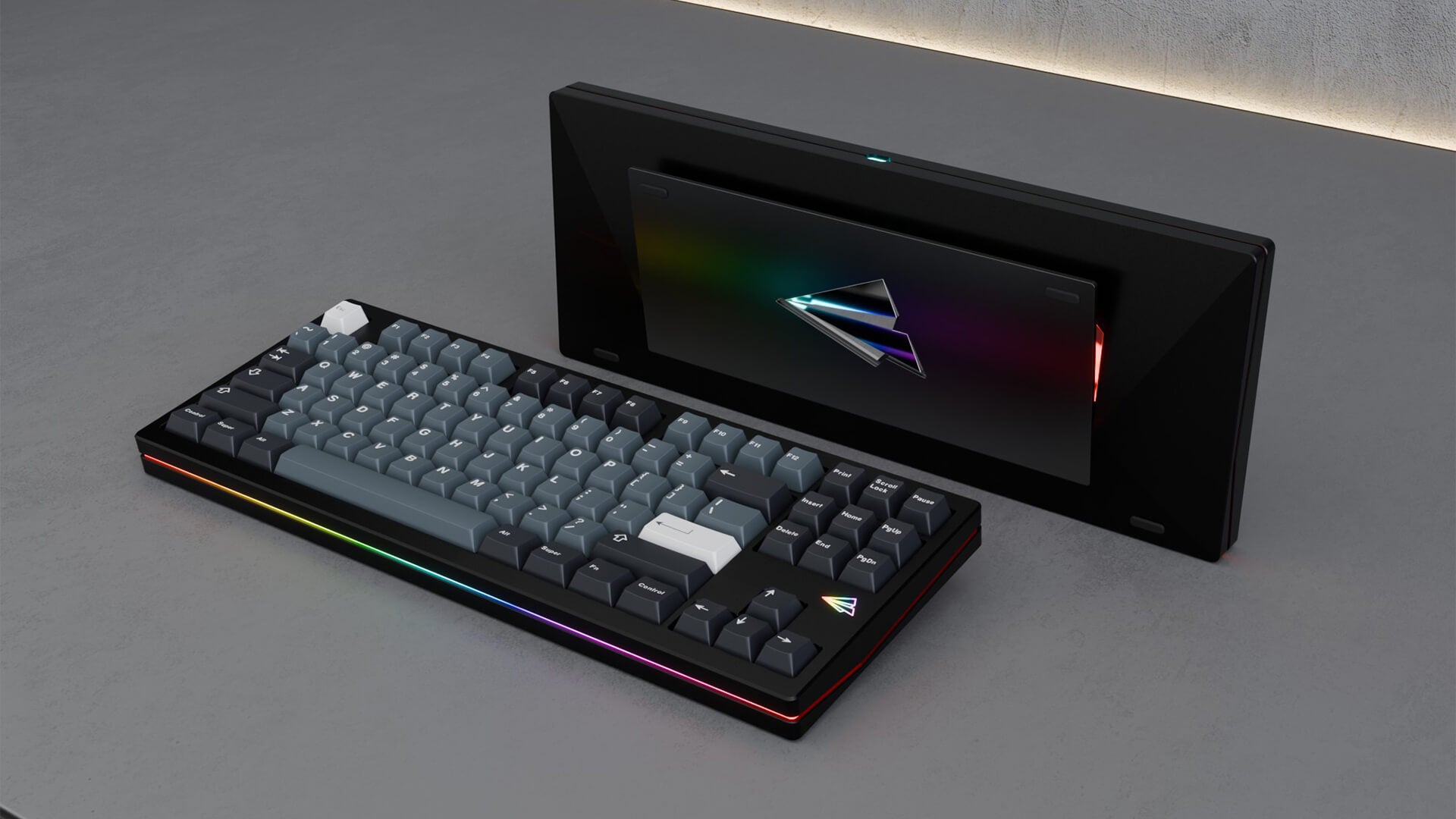

Each keyboard kit can be ordered with a base stainless steel external weight in PVD Mirror or AFP finish. The AFP finish is a durable, matte finish that helps prevent fingerprint smudges and scratches. This finish offers a soft touch with a smooth, skin-like feel that's warm and comfortable.

The DEtails

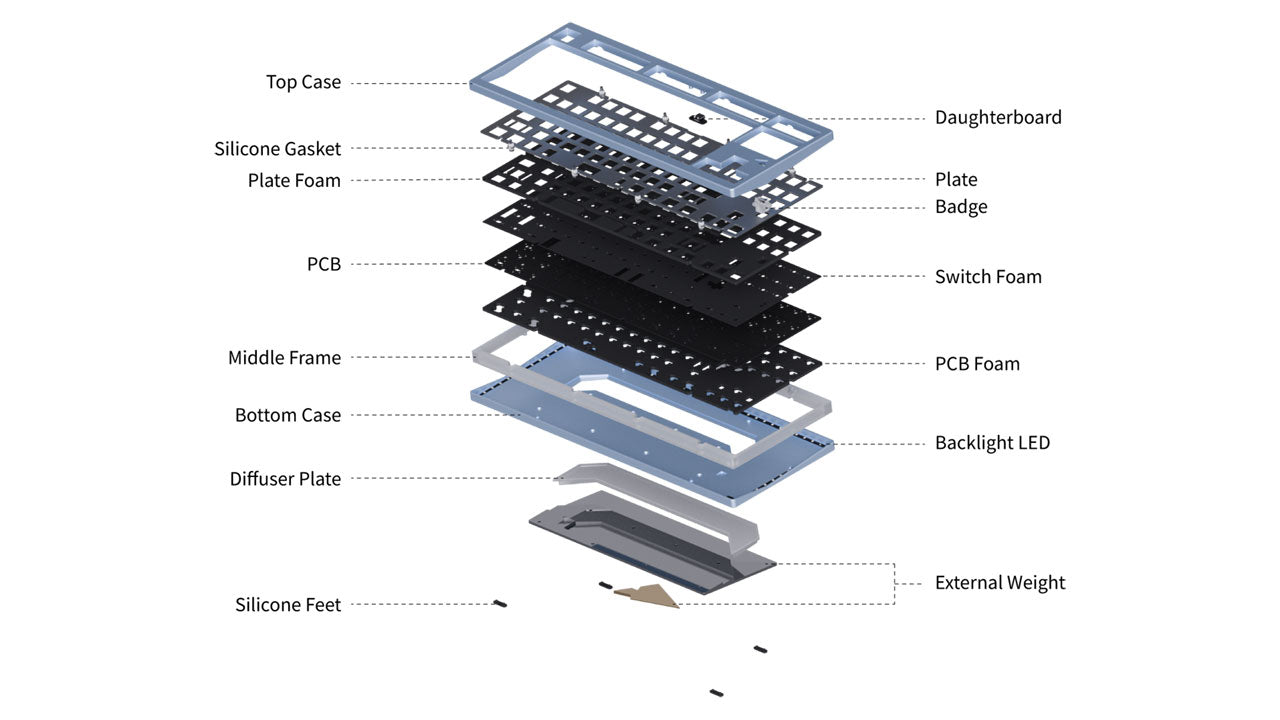

Kit Contents

- Aluminum top case

- Aluminum bottom case

- Acrylic middle frame

- Acrylic diffuser plate

- Acrylic badge

- Stainless steel external base weight

- Stainless steel Airplane weight

- 1.6mm, Non-flexcut PCB

- Daughterboard + cable x1

- Backlight LED + cable x1

- Plate

- Plate foam

- Switch foam

- PCB foam

- Silicone feet

- Screws & gasket silicone plugs

Keycaps, switches, stabilizers and USB cable are not included. The matching wrist rest is sold separately.

Specifications

Layout

80%

Case Material

Aluminum

Mid-case Material

Acrylic

Weight Material

Stainless Steel

Mounting Style

Lock-hole Gasket Mount

Typing Angle

7.5°

Front Height

20mm

Weight

About 2200g

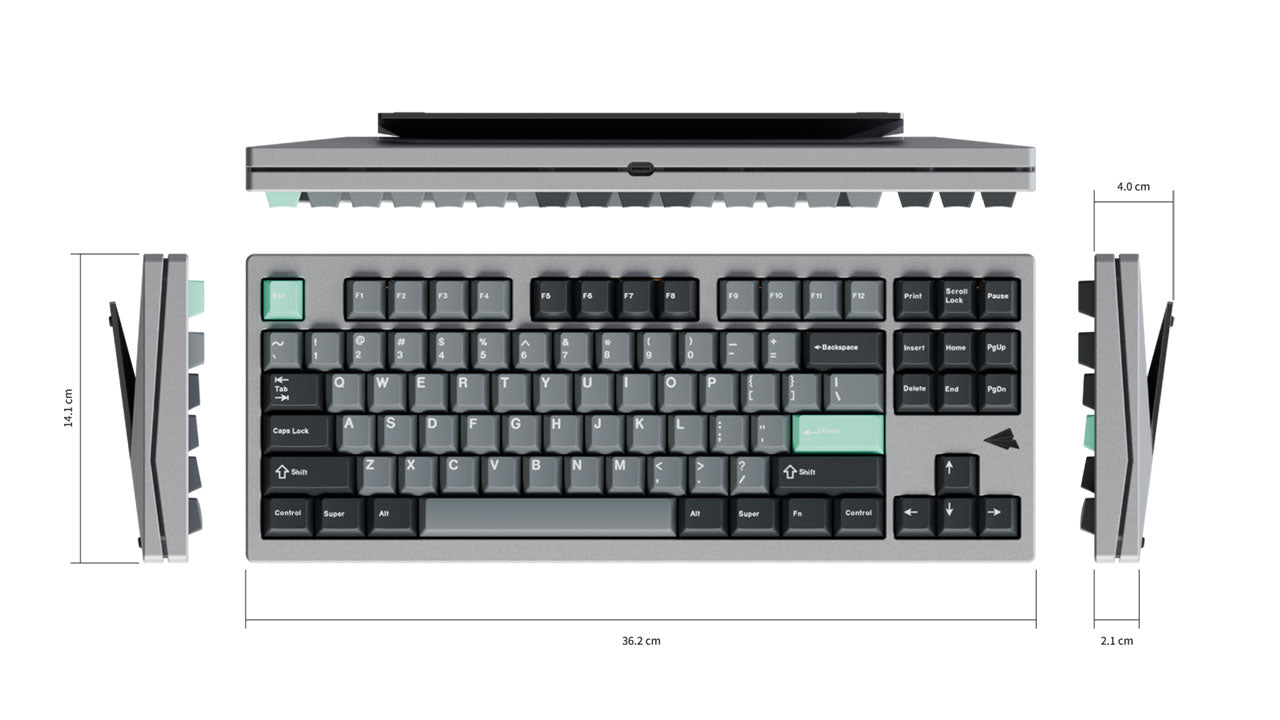

Dimensions

362 x 141 x 40mm

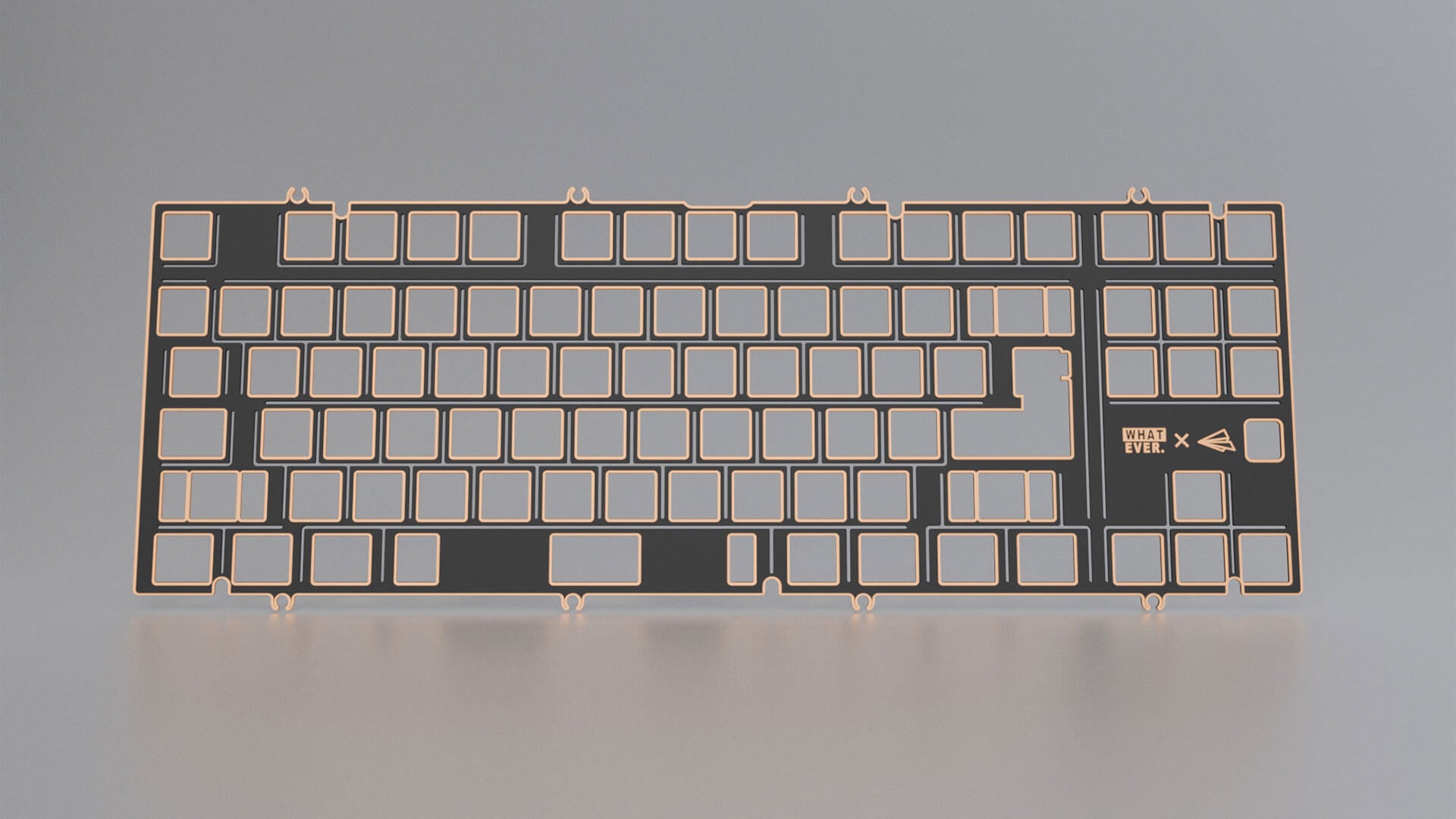

Default Plates

Polycarbonate (Non-flexcut)

Aluminum (Non-flexcut)

Case Finish

Anodized

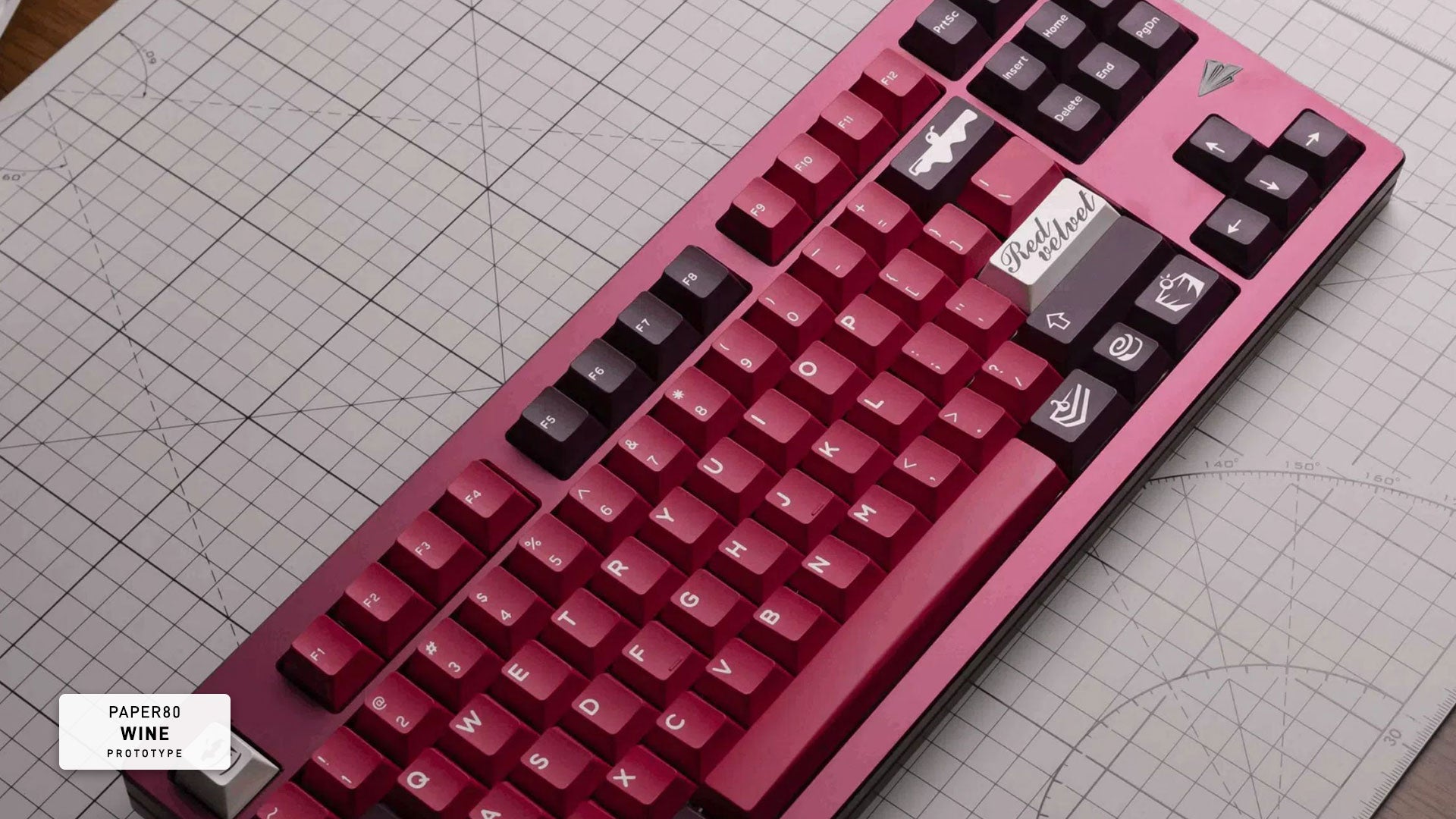

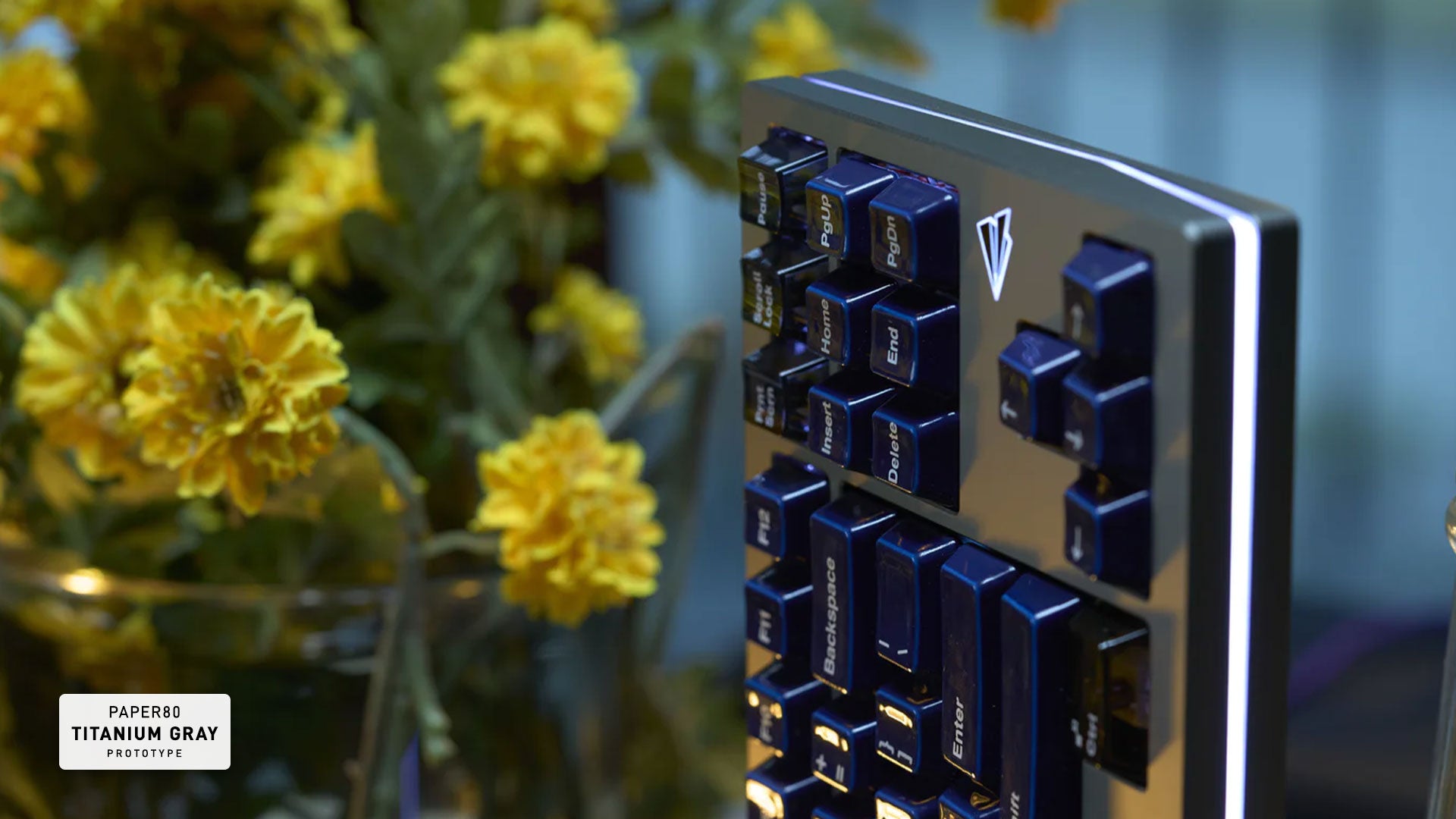

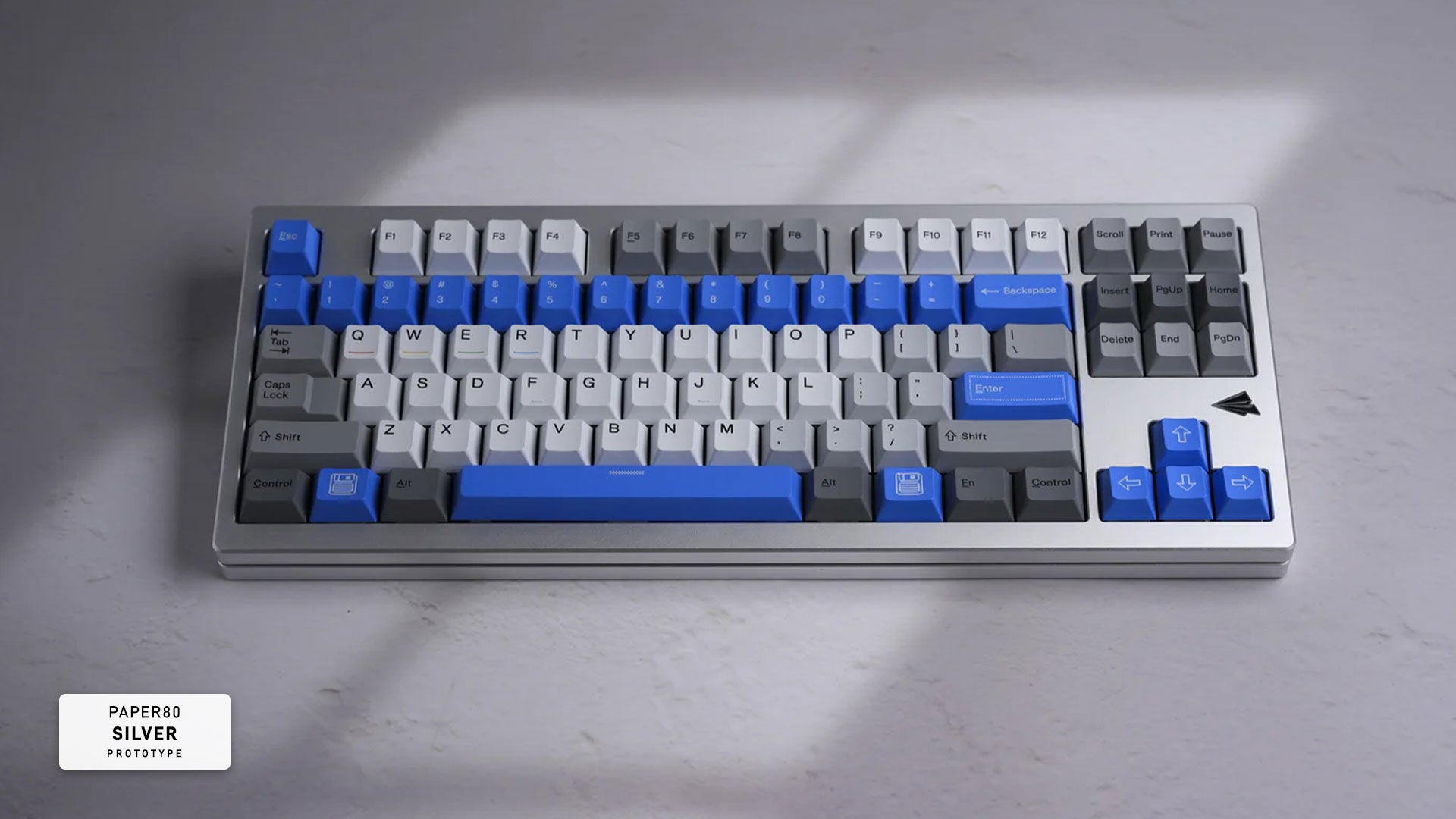

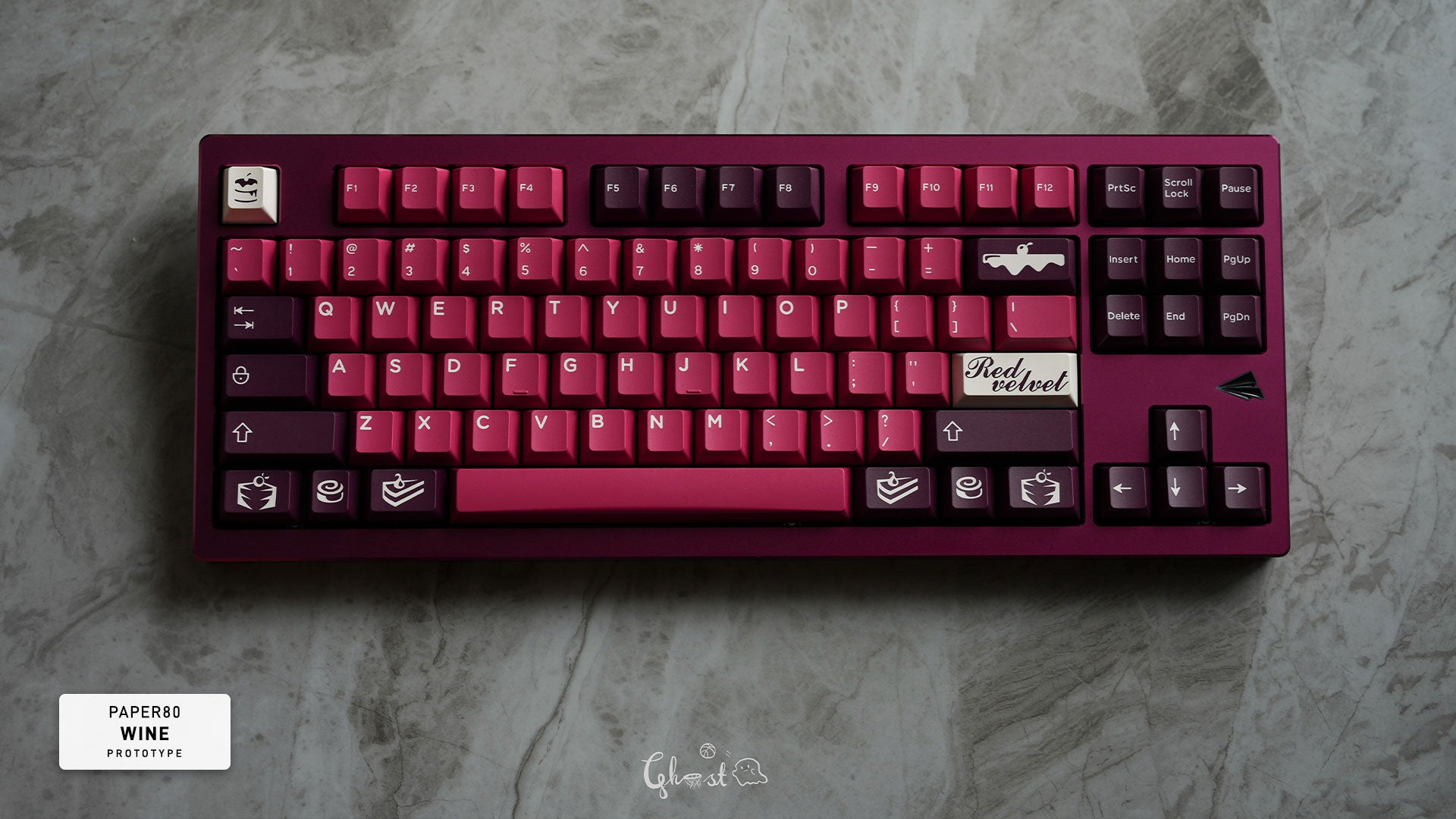

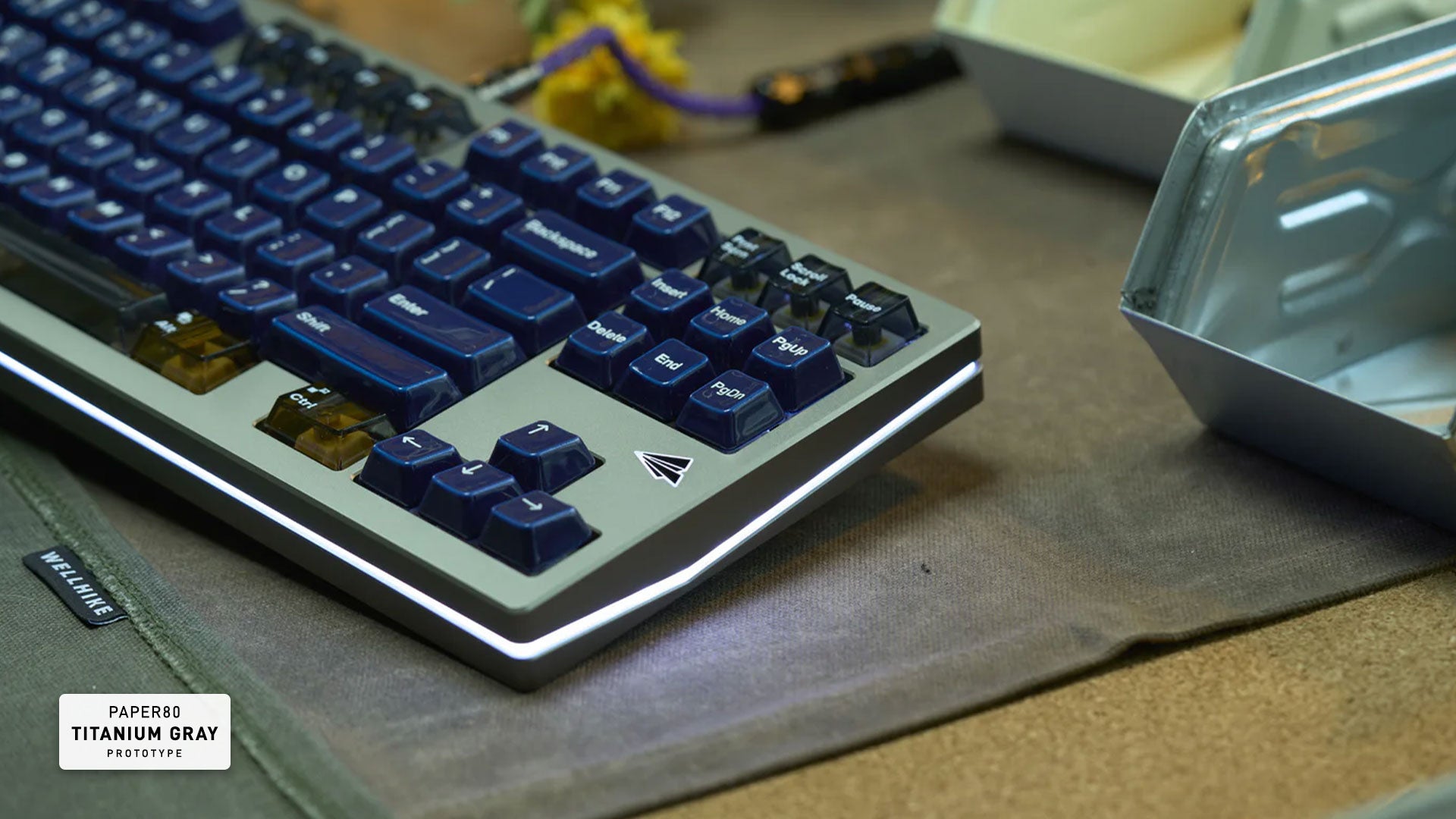

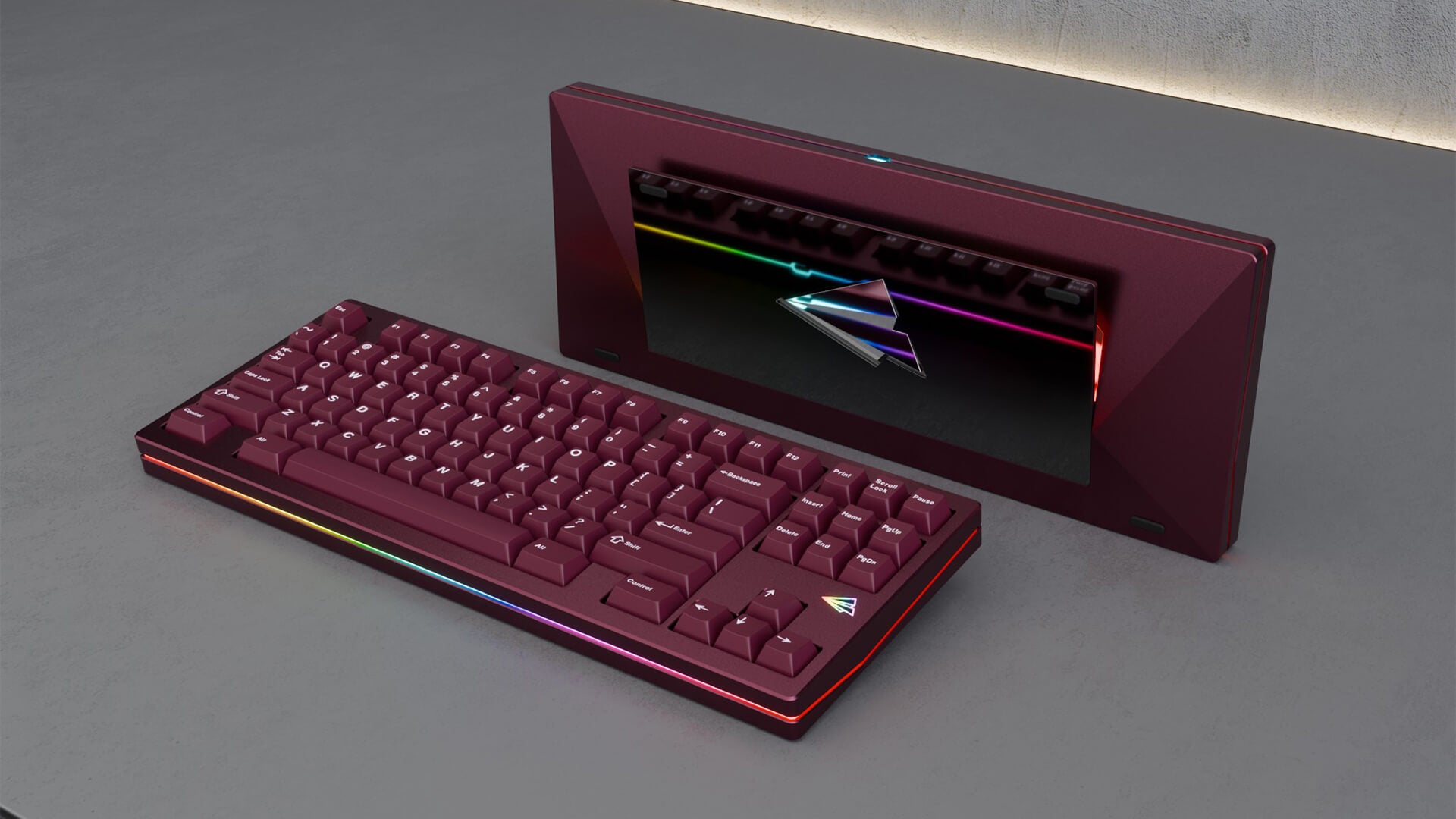

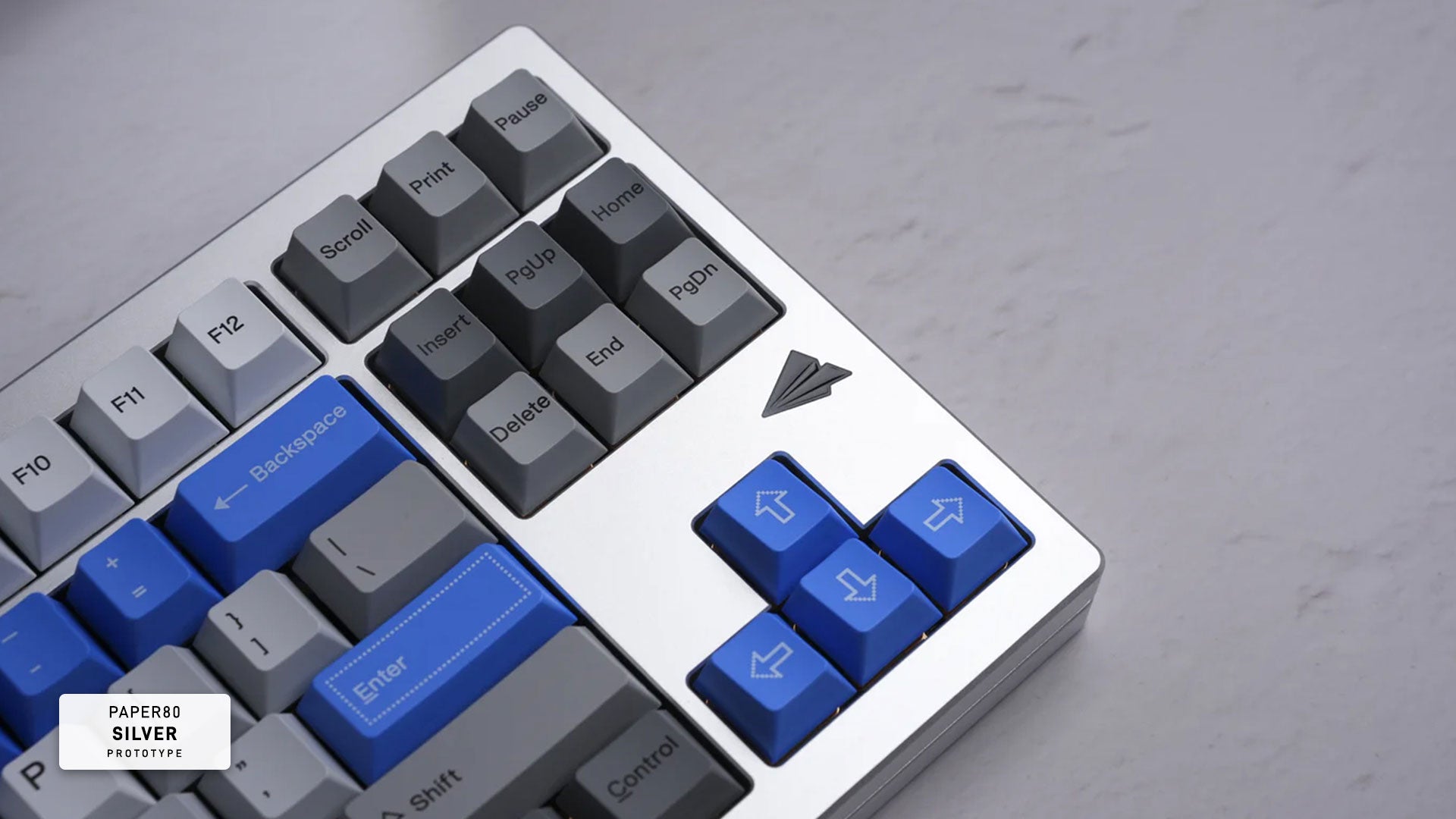

Black, Blue, Silver, Titanium Gray, Wine

Electro-phoresis

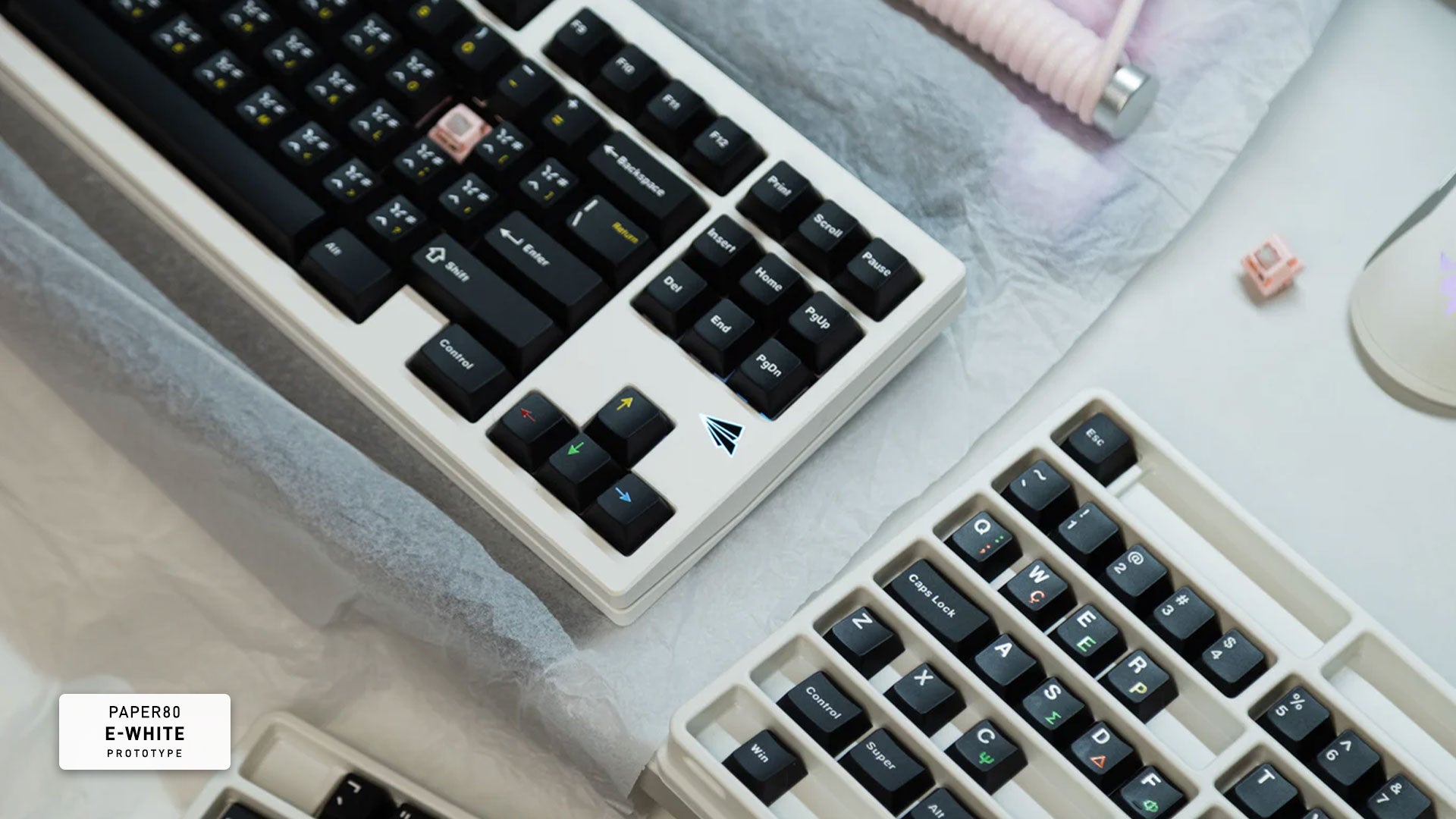

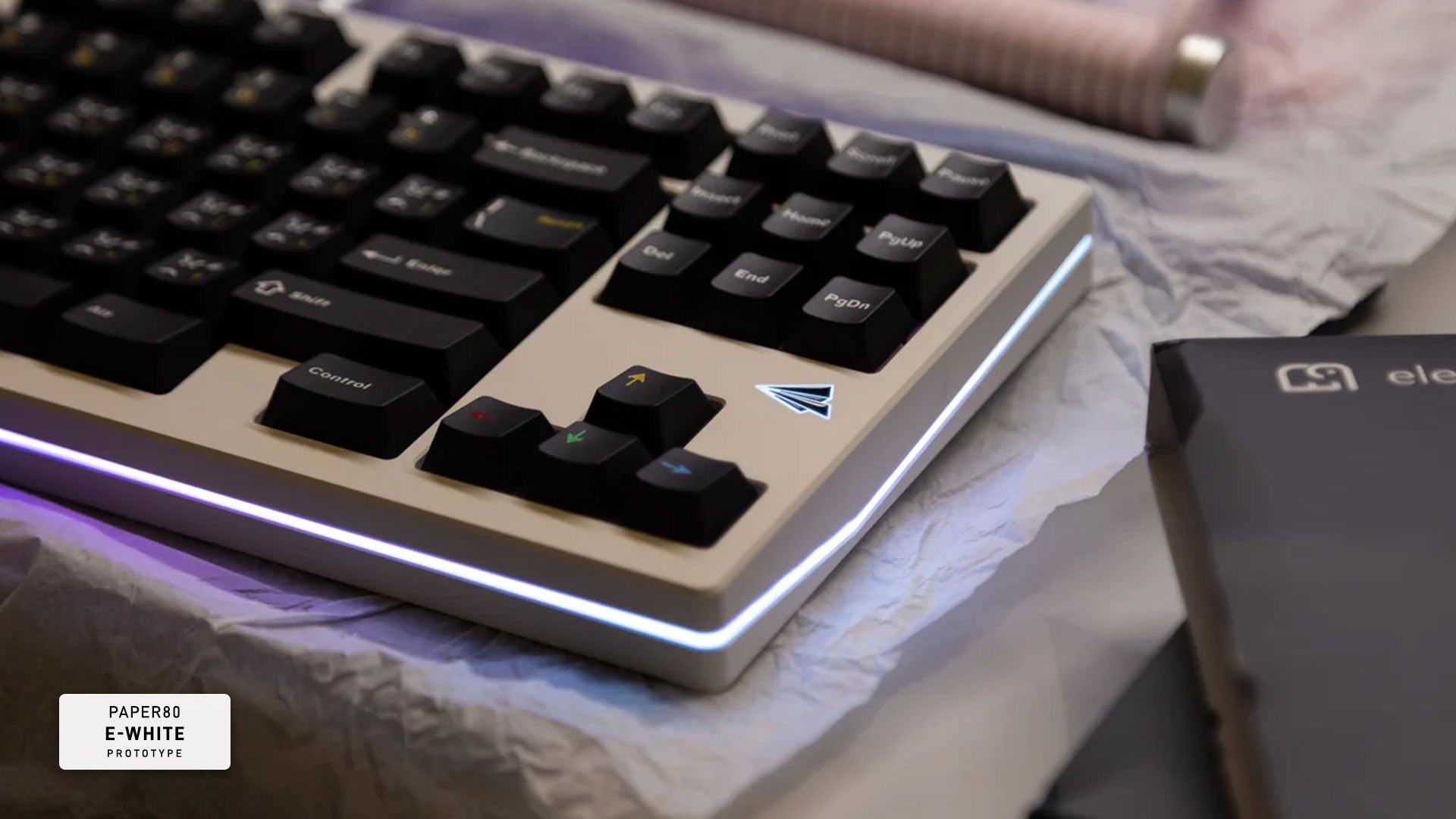

E-White, E-Milk Tea

PCB Specifications

PCBs

- 1.6mm, non-flexcut (default, included with each kit)

Connectivity

Wired only

Hot-swap

Yes

Layout Support

- ISO / ANSI

- Stepped / Normal Caps

- Split left Shift

- Standard bottom row (6.25u spacebar)

- Tsangan bottom row (7u spacebar)

Firmware / Software

QMK / VIA

Minimum Latency

0.98ms

Reliable Latency

5ms

Wrist Rest

Weight

700g

Dimensions

365 x 80 x 20mm

14.37 x 3.15 x 0.79in

Material

Aluminum & Polycarbonate

When lined up, the mid-case fold light of the keyboard lights up the wrist rest too with a soft, beautiful glow!

Disclaimer

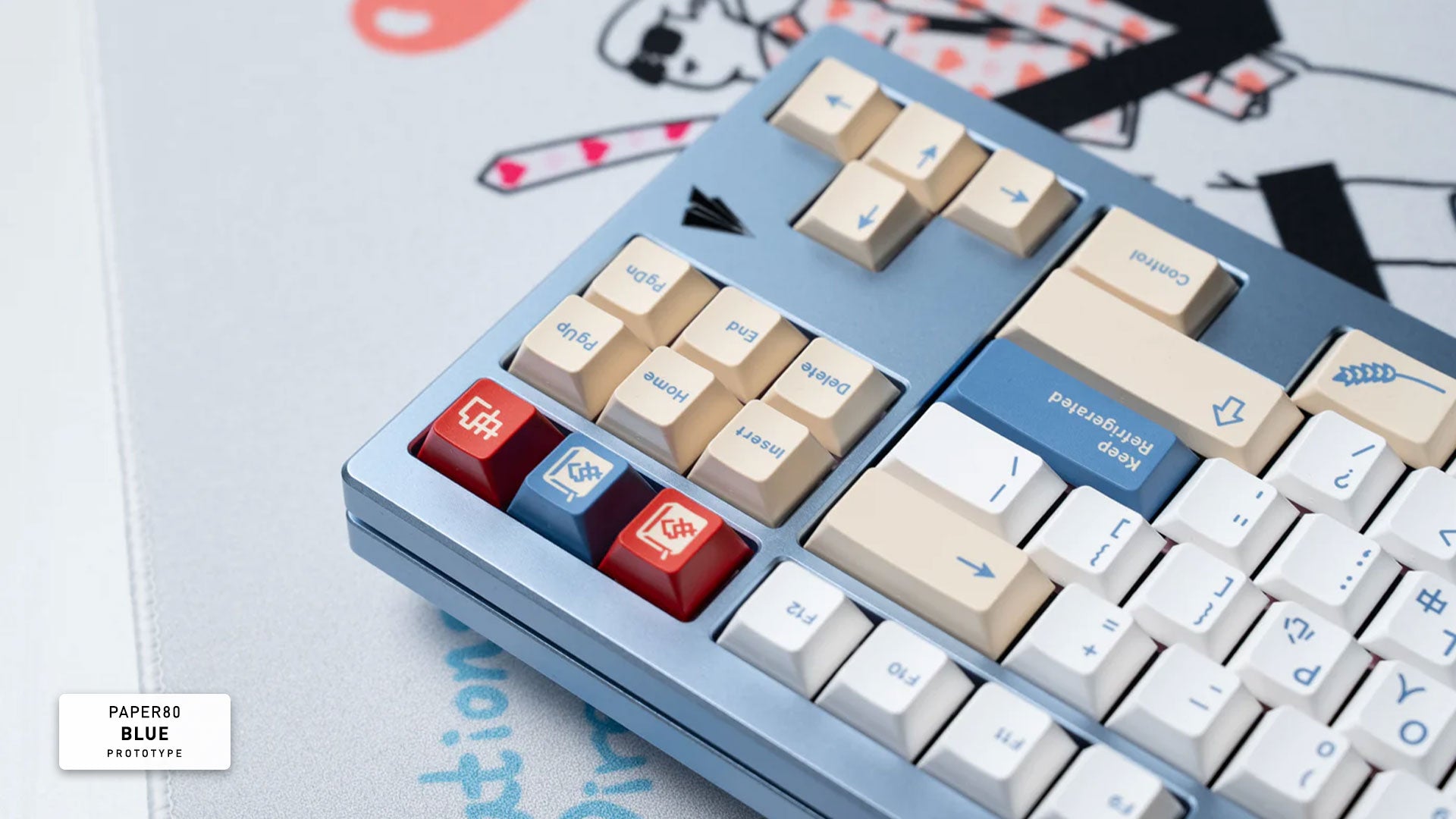

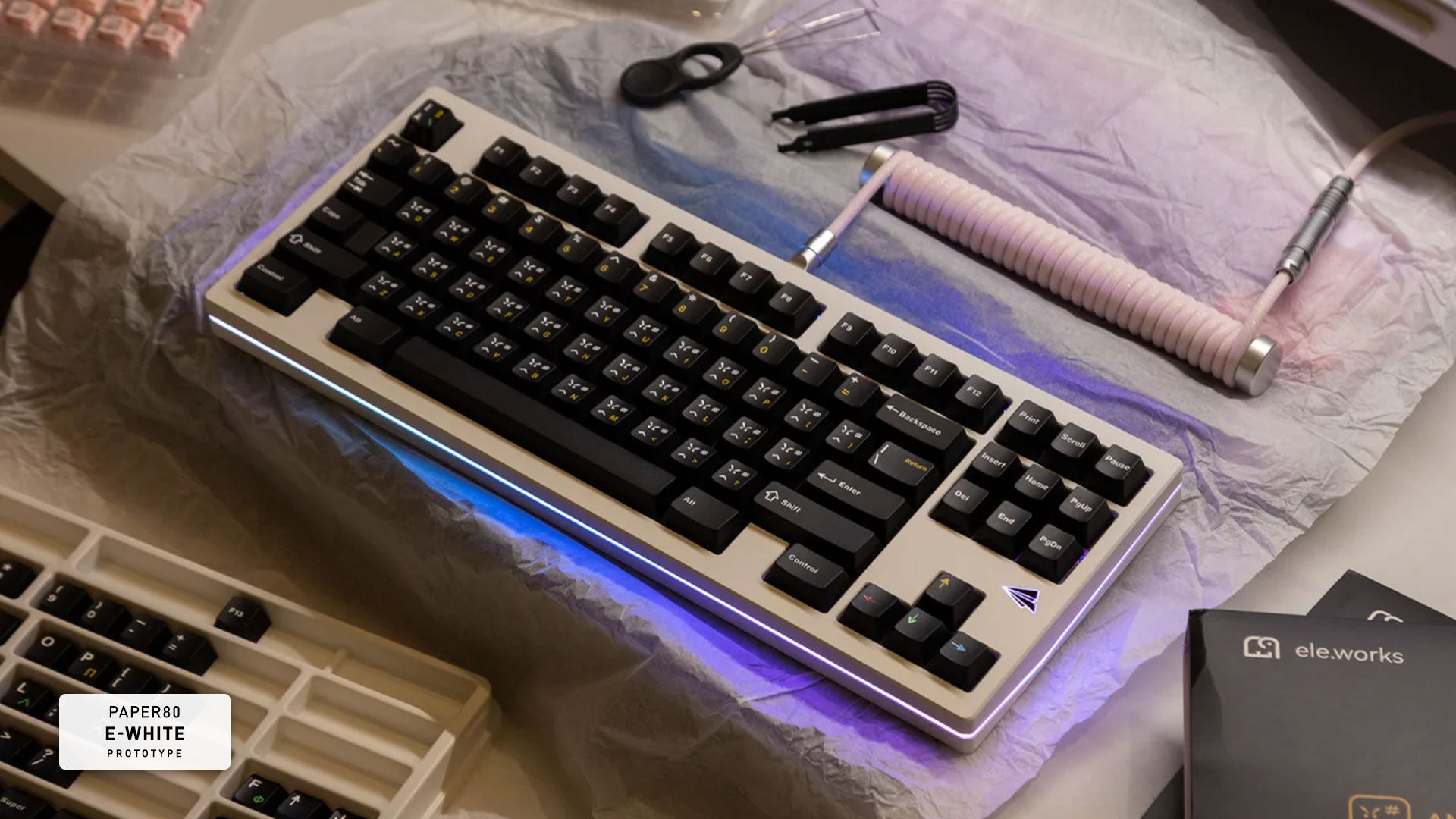

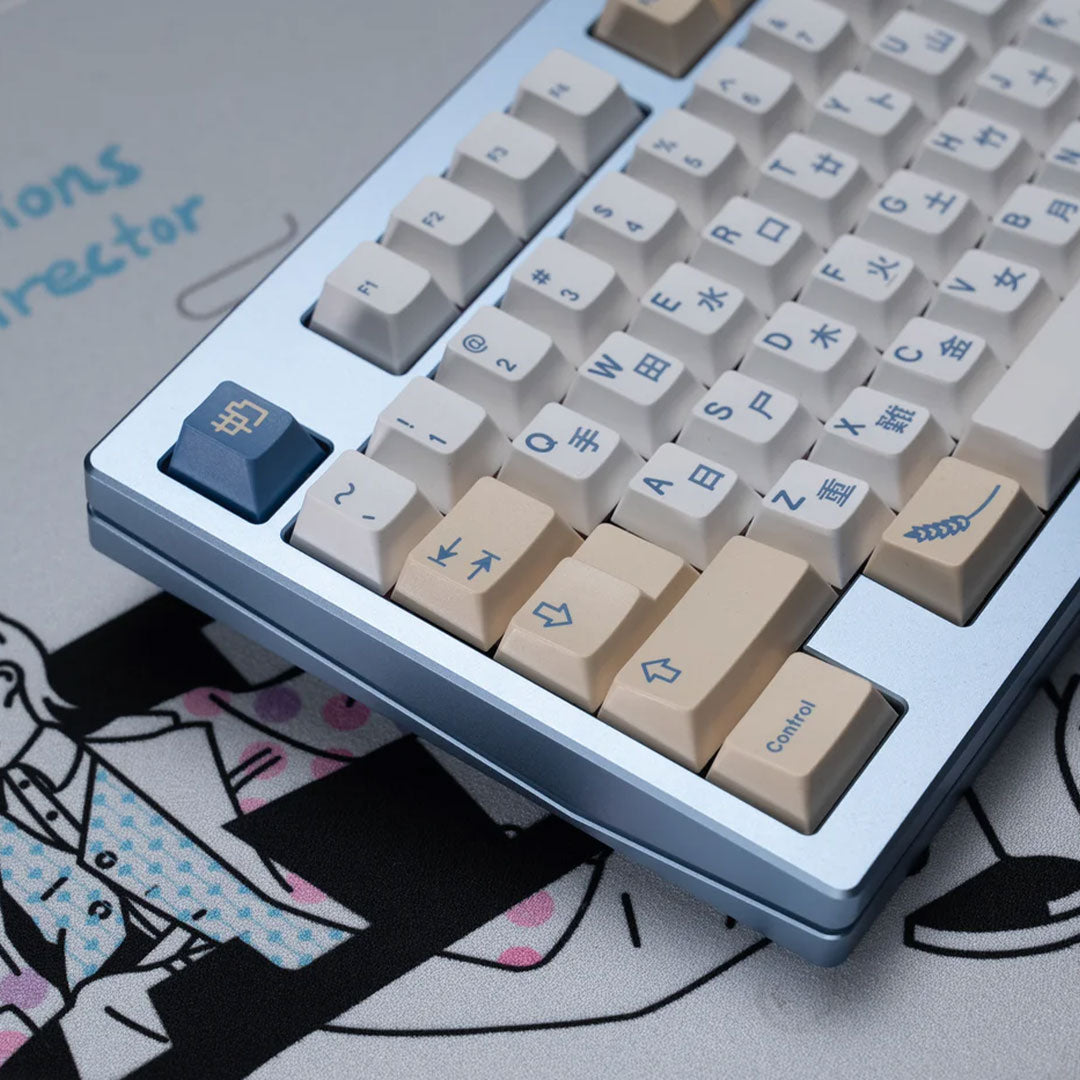

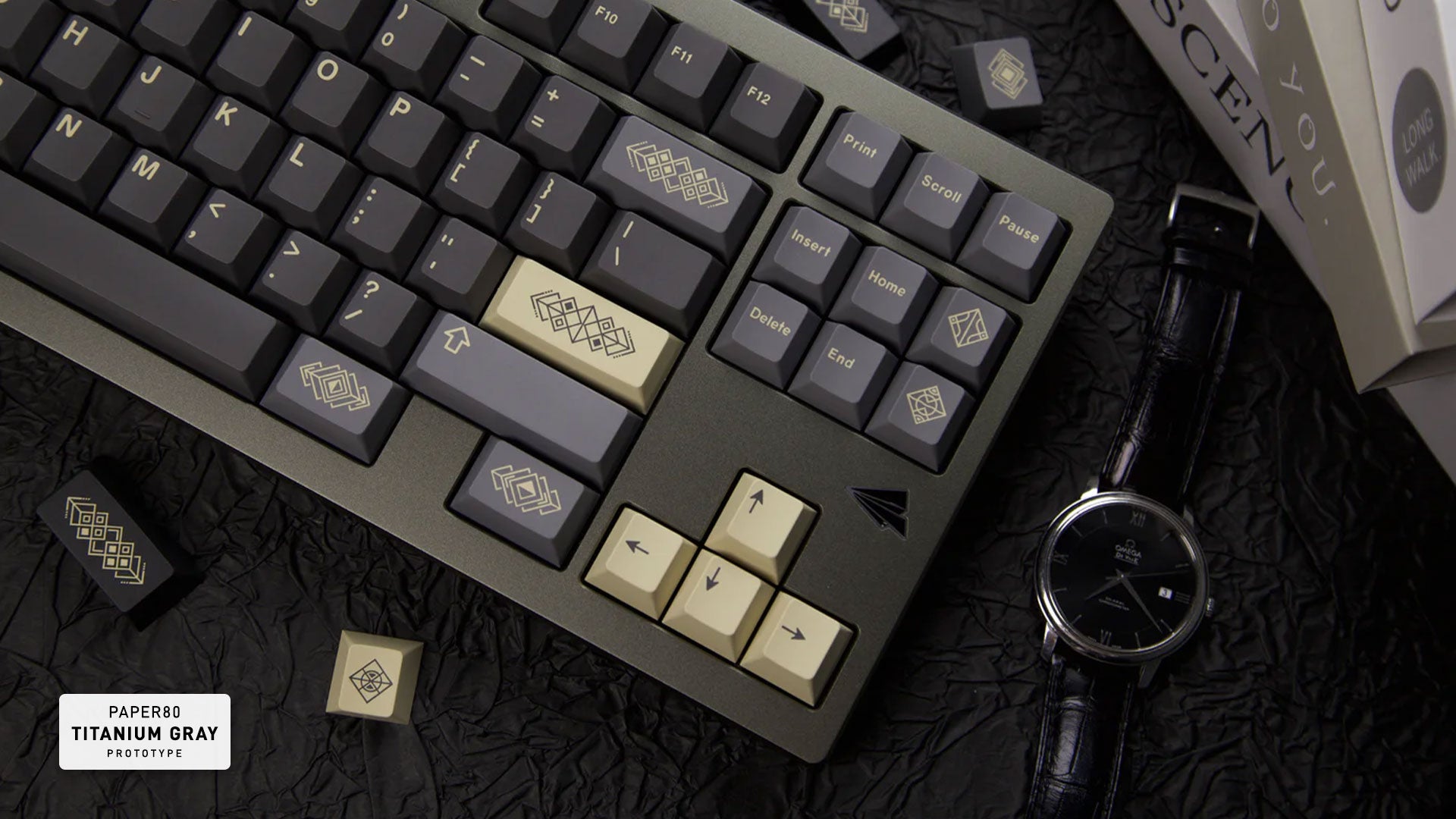

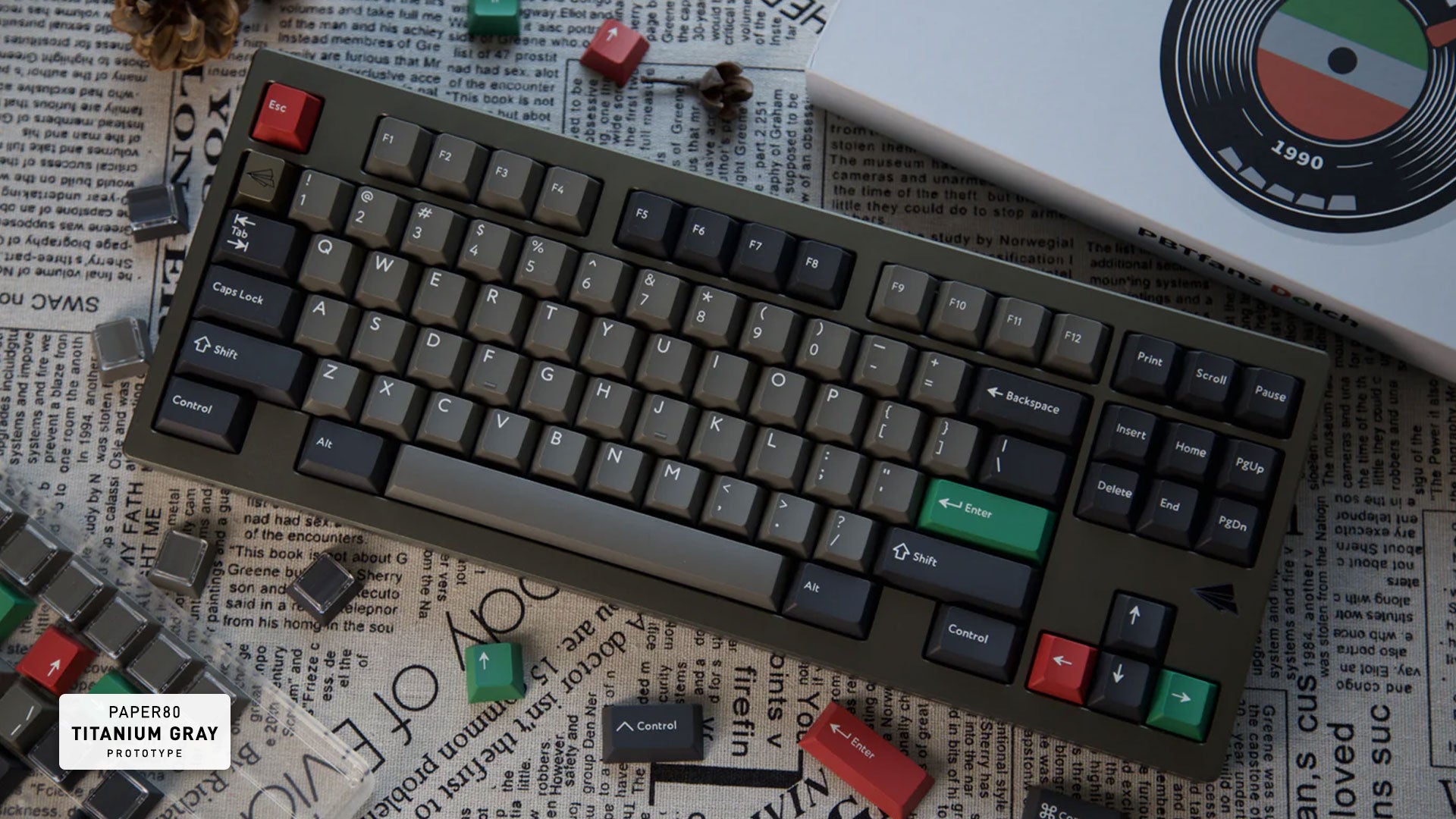

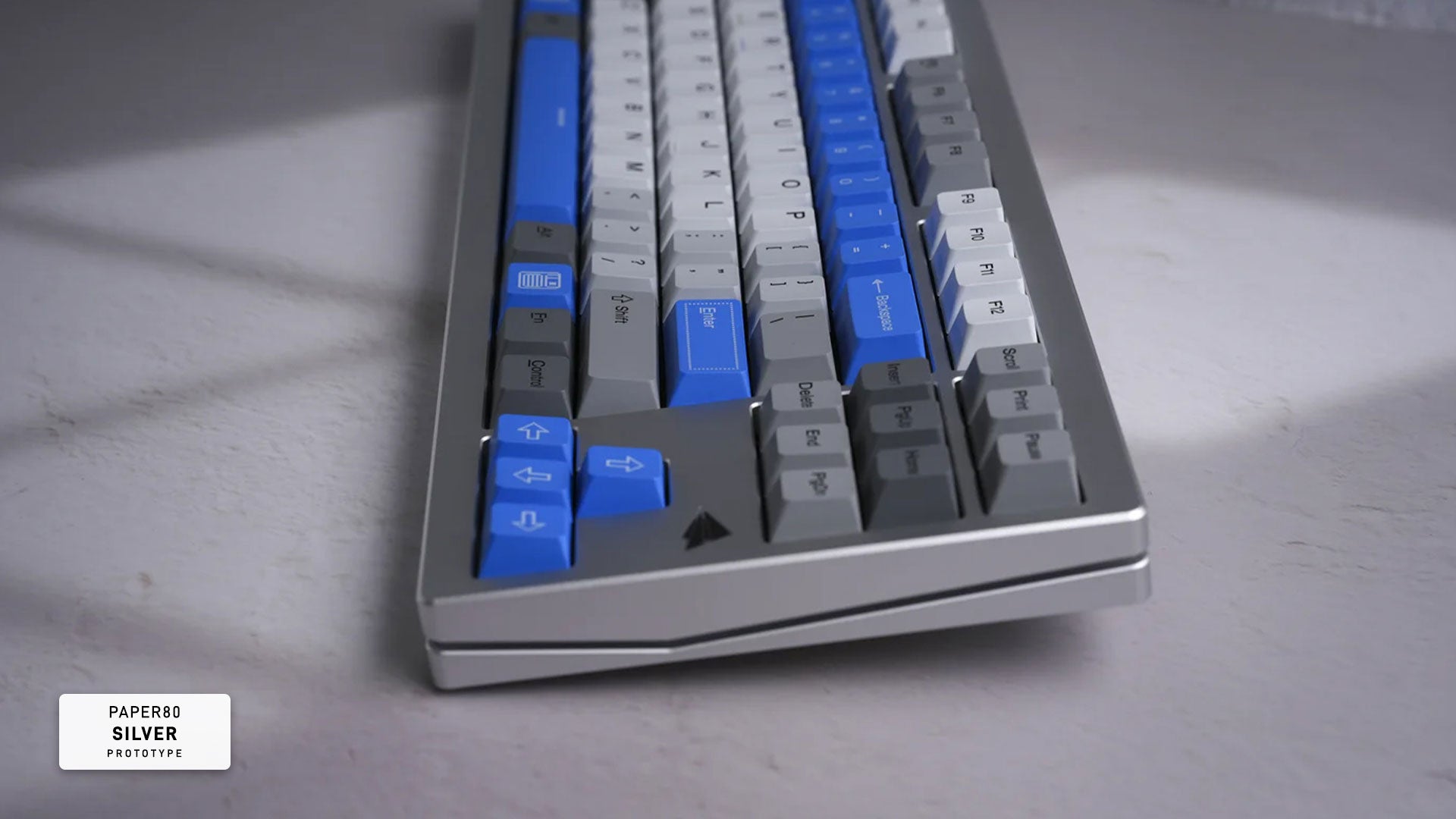

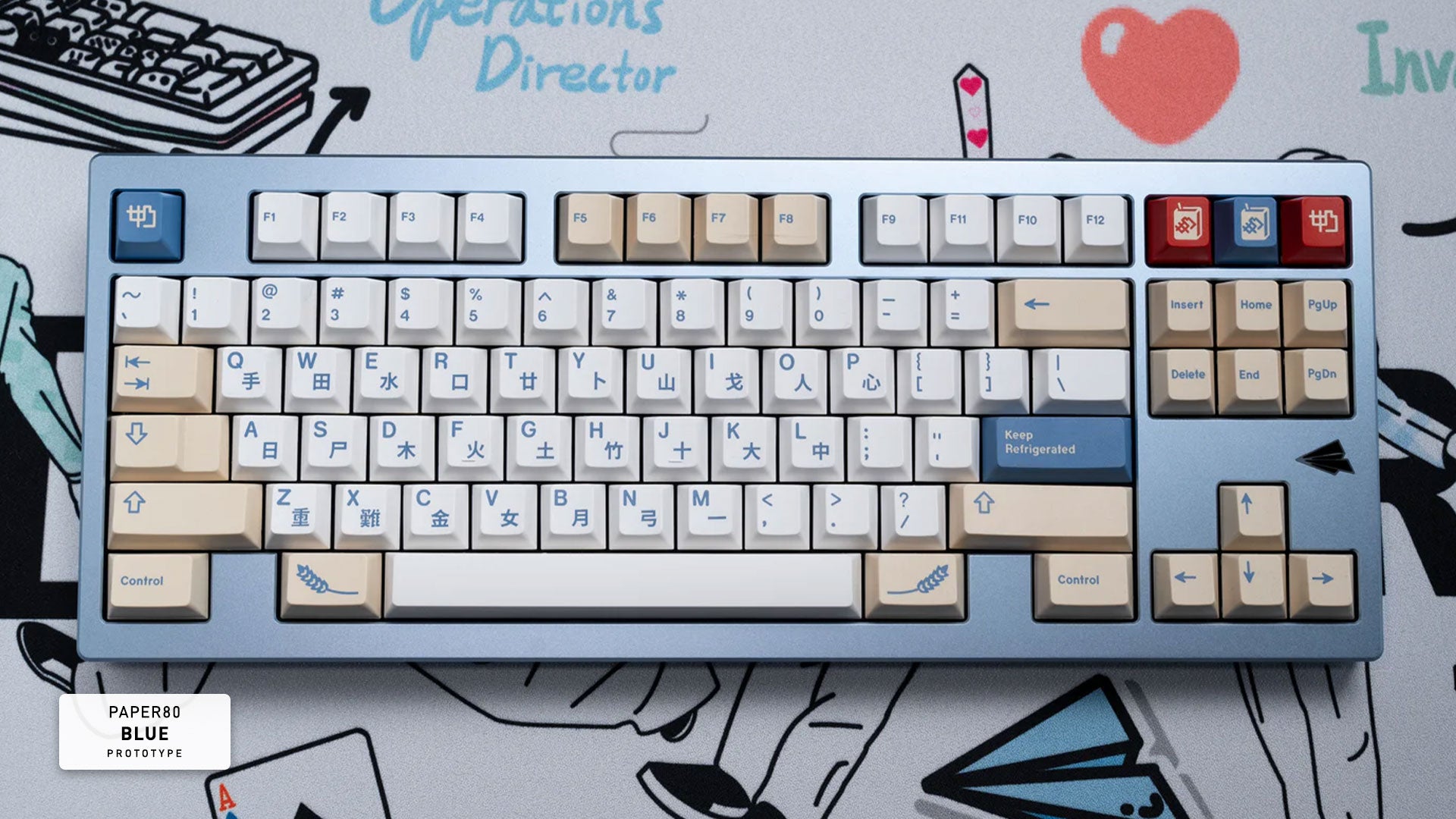

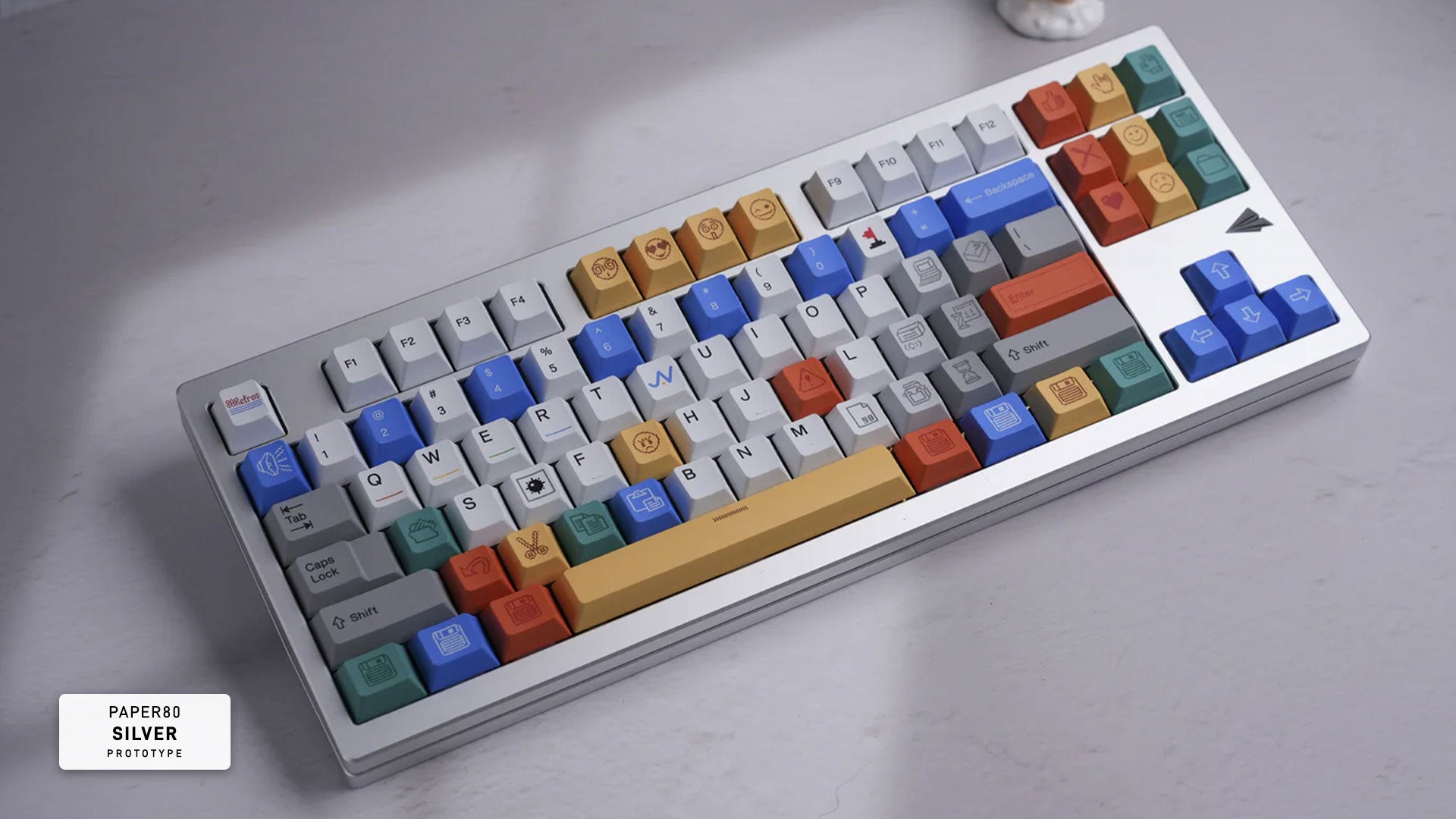

Many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototypes gallery below for reference before purchasing.
