Name: Zoom TKL Dyna
Brand: Meletrix
Price: 249.0 USD
Availability: InStock

Related Products

Zoom TKL Dyna

$249.00 USD

Product Page

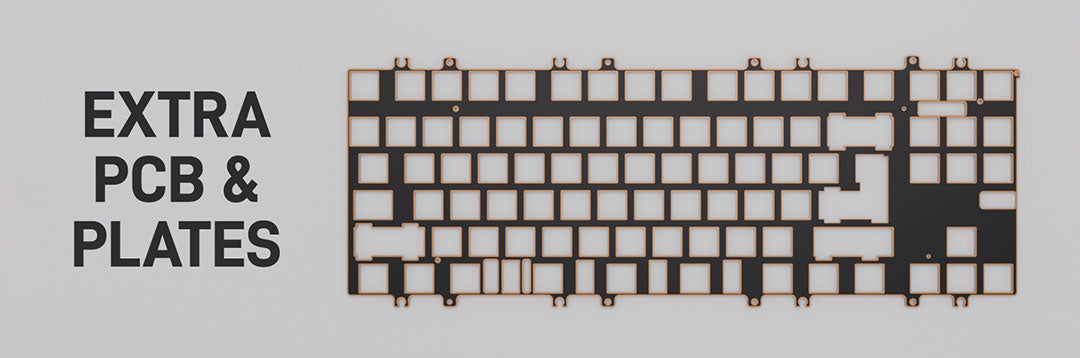

Zoom TKL Dyna - Add-ons

$20.00 USD

Product Page

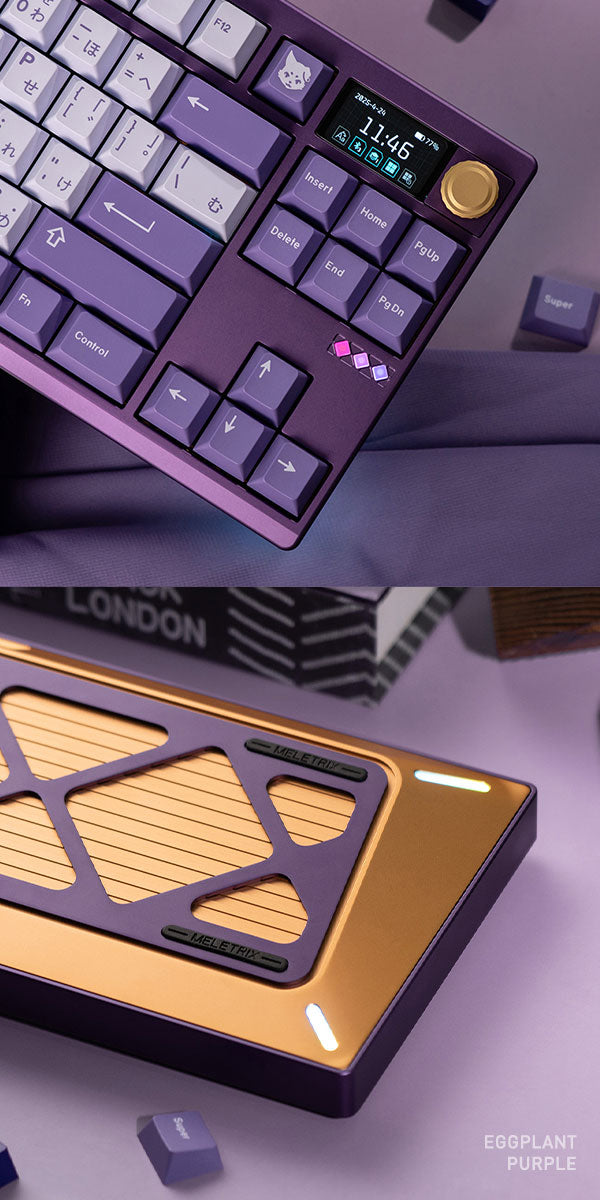

A new look

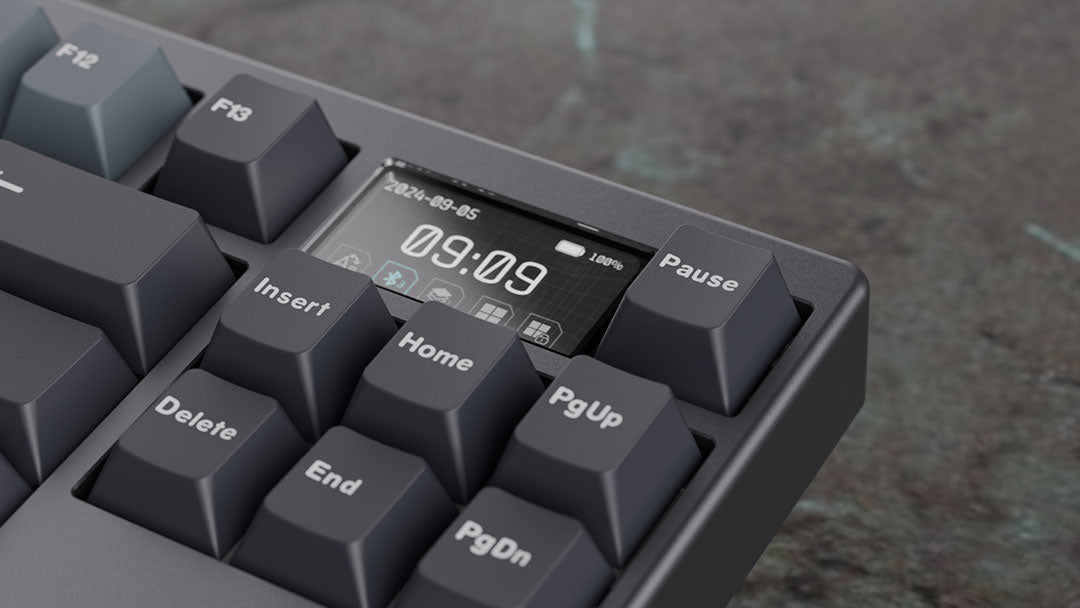

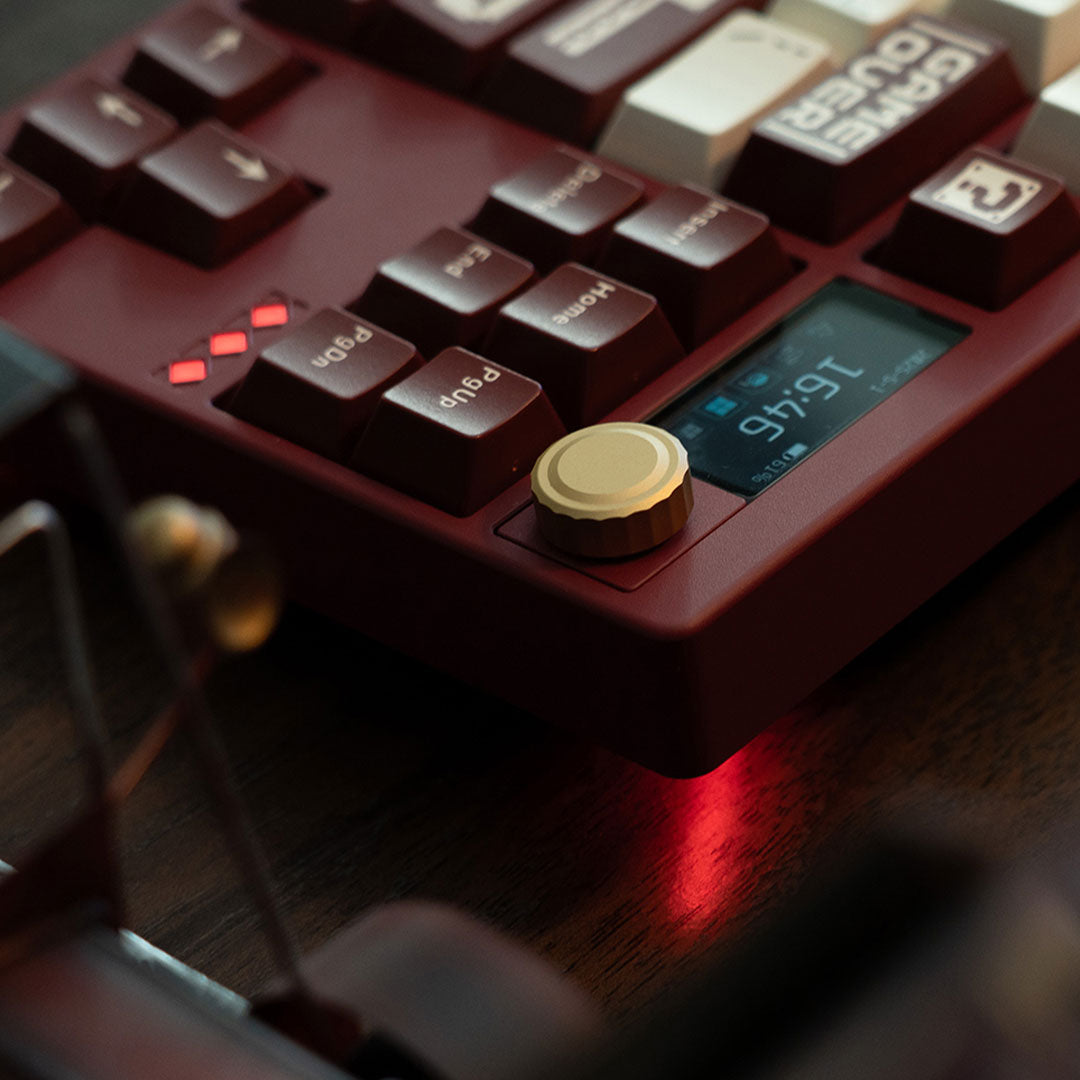

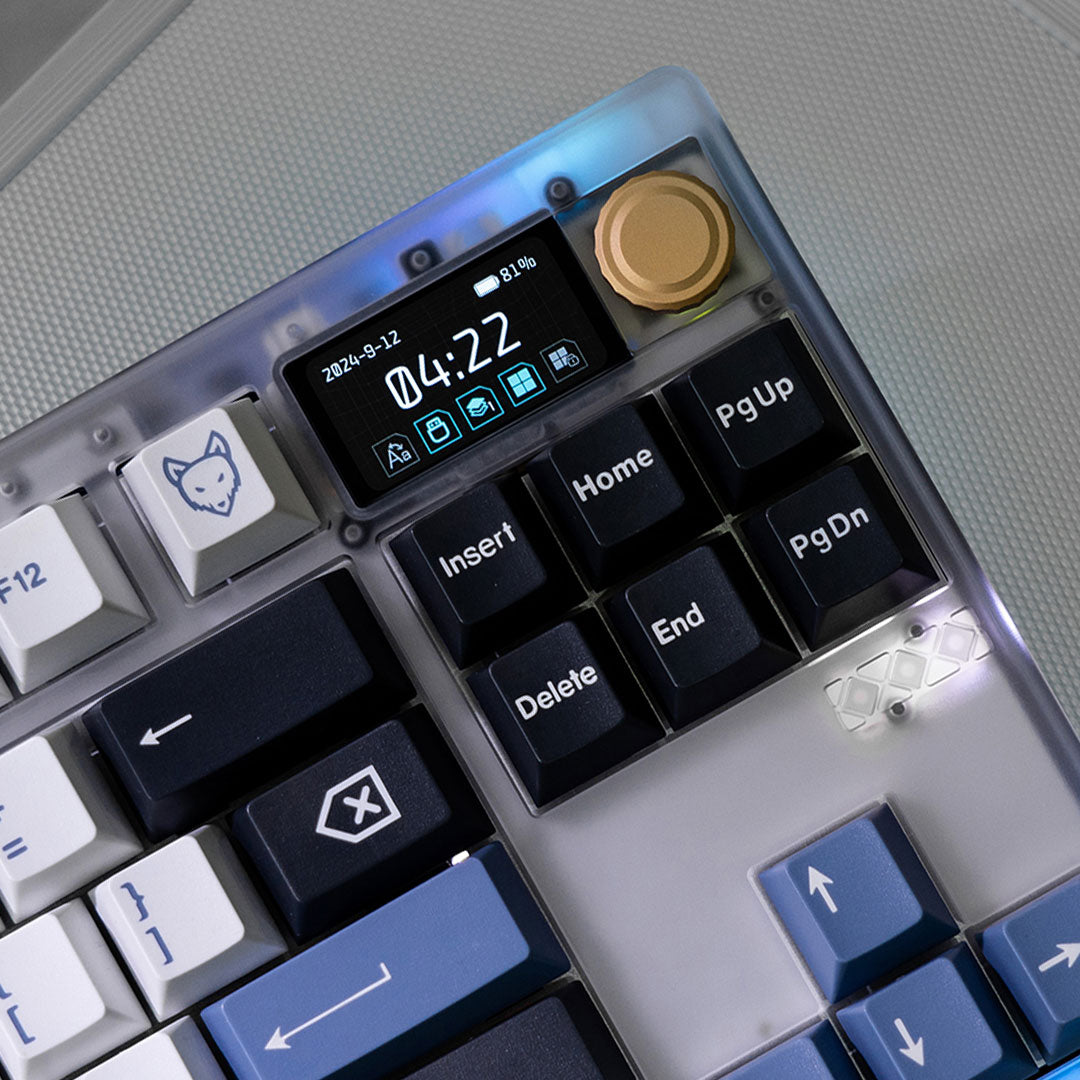

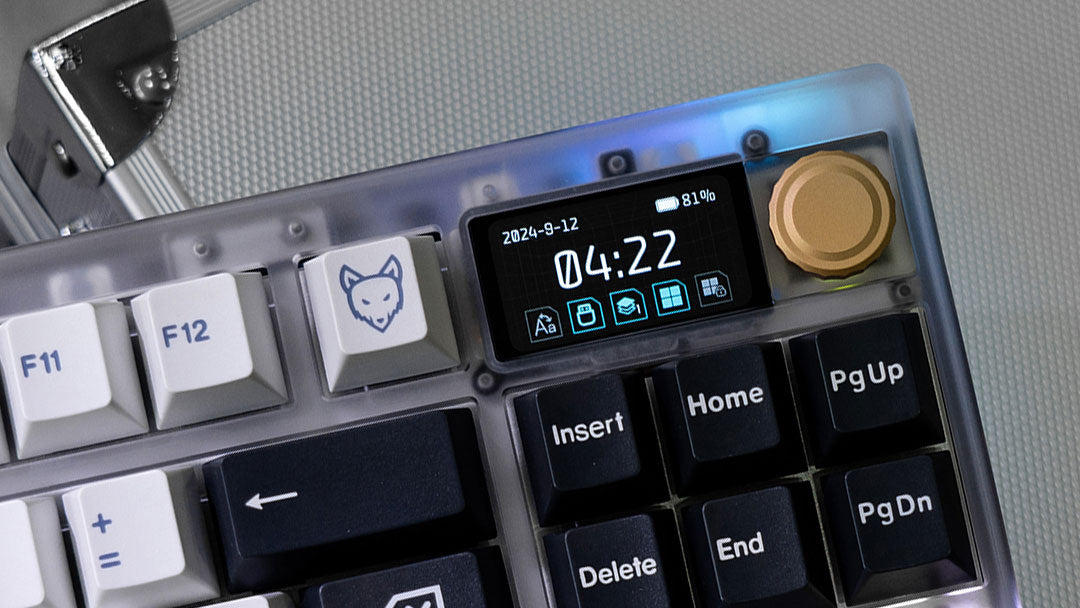

Gorgeous new screen & knob

The top right cluster now can house both a screen and a low profile knob! There are more ways you can customize the cluster, and all the combinations are possible with what's included in each kit!

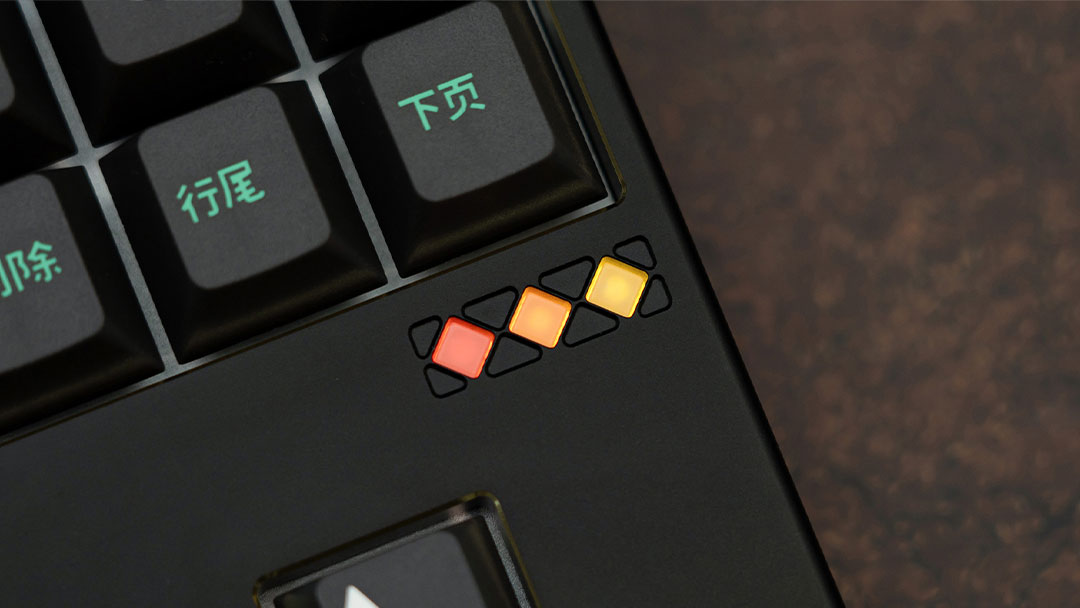

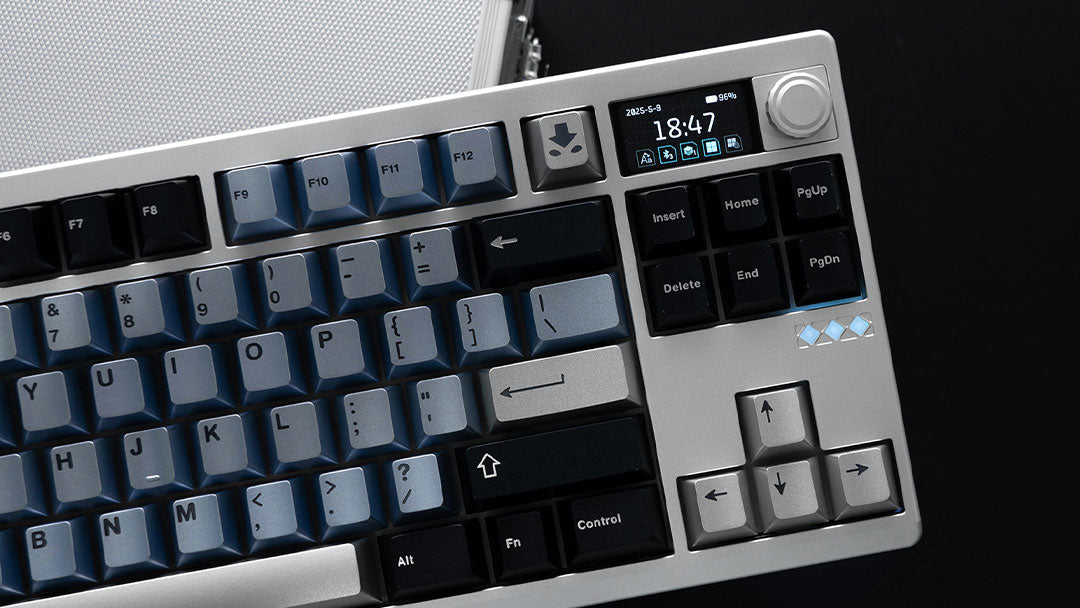

Illuminated diamonds on the front

The 3 diamonds on the face of the keyboard complement the rear grill perfectly! You can customize the LED colors to match your keycaps, or leave them off!

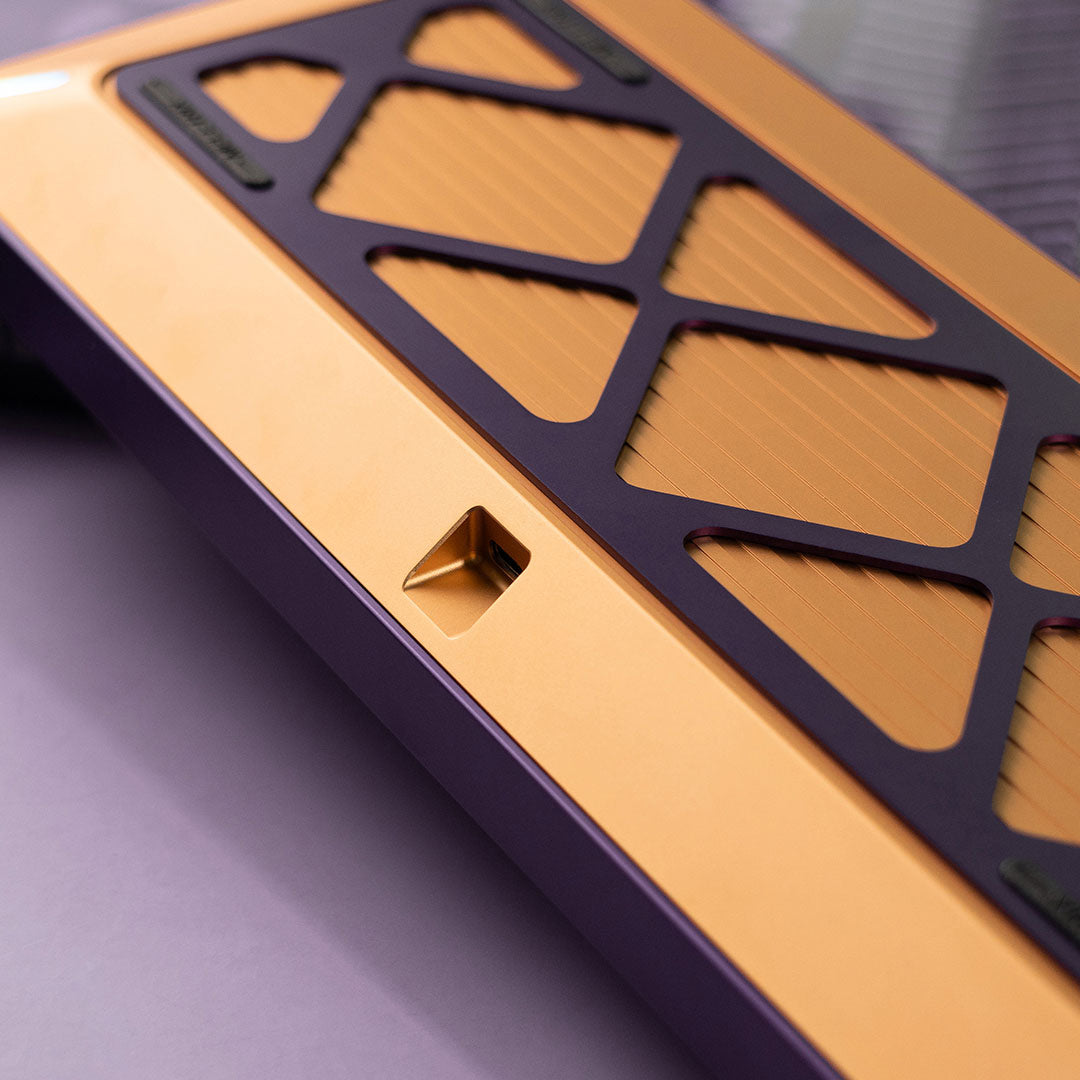

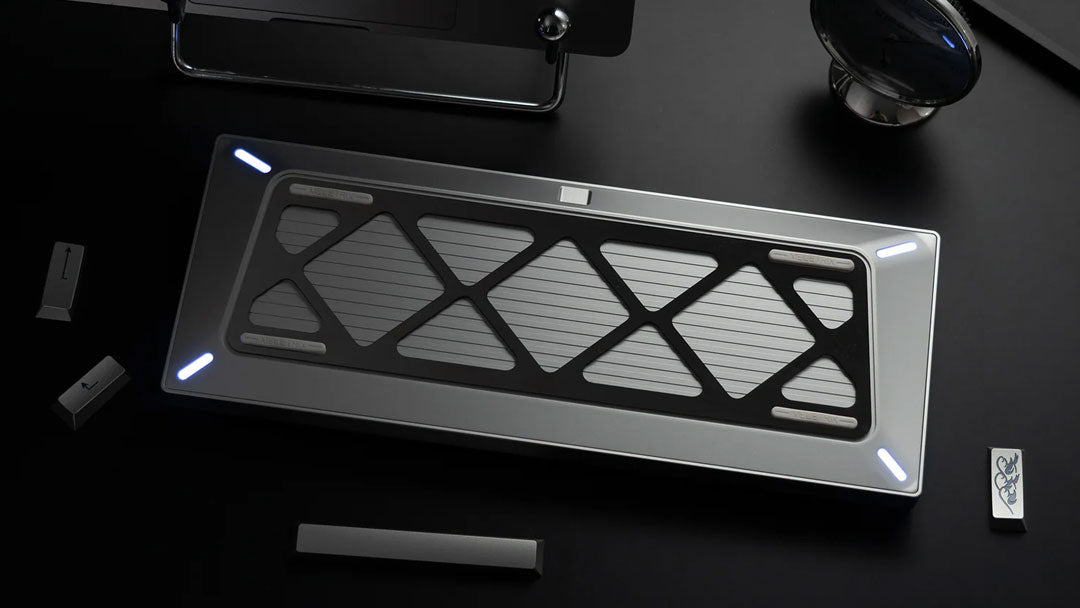

Clean back design

The back of the Dyna features Tiga's signature grille design. RGB has been added on the edges for a tasteful glow. Each side on the back folds down at a sharp angle to achieve a minimalist yet highly sophisticated look.

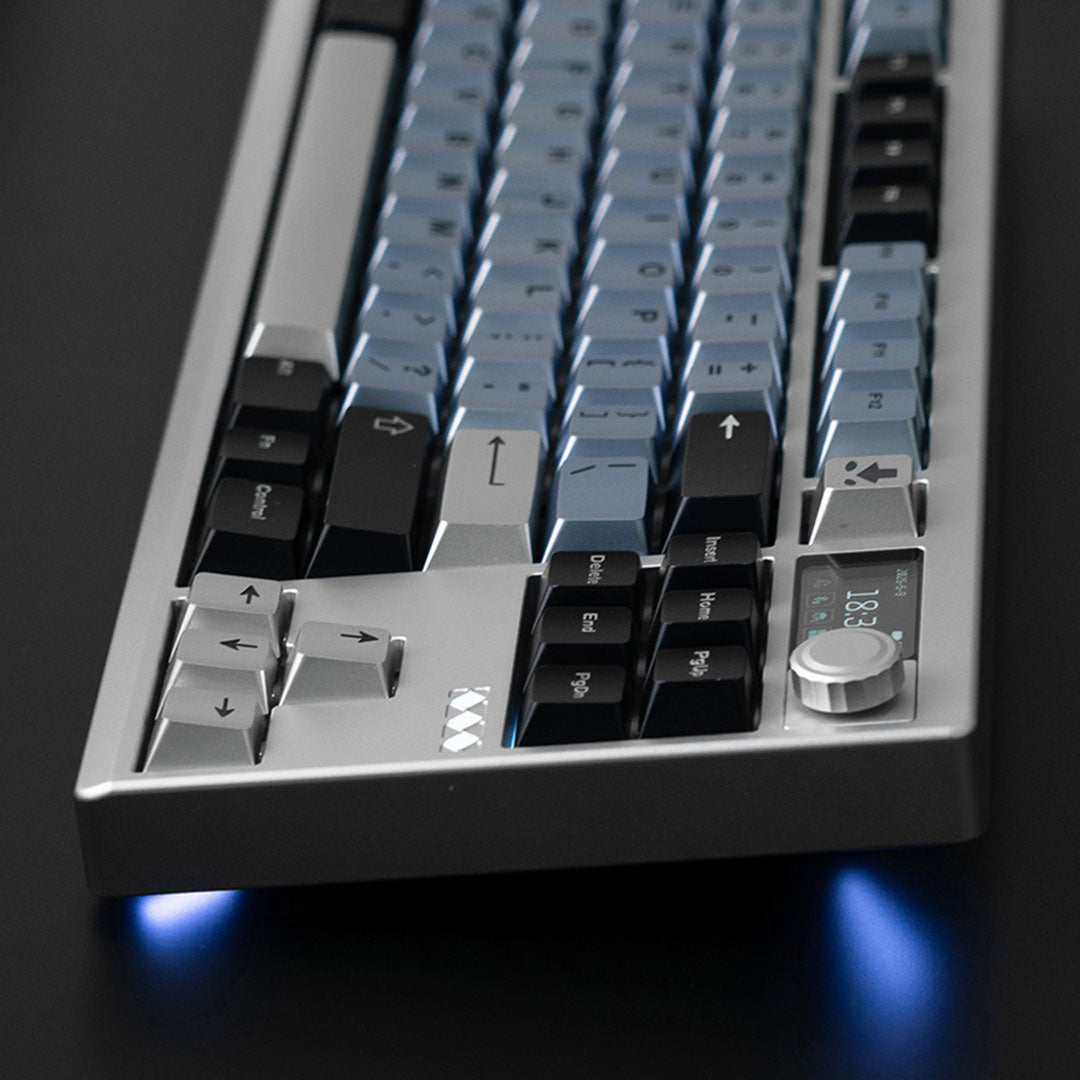

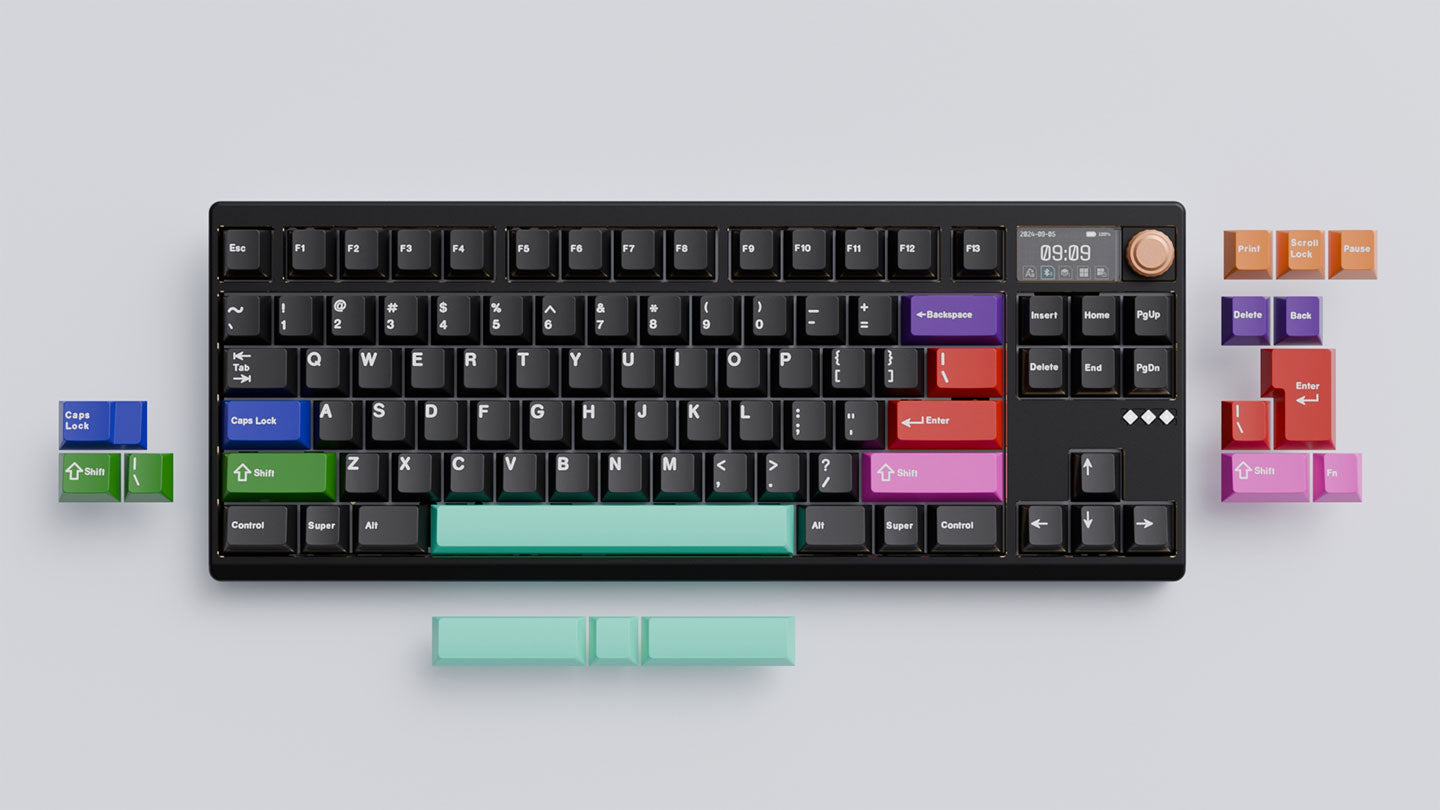

Customize your cluster!

Configure your Dyna in any of the following configurations, out of the box!

Screen + Knob

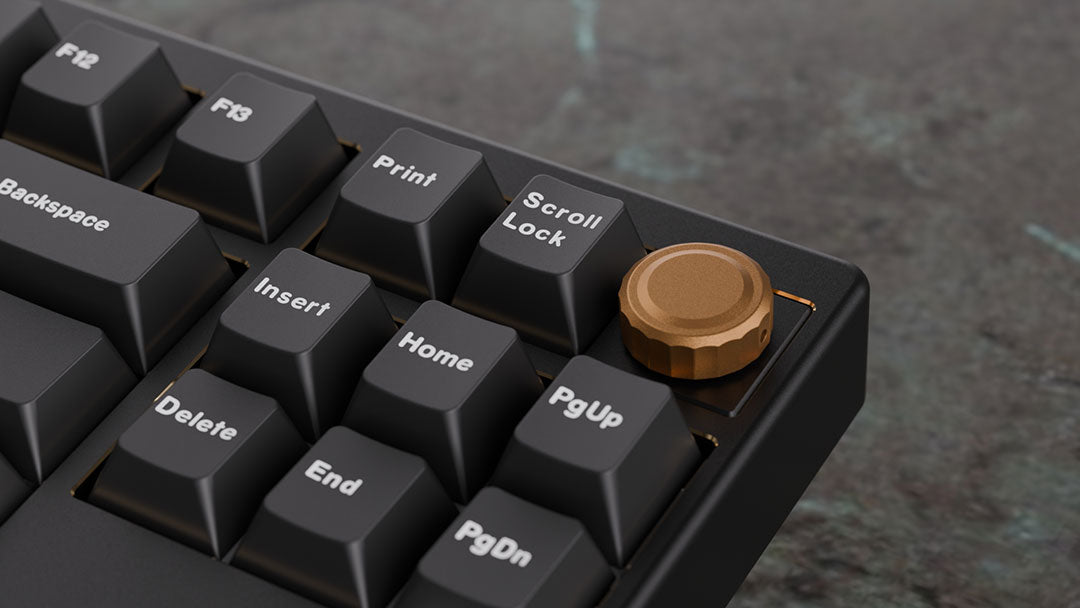

Screen + 1u Key

2x 1u Keys + Knob

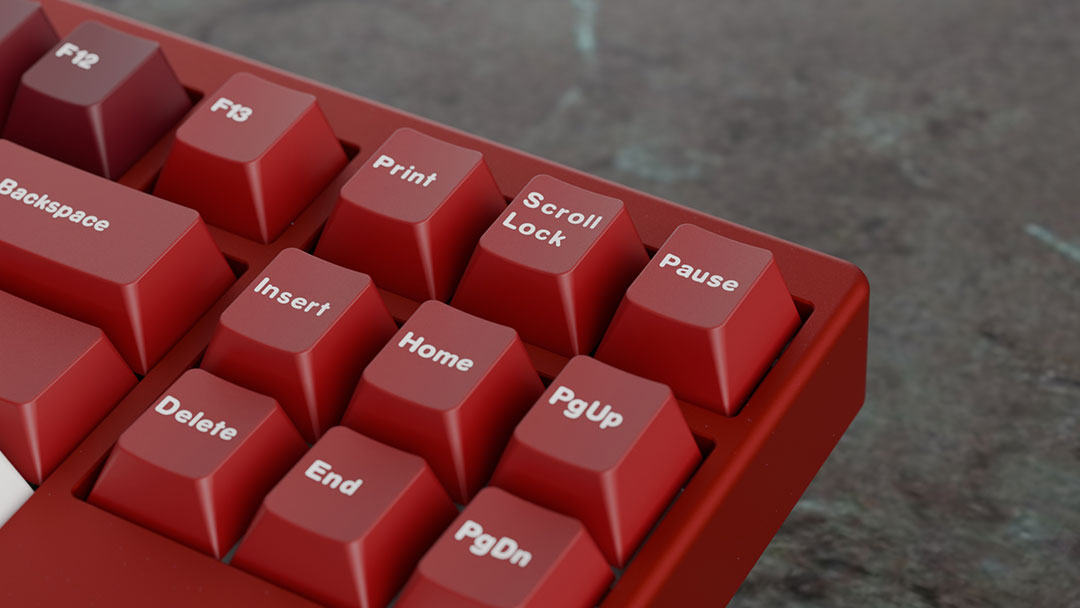

3x 1u Keys

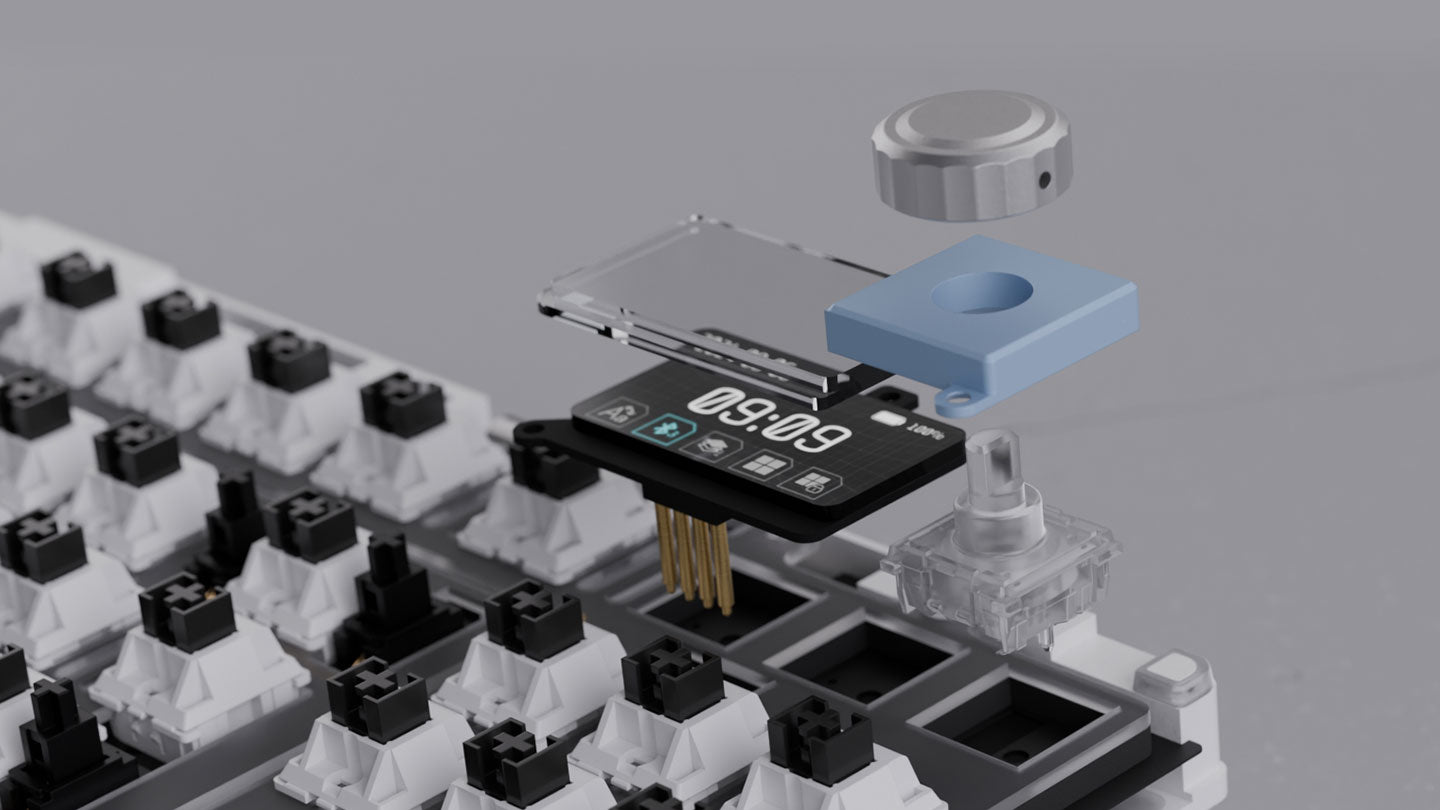

Upgraded Screen + Knob Combo

The newly upgraded modular design features a pogo-pin-integrated screen and introduces innovative hot-swappable technology for the knob, eliminating the need for replacement modules to deliver a more seamless user experience. The knob’s ripple-textured surface not only ensures anti-slip grip but also enhances its futuristic aesthetic.

Both the screen and the knob module are included with each keyboard kit. A knob is also included.

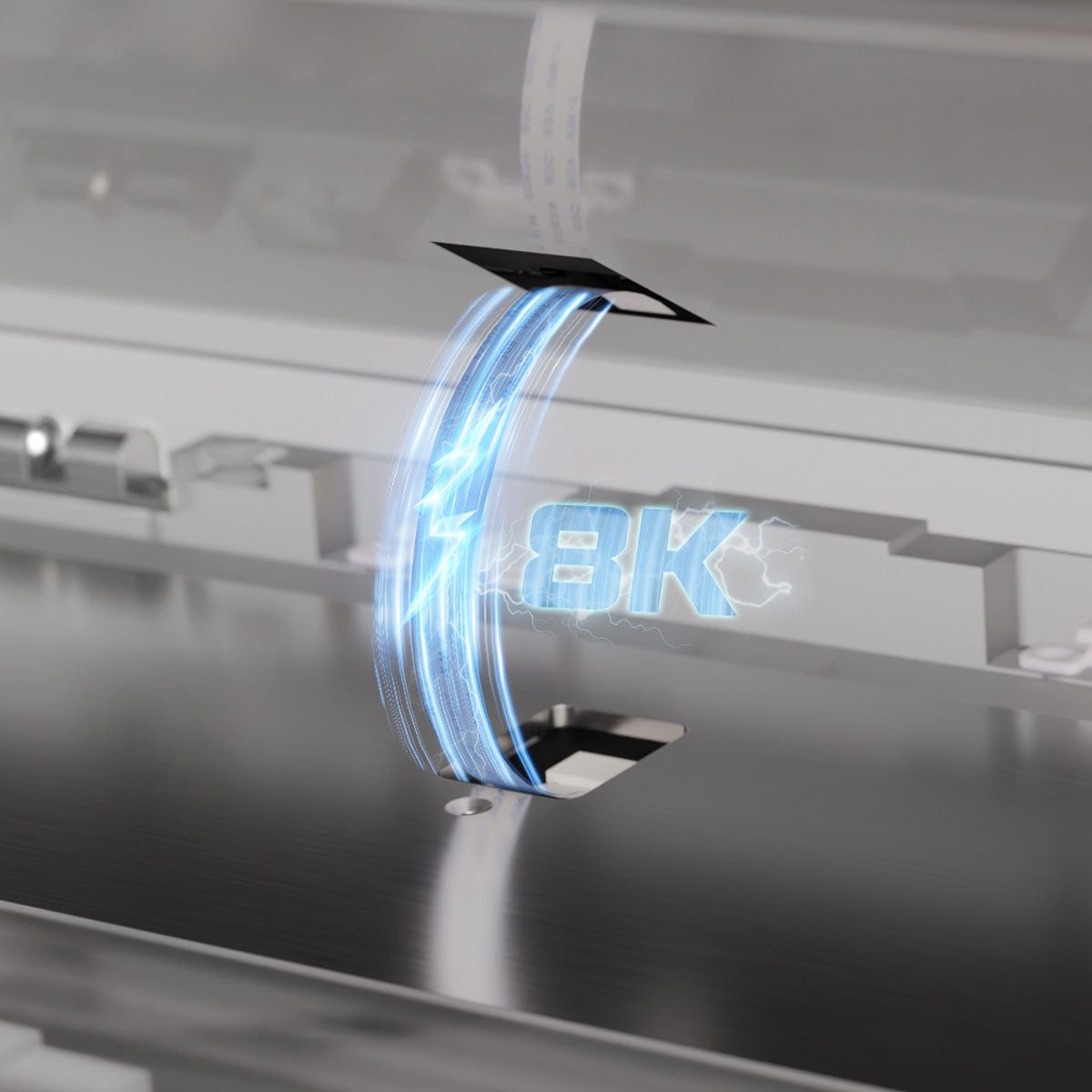

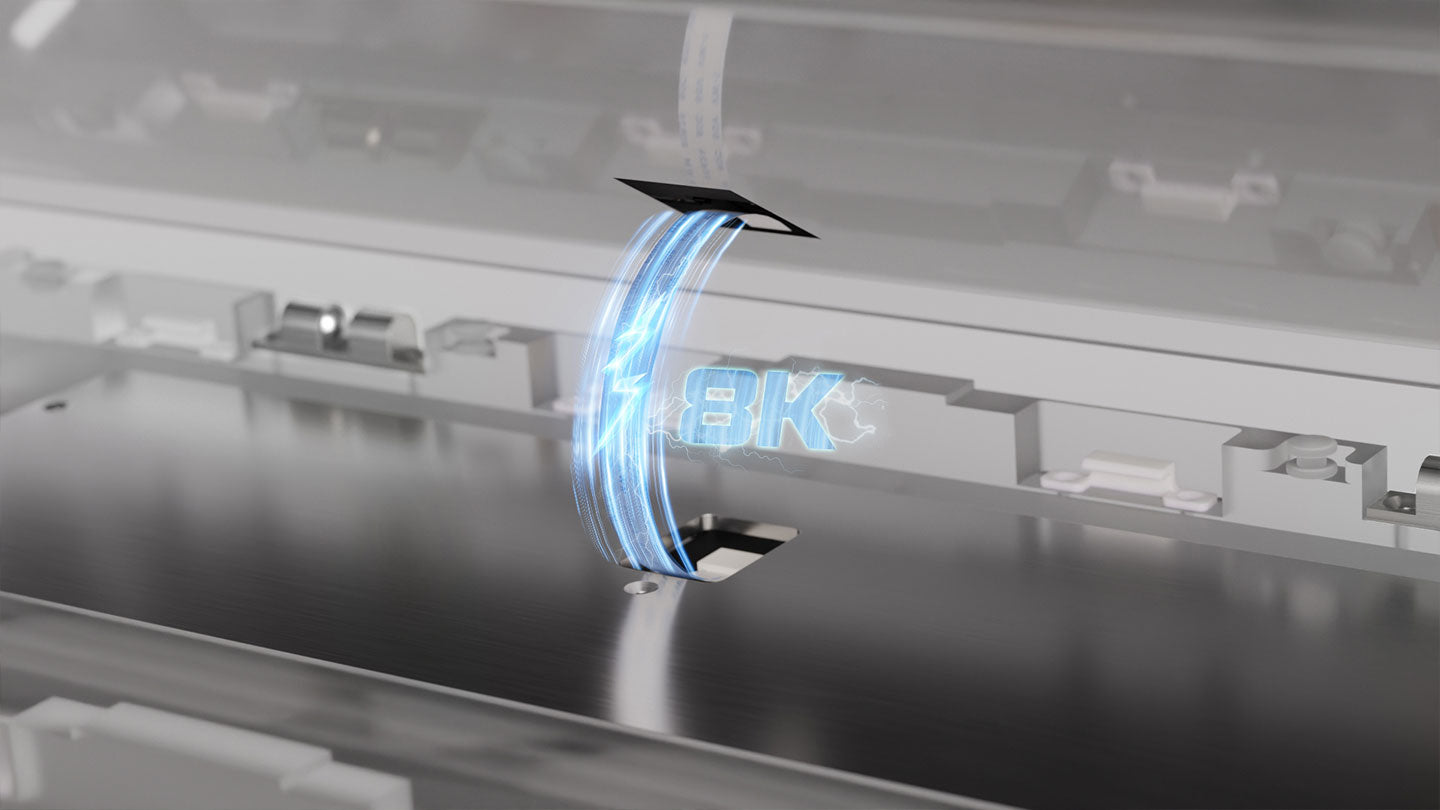

8Khz Polling Rate

At an incredible price!

0.6 ms latency (tested)

Both Dyna PCBs feature 8 KHz polling rate in wired mode for the best FPS gaming performance. Internal tests show the PCBs have a latency of just 0.6 ms

2.4 Ghz

The PCBs support wireless 2.4 Ghz connection with an included dongle. In this connection mode, you can expect a polling rate of 4 KHz and latency of 1.1 ms

Bluetooth

The PCBs support BLE5.4 with a polling rate of 133 Hz and latency of 8 ms

Included Battery

Each keyboard includes 2 x 4000mAh batteries for a massive total of 8000 mAh capacity to be used in wireless modes!

The DEtails

Specifications

Layout

80% (TKL)

Case material

6063 Aluminum

Typing angle

6.7 degrees

Front height

18mm

Dimensions

356.5 x 139 x 34.2mm

Weight

1500g (unassembled)

Module options

Screen, knob and keys. All included in kit

Stabilizers

4+1+1 set included

PCB (Tri-mode)

1.2mm Flexcut or

1.6mm Non-flexcut

Hot-swap

Multi-layout

Per-key RGB

Supports 2.4Ghz, Bluetooth Low Energy 5.4 and wired connection.

VIA Support

Supports Win/Mac/Linux/Android

ESD Protection

Yes

Other Features

Force Break mod, multiple mounting system, screw-less assembly through catch ball mechanism, included internal weight.

Batteries

2 x 4000 mAh, included.

Polling Rate

Wired
8 Khz

2.4 Ghz RF
4 Khz

Bluetooth
133 Hz

Latency

Wired
0.6 ms

2.4 Ghz RF
1.1 ms

Bluetooth
8.0 ms

Note

Knobs are not compatible with previous Zoom series keyboards and vice versa.

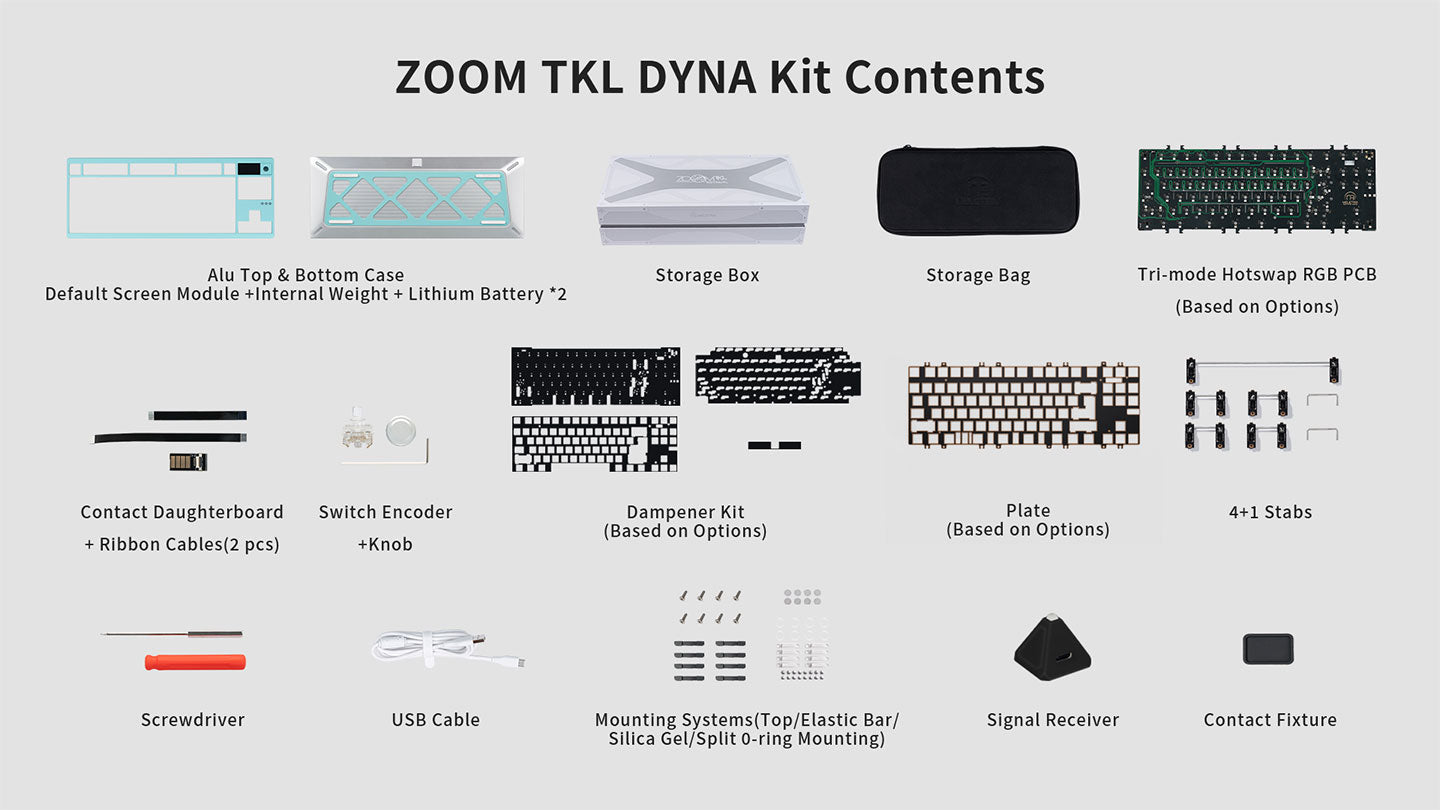

Kit Contents

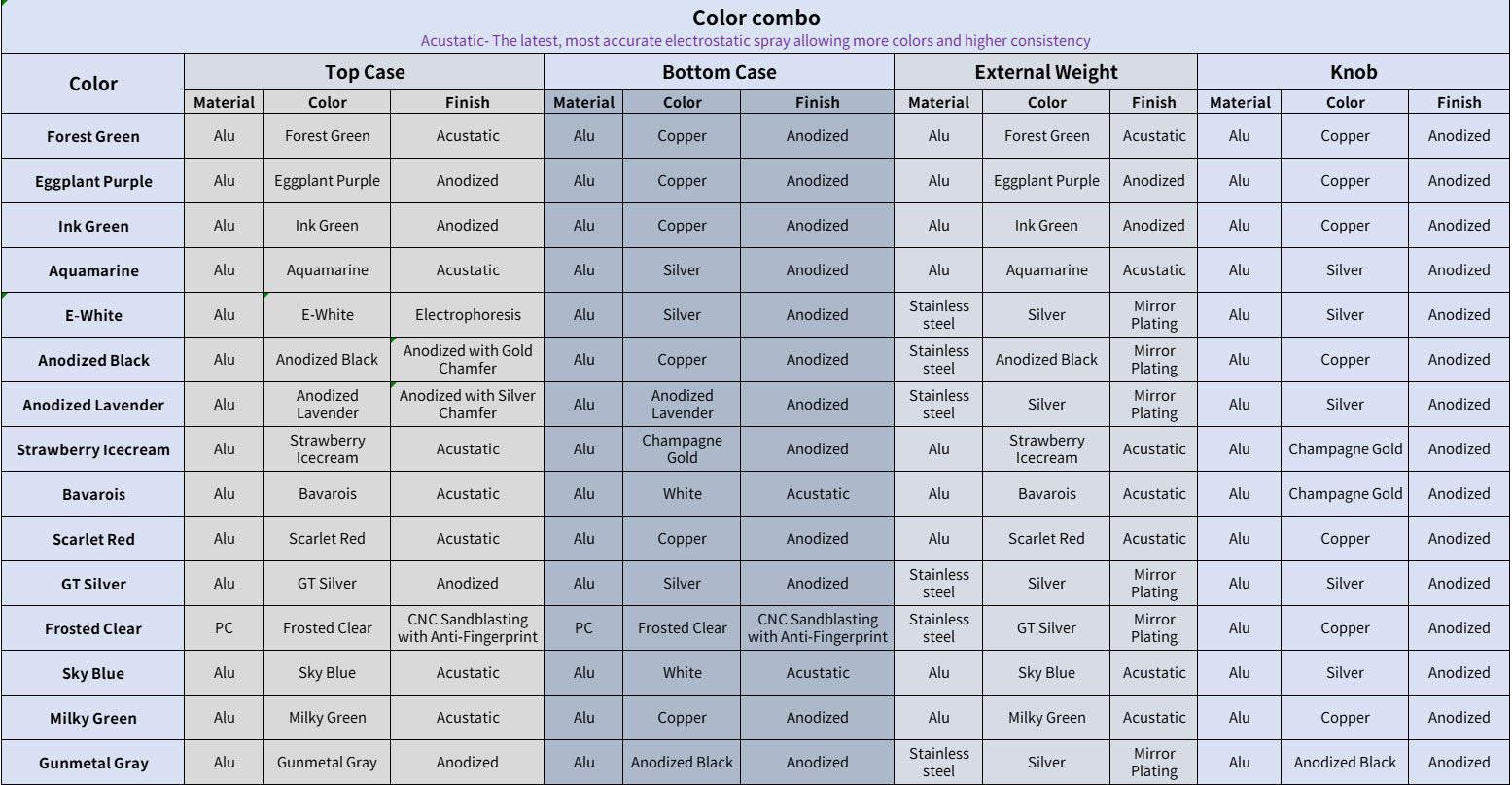

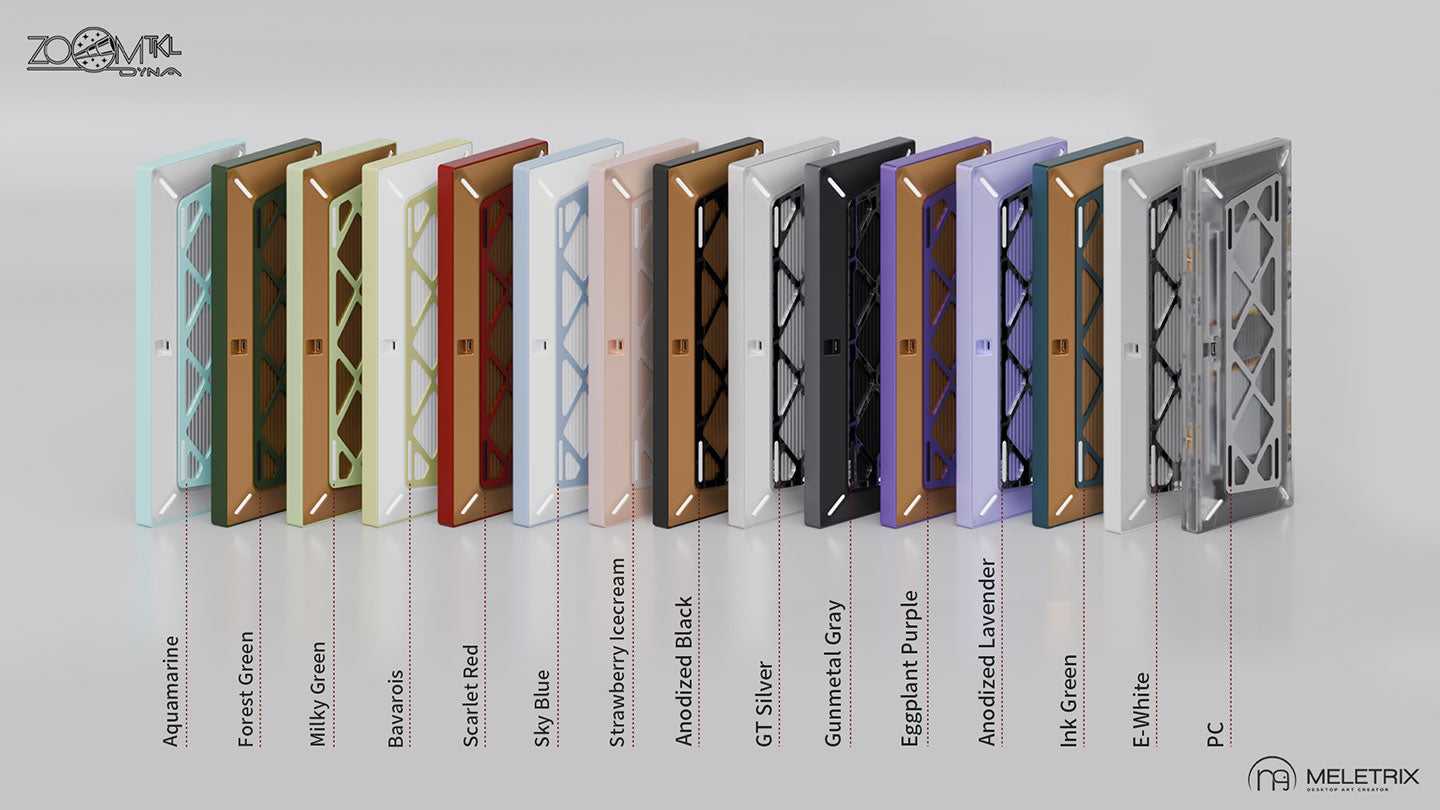

Color Combinations

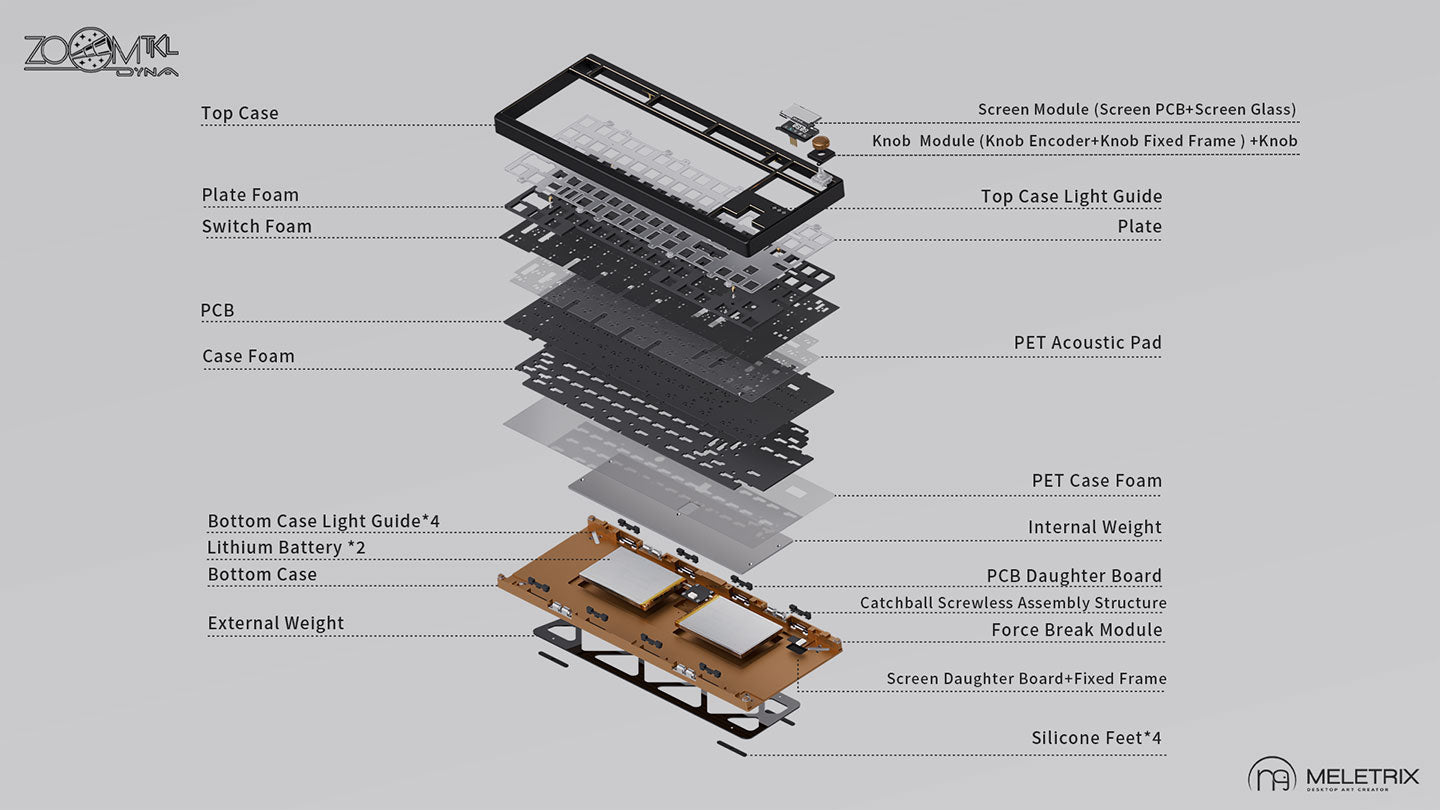

Structure Diagram

Supported Layouts

Disclaimer

Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.

Acceptable Quality Standards

Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to ZoomTKL Dyna

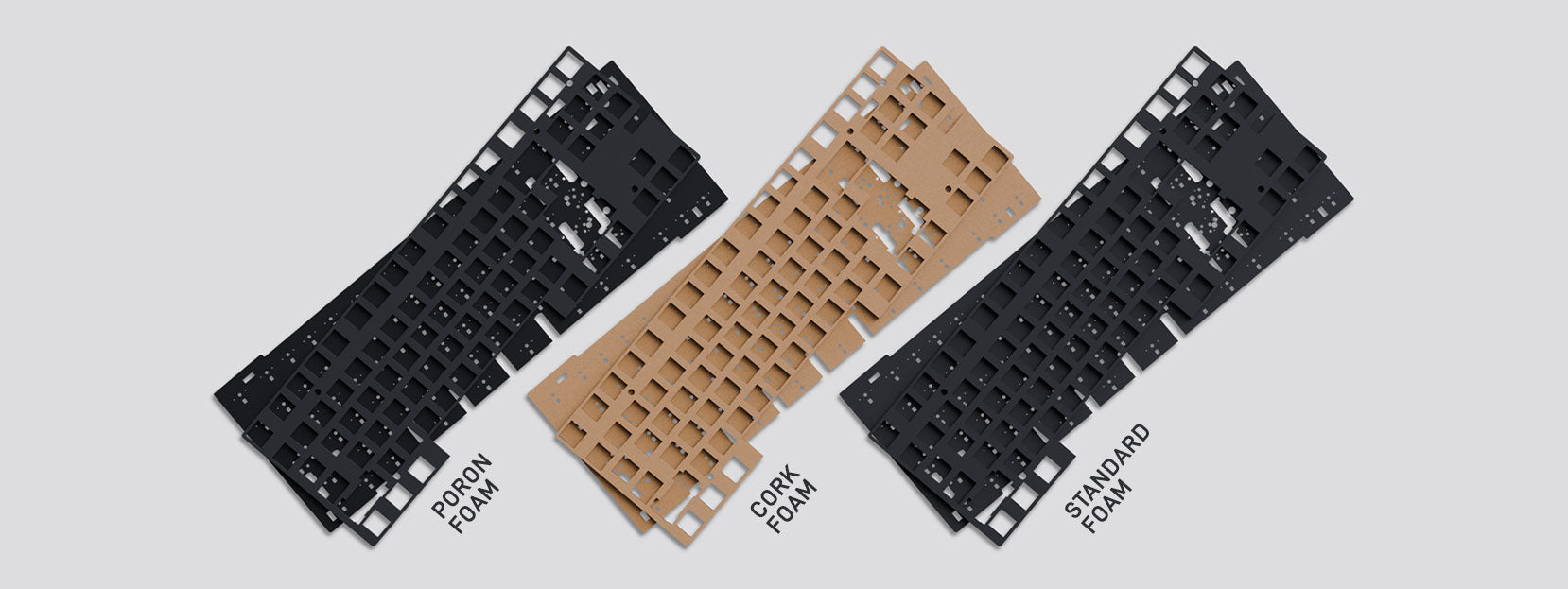

Customize your sound

Crisp - Cork FOAM

First introduced in Zoom Tiga, the Cork Foam set perfect for those who want something different than what traditional foams offer! This cork layer produces a crisper sound for a unique typing experience.

Soft - PORON Foam

Poron foam offers excellent durability and fatigue resistance, ensuring consistent sound performance over time. With a muted sound profile it makes it the perfect option for office use.

Classic - Standard Foam

Standard Foam tends to change the sound profile over time while offering a higher-pitched profile.

Go foam-less!

You can choose to build your Zoom TKL Dyna without any foam at all! Lots of people prefer the sound without any foam, and the Dyna sounds just as good without any foam as it does with. You can also use any combination of the foams listed here for a truly unique sound.

4 Mounting Systems

Elastic Bar Silicone Mount

A next-gen solution offering balance between rigidity and elasticity.

Split o-ring mount

Adds bounce and flexibility for a softer typing experience.

Silica Gel Particle Mount

Helps achieve a muted, cushioned typing feel.

Top Mount

A classic for stability, rigidity and tactility

Functional Design

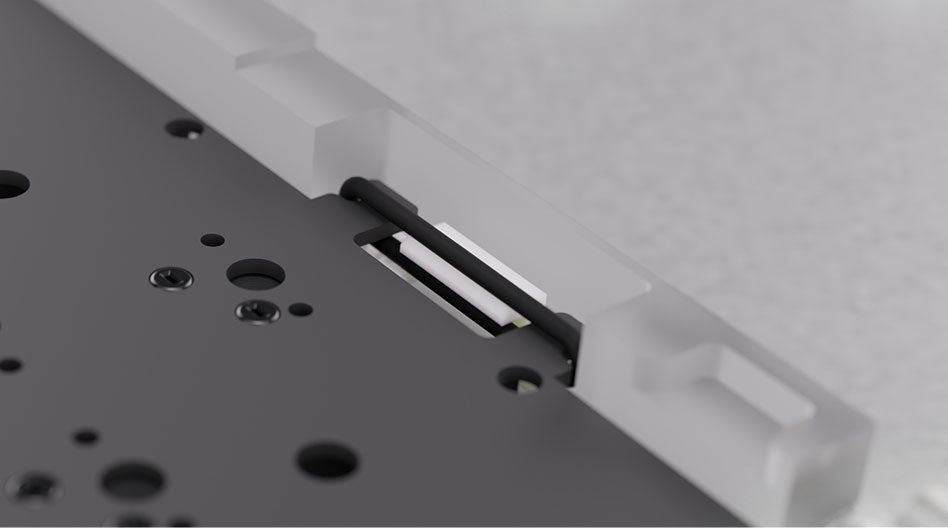

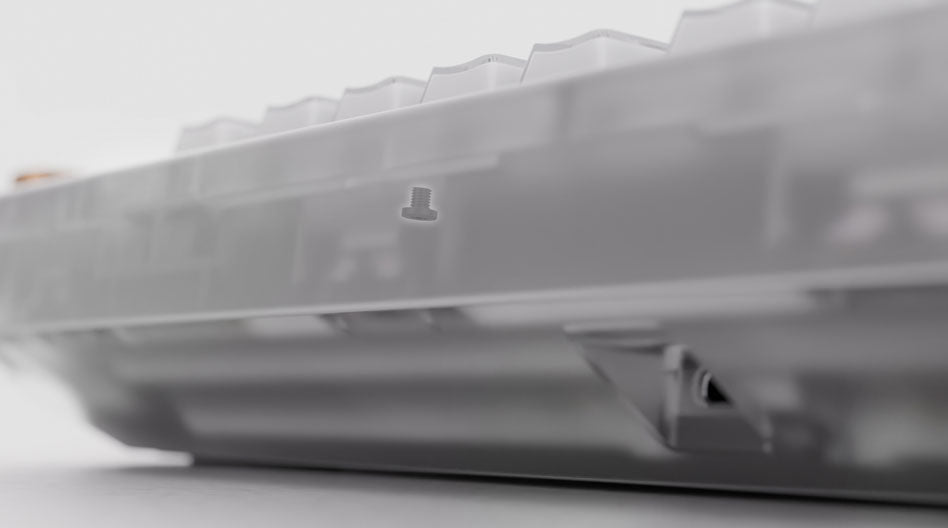

Screwless case & POGO PIN CONNECTORS

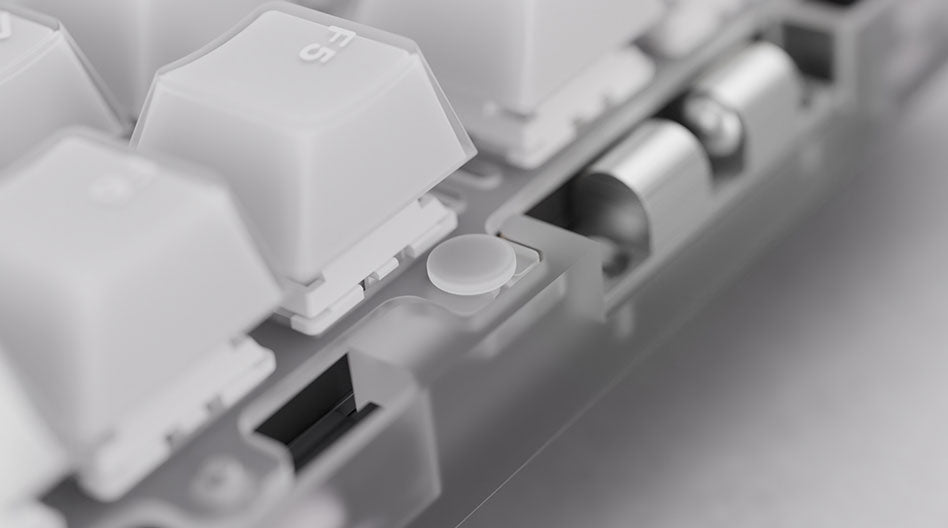

Instead of screws to hold the top and bottom case together, ZoomTKL Dyna uses a catch-ball system that takes just a second to disassemble the case!

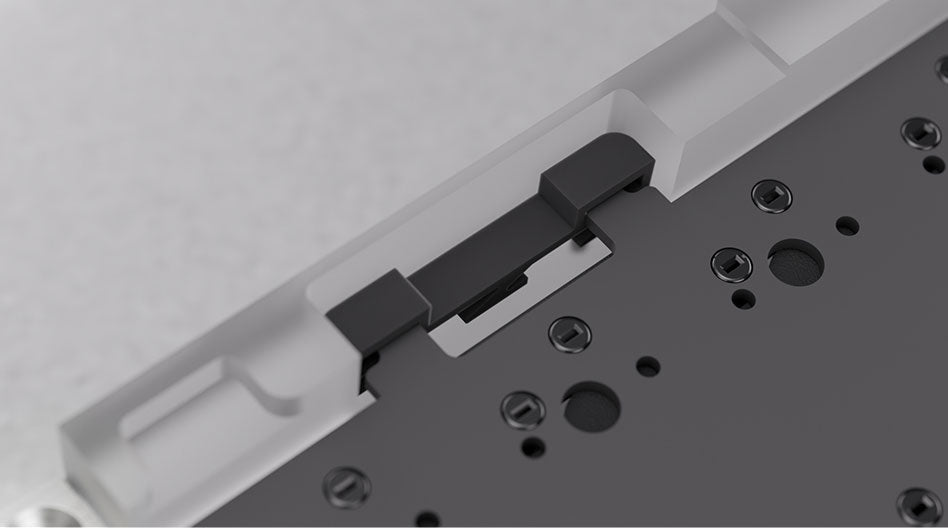

Force Break Design

The bottom case features a Force Break mod out of the box to minimize metal on metal contact. This eliminates any potential metallic ping / noise and ensures a more stable assembly. This also helps the keyboard produce a more uniform, cleaner sound!

Partially Assembled

The batteries, daughterboard and internal weight already come installed on the bottom case. This saves the builder not only time, but also any potential headaches from making a mistake during assembly!
