Please see the Gallery section towards the bottom of the page for photos of prototypes

Meletrix

Zoom64 - Barebones Kit [Group Buy]

$159.00 USD
Title
Case
PCB
Dampening Kit
Quantity

Pickup available in Scarborough, ON, Canada. Click here for more info

Usually ready in 1-3 days

GB LIVE!

GROUP BUY ENDS at 11:59 PM EDT, Feb 18, 2026

00
DAYS
00
HRS
00
MINS
00
SECS

This is a Group Buy (GB) that runs from Feb 3 to Feb 18, 2026.

All items are scheduled to finish production around March, 2026. Delivery time depends on import method of your choice. Please see the section titled "Delivery Estimates" below for more information.

At a glance

Different Kits

- The Barebones Kit is similar to all the other Zoom keyboards released to date. It comes with everything you need, except for switches and keycaps. It comes with a standard MX or mechanical switch compatible PCB.

- Case Only Kits essentially come with just the case & the plate. No dampeners or PCB, and you can only use silica gel mounting style.

- You can bundle a Zoom64 Case Only Kit with a Flux60 HE PCB module to create a 64-key Magnetic HE Zoom64. You can use the Flux60 HE PCB module with the Barebones Kit too for a second, HE setup.

- GH60 case kit features a plate that supports standard 61 keys. Compatible with GH60 style Magnetic HE PCB modules like the Wooting60 HE and other compatible modules

- All the cases are physically identical. Just the plate and PCBs are different. MX plates are not compatible wth HE PCBs.

- Fully assembled kits, as the name suggests, are ready to use out of the box with keycaps and MX or HE switches. Just plug in and type! They're available in pre-select configurations. They'll be assembled by Meletrix with hand lubed stabilizers. Photos and more details are in the product page.

Limit

Due to the difficulties in the production process, Forged Flow, Glacier Startrail & Midnight Ink Glow cases are only available in limited numbers. We'll update the this page once we're close to reaching those limits.

Acrylic Cases

The four acrylic cases are not being offered during this group buy. Once Meletrix has produced more prototypes and conducted further tests, they'll launch in a separate group buy sometime in March, 2026

Products in this GB

Zoom64 - Barebones Kit [Group Buy]

Zoom64 - Barebones Kit [Group Buy]

$159.00 USD
Product Page
Zoom64 - Fully Assembled [Group Buy]

Zoom64 - Fully Assembled [Group Buy]

$239.00 USD
Product Page
Zoom64 - Case Only Kit [Group Buy]

Zoom64 - Case Only Kit [Group Buy]

$129.00 USD
Product Page
Zoom64 - Add-ons [Group Buy]

Zoom64 - Add-ons [Group Buy]

$129.00 USD
Product Page
Zoom64 - MCap Die-cast Aluminum Keycaps [Group Buy]

Zoom64 - MCap Die-cast Aluminum Keycaps [Group Buy]

$79.00 USD
Product Page

Highlights

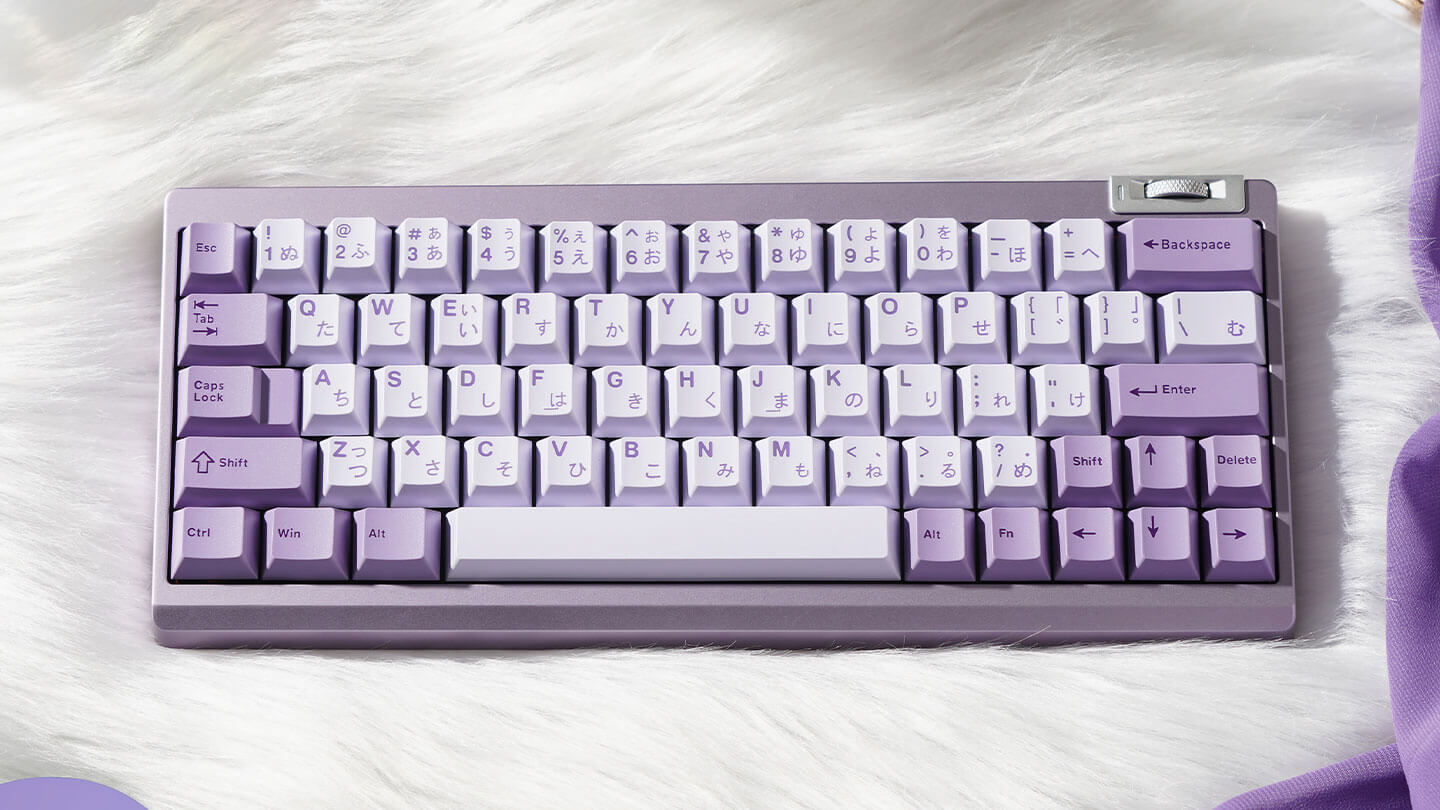

Functional layout

Many people often overlook 60% keyboards because of a lack of dedicated arrow keys. Zoom64's 64-key layout features dedicated arrow keys by making the shift keys smaller. Please keep in mind the left shift is 2u only.

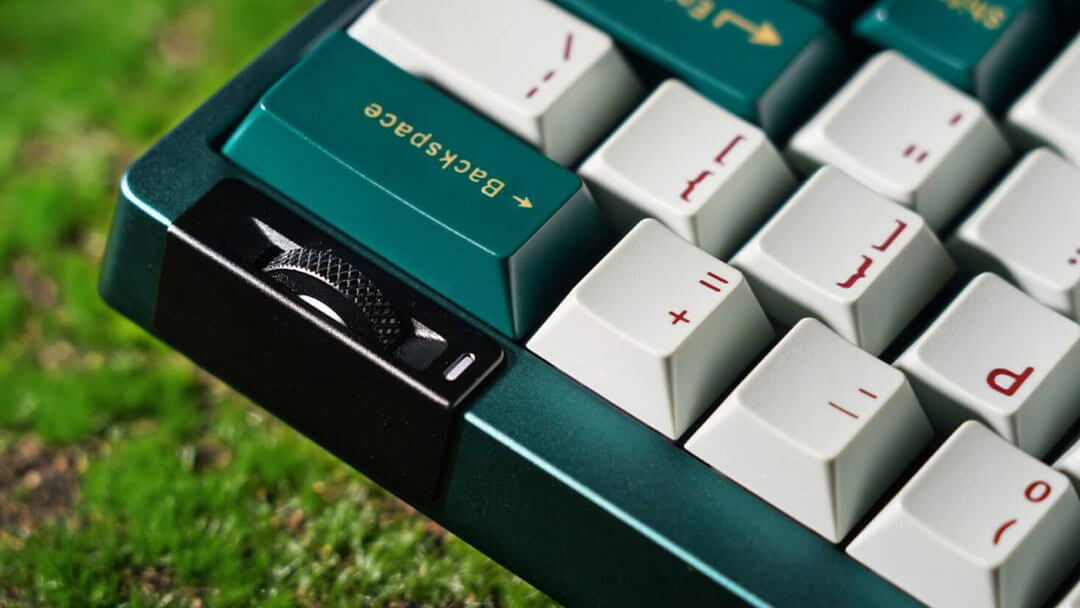

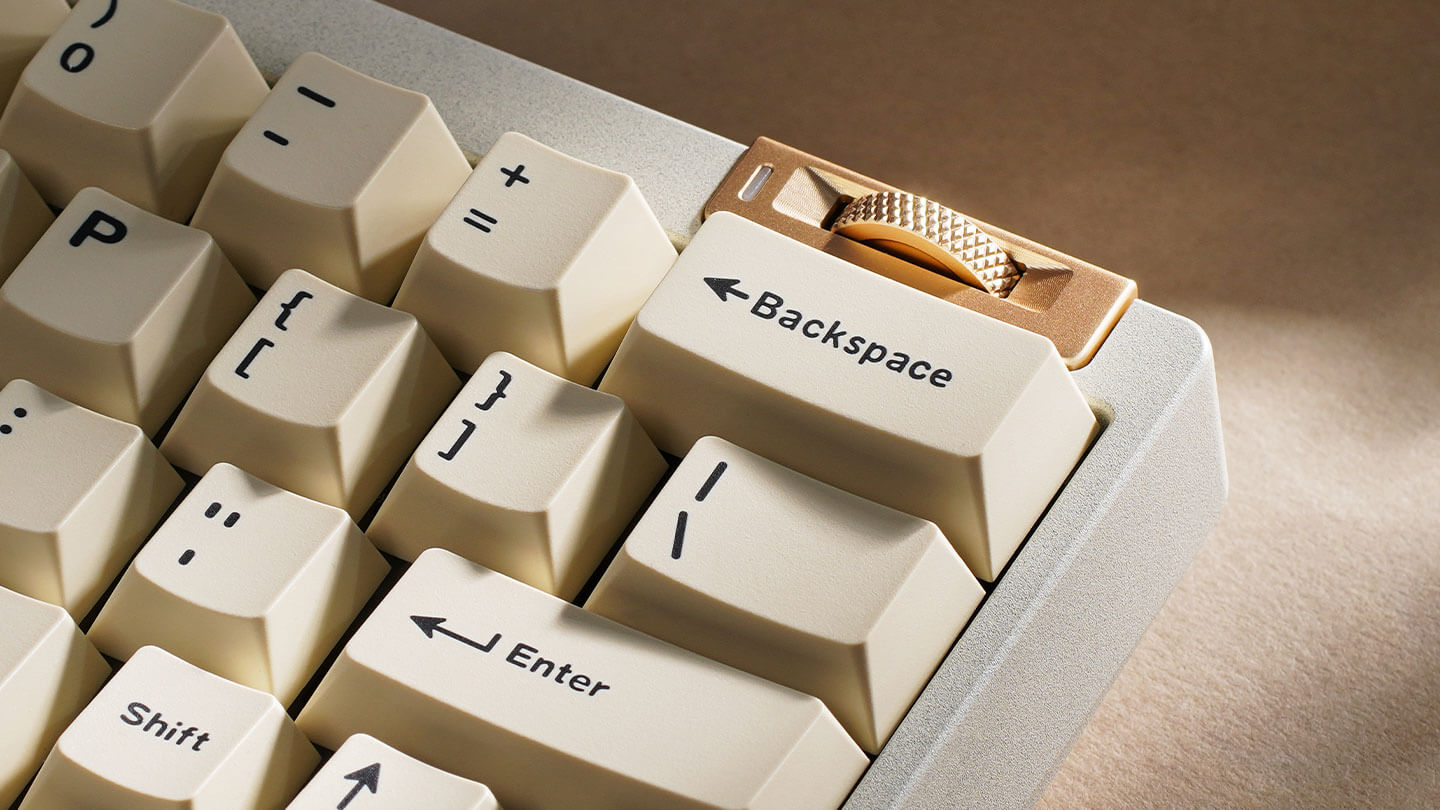

Recessed Metal Knurled Knob

Cleverly located just above the backspace key, the sleek horizontal knob offers superb tactile feedback and precise control. Programmable via VIA, it transforms into a volume dial, scroll wheel, or any macro tool you define.

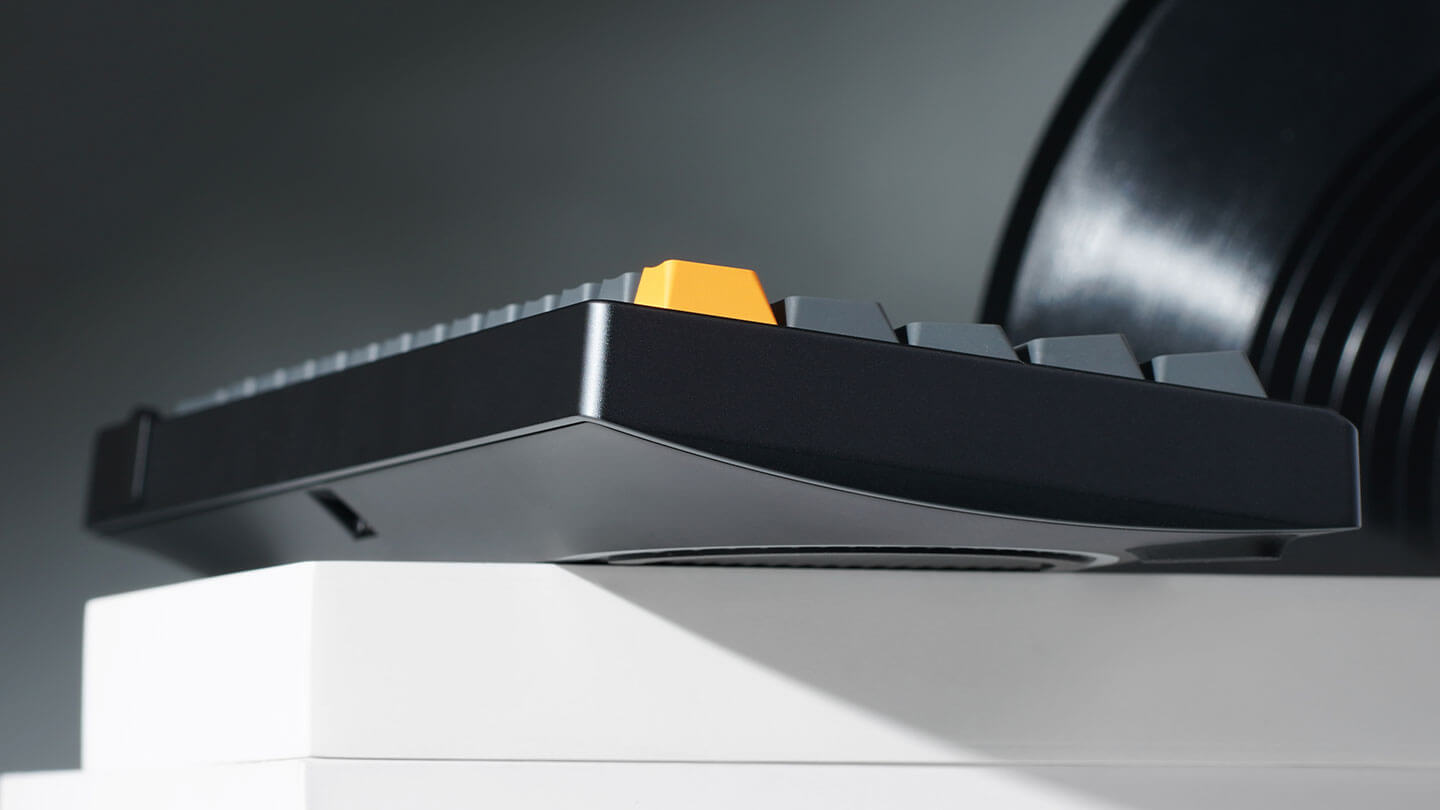

Aurora Arc Side Profile

The side concave side profile not only balances visual focus and depth, but it also gives the Zoom64 a very unique look and makes it very easy to lift up!

Functional Weight

The “racetrack” curved weight with a wave texture provides a secure grip when moving the keyboard. Twin-eared feet arch the side, visually merging with the grand curve.

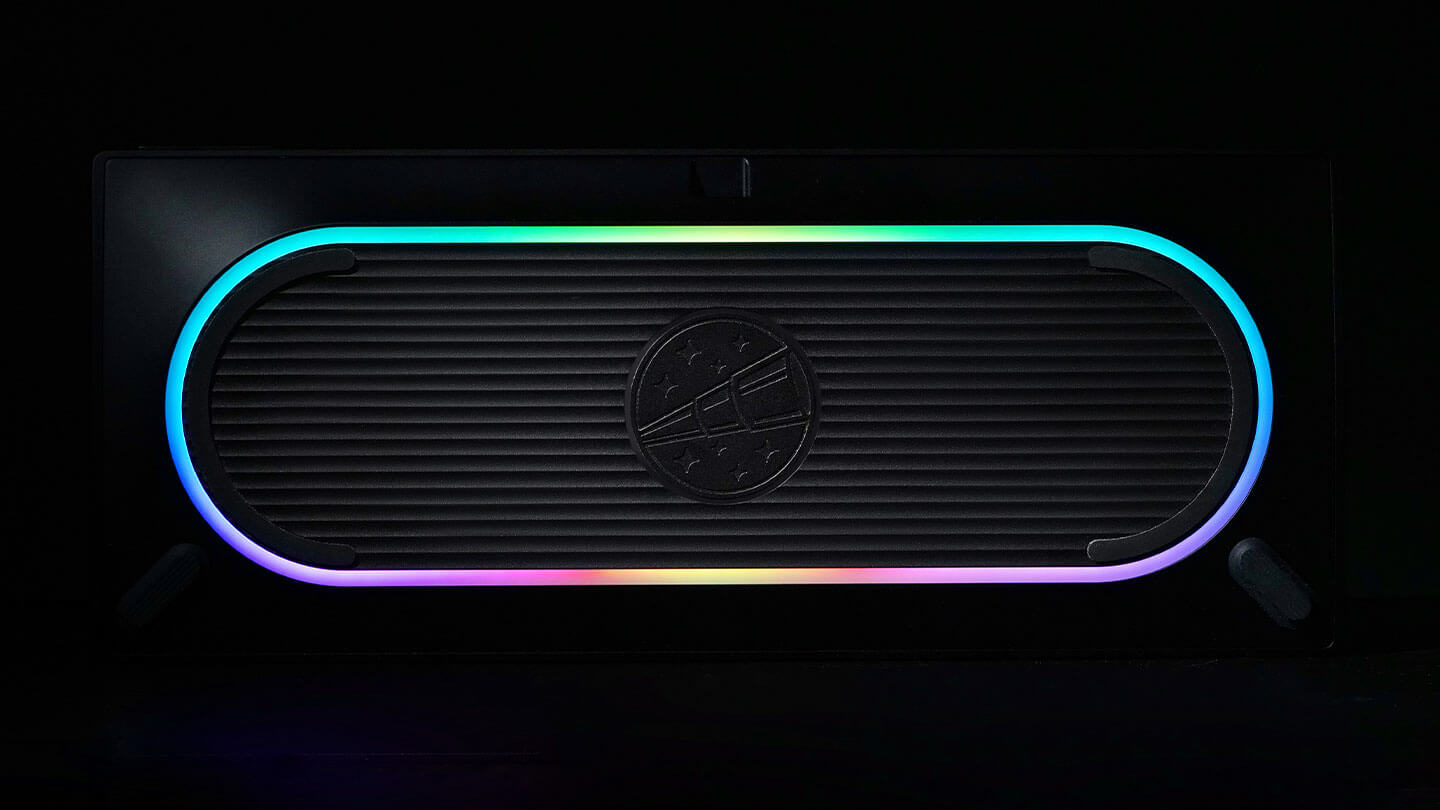

Underglow lighting

An RGB strip surrounds the racetrack curved weight. When lit, the light appears to emanate organically from within, lighting up the surrounding. The MX PCBs also feature per-key RGB.

Flux60 HE PCB

Add the Flux60 HE module to your order to switch between a traditional MX or a high performance HE setup anytime! The PCB is made of Aluminum for maximum heat dissipation, and comes with a water-resistant coat for the occasional accidental spill! Click on the image to find out more!

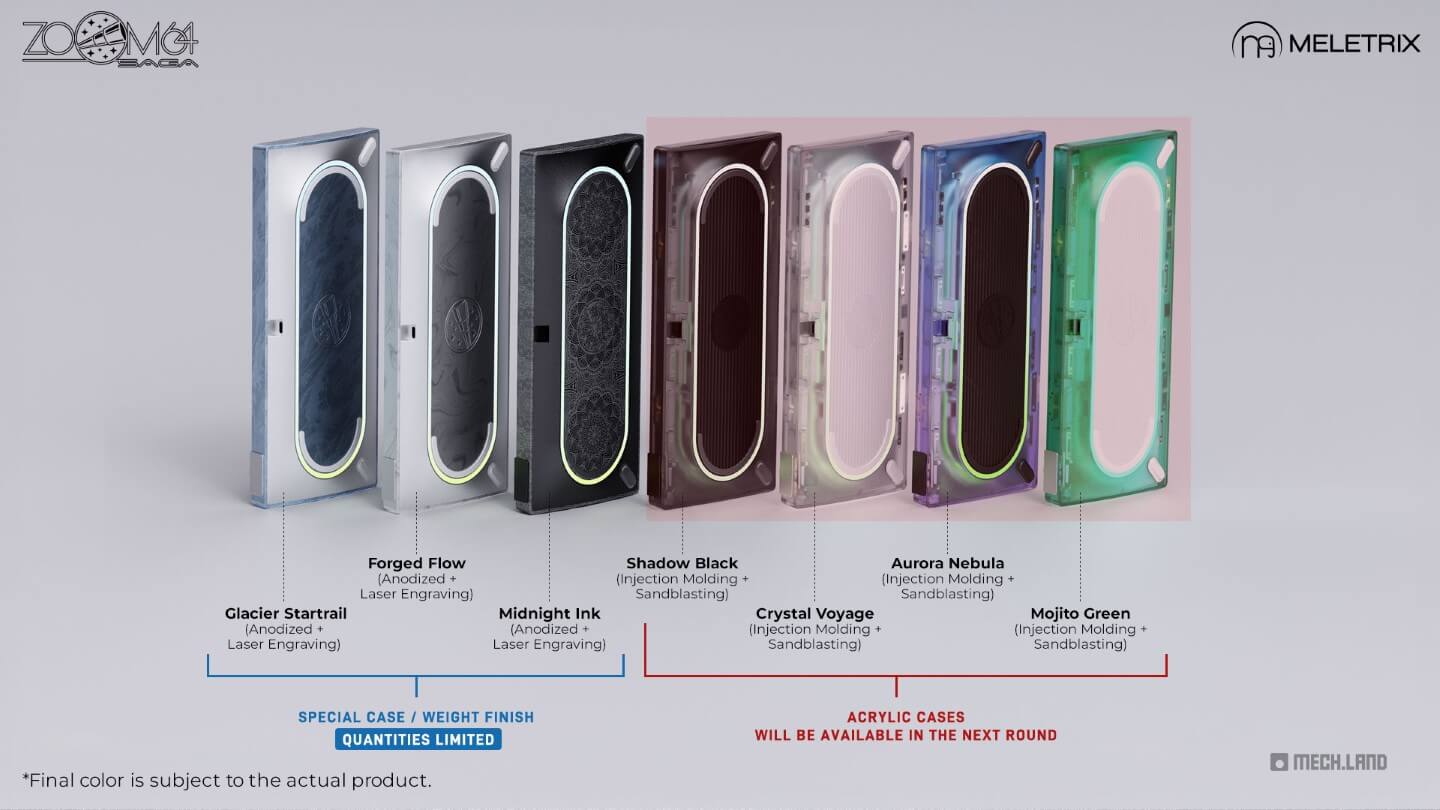

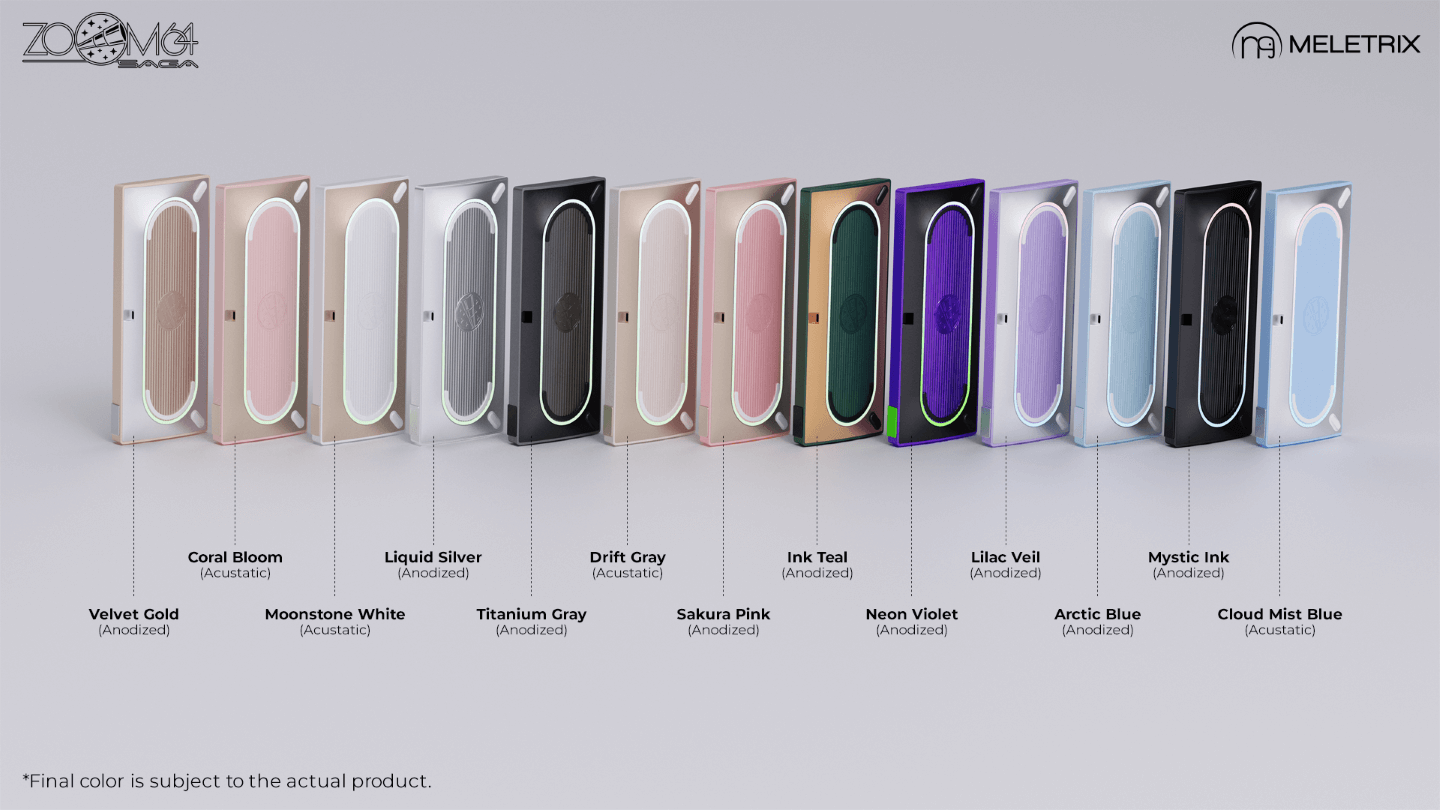

Diverse Finish Treatments

See the chart in the details

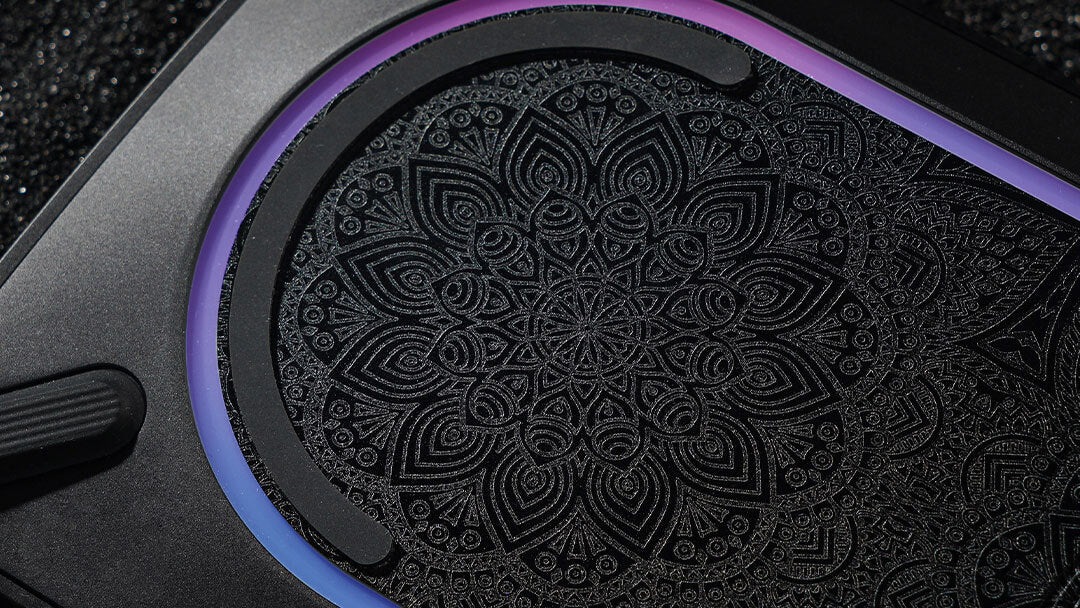

Laser engraved

Physical engraving with a depth you can feel.

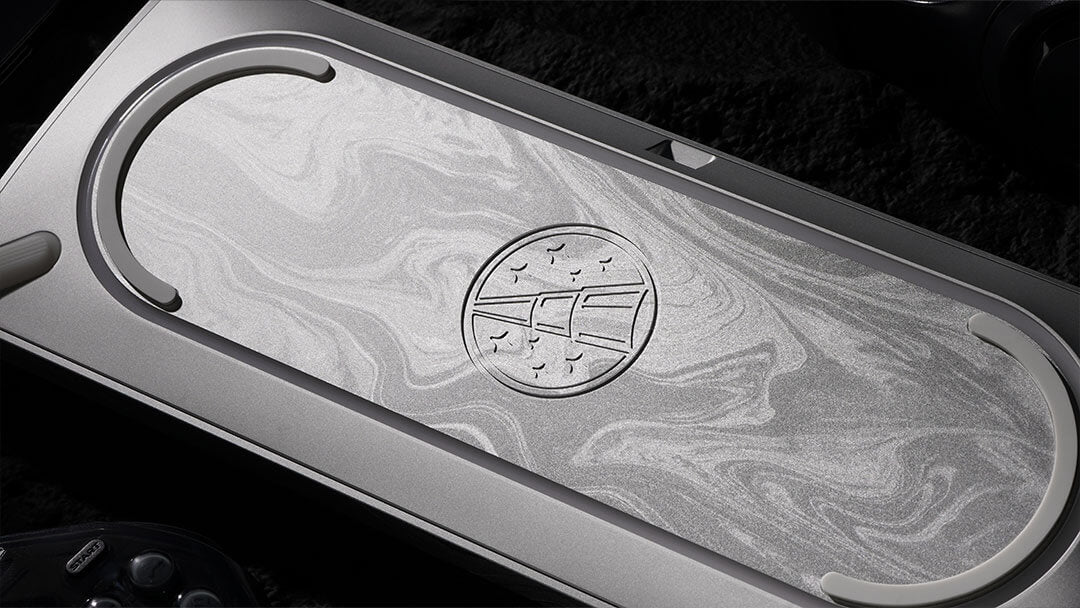

Marbleano Finish

Special anodization process that gives Aluminum a marble-like appearance

Limited quantities

The variants featuring the above finishes are limited in quantity due to the difficulties in the production process. The variants are Forged Flow, Glacier Startrail & Midnight Ink Glow. We'll update the product page once we're close to reaching those limits.

220-mesh Anodization

Traditional, high quality anodized finish that gives Aluminum a shiny look.

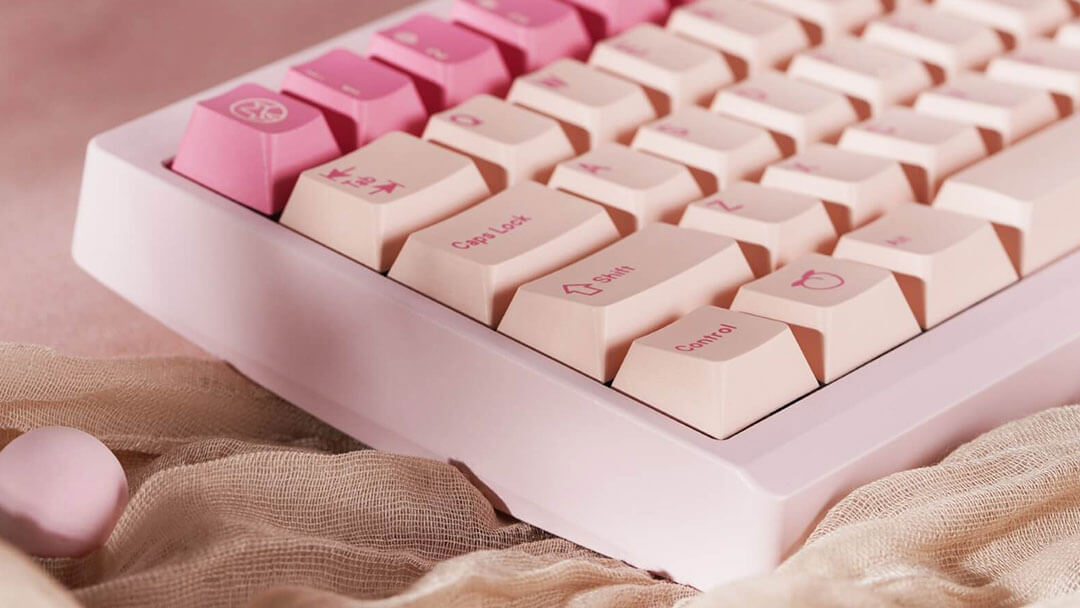

Spray anodization

A coated finish that gives the case a rather matte look.

The DEtails

Specifications

CASE

Layout

60% (64 keys)

Case material

6063 Aluminum

Color & Finish

Anodized / Acustatic. See below for more details

Typing Angle

6.5°

Front Height

17.8 mm

Rear Height

32.2 mm

Dimensions

297.1 x 122.1 x 36 mm

Mounting Structure

O-ring or Silica Gel Particles

Package Weight

2.4 kg

MX PCB

Hot-swap

Yes

N-key Rollover

Yes

Software

VIA compatible by sideloading JSON

RGB

Underglow + south-facing per-key LEDs

Connectivity

Wired, BLE 5.4 & 2.4 Ghz

Polling rate

Wired
1000 Hz

2.4 Ghz RF
1000 Hz

Bluetooth
133 Hz

Latency

Wired
0.6 ms

2.4 Ghz RF
1.1 ms

Bluetooth
8 ms

System Support

Compatibility

Windows, MacOS, Linux & Android

Simultaneous Connections

Up to 5 devices

Driver

Web configurator

NOTE

- Additional plates in the add-on page titled "MX" can only be used with the MX PCBs.

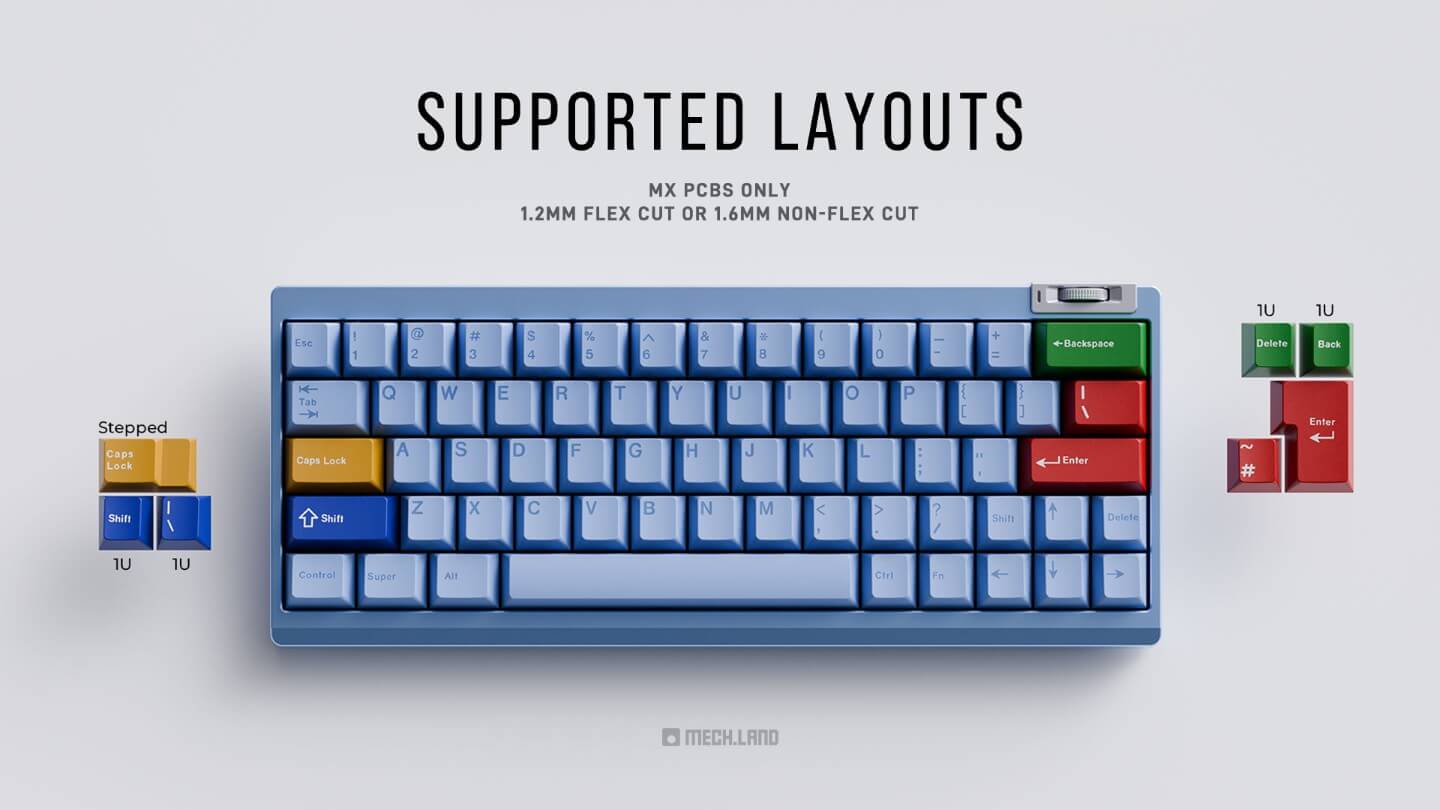

- Both MX PCBs and Flux60 HE PCB use a non-standard, but popular 2u left shift. Please make sure your keycap set has this key.

- Only the MX PCBs can use o-ring mount method. Case only kits do not come with accessories for this mounting method, they only come with Silica Gel Particle mounting method.

Additional Information

Disclaimer

Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.

Acceptable Quality Standards

Alu case - Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to Zoom64

Drivers, Docs & Downloads

Will be linked here prior to delivery

Customize YOUR EXPERIENCE

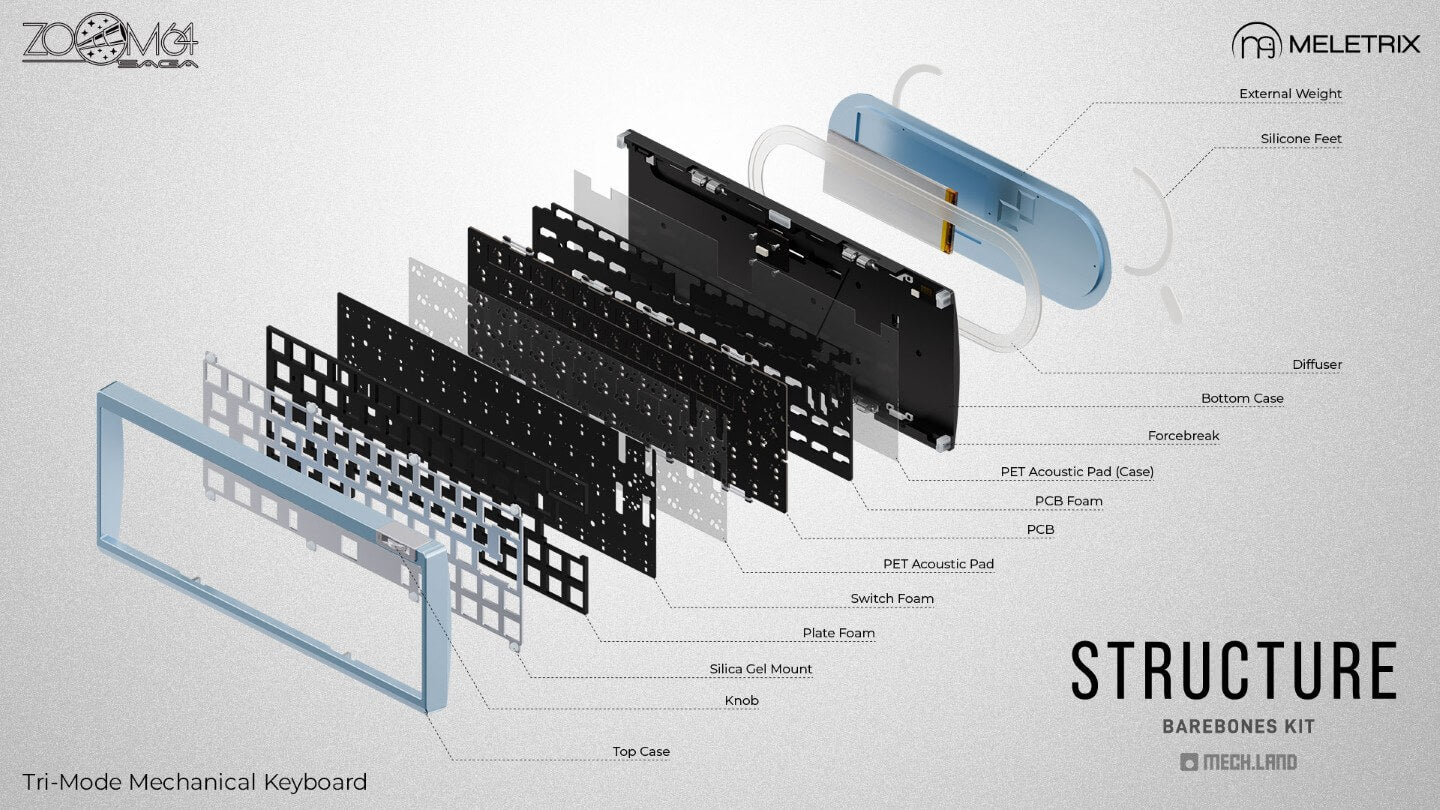

HYBRID DAMPENING SYSTEM

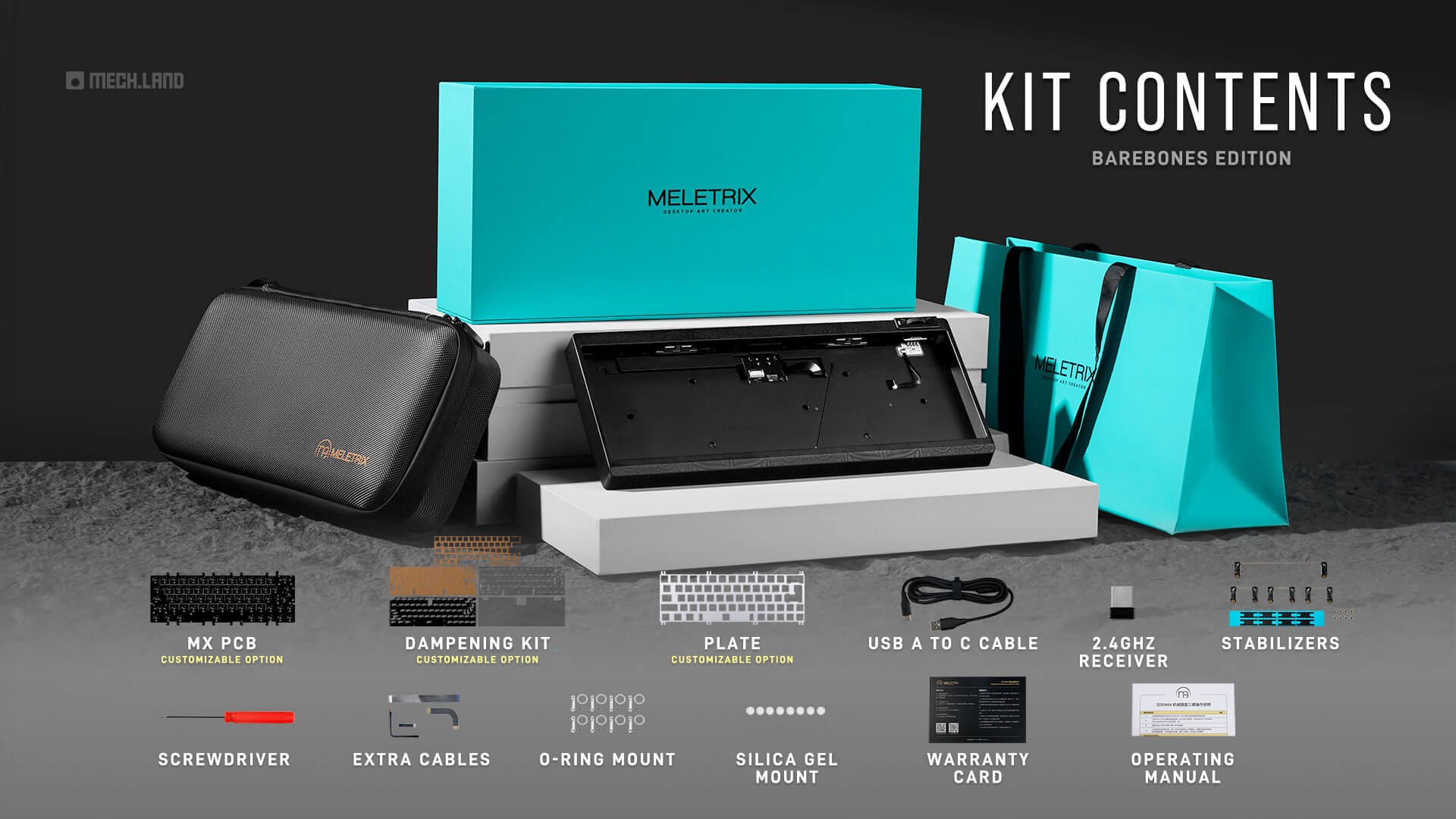

Each Barebones kit will come with accessories to mount your build in two different ways.

Both mounting options support "foamless" tuning, effectively eliminating case ping without using the dampening kit.

 For magnetic switches, please use Silica Gel Particle Mount only

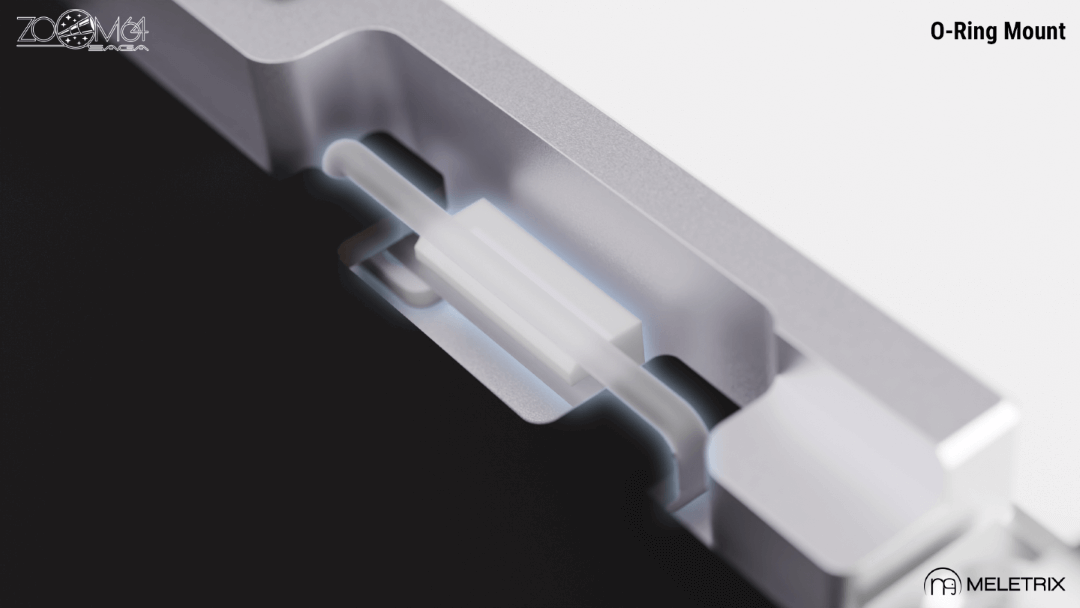

Split o-ring mount

Adds bounce and flexibility for a softer typing experience.

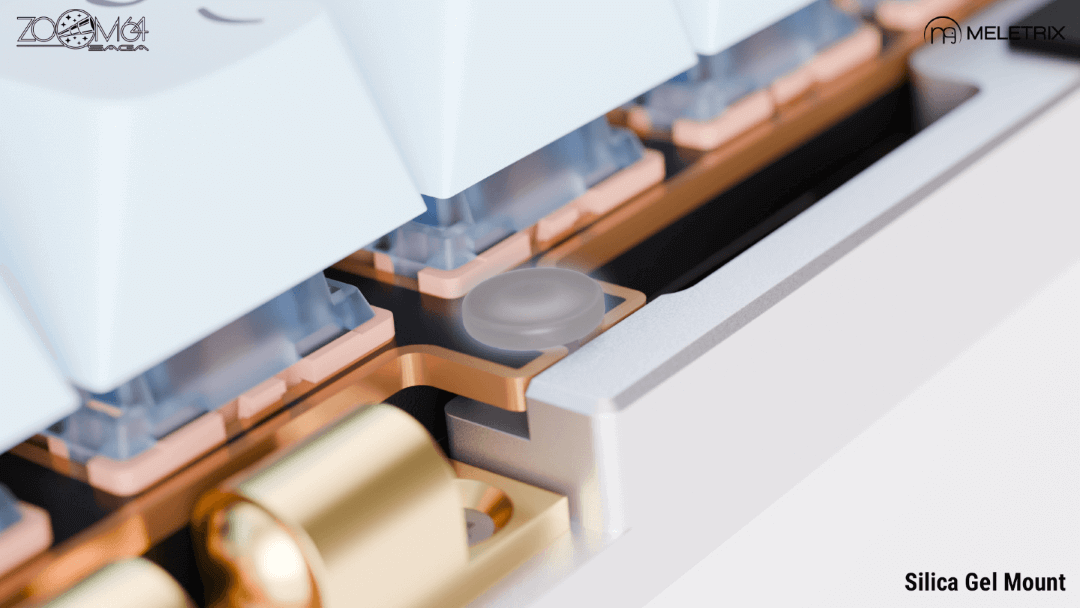

Silica Gel Particle Mount

Helps achieve a muted, cushioned typing feel.
Title

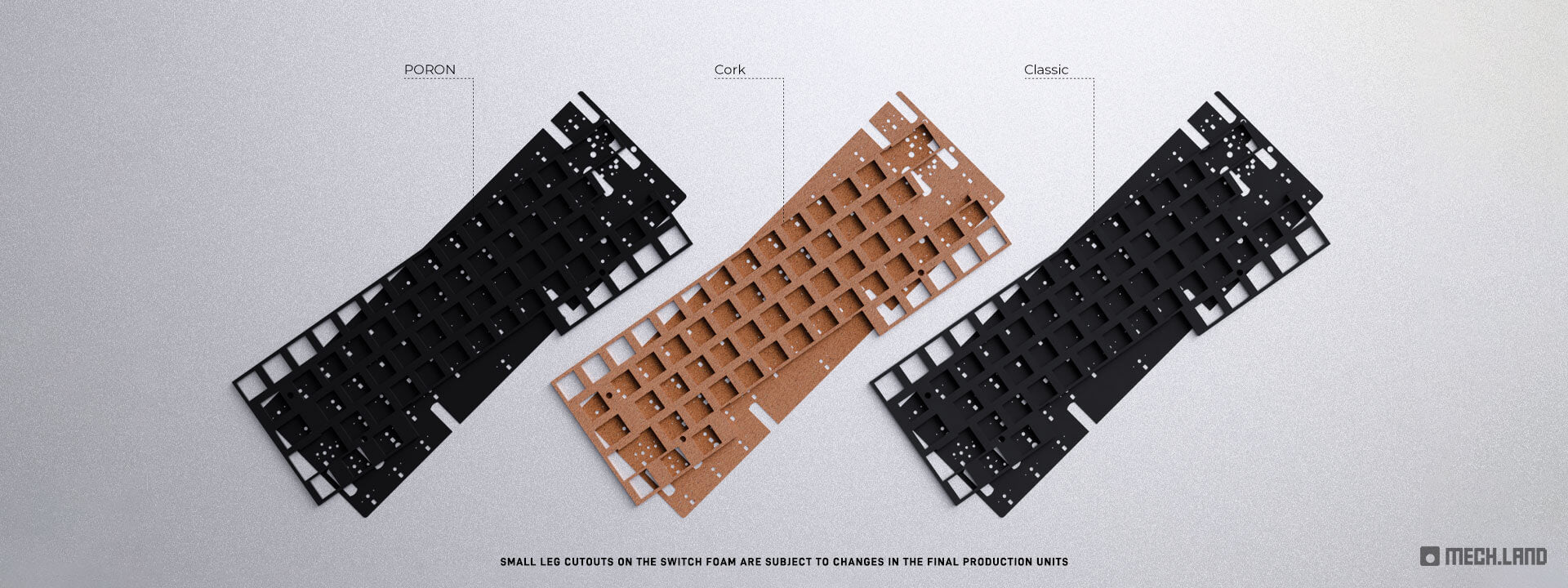

Premium Acoustic Experience

Each Barebones Kit comes with a Dampening Kit of your choice. You can purchase additional ones in the add-ons page.

Crisp - Cork FOAM

First introduced in Zoom Tiga, the Cork Foam set perfect for those who want something different than what traditional foams offer! This cork layer produces a crisper sound for a unique typing experience.

Soft - PORON Foam

Poron foam offers excellent durability and fatigue resistance, ensuring consistent sound performance over time. With a muted sound profile it makes it the perfect option for office use.

Classic - Standard Foam

Standard Foam tends to change the sound profile over time while offering a higher-pitched profile. It starts with a bright tone that gradually mellows with use.

Go foam-less!

Many prefer their build without any foam at all, and you can do that with Zoom64! You can also use any combination of the foam listed here for a truly unique sound.
Title

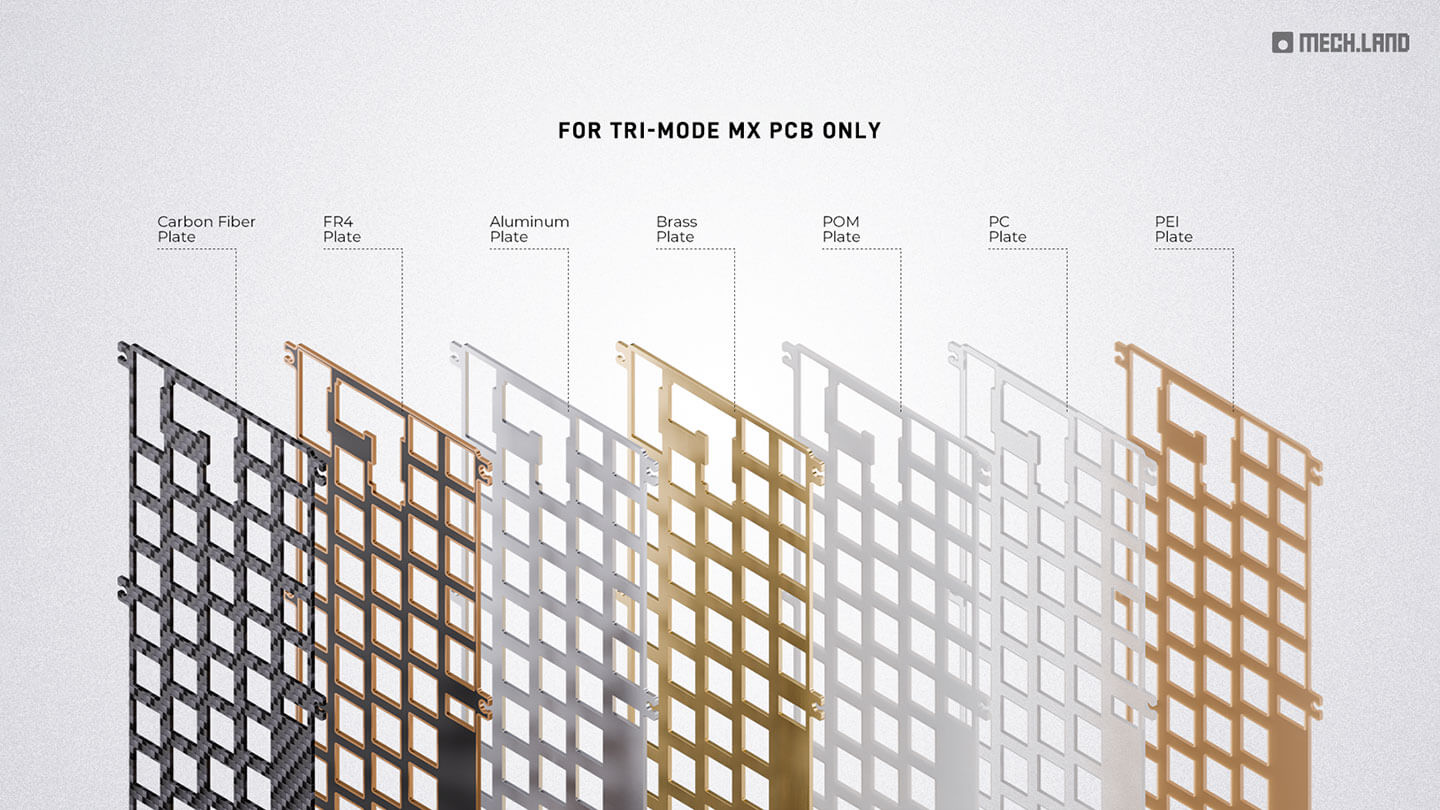

Plate Variety

You can choose either an Aluminum, FR4, POM or PC plate with each Barebones Kit. Additional plates, including plates made of other materials can be purchased separately.
Title

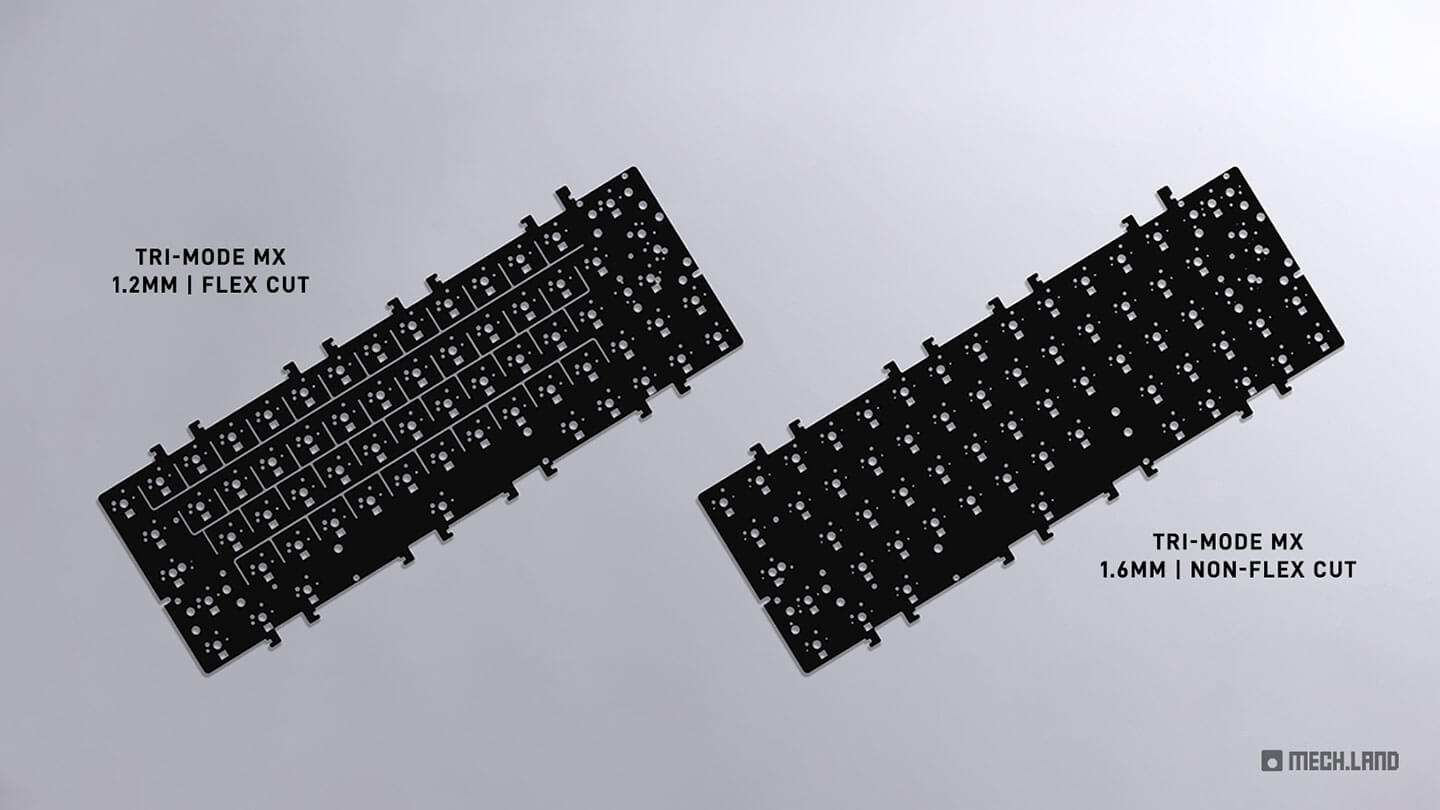

PCB Options

Each Barebones Kit comes with an MX PCB of your choice. Choose the 1.2mm Flex Cut PCB for a bouncier typefeel, or choose the 1.6mm Non-flex cut option for a more rigid typing experience!

Photo Gallery

Drag across to browse through the gallery.
Click / tap to enlarge.

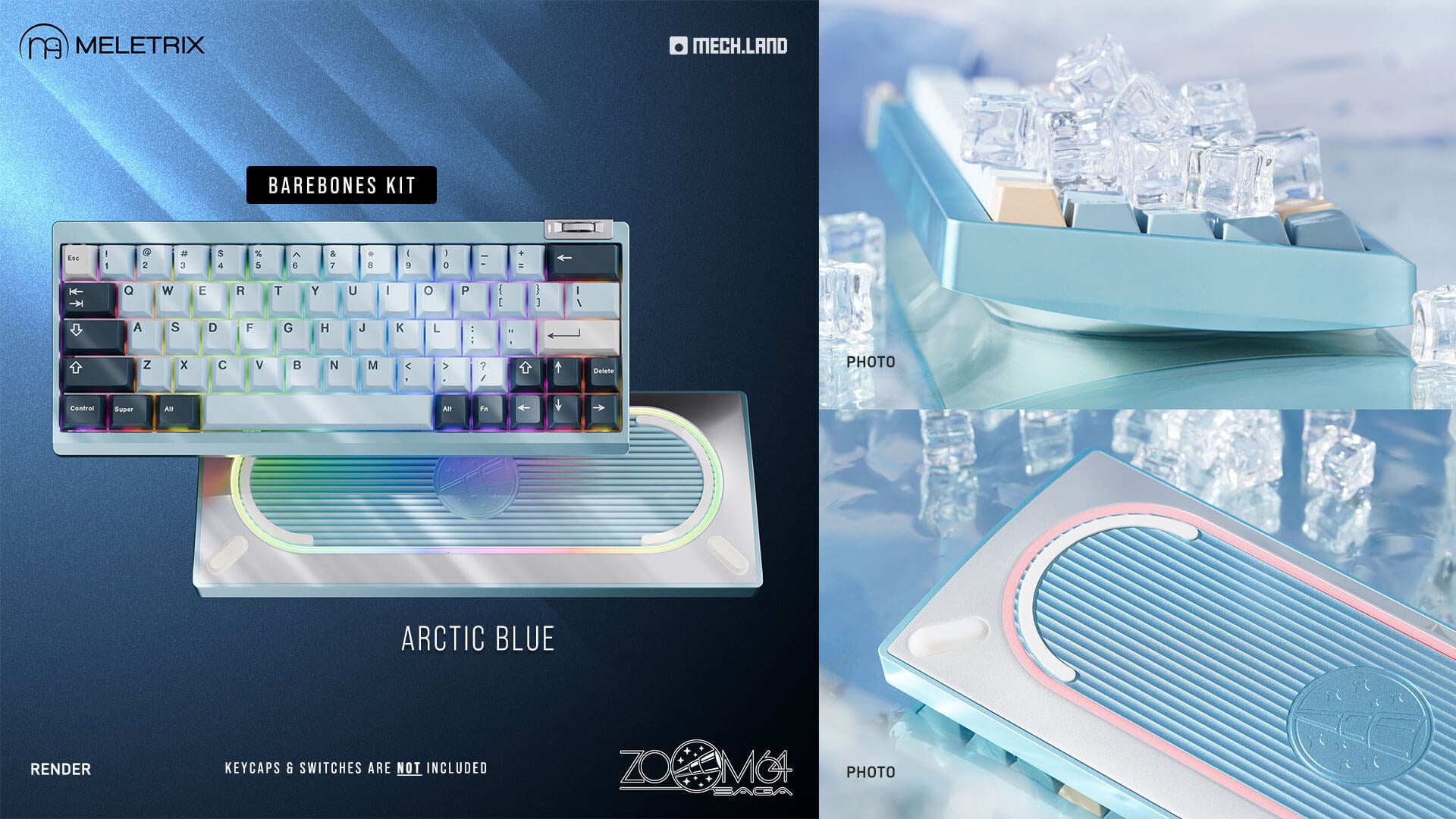

  • Arctic Blue

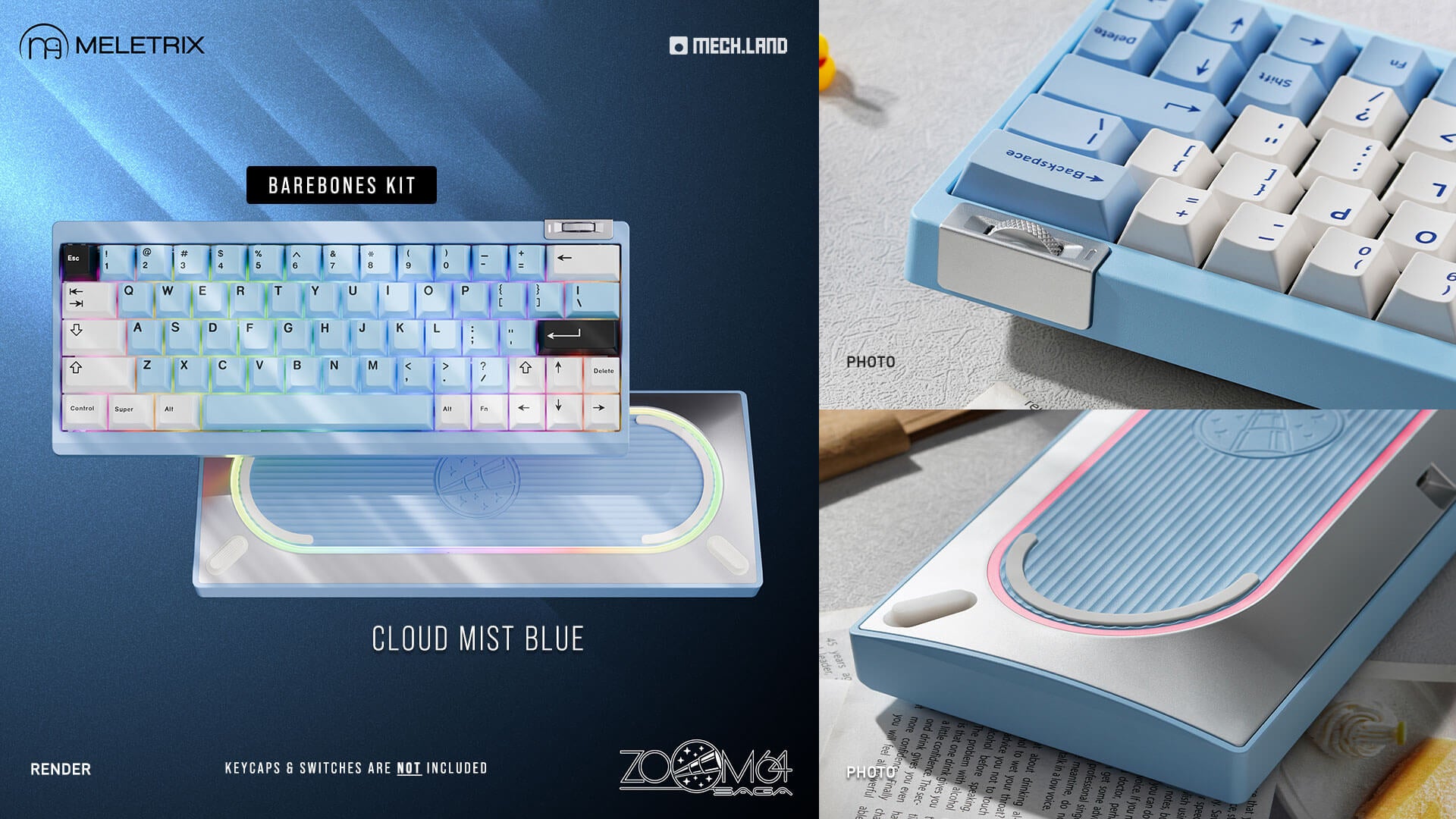

  • Cloud Mist Blue

  • Coral Bloom

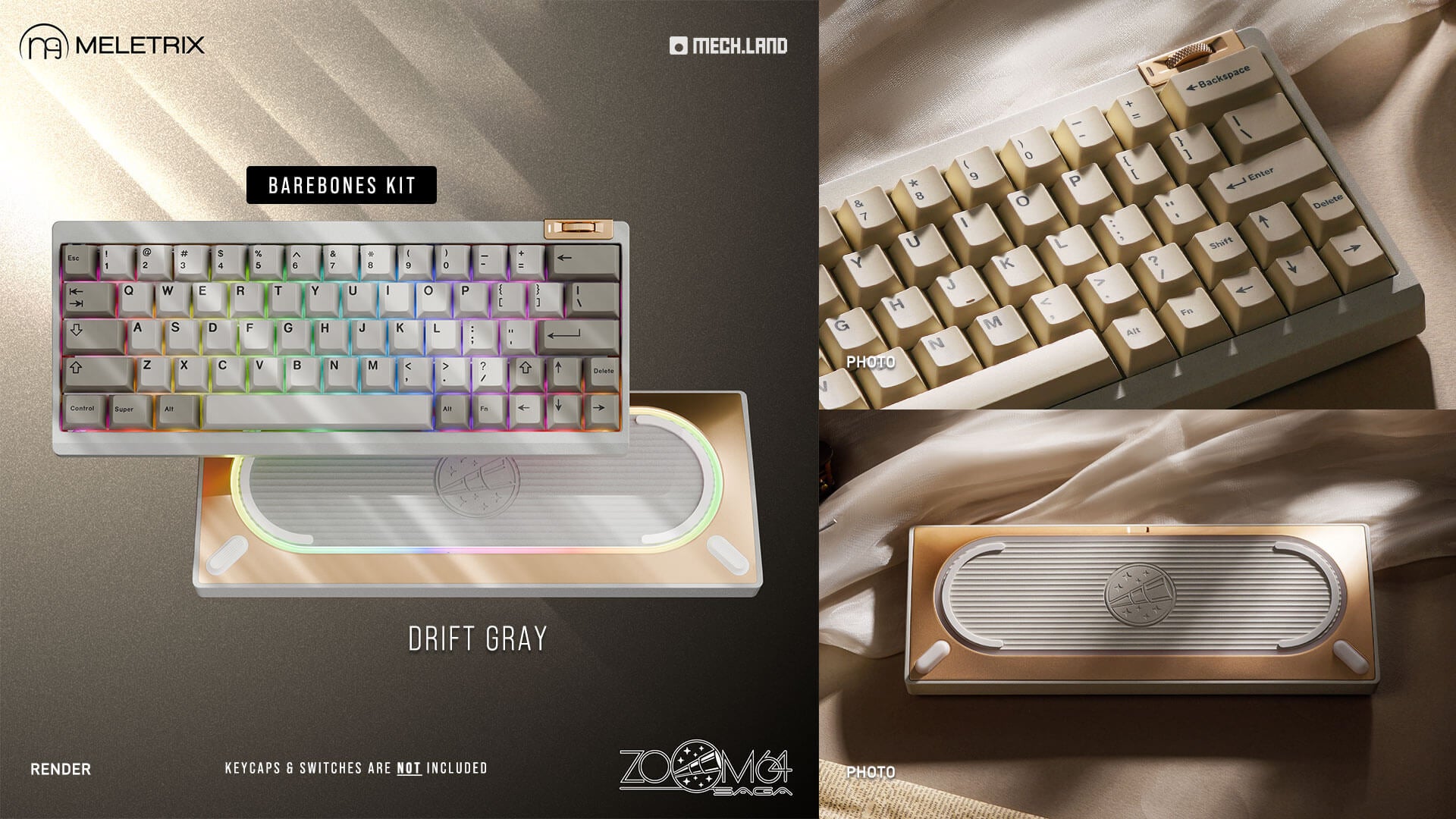

  • Drift Gray

  • Forged Flow

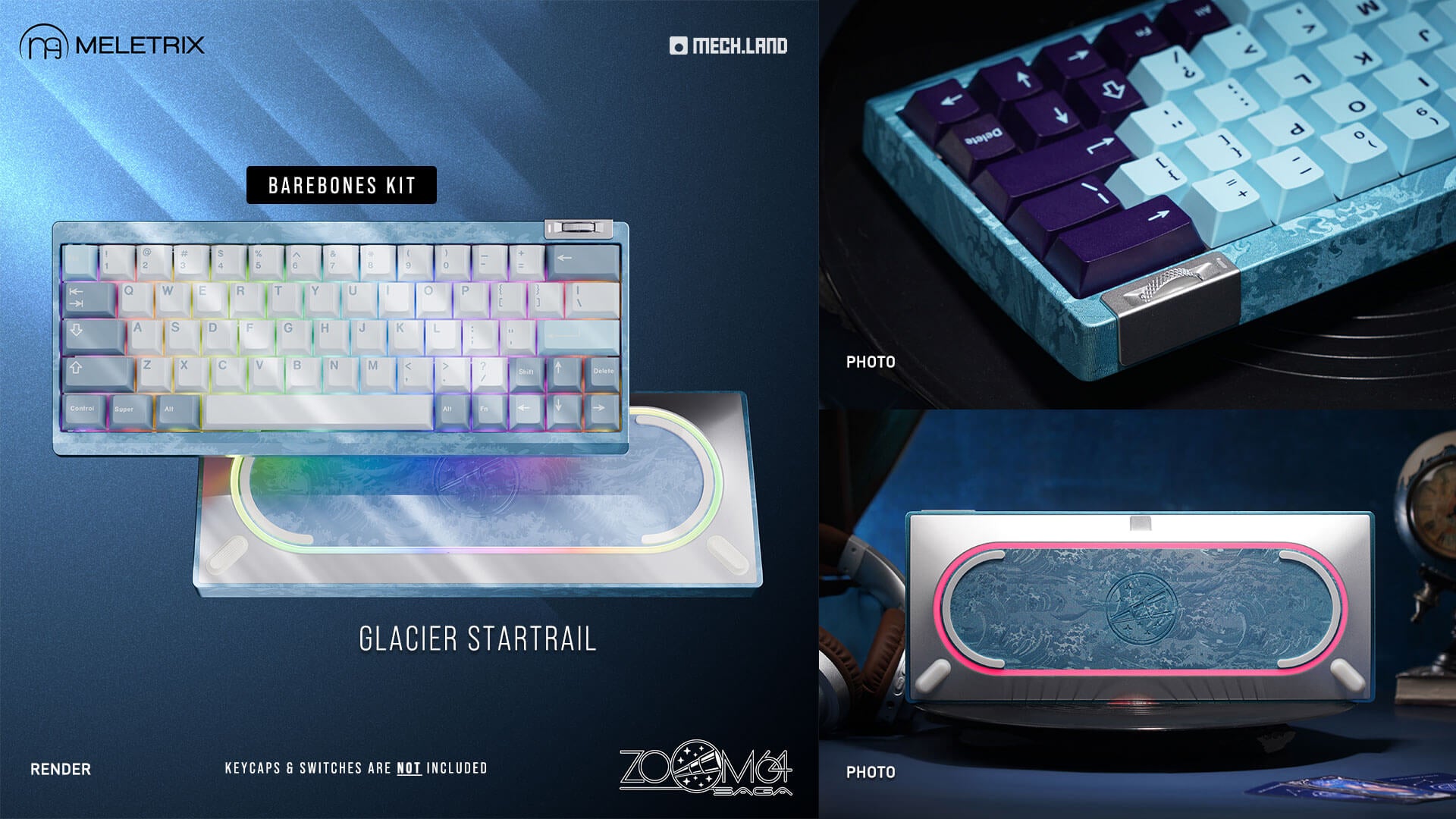

  • Glacier Startrail

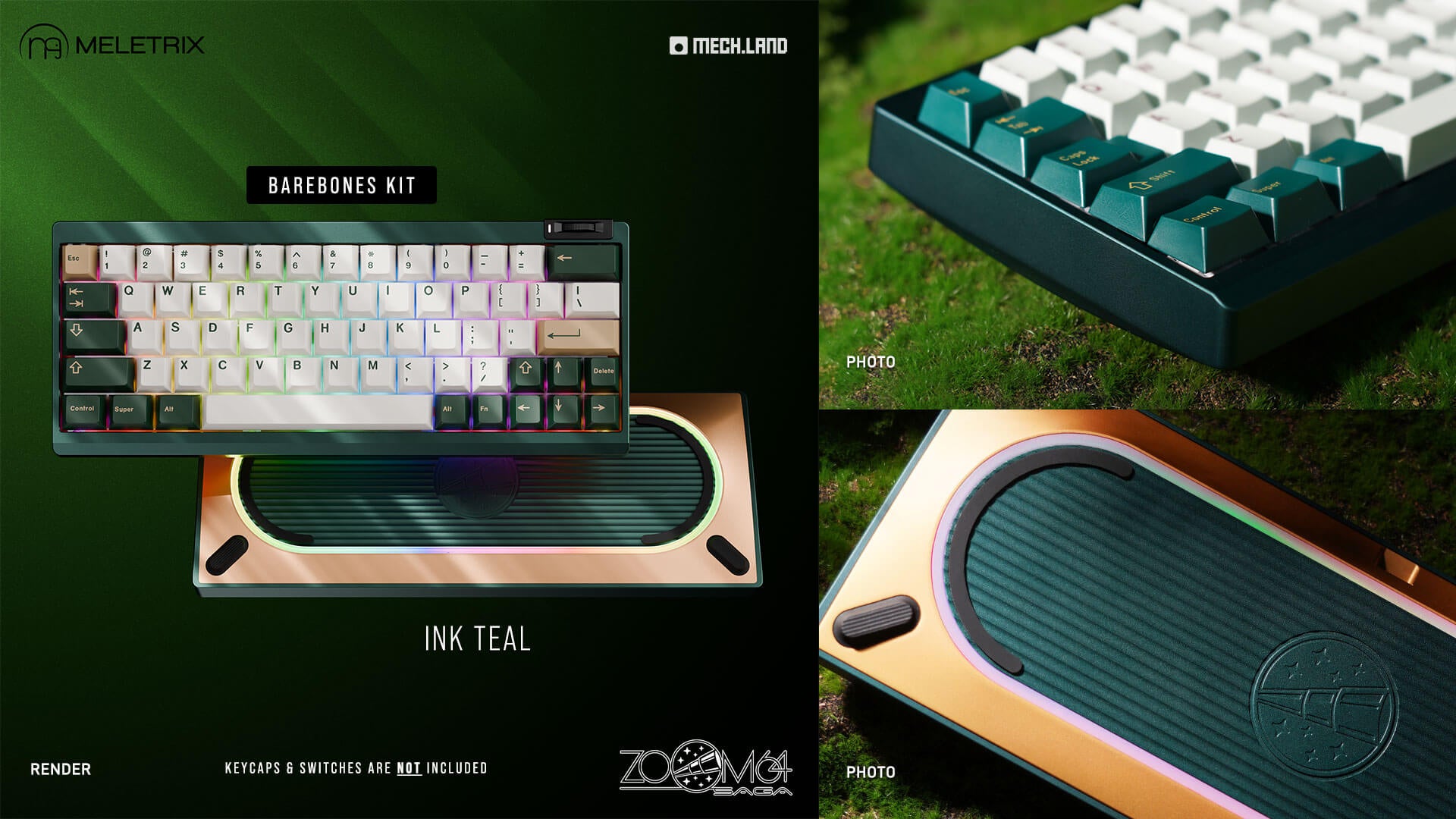

  • Ink Teal

  • Lilac Veil

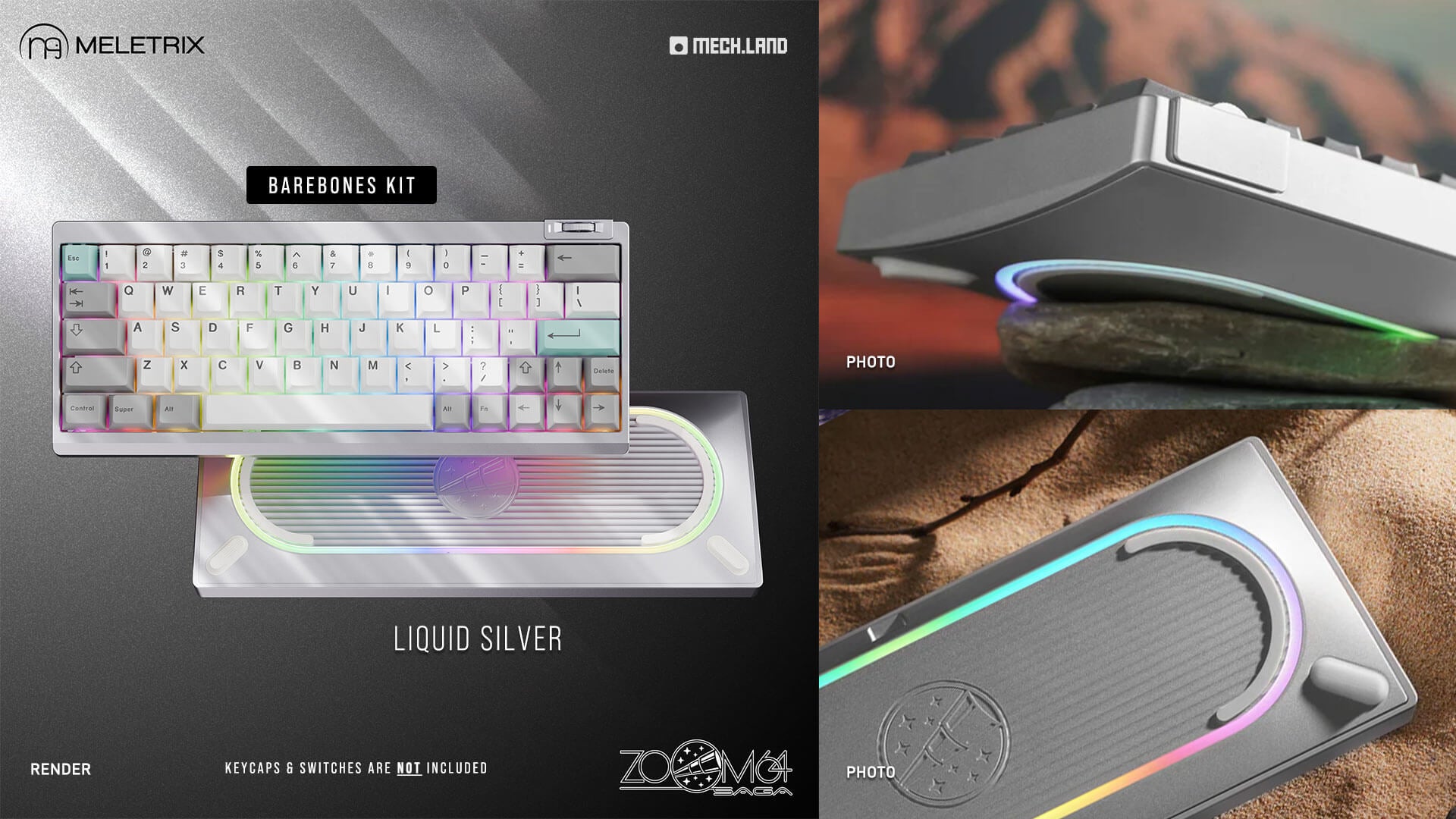

  • Liquid Silver

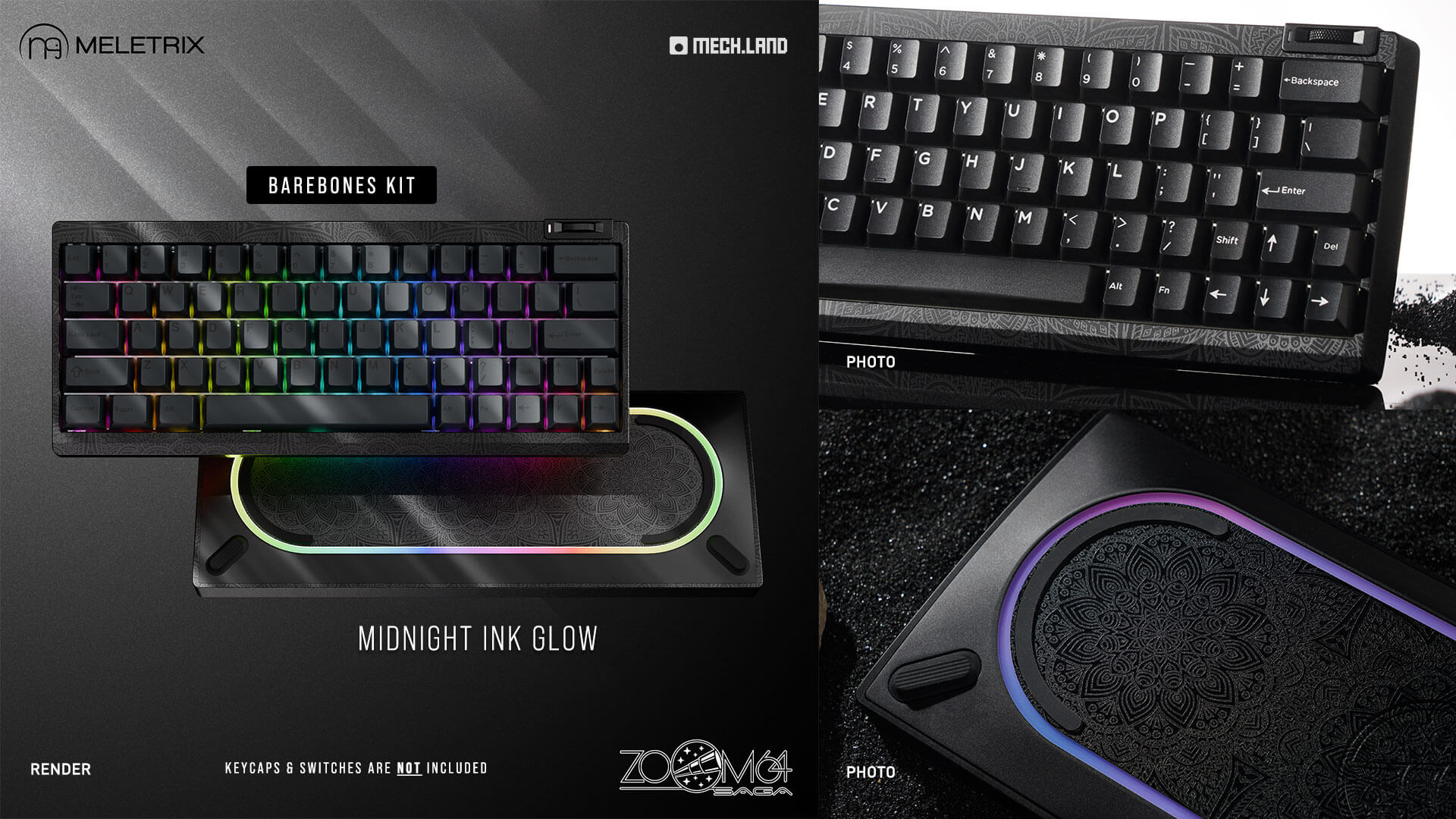

  • Midnight Ink Glow

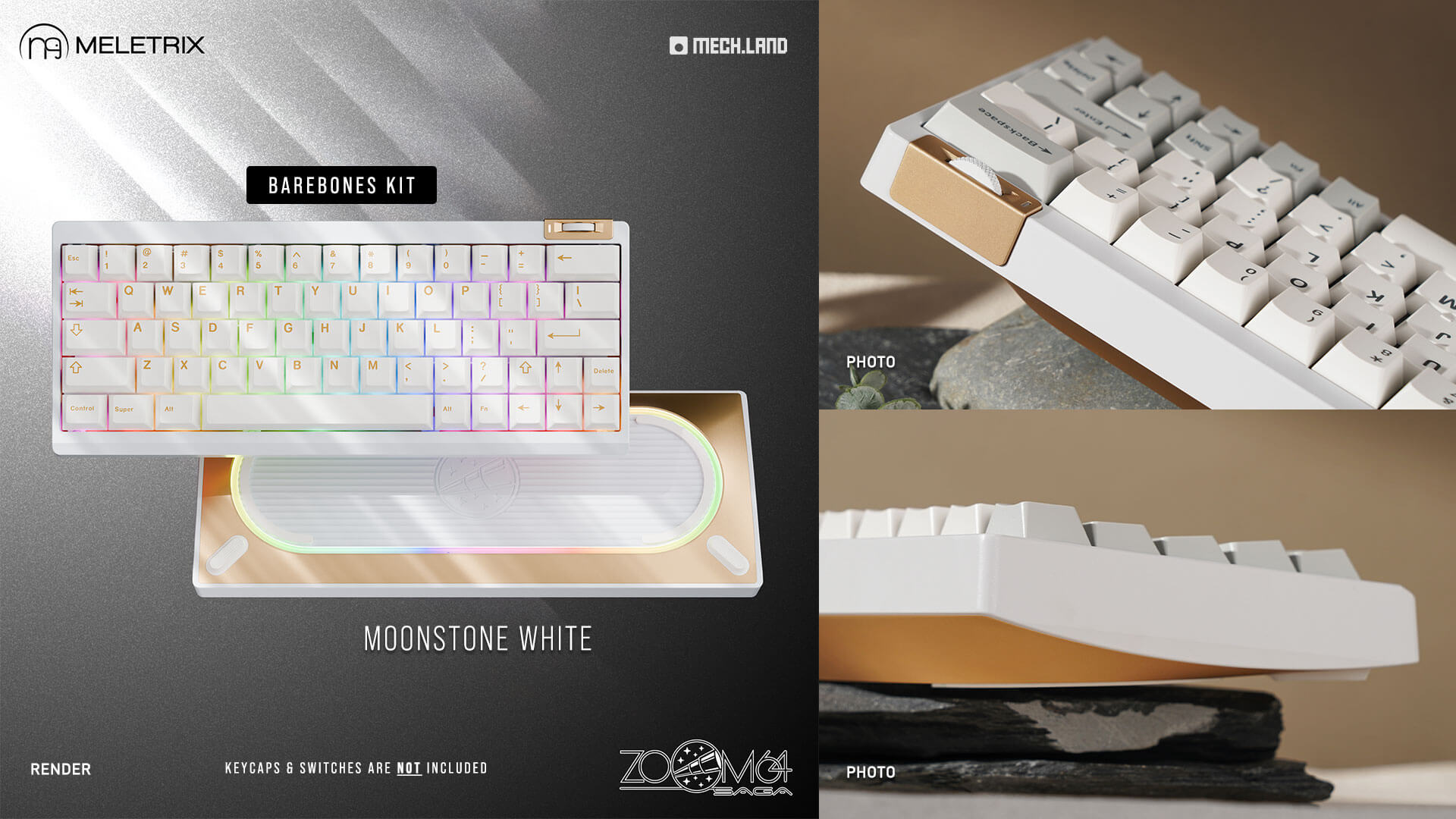

  • Moonstone White

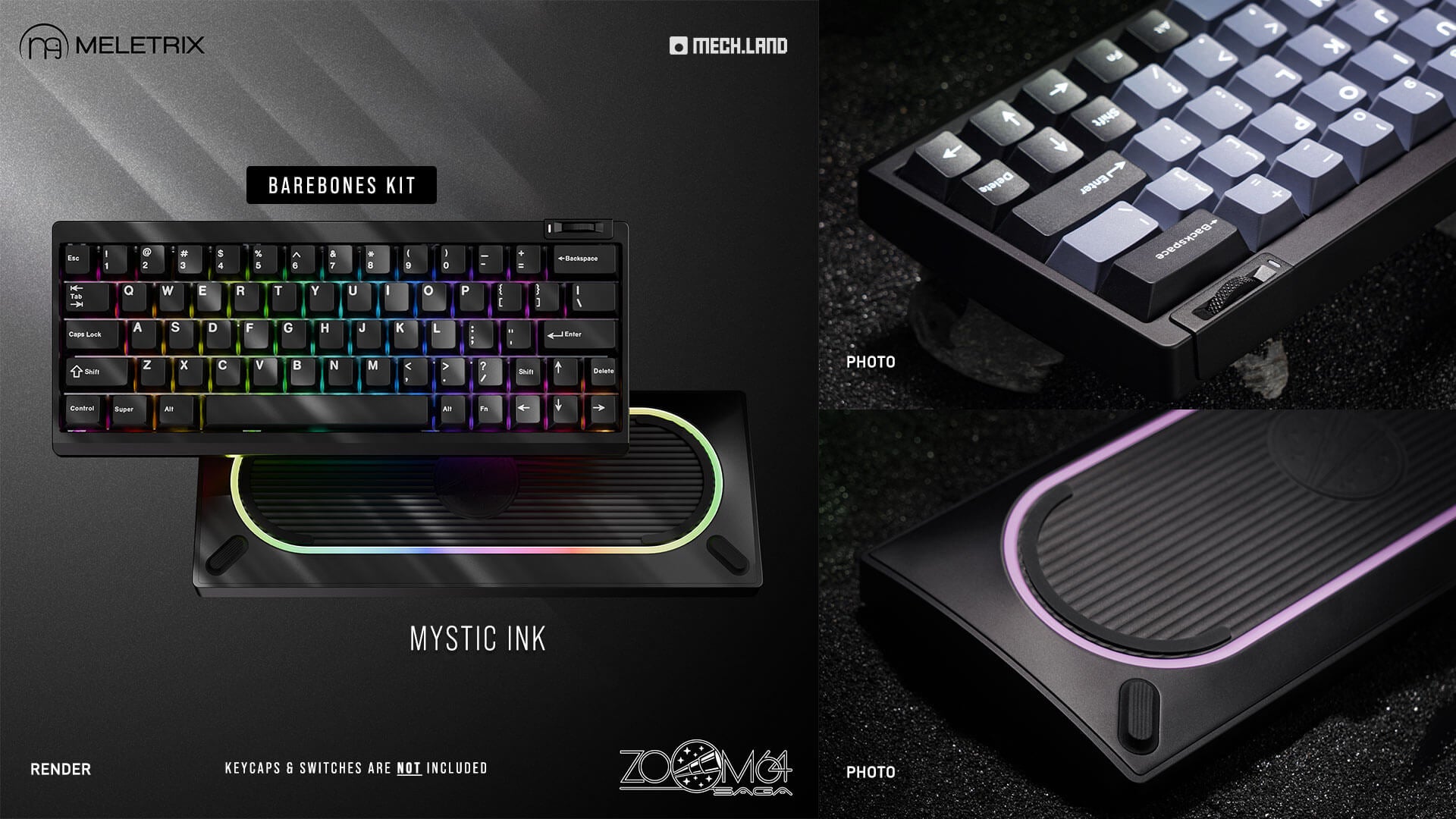

  • Mystic Ink

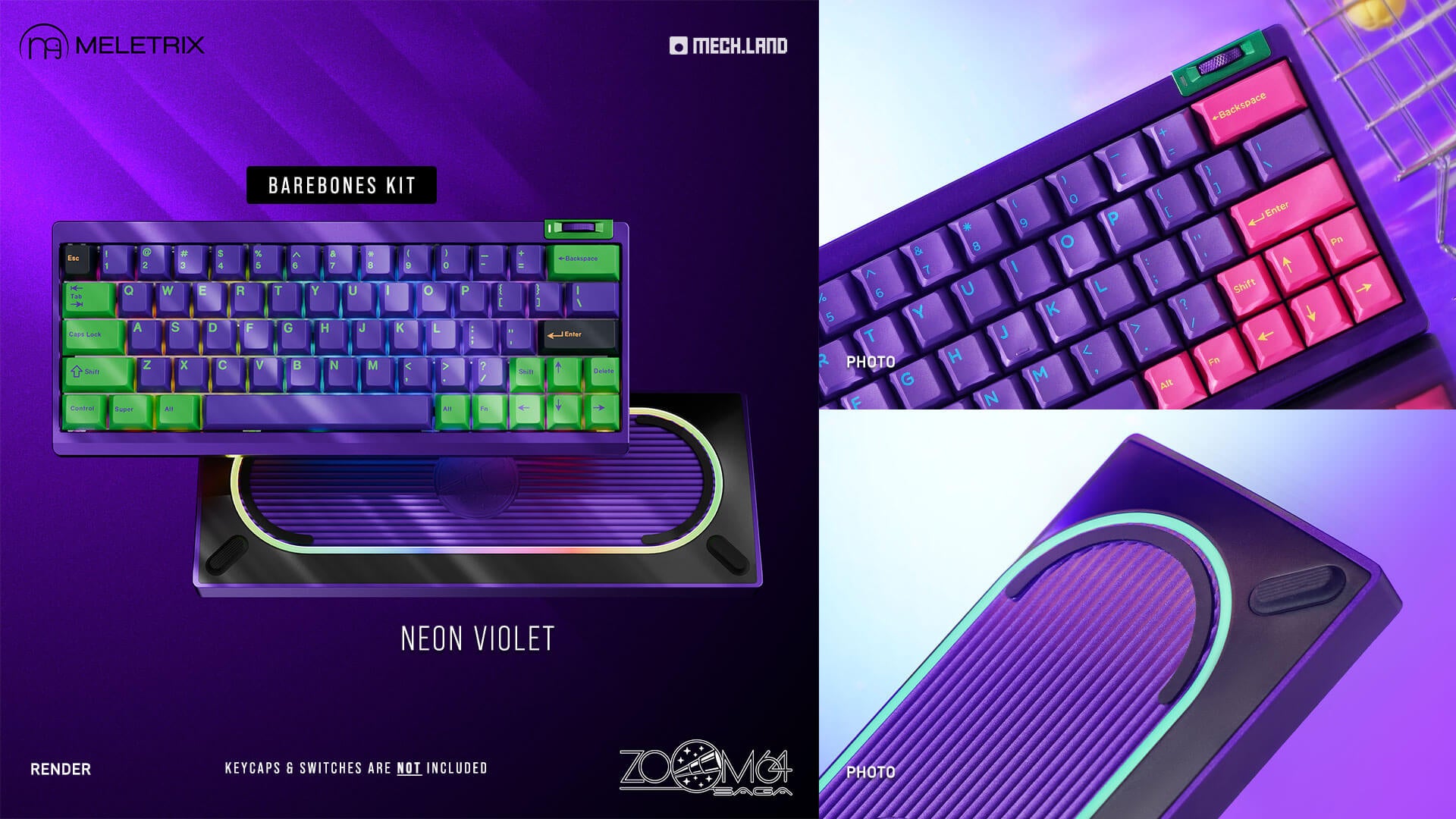

  • Neon Violet

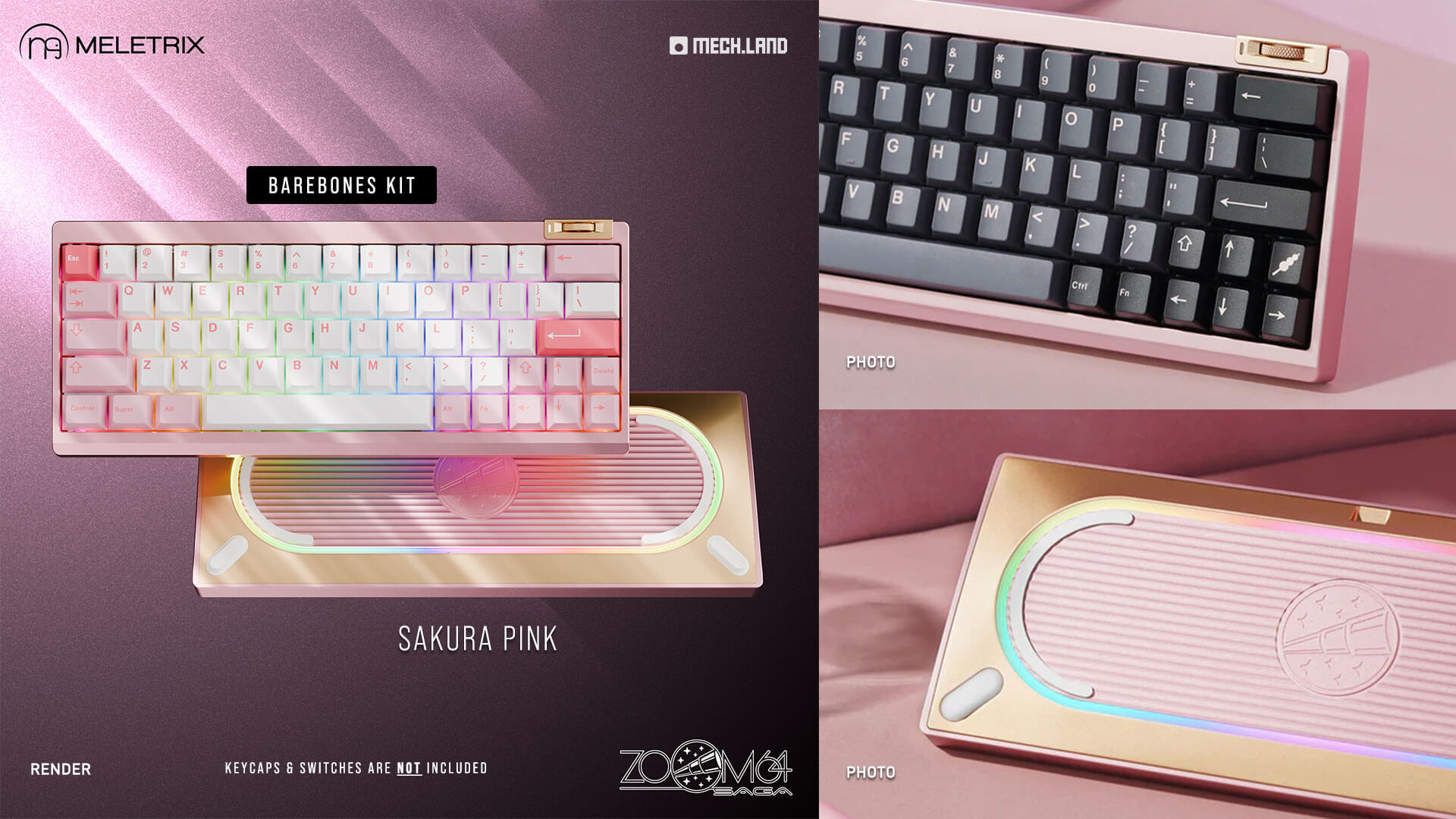

  • Sakura Pink

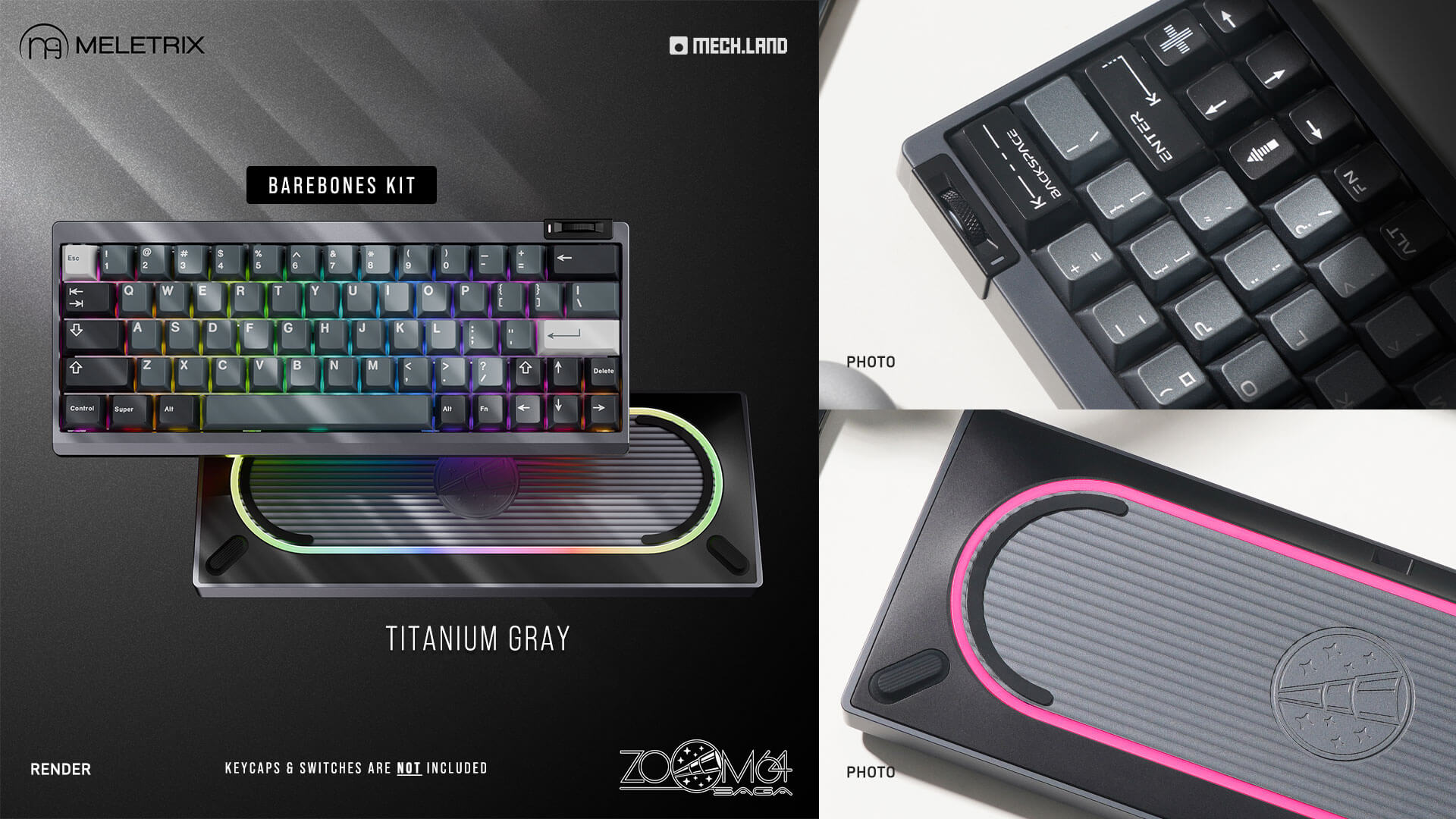

  • Titanium Gray

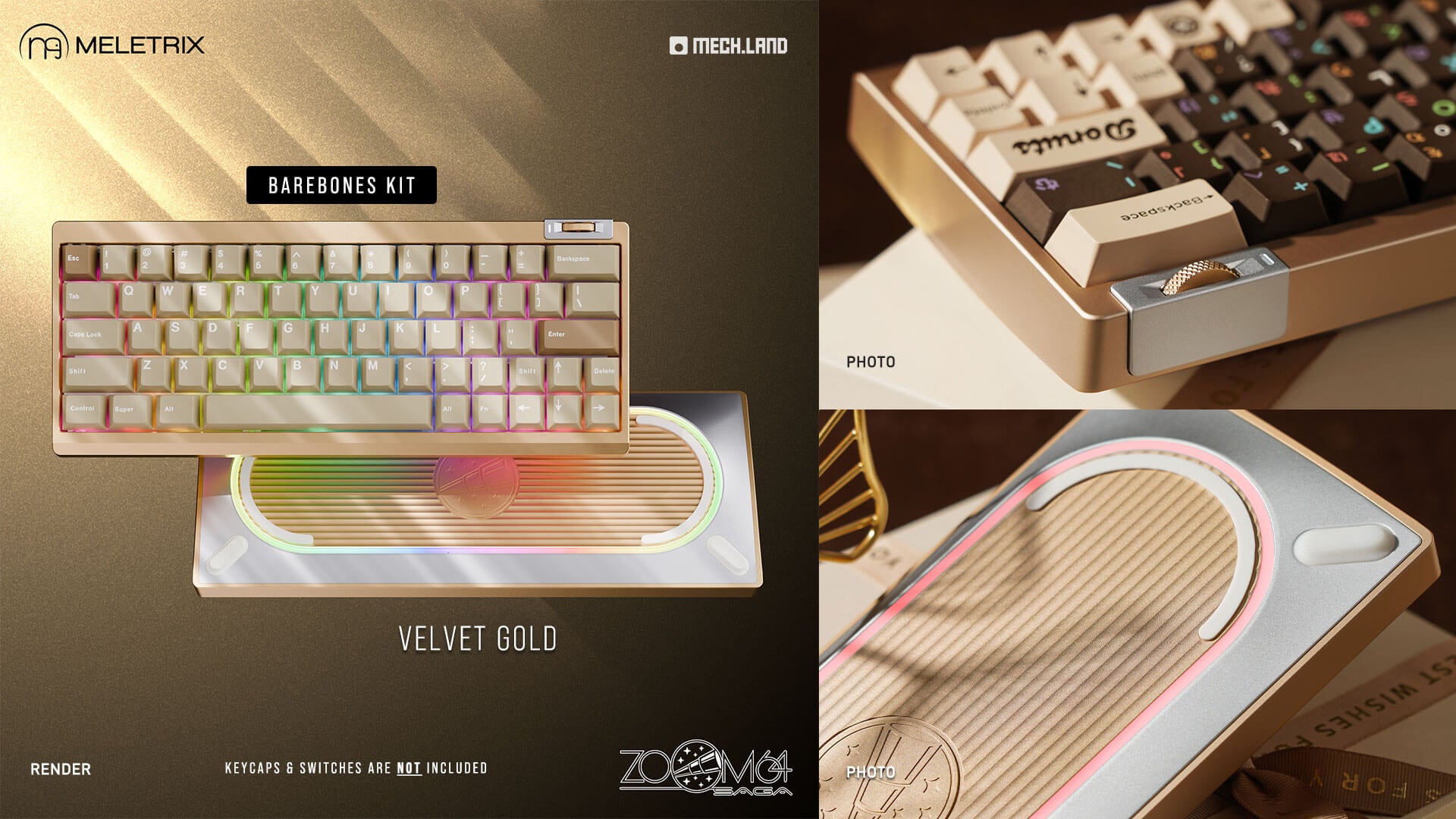

  • Velvet Gold

Videos

Alt image
Alt image
Alt image
Alt image
Alt image
Alt image

GB Information

Group buy runs from Feb 3 to Feb 18, 2026

Estimated to finish production in March-April, 2026

Delivery Estimates

Title

Ocean Freight

Arrives to Canada via a ship. Takes 45-60 days in transit. This is the standard import method used in most keyboard / deskmat group buys. It's much cheaper than Air Express but takes longer to arrive.

All units ordered via Ocean Freight are scheduled to ship out of Meletrix around March-April, 2026 and should arrive to us 45 to 60 days later.

Air Express

Arrives to Canada via a cargo airplane, takes 7-18 days in transit. This import method is very expensive, as such some of the items brought over via Air Express have a markup added to cover the extra expenses

All units ordered via Air Express are scheduled to ship out of Meletrix around March-April, 2026 and should arrive to us 7 to 14 days later.

IMPORTANT

You cannot combine Ocean Freight and Air Express items in the same order. Each individual order has to contain either all Ocean Freight or all Air Express items. This is because they arrive at different times

Please keep in mind the ETA is just our best guess according to the information currently available to us. Unexpected issues and delays can happen at every stage of the process.

GB / Pre-order Policies

Title

Combinations

You cannot add any in-stock items to your order as we cannot guarantee its availability when the group buy is ready to ship.

If you're subscribed to our email list, you'll get an email before your group buy is ready to ship. In that email there will be instructions on how to add in-stock items to your group buy order and have them all ship together to save on shipping fees.

Modifications

You may modify your order until Feb 18, 2026

Please send an email to help@mech.land from the email address associated with your order and list the changes you'd like to see made.

Cancellations

You may cancel your order and get a refund until Feb 18, 2026

Please keep in mind we may keep up to 5% of the total from the refund as we do not get the transaction fees back from our payment processor. We may apply an additional penalty of up to 15% of the total if you choose to cancel after group buy is over.

Updates

Any status updates pertaining to this group buy will be posted in the status updates page.

Please follow the instructions on the contact us page if you need to change your address before the group buy ships.
