Meletrix

Zoom75 Tiga

Name: Zoom75 Tiga
Brand: Meletrix
Price: 235.0 USD
Availability: OutOfStock

$235.00 USD

Title

Quantity

Pickup available in Scarborough, ON, Canada. Click here for more info

Usually ready in 1-4 days

Related Products

Zoom75 Tiga

$235.00 USD

Product Page

Zoom75 Tiga - Extra Dampening Kits

$12.00 USD

Product Page

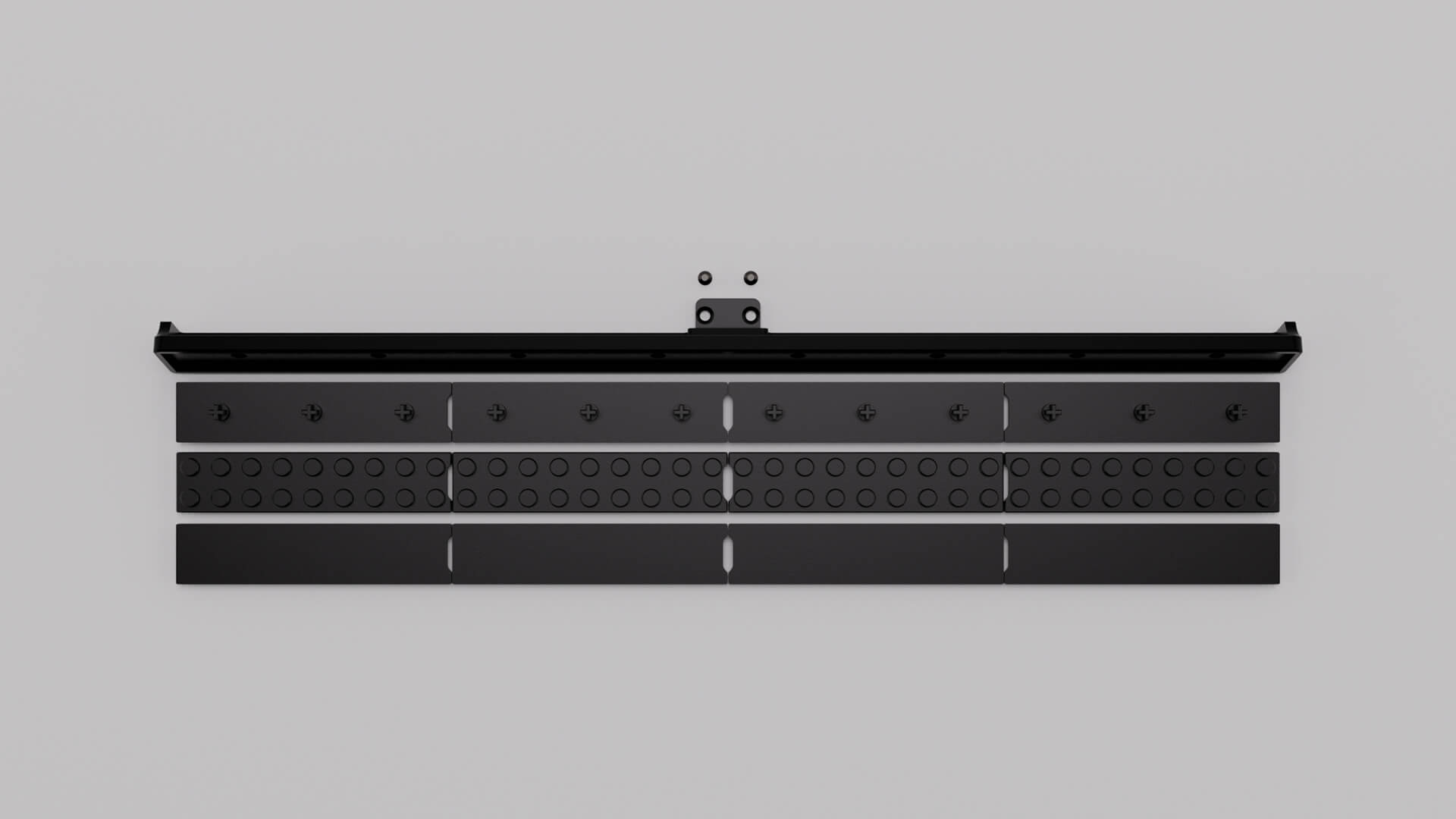

Zoom75 Tiga - Rear Expansion Module

$23.00 USD

Product Page

A new look

Introducing Acustatic Case Finish

Dubbed "Acustatic", Zoom75 & Zoompad Tiga uses a new cutting-edge electrostatic spray technology that delivers more vibrant colors and superior consistency. The smooth, refined surface achieved by a 220-mesh fine spray coating offers a premium feel and finish!

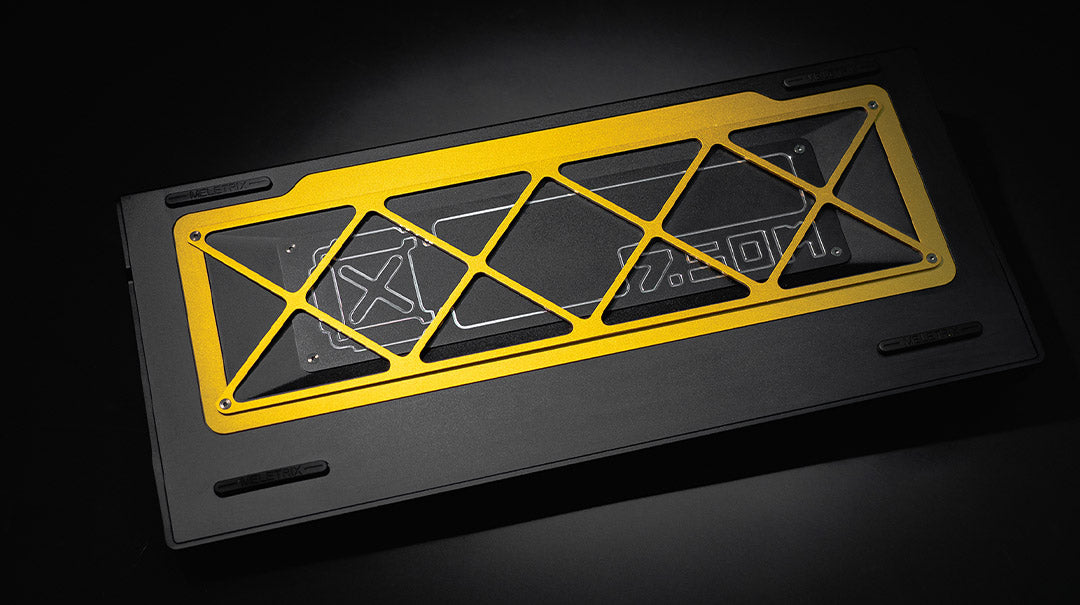

GrillE Module

This new module goes over the external weight, letting you create an unique combination unlike any other. Each keyboard colorway case comes with a pre-determined combination of the two, but additional Grille Modules and External Weights can be purchased separately.

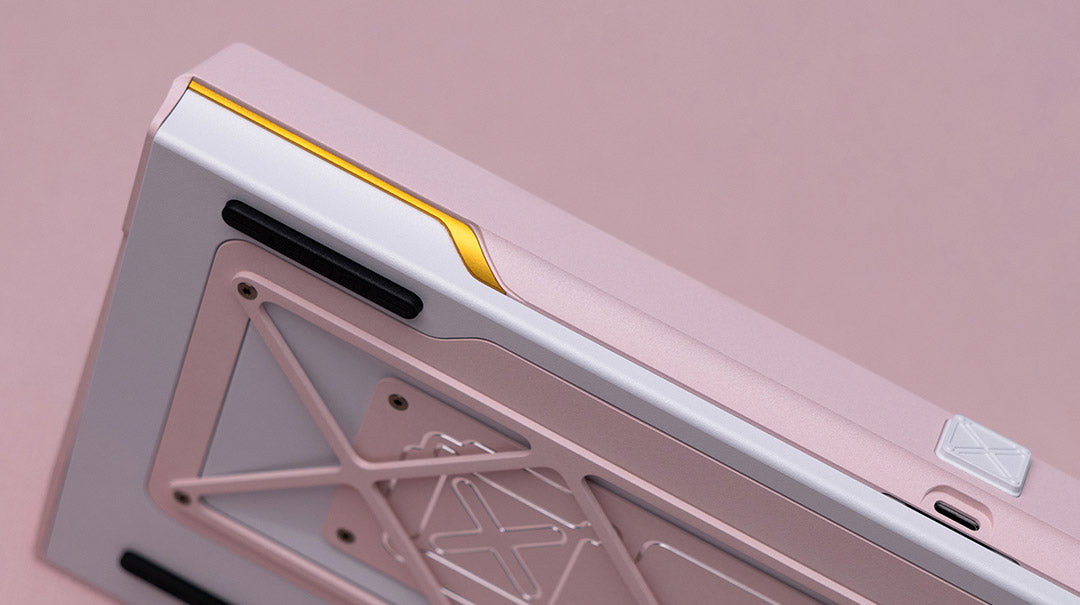

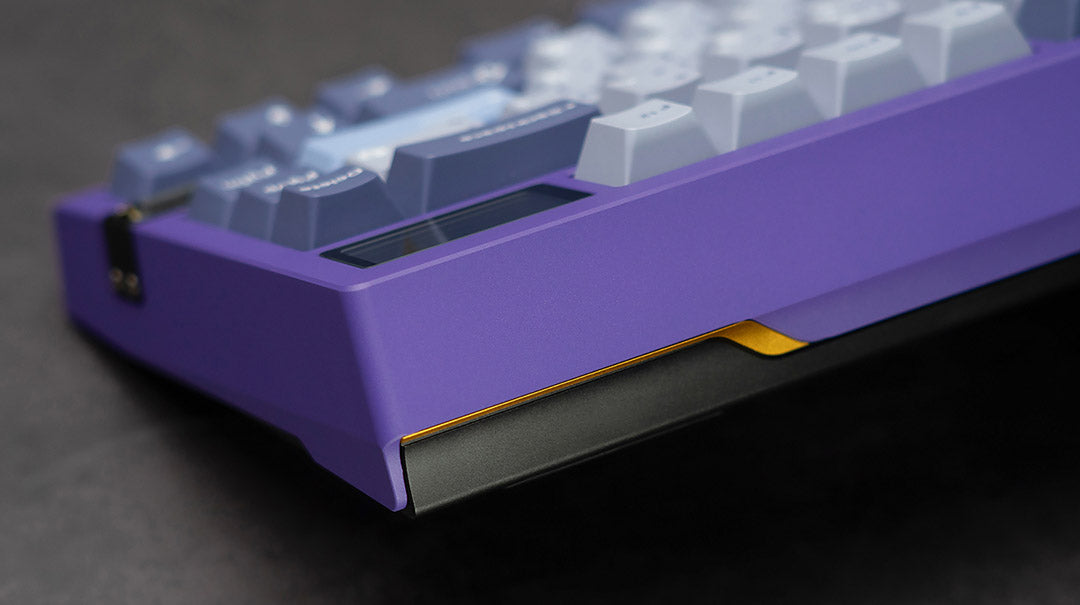

Dual Wing Design

Each Tiga features an accent wing on each side in Marigold Yellow. Addtitional wings in White and Anodized Black can be purchased separately.

Modules

Screen Module

More capable than ever before! Comes included with each Zoom75 Tiga

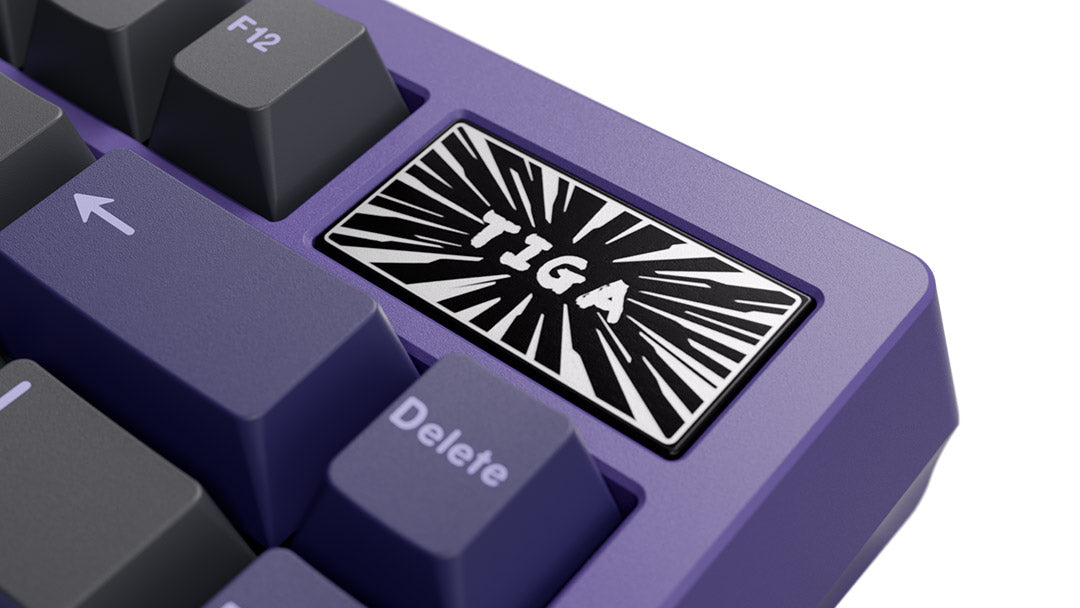

Badge Module

Module & badges sold separately

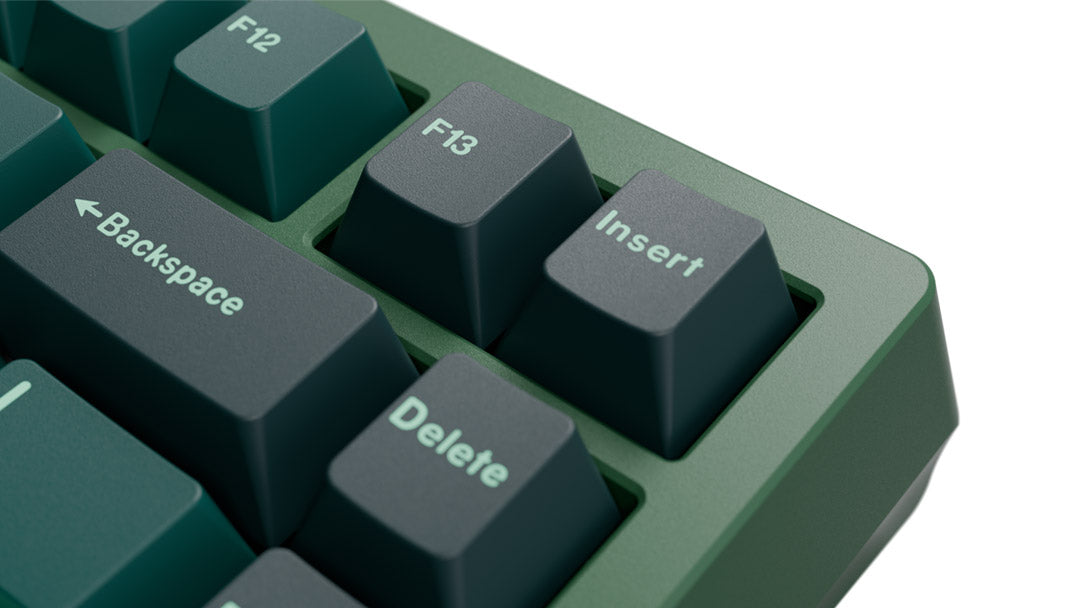

2-keys

No longer a module, built right onto the PCB!

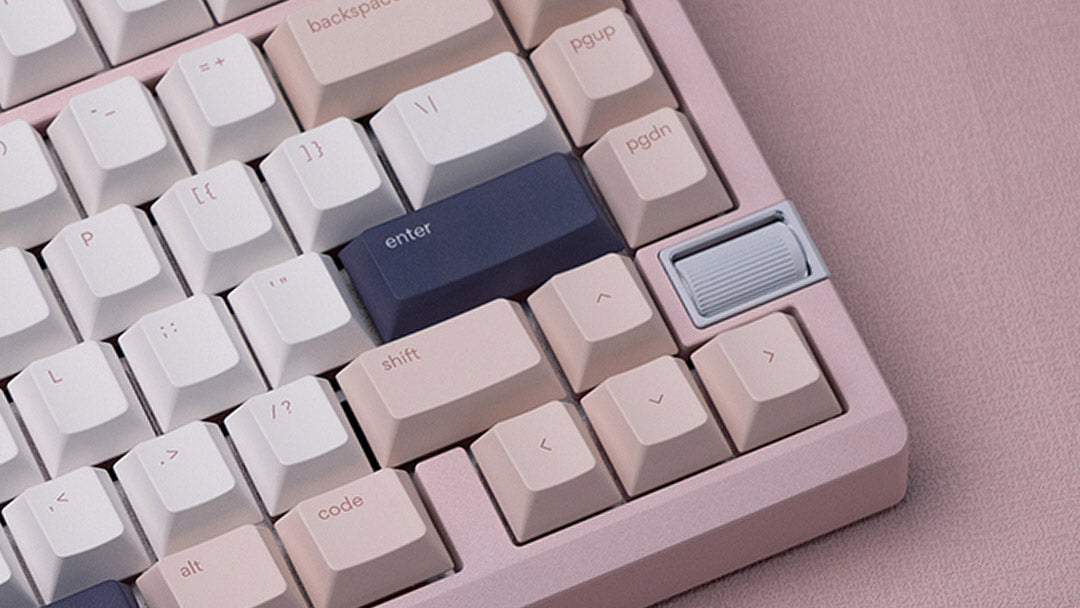

A roller scroller on every board!

Previously, you could have either the screen module or the knob module on a Zoom board, but not both! The new Zoom75 Tiga uses a roller scroller right above the right arrow, leaving the top right corner open for a screen module! This new roller has the same functionalities as the knobs in the past, but it also functions as a more natural way to scroll a page!

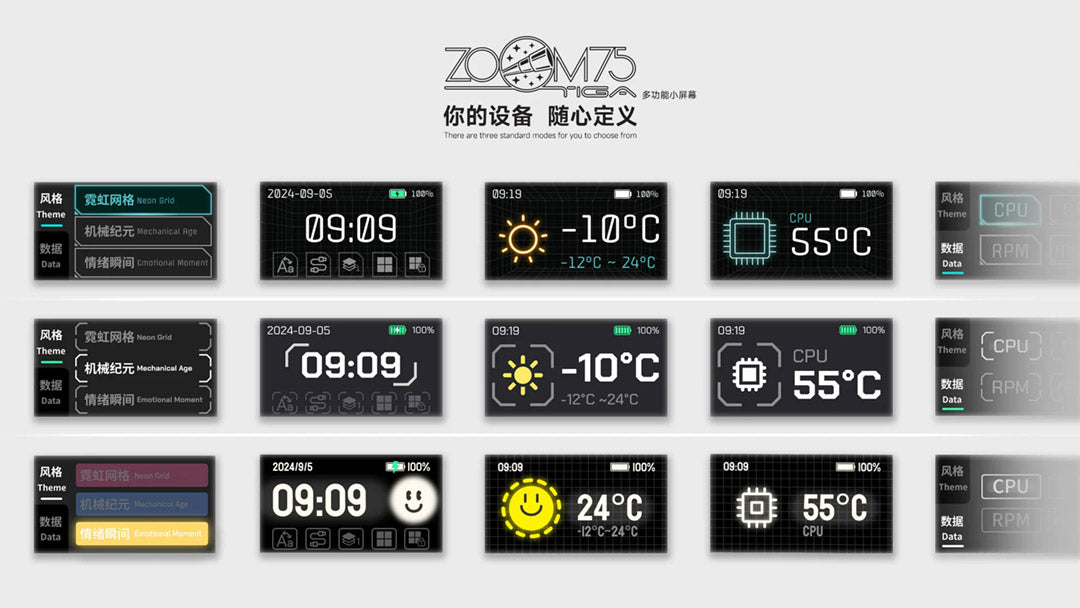

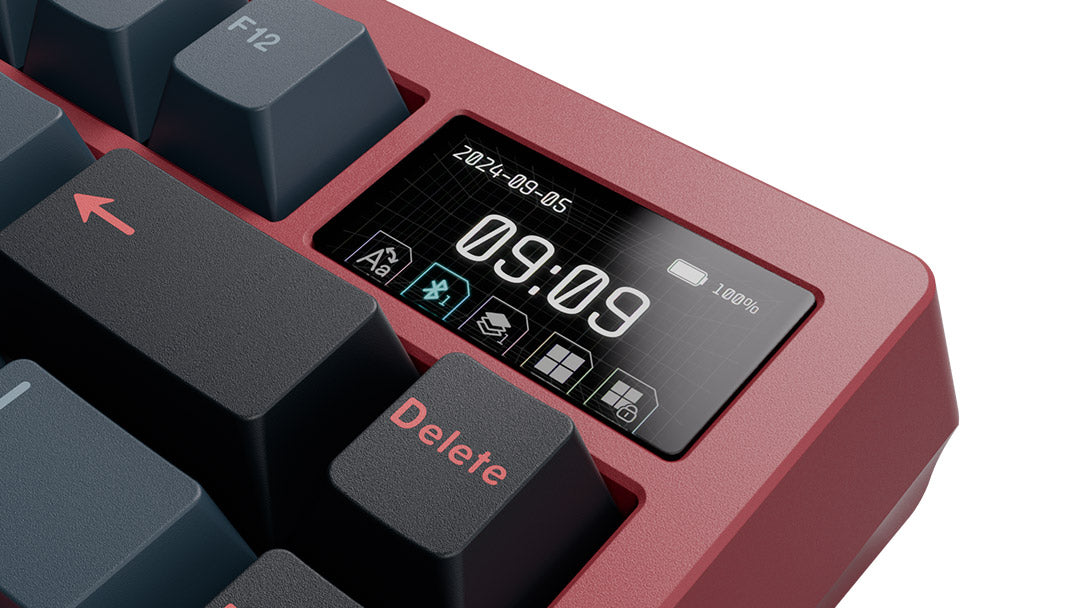

Screen Module Upgrades

The new Screen Module does not use a ribbon cable, making it far easier and less error prone to install! The high resolution screen also features twice the memory, 4x faster transfer speed and 60fps support, making the contents buttery smooth and crisp clear!

The DEtails

Specifications

Layout

75%

Case material

Aluminum (Full CNC)

Typing angle

6.5 degrees

Front height

17.57mm

Keyboard width

323.77mm

Weight

3000g

Module options

Screen (default), badge or 2-key

Stabilizers

5+1+1 set included

PCB (Tri-mode)

1.2mm Flexcut or

1.6mm Non-flexcut

Hot-swap

Multi-layout

Per-key RGB

Supports 2.4Ghz, Bluetooth or wired connection.

VIA Support

Supports all available modules

ESD Protection

Yes

Other Features

Force Break mod, multiple mounting system, screw-less assembly through catch ball mechanism, included internal weight.

Note

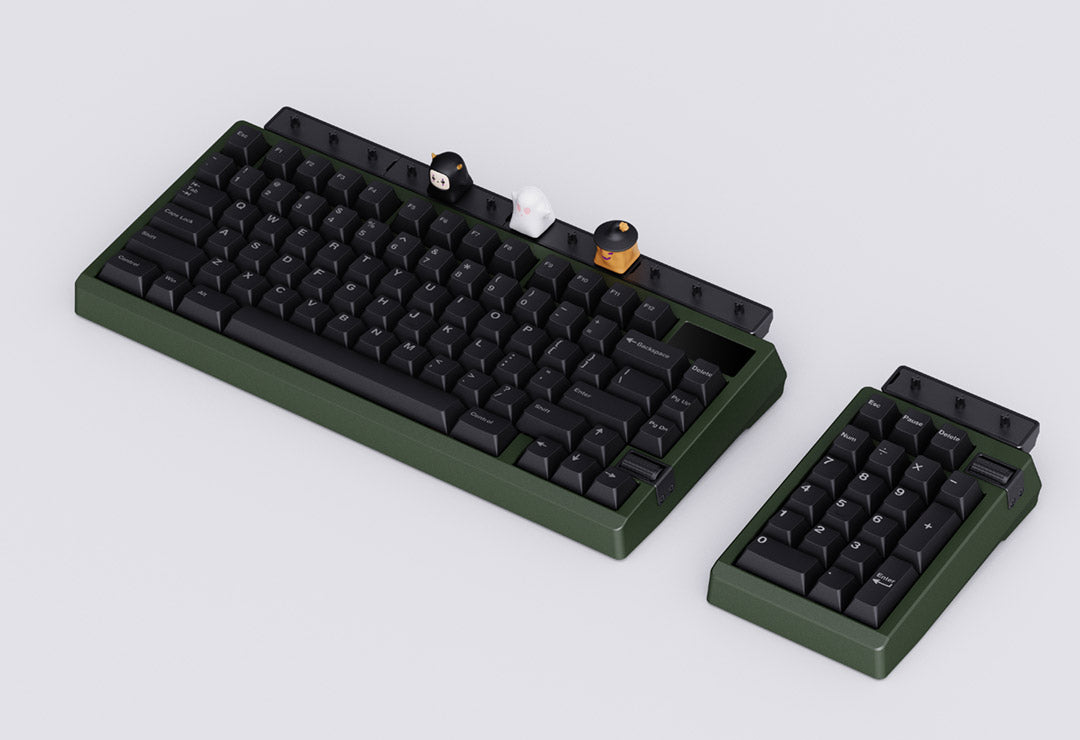

Rear badge modules are compatible across Zoom75 and Zoompad Tiga

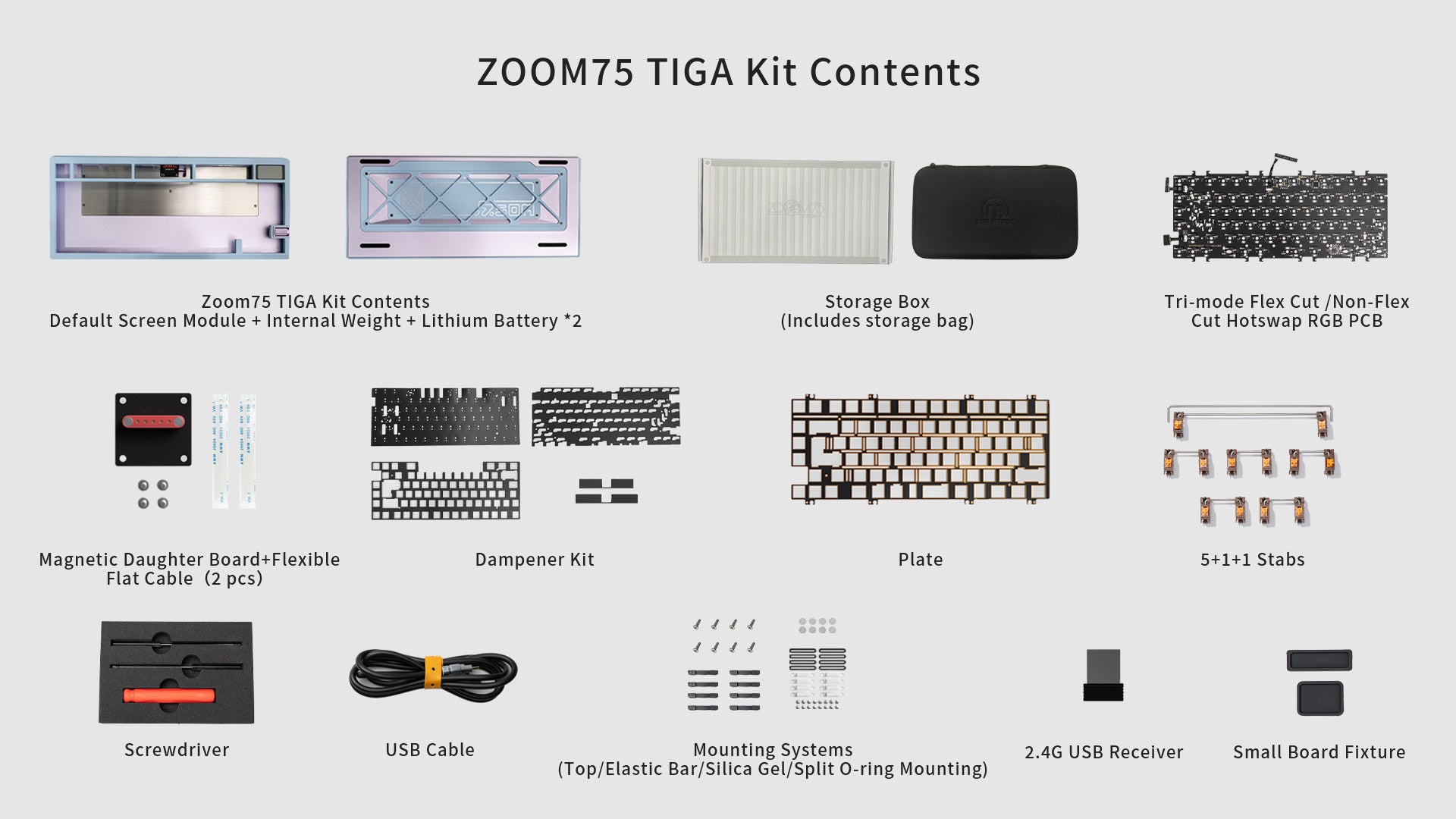

Kit Contents

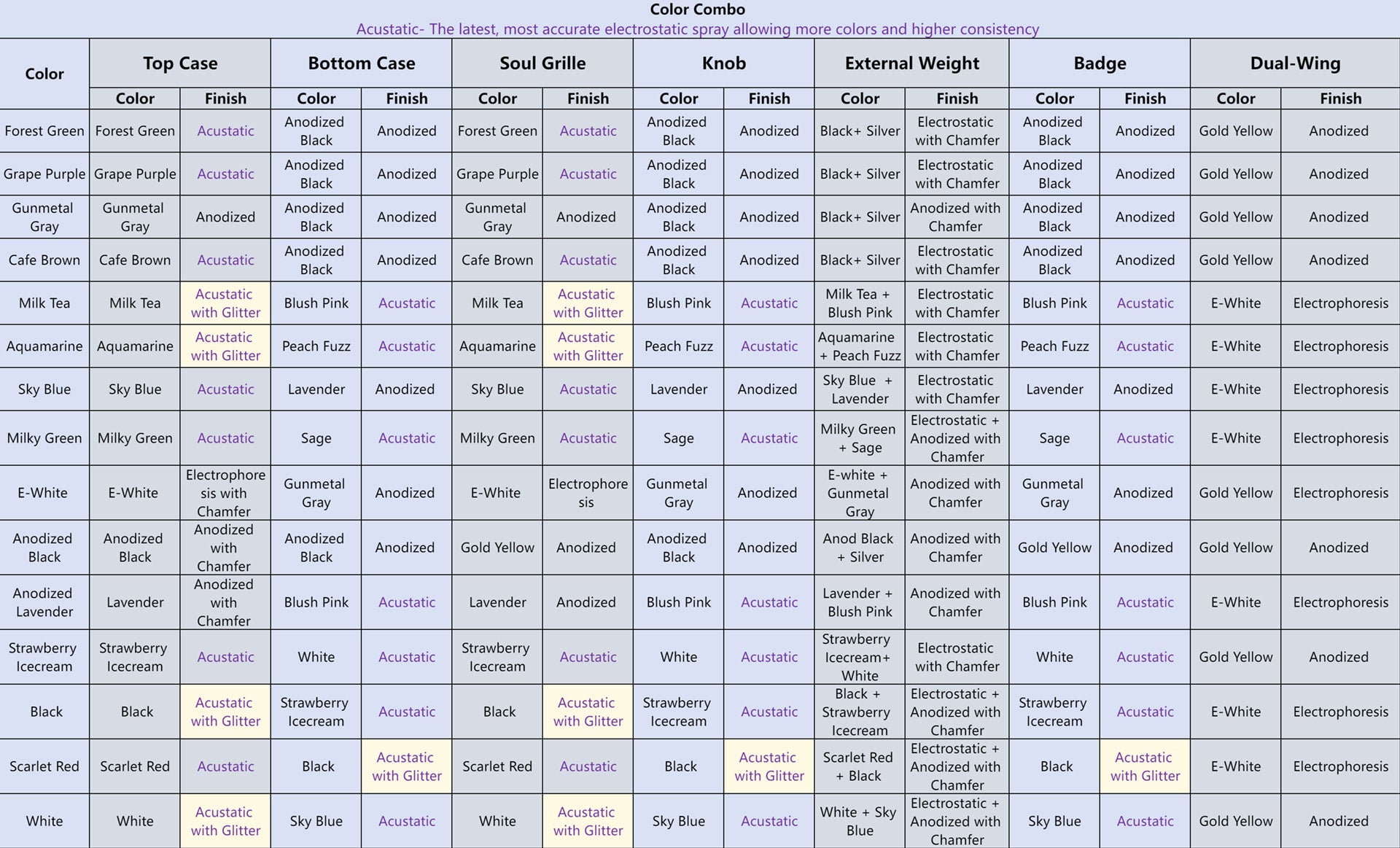

Color Combinations

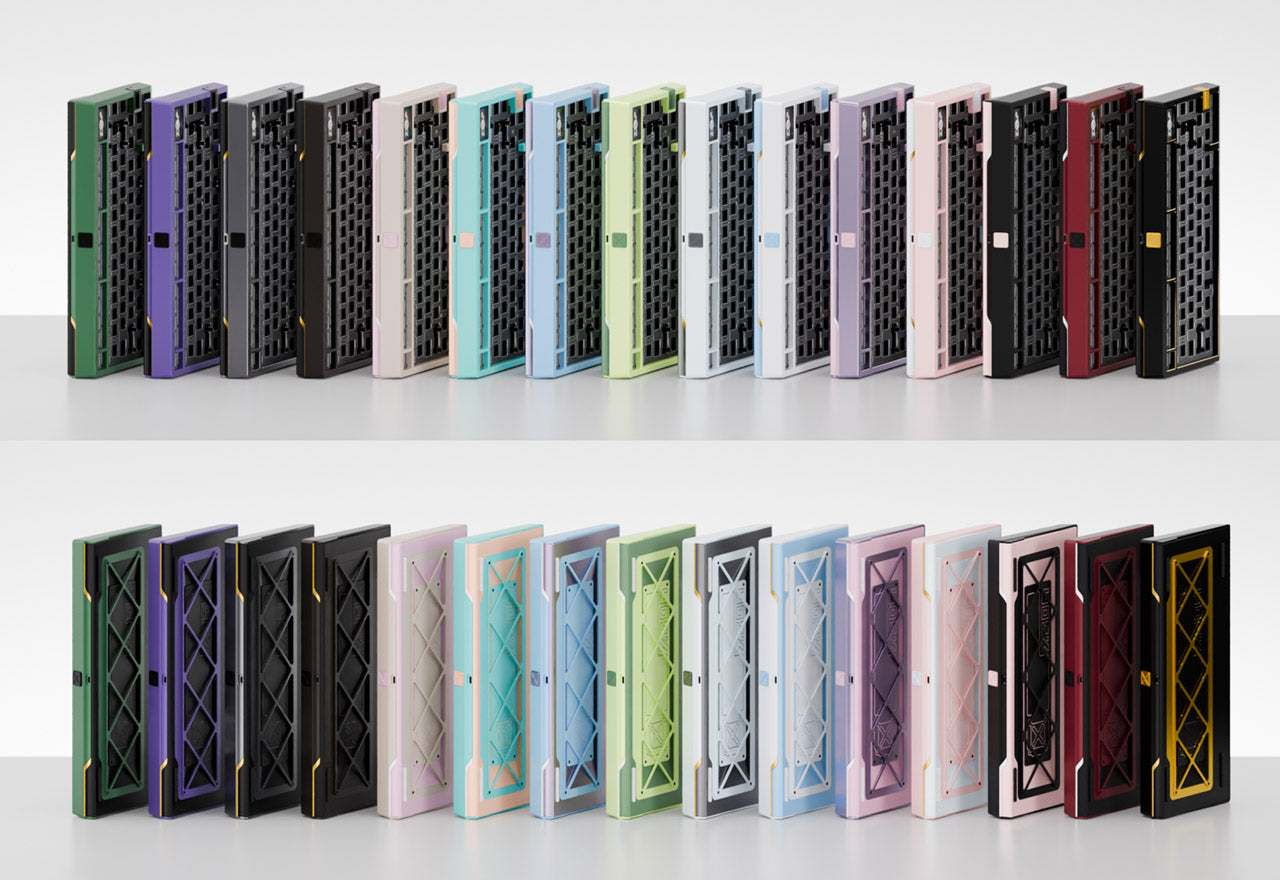

Milk Tea, White, Black and Aquamarine case colors will feature a glittery finish. Please refer to the photographs of prototypes for reference.

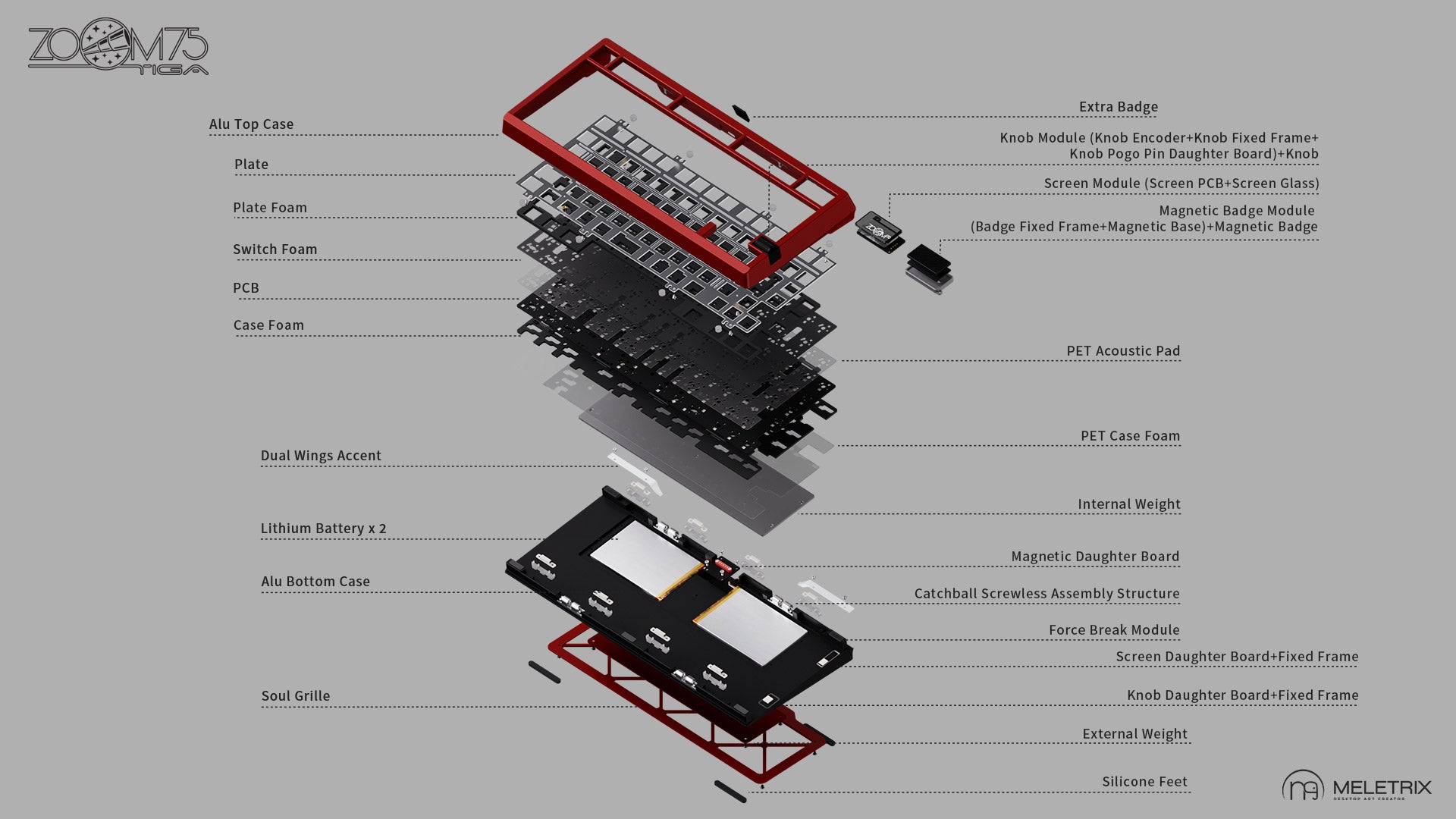

Structure Diagram

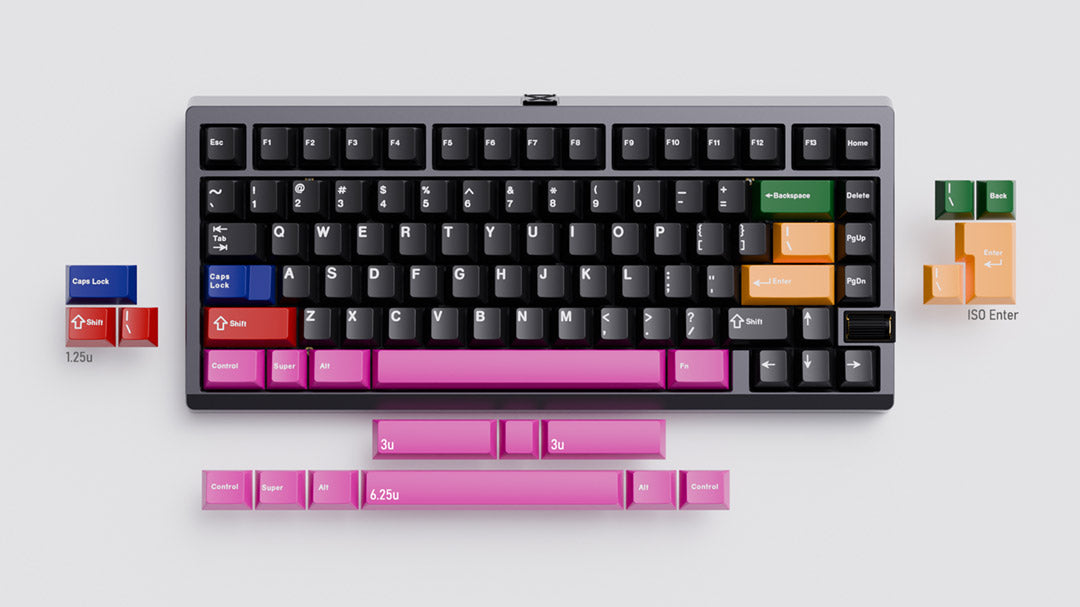

Supported Layouts

Disclaimer

Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.

Acceptable Quality Standards

Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to Zoom75 Tiga and Zoompad Tiga

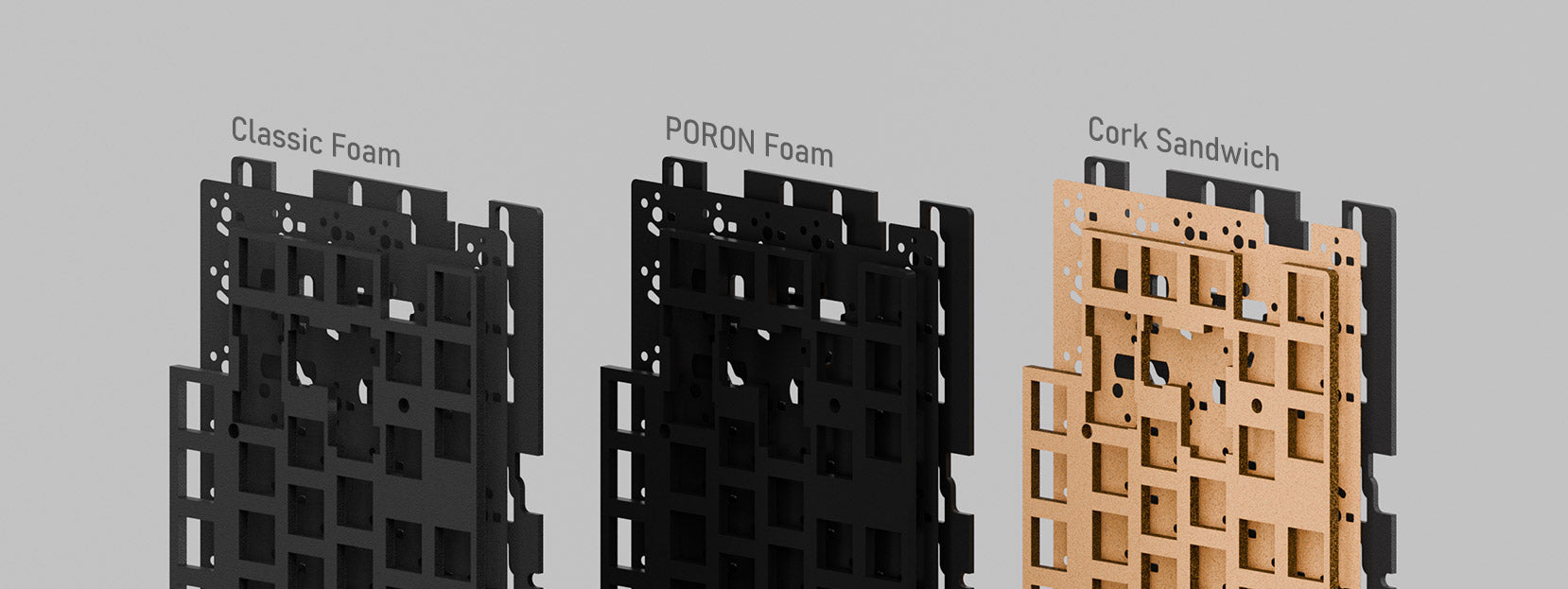

Customize your sound

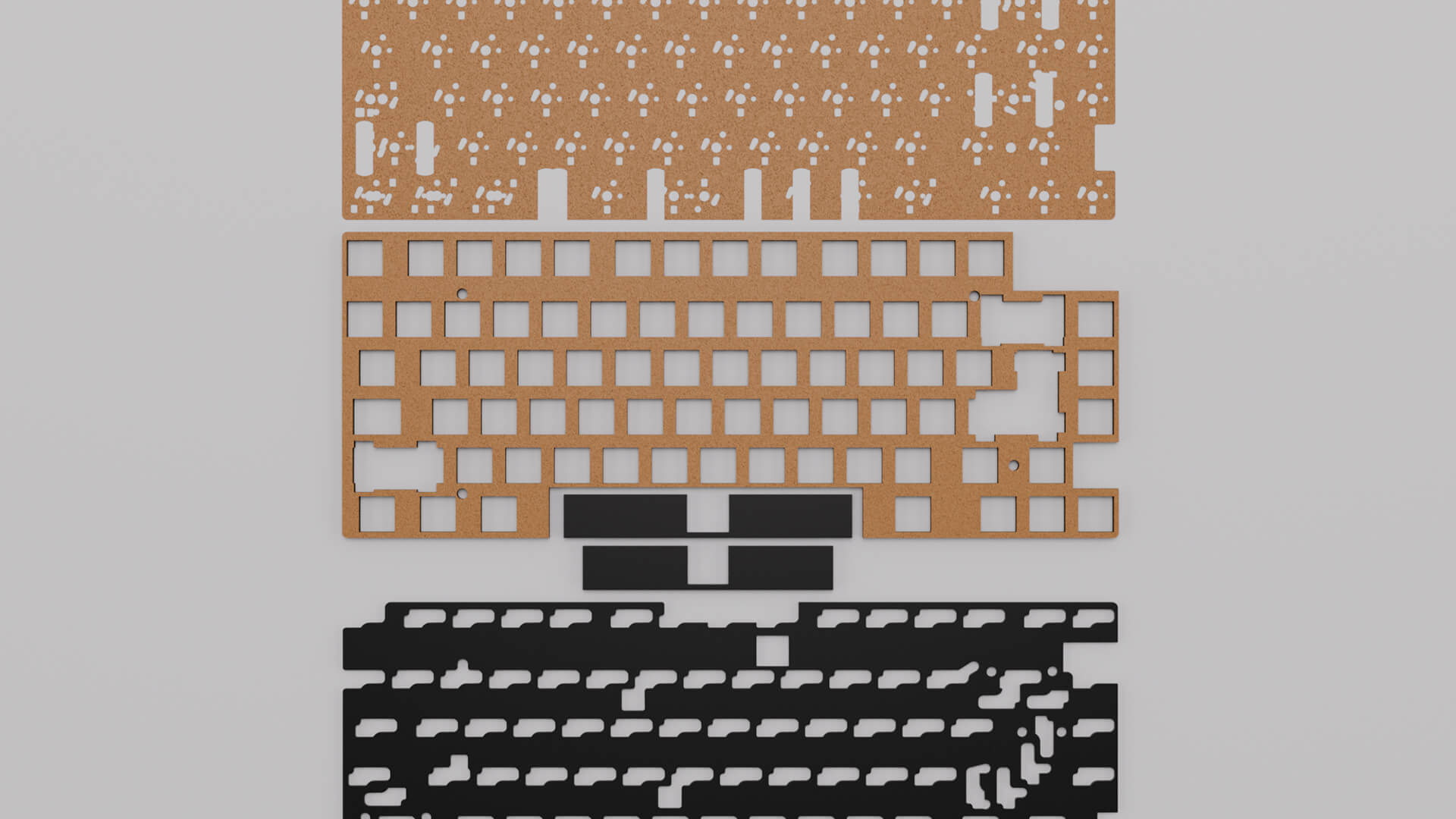

Crisp - Cork Sandwich

New to the Zoom series, this Cork Sandwich perfect for those who want something different than what traditional foams offer! This cork layer produces a crisper sound for a unique typing experience.

Soft - PORON Foam

Poron foam offers excellent durability and fatigue resistance, ensuring consistent sound performance over time. With a muted sound profile it makes it the perfect option for office use.

Standard - Classic Foam

Classic Foam tends to change the sound profile over time while offering a higher-pitched profile. Classic Foam comes included with every Zoom75 Tiga, but you can choose to upgrade to any of the other two for a small fee.

Go foam-less!

You can choose to build your Zoom75 Tiga without any foam at all! Lots of people prefer the sound without any foam, and the Zoom75 Tiga sounds just as good without any foam as it does with. You can also use any combination of the foams listed here for a truily unique sound.

4 Mounting Systems

Elastic Bar Silicone Mount

A next-gen solution offering balance between rigidity and elasticity.

Split o-ring mount

Adds bounce and flexibility for a softer typing experience.

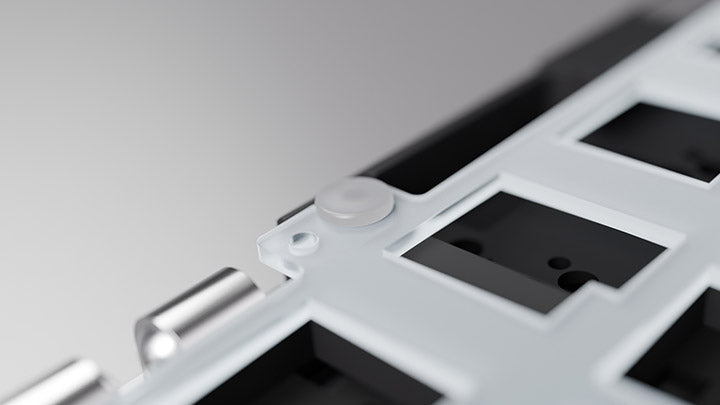

Silica Gel Particle Mount

Helps achieve a muted, cushioned typing feel.

Top Mount

A classic for stability, rigidity and tactility

Functional Design

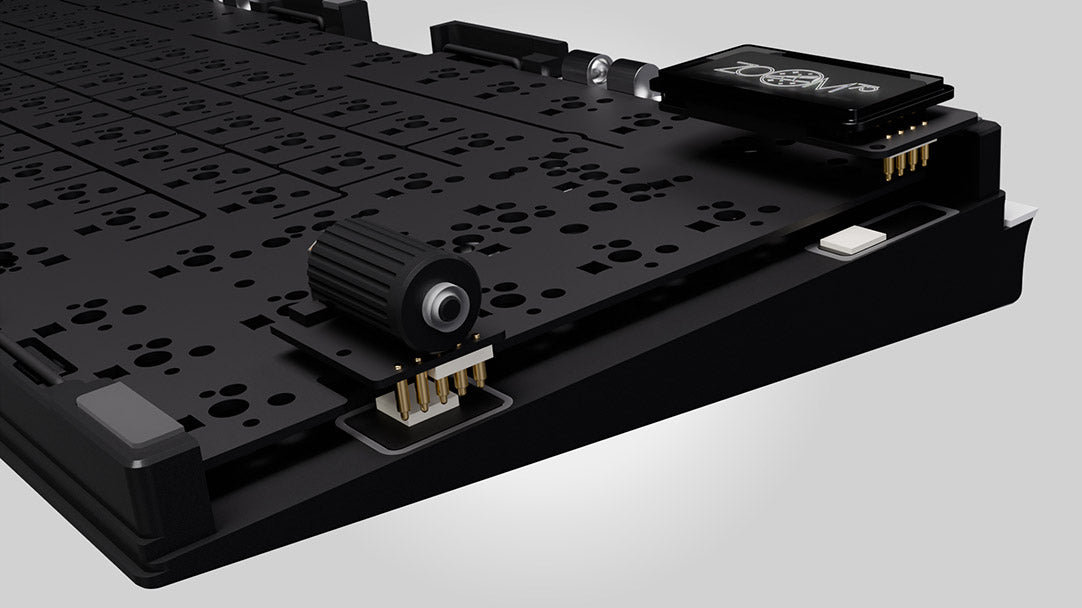

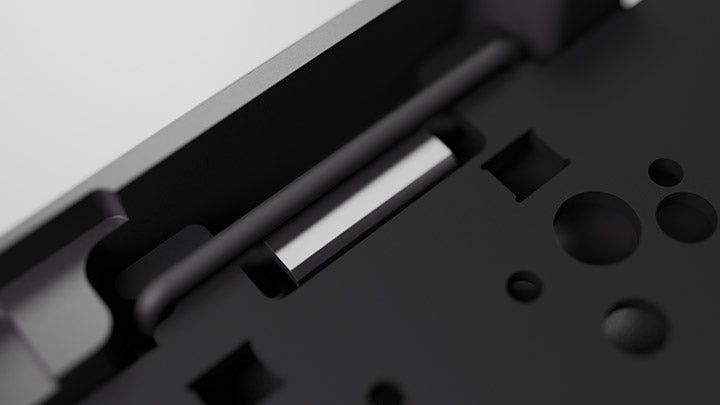

Screwless case & POGO PIN CONNECTORS

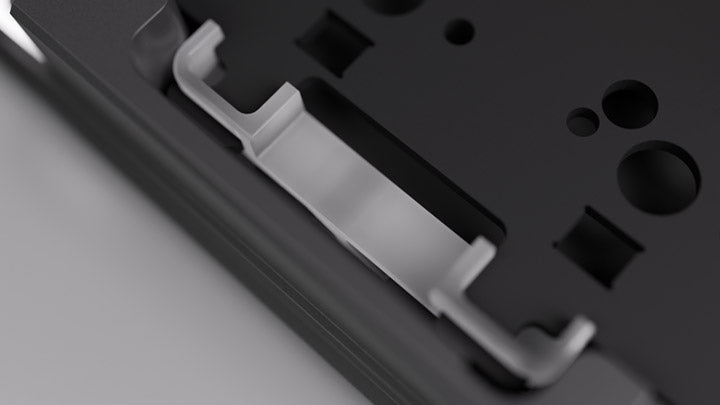

Instead of screws to hold the top and bottom case together, Zoom75 Tiga uses a catch-ball system that takes just a second to disassemble the case!

There are no ribbon cables to connect various modules and sub-PCBs either! All the connections are made through POGO pins for quick and error-free assembly. The POGO pins have a bumper to eliminate any potential damage.

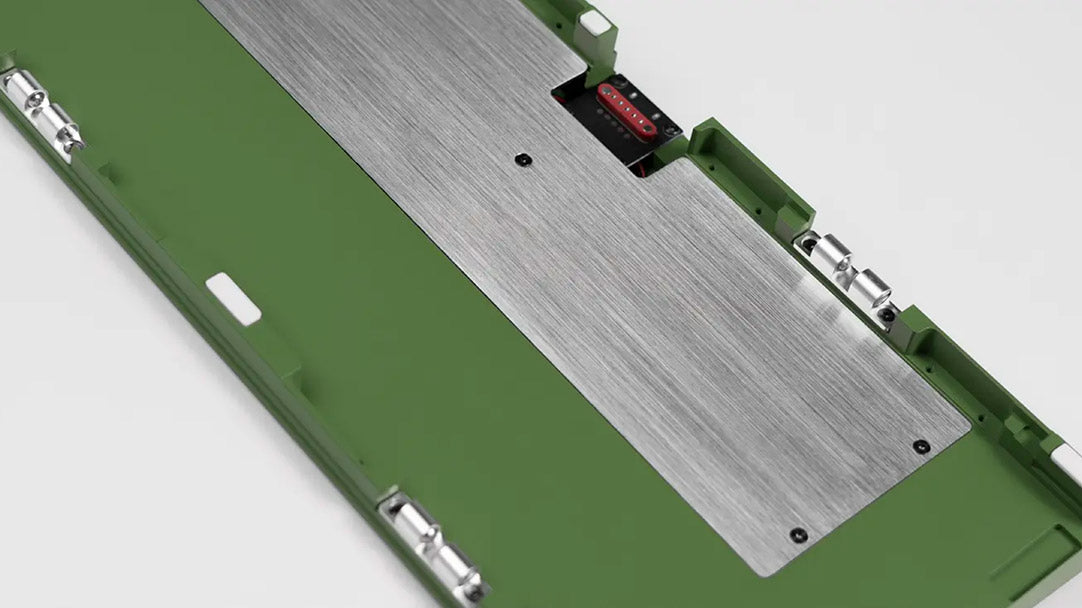

Force Break Design

The bottom case features a Force Break mod out of the box to minimize metal on metal contact. This eliminates any potential metallic ping / noise and ensures a more stable assembly. This also helps the keyboard produce a more uniform, cleaner sound!

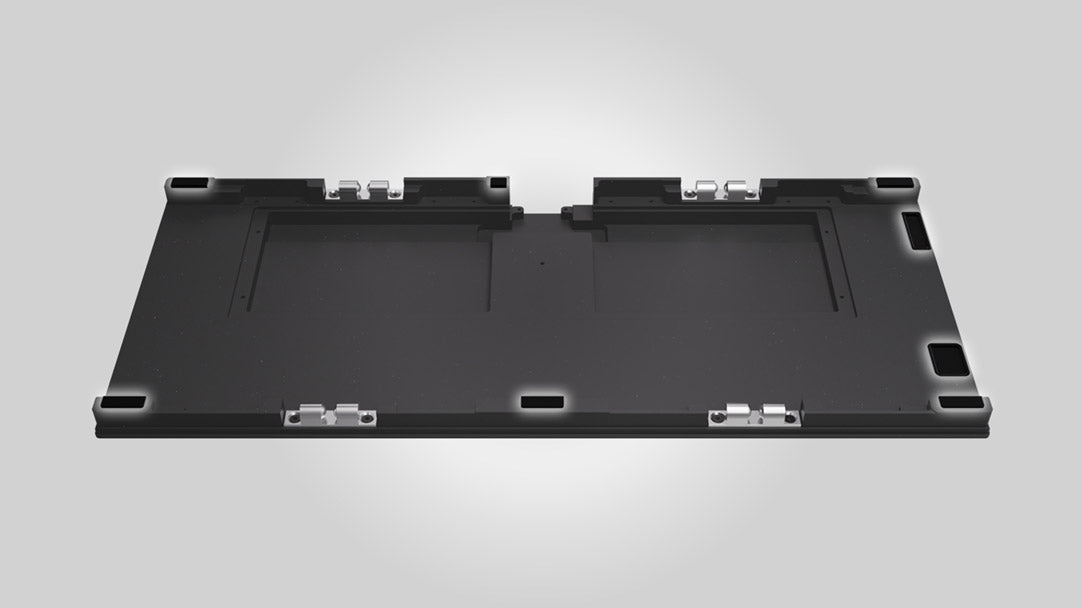

Partially Assembled

The batteries, daughterboard and internal weight already come installed on the bottom case. This saves the builder not only time, but also any potential headaches from making a mistake during assembly!
