Pre-order runs from 9:30PM EDT, Sep 18 to Oct 10, 2023
Please refer to the "Delivery Estimates" tab for the difference between Ocean Freight and Air Express
Canadian customers - please do not choose Xpresspost or Priority as the shipping method. Each Zoom65 V2.5 kit comes with a battery packed inside which is not allowed in Xpresspost or Priority.
Group buy starts in
You cannot add any in-stock items to your order as we cannot guarantee its availability when the pre-order is ready to ship.
You cannot combine this pre-order with a previous order as we cannot hold on to an order until the other one arrives.
You may modify your order until the group buy ends on Oct 10, 2023
Please send an email to help@mech.land from the email address associated with your order and list the changes you'd like to see made.
You may cancel your order and get a refund until the group buy ends on Oct 10, 2023
Please keep in mind we will deduct 4% of the total from the refund as we do not get the transaction fees back from our payment processor.
Any status updates pertaining to this pre-order will be posted in the status updates page.
Please follow the instructions on the contact us page if you need to change your address before the group buy ships.
Zoom65 V2.5 will be imported from China into Canada via two separate shipping methods:
Arrives to Canada via a ship. Takes 45-60 days in transit. This is the standard import method used in most keyboard / deskmat group buys. It's much cheaper than Air Express but takes much longer to arrive.
All units ordered via Ocean Freight are scheduled to ship out of Meletrix around late December, 2023 and should arrive at Mech.land around mid to late February, 2024
Arrives to Canada via a cargo airplane, takes 7-15 days in transit. This import method is very expensive, as such some of the items brought over via Air Express have a markup added to cover the extra expenses
All units ordered via Air Express are scheduled to ship out of Meletrix around late December, 2023 and should arrive at Mech.land around mid January, 2024
You cannot combine Ocean Freight and Air Express items in the same order. Each individual order has to contain either all Ocean Freight or all Air Express items. This is because they arrive at different times
Please keep in mind the ETA is just our best guess according to the information currently available to us. Unexpected issues and delays can happen at every stage of the process.

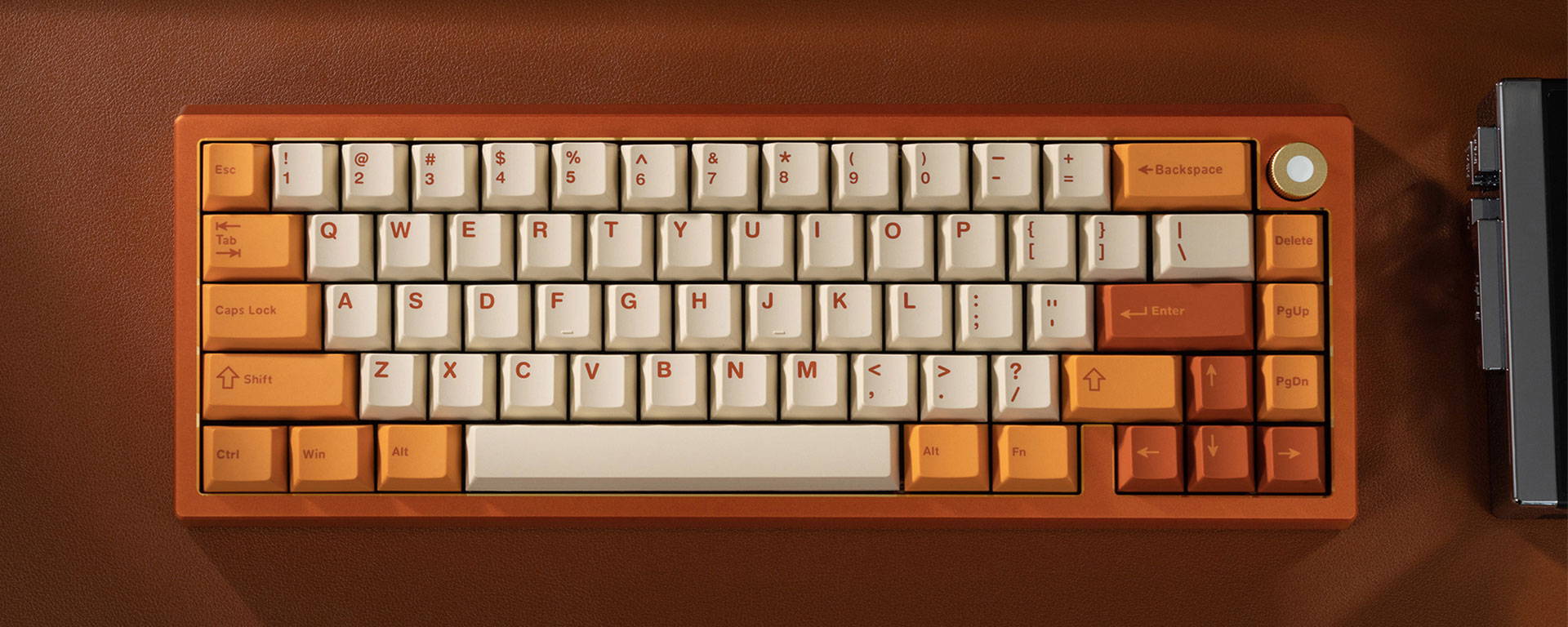

Essential Edition has 11 beautiful case colors with an Electrostatic coating. All EE units come with the Tri-mode PCB.
Special Edition colors have have an anodized or Electrophoresis finish. They feature an accent chamfer like Z75 or Zoompad SE. Instead of a backplate, the bottom case is all aluminum!

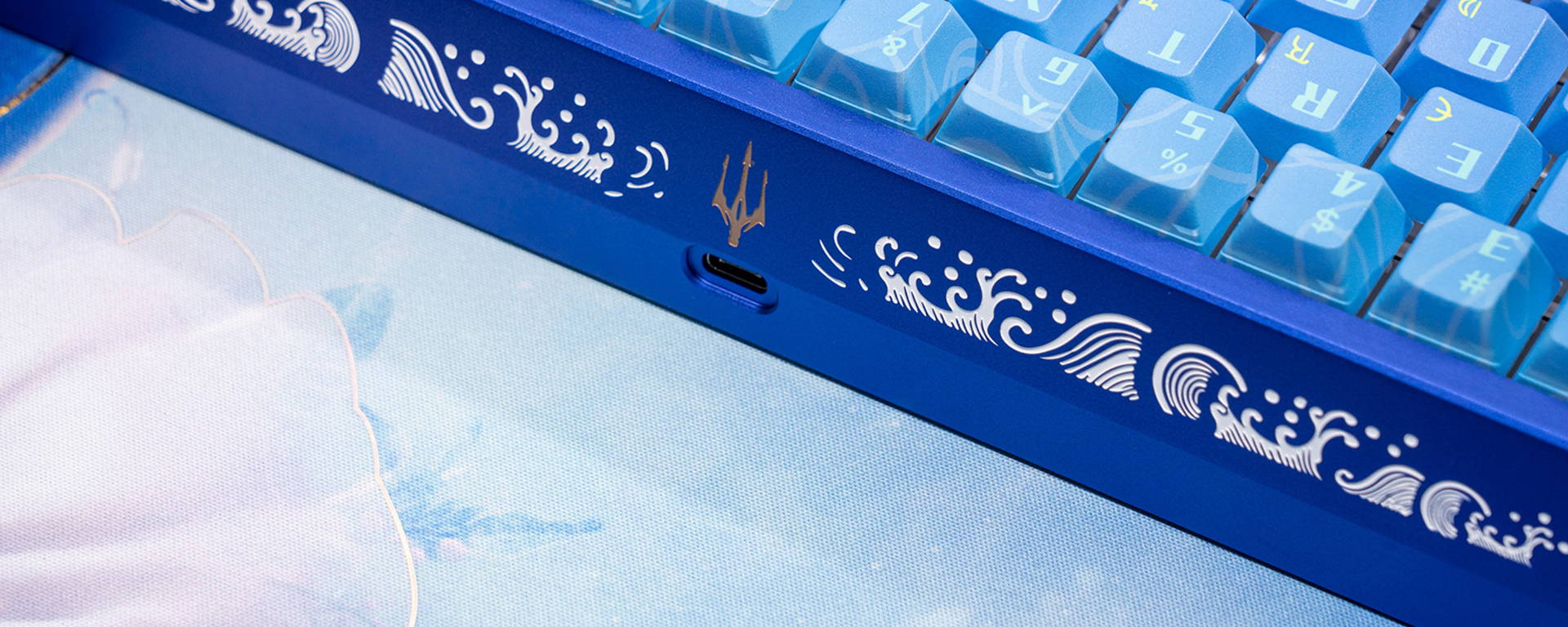

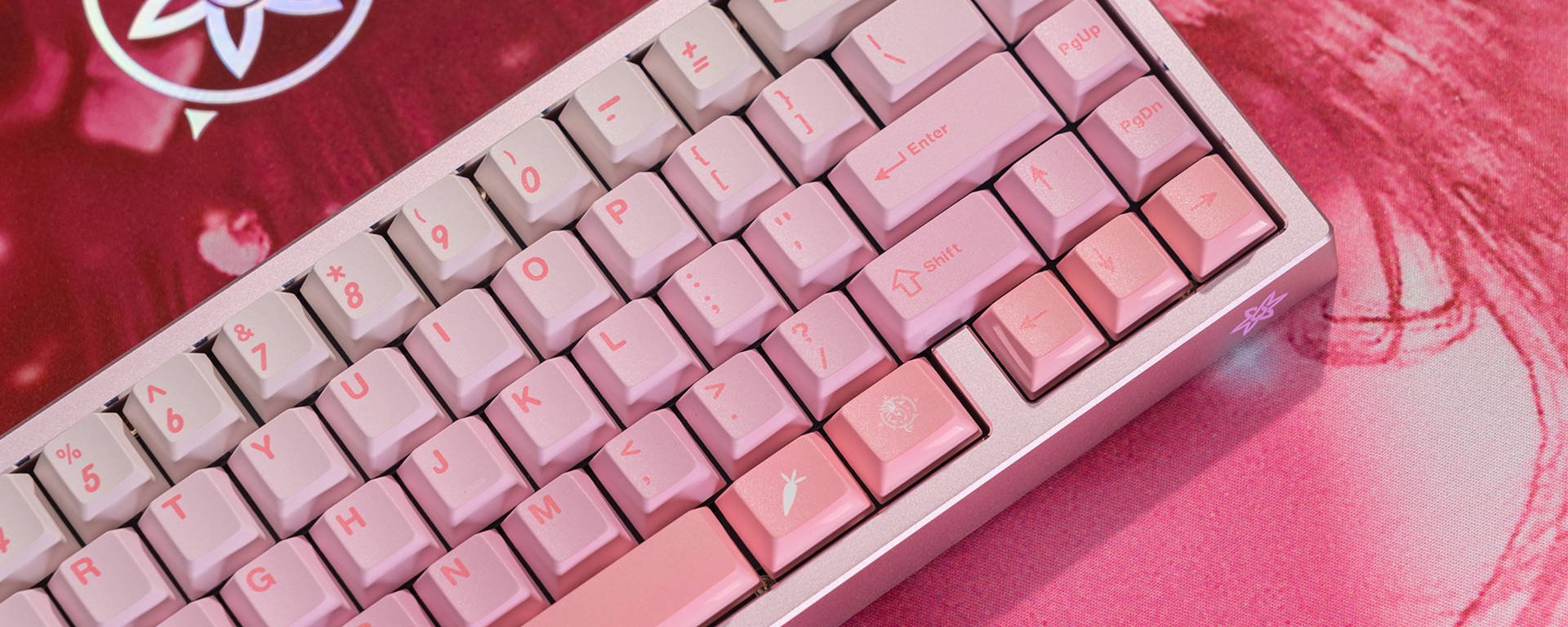

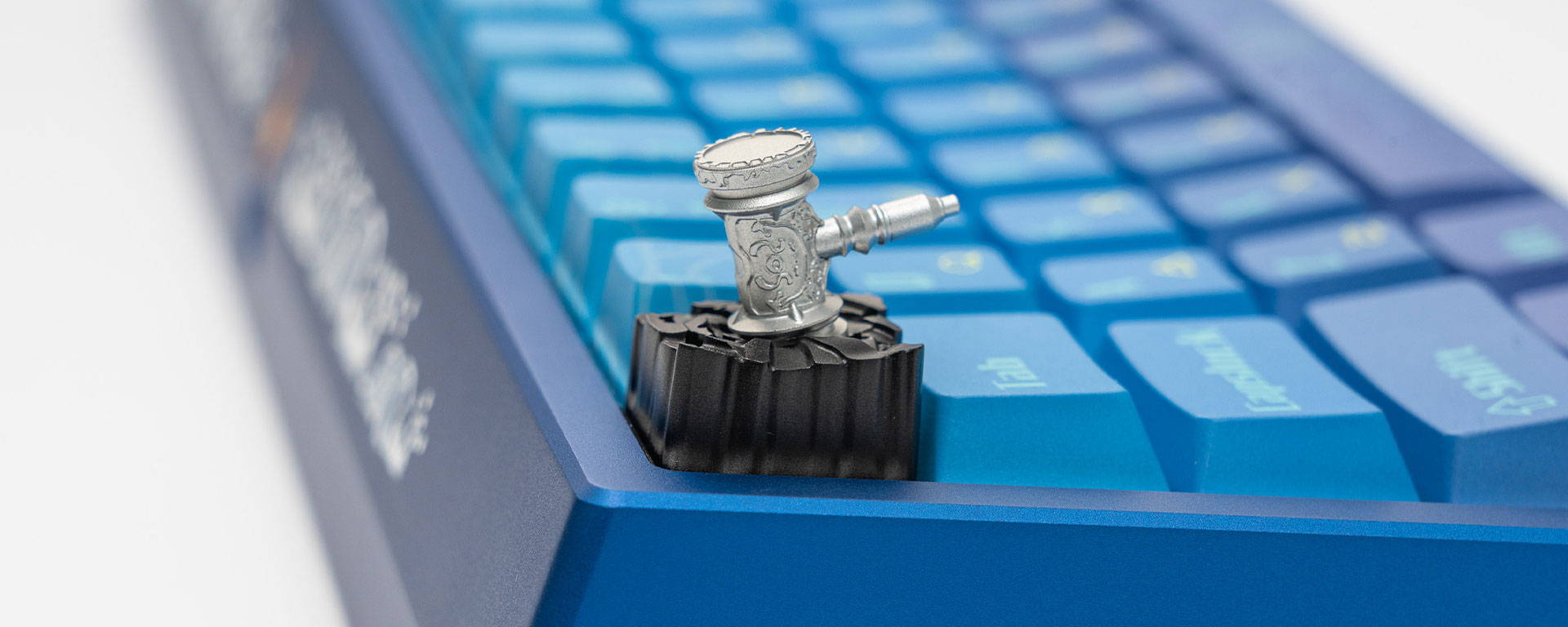

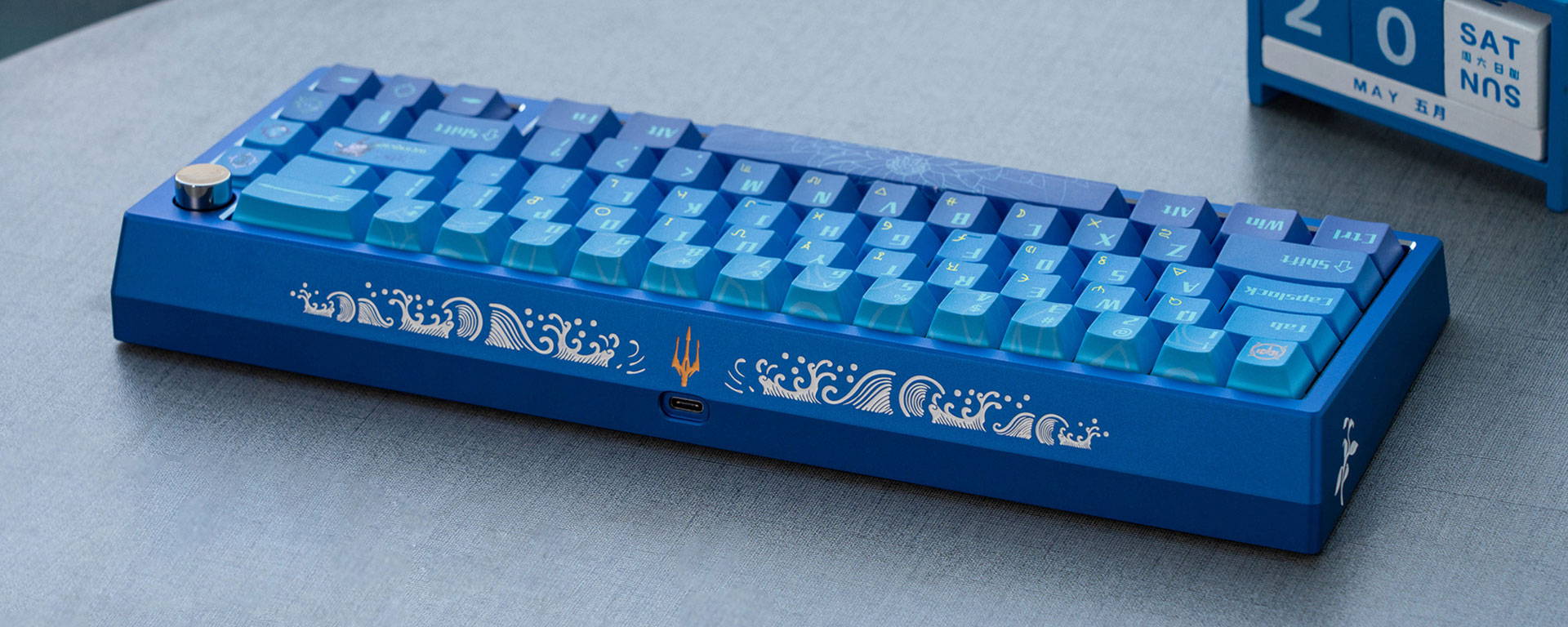

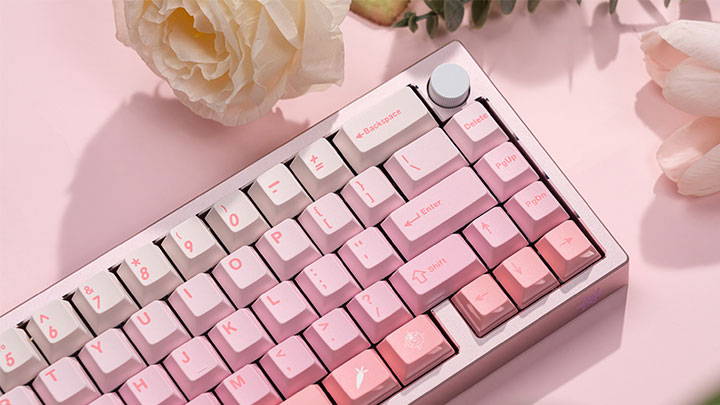

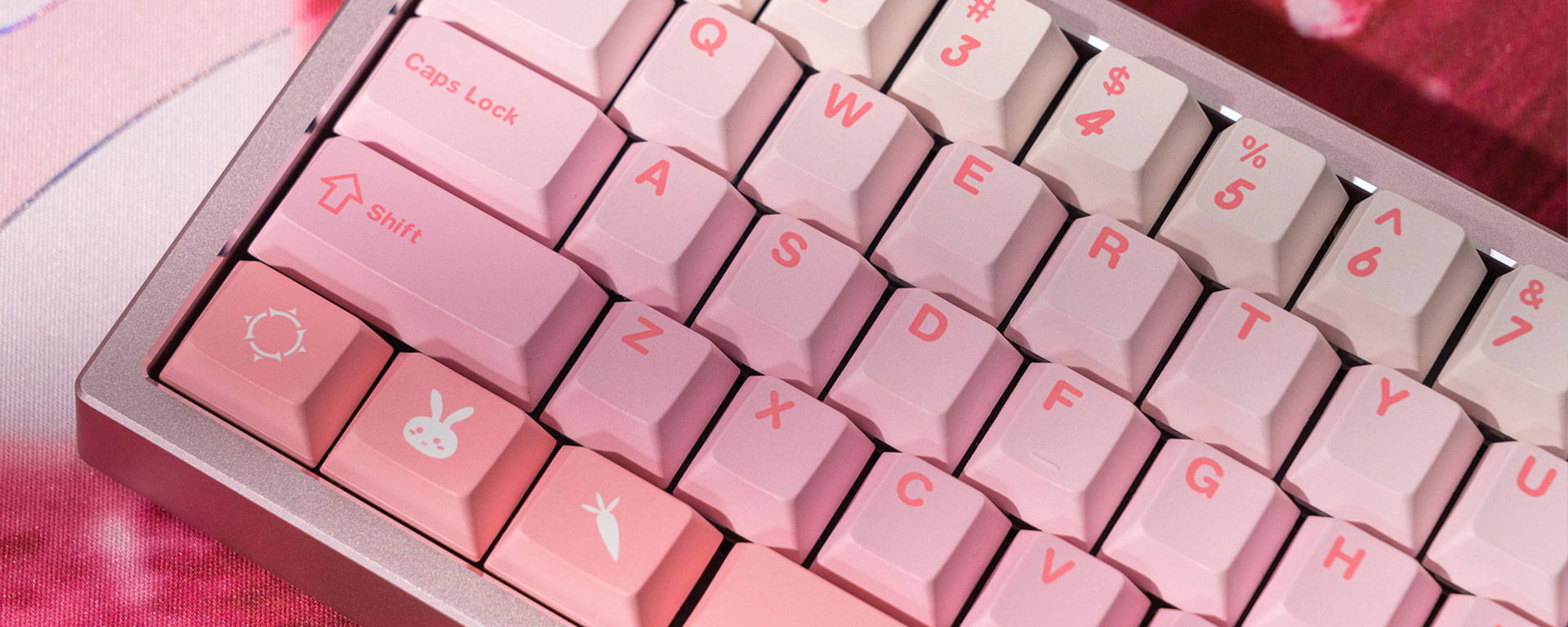

3 Beautiful Zoom65 v2 variants of Soul Land collab. They come fully assembled with matching keycaps, WS Morandi switches, lubed stabilizers and SS internal weight!

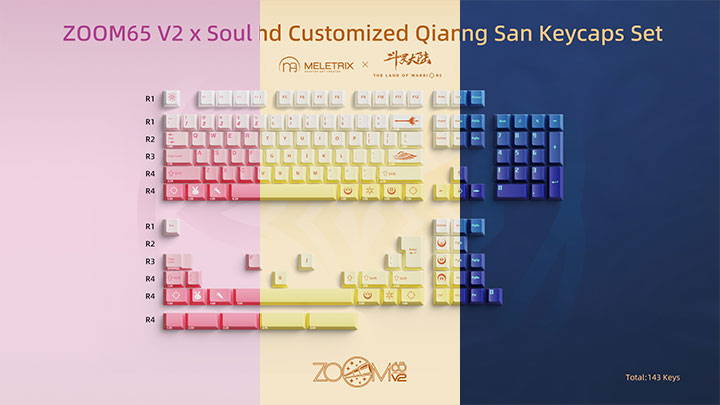

The keycaps featured in Zoom65 v2 x Soul Land Collab edition are also sold separately if you'd like to put them on a different keyboard! Base kit supports multiple layouts
3 different cables and 5 deskmats in the Zoom65 v2 x Soul Land collab theme.
The cables sold separately come with the winding rod.

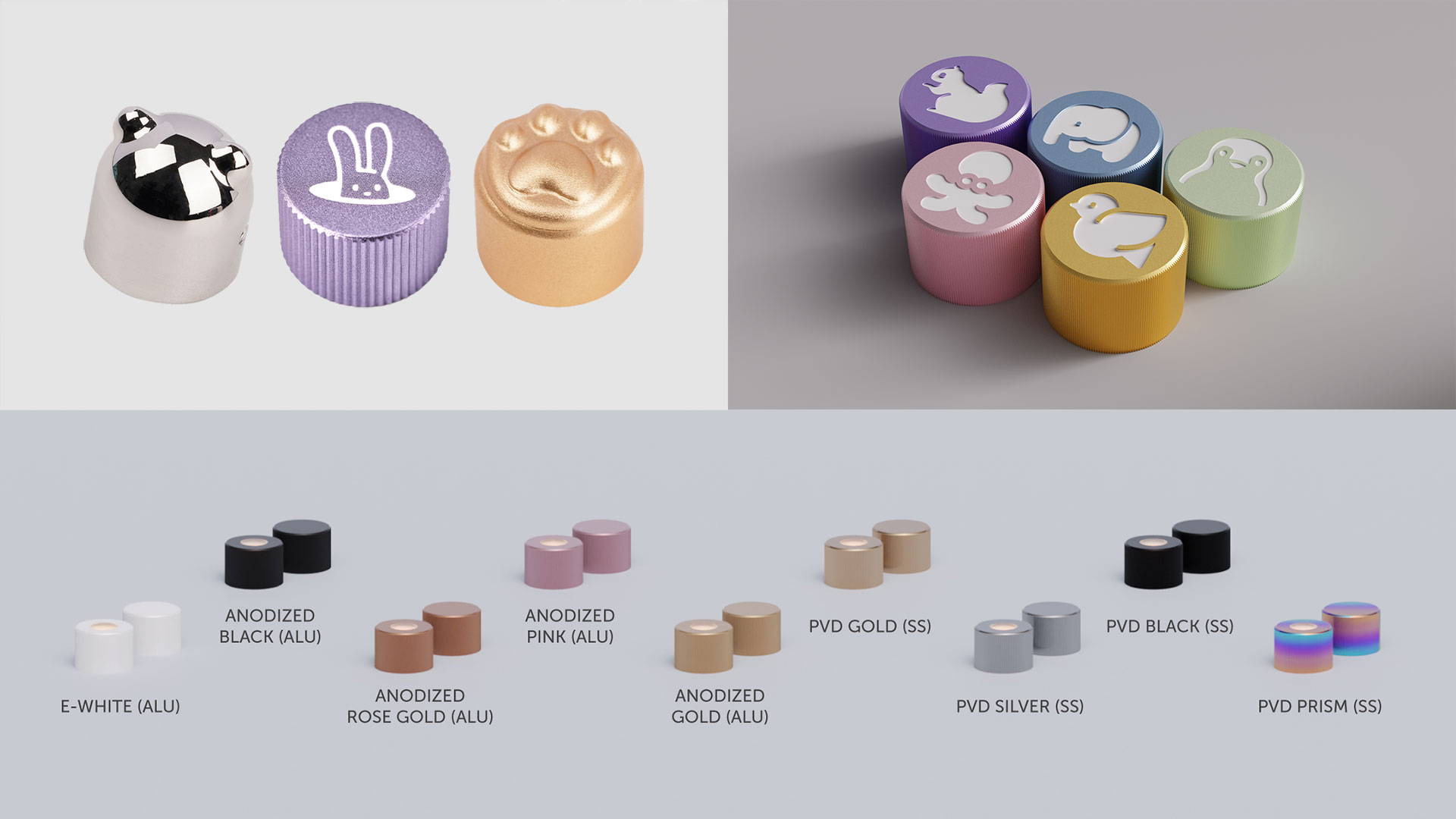

Everyone loved the Rabbit knob for Zoom65 v2, so Meletrix invited all its friends too to the Zoom65 v2.5 group buy! They are engraved this time around and are sold separately!

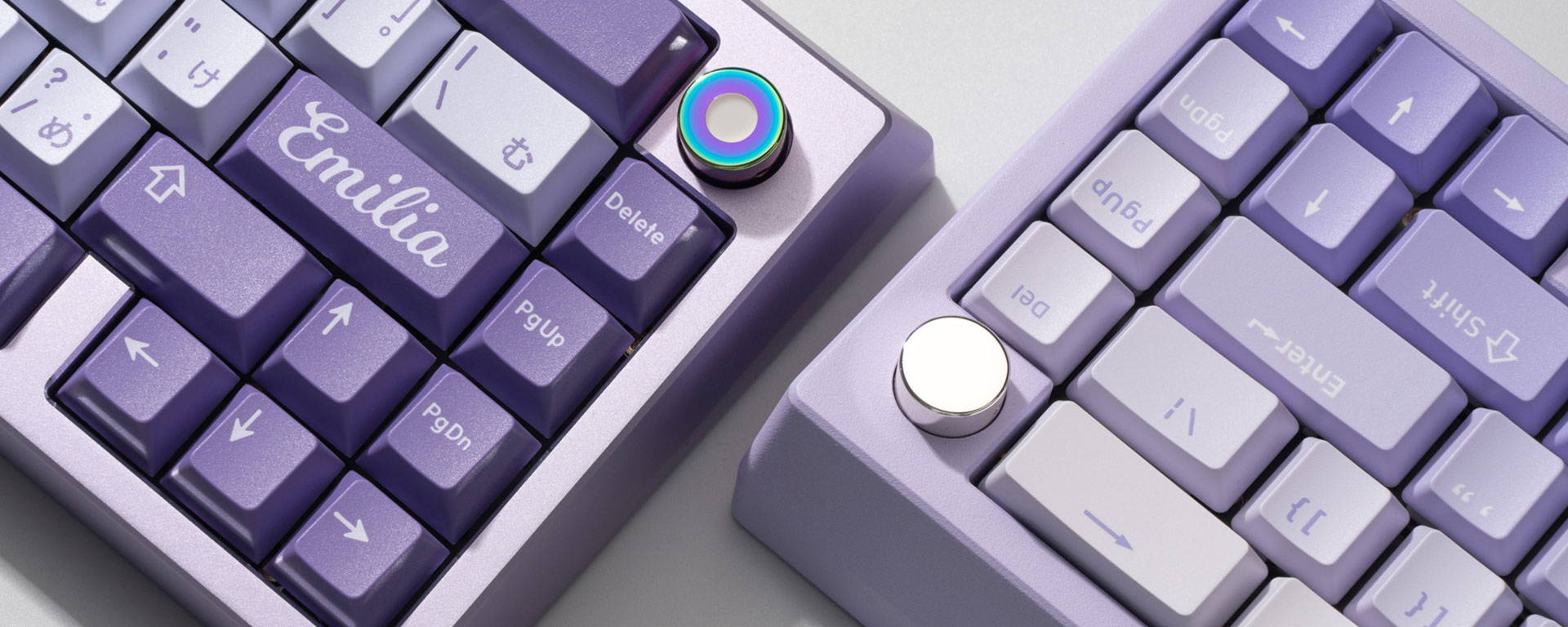

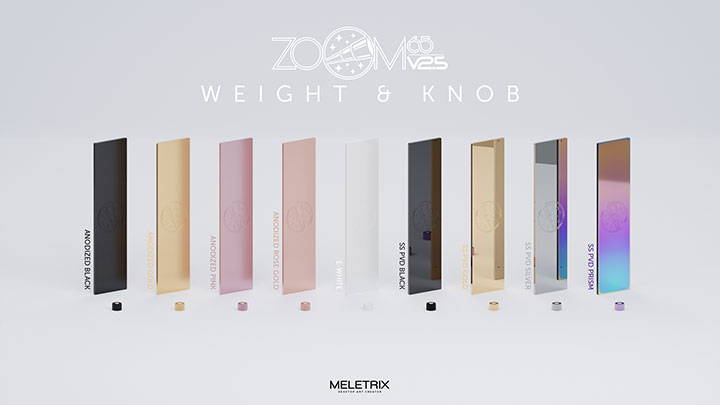

Choose from any of the 9 color options for knob and external weight for your Zoom65 v2.5 kit. You can purchase additional weights and/or knobs separately to change up the look whenever you like!

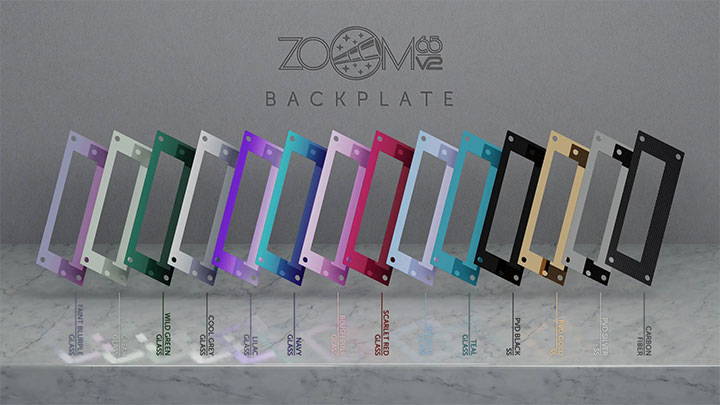

Each Zoom65 V2: EE comes with a backplate that matches the case color (except for e-white). Additional backplates can be purchased separately. Zoom65 v2.5 SE do not support backplates.

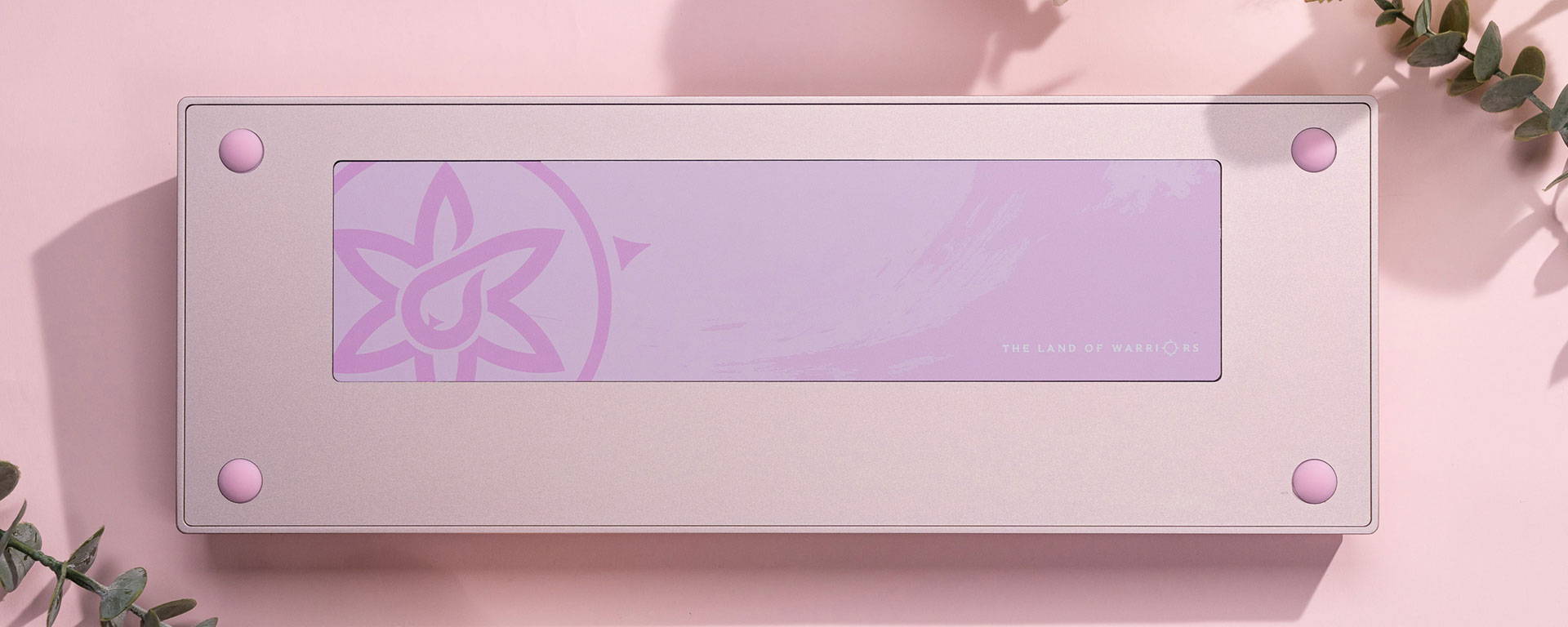

All four Zoom65 V2.5 Special Edition have a full aluminum bottom case. The Essential Edition (EE) colorways still come with a glass or PVD SS backplate.
Every Zoom65 V2.5 kit comes with a nightlight knob by default. This knob has a frosted window in the center to let the LED in the encoder stalk shine through
The new Zoom65 v2.5 PCB supports 2.4Ghz RF as well as Bluetooth and Wired connections. The PCB also support per-key RGB lighting!
All four Zoom65 V2.5 Special Edition have a full aluminum bottom case. The Essential Edition (EE) colorways still come with a glass or PVD SS backplate.
Every Zoom65 V2.5 kit comes with a nightlight knob by default. This knob has a frosted window in the center to let the LED in the encoder stalk shine through
The Tri-Mode PCB support per-key RGB lighting. You can choose from provides a wide range of colors and effects for a different visual experience
New default PCB for Essential Edition, Standard Edition and Zoompad x Kitsune
An all-in-one PCB! You can connect to your devices via Bluetooth 5.0, 2.4Ghz RF (USB receiver included) and in plain old wired mode. You can charge the battery with any USB-C cable (not included), or simply use it in wired mode for a while!
The new Tri-Mode PCB is fully compatible with VIA, the powerful GUI widely renowned for it's customizability and ease of use. Remap any key on the keyboard on many different layers, including the knob. Use built in powerful shortcuts and macros, or define your own!
Every Zoom65 v2.5 comes with a 2250 mAh Li-ion battery included in the kit. Once it's out of charges simply connect your keyboard to your PC / laptop using the included USB-C cable.
- Aluminum top and bottom case of buyer's choice
- Aluminum / SS external weight of buyer's choice
- Aluminum / PVD coated brass rotary Nightlight knob matching the external weight
- EE: Backplate matching the case unless otherwise specified
- SE: No backplate. SE bottom case does not support backplates.
- Hot-swap, Tri-mode / VIA PCB with per-key RGB. Buyer's choice of with or without flexcuts.
- Daughterboard + JST cable
- 2.4 GHz Receiver
- Polycarbonate plate
- Gasket sleeves
- 2250mAh Li-ion battery
- PORON Dampener Kit (Plate foam, switch foam, PCB foam & gaskets)
- 1 set of WS Stabs v3.1 stabilizers
- Silicone Feet
- Screws & Allen keys
- Coiled USB case
- Storage case
Please read this document to see what type of quality control standards will apply to the Zoom65 v2.5
Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.
The delivery estimates and production timeline provided on this page are Mech.land and Meletrix's best estimates at the moment. A delay can happen at any stage of the process due to a multitude of reasons beyond our control.
- Gasket mount design
- Keyboard layout: 20 keys
- 1.2mm PCB with Ai03 Universal DB
- Default plate: Polycarbonate
- 6.5° Typing angle
- 20mm front height
- EE case finish: Electrostatic sprayed, GT Silver is nano coated.
- SE case finish: E-white has an electrophoresis coating, the rest are anodized.
- Tri-mode PCB BT polling rate: 125hz
- Tri-mode PCB 2.4GHz polling rate: 1000hz
- Tri-mode PCB wired mode & wired PCB polling rate: 1000hz
- Bluetooth PCB can be used in wired or wireless mode.
- Tri-mode PCB supports VIA and not QMK. The wired PCB supports both QMK and VIA.
- EE with Alu knob / weight / Glass Back Plate: 1.35 kg
- EE with with brass knob / PVD SS weight / Glass Back Plate: 1.64kg
- EE with Alu knob / weight / SS PVD Mirror Back Plate: 1.44 kg
- EE with with brass knob / PVD SS weight / SS PVD Mirror Back Plate: 1.73kg
- SE with Alu knob / weight: 1.73 kg
- SE with with brass knob / PVD SS weight: 2.65kg
- Internal brass weight (sold separately): 0.234kg
Special Edition Zoom65 V2.5 will have an accent chamfer on the inside edges similar to Zoom75 SE and Zoompad SE. Chamfers are polished too like in Zoom75.
These new default knobs function just like any other Zoom series knobs, but they have a frosted window to let the RGB LED in the encoder shine through the knob!
The Tri-Mode PCB support per-key RGB lighting. You can choose from provides a wide range of colors and effects for a different visual experience.
Unlike traditional keyboards, you are not stuck with just one layout on Zoom 65 V2.5. Change things up every now and then with split backspace, left shift and spacebar! You can also switch between normal and stepped caps lock or ANSI.
Zoom65 V2.5 hot-swap, Tri-mode PCB features Kailh Hot Swap sockets that allow you to just push the switches on, no soldering required! Changing switches is a breeze, you can go from linear to tactile in a matter of minutes, all on the same keyboard!
A slight revision of the new stabilizers were under development for almost one year, and will be included with every edition of the Zoom65 v2.5
Zoom65 v2.5 uses a gasket isolation mount structure for a soft, bouncy and pleasant typefeel that won't fatigue your fingers even after hours of typing. Gasket mount keyboards sound better and feel more even throughout the board than the typical off-the-rack tray mount keyboards.
The gasket sleeves are made of supercritical foam, it can stabilize the plate as the same time giving appropriate space allowing it to flex in a balanced way. Just the right softness, not too stiff, not too much flex.
In order to reduce resonance, many tests were done on the foaming material of the Zoom65 v2.5. Meletrix made the new PORON lighter and denser, as a result they make the keyboard sound more concentrated and deeper than stock settings.
Plates in other materials, such as brass, aluminum and FR4, can be sold as add-on accessories, and they dramatically change the feel and sound of the keyboard
Take your keyboard to the next level with an internal SS weight, sold separately. It weighs about 234 grams.
Zoom65 V2.5 comes with almost everything you need to put together your first keyboard, including an USB-C cable, premium WS stabilizer v3.1 and a carrying case. All you need to get are switches and keycaps of your choice and you're all set!
