Name: Zoom98 - Add-ons & Accessories [In stock]
Brand: Meletrix
Price: 27.0 USD
Availability: InStock

Highlights

Screen Module Included

All Zoom98 sold on this page come with a Tri-mode PCB and a Screen Module by default. They do not include any knobs or the Knob Module

Modules!

Extra modules are sold separately. You can choose from the Badge Module, Knob Module or 2-key Module. Knobs and badges are sold separately.

Cosmic Odyssey

A Zoom98 collaboration with SXM Design. The keyboard features unique design patterns throughout the case. A matching keycap set is sold separately.

Ambient Lighting

Zoom98 casts a nice warm underglow from the sides. The color and effects can be customized in software.

Tri-mode PCB

All Zoom98 on this page come with a Tri-mode PCB that supports 3 types of connections - 2.4Ghz RF, Bluetooth 5.2 and USB-C Wired. Batteries are also included. You can use VIA to customize the layout.

Discounted FR4 Plates

Get a 50% discount on an FR4 plate when purchased with a Zoom98. The discount will be automatically applied in cart.

The DEtails

EE / SE Kit Contents

- Aluminum top & bottom case

- Aluminum or SS external weight

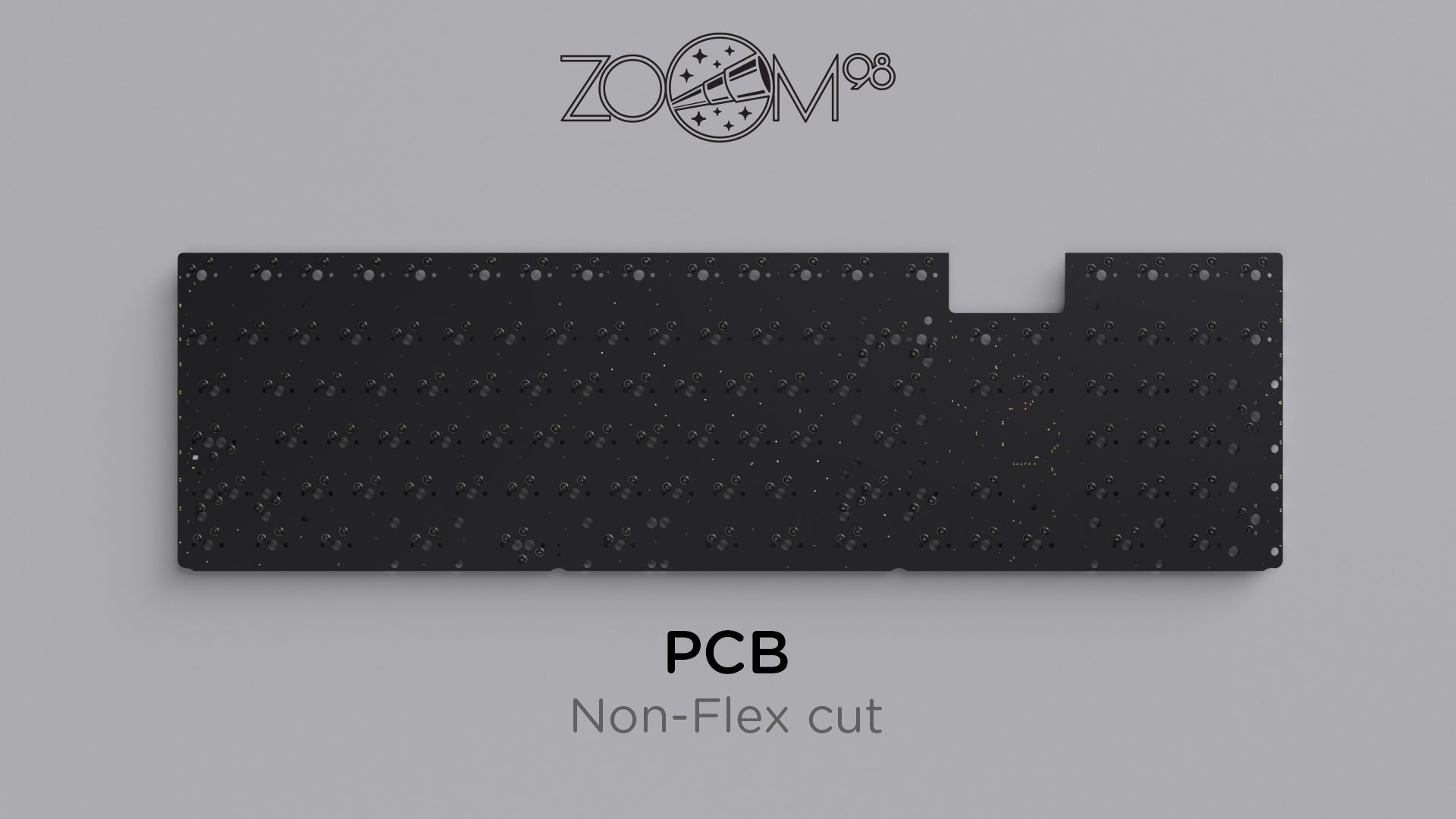

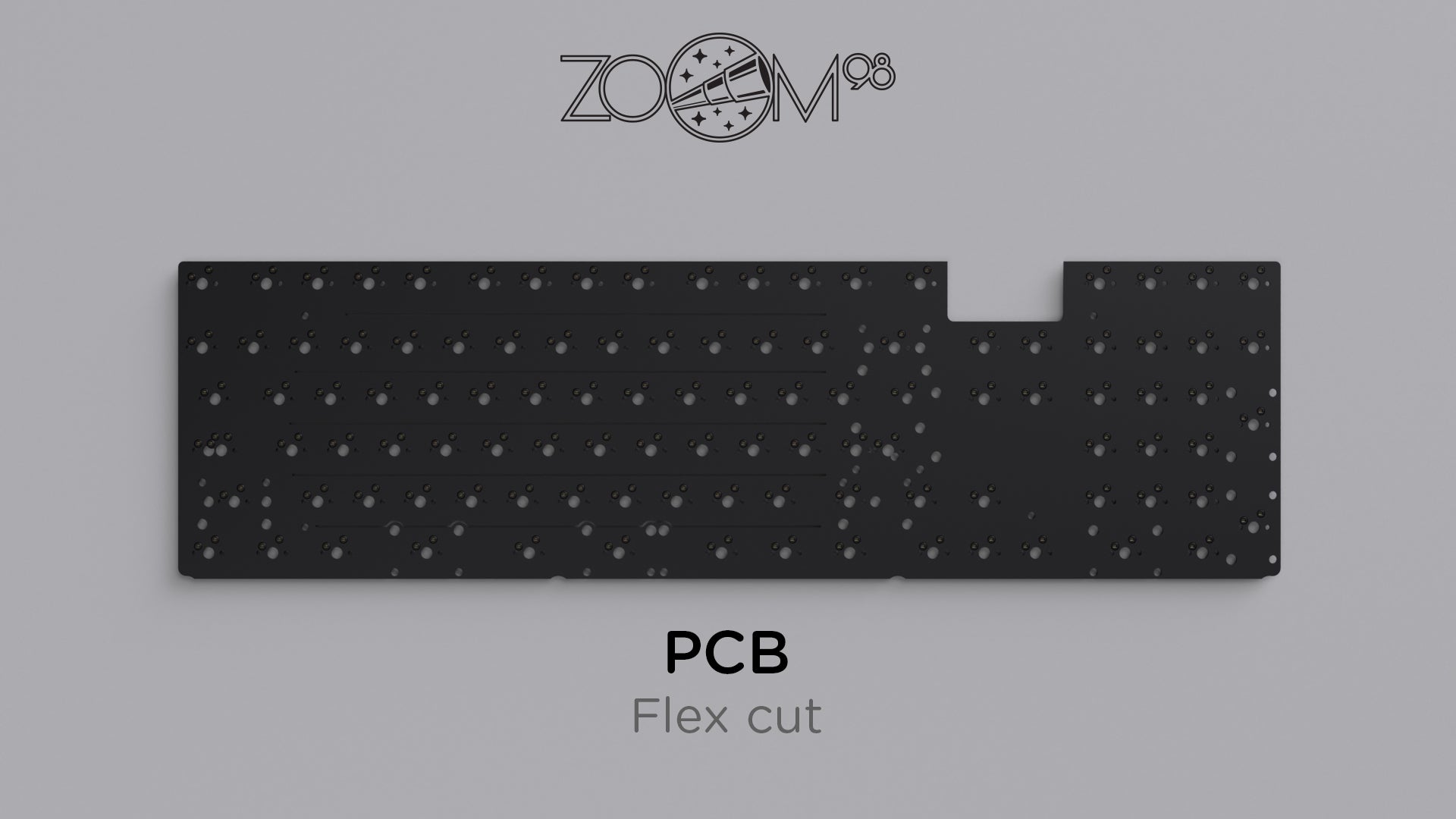

- Tri-mode PCB with hot-swap sockets, multi-layout, VIA & per-key RGB support, with or without flexcuts

- 2.4Ghz receiver

- 2x 2250 mAh Li-ion battery

- Screen module

- Daughterboard + JST cable

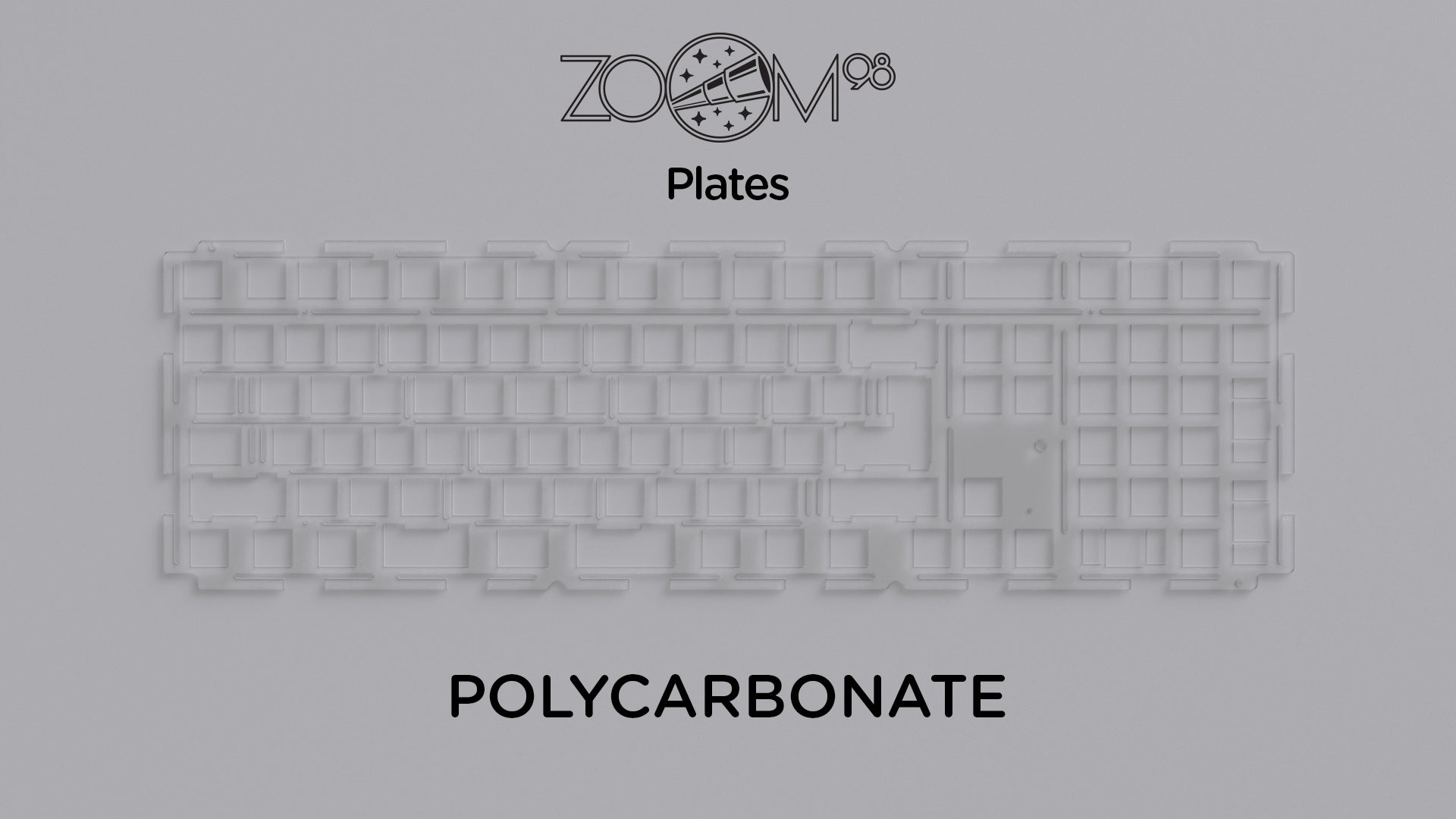

- Polycarbonate plate

- Flexible flat cable for modules

- Set of WS Stabilizers v3.1

- Coiled USB-C cable

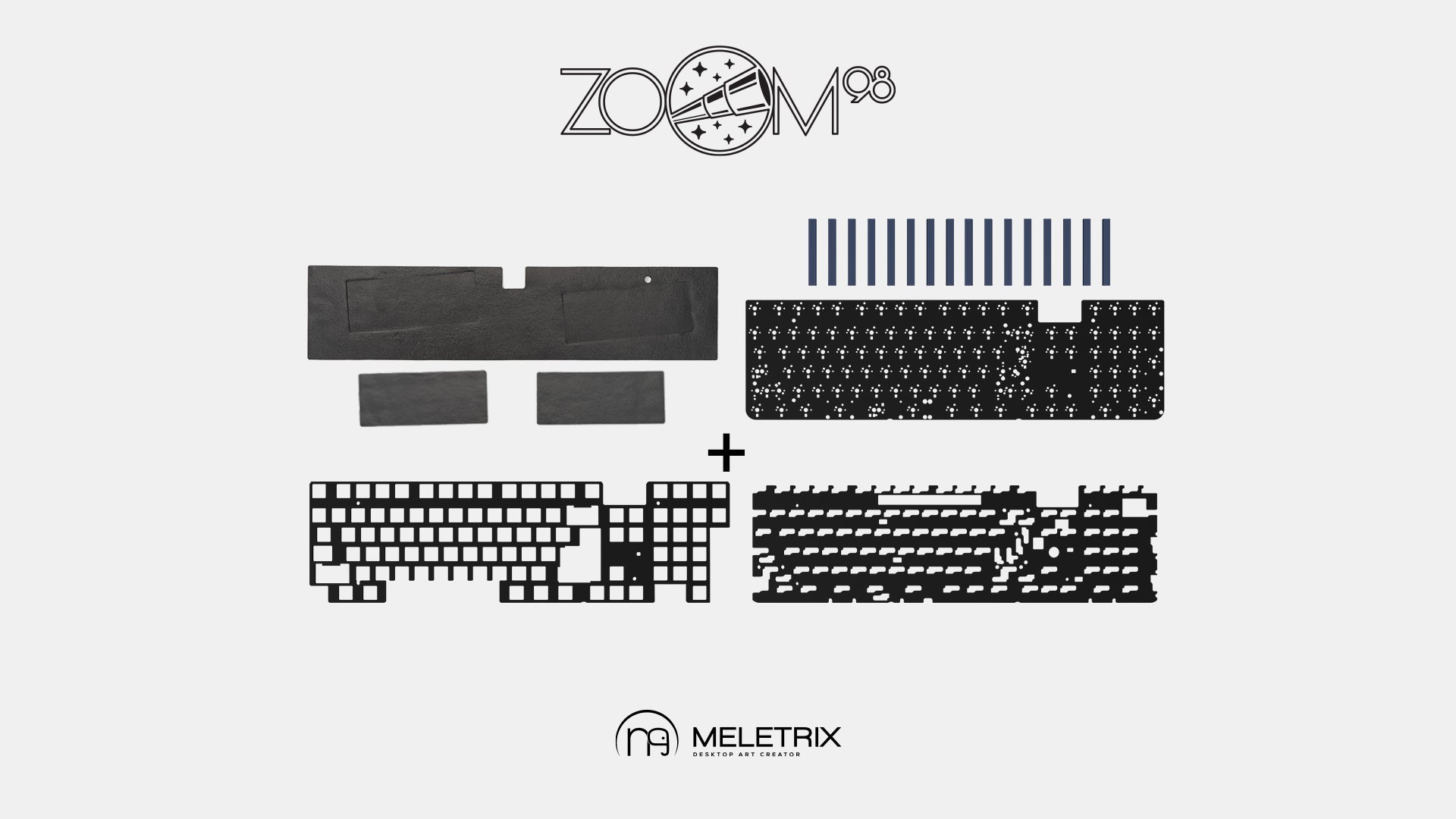

- PORON Dampener Kit (Plate foam, switch foam, weight foam & gasket sleeves)

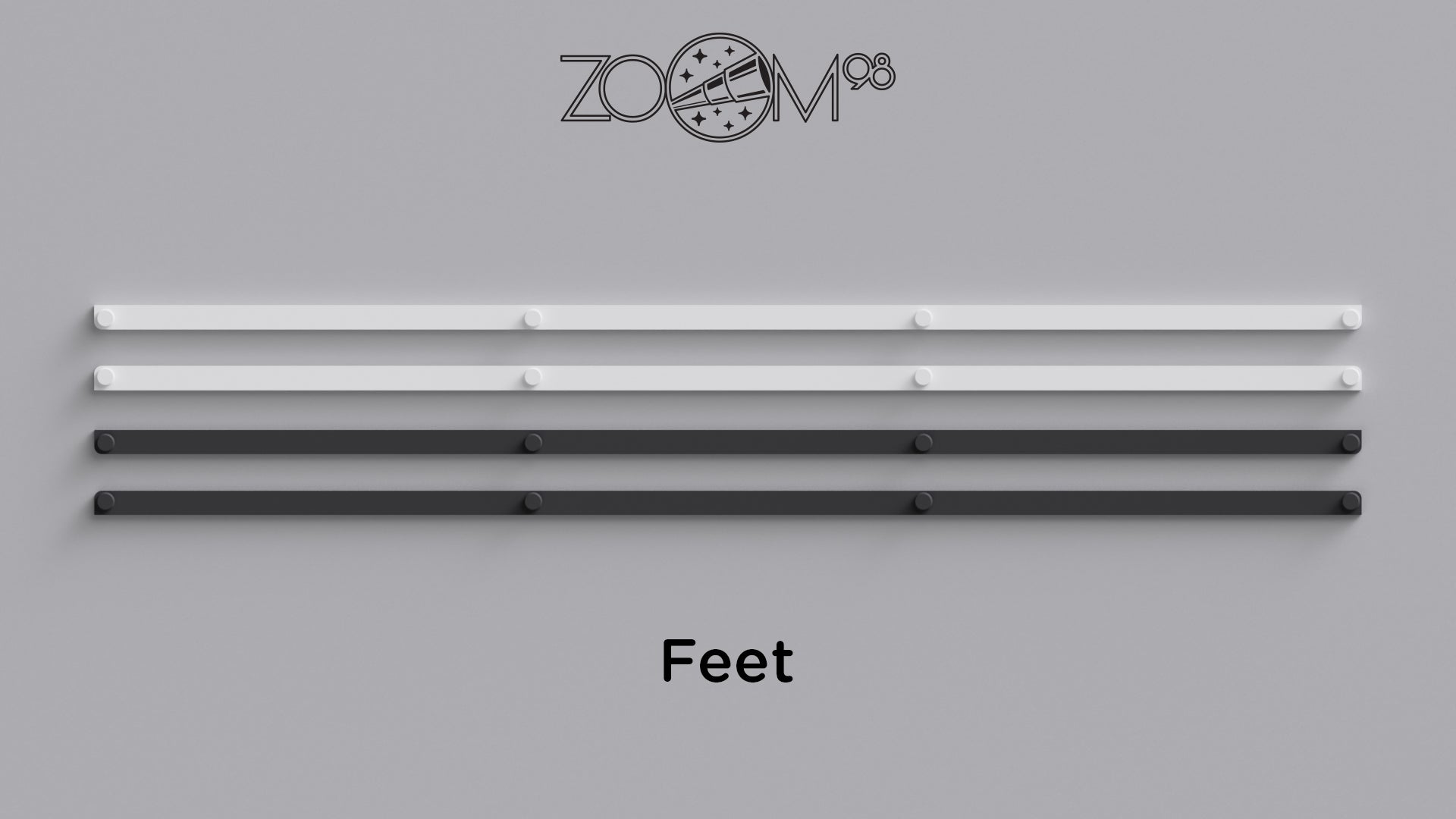

- Silicone removable feet

- Screws & installation tools

- Storage box (No storage case)

x Cosmic Odyssey Kit Contents

The same as EE kit contents, with the following changes:

- Badge module & x Cosmic Odyssey Badge

KLE Kit Contents

The same as EE kit contents, with the following changes:

- Fully assembled keyboard kit with lubed WS Stabilizers V3 and WS Morandi switches. An extra switch or two may be included in the kit.

IMPORTANT

- All Zoom98 on this page come with the Screen Module by default. They do not come with any knob or the Knob Module

- All zoom65/75/98 and Zoompad knobs are compatible with each other.

- Nightlight knobs fit on the Zoom98 with the Knob Module but they do not illuminate

- Zoom75 (not Tiga) and Zoom98 Badges are compatible with each other

- Zoom75 and Zoom98 modules are not compatible with each other

- EE Black, EE White & EE Strawberry Ice Cream have a slight sparkle to the finish

Keyboard Specifications

- Gasket mount design

- Keyboard layout: 98%. 112 keys in the default layout with screen module.

- 1.2mm PCB with C3 Universal Daughterboard.

- 7.7° Typing angle

- 22mm front height

EE Case finish: Electrostatic sprayed

SE Case finish: E-white has an electrophoresis coating, the rest are anodized.

- Tri-Mode PCB can be used in wired, Bluetooth or 2.4 Ghz wireless mode.

- Tri-mode PCB supports VIA and not QMK. The wired PCB supports both QMK and VIA.

- Tri-mode PCB BT polling rate: 125hz

- Tri-mode PCB 2.4GHz polling rate: 1000hz default layout with screen module.

- Tri-mode PCB wired mode & wired PCB polling rate: 1000hz

- Systems supported: Windows, Mac, iOS, Android

- Bluetooth version: 5.2

- Can be paired with up to 3 devices on Bluetooth.

- Supported layouts: split spacebars, split backspace, stepped and normal caps lock, split left shift, split right shift, ISO & ANSII enter. See diagram below for more info.

- EE/SE with screen module & Alu weight: 2.9 kg

- EE/SE with screen module & PVD SS weight: 3.3 kg

- Internal SS weight (sold separately): 0.471kg

KLE Configurations

All Keycap-less Edition (KLE) Zoom98 come fully assembled, without keycaps. They are built with hand lubed WS Stabilizers V3.1 and WS Morandi switches

KLE - EE Black

Aluminum Anodized Black weight

KLE - EE Milk Tea

Aluminum Anodized Gold weight

KLE - EE Sky Blue

Aluminum E-white weight

KLE - EE Strawberry Ice Cream

Aluminum E-white weight

KLE - EE White

Aluminum E-white weight

KLE - SE Anodized Lavender

Brass PVD Mirror Prism Weight

KLE - SE E-white

Aluminum E-white Weight

KLE - SE Space Grey

Brass PVD Mirror Black Weight

Structural diagram

Supported layouts

Disclaimer

Many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the physical product look like. The physical product may have slight differences.

Acceptable Quality Standards

Quality Standards Document 🔗

Please refer to the guide before purchase to see what type of quality control standards apply to Zoom98

Other Features

Unique chamfer

Special Edition (SE) Zoom98 have an accent chamfer on the inside edges similar to Zoom75 SE and Zoompad SE. Chamfers are polished too like in Zoom75.

Per-key RGB

The Tri-Mode PCB support per-key RGB lighting. You can choose from provides a wide range of colors and effects for a different visual experience.

Hot-swap sockets

All Zoom98 PCBs features Kailh Hot Swap sockets that allow you to just push the switches on, no soldering required! Changing switches is a breeze, you can go from linear to tactile in a matter of minutes, all on the same keyboard!

WS Stabilizers V3.1

Each Zoom98 comes with the latest version (3.1) of the highly popular WS Stabilizers!

Gasket mount

Zoom98 uses a gasket isolation mount structure for a soft, bouncy and pleasant typefeel that won't fatigue your fingers even after hours of typing. Gasket mount keyboards sound better and feel more even throughout the board than the typical off-the-rack tray mount keyboards.

Gasket sleeves

The gasket sleeves are made of supercritical foam, it can stabilize the plate as the same time giving appropriate space allowing it to flex in a balanced way. Just the right softness, not too stiff, not too much flex.

Foam included

In order to reduce resonance, many tests were done on the foaming material of the Zoom98. Meletrix made the new PORON lighter and denser, as a result they make the keyboard sound more concentrated and deeper than stock settings.

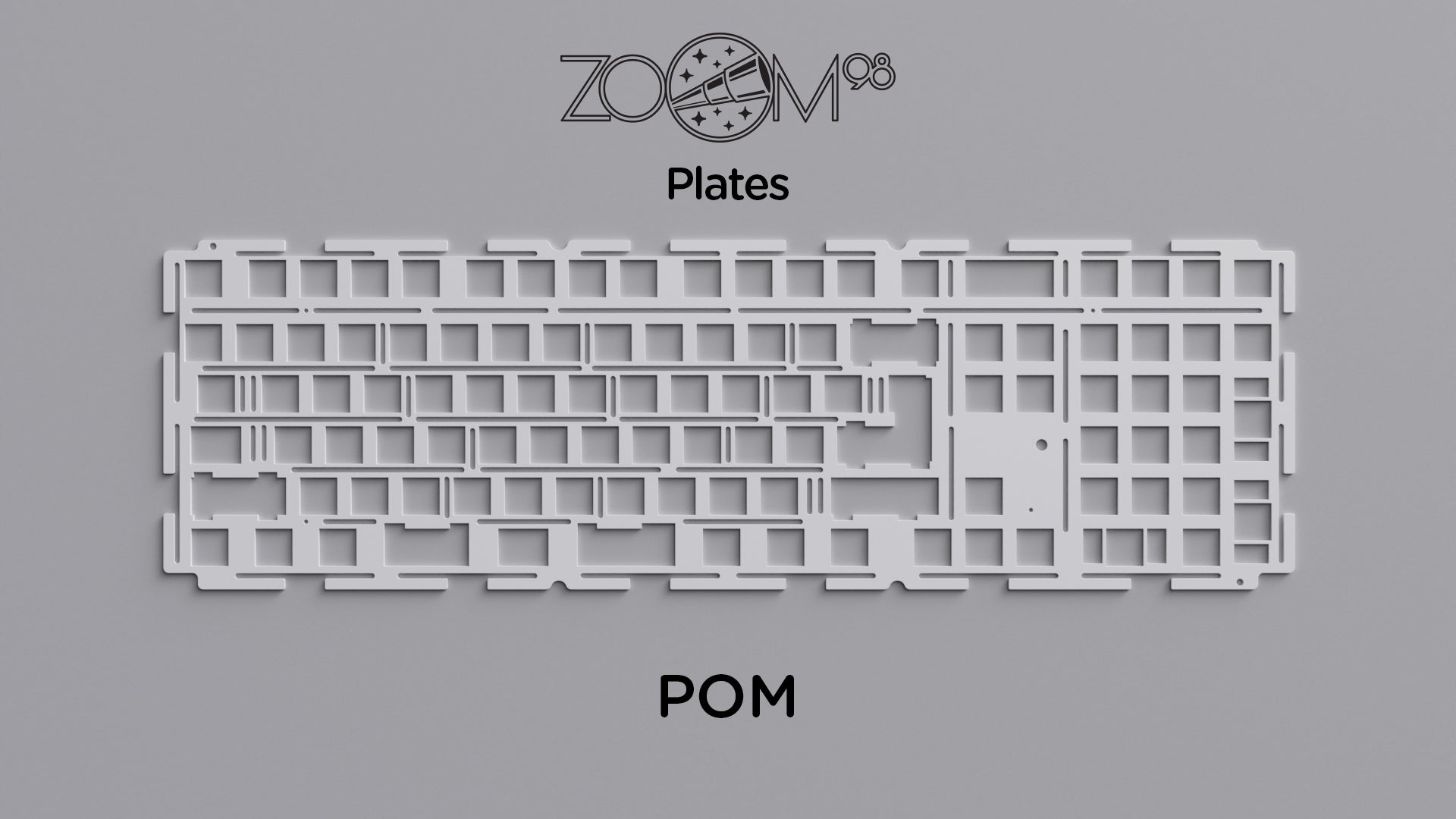

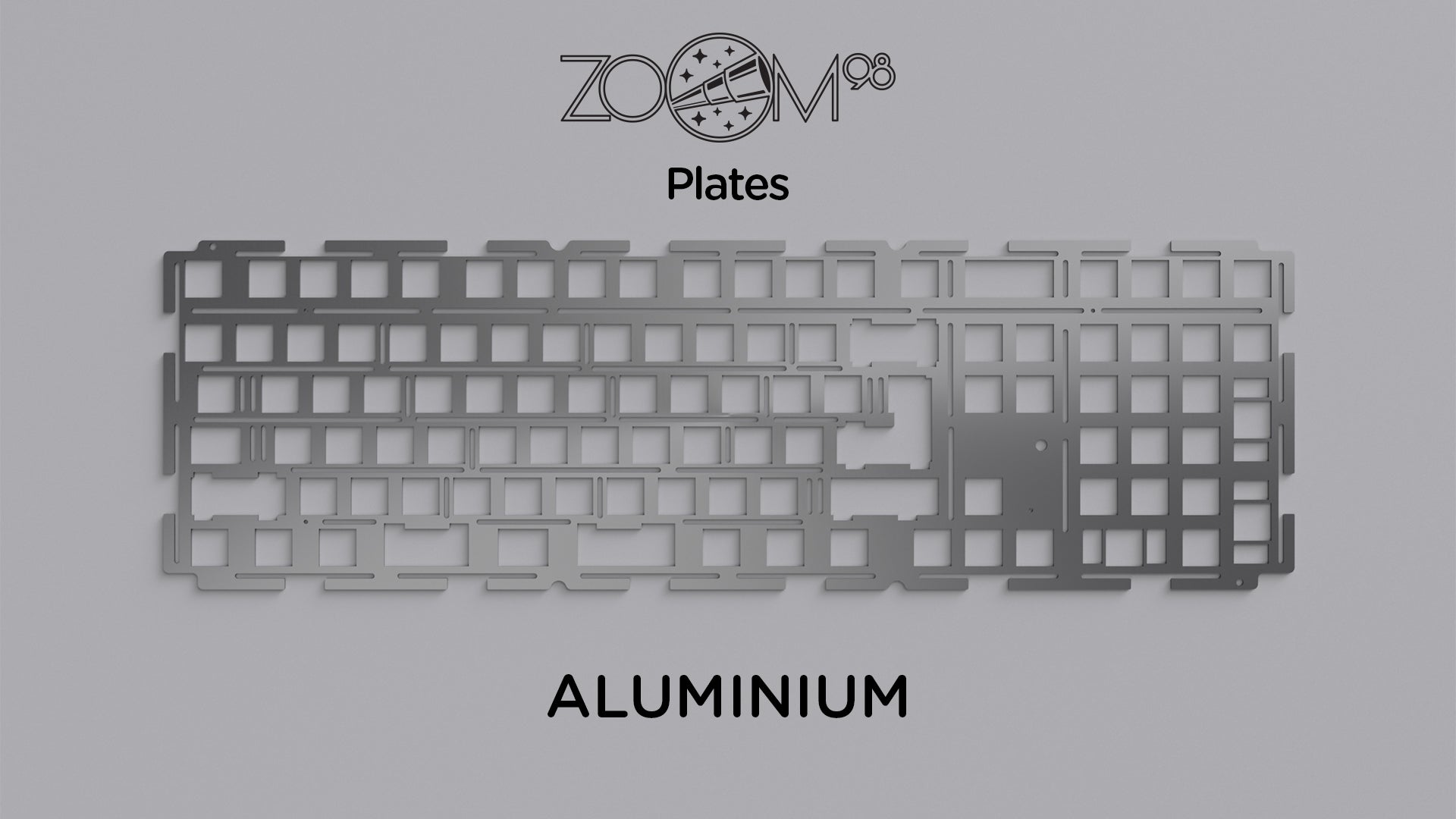

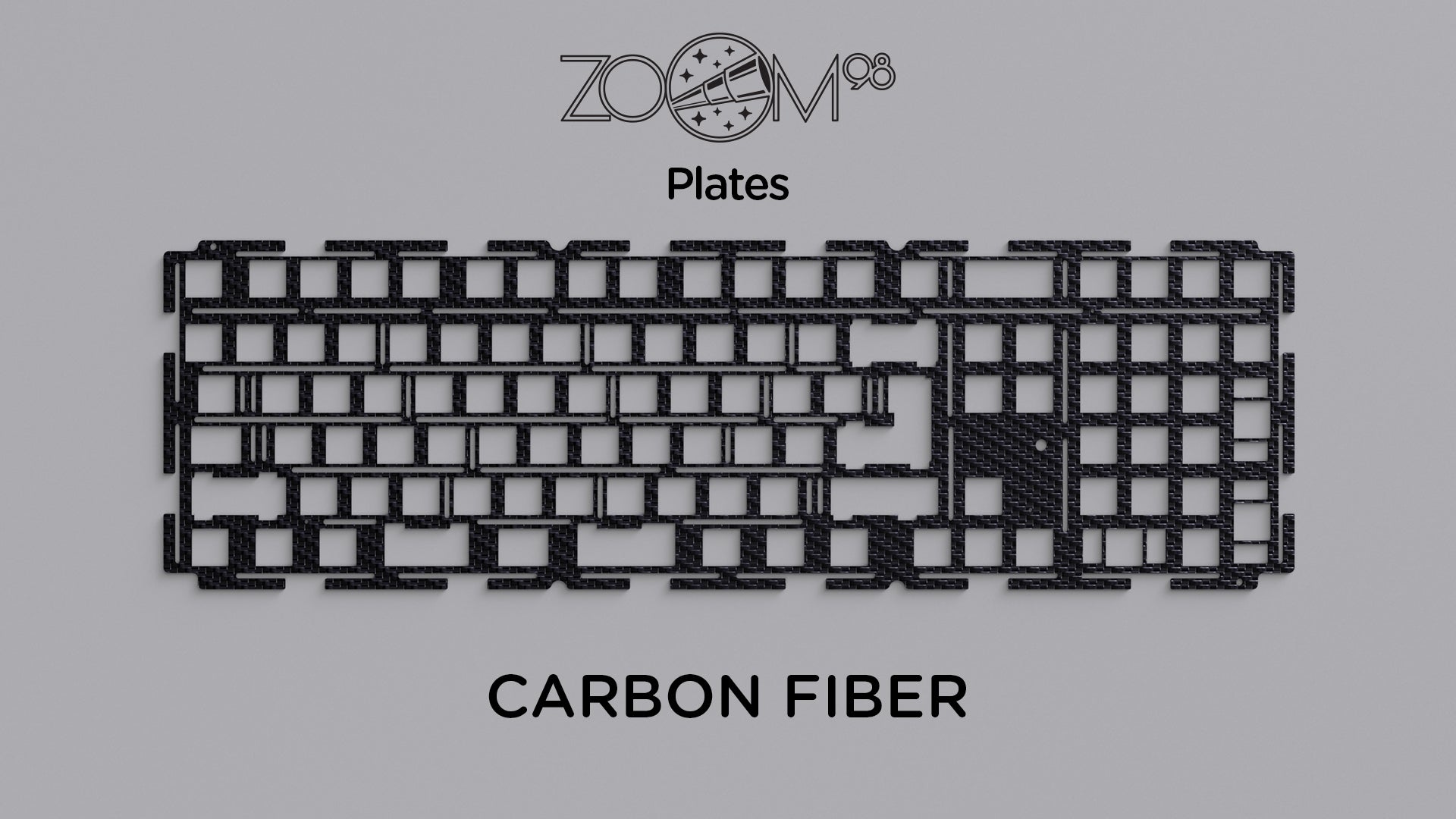

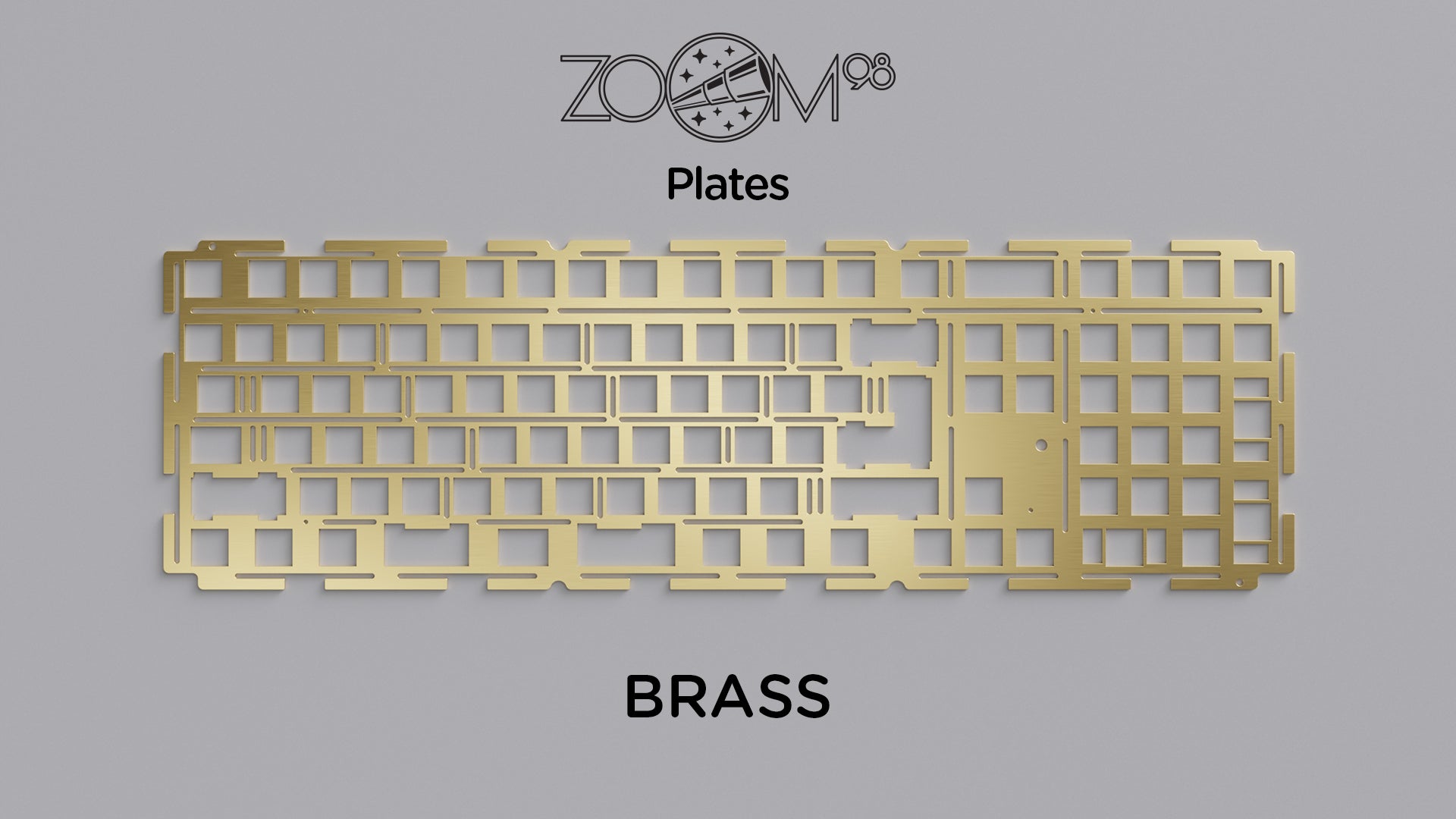

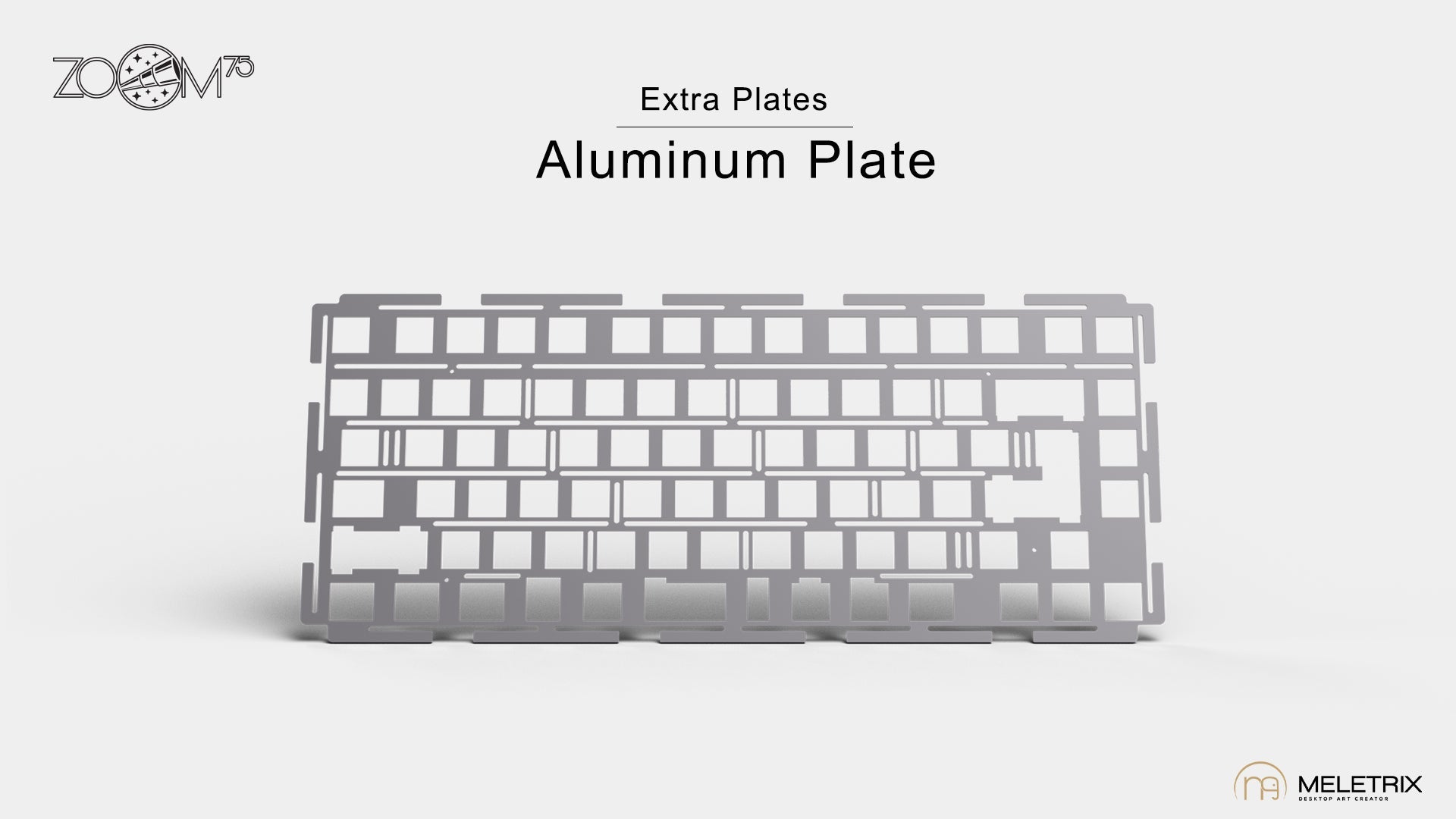

Plate variety

Plates in other materials, such as brass, aluminum and FR4, can be sold as add-on accessories, and they dramatically change the feel and sound of the keyboard

Internal Weight - Sold separately

Take your keyboard to the next level with an internal SS weight, sold separately. It weighs about 471 grams.
