Wuque Studio

Freya & Freya Ultra Accessories

$17.00 USD
Title
Item
Quantity

Pickup available in Scarborough, ON, Canada. Click here for more info

Usually ready in 1-3 days

At a glance

Inspired by Norse mythology, Freya is the latest ultra premium keyboard from Wuque Studio featuring several innovative new features!

Freya features a full color, highly customizable, touch screen knob on the top right cluster. The non-load bearing gasket structure paired with split plate design bring a fresh new take on the typing experience

Freya Ultra features an extra column on the left that can house either a slider or a 5 key macro row!
Freya & Freya Ultra Accessories

Freya & Freya Ultra Accessories

$17.00 USD
Product Page
Freya & Freya Ultra

Freya & Freya Ultra

$399.00 USD
Product Page

Freya

Freya has a 68% layout with a big, color touchscreen knob on the top right cluster. The knob can also be replaced with 4x 1u keys. It comes with a PC/FR4 split plate, in a variety of top case colors and bottom case finishes

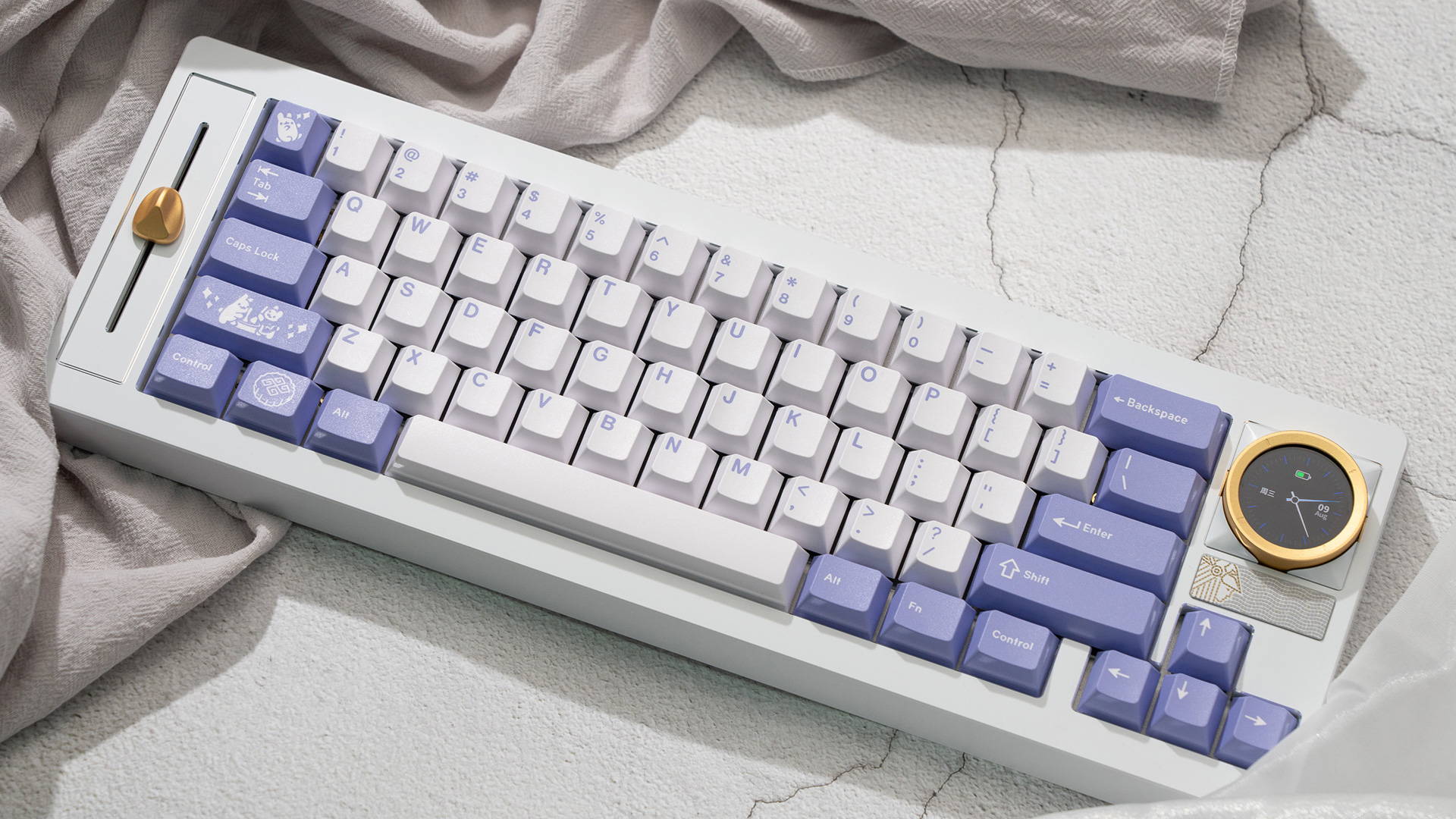

Freya Ultra

Freya Ultra has the same layout as Freya, with the addition of a 1u column to the left of the keyboard. This column can be populated with a customizable slider or 5x 1u keys.

IMPORTANT

- All of the Freya & Freya Ultra keyboards listed on this page come with the hot-swap, Tri-mode PCB only.

- Freya Ultra kits come with both the Slider & the 5x 1u column modules.

- All of the plates, PCBs and badges are compatible across Freya & Freya Ultra

- Freya top or bottom cases are not compatible with Freya Ultra and vice versa

GET 10% OFF IN-STOCK KEYSETS WHEN ORDERED WITH AN IN-STOCK KEYBOARD

Discount will be applied in cart automatically. Base kits only. Some keysets may not be eligible.

Shop Keycaps

The DEtails

Specifications

Layout

68% (Freya), 68% + left column (Freya Ultra)

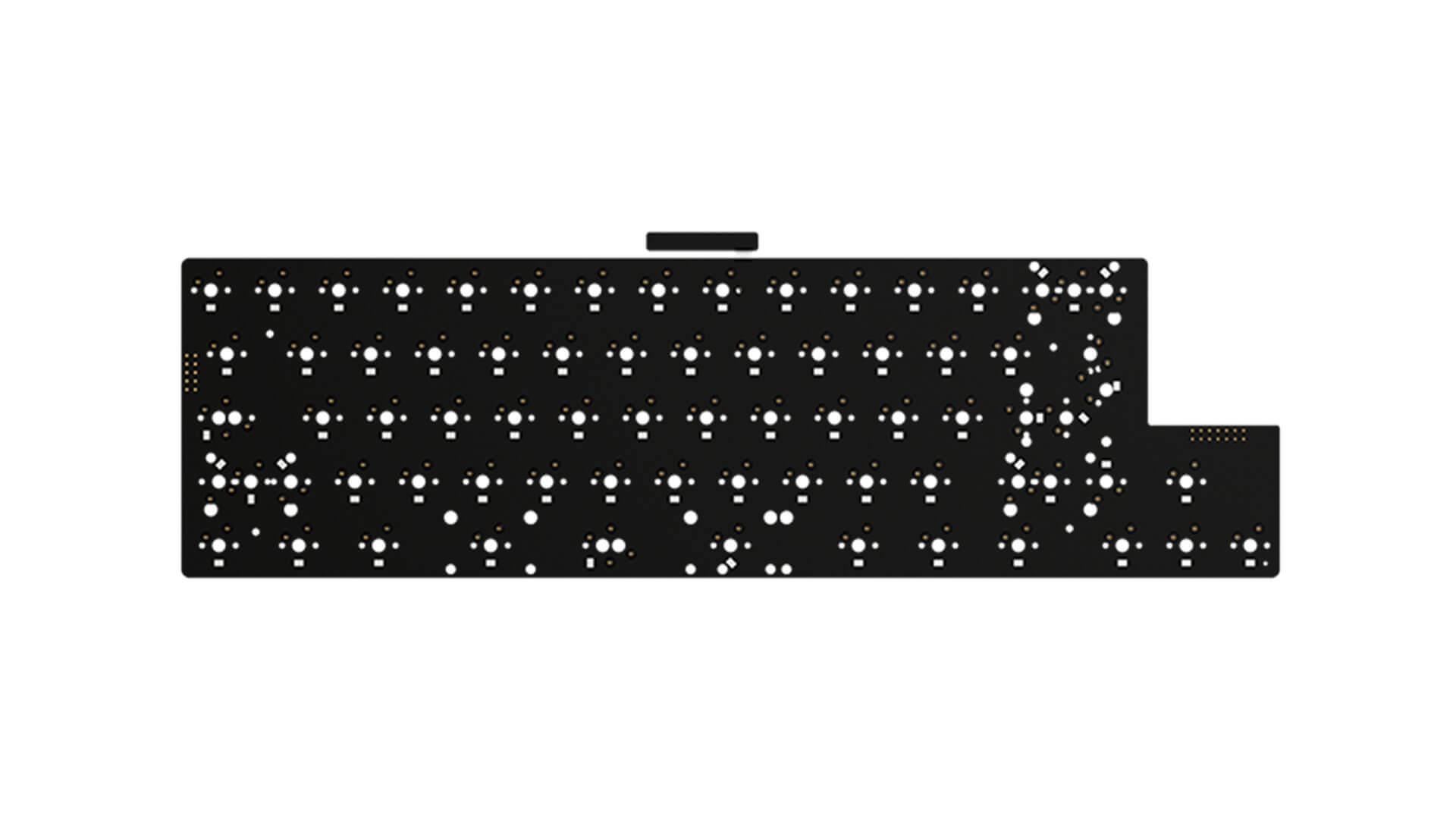

PCB (Tri-mode)

1.2mm

Hot-swap

ANSI layout



Supports 2.4Ghz, Bluetooth or wired connection.



Supports touch screen knob module. With or without flexcuts, depending on customer's choice.



Freya Ultra Tri-mode PCB supports slider module.

Bluetooth version

Bluetooth 5.3

Maximum connected devices

3

Typing angle

6.5 degrees

Static protection

Yes

VIA support

Yes

RGB support

On Tri-mode PCBs only. All of the keyboard kits on this page come with a Tri-mode PCB

Weight

1588g (Freya), 2042g (Freya Ultra)

Stabilizers

WS Stabs v3.1 included

Screen lens

33.75 x 33.22

Screen diameter

30.23mm

Screen resolution

390px x 390px

Screen FPS (upper limit)

10

Image refresh time

42 - 51ms

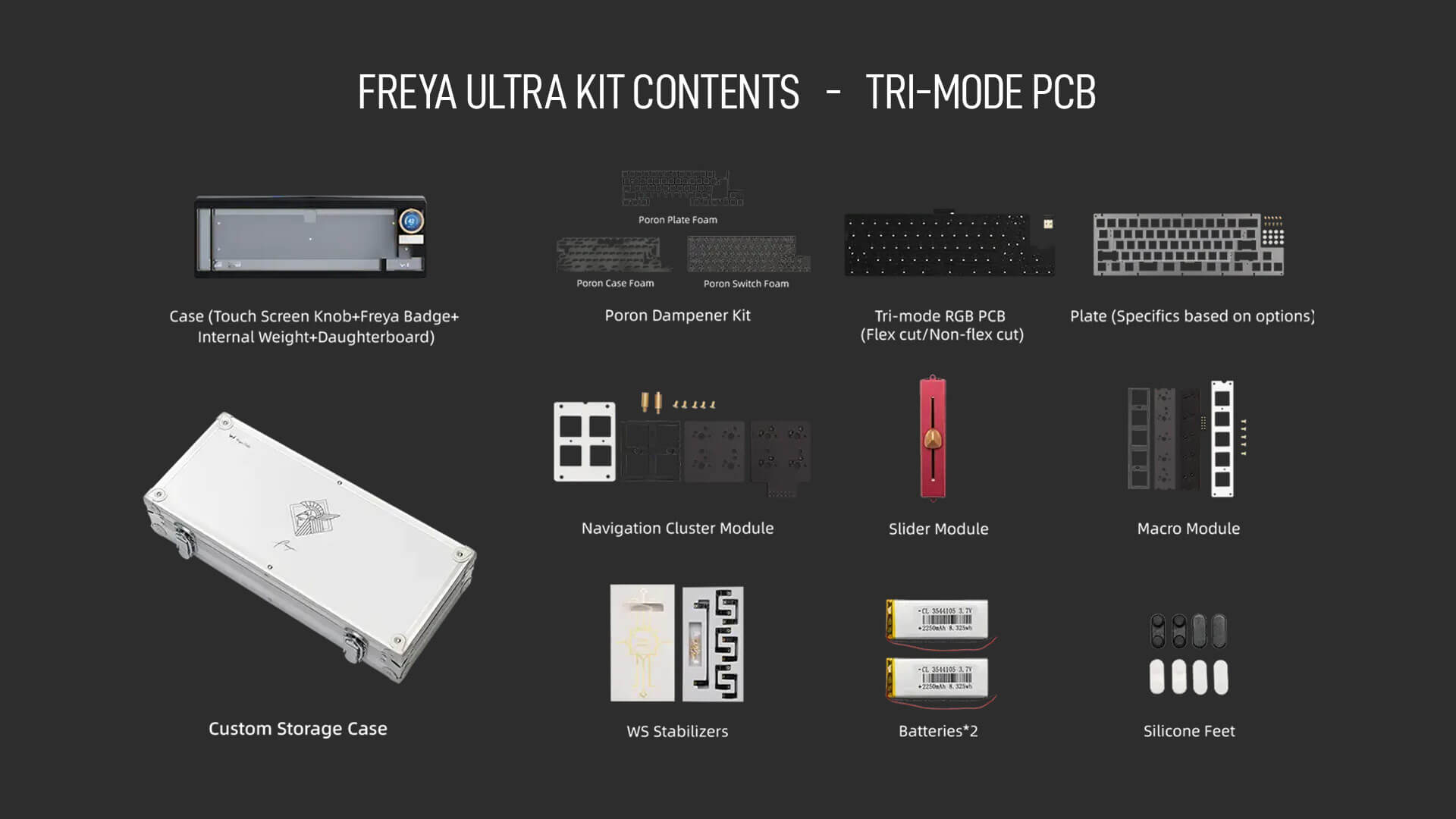

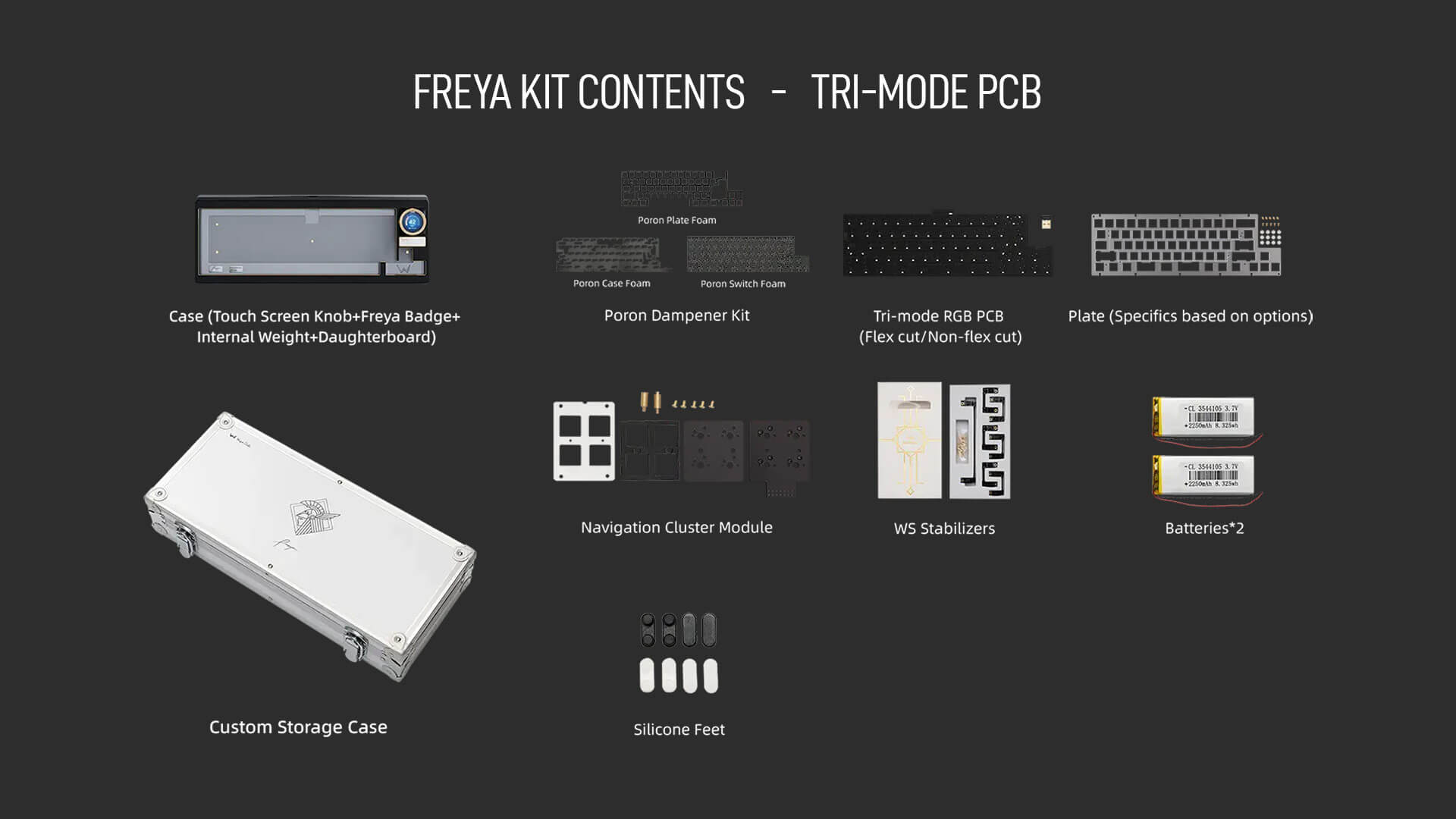

Kit Contents

- Freya and Freya Ultra both come with an Aluminum outer and a PC inner plate.

- Freya Ultra x Valhalla Edition comes with a PC outer and FR4 inner plate.

- All Freya & Freya Ultra keyboard kits on this page come with a Tri-mode, hot-swap PCB.

- A coiled cable and/or a Wuque Titanium Switch Puller may be included with kits in random. We will not be able to send out a replacement if one isn't included or if it is defective.

- Keycaps & switches shown in renders / photographs are not included.

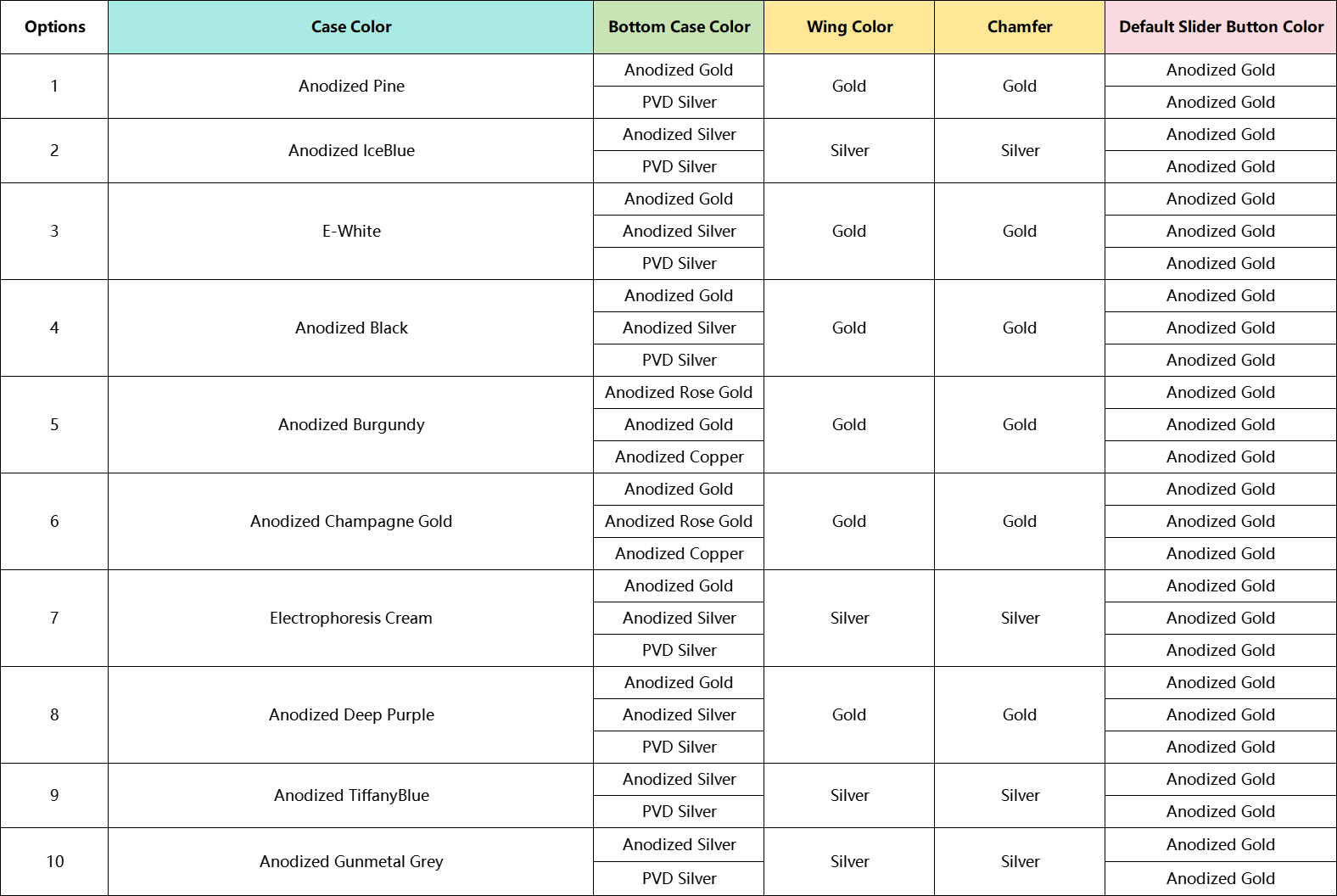

Color Details

Disclaimer

Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.

Acceptable Quality Standards

Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to Freya keyboards and accessories

Files & Guides

Build Guide (text) 🔗

Build Guide (video) 🔗

Troubleshooting Guide 🔗

PCB Manual 🔗

Firmware & files 🔗

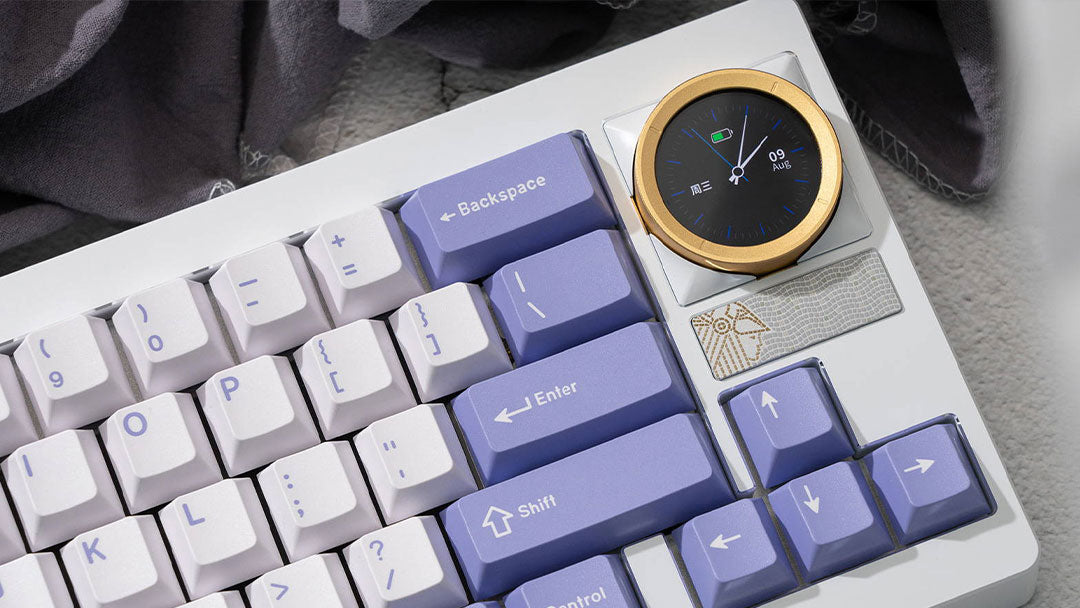

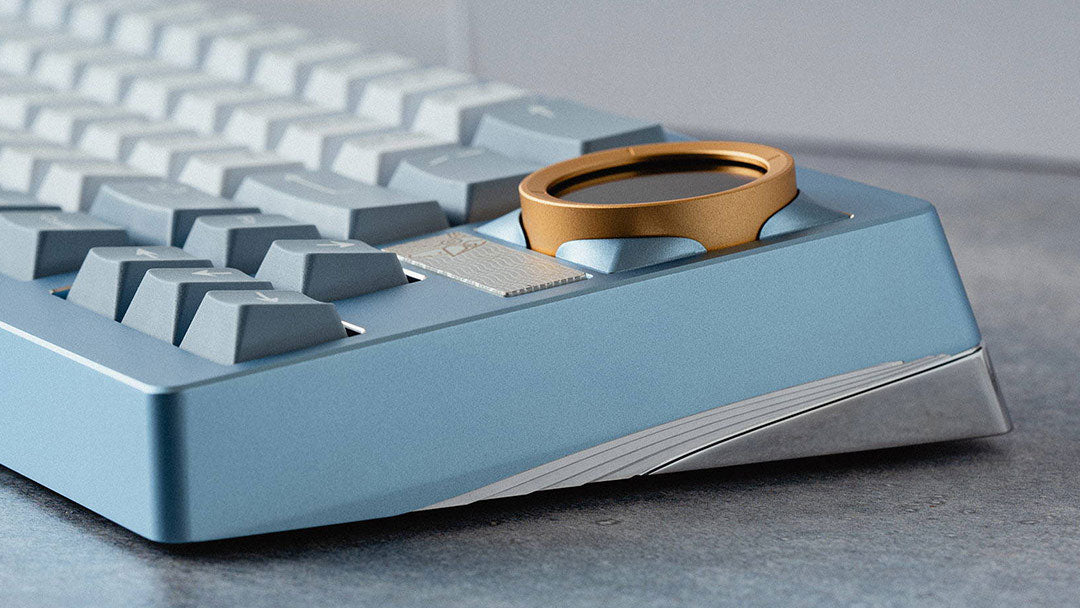

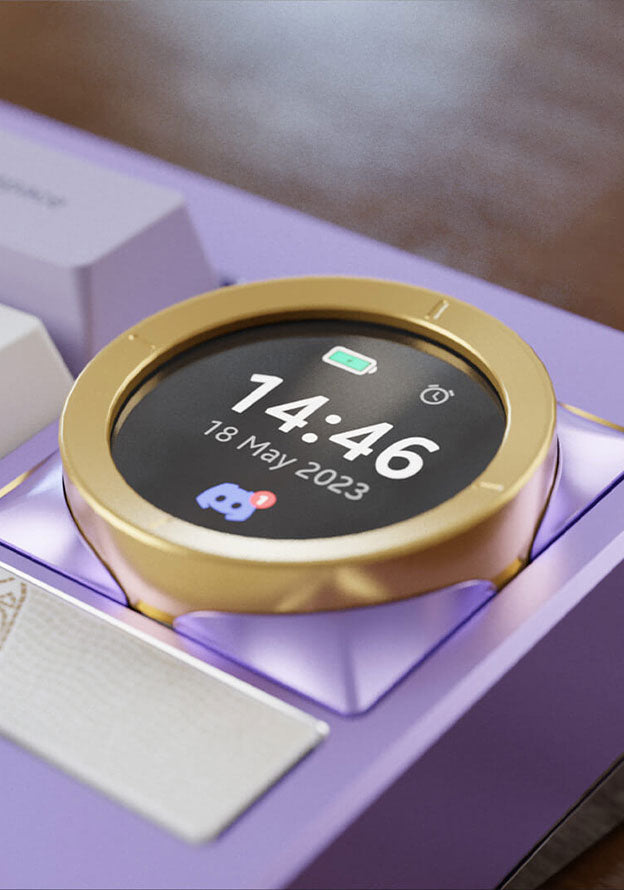

The Knob

Freya has a large rotary knob in the top right cluster like Mammoth75, but unlike Mammoth75 the knob has a full color touchscreen!

The knob sits on an elegant alter raised from the rest of the board. If you're not a fan of the knob, you can always replace it with the 4x 1u key module included in the kit!

Knob Functions
  • 5s boot animation, Image/Gif upload
  • Rotate the knob to adjust the volume, press to enter the function page
  • Support date, clock, power, information push
  • Alarm Clock
  • Notes
  • Message notification
  • Countdown
  • Note: some functions are under development, if you have any ideas please share it with us and we'll pass it on to Wuque Studio to consider adding it in a future update.

Customization software

Use the app to customize the knob and every other aspect of the keyboard!

The Structure

Non-load-bearing gasket structure

Freya's unique mounting system draws inspiration from automotive suspension systems. Wuque Studio has integrated a spring structure into the bottom case, suspending the entire PCB assembly to ensure even key pressure distribution, stability, and responsiveness. The springs absorb typing pressure while the silicon gaskets provide an anti-friction effect. Together, the design prioritizes a comfortable typing experience and ensures a satisfying, consistent typing experience

Each kit comes with 3 types of springs in terms of flexibility: strong, medium and weak.

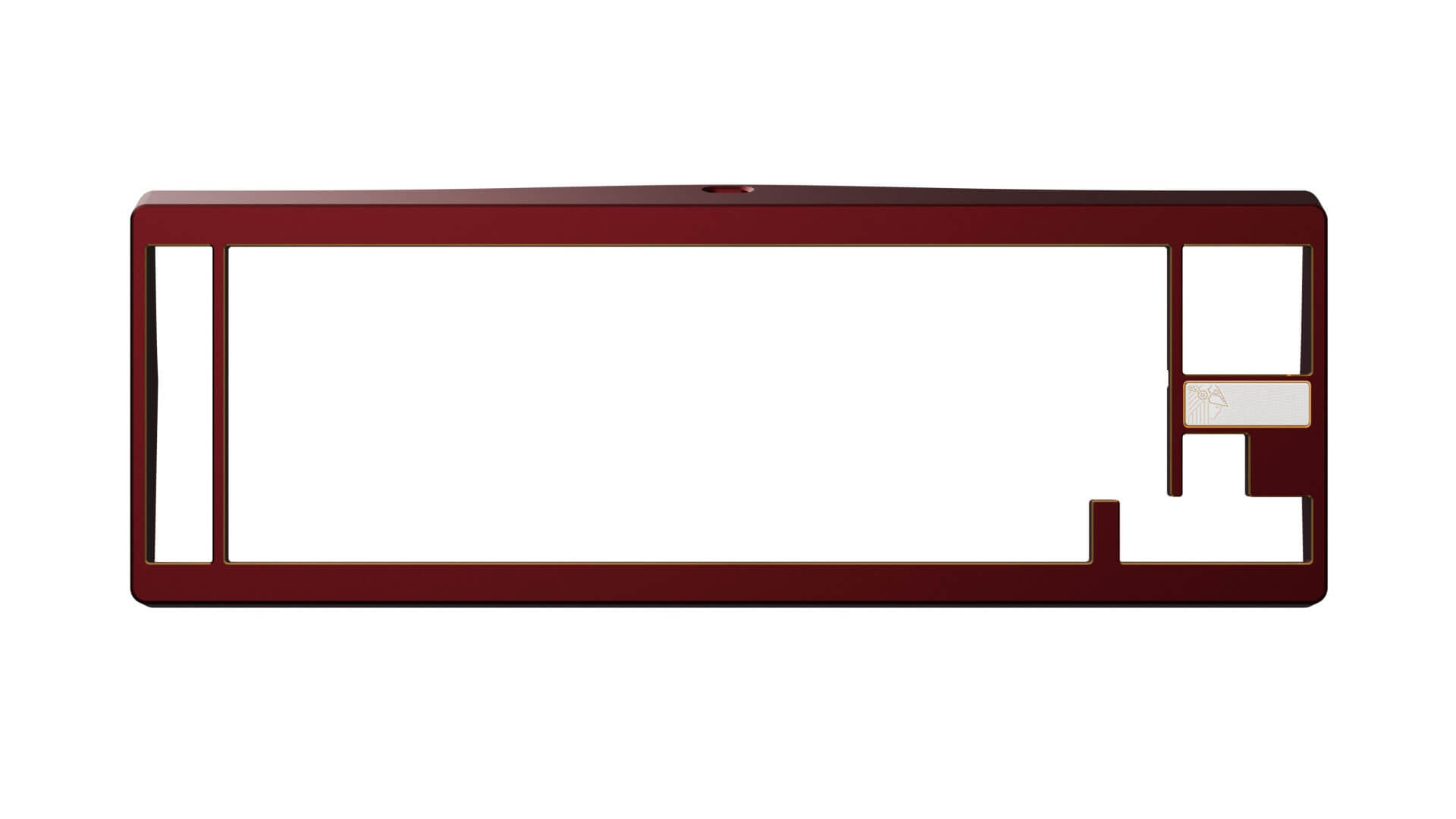

Split plate design

Drawing inspiration from the sweet spot structure of tennis rackets, Freya employs distinct materials for the alphanumeric keys area and other keys area. This design not only provides a soft and responsive touch for the alphanumeric keys area but also ensures a crisp and efficient response for other keys.

Various combinations of the split plate is available for sale separately. The inner and outer plate can be purchased separately on their own as well.

Tri-mode PCB

Bluetooth, RF & Wired!

You can connect to your devices via Bluetooth 5.0, 2.4Ghz RF (USB receiver included) and in plain old wired mode. You can charge the battery with any USB-C cable (not included), or simply use it in wired mode for a while!

VIA Support

Tri-Mode PCB is fully compatible with VIA, the powerful GUI widely renowned for it's customizability and ease of use. Remap any key on the keyboard on many different layers. Use built in powerful shortcuts and macros, or define your own!

Batteries Included

Every Freya kit comes with two 2250 mAh Li-ion battery included in the kit. Once it's out of charges simply connect your keyboard to your PC / laptop using the included USB-C cable.

Other Features

Heavy duty storage case

Each Freya kit weighs about 5-6KG partly due to the heavy duty metal storage case included with every keyboard. There's no safer way to transport your keyboard from your home to your office, or wherever else!

Multi-layout

PCBs are compatible across Freya and Freya Ultra. Both Tri-mode hot-swap and wired solder PCBs support multiple layouts. Please visit the section above titled "IMPORTANT" to see the limitations of each PCB.

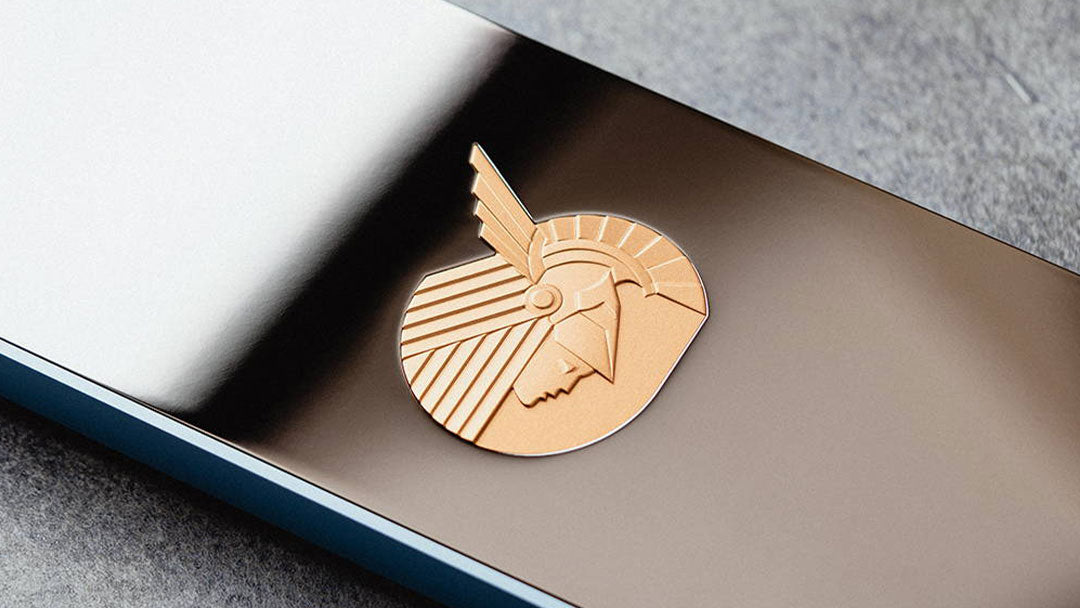

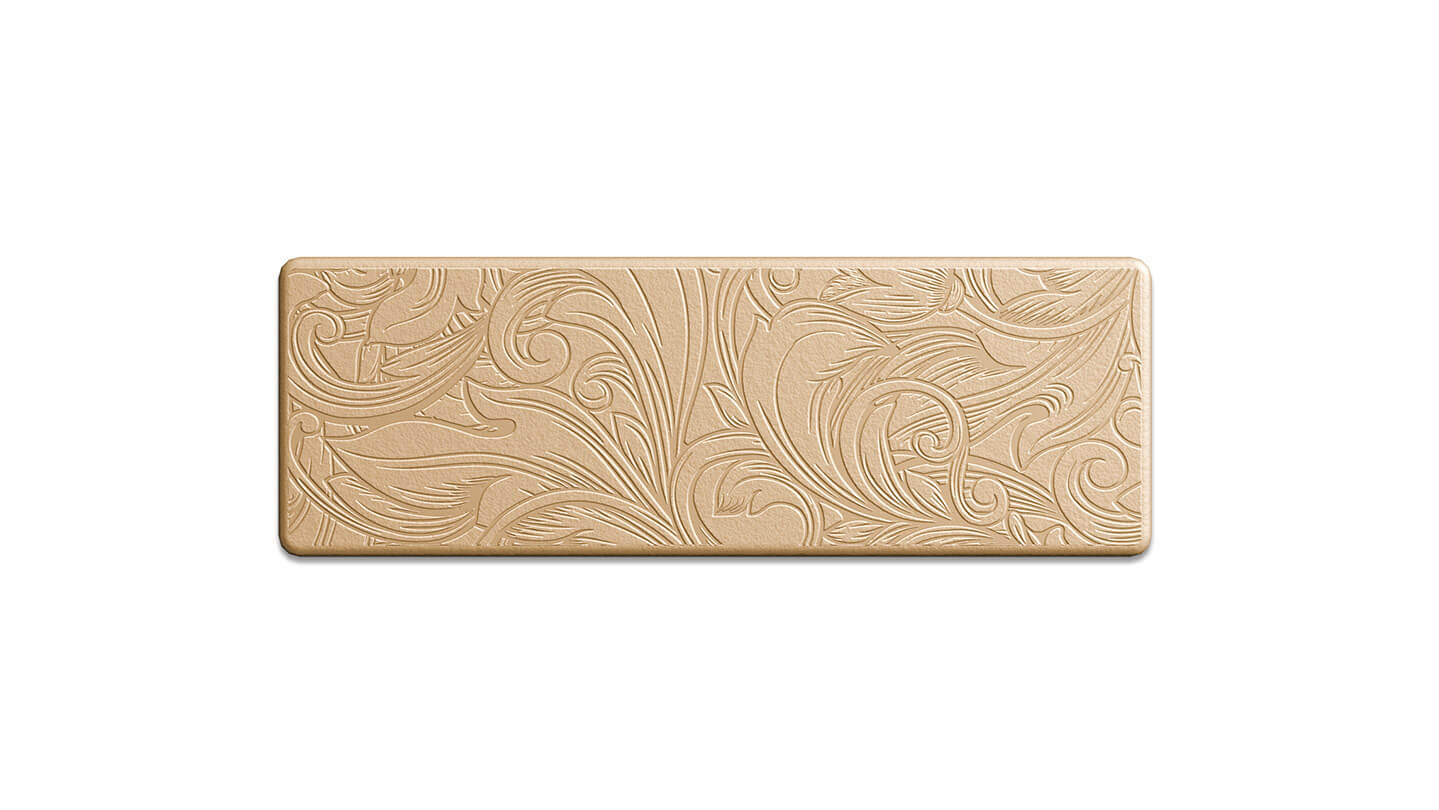

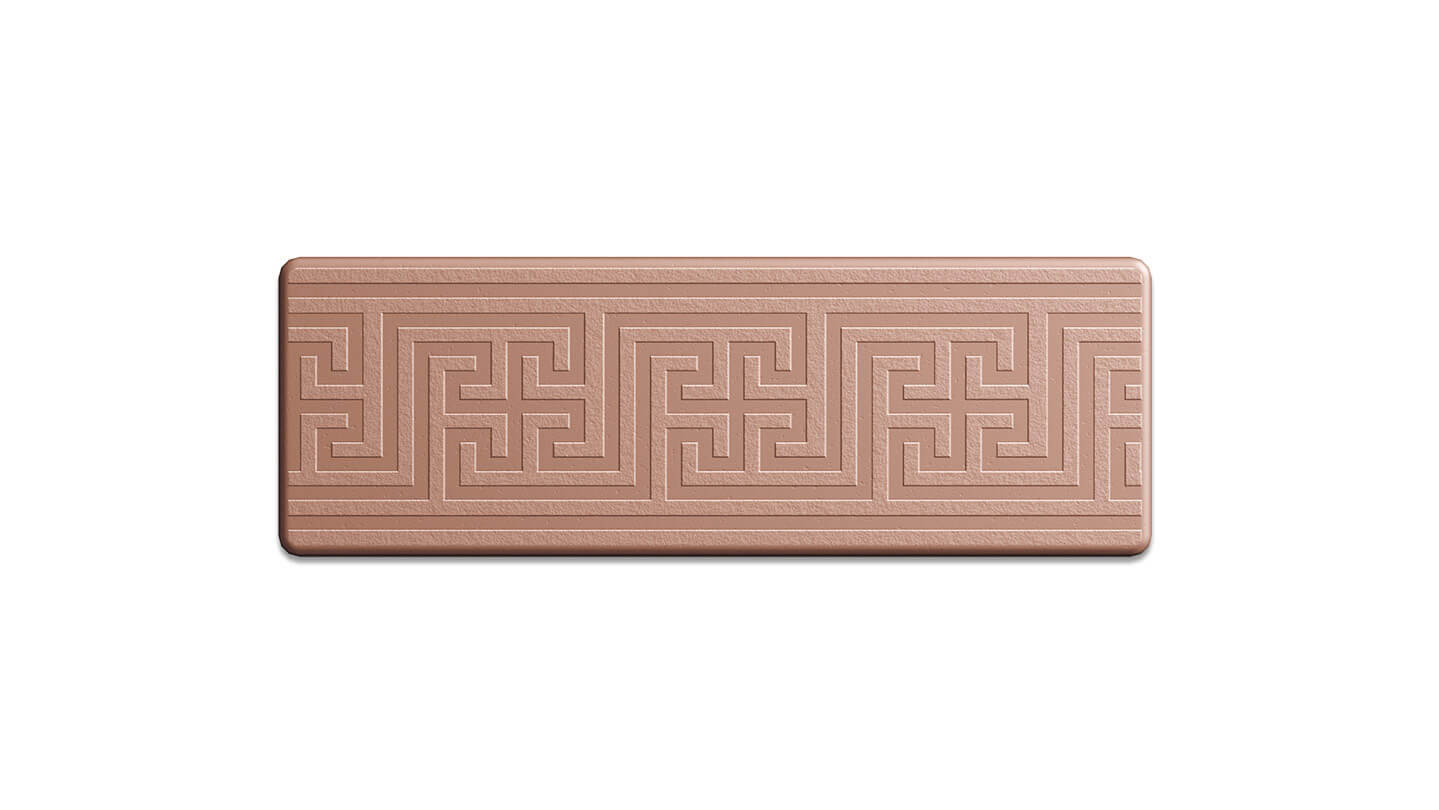

Hot-swap Badges

Each Freya and Freya Ultra kit comes with a default badge. This can be easily changed with any of the many gorgeous designs being offered in this group buy, sold separately.

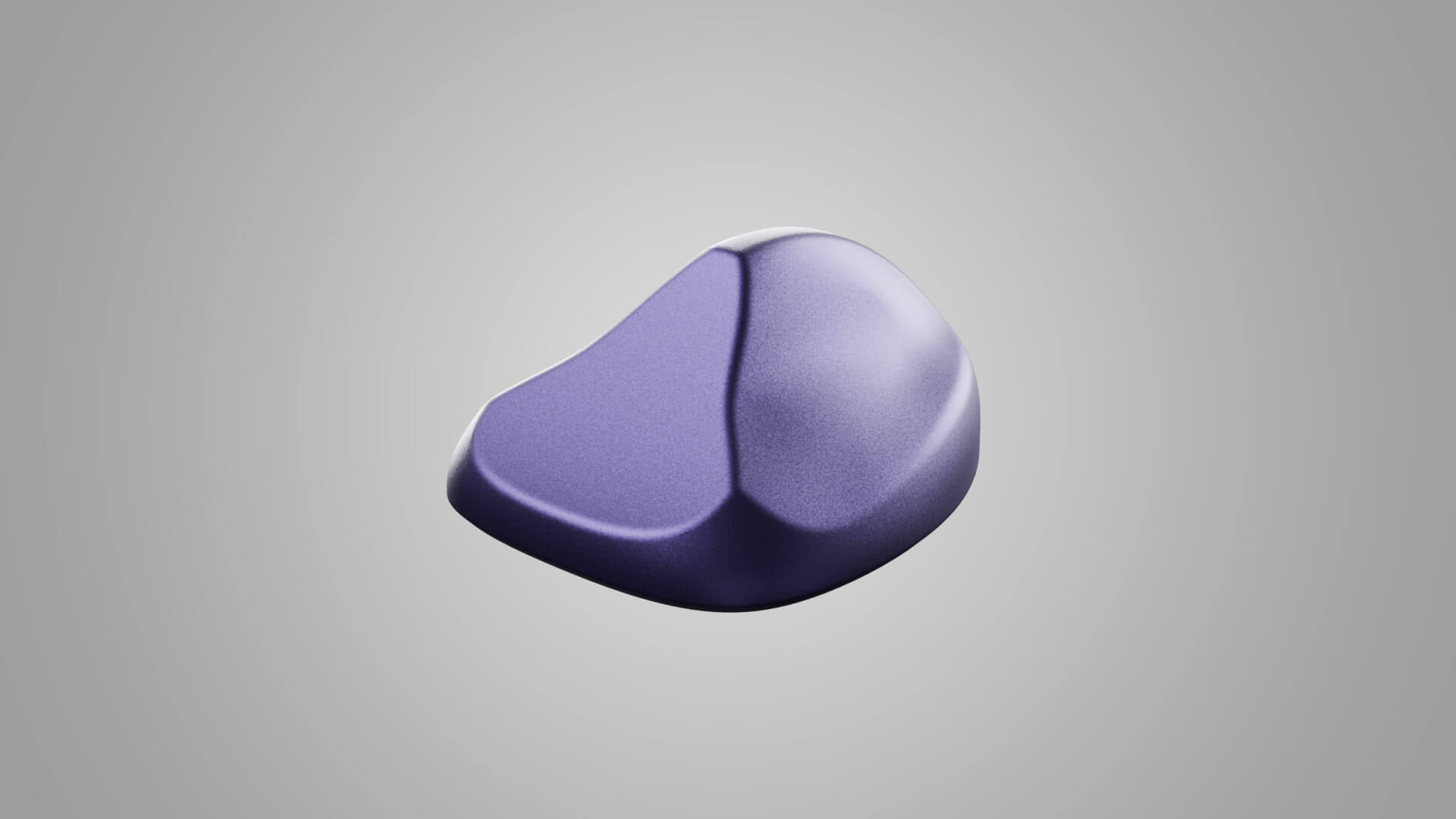

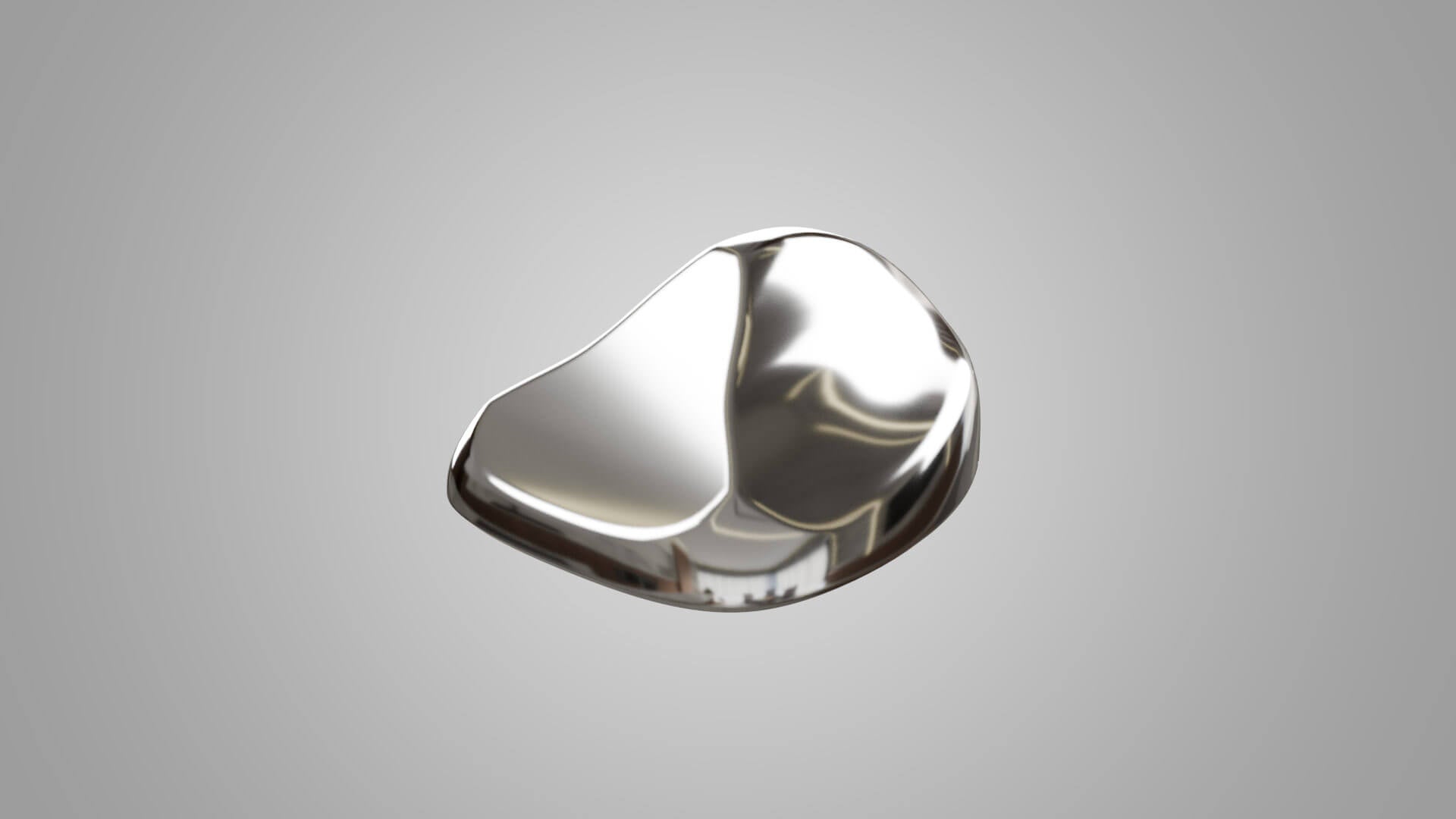

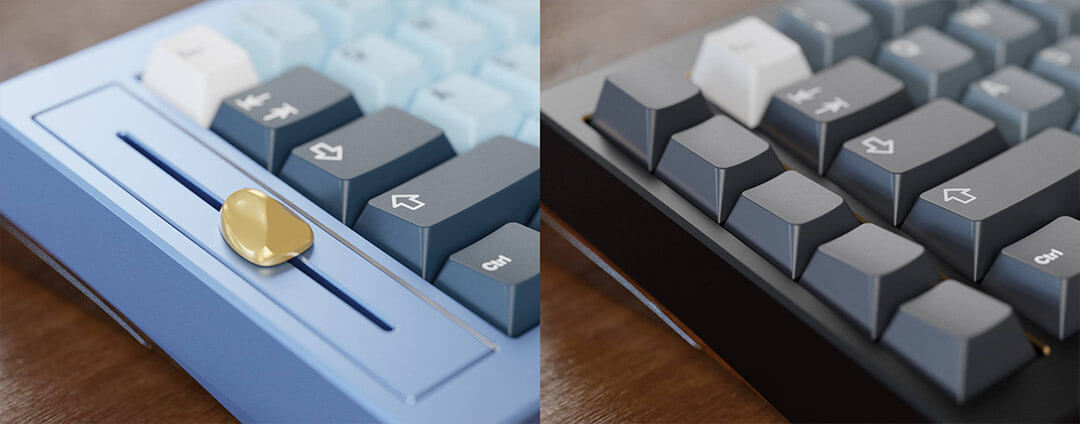

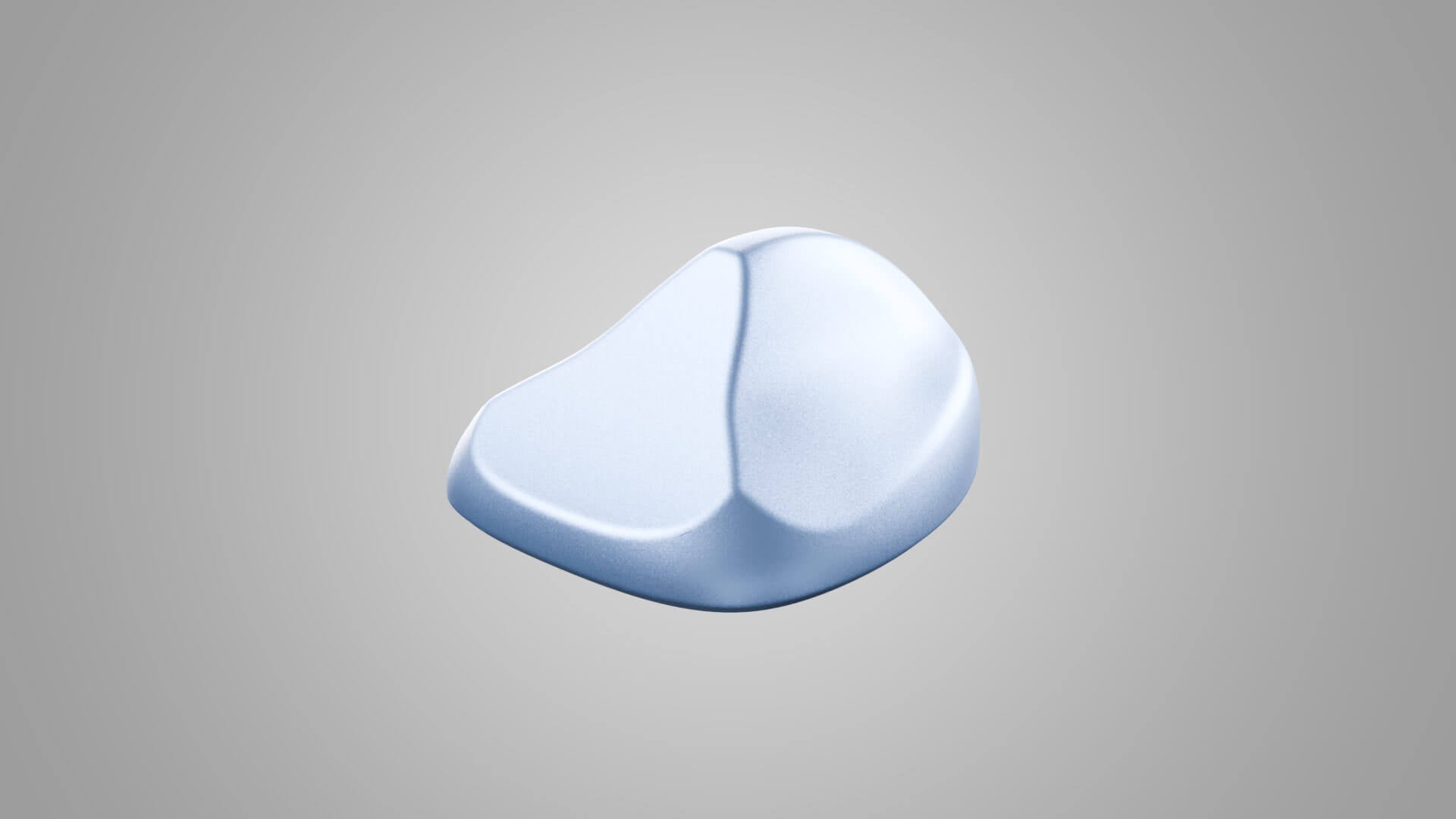

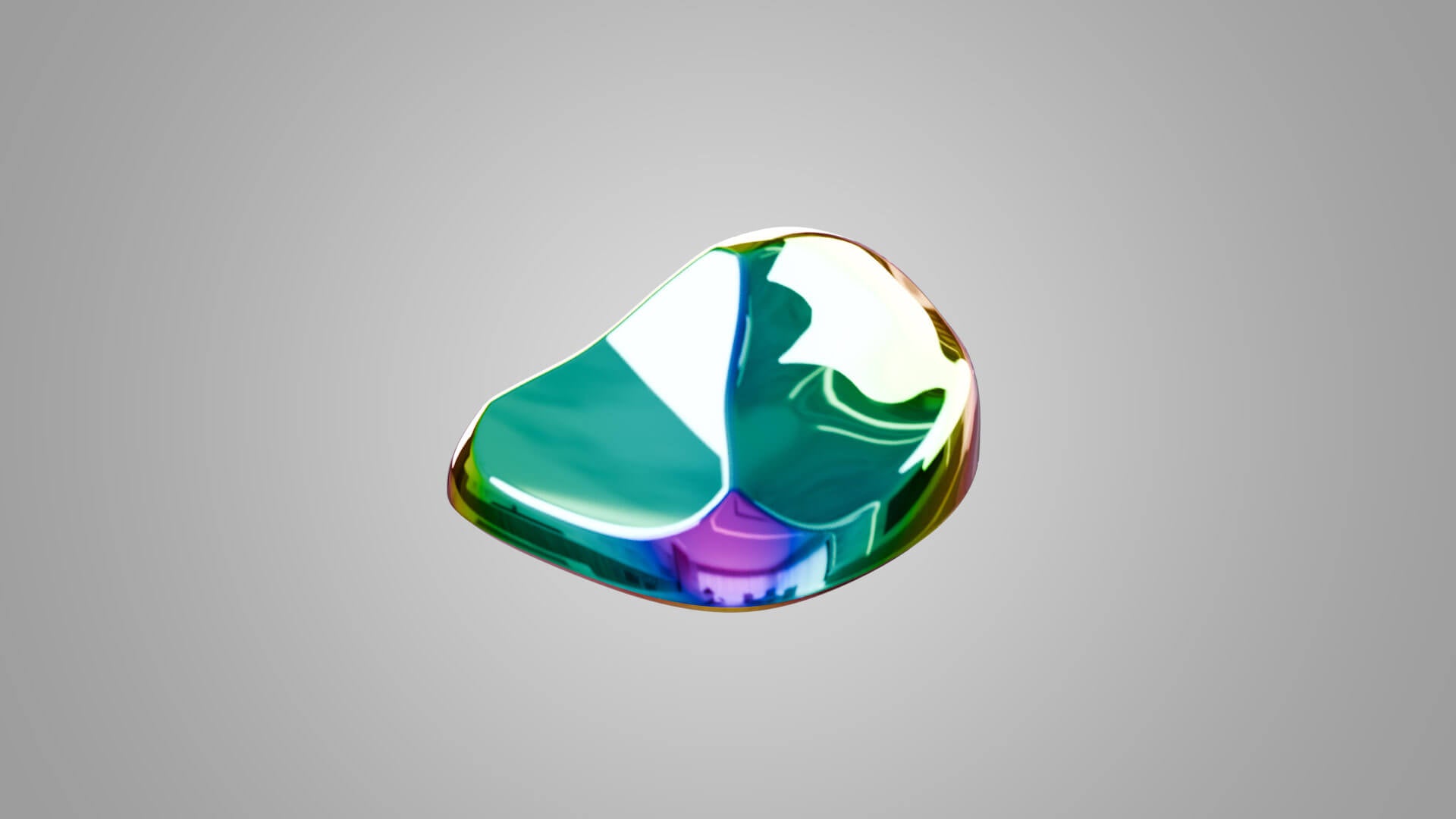

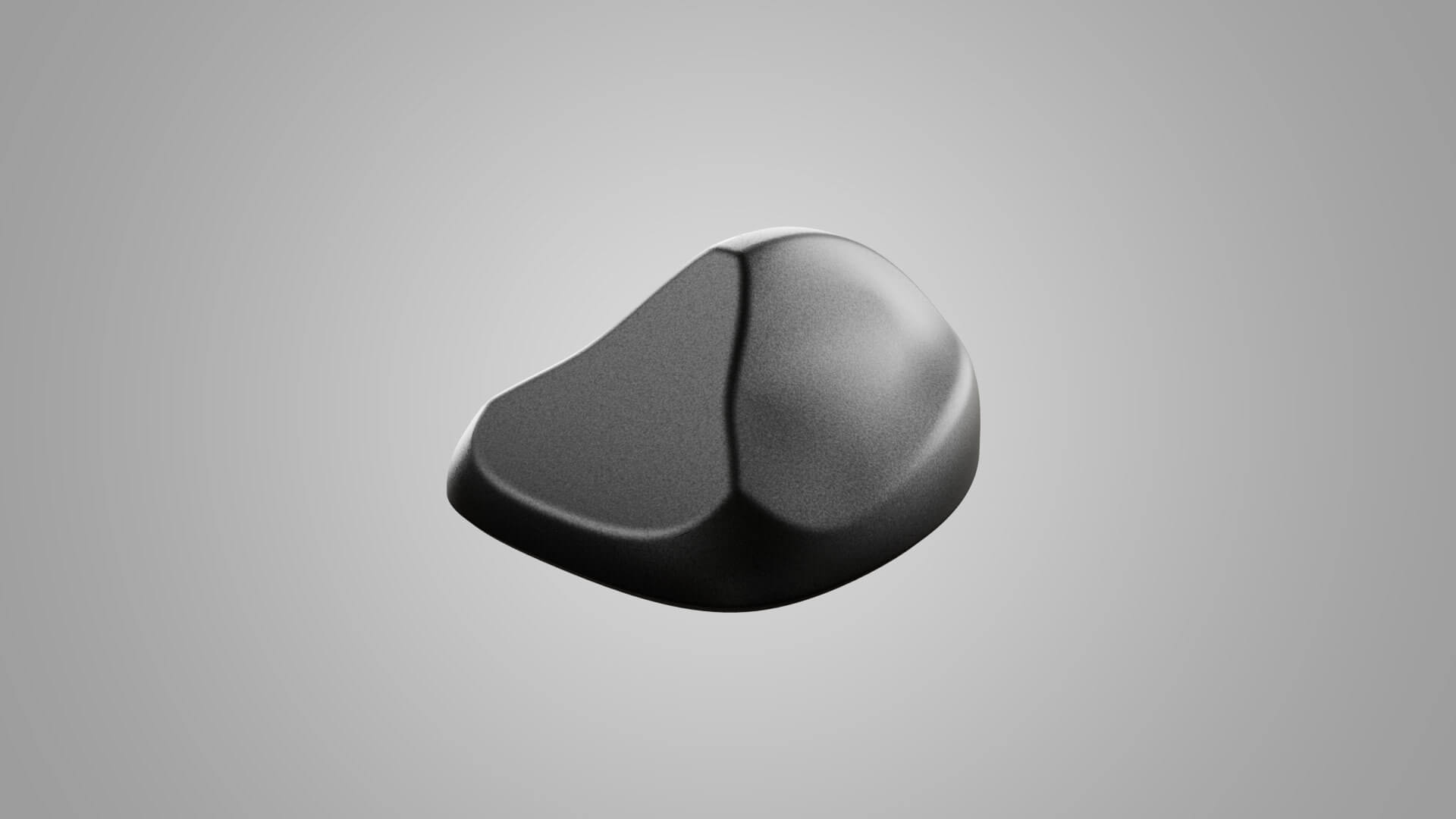

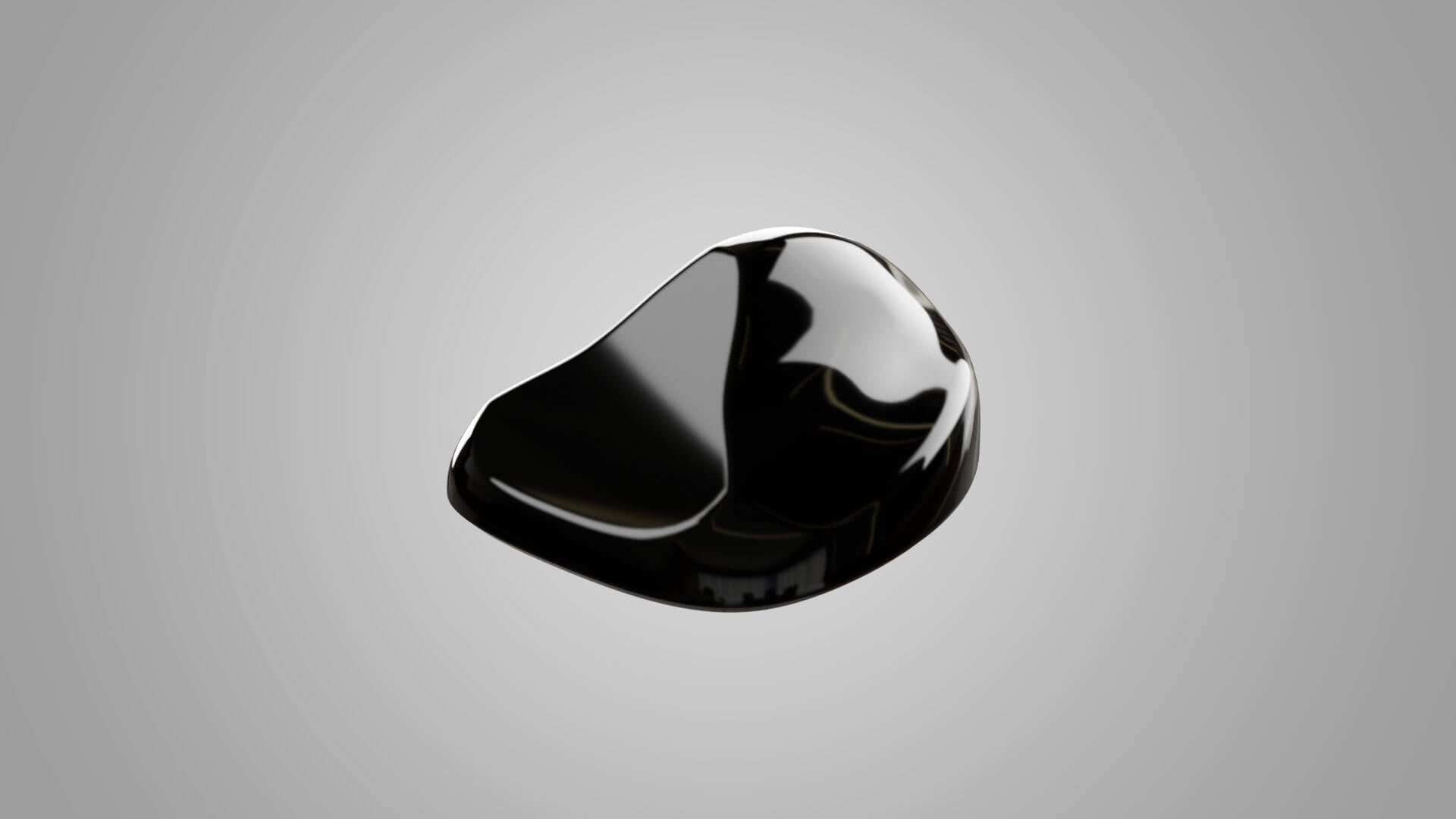

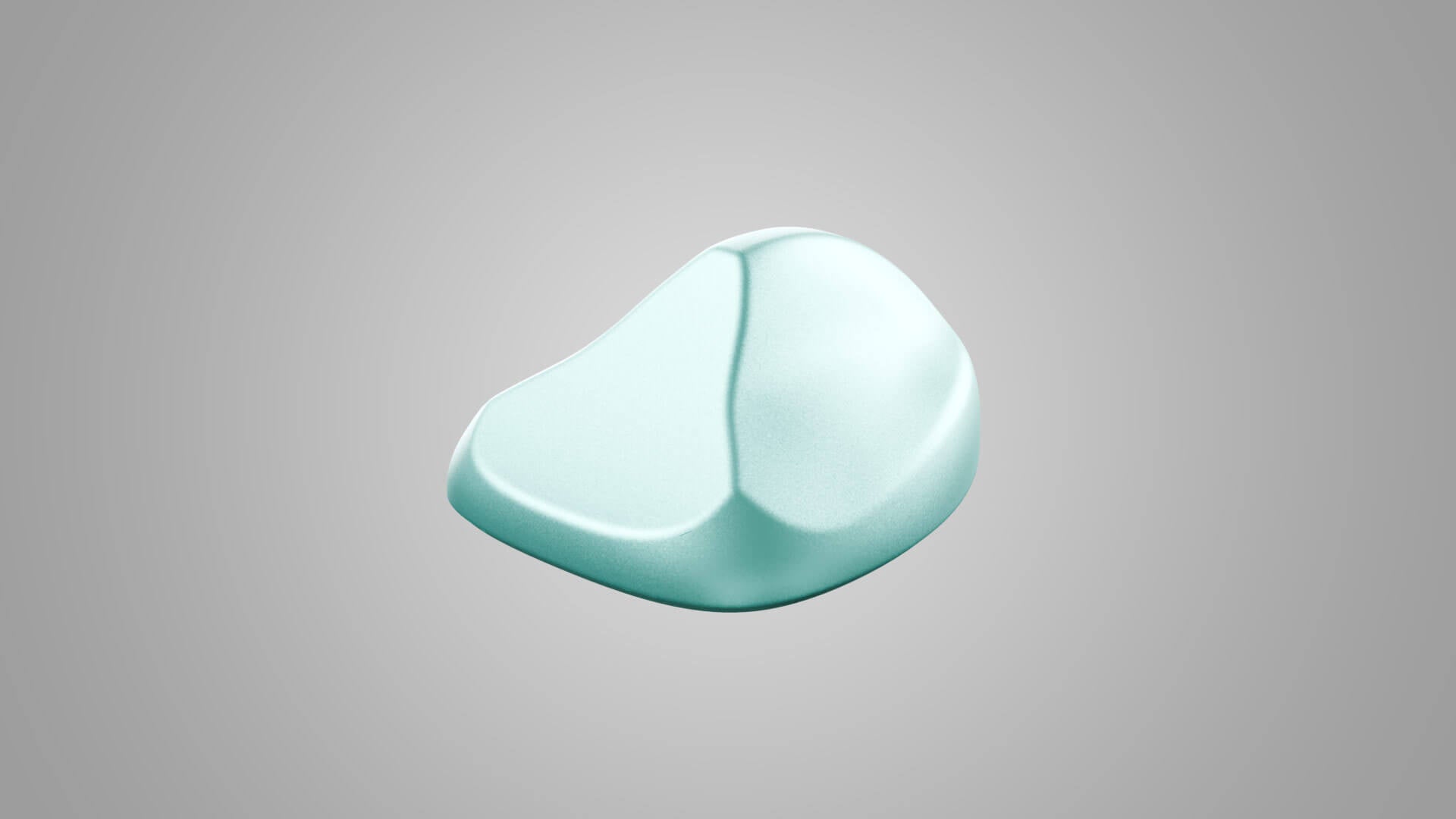

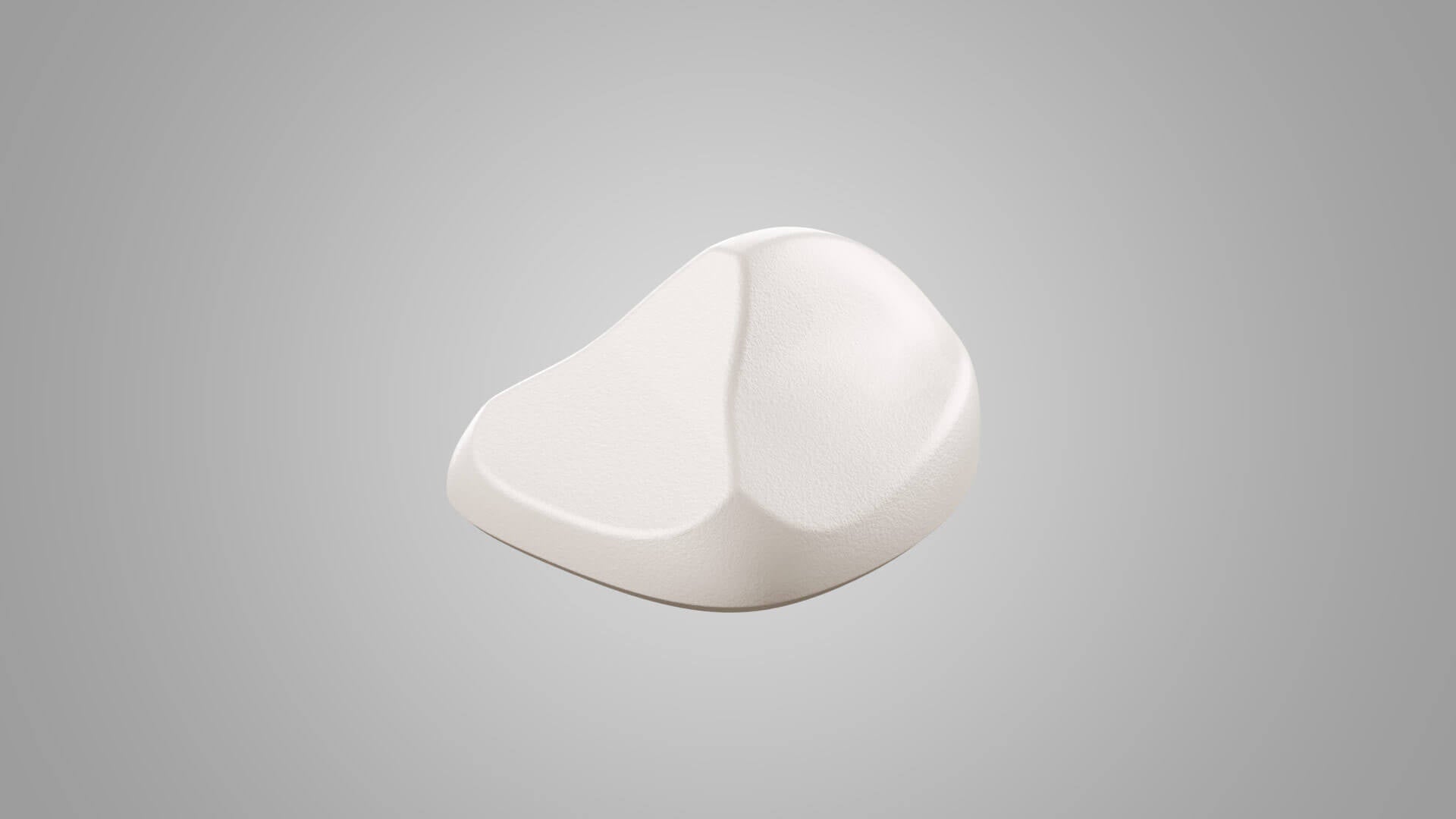

Slider button options

Freya Ultra kits with a Tri-mode PCB come with a slider module. The default slider button has an anodized gold finish, but we're offering 13 other finishes in this group buy that can be purchased separately.

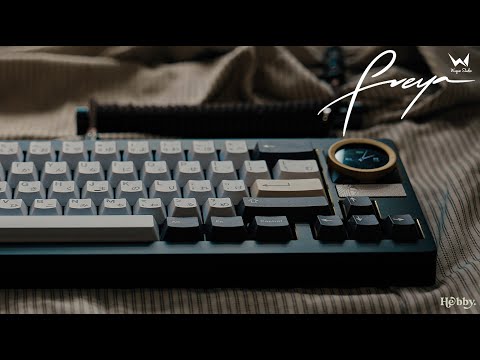

Videos
