Name: DK1-60% - Extra Weights & Bottom Cases [Group Buy]
Brand: GDK Lab x Wuque Studio
Price: 60.0 USD
Availability: InStock

GB Live!

Early Bird Promo Ends In

00

DAYS

00

HRS

00

MINS

00

SECS

This is a Group Buy (GB) that runs from August 19 to September 2, 2025. This is an unlimited group buy, the quantities are not limited.

All items are scheduled to finish production around November, 2025. Delivery time depends on import method of your choice. Please see the section titled "Delivery Estimates" below for more information.

Early Bird Promo!

1x Wuque Titanium Switch Puller

1x Keycap Puller

Both of those items will be included with every DK1-60% purchased in the first 72 hours

As always, there will be a few sample switches from our collection with every order during the entire length of the GB. Please leave a note if you'd like a specific one.

Products in this GB

DK1-60% Keyboard Kit [Group Buy]

$219.00 USD

Product Page

DK1-60% - Add-ons [Group Buy]

$15.00 USD

Product Page

DK1-60% - Extra Weights & Bottom Cases [Group Buy]

$60.00 USD

Product Page

Highlights

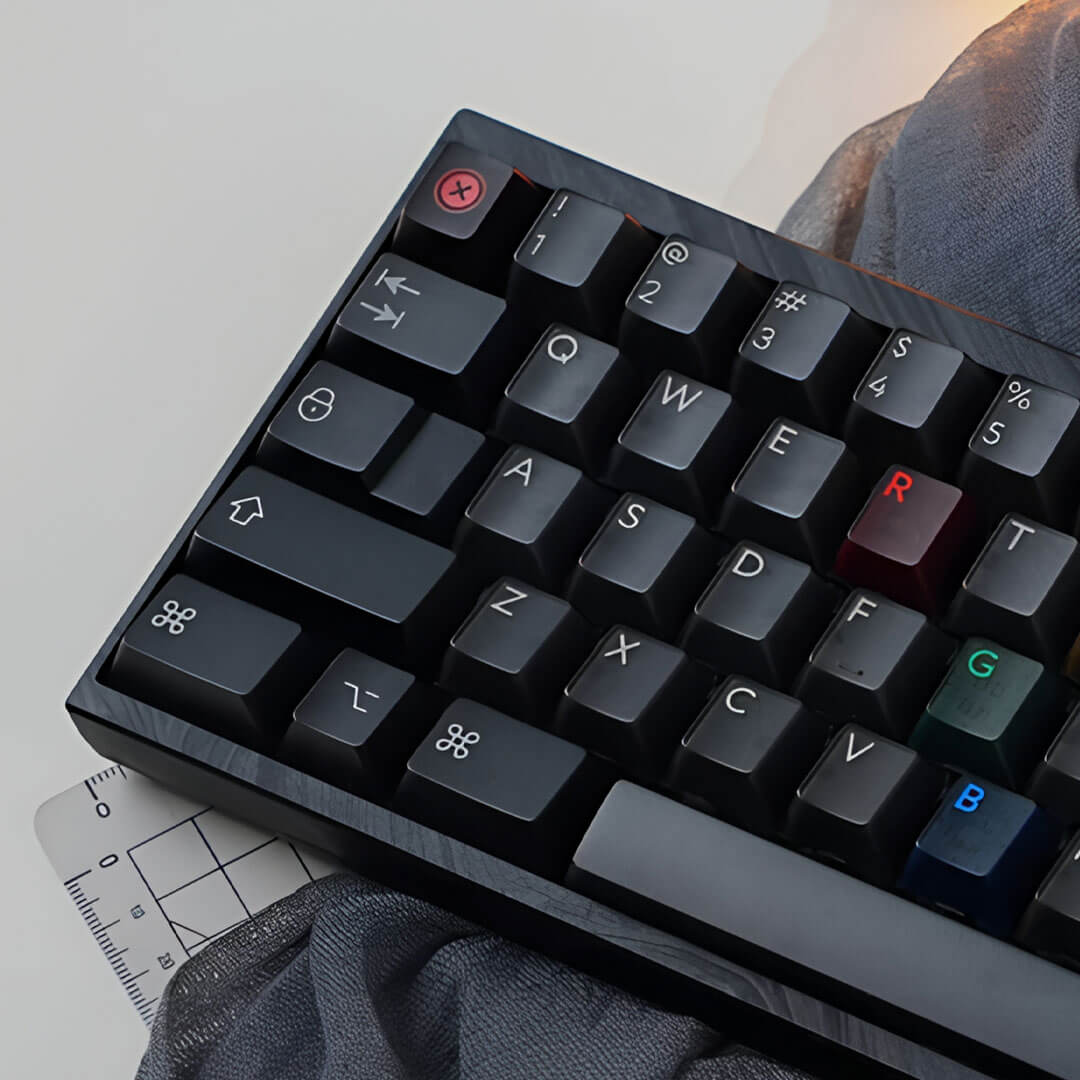

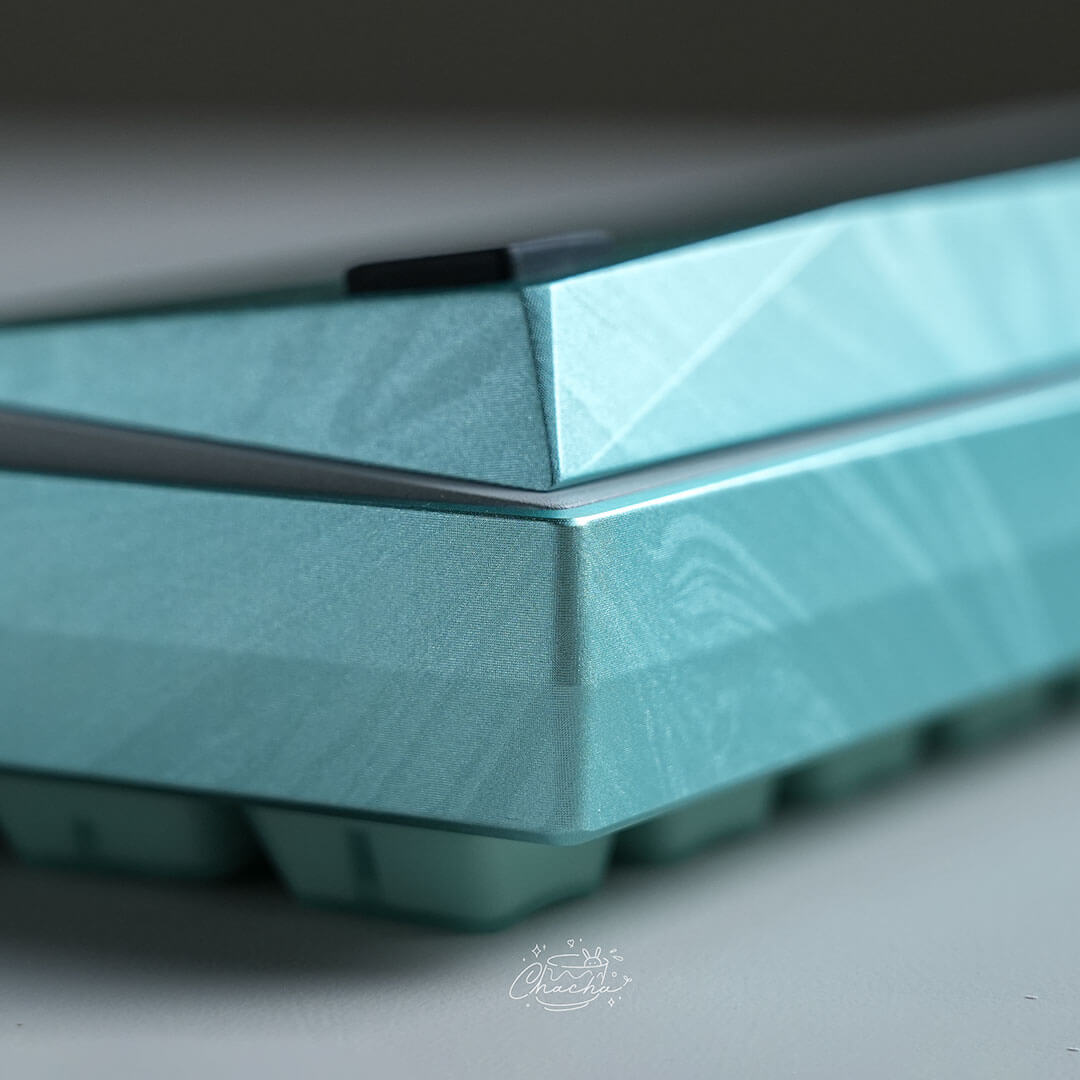

Marblano finish

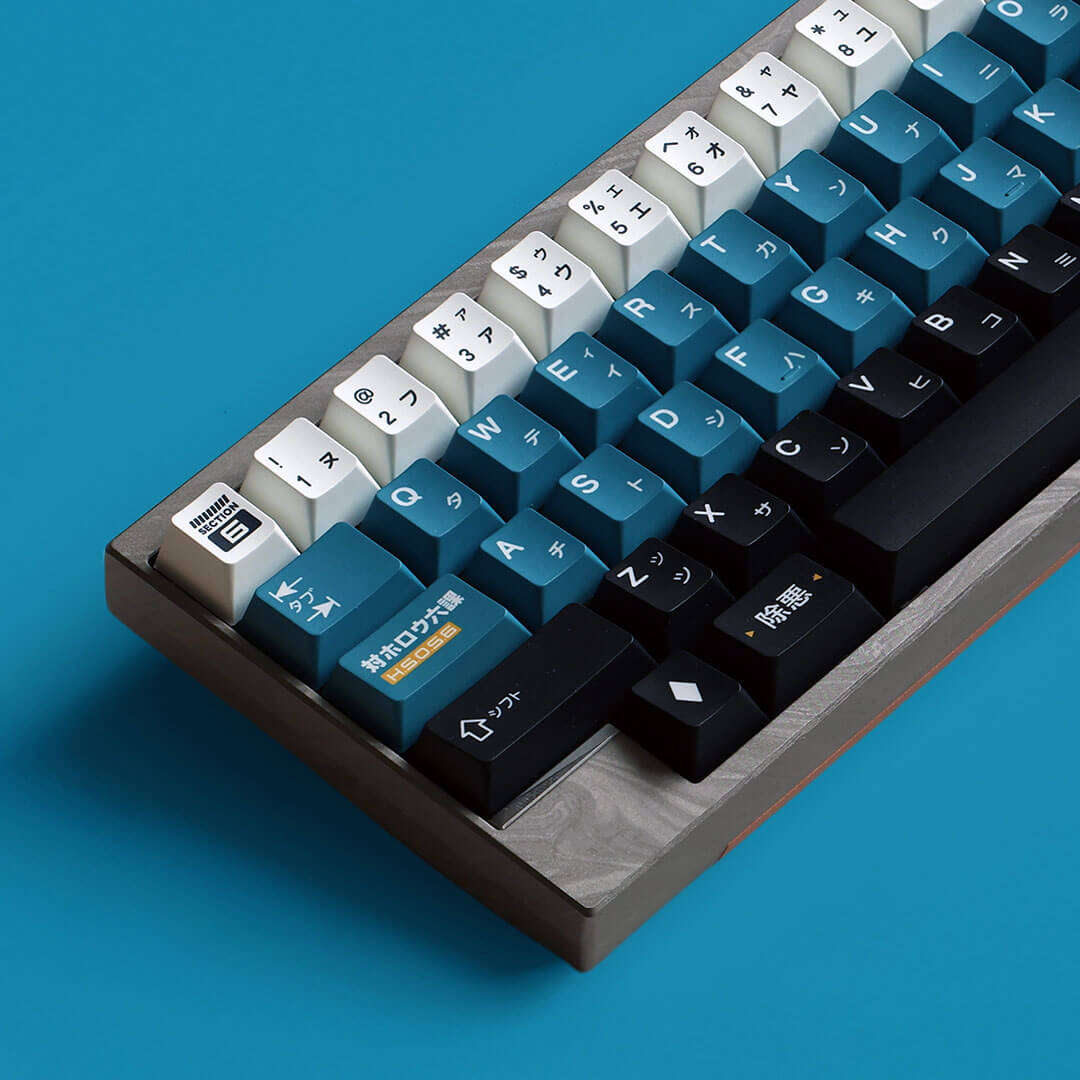

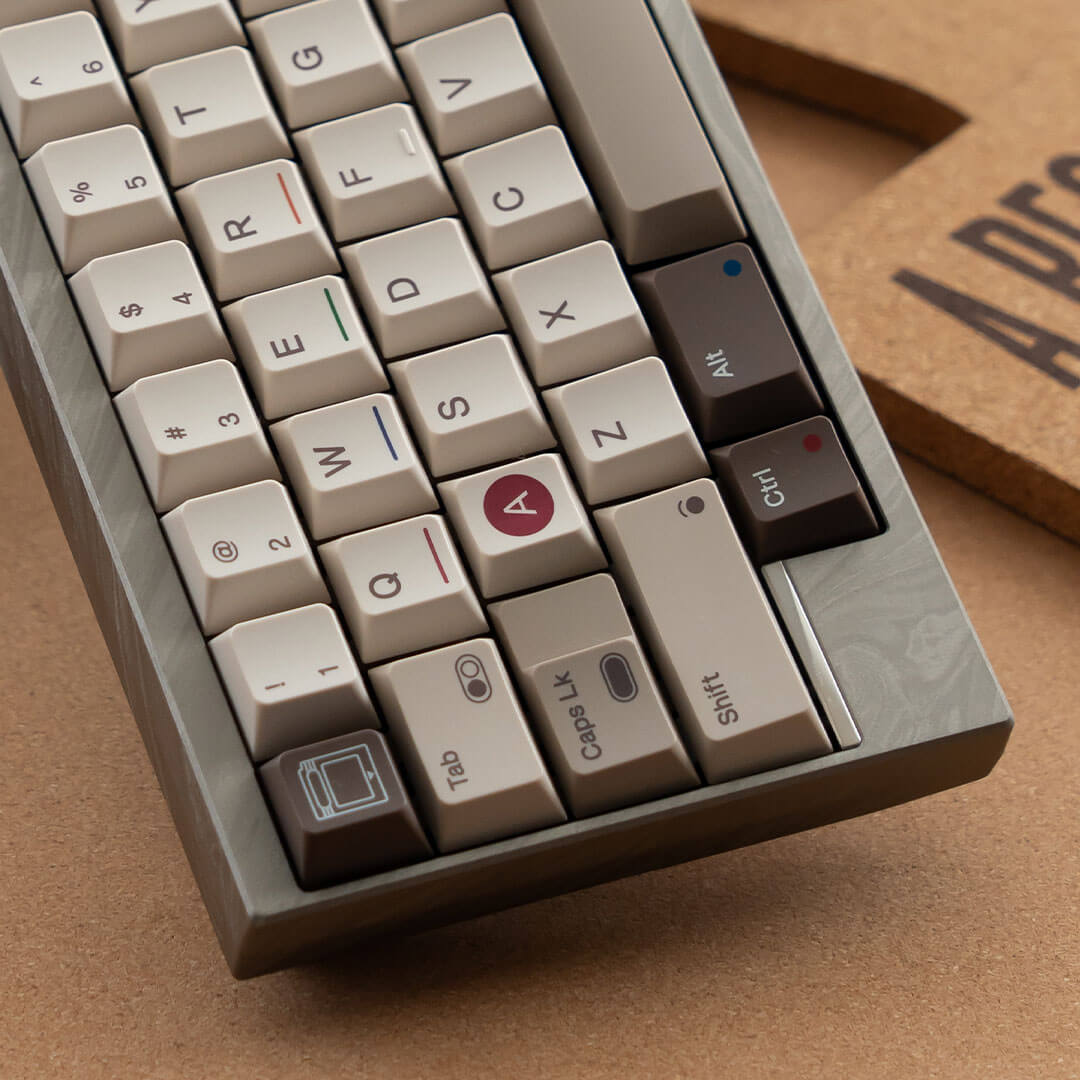

DK1-60% features a mesmerizing Marblano finish, an innovative process that transforms anodized aluminum to look just like genuine marble. Each board is a unique work of art, with natural-looking swirls and veins that give it the timeless elegance of real stone.

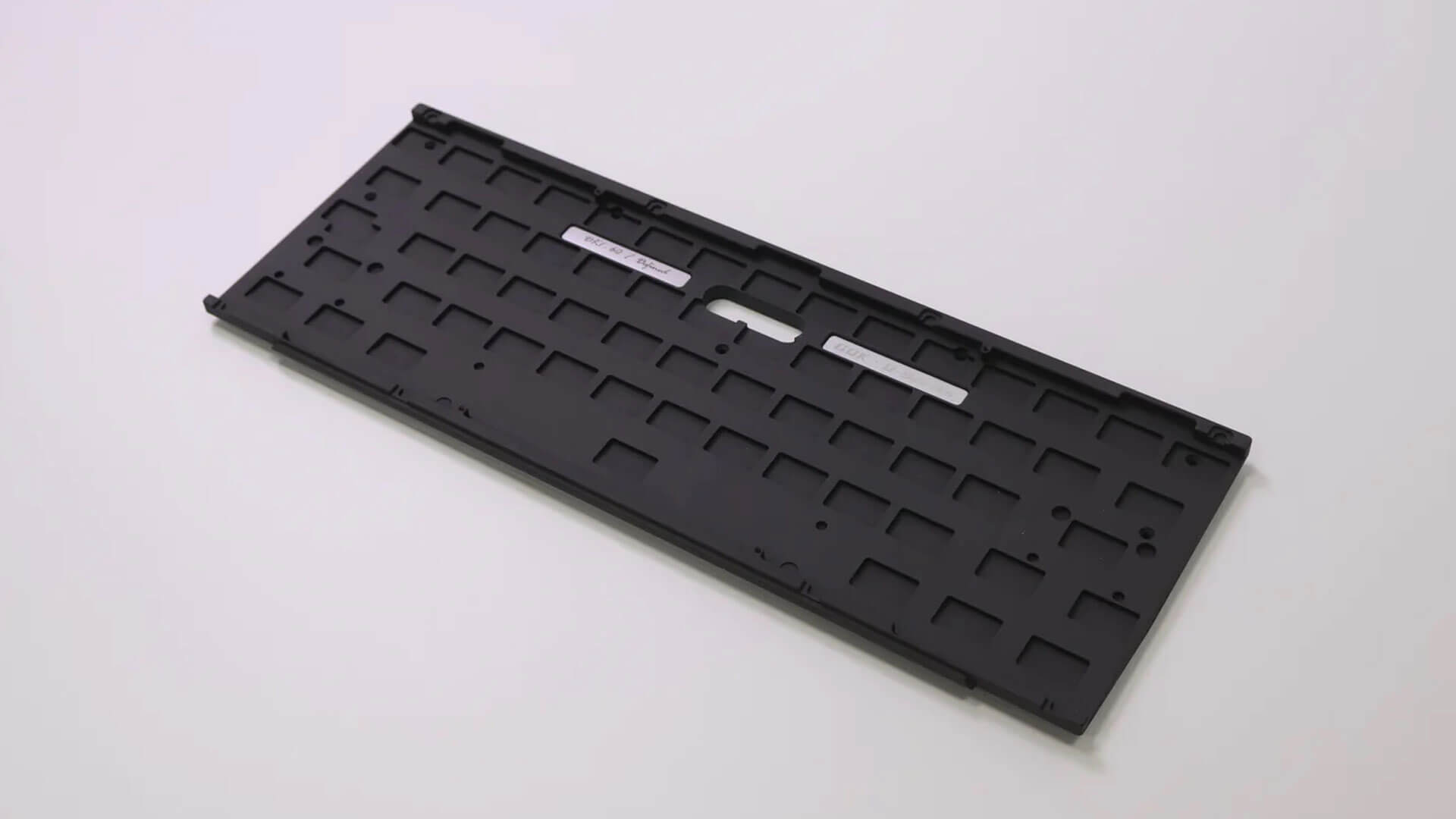

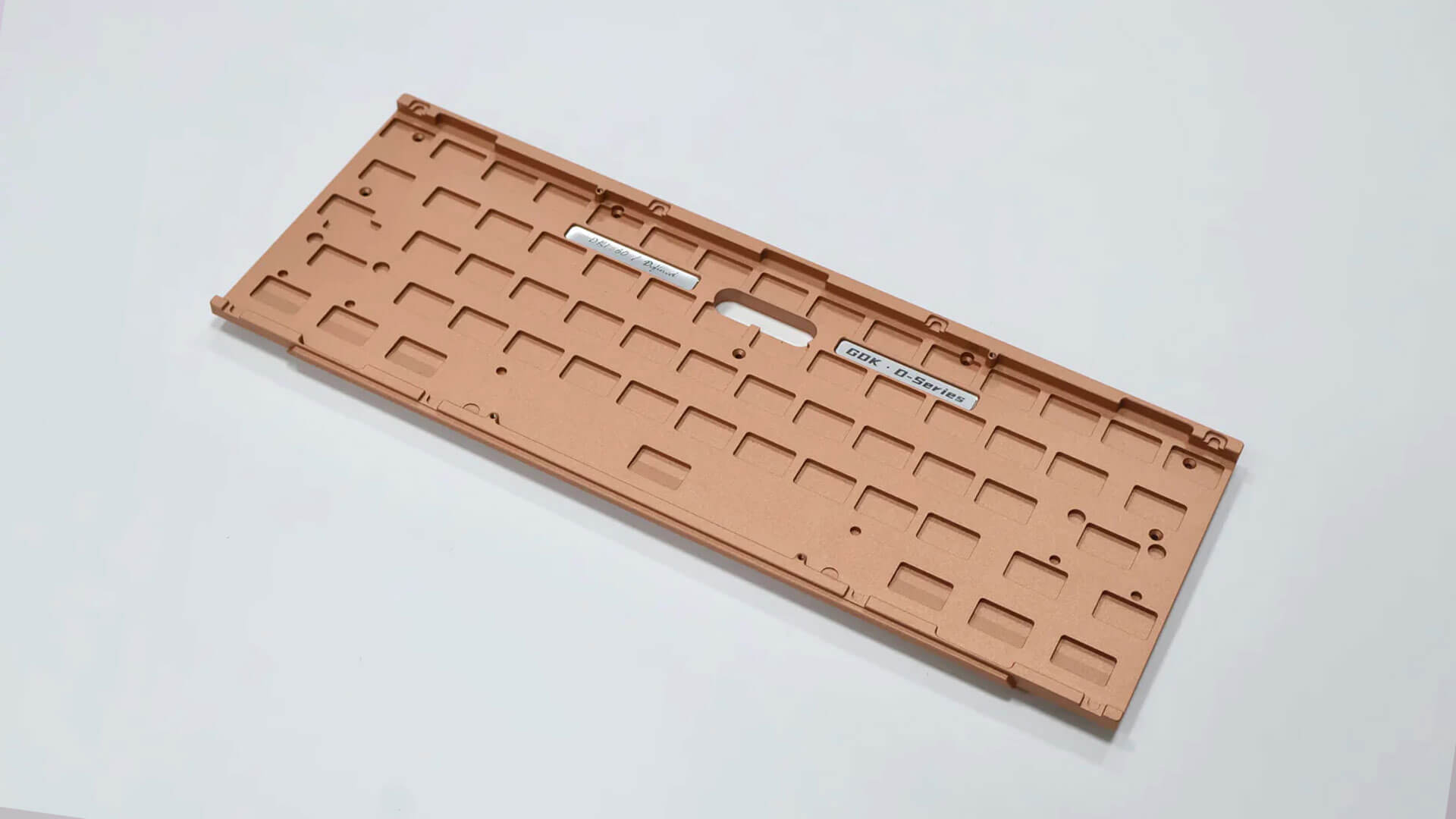

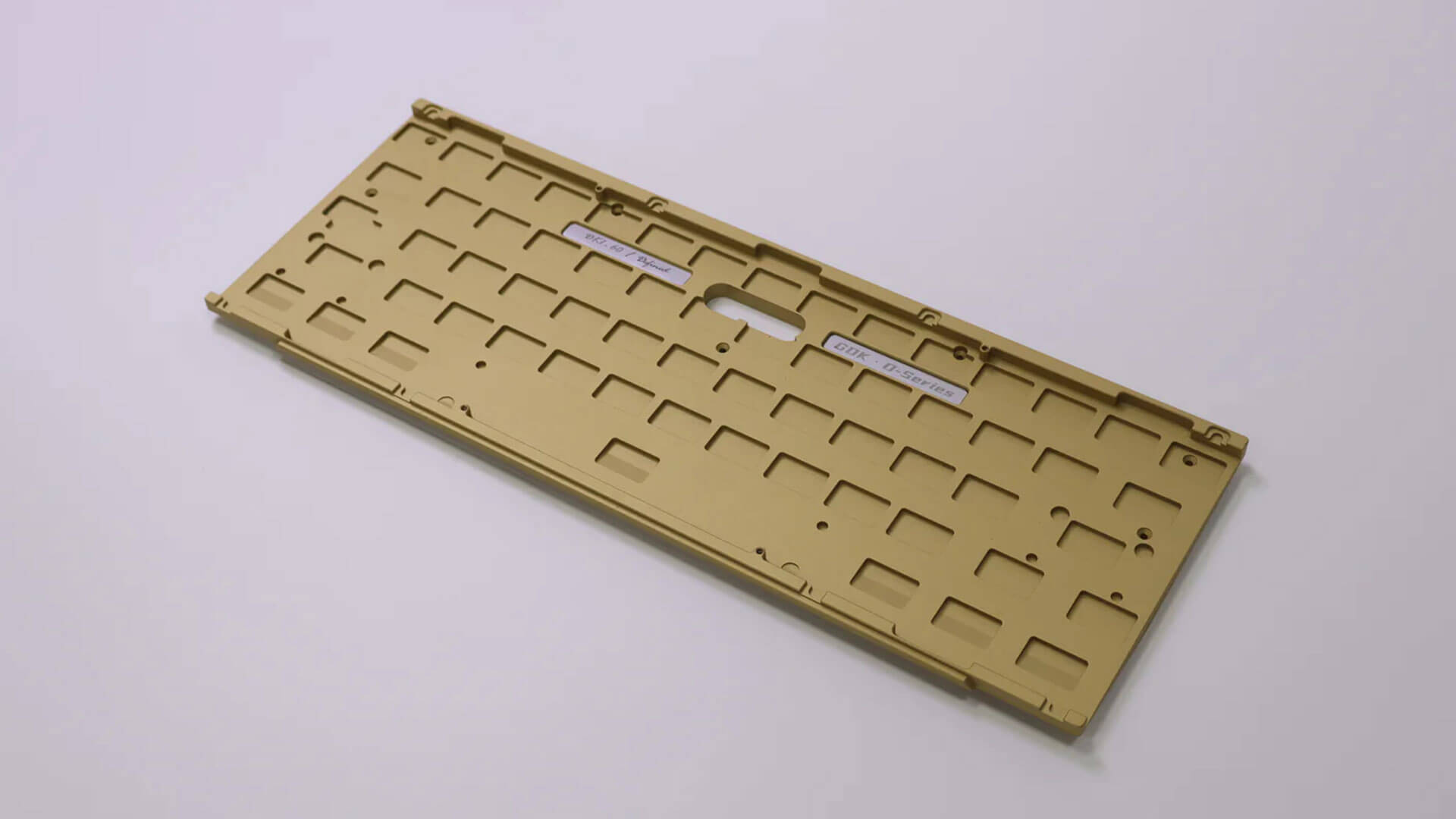

Full Copper / Brass bottom case

For the ultimate acoustic experience, the DK1-60% features a full copper or brass bottom case. This substantial bottom case ensures a deep, rich sound profile, regardless of your choice of external weight. You can even choose from three different finishes for the brass option, allowing you to perfectly match your aesthetic.

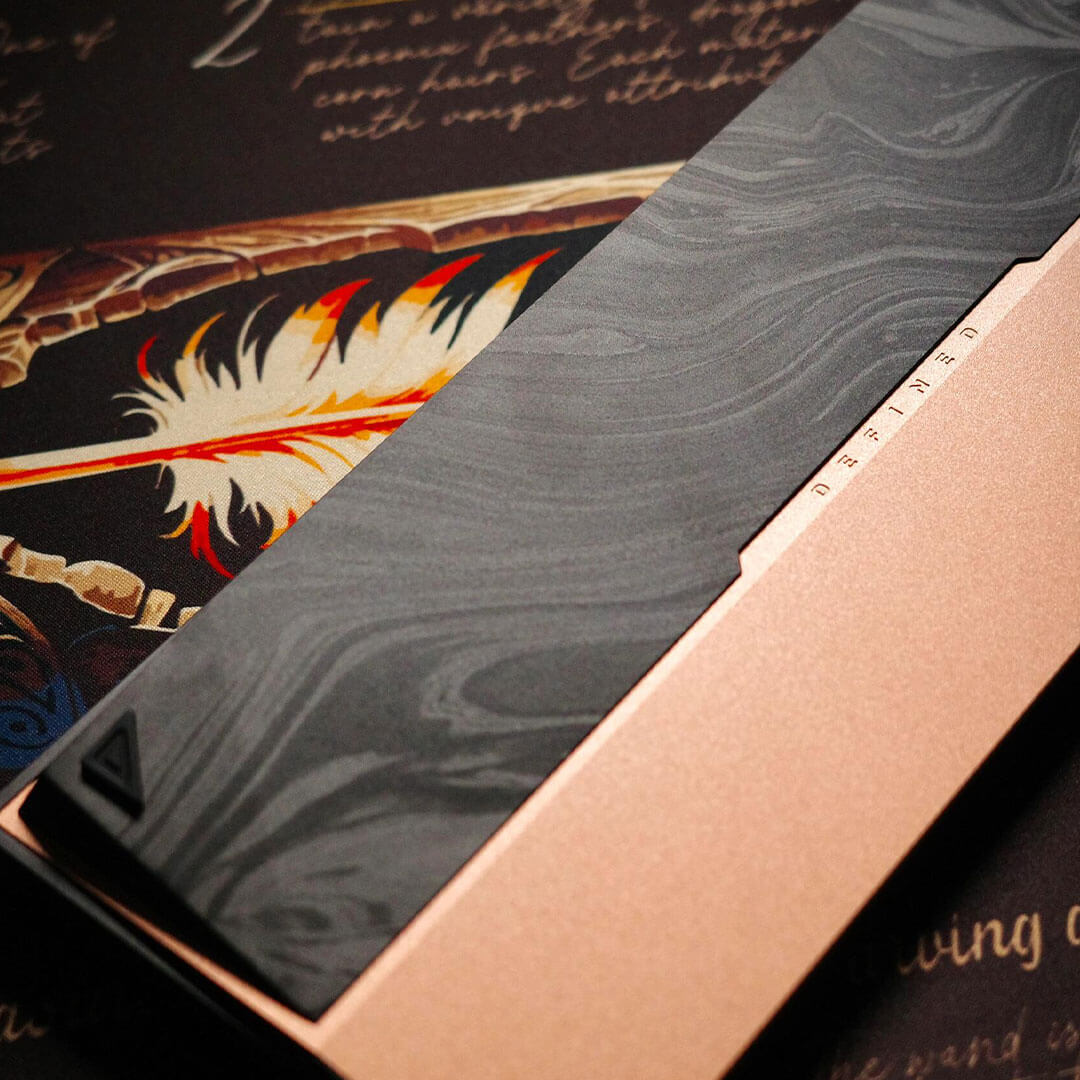

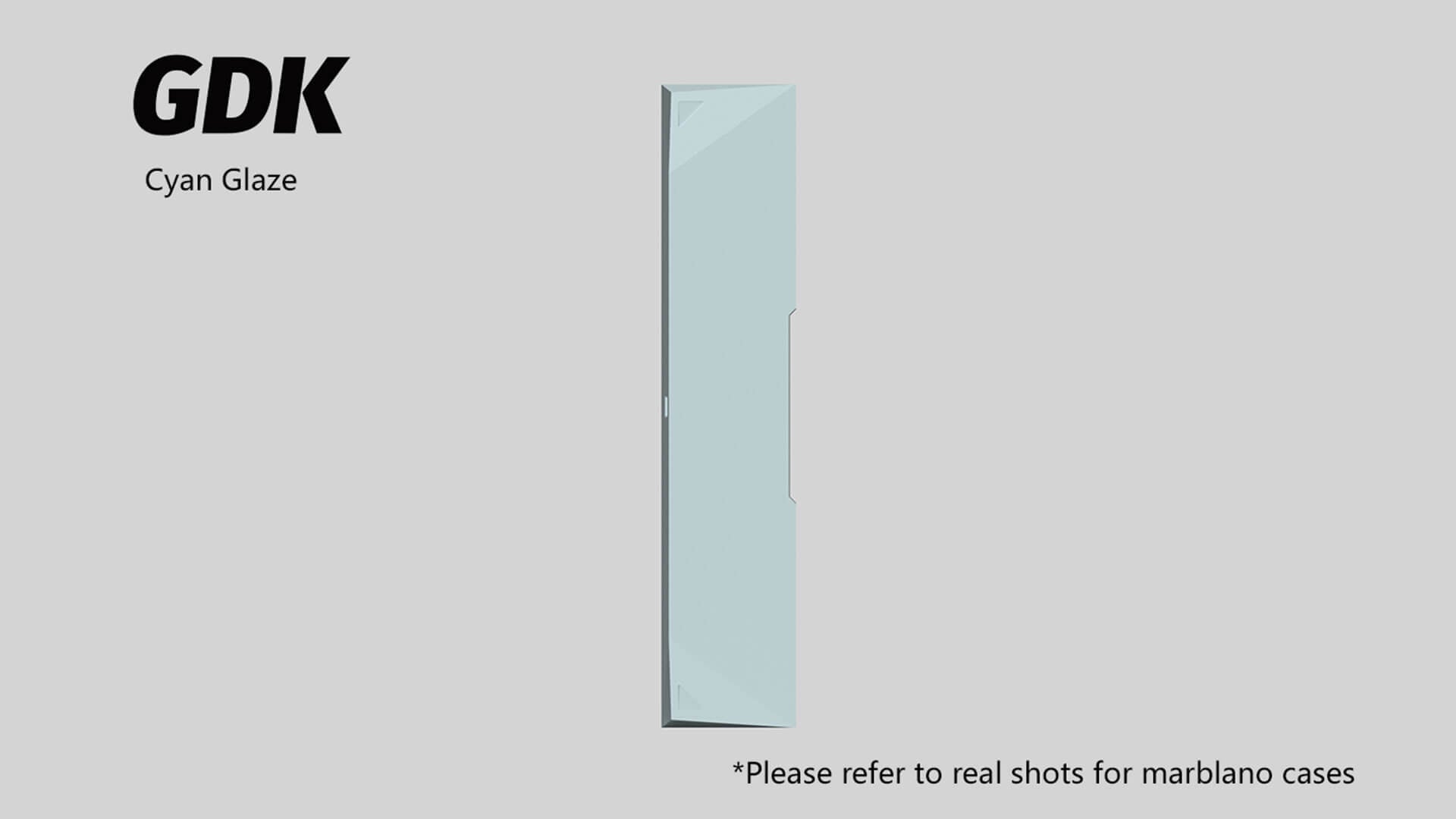

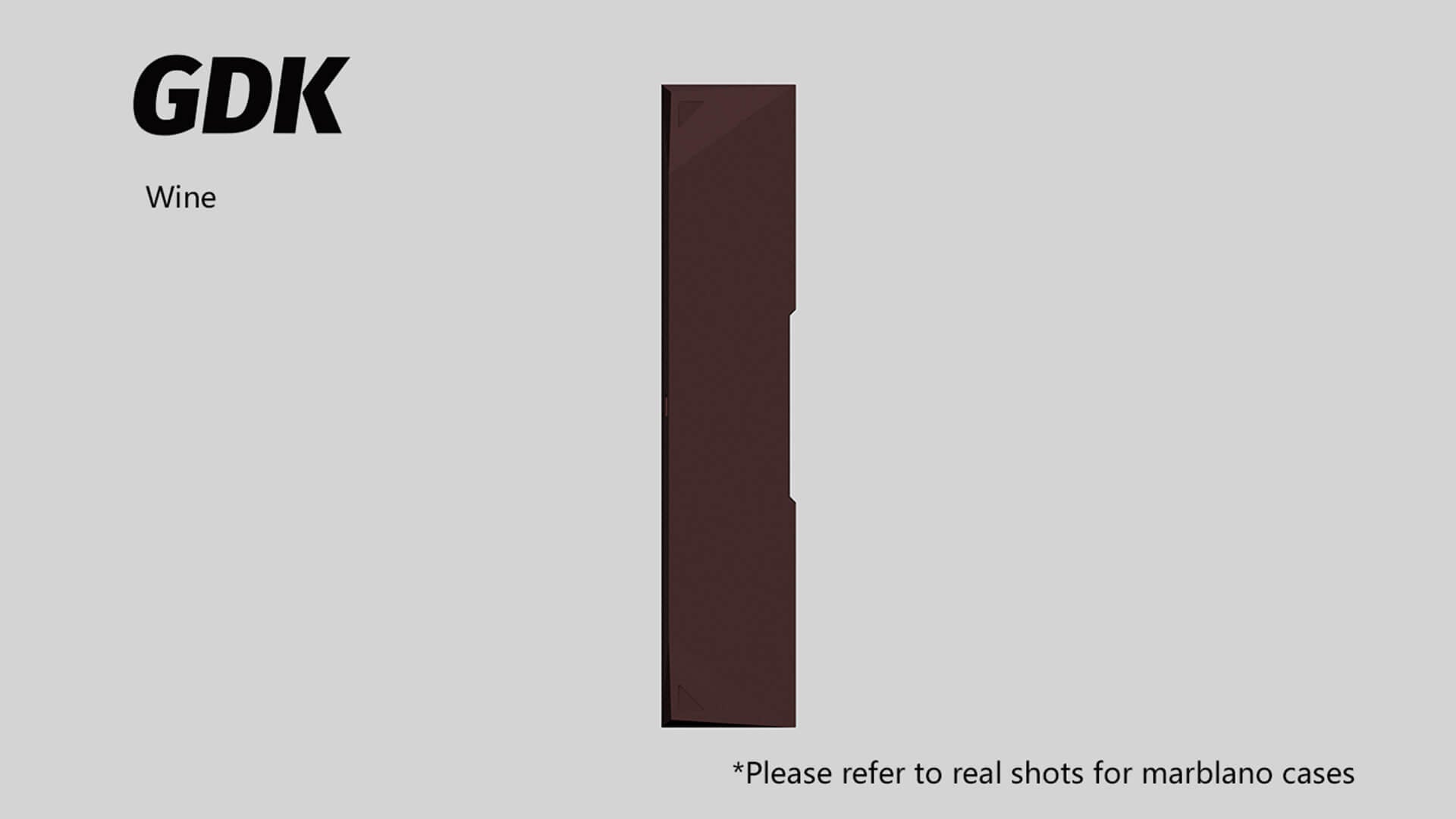

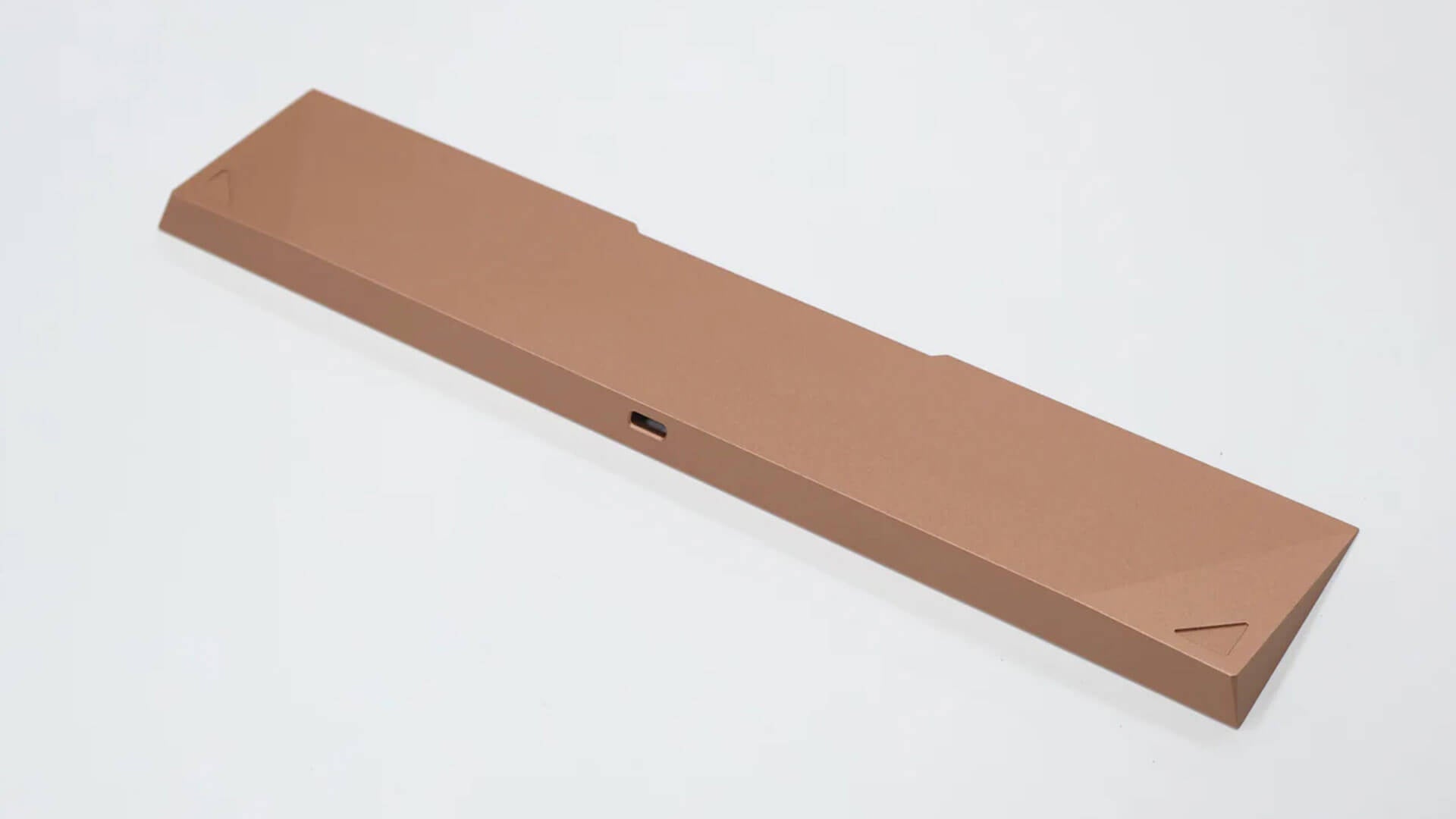

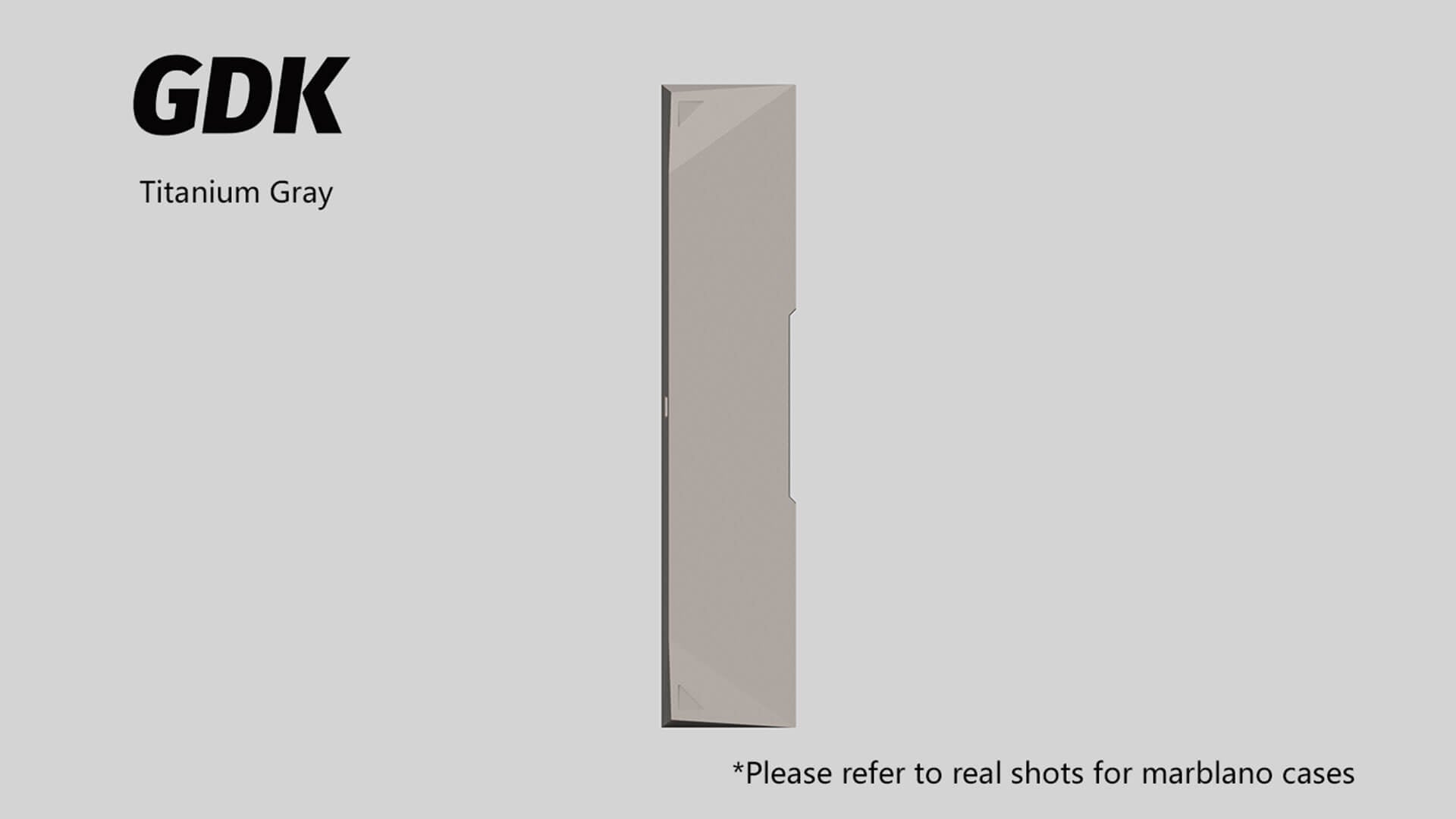

Copper or Marblano Weight

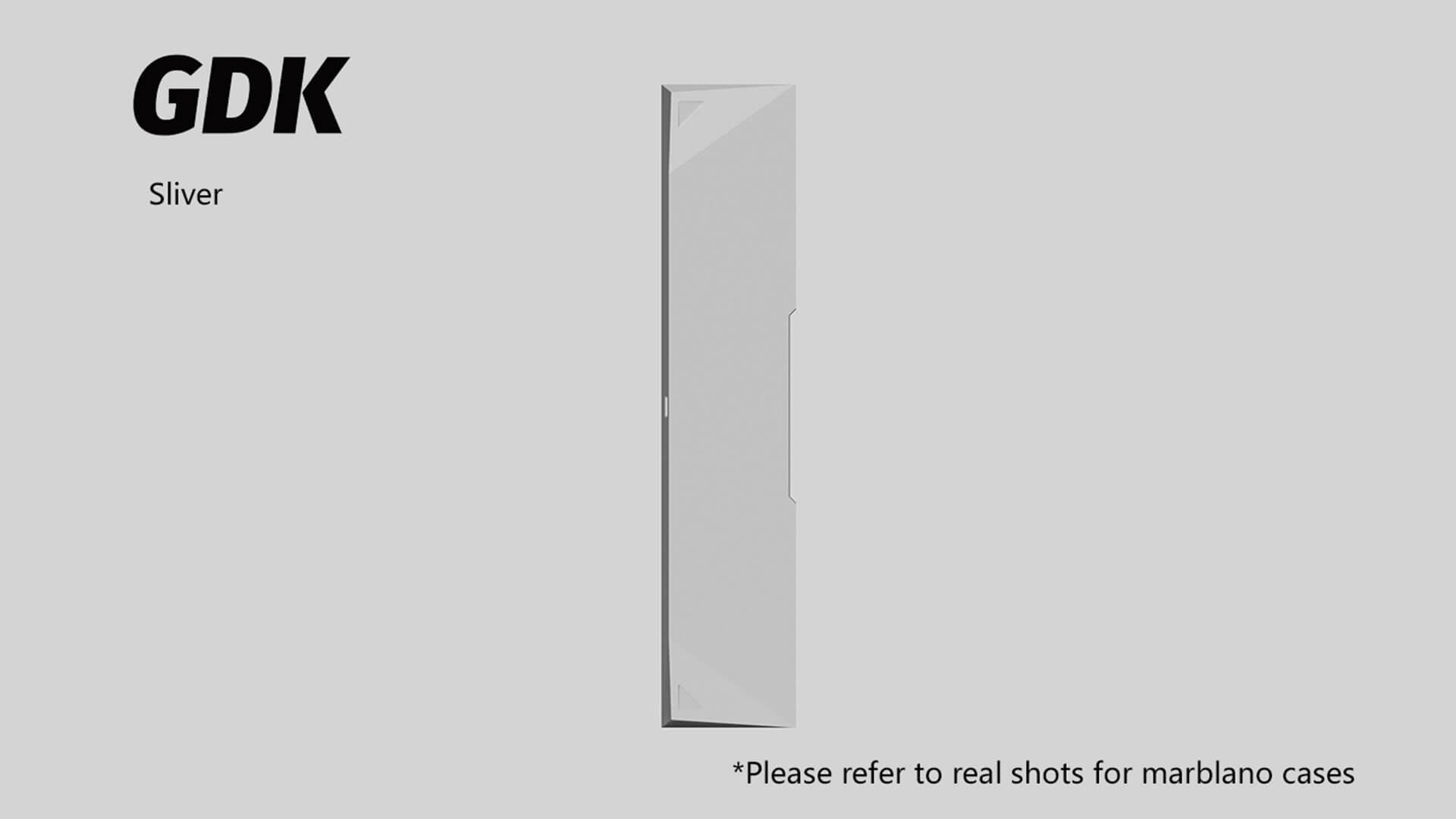

The beautiful Marblano finish is also available on the Aluminum variant of the external weight. Alternately, you can choose to go with a Copper for maximum heft! You can buy additional Marblano, Copper or Brass weights in the add-ons page

Dual Gasket Mount

The DK60 features a dual Gasket design (plate-mounted + PCB-mounted), with optimized mounting points for enhanced consistency. Each kit comes with 30A (soft) and 70A (firm) gaskets to satisfy every typing preference.

Slim Bezels

The DK60 retains a slim-bezel design, utilizing an internal screw-fastening solution to further narrow the top and bottom edges.

Tri-mode PCB

Each DK1-60% kit comes with a hot-swap, tri-mode PCB that can be used in either wired, 2.4Ghz RF or Bluetooth BLE 5.3 connection

The DEtails

Specifications

Layout

60% (WK / WKL or HHKB)

Case material

Top case
Aluminum

Bottom case
Copper or Brass

External weight
Aluminum or Copper

Typing angle

8 degrees

Front height

15.5 mm

Dimensions

292.5 x 110 x 30.5 mm

Weight

With Aluminum external weight
1.73 kg

With Copper external weight
2.03 kg

Mounting style

Dual gasket mount (both plate & PCB are mounted)

Stabilizers

1.6mm PCB mount stabilizers included

PCB

- 1.6mm Non-flexcut

- VIA Support

- Win/Mac/Linux/Android compatible

There are 3 PCBs for DK1-60%

1. Solder

2. Hot-swap

Supports wired connection only.

3. Tri-mode (included with every kit)

Supports 2.4Ghz, Bluetooth Low Energy 5.4 and wired connection.

Polling rates

Bluetooth

125 Hz

2.4Ghz & Wired

1000 Hz

Included batteries

2 x 1200 mAh

RGB support

None

Additional Details

- All top cases have a Marblano finish

- If you choose Aluminum Marblano as the weight, it'll be the same color as the keyboard. Additional Marblano weights in different colors can be purchased separately.

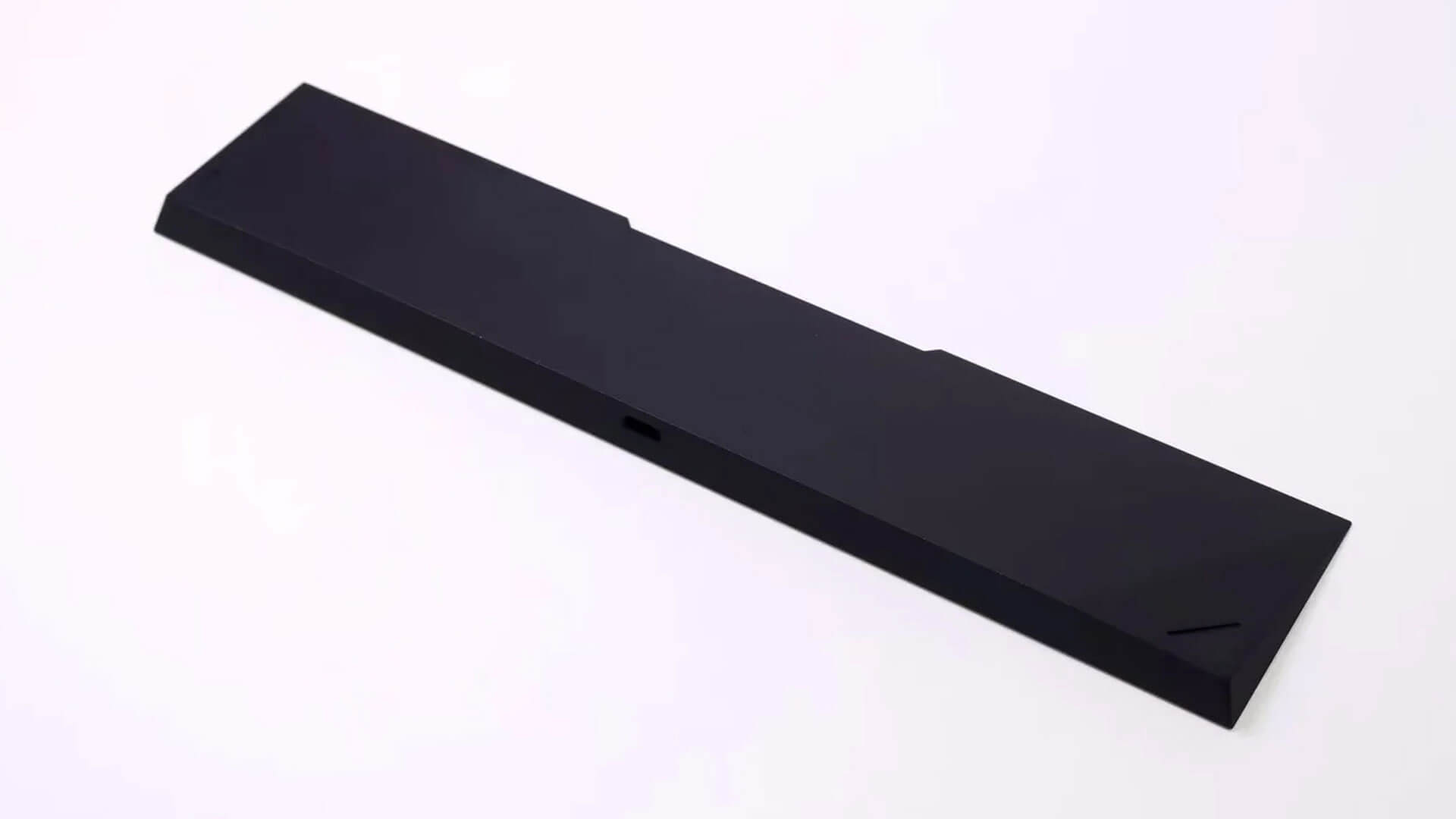

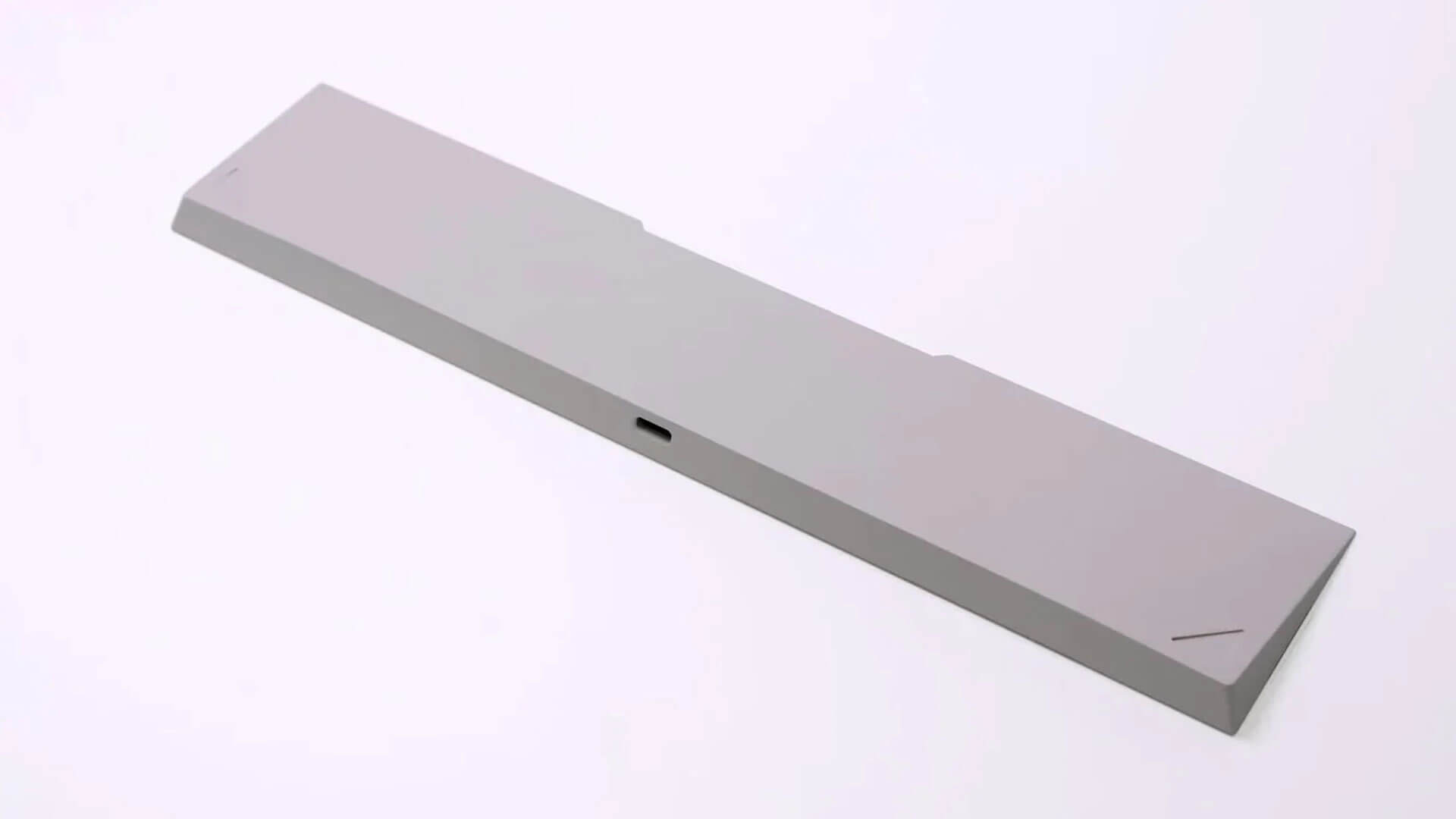

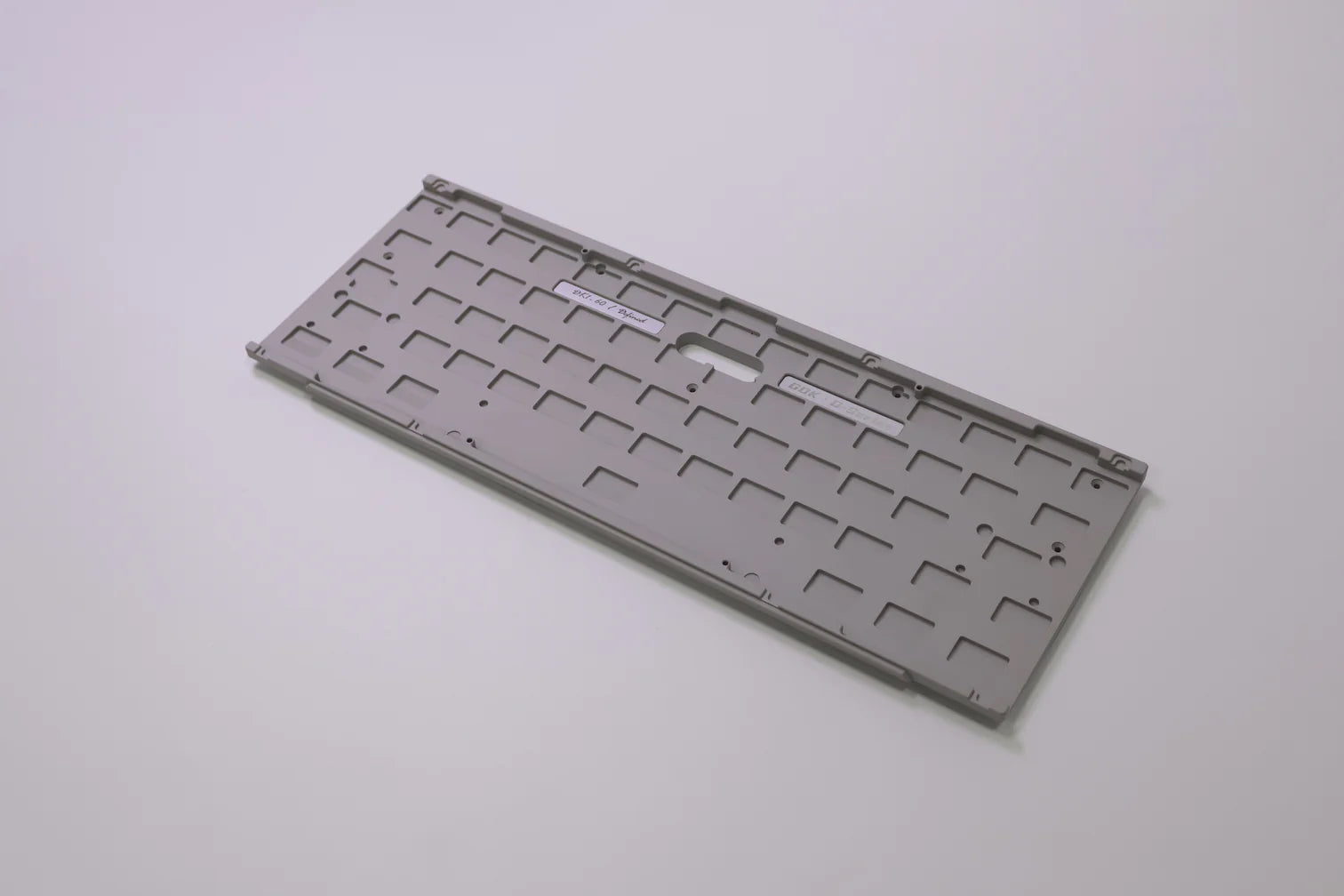

- Glittery Black & Light Gray bottom case / external weight have an e-coat finish on top of Brass.

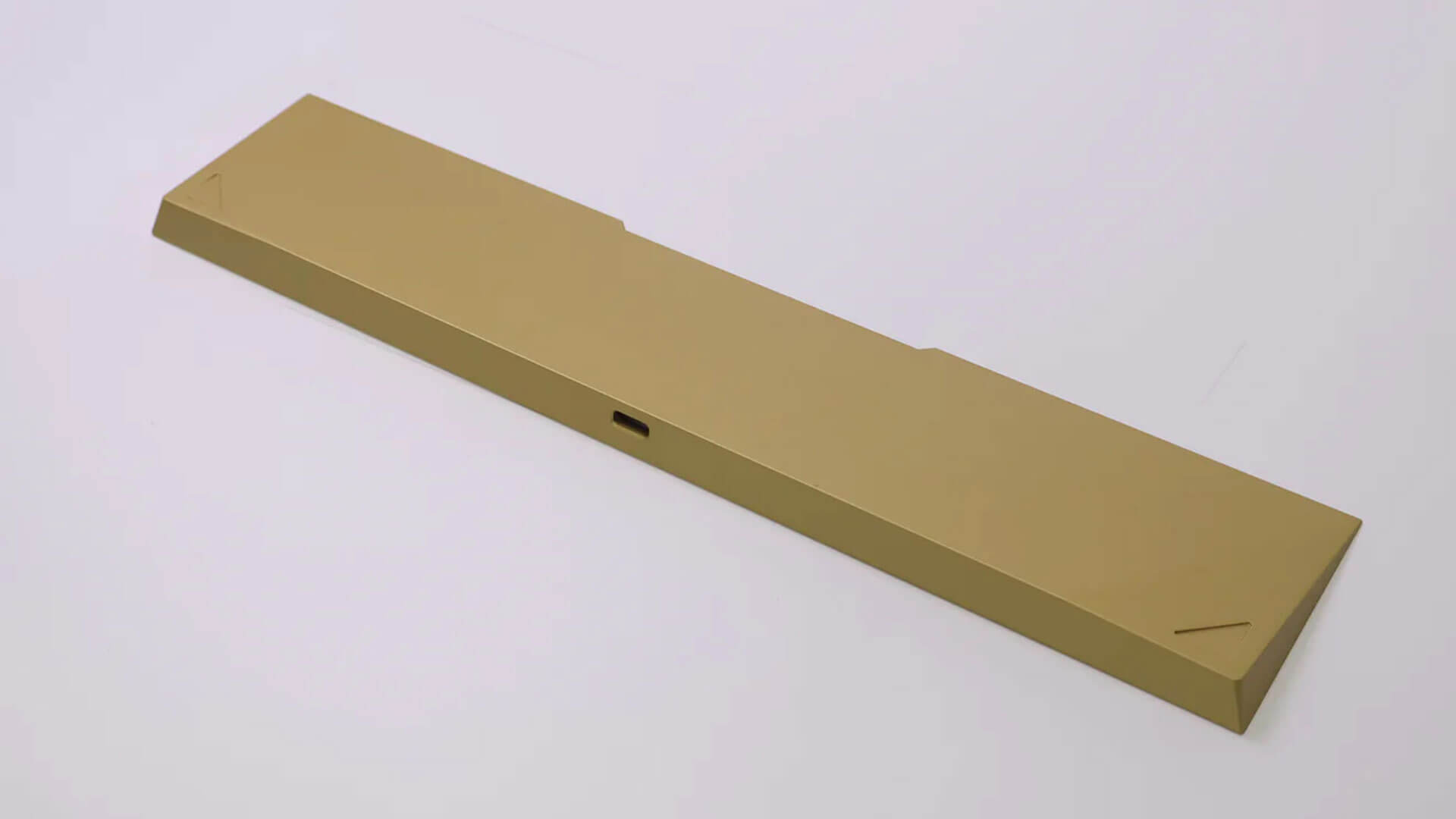

- Additional external weights in Brass (all 3 finishes) can be purchased separately. These weights are not offered in any kit.

- Marlblano finish is not available in bottom cases, whether in a kit or sold separately.

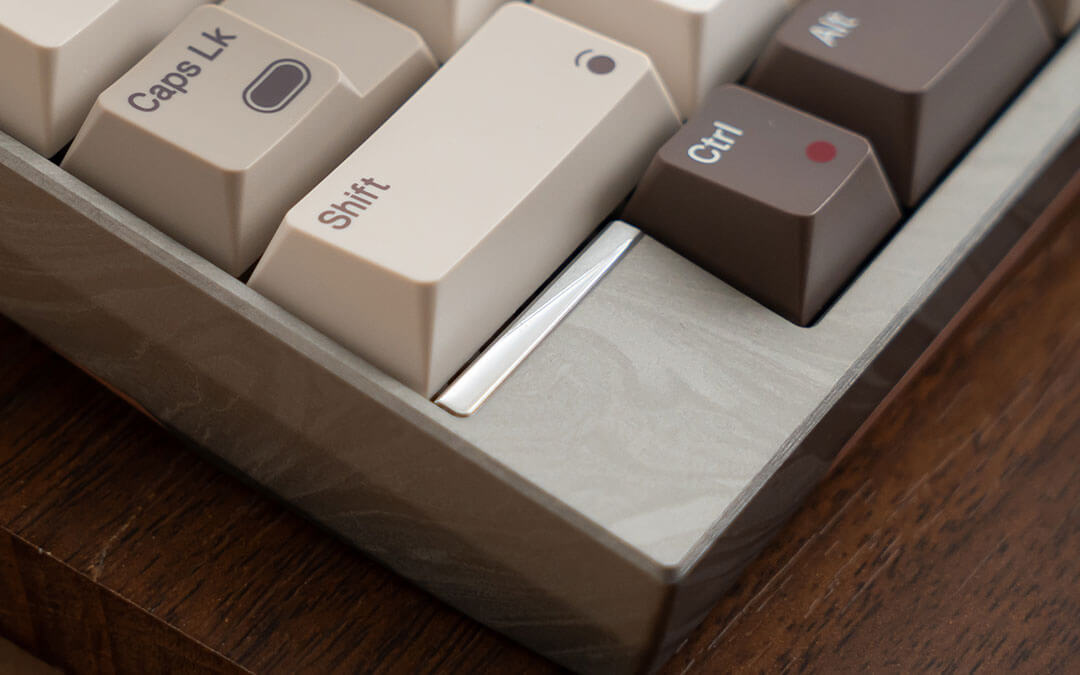

Blocker Accents

Kits with WK layout do not have blocker accent. Two free metal keycaps will be provided instead.

WKL and HHKB layouts come with blocker accent in the following colors:

PVD SILVER

Cyan Glaze, Lilac, Titanium Gray, Ice Blue, Silver.

PVD BLACK

Black, Wine, Phantom Blue, Dark Gold

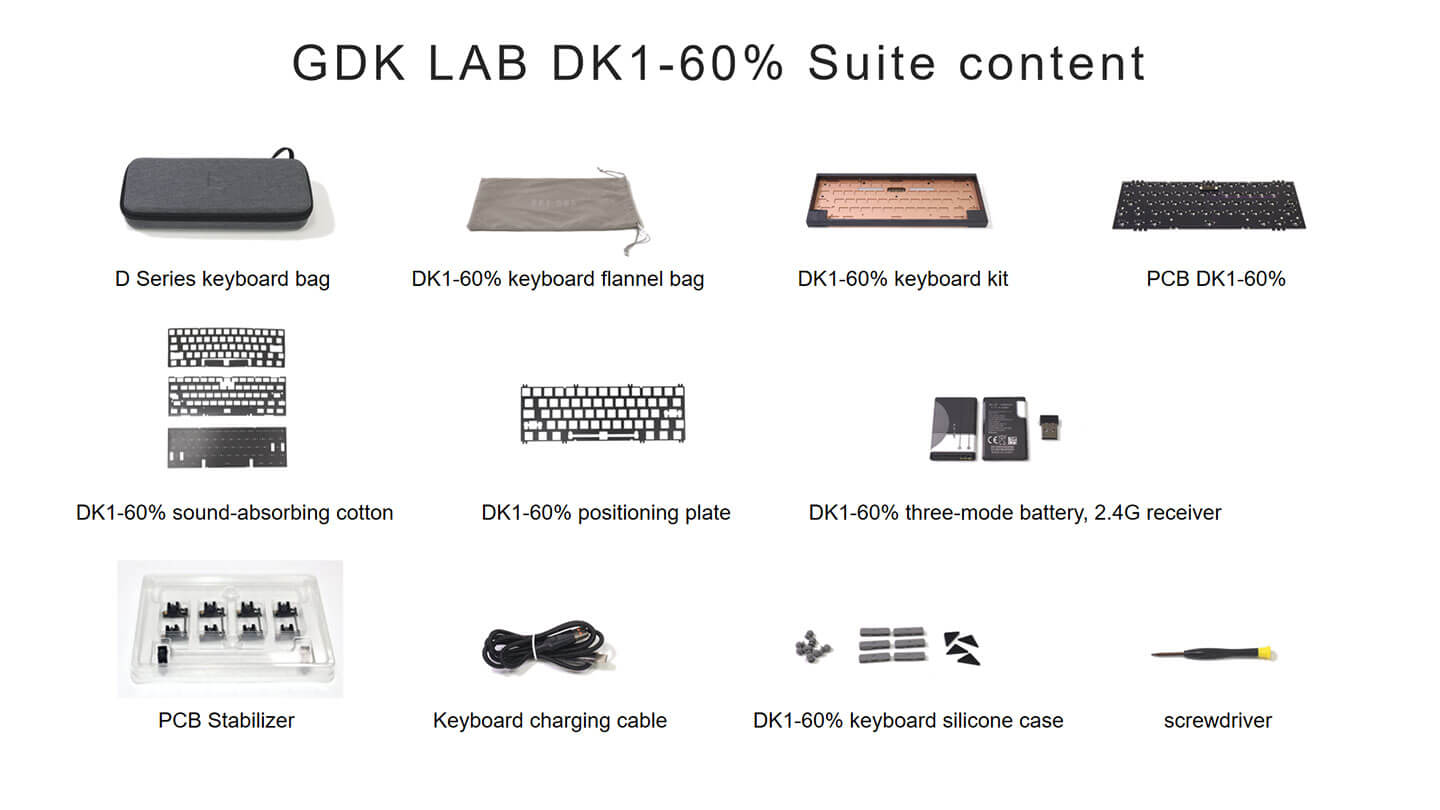

Kit Contents

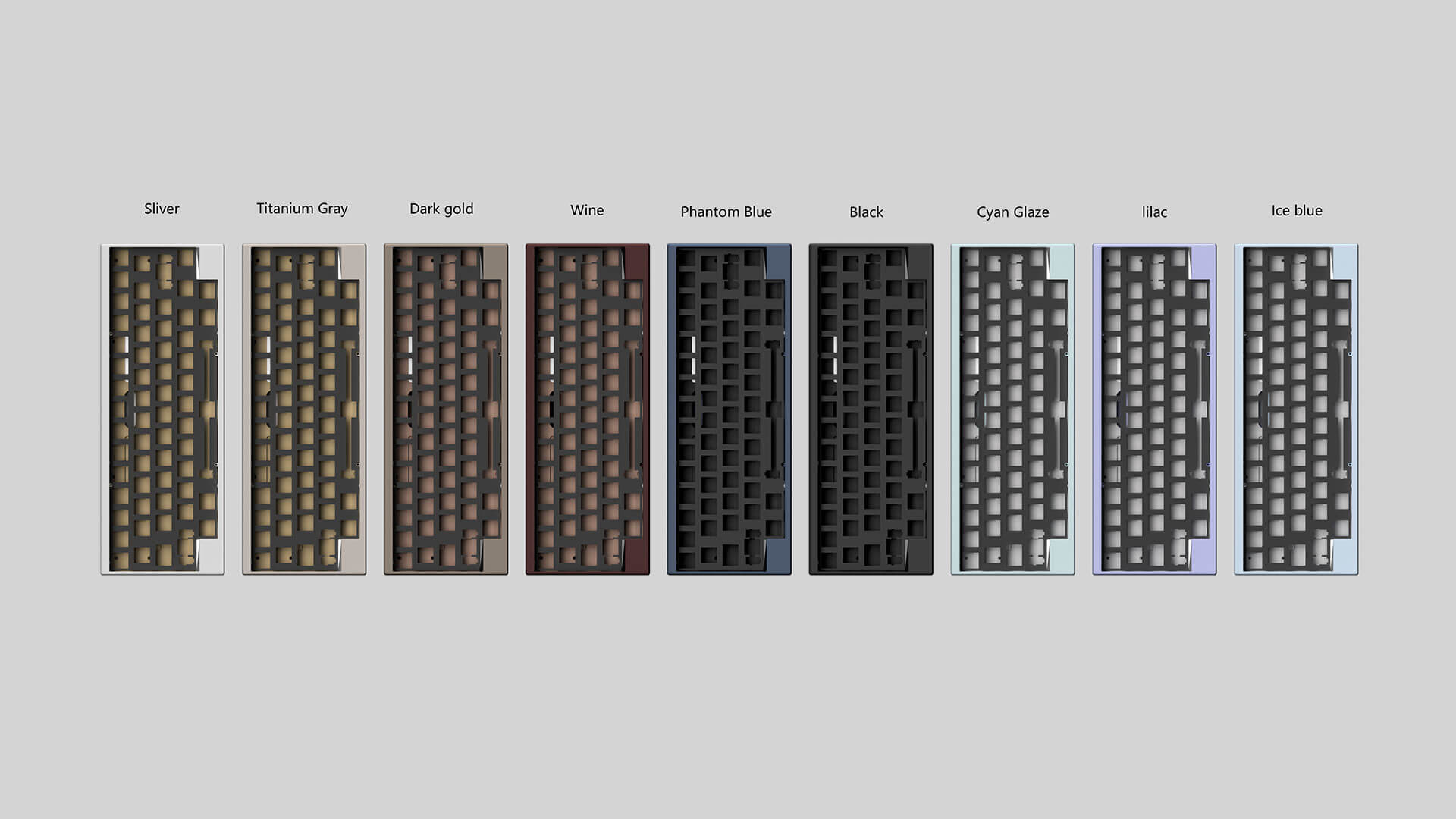

Color Combinations

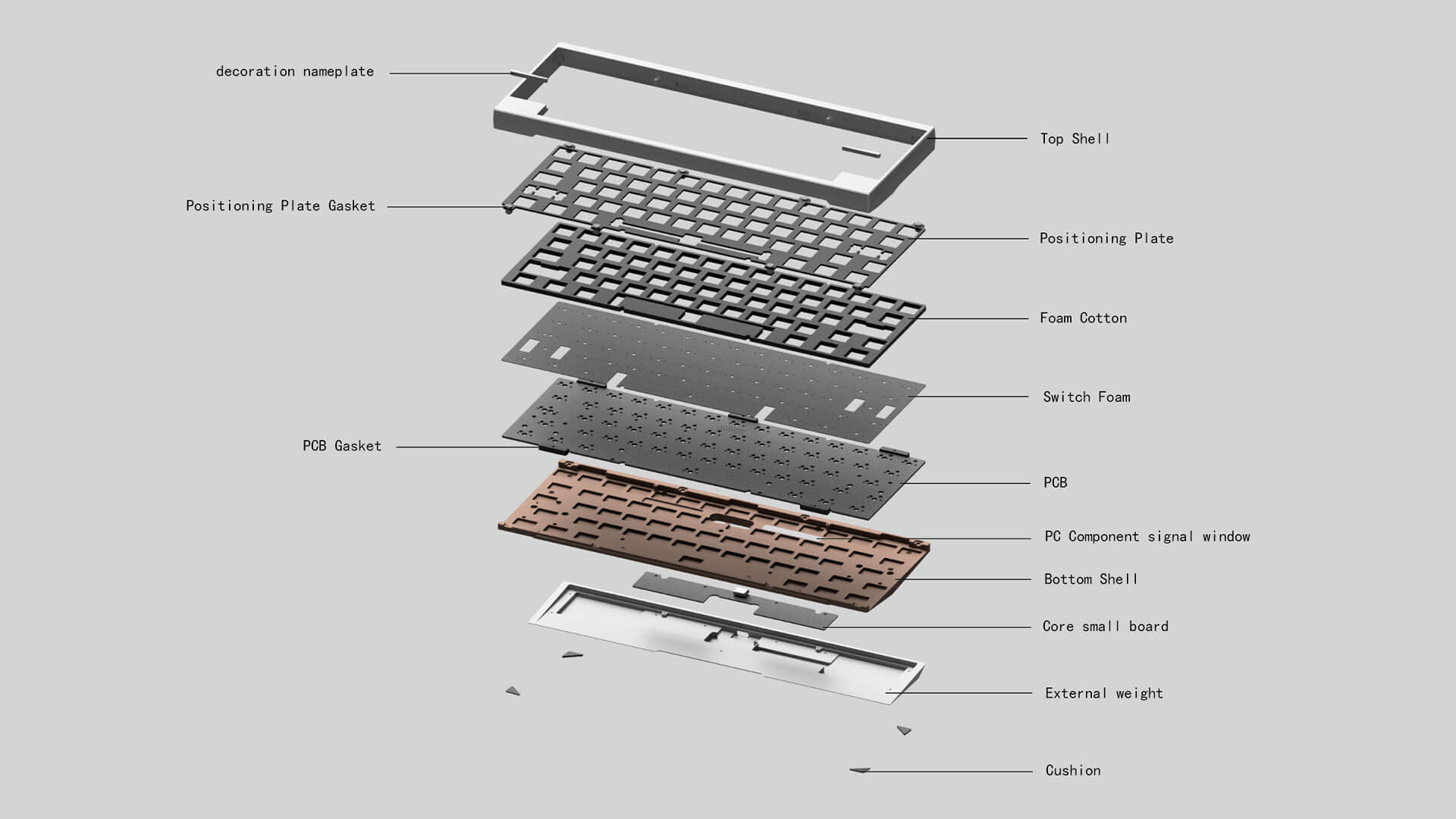

Structure Diagram

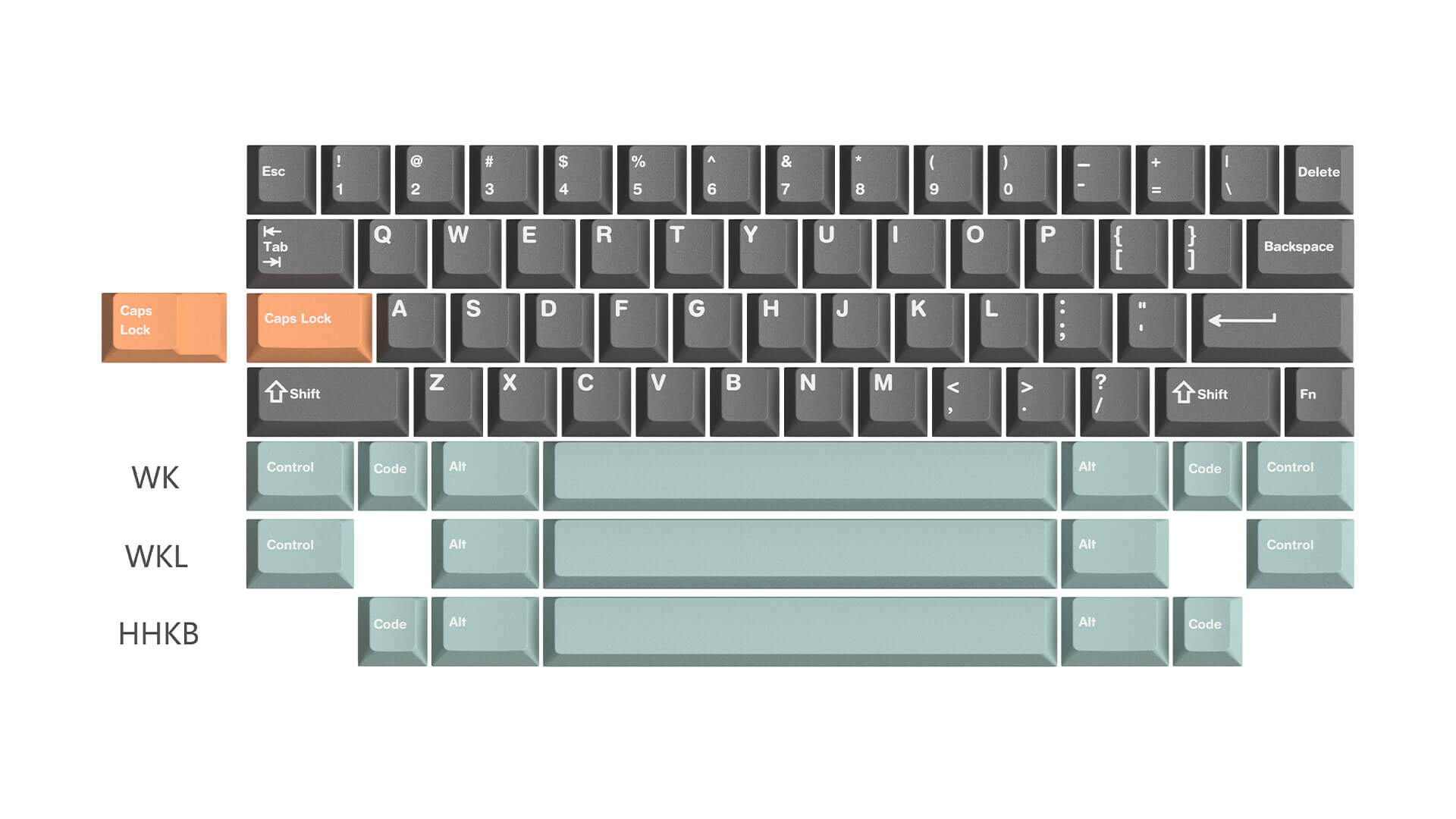

Supported Layouts

Disclaimer

Since there are so many variations, many of the images provided on the product page are renders and are for display purposes only. The renders are given to provide an idea to what the final product will look like. The physical product may have some differences. Please also refer to the prototype's photos as reference before purchasing.

Acceptable Quality Standards

Quality Standards Document 🔗

Please read this document to see what type of quality control standards will apply to DK1-60%

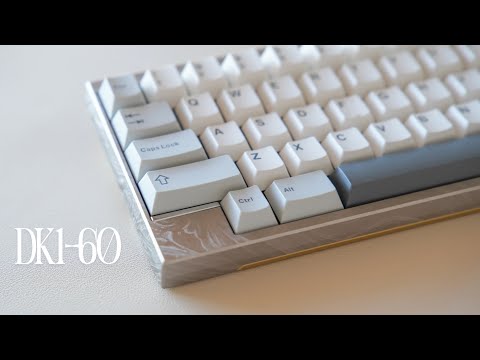

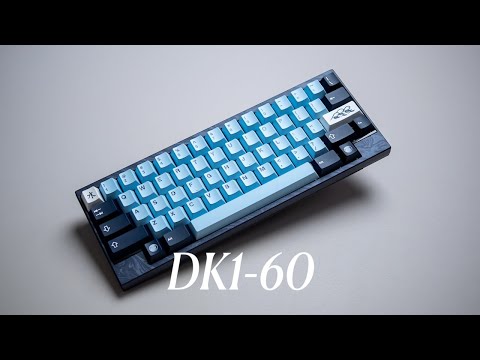

Videos

GB Information

Group buy runs from August 19 to September 2, 2025

Estimated to finish production in November, 2025

Delivery Estimates

Title

Ocean Freight

Arrives to Canada via a ship. Takes 45-60 days in transit. This is the standard import method used in most keyboard / deskmat group buys. It's much cheaper than Air Express but takes longer to arrive.

All units ordered via Ocean Freight are scheduled to ship out of Wuque Studio around November, 2025 and should arrive to us 45 to 60 days later.

Air Express

Arrives to Canada via a cargo airplane, takes 7-18 days in transit. This import method is very expensive, as such some of the items brought over via Air Express have a markup added to cover the extra expenses

All units ordered via Air Express are scheduled to ship out of Wuque Studio around November, 2025 and should arrive to us 7 to 14 days later.

IMPORTANT

You cannot combine Ocean Freight and Air Express items in the same order. Each individual order has to contain either all Ocean Freight or all Air Express items. This is because they arrive at different times

Please keep in mind the ETA is just our best guess according to the information currently available to us. Unexpected issues and delays can happen at every stage of the process.

GB / Pre-order Policies

Title

Combinations

You cannot add any in-stock items to your order as we cannot guarantee its availability when the group buy is ready to ship.

If you're subscribed to our email list, you'll get an email before your group buy is ready to ship. In that email there will be instructions on how to add in-stock items to your group buy order and have them all ship together to save on shipping fees.

Modifications

You may modify your order until September 2, 2025

Please send an email to help@mech.land from the email address associated with your order and list the changes you'd like to see made.

Cancellations

You may cancel your order and get a refund until September 2, 2025

Please keep in mind we may keep 4% of the total from the refund as we do not get the transaction fees back from our payment processor. We may apply an additional penalty of up to 15% of the total if you choose to cancel after group buy is over.

Updates

Any status updates pertaining to this group buy will be posted in the status updates page.

Please follow the instructions on the contact us page if you need to change your address before the group buy ships.
